The utility model discloses an automatic cutting machine for waste and old plastic plates, comprising a rack; a work platform is connected onto the rack; a cutting platform is arranged on the work platform; a cutting slot is arranged on the cutting platform; a saw blade is arranged on the cutting slot and extends out of the upper side of the cutting platform; the saw blade is sheathed on a saw blade rotation shaft at the bottom surface of the work platform; a compression guide rotation wheel is arranged above the cutting platform at one side of the work platform; the compression guide rotation wheel is sheathed on a rotation wheel rotation shaft; a middle transition rotation wheel is fixed at the side of the rack; and the saw blade rotation shaft, the rotation wheel rotation shaft and the transition rotation wheel are respectively connected with and driven by a driving motor fixed at the bottom end of the rack through a belt assembly and a driving motor. Waste and old plastic cutting machines adopting the structure are simple and rapid in operation and the production efficiency is effectively improved.
Description
Technical field
The utility model relates to the cutting machine technical field, especially a kind of waste or used plastics sheet material automatic gas cutting machine.
Background technology
At present; In waste or used plastics body removal process; The plastic body that unlike material can occur is connected on the same plastic plate simultaneously, must it be separated the back classification and just can carry out recycling of next step, but prior art separates unlike material general only cutting apart through manual removal or with the saw cutter; Its working (machining) efficiency is low, and injures hand easily.
Summary of the invention
The purpose of the utility model is to provide a kind of band electromagnetic oven of pallet of weighing, and this electromagnetic oven has simple and reasonable for structure, and applying flexible is characteristics easily, and stable performance.
The purpose of the utility model is achieved in that a kind of waste or used plastics sheet material automatic gas cutting machine, comprises frame, is connected with workbench on the frame; Workbench is provided with Cutting platform, has cutting groove on the Cutting platform, and a saw blade is installed on the cutting groove and extends the Cutting platform top; It is characterized in that said saw blade is set on the saw blade turning cylinder of workbench bottom surface, the Cutting platform of workbench one side top is provided with and compresses the guiding runner; Compress the guiding rotaring wheeling sleeve and be located on the runner turning cylinder, excessive runner in the middle of the frame side is fixed with connects driving through belt component with the drive motors that is fixed on the frame bottom respectively between saw blade turning cylinder, runner turning cylinder and the excessive runner; Adopt the waste or used plastics cutting machine of this structure, during use, the plastic plate that will contain various material steadily is placed on the Cutting platform; The startup drive motors drives saw blade simultaneously and compresses the rotation of guiding runner, compresses guiding runner drive plastic plate and moves forward; In the forward direction moving process; Saw blade is responsible for the cutting and separating unlike material, and it is simple to operate, quick, effectively enhances productivity.
The utility model solves the technical scheme that its technical problem adopted: said runner turning cylinder is fixed on the workbench through bearing block; Compress the guiding rotaring wheeling sleeve and be located at runner turning cylinder one end and extend to Cutting platform top, the other end extends workbench and connects with belt component.
Said saw blade turning cylinder is through bearing block and be fixed on the workbench bottom surface, and saw blade is set in saw blade turning cylinder one end and extends in the cutting groove, and the other end extends workbench and connects with belt component.
Improvement as above-mentioned embodiment; Be on the said workbench and vertically be fixed with column; Column has extended longitudinally guide rail on the both sides, and a slide is seated on the guide rail and is slidingly connected with column, and the column end face is provided with regulates the lifting bolt of slide along the upper and lower up-down of column; Lifting bolt is terminal affixed with slide; The runner turning cylinder is fixed on the slide end face through bearing block and regulates with the upper and lower up-down of slide, can follow slide along the upper and lower up-down adjusting of column owing to be arranged with the runner turning cylinder that compresses the guiding runner, makes the waste or used plastics sheet material automatic gas cutting machine of the utility model can use the plastic plate of different-thickness to carry out cutting and separating; Regulate simple and conveniently, quick, effectively improve product and use flexibility.
As the improvement of above-mentioned embodiment, said workbench one side also is provided with adjustable backup plate, and the forward and backward bottom of adjustable backup plate is extended with the slip location-plate; Have locating slot on the Cutting platform of corresponding slip location-plate; Adjustable backup plate can left and right slip on locating slot through two slip location-plates, on the two slip location-plates bolt is installed also, and bolt is screwed onto that its end can screw tight workbench bottom surface and stationary adjustable formula backup plate on the slip location-plate; Adjustable backup plate can left and right slip on locating slot through two slip location-plates; When making the cutting plastic plate, its sheet material can abut against on the adjustable backup plate on one side, moves and cuts through compressing guiding runner drive plastic plate forward direction again; It is linear more that plastic plate is moved, and improves cutting accuracy.
The beneficial effect of the utility model is: during use, the plastic plate that will contain various material steadily is placed on the Cutting platform, starts drive motors; Drive saw blade simultaneously and compress the rotation of guiding runner, compress guiding runner drive plastic plate and move forward, in the forward direction moving process; Saw blade is responsible for the cutting and separating unlike material, and it is simple to operate, quick, effectively enhances productivity; Cooperate slide and adjustable backup plate again, effectively improve product and use flexibility.
Description of drawings

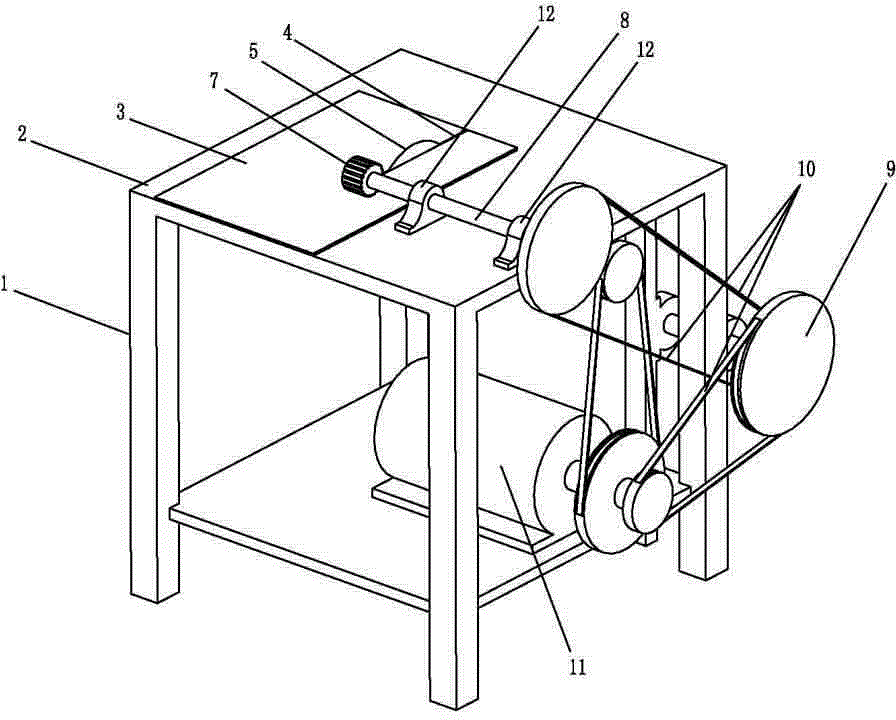

Fig. 1 is the structural representation of the utility model first embodiment.
Fig. 2 is the structural representation of the utility model first another angle of embodiment.
Fig. 3 is the structural representation of second and third embodiment of the utility model.
Fig. 4 is the structural representation of second and third another angle of embodiment of the utility model.
The specific embodiment
Below in conjunction with accompanying drawing and embodiment the utility model is further specified.
First embodiment: shown in Figure 2 like Fig. 1, a kind of waste or used plastics sheet material automatic gas cutting machine comprises frame 1; Be connected with workbench 2 on the frame 1, workbench 2 is provided with Cutting platform 3, has cutting groove 4 on the Cutting platform 3; One saw blade 5 is installed on the cutting groove 4 and extends Cutting platform 3 tops, it is characterized in that, said saw blade 5 is set on the saw blade turning cylinder 6 of workbench 2 bottom surfaces; Cutting platform 3 tops of workbench 2 one sides are provided with and compress guiding runner 7, compress guiding runner 7 and are set on the runner turning cylinder 8, excessive runner 9 in the middle of frame 1 side is fixed with; Connect driving through belt component 10 with the drive motors 11 that is fixed on frame 1 bottom respectively between saw blade turning cylinder 6, runner turning cylinder 8 and the excessive runner 7, adopt the waste or used plastics cutting machine of this structure, during use; The plastic plate that will contain various material steadily is placed on the Cutting platform 3, starts drive motors 11, drives saw blade 5 simultaneously and compresses 7 rotations of guiding runner; Compress guiding runner 7 drive plastic plates and move forward, in the forward direction moving process, saw blade 5 is responsible for the cutting and separating unlike materials; It is simple to operate, quick, effectively enhances productivity.
Said runner turning cylinder 8 is fixed on the workbench 2 through bearing block 12, compresses guiding runner 7 and is set in runner turning cylinder 8 one ends and extends to Cutting platform 3 tops, and the other end extends workbench 2 and connects with belt component 10.
Said saw blade turning cylinder 6 is through bearing block 13 and be fixed on workbench 2 bottom surfaces, and saw blade 5 is set in saw blade turning cylinder 5 one ends and extends in the cutting groove 4, and the other end extends workbench 2 and connects with belt component 10.
Second embodiment: like Fig. 3 and Fig. 4; Be on the said workbench 2 and vertically be fixed with column 14; Extended longitudinally guide rail 15, one slides 16 on column 14 both sides and be seated on the guide rail 15 and be slidingly connected with column 14, column 14 end faces are provided with regulates the lifting bolt 17 of slide 16 along column 14 upper and lower up-downs; Lifting bolt 17 is terminal affixed with slide 16; Runner turning cylinder 8 is fixed on slide 16 end faces through bearing block 12 and regulates with slide 16 upper and lower up-downs, can follow slide 16 along column 14 upper and lower up-downs adjustings owing to be arranged with the runner turning cylinder 8 that compresses guiding runner 7, makes the waste or used plastics sheet material automatic gas cutting machine of the utility model can use the plastic plate of different-thickness to carry out cutting and separating; Regulate simple and conveniently, quick, effectively improve product and use flexibility.
The 3rd embodiment: like Fig. 3 and Fig. 4, said workbench 2 one sides also are provided with adjustable backup plate 18, and adjustable backup plate 18 forward and backward bottoms are extended with slip location-plate 19; Have locating slot 20 on the Cutting platform 3 of corresponding slip location-plate 19; Adjustable backup plate 18 can left and right slip on locating slot 20 through two slip location-plates 19, on the two slip location-plates 19 bolt 21 is installed also, and bolt 21 is screwed onto that its end can screw tight workbench 2 bottom surfaces and stationary adjustable formula backup plate 18 on the slip location-plate 19; Adjustable backup plate 18 can left and right slip on locating slot 20 through two slip location-plates 19; When making the cutting plastic plate, its sheet material can abut against on the adjustable backup plate 18 on one side, moves and cuts through compressing guiding runner 7 drive plastic plate forward directions again; It is linear more that plastic plate is moved, and improves cutting accuracy.
Above-described specific embodiment is merely the utility model preferred embodiment, the equivalent arrangements of being done according to the utility model claim such as, and the technology that all should be the utility model contains.
Claims (5)
1. waste or used plastics sheet material automatic gas cutting machine; Comprise frame (1); Be connected with workbench (2) on the frame (1); Workbench (2) is provided with Cutting platform (3), has cutting groove (4) on the Cutting platform (3), and a saw blade (5) is installed on the cutting groove (4) and extends Cutting platform (3) top; It is characterized in that; Said saw blade (5) is set on the saw blade turning cylinder (6) of workbench (2) bottom surface, and the Cutting platform (3) of workbench (2) one sides top is provided with and compresses guiding runner (7), compresses guiding runner (7) and is set on the runner turning cylinder (8); Excessive runner (9) in the middle of frame (1) side is fixed with connects driving through belt component (10) with the drive motors (11) that is fixed on frame (1) bottom respectively between saw blade turning cylinder (6), runner turning cylinder (8) and the excessive runner (7).
2. waste or used plastics sheet material automatic gas cutting machine according to claim 1; It is characterized in that: said runner turning cylinder (8) is fixed on the workbench (2) through bearing block (12); Compress guiding runner (7) and be set in runner turning cylinder (8) one ends and extend to Cutting platform (3) top, the other end extends workbench (2) and connects with belt component (10).
3. waste or used plastics sheet material automatic gas cutting machine according to claim 1; It is characterized in that: said saw blade turning cylinder (6) is through bearing block (13) and be fixed on workbench (2) bottom surface; Saw blade (5) is set in saw blade turning cylinder (5) one ends and extends in the cutting groove (4), and the other end extends workbench (2) and connects with belt component (10).
4. waste or used plastics sheet material automatic gas cutting machine according to claim 1; It is characterized in that: be on the said workbench (2) and vertically be fixed with column (14); Column (14) has extended longitudinally guide rail (15) on the both sides; One slide (16) is seated on the guide rail (15) and column (14) is slidingly connected; Column (14) end face is provided with regulates the lifting bolt (17) of slide (16) along the upper and lower up-down of column (14), and lifting bolt (17) is terminal affixed with slide (16), and runner turning cylinder (8) is fixed on slide (16) end face through bearing block (12) and regulates with the upper and lower up-down of slide (16).
5. waste or used plastics sheet material automatic gas cutting machine according to claim 1; It is characterized in that: said workbench (2) one sides also are provided with adjustable backup plate (18); The forward and backward bottom of adjustable backup plate (18) is extended with slip location-plate (19); Have locating slot (20) on the Cutting platform (3) of corresponding slip location-plate (19); Adjustable backup plate (18) can be gone up left and right slip at locating slot (20) through two slip location-plates (19); On the two slip location-plates (19) bolt (21) is installed also, bolt (21) is screwed onto last its end of slip location-plate (19) can screw tight workbench (2) bottom surface and stationary adjustable formula backup plate (18).
