Abstract
Provided is a positioning tool fixing device for an inductance component soldering tin, comprising a convex substrate. Two ends of the substrate are provided with a first hanging hole and a second hanging hole, between which a positioning socket is disposed. The positioning socket includes a positioning slot, two locating pins and a magnetic body. The positioning slot includes a groove and a trough, wherein the groove is disposed on the upper surface of the substrate; the trough is disposed right below the groove; the groove and the trough are vertical to each other; the groove is provided with a through hole communicated with the trough. Two locating pins are disposed in the groove, and the magnetic body is disposed in the trough. The locating pins are disposed above the magnetic body with an interval. The positioning tool fixing device is advantageous in that the structure is simple, and the operation is convenient; products can be fixed and can be prevented from being bumped during the process of working and transportation; product characteristic can accord with the specification requirement; cost can be reduced.
Description
Technical field
The utility model relates to a kind of fixing device of localization tool, is specifically related to a kind of inductance element scolding tin fixing device of localization tool.
Technical background
Inductance is one of components and parts commonly used in the electronic circuit; high speed development along with the electron trade technology; the demand of inductance also is to increase day by day; inductor is generally by skeleton; winding; radome; encapsulating material; composition such as magnetic core or iron core; automated production equipment with respect to high investment; present most enterprise still uses manual operation to finish in manufacturing process; inductance is as a kind of electronic devices and components; its volume is less; hand assembled; often have the location inaccuracy; the scolding tin difficulty; point glue is difficult for; situations such as length consuming time take place; and the operation back all is that when operating personnel were transported to subsequent processing with product, element can become flexible or be shifted with scattered being deposited in workbench or the test box of product generally; thereby can influence the quality and the production efficiency of product, cause having some setbacks of production process.
The utility model content
Technical problem to be solved in the utility model is at above-mentioned deficiency of the prior art, a kind of inductance element assembling localization tool that integrates combination, some glue, toasts, cuts pin, scolding tin, cleaning, encapsulating is provided, location inaccuracy, scolding tin difficulty, difficult, the length consuming time of some glue have been solved, technical problems such as convenient transportation.
In order to realize this purpose, the utility model has adopted following technical scheme:
A kind of inductance element scolding tin fixing device of localization tool, comprise substrate, described substrate two ends are provided with first hanging hole and second hanging hole, be provided with positioning socket between described first hanging hole and second hanging hole, described positioning socket comprises location notch, two pilot pins and a magnet, described location notch comprises groove and draw-in groove, described groove is located at the upper surface of described substrate, described draw-in groove is located under the described groove and is vertical mutually, be provided with a through hole in the described groove, described through hole is connected with draw-in groove, and described two pilot pins place described groove, described magnet places described draw-in groove, and described pilot pin is positioned at the magnet top and keeps at a certain distance away with described magnet.
Described substrate is a convex, is provided with a positioning socket on this substrate at least, and the number of positioning socket and spacing can be provided with voluntarily according to needs of production.
Described pilot pin is that alloy material is made.
Described pilot pin is cube, cylinder or polygon prism, and the spacing of two pilot pins can be provided with voluntarily according to the actual production demand.
Described magnet is a permanent magnet, and permanent magnet can prolong tool service time, reduces cost.
Described magnet places under the through hole, helps the applying of magnet and element, reduces offset.
Described magnet and draw-in groove adopt the mode of interference fit to closely cooperate.
The width of described draw-in groove is less than the width of groove.
The utility model contrast prior art has following advantage: simple in structure, easy to operate, the energy fixed product is avoided product product collision in operation and transportation, guarantees product performance requirement up to specification.
Description of drawings

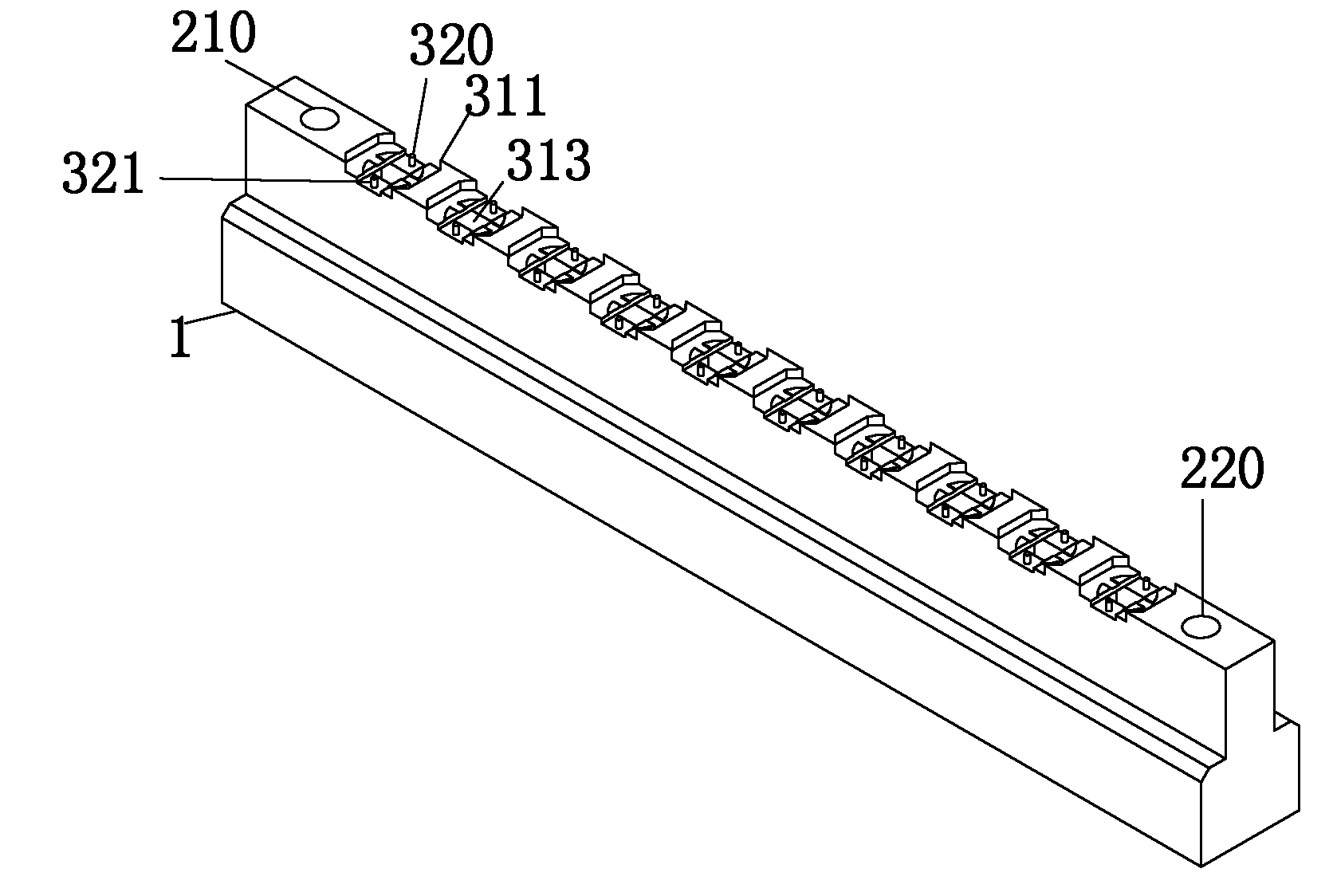

Accompanying drawing 1 is a structure chart of the present utility model;
Accompanying drawing 2 is a vertical view of the present utility model;
Accompanying drawing 3 is a front view of the present utility model;
Accompanying drawing 4 is an end view of the present utility model;
Accompanying drawing 5 is user mode figure of the present utility model;
Accompanying drawing 6 is a user mode end view of the present utility model;
Accompanying drawing 7 is a user mode vertical view of the present utility model.
Embodiment
Referring now to accompanying drawing, further describe the utility model.
As Fig. 1,2,3, shown in 4, a kind of inductance element fixing device of localization tool comprises substrate 1.
Pilot pin 320,321 is made for alloy material, and pilot pin 320,321 is cube, cylinder or polygon prism, and the spacing of two pilot pins 320,321 can be provided with voluntarily according to the actual production demand.
Inductance element is made by conducting material coiling magnetic core, and is typical in copper cash, also can remove magnetic core or use ferrimagnet.
When using this device, as Fig. 5,6, shown in 7, magnet 330 fixedly places in the draw-in groove 312, pilot pin 320,321 embed the relevant position in the groove 311, operating personnel put into the detent 311 of tool, detent 311 overall dimensions and inductance element consistent size, two pilot pins 320 with inductance element 400 according to correct orientation, I-shaped groove in the 321 corresponding inductance elements 400, so that play fixation, to guarantee to be offset about magnetic core 410 is not understood, magnet 330 attracts the magnetic cores 410 in the inductance elements 400 to play fixation up and down.
Above-described the utility model execution mode does not constitute the qualification to the utility model protection range.Any modification of within spirit of the present utility model and principle, being done, be equal to and replace and improvement etc., all should be included within the claim protection range of the present utility model.
Claims (8)
1. inductance element scolding tin fixing device of localization tool, comprise substrate, it is characterized in that, described substrate two ends are provided with first hanging hole and second hanging hole, be provided with positioning socket between described first hanging hole and second hanging hole, described positioning socket comprises location notch, two pilot pins and a magnet, described location notch comprises groove and draw-in groove, described groove is located at the upper surface of described substrate, described draw-in groove is located under the described groove and is vertical mutually, be provided with a through hole in the described groove, described through hole is connected with draw-in groove, described two pilot pins place described groove, and described magnet places described draw-in groove, and described pilot pin is positioned at the magnet top and keeps at a certain distance away with described magnet.
2. according to the described a kind of inductance element scolding tin fixing device of localization tool of claim 1, it is characterized in that described substrate is a convex, be provided with a positioning socket on this substrate at least.
3. according to the described a kind of inductance element scolding tin fixing device of localization tool of claim 1, it is characterized in that described pilot pin is that alloy material is made.
4. according to claim 1 or 3 described a kind of inductance element scolding tin fixing device of localization tool, it is characterized in that described pilot pin is cube, cylinder or polygon prism.
5. according to the described a kind of inductance element scolding tin fixing device of localization tool of claim 1, it is characterized in that described magnet is a permanent magnet.
6. according to claim 1 or 5 described a kind of inductance element scolding tin fixing device of localization tool, it is characterized in that described magnet places under the through hole.
7. according to the described a kind of inductance element scolding tin fixing device of localization tool of claim 6, it is characterized in that described magnet and draw-in groove adopt the mode of interference fit to closely cooperate.
8. according to claim 1 or 7 described a kind of inductance element scolding tin fixing device of localization tool, it is characterized in that the width of described draw-in groove is less than the width of groove.
