CN201821782U - Fish and shrimp catching device - Google Patents

Fish and shrimp catching device Download PDF

Info

Publication number
CN201821782U
CN201821782U CN2010202968828U CN201020296882U CN201821782U CN 201821782 U CN201821782 U CN 201821782U CN 2010202968828 U CN2010202968828 U CN 2010202968828U CN 201020296882 U CN201020296882 U CN 201020296882U CN 201821782 U CN201821782 U CN 201821782U
Authority
CN
China
Prior art keywords
pocket
fishing
support ring
fish
transition
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Expired - Fee Related
Application number
CN2010202968828U
Other languages
Chinese (zh)
Inventor
王晓明
Original Assignee
王晓明
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by 王晓明 filed Critical 王晓明
Priority to CN2010202968828U priority Critical patent/CN201821782U/en
Application granted granted Critical
Publication of CN201821782U publication Critical patent/CN201821782U/en
Anticipated expiration legal-status Critical
Expired - Fee Related legal-status Critical Current

Links

Abstract

A fish and shrimp catching device comprises a net cage. A supporting ring and a fish catching bag are arranged at the upper end of the net cage, the lower portion of the fish catching bag is horn-shaped, another supporting ring is disposed on the upper portion of the horn-shaped lower portion of the fish catching bag, a fish inlet with inverse tassels is arranged on the lower portion of the horn-shaped lower portion of the fish catching bag, and the supporting ring of the net cage is detachably connected with the supporting ring of the fish catching bag. The fish and shrimp catching device is placed in a cultivation water surface of a pond, a lake, a brook and the like or in a natural water area, saves time and labor compared with like nets, reduces manual operation in fishing operation, reduces fish and shrimp catching cost, and increases fish and shrimp catching yield.

Description

A kind of fishing shrimp device
Technical field
The utility model relates to a kind of fishing gear, is specifically related to a kind of fishing shrimp device.
Background technology
China is world fresh water fishery developed country, yet the slow of shrimp renewal of facility fished in fishery, and the fishery rate of recapture is not high.Generally adopt the sheet net rivers and lakes, natural water area or fish pond fishing shrimp in the prior art, the fishing shrimp is difficulty, and the seizure amount is few.
Summary of the invention
The purpose of this utility model is to disclose a kind of fishing shrimp device, and this apparatus structure is simple, saves time, laborsaving, and is easy to operate in fishing operation, and fishing shrimp cost is low.
The technical scheme that technical problem adopted that the utility model solves is:
A kind of fishing shrimp device, comprise cylinder mould, the cylinder mould upper end is provided with support ring, it is characterized in that: also comprise the fishing pocket, the bottom of fishing pocket is horn-like, the loudspeaker top of fishing pocket is provided with support ring, and the loudspeaker bottom of fishing pocket is provided with down the fish inlet of palpus, and the support ring of the support ring of cylinder mould and fishing pocket removably connects.During use, after pocket is connected with fishing cylinder mould, be provided with bait materials such as bait or bait illuminator at cylinder mould, the utility model is placed water surface for aquaculture or natural waters such as pond, lake, stream, fishes and shrimps are under the inducing of bait material, enter into the fish inlet of fishing pocket from the loudspeaker top of fishing pocket,, just be difficult to after fishes and shrimps enter escape because the fish inlet of fishing pocket is provided with down palpus.It is a lot of to removably connect, in concrete enforcement, between the support ring of the support ring of cylinder mould and fishing pocket for being threaded.
In concrete enforcement, cylinder mould and fishing pocket are provided with the transition pocket, transition pocket bottom is horn-like, the loudspeaker top of transition pocket is provided with the lower support ring, the loudspeaker bottom of transition pocket is provided with down the fish inlet of palpus, and the top of transition pocket is provided with the transition net, and the online end of transition is provided with the upper support ring, the lower support ring of transition pocket and the support ring of cylinder mould removably connect, and the support ring of the upper support ring of transition pocket and fishing pocket removably connects.During use, cylinder mould, fishing pocket and after the transition pocket is connected are placed on fishing shrimp places such as fish pond or river, and fishes and shrimps are under the inducing of bait material, and fishes and shrimps enter the transition pocket from fishing pocket, enter cylinder mould again, and fishes and shrimps more are unable to escape and are taken off like this.During concrete the use, can increase the number of fishing pocket, to increase the difficulty that fishes and shrimps are escaped.It is a lot of to removably connect, in concrete enforcement, between the lower support ring of transition pocket and the support ring of cylinder mould for being threaded, the upper support ring of transition pocket and fishing between the support ring of pocket to being threaded.
During concrete the use, on cylinder mould, be provided with handgrip, on handgrip, can bind rope, so just easily the utility model is placed in the fishing places such as fish pond or river, and is easy to fish-catching apparatus is fetched from water.
The utility model device is being fished the fan when fishing, and can mix severally, is placed in the river embankment, when fishing, has also increased the output of fishing shrimp, heightens the enjoyment.The utility model device is placed in the pool, and the jacklighter can leave, and to certain the time, removes retraction mechanism, saves time, laborsaving.
The invention has the beneficial effects as follows: the utility model places water surface for aquaculture or natural waters such as pond, lake, stream, than similar netting gear save time, laborsaving, in fishing operation, reduce the personnel to operate, reduce fishing shrimp cost, improve fishing shrimp output.
Description of drawings
The present invention is further described below in conjunction with drawings and Examples.

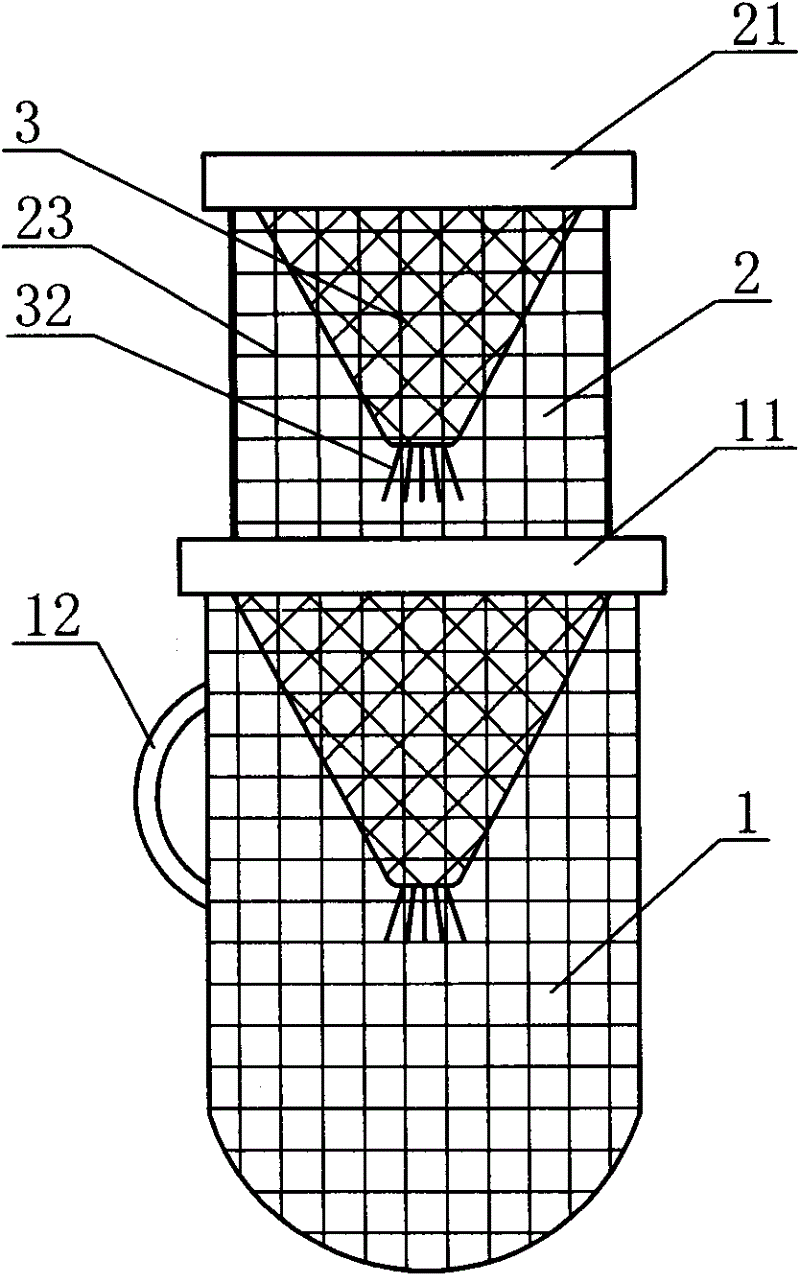

Fig. 1 is the structural representation of the utility model embodiment; Fig. 2 is the structural representation after the assembling of the utility model embodiment.
Among the figure: 1, cylinder mould 2, transition pocket 3 fishing pockets 11, support ring 1, handgrip 21, upper support ring 22, lower support ring 23, transition net 31, support ring 2 32, the palpus that falls
Embodiment
According to shown in Figure 1, the embodiment of the invention is stated below:
As Fig. 1, among Fig. 2, a kind of fishing shrimp device, comprise cylinder mould 1, fishing pocket 3 and transition pocket 2, cylinder mould 1 is provided with handgrip 12, cylinder mould 1 upper end is provided with support ring 1, the bottom of fishing pocket 3 is horn-like, the loudspeaker top of fishing pocket 3 is provided with support ring two, the loudspeaker bottom of fishing pocket 3 is provided with down the fish inlet of palpus 32, transition pocket 2 substructures are identical with fishing pocket 3, for horn-like, the loudspeaker top of transition pocket 2 is provided with lower support ring 22, and the loudspeaker bottom of transition pocket 2 is provided with down the fish inlet of palpus, the top of transition pocket 2 is provided with transition net 23, transition net 23 upper ends are provided with upper support ring 21, and one 11 of the lower support ring 22 of transition pocket 2 and the support rings of cylinder mould 1 be for being threaded, and 2 31 of the support rings of the upper support ring 21 of transition pocket 2 and fishing pocket 3 are for being threaded.
During concrete the use, as shown in Figure 2, cylinder mould 1, transition pocket 2 and 3 in pocket of fishing are threaded, be provided with bait materials such as bait or bait illuminator at cylinder mould 1, can bind rope on the handgrip 12, so just place water surface for aquaculture or natural waters such as pond, lake, stream easily, fishes and shrimps are under the inducing of bait material, enter into the fish inlet of fishing pocket 3 from the loudspeaker top of fishing pocket, enter transition pocket 2, have the part fishes and shrimps to enter cylinder mould 1, because the fish inlet of fishing pocket 3 and transition pocket 2 is provided with down palpus 32, fishes and shrimps more are unable to escape and are taken off like this.Regular hour in being placed on fish pond or river just can get back to the bank with rope, and the screw thread that the cylinder mould 1 of outwarding winding, transition pocket 2 and fishing pocket are 3 just can take out fishes and shrimps.

Claims (5)

1. fish the shrimp device for one kind, comprise cylinder mould, the cylinder mould upper end is provided with support ring, it is characterized in that: also comprise the fishing pocket, the bottom of fishing pocket is horn-like, the loudspeaker top of fishing pocket is provided with support ring, and the loudspeaker bottom of fishing pocket is provided with down the fish inlet of palpus, and the support ring of the support ring of cylinder mould and fishing pocket removably connects.
2. a kind of fishing shrimp device according to claim 1, it is characterized in that being provided with the transition pocket at above-mentioned cylinder mould and fishing pocket, transition pocket bottom is horn-like, the loudspeaker top of transition pocket is provided with the lower support ring, the loudspeaker bottom of transition pocket is provided with down the fish inlet of palpus, and the top of transition pocket is provided with the transition net, and the online end of transition is provided with the upper support ring, the lower support ring of transition pocket and the support ring of cylinder mould removably connect, and the support ring of the upper support ring of transition pocket and fishing pocket removably connects.
3. a kind of fishing shrimp device according to claim 1 is characterized in that between the support ring of the support ring of above-mentioned cylinder mould and fishing pocket for being threaded.
4. a kind of fishing shrimp device according to claim 2 is characterized in that between the support ring of the lower support ring of above-mentioned transition pocket and cylinder mould for being threaded, between the support ring of the upper support ring of transition pocket and fishing pocket for being threaded.
5. according to the described a kind of fishing shrimp device of arbitrary claim of claim 1 to 4, it is characterized in that the above-mentioned handgrip that on cylinder mould, is provided with.
