Abstract
本实用新型公开了一种以聚合物砂浆为防护装饰层的外墙外保温系统构造，其特征是，系统保温层表面为一层柔性普通聚合物砂浆，聚合物砂浆层上铺设玻璃纤维网格布，网格布上是彩色聚合物装饰砂浆，构成防护装饰层。以聚合物砂浆为防护装饰层的外墙外保温系统构造如图所示。图中：①是基层，建筑物外墙墙体；②是粘贴固定膨胀聚苯板或挤塑聚苯板的胶粘剂；③是膨胀聚苯板或挤塑聚苯板保温层；④是起到机械辅助连接作用的锚栓；⑤是柔性普通聚合物砂浆层；⑥是起增强作用的玻璃纤维网格布；⑦是彩色聚合物装饰砂浆面层。②～⑦构成以聚合物砂浆为防护装饰层的外墙外保温系统。
The utility model discloses a structure of an external thermal insulation system for an exterior wall with polymer mortar as a protective decorative layer, which is characterized in that the surface of the thermal insulation layer of the system is a layer of flexible common polymer mortar, and glass fiber grids are laid on the polymer mortar layer The mesh cloth is colored polymer decorative mortar to form a protective decorative layer. The structure of the external wall thermal insulation system with polymer mortar as the protective decorative layer is shown in the figure. In the figure: ① is the base layer, the outer wall of the building; ② is the adhesive for pasting and fixing expanded polystyrene board or extruded polystyrene board; ③ is the thermal insulation layer of expanded polystyrene board or extruded polystyrene board; Anchor bolts for mechanically assisted connection; ⑤ is a flexible ordinary polymer mortar layer; ⑥ is a glass fiber mesh cloth for reinforcement; ⑦ is a colored polymer decorative mortar surface layer. ②～⑦ constitute the external wall thermal insulation system with polymer mortar as the protective decorative layer.
Description
Technical field:
It is the external thermal insulation system of protected decoration layer with the polymer mortar that the utility model relates to a kind of, this system adopts polymer mortar to the protection of insulation layer, this polymer mortar layer has decoration functions simultaneously except having protective action, no longer need the veneer coating layer.
Background technology:
It is insulation layer that present building exterior wall heat preserving system adopts expansion polyphenyl plate or extruded polystyrene board, use polymer-modified cement-based bonding adhesive that insulation layer is pasted on wall face, insulation layer surface adopts polymer-modified cement-based finishing mucilage as the cracking resistance overcoat, the cracking resistance overcoat surface coating ornamental surface layer of must constructing again.Because the flexibility of polymer-modified cement-based cracking resistance overcoat is poor, usually cause external thermal insulation system cracking, infiltration phenomenon to occur.Simultaneously, because construction cracking resistance overcoat and finish coat belong to the operation of different work posts, construction is complicated, and is long in time limit, the expenses of labour height.
The utility model content:
In order to overcome present shortcoming and to solve the problem that exists, the utility model provides a kind of new external thermal insulation system structure.This system adopts the flexible polymer mortar and the chromogen bonded polymer decoration mortar that can have decoration functions and protective effect is provided simultaneously; composite glass fiber grid cloth in the polymeric trim screed; like this decoration overcoat of Xing Chenging have that anticracking, anti-water ooze, protection and decoration functions, the surface does not need supporting decorative paint surface layer again.
The beneficial effects of the utility model are: because polymer mortar layer is flexible good, make the novel external wall outer heat preservation system can effectively solve expansion polyphenyl plate, the cracking of thinly plastered external wall of extruded polystyrene board outer heat preservation system, seepage problem; Because polymer mortar layer has decoration functions, need not be coated with the construction exterior wall coating material again on the overcoat surface, reduce cost; Because the protected decoration layer only needs a work post construction, simplifies working process, and reduces operating expenses.
Below in conjunction with drawings and Examples the utility model is further specified.
Description of drawings:

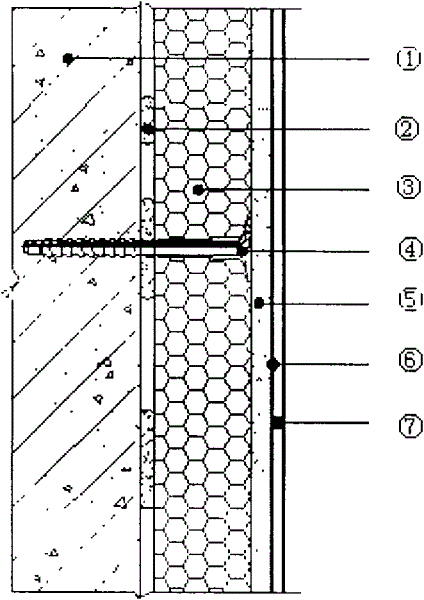

Accompanying drawing is layer of structure figure of the present utility model.
In the accompanying drawings: 1. being basic unit's body of wall, can be masonry structure, also can be the structure wall of concrete pouring body of wall or other types; 2. be the bonding adhesive of pasting fixed expansion polyphenyl plate or extruded polystyrene board; 3. be expansion polyphenyl plate or extruded polystyrene board insulation layer; 4. be the crab-bolt that plays the mechanical assistance interconnect function; 5. be flexible general polymer screed; 6. be the fiberglass gridding cloth of humidification; 7. be chromogen bonded polymer decoration mortar surface layer.
2.～7. constitute with the polymer mortar is the external thermal insulation system of protected decoration layer.
Below the utility model is described in further detail by the specific embodiment.
The specific embodiment, non-limiting examples is as described below:
Embodiment 1
The external thermal insulation system structure insulation layer that with the polymer mortar is the protected decoration layer is an expansion polyphenyl plate, adopts that polymer-modified cement-based bonding adhesive is pasted, auxiliary crab-bolt mechanical connection is fixed in the exterior wall external surface; The insulation layer surface of system is the thick flexible general polymer screed of one deck 1mm～2mm, and fiberglass gridding cloth is applied in shop, screed surface, then is the thick chromogen bonded polymer decoration mortar layer of one deck 1mm～2mm.That is, system construction is: the thick flexible general polymer screed → fiberglass gridding cloth of the basic unit's body of wall → expansion polyphenyl plate heat preserving layer → 1mm～2mm → thick chromogen bonded polymer decoration mortar of 1mm～2mm layer.
Embodiment 2
The external thermal insulation system structure insulation layer that with the polymer mortar is the protected decoration layer is an extruded polystyrene board, adopts that polymer-modified cement-based bonding adhesive is pasted, auxiliary crab-bolt mechanical connection is fixed in the exterior wall external surface; The insulation layer surface of system is the thick flexible general polymer screed of one deck 1mm～2mm, and fiberglass gridding cloth is applied in shop, screed surface, then is the thick chromogen bonded polymer decoration mortar layer of one deck 1mm～2mm.That is, system construction is: the thick flexible general polymer screed → fiberglass gridding cloth of the basic unit's body of wall → extruded polystyrene board insulation layer → 1mm～2mm → thick chromogen bonded polymer decoration mortar of 1mm～2mm layer.
Claims (1)
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN2010205444044U CN201817922U (en) | 2010-09-25 | 2010-09-25 | External thermal insulation system structure for external wall taking polymer mortar as protective and decorative layer |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN2010205444044U CN201817922U (en) | 2010-09-25 | 2010-09-25 | External thermal insulation system structure for external wall taking polymer mortar as protective and decorative layer |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN201817922U true CN201817922U (en) | 2011-05-04 |
Family
ID=43915886
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN2010205444044U Expired - Fee Related CN201817922U (en) | 2010-09-25 | 2010-09-25 | External thermal insulation system structure for external wall taking polymer mortar as protective and decorative layer |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN201817922U (en) |
Cited By (4)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN102296768A (en) * | 2011-05-11 | 2011-12-28 | 安徽省建筑科学研究设计院 | Anti-cracking-protective-layer-free building thermal insulation mortar exterior wall external thermal insulation system structure taking flexible polymer sandstone paint coating as protective and finishing coating |
| CN103276867A (en) * | 2013-06-13 | 2013-09-04 | 江苏尼高科技有限公司 | Colorful mortar veneering heat preservation and decoration integrated board |
| CN104675092A (en) * | 2013-11-29 | 2015-06-03 | 北京建筑材料科学研究总院有限公司 | Method for adhering face brick of building |
| CN111173218A (en) * | 2020-01-21 | 2020-05-19 | 深圳市卓宝科技股份有限公司 | A kind of decorative insulation board and preparation method thereof |
-
