Abstract
本发明专利公开了一种建筑保温砂浆外墙外保温系统构造，其特征是，它将通常系统中的抗裂防护层和真石漆涂料饰面层这两个构造层由柔性聚合物砂石漆涂层来代替，既起防护作用，又具有装饰效果。以柔性聚合物砂石漆为防护、饰面层的无抗裂防护层建筑保温砂浆外墙外保温系统构造如图所示：①是基层墙体；②是建筑保温砂浆保温层；③是玻璃纤维网格布；④弹性封闭底涂层；⑤是柔性聚合物砂石漆涂层。②～⑤构成以柔性聚合物砂石漆涂层为防护、饰面层的建筑保温砂浆外墙外保温系统。
The patent of the present invention discloses a construction of a building thermal insulation mortar external wall thermal insulation system, which is characterized in that the two structural layers of the usual system, the anti-crack protection layer and the real stone paint finish layer, are made of flexible polymer sandstone paint Instead of coating, it not only plays a protective role, but also has a decorative effect. The structure of the external thermal insulation system of the building thermal insulation mortar external wall without the anti-crack protective layer with the flexible polymer sand stone paint as the protection and the finishing layer is shown in the figure: ① is the base wall; ② is the building thermal insulation mortar insulation layer; ③ is the glass Fiber mesh cloth; ④ elastic closed primer; ⑤ is a flexible polymer gravel paint coating. ②～⑤Constitute the building thermal insulation mortar external wall external thermal insulation system with flexible polymer sandstone paint coating as protection and finishing layer.
Description
Technical field:
Patent of the present invention relates to a kind of building heat-insulating mortar external thermal insulation system structure, this system construction is different with common system construction to be, it is replaced the cracking resistance overcoat in the common system and two techonosphere of true mineral varnish coating ornamental surface layer by flexible polymer sandstone lacquer coat, both play protective action, had decorative effect again.
Background technology:
It is insulation layer that present building exterior wall heat preserving system adopts building heat-insulating mortar, and insulation layer surface adopts polymer-modified cement-based anticracking grout and compound alkali-resistant glass fibre grid cloth as the cracking resistance overcoat, the cracking resistance overcoat surface coating ornamental surface layer of constructing again.The problem one that this cracking resistance overcoat brings is because the flexibility of polymer-modified cement-based cracking resistance overcoat is poor, usually causes external thermal insulation system cracking, infiltration phenomenon to occur; The 2nd, the alkali resistance of alkali-resistant glass fibre grid cloth is limited, after the long-time working strength forfeiture of external thermal insulation system, becomes separation layer in the cracking resistance overcoat, and is harmful on the contrary; The 3rd, because construction cracking resistance overcoat and finish coat belong to the operation of different work posts, construction is complicated, and is long in time limit, the expenses of labour height.
The patent of invention content:
In order to overcome present shortcoming and to solve the problem that exists, patent of the present invention provides a kind of new external thermal insulation system structure.This system adopts the flexible polymer sandstone lacquer that can have decoration functions and protective effect is provided simultaneously, composite glass fiber grid cloth in the flexible polymer sandstone lacquer coat, like this decoration overcoat of Xing Chenging have that anticracking, anti-water ooze, protection and decoration functions.
The beneficial effect of patent of the present invention is: because flexible polymer sandstone lacquer is flexible good, make the novel external wall outer heat preservation system can effectively solve cracking, the seepage problem of building heat-insulating mortar external thermal insulation system; Because flexible polymer sandstone lacquer has decoration functions, need not spread exterior wall coating material again on the overcoat surface, reduces cost; Owing to do not contain cement class alkaline matter in the flexible polymer sandstone lacquer, can not produce corrosion to fiberglass gridding cloth wherein, fiberglass gridding cloth can produce for a long time and strengthen the cracking resistance effect; Because the protected decoration layer only needs a work post construction, simplifies working process, and reduces operating expenses.
Below in conjunction with drawings and Examples patent of the present invention is further specified.
Description of drawings:

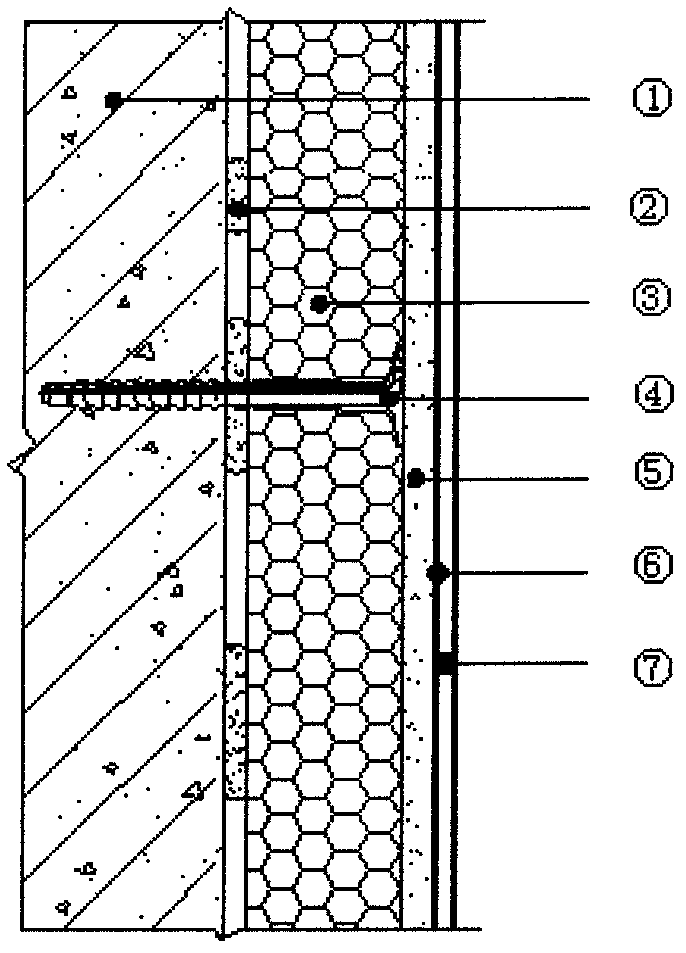

Accompanying drawing is the layer of structure figure of patent of the present invention.
In the accompanying drawings: 1. being basic unit's body of wall, can be masonry structure, also can be the structure wall of concrete pouring body of wall or other types; 2. be the building heat-insulating mortar insulation layer; 3. be fiberglass gridding cloth; 4. enclosed elastic scratch coat; 5. be flexible polymer sandstone lacquer coat.
2.～5. constitute with flexible polymer sandstone lacquer coat is the building heat-insulating mortar external thermal insulation system of protection, finish coat.
Below by the specific embodiment patent of the present invention is described further.
The specific embodiment, non-limiting examples is as described below:
Embodiment 1
With flexible polymer sandstone lacquer be the no cracking resistance overcoat building heat-insulating mortar external thermal insulation system of protection, finish coat to construct insulation layer be building heat-insulating mortar, trowelling is constructed in the structure outer external surface of concrete pouring body of wall or other types; The building heat-insulating mortar insulation layer surface applies the enclosed elastic primer coating that one deck plays sealing, reinforcing and waterproof action, after the thick flexible polymer sandstone lacquer of one deck 1mm～2mm is smeared on the primer coating surface, the layer of glass grid cloth is applied in the shop, spreads the thick flexible polymer sandstone lacquer of one deck 1mm～2mm again.Two sheets of flexible polymer sandstone enamelled coating gross thickness after the composite glass fiber grid cloth is 2mm～4mm, constitutes the composite coating with protection and decoration functions.That is, system construction is: the basic unit's body of wall → building mortar insulation layer → thick flexible polymer sandstone of the enclosed elastic scratch coat → 1mm～2mm lacquer coat → fiberglass gridding cloth → thick flexible polymer sandstone of 1mm～2mm lacquer coat.
Claims (1)
