Abstract
The utility model relates to an angulometer type spirit level, which belongs to the field of measuring instruments. Air levels are respectively arranged in the vertical direction, the horizontal direction and the direction of 45-degree angle of a level body; a pointer type angulation meter is arranged in the middle part of the level body; and reflecting mirrors are symmetrically arranged on two sides of the pointer type angulation meter in the direction of 45-degree angle. Compared with the prior art, the utility model not only can measure the horizontal direction, the vertical direction and 45-degree angle like the traditional spirit level, but also can measure any angle related with the gravity in the building decoration process and has more simple, convenient and accurate measurement, convenience and practicability. The utility model is suitable for measuring angles related with the gravity in the process of building, decoration, equipment and pipeline installation.
Description
Technical field
The utility model relates to a kind of angulation ceremony surveyor's staff, belongs to the surveying instrument field.
Background technology
Existing surveyor's staff commonly used has pointer-type and two kinds of bubble formulas, though existing surveyor's staff can be measured general angle, the reading inconvenience is so error can be bigger.This has brought certain inconvenience for the measurement of angle in building and the decoration process.
Summary of the invention
The utility model purpose is to provide a kind of angulation ceremony surveyor's staff that can record general angle again can more convenient reading.
Technical solution: be respectively equipped with air level on the direction of vertical direction, horizontal direction and the 45 of the utility model chi body, the middle part of chi body is provided with pointer angulation table, is symmetrically arranged with reflective mirror on the 45 direction of pointer angulation table both sides.
Pointer-type angulation table includes dial plate, pointer, dial plate is semicircle protractor, the round central spot of semicircle protractor is provided with axle, pointer is installed on the chi body by axle, the thickness face of semicircle protractor be provided with semicircle protractor on the corresponding scale value of scale value, the pointer upper end is 90 ° of angular distortions, and crooked position is on the thickness face of semicircle protractor, and the pointer bottom is provided with weight.
Overlap with the chi body longitudinal axis during original horizontal position of pointer.
The utility model compared with prior art, not only having the traditional water leveling ruler can be to the mensuration of " level ", " vertically " and 45, but also can measure any angle relevant with gravity in the architectural decoration process is measured, measure easier accurately, the convenient use.The utility model is adapted at building, the measurement of the angle relevant with gravity in decoration and equipment, the piping erection.
Four, description of drawings

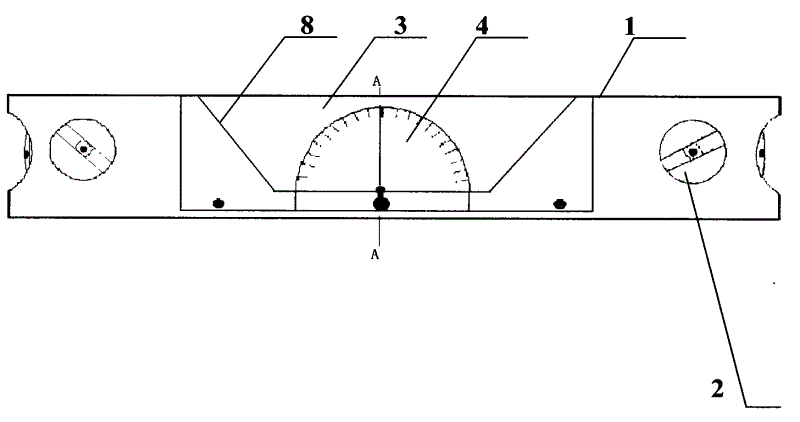

Fig. 1 is the utility model structural representation;
Fig. 2 is the vertical view of Fig. 1;
Fig. 3 is the A-A figure of Fig. 1;
Fig. 4 is this novel novel solid figure.
Five, embodiment
Be respectively equipped with air level 2 on the direction of vertical direction, horizontal direction and the 45 of the utility model chi body 1, the middle part of chi body 1 is provided with pointer angulation table 3, the dial plate 4 of pointer-type angulation table 3 is semicircle protractor 4, the round central spot of semicircle protractor 4 is provided with axle 6, pointer 5 is installed on the chi body 1 by axle 6, the thickness face of semicircle protractor 4 be provided with semicircle protractor 4 on the corresponding scale value of scale value, pointer 5 upper ends are 90 ° of angular distortions, crooked position is on the thickness face of semicircle protractor 4, and pointer 5 bottoms are provided with weight 7; Be symmetrically arranged with reflective mirror 8 on the 45 direction of pointer-type angulation table 3 both sides; Overlap with chi body 1 longitudinal axis during original horizontal position of pointer 5.
During use, when placing chi body 1 of the present utility model on the plane that will measure, pointer angulation table 3 of the present invention will be started working.At this moment, again under the effect of gravity, weight 7 will drive on the action direction that pointer 5 remains on gravity, must angle thereby form with initial position on the dial plate, at this moment, the pointer 5 and the dial plate 4 that are contained on the axle 6 interact, and just can read test surfaces angle with respect to the horizontal plane, reach the purpose of mensuration with this.
When the mensuration identity distance overhead has certain altitude, just can carry out reading by front view (FV) as shown in Figure 1.When ground is approached on the plane of measuring, just can utilize the reading from top to bottom shown in Fig. 2 vertical view, when vertical direction is approached on the plane of measuring, can carry out reading from 45 ° of reflective mirrors 8 of both sides setting.So just made things convenient for reading problem in use.
Simultaneously, the air level 2 that can also utilize chi body 1 to comprise is finished the mensuration to " level ", " vertically " and 45.
Claims (3)
1. angulation ceremony surveyor's staff, comprise: chi body (1), be respectively equipped with air level (2) on the direction of vertical direction, horizontal direction and the 45 of chi body (1), it is characterized in that: the middle part of chi body (1) is provided with pointer angulation table (3), is symmetrically arranged with reflective mirror (8) on the 45 direction of pointer angulation table (3) both sides.
2. angulation ceremony surveyor's staff according to claim 1, it is characterized in that: pointer angulation table (3) includes dial plate (4), pointer (5), dial plate (4) is semicircle protractor (4), the round central spot of semicircle protractor (4) is provided with axle (6), pointer (5) is installed on the chi body (1) by axle (6), the thickness face of semicircle protractor (4) be provided with semicircle protractor (4) on the corresponding scale value of scale value, pointer (5) upper end is 90 ° of angular distortions, crooked position is on the thickness face of semicircle protractor (4), and pointer (5) bottom is provided with weight (7).
3. angulation ceremony surveyor's staff according to claim 1 is characterized in that: overlap with chi body (1) longitudinal axis during original horizontal position of pointer (5).
