The utility model discloses a thermal insulating framework for an interior wall body, which comprises a metal mesh main body. The metal mesh main body adopts a continuous convex-concave structure body which is arranged at a certain interval; and a thermal insulator is mounted in an interlayer between two correspondingly combined convex-concave structure body units. Due to the adoption of the formed convex-concave structure mesh body, the strength of the wall body after construction is increased, and the weight is light; and meanwhile, a thermal insulating layer is arranged on an inner layer with a thickness smaller than 90 mm of the wall body; after the completion of the installation, the wall body is formed by smearing two sides with concrete; and after easy-to-hang mortar is formed, the utility model has the advantages of no crazing, no corrosion, thermal insulation and energy saving.
Description
Technical field
The utility model relates to a kind of skeleton that is used to build non-bearing wall body, have body say so a kind of in the wall thermal insulating skeleton, help in body of wall insulation and prevent wall crazing.
Background technology
The prefabricated light body compoboard that provides batch production to produce in the market carries out connecting method, can improve efficiency of construction like this.But because light body compoboard is a prefabrication, the continuation of the inherent cement of its light body compoboard is shunk, and when seam is smeared in the construction splicing, produces that new and old cement convergent force is unequal to cause that gaping of joints appears in light body compoboard, and this phenomenon is present insurmountable problem.For addressing this problem, install in the technology of wire lath skeleton at disclosed interval body of wall, it is the body of wall that adopts site operation, the metallic framework that promptly has waveform in the binding of the body of wall position of construction, two identical waveform skeletons are merged, form a plurality of hollows road, through bundling integral body of fixing back formation.Smear the non-bearing wall body that system mortar face forms on its surface, solved the problem that the body of wall load heavily reaches cracking.But because of having adopted the wire lath skeleton, cause the surface to smear the easy corroding metal net of moisture mortar of system, so after forming the mortar surface layer rusty stain appears; In addition, according to existing building operations standard-required, require body of wall to implement the insulation measure, and the non-bearing wall body that above-mentioned wire lath skeleton forms does not have this function.
Summary of the invention
In view of above-mentioned present situation, the utility model provide a kind of in the wall thermal insulating skeleton, it has in the dictyosome skeleton of moulding and has heat insulating material, has promptly alleviated the weight of body of wall, has taken into account the insulation of body of wall again.
The technical solution of the utility model is: wall thermal insulating skeleton in a kind of comprises the wire lath body; Wherein, described wire lath body is one to have and is arranged in continuous convex-concave structure body at regular intervals, makes in the interlayer between the convex-concave structure body unit of two corresponding combination insulation is installed.Like this, effectively utilize the convex-concave structure body on the wire lath body, played the enhancing skeleton function; And insulation has energy-conservation and absorb the effect that the interior moisture content of mortar is not easy the corroding metal net and strengthens body of wall.
According to such scheme, the cross section of the convex-concave structure body unit of wire lath body is trapezoidal shape, semi-circular shape or a triangle.
Further, the wire lath body is one to have and is arranged in continuous convex-concave structure body at regular intervals, two convex-concave structure body unit directly is combined into one forms a plurality of muscle nets and hollow mesh road; In this muscle net and hollow mesh road, insulation is installed.Mainly require to select according to practice of construction.
In a word, a kind of interior wall thermal insulating skeleton that the utility model provides because of adopting the convex-concave structure dictyosome of moulding, has not only increased the intensity of construction back wall, but also has had in light weight; Simultaneously, its body of wall is provided with insulation layer less than 90 millimeters thickness internal layers, installs the two sides, back and smears with concrete and make the type body of wall, does not ftracture after the mortar moulding easy to hang, not corrosion, heat preservation energy-saving.
Description of drawings

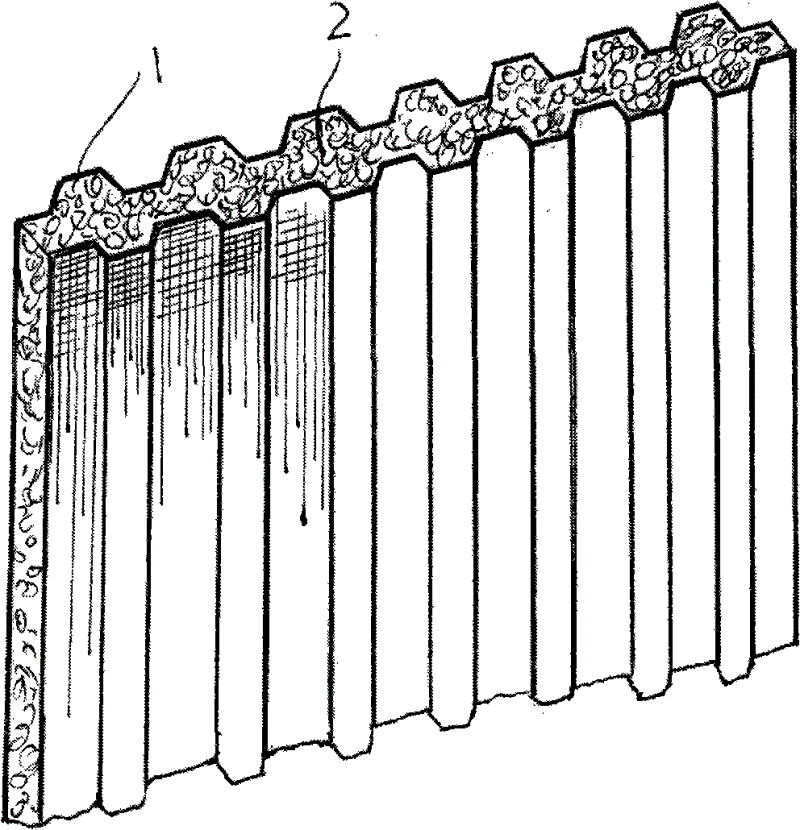

Fig. 1 is the utility model structural representation;
Fig. 2 is another embodiment cross sectional representation of Fig. 1;
Fig. 3 is Fig. 1 reference diagram of constructing.
The specific embodiment
Embodiment further specifies the utility model below in conjunction with accompanying drawing.
By interior wall thermal insulating skeleton shown in Figure 1, comprise having the wire lath body 1 that is arranged in continuous convex-concave structure at regular intervals, by the interior wall thermal insulating skeleton that insulation 2 constitutes is installed in the interlayer between the convex-concave structure body unit of selecting two corresponding combinations for use.
In the present embodiment, the cross section of the convex-concave structure body unit on the wire lath body 1 is a trapezoidal shape; And insulation 2 is to adopt to have the polyphenyl plate of heat insulation effect.
In above-mentioned, semi-circular shape or triangle are gone back in the cross section of the convex-concave structure body of wire lath body 1 except trapezoidal shape; Insulation 2 is gone back heat preservation rock material except that polyphenyl plate.
During construction, the interior wall thermal insulating skeleton with manufacturing in advance is fixed to construction location, can carry out the interior body of wall that the mortar wall construction becomes to have heat insulation function.
See that Fig. 2 has provided the embodiment different with Fig. 1.The wire lath body of selecting for use equally 1 is one to have and is arranged in continuous convex-concave structure body at regular intervals; Different is two convex-concave structure body unit directly to be combined into one to form a plurality of muscle nets 3 and hollow mesh road 4; Insulation 2 is installed in this muscle net 3 and hollow mesh road 4.In the present embodiment, the insulation layer 2 that is positioned at hollow mesh road 4 is that to utilize wire lath body 1 to contain fixing; And the insulation 2 that is positioned at concave bar net 3 positions should utilize the wire binding to be fixed into one, avoids the loosening wall crazing that brings.
See that Fig. 3 has provided the reference of Fig. 1 user mode.When making the insulation wall construction, at first by back both sides, the ground of the specifying construction location hookup wire that draws; Equilateral L type keel (angle steel) vertically, laterally are installed along the line, are pressed the hookup wire line with the every 500mm fixed L of nailing type keel 5; Get the wire lath body 1 with convex-concave structure, it is fixing with itself and the binding of equilateral L type keel to get wire equally, spacing 300mm; The polyphenyl plate that will have the convex-concave insulation 2 of same shape, be installed on the fixing wire lath body 1 according to the convexconcave part that has each other is corresponding, another sheet wire lath body 1 is installed to the polyphenyl plate of insulation 2, adopts wire to be bundled into one, the insulation metal frame bone of body of wall in being; Plaster, fill out groove and fill and lead up by mixing at 1: 1 with bonding mortar and perlite; Fill out groove after 24 hours with 1: 3-1: 4 mortars bottoming; Feel secure after 24 hours and to finish the construction of thermal insulation inner-wall body 6 with 1: 2.5 sand finish.
Claims (4)
1. wall thermal insulating skeleton in a kind comprises the wire lath body; It is characterized in that described wire lath body (1) is one to have and be arranged in continuous convex-concave structure body at regular intervals, make in the interlayer between the convex-concave structure body unit of two corresponding combination insulation (2) is installed.
2. by the described interior wall thermal insulating skeleton of claim 1, it is characterized in that the cross section of the convex-concave structure body unit of described wire lath body (1) is trapezoidal shape, semi-circular shape or a triangle.
3. by the described interior wall thermal insulating skeleton of claim 1, it is characterized in that described insulation (2) is polyphenyl plate or heat preservation rock.
4. by the described interior wall thermal insulating skeleton of claim 1, it is characterized in that, wire lath body (1) is one to have and is arranged in continuous convex-concave structure body at regular intervals, two convex-concave structure body unit directly is combined into one forms a plurality of muscle nets (3) and hollow mesh road (4); Insulation (2) is installed in this muscle net (3) and hollow mesh road (4).
