The utility model discloses a wind and light complementary power generating electric vehicle, more specifically, a wind and light complementary power generating electric vehicle using wind and solar energy to charge storage batteries, which are used as a driving motor to supply power and drive the electric vehicle forward. The wind and light complementary power generating electric vehicle is composed of a frame, a steering handle, a seat, a back seat, a front wheel, a back wheel, an energy storage battery, a solar charging controller, a wind charging controller, a drive motor, a solar battery component, and a wind generator. The back seat is provided with the solar battery component thereon, and the frame is provided with the wind generator on the front end thereof. The wind and light complementary power generating electric vehicle is not only energy saving, but also environment-friendly and clean.

Description

A kind of wind-light complementary generating electric bicycle
Technical field
The utility model relates to a kind of battery-driven car.Specifically, be to utilize wind energy and solar power for battery charge, for drive motor provides power supply, and then the wind-light complementary generating electric bicycle that battery-driven car is advanced.
Background technology
As everyone knows, present battery-driven car all is that to utilize civil power be its battery charge.Though utilize civil power can be the battery charge of battery-driven car, very inconvenience and energy resource consumption are serious.
The utility model content
Problem to be solved in the utility model is the deficiency that overcomes in the background technology, and a kind of wind energy and the solar power complemental power-generation battery-driven car as power is provided.This battery-driven car, not only charging is convenient, and noiseless, pollution-free, also save the energy.
For addressing the above problem, the utility model is taked following technical scheme:
Wind-light complementary generating electric bicycle of the present utility model is by vehicle frame, handle, vehicle seat, rear deck seat, front vehicle wheel, rear wheel, energy storage battery, and solar charging controller, the wind energy charge controller, drive motor, solar module, aerogenerator is formed.Aerogenerator is installed on the vehicle frame front end, and solar module is tiled in rear deck seat.The power input of drive motor links to each other with energy storage battery with driving governor by electric wire.Solar module links to each other with energy storage battery with solar charging controller by lead; Aerogenerator links to each other with energy storage battery with the wind energy charge controller by lead.
Take above scheme, have the following advantages:
Because the utility model is installed aerogenerator at the electromobile frame front end, on the rear deck seat plane solar module is installed, easy for installation, good looking appearance.Utilize aerogenerator respectively wind energy to be become electric energy with transform light energy with solar module, respectively by wind energy charge controller and solar charging controller with electrical power storage in energy storage battery, for battery-driven car provides power.Compare with traditional battery-driven car, saved, greatly reduce energy resource consumption with commercial power charged trouble, and environmental protection, cleaning.
Description of drawings

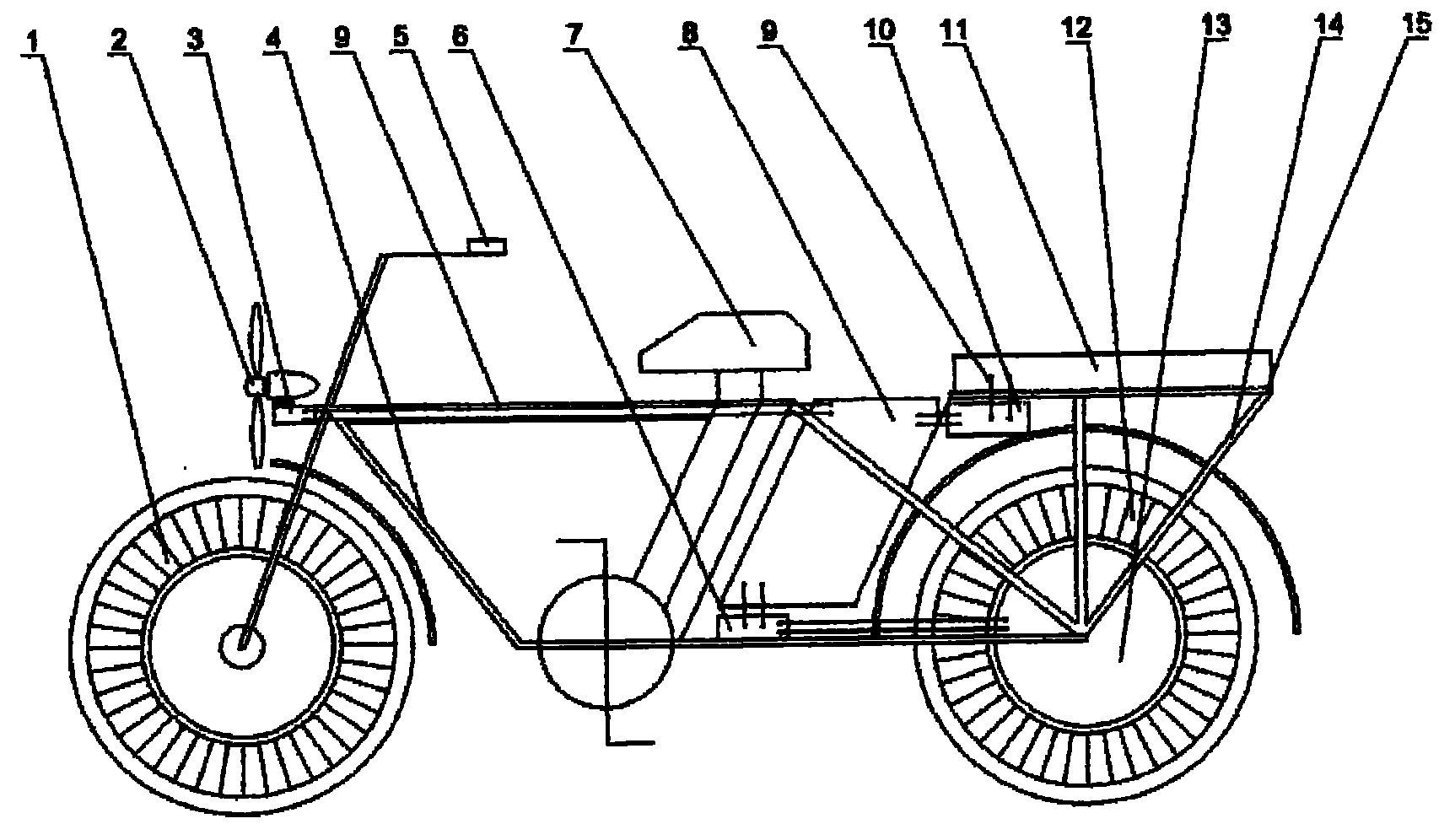

Fig. 1 is the structural representation of wind-light complementary generating electric bicycle of the present utility model.
The specific embodiment
As shown in Figure 1, wind-light complementary generating electric bicycle of the present utility model is by vehicle frame 4, handle 5, vehicle seat 7, rear deck seat 15, front vehicle wheel 1, rear wheel 12, energy storage battery 8, solar charging controller 10, wind energy charge controller 3, drive motor 13, the power input of drive motor 13 links to each other with energy storage battery 8 with driving governor 6 by electric wire 9; Solar module 11 is installed on rear deck seat 15, and this solar module 11 links to each other with energy storage battery 8 with solar charging controller 10 by lead 9; Front end at vehicle frame 4 is installed aerogenerator 2, and this aerogenerator 2 links to each other with energy storage battery 8 with wind energy charge controller 3 by lead 9.In a word, wind-light complementary generating electric bicycle of the present utility model is when sunny, by solar module generating, overcast and rainy or when battery-driven car moved ahead, by wind turbine power generation, both complementations were for battery-driven car provides power.Like this, not only saved with commercial power charged trouble, and reduced energy resource consumption, both environmental protection, cleaning again.

Claims (1)

1, a kind of wind-light complementary generating electric bicycle, comprise vehicle frame (4), handle (5), vehicle seat (7), rear deck seat (15), front vehicle wheel (1), rear wheel (12), energy storage battery (8), solar charging controller (10), wind energy charge controller (3), drive motor (13), the power input of drive motor (13) links to each other with energy storage battery (8) with driving governor (6) by electric wire (9); It is characterized in that solar module (11) is arranged on the rear deck seat (15), this solar module (11) links to each other with energy storage battery (8) with solar charging controller (10) by lead (9); Front end at vehicle frame (4) has aerogenerator (2), and this aerogenerator (2) links to each other with energy storage battery (8) with wind energy charge controller (3) by lead (9).
