Abstract
The utility model discloses a high energy sunshine collecting guider provided with a supporting frame, a spot light board movably connected with the supporting frame, a horizontal rotary mechanism controlling the spot light board to rotate and an elevation angle driving mechanism, wherein the top end of the spot light board is provided with a photoelectric detector through a supporting frame. The main point of the utility model is that a guide light mirror on the central focus point position on the spot light board is arranged through the supporting frame, and one mirror surface of the guide light mirror is arranged downwards; a reflector guide light device is arranged on the supporting frame. The utility model has the advantages of novel design and sound integration. According to the steps of lighting, guide light transmission and interior use, the high energy light ray at the temperature of 1000 DEG C is directly transmitted into a chamber to carry out energy storage, lighting and heat utilization. The utility model can automatically follow and store energy. Even if used during the night or the raining day, the utility model can still utilize stored energy to cook meals and to boil water, thus presently serving as an ideal and practical guide light lighting device.
Description
Affiliated technical field
The utility model relates to technical field of solar utilization technique, especially a kind of can from the motion tracking sun and can heat build-up the device of leaded light.
Background technology
Solar energy is a kind of inexhaustible natural energy resources of nature, has been widely used in cooking, shower, heating and other field of daily life.The solar energy heat collector of especially various structures and kitchen range have been brought into play important function aspect the solar energy utilizing.But, the present solar energy heat collector that uses, major part is based on all-glass vacuum tube and full copper flat structure, this heat collector generally can only provide heat energy below 90 ℃ for the user.Though the solar cooker of direct reflect focalization is also arranged now,, uses still very inconvenient because the energy and the mode that provide are limited.Utilize sunshine to the room illumination of sunny slope not in the residential building building, utilizing the irradiation of sunshine continuous spectrum to improve aspects such as health also is a weak link.Therefore, how gathering the sunshine of high energy and be transferred to indoor carry out energy storage, culinary art or illumination, is the vital task of extensively utilizing solar energy.The patent No. is 97216702.1, and denomination of invention is the utility model patent of " Light conduction lighting device ", discloses the sunray that will collect and has passed through guiding device, is transferred to the technology of room lighting.But the usefulness of this technology daylighting leaded light is also lower, and practicality is strong not enough.
Summary of the invention
In order to overcome existing solar energy utilization at leaded light, cumulative, to the deficiency that exists aspect the indoor transmissions, it is a kind of simple in structure, cheap that the utility model provides, leaded light cumulative efficient height, convenient high energy solar collector guider to indoor transmissions.
The technical scheme that its technical problem that solves the utility model adopts is: this high energy solar collector guider, comprise horizontal rotary mechanism and elevation angle driving mechanism that bracing frame and the solar panel that flexibly connects with bracing frame, control solar panel rotate, be provided with photodetector on the solar panel top by support, its bottom is provided with the connection carriage, is provided with the counter weight of stablizing solar panel in the bracing frame both sides; Be that mainly centre focus point position is provided with the downward leaded light mirror of a minute surface by support above the said solar panel, said leaded light mirror is the concave mirror structure, the focus of leaded light mirror overlaps with the focus of solar panel, the light that solar panel is reflected back is converted to collimated light beam, have a loophole in the solar panel bottom, the reflective mirror one of adjustable angle is set on the rotating shaft of the elevation angle, the high energy collimated light beam of leaded light mirror is reflexed on the reflective mirror one by loophole; Be provided with light conducting cylinder on bracing frame top and the reflective mirror two of adjustable angle is set on the light conducting cylinder top, the high energy light horizontal reflection that makes reflective mirror one is to reflective mirror two; The reflective mirror three of adjustable angle is set in the light conducting cylinder lower end, and the high energy light that reflective mirror two is received passes through the light conducting cylinder vertical reflection to the reflective mirror three of lower end, and light conducting cylinder is a round tube shape structure, and inwall is provided with reflectorized material; The adjustable angular range of said reflective mirror is 0 °～90 °; Be provided with the photoconductive tube that connects conveying high energy light at reflective mirror three places of light conducting cylinder lower end, the high energy light that collects be transferred to indoor receiver carry out cooking, energy storage, or use for lighting device lighting; Said photoconductive tube is the tubular barrel that inwall is provided with reflective membrane, also can be that optical fibre tube is made.
High energy solar collector guider according to the utility model design, main advantage is novel in design, and good integrity is according to the step of daylighting, leaded light transmission, indoor use, to be delivered directly to indoor carry out energy storage and heat utilization up to the high energy light about 1000 ℃.Even next is practical, can in night or overcast and rainy, also can utilize the energy of deposit to cook, heat up water from motion tracking, energy storage automatically.Simultaneously, can also be with the sunshine that collects, provide illumination to the bedroom of the back, solve back room and adopt shortcoming and defect less than sunlight, utilize the human physical and mental health of solar energy protection.The utility model has been widened the field that utilizes of solar energy greatly.
Description of drawings
Below in conjunction with drawings and Examples the utility model is described in detail:

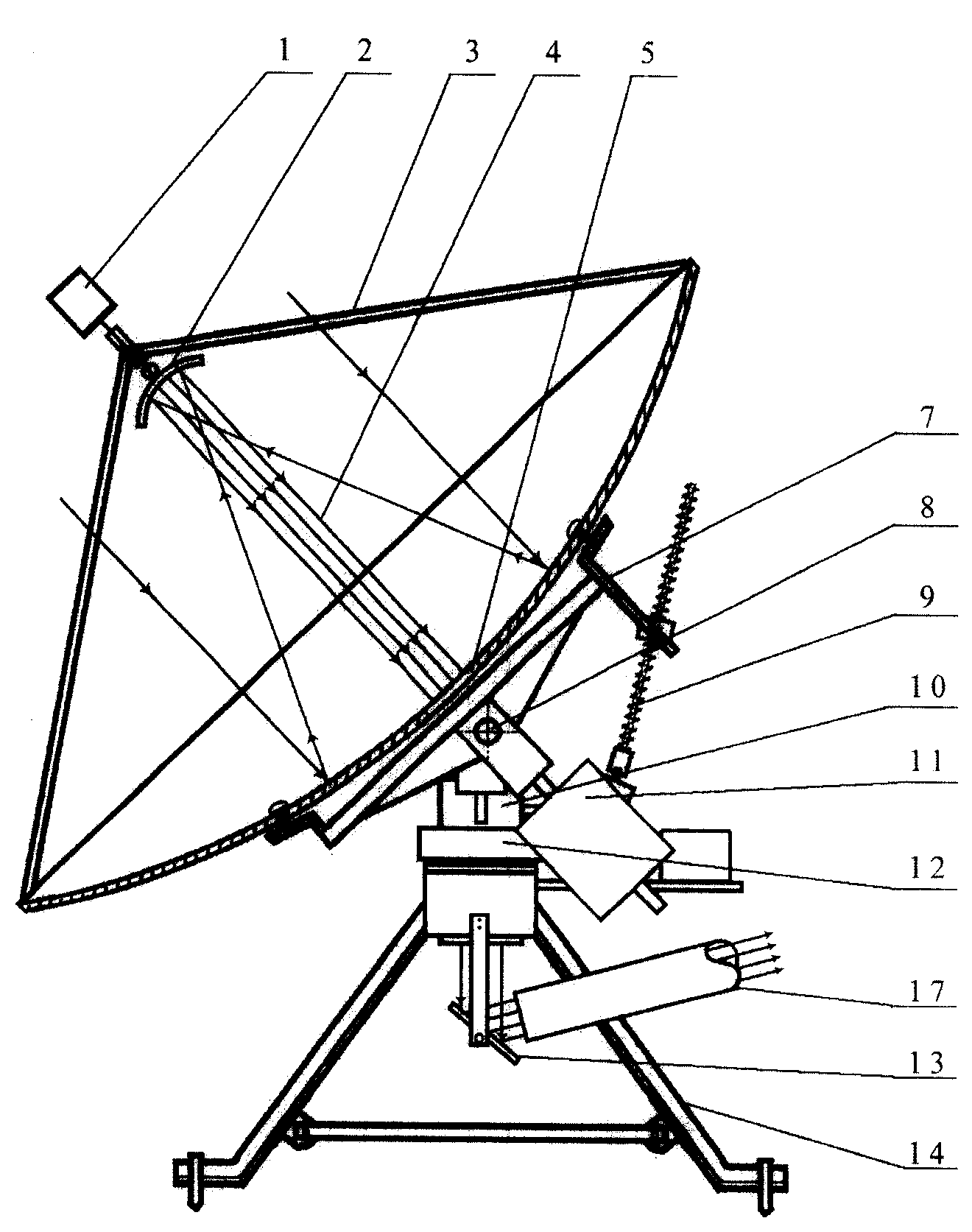

Fig. 1 is the utility model master TV structure schematic diagram;
Fig. 2 is the utility model side-looking structural representation;
Fig. 3 connects the structural representation of receiver for the utility model;
Fig. 4 connects the structural representation of lighting device for the utility model.
1. photodetectors among the figure, 2. leaded light mirror, 3. support, 4. light, 5. loophole, 6. solar panel 7. connects carriage, 8. elevation angle rotating shaft, 9. elevation angle driving mechanism, 10. light conducting cylinder, 11. counter weights, 12. horizontal rotary mechanism, 13. reflective mirrors, three, 14. bracing frames, 15. reflective mirror one, 16. reflective mirror two, 17. photoconductive tubes, 18. receiver, 19. focuses, 20. lighting devices.
The specific embodiment
As shown in Figure 1, 2, this high energy solar collector guider, comprise horizontal rotary mechanism 12 and elevation angle driving mechanism 9 that bracing frame 14 and the solar panel 6 that flexibly connects with bracing frame 14, control solar panel 6 rotate, be provided with photodetector 1 on solar panel 6 tops by support 3, the bottom of solar panel 6 is provided with and connects carriage 7, is provided with the counter weight 11 of stablizing solar panel 6 in bracing frame 14 both sides; Centre focus point position is provided with a leaded light mirror 2 that minute surface is downward by support 3 above mainly being said solar panel 6, and this leaded light mirror is for being the concave mirror structure, and the focus of leaded light mirror 2 overlaps with the focus 19 of solar panel 6.Simultaneously, have a loophole 5 in solar panel 6 bottoms, it is the reflective mirror 1 of 45 degree that angle is set on elevation angle rotating shaft 8, and the high energy parallel rays 4 of leaded light mirror 2 is reflexed on the reflective mirror 1 by loophole 5; Be provided with light conducting cylinder 10 on bracing frame 14 tops and on light conducting cylinder 10 tops the reflective mirror 2 16 that angle 45 is spent be set, the high energy light horizontal reflection that makes reflective mirror 1 is to reflective mirror 2 16; The reflective mirror 3 13 of adjustable-angle is set in light conducting cylinder 10 lower ends, the high energy light that reflective mirror 2 16 is received, by light conducting cylinder 10 with the vertical light line reflection to the reflective mirror 3 13 of lower end, light conducting cylinder 10 is a round tube shape structure, inwall is provided with reflectorized material; Be provided with the photoconductive tube 17 that connects conveying high energy light at reflective mirror 3 13 places of light conducting cylinder 10 lower ends.Photoconductive tube 17 is a kind of optical fibre tubes that adopt.
As shown in Figure 3, with the high energy light that collects, cook, heat up water after being transferred to indoor receiver 18 by photoconductive tube 17.
As shown in Figure 4, with the high energy light that collects, to indoor lighting device, use for illumination by light pipes transmit.
The course of work of the present utility model is:
The outdoor sunlight that solar panel 6 will be collected by the focusing of parabolic minute surface, reflexes to the downward leaded light mirror foci place of parabolic vertical center axis minute surface, reaches the high temperature luminous energy about 1000 ℃.The light that solar panel 6 is reflected back by leaded light mirror 2 is converted to collimated light beam by loophole 5 again, light is reflexed to the reflective mirror 1 that is installed on the elevation angle rotating shaft 8, reflective mirror 1 again with the high energy light horizontal reflection that receives to the reflective mirror 2 16 that is installed in light conducting cylinder 10 tops, reflective mirror 2 16 vertically reflexes to the high energy light that receives the reflective mirror 3 13 of light conducting cylinder 10 lower ends again, import the high energy light that receives into indoor receiver 18 by photoconductive tube 17 by reflective mirror 3 13 again, carry out cooking, the use of heating up water.
The motor of horizontal rotary mechanism is to adjust the solar panel horizontal azimuth.After the motor circuit controlled device is connected power supply, promptly from the east orientation moving sun of seeking that moves westwards, when solar panel perpendicular to the solar time, cut off motor power by photoelectric controller, quit work.Controller received once command every 10 minutes and follows daily motion, and operation so repeatedly is up to finishing full-time stroke.
After the motor of elevation angle driving mechanism received controller signals, circuit was switched on, and motor is activated, and regulated the height of solar panel, just quit work when vertical with sunlight.Received once command every 10 minutes, repeatedly operation.If meet overcast and rainy or insufficient light when utilizing with storage, solar panel just returns to the horizontal state, to treat working procedure next time.
Claims (7)
1. high energy solar collector guider, comprise horizontal rotary mechanism (12) and elevation angle driving mechanism (9) that bracing frame (14) and the solar panel (6) that flexibly connects with bracing frame (14), control solar panel (6) rotate, be provided with photodetector (1) on solar panel (6) top by support (3), be provided with the counter weight (11) of stable solar panel (6) in bracing frame (14) both sides; It is characterized in that: centre focus point position is provided with the downward leaded light mirror (2) of a minute surface by support (3) above the said solar panel (6), have a loophole (5) in solar panel (6) bottom, the reflective mirror one (15) of adjustable angle is set on elevation angle rotating shaft (8), the high energy light (4) of leaded light mirror (2) is reflexed on the reflective mirror one (15) by loophole (5); Be provided with light conducting cylinder (10) on bracing frame (14) top and the reflective mirror two (16) of adjustable angle is set on light conducting cylinder (10) top, the high energy light horizontal reflection that makes reflective mirror one (15) is to reflective mirror two (16); The reflective mirror three (13) of adjustable angle is set in light conducting cylinder (10) lower end, and the high energy light that reflective mirror two (16) is received passes through light conducting cylinder (10) vertical reflection to reflective mirror three (13).
2. high energy solar collector guider according to claim 1 is characterized in that: said light conducting cylinder (10) is a round tube shape structure, and inwall is provided with reflectorized material.
3. high energy solar collector guider according to claim 1 is characterized in that: connect photoconductive tube (17) to indoor conveying high energy light in light conducting cylinder (10) lower end,
4. high energy solar collector guider according to claim 1 is characterized in that: the bottom of said solar panel (6) is provided with and connects carriage (7).
5. high energy solar collector guider according to claim 1 is characterized in that: the adjustable angular range of said reflective mirror (2) is 0 °～90 °.
6. high energy solar collector guider according to claim 1 is characterized in that: said leaded light mirror (2) is the concave mirror structure.
7. high energy solar collector guider according to claim 1 is characterized in that: the focus of said leaded light mirror (2) overlaps with the focus of solar panel (6).
