The utility model discloses a novel firewood saving stove relating to a stove, which consists of a stove panel 1, a fire buffering ring 2, a smoke discharge tube 3, a soot filtering channel 4, an air inlet channel 5, a water tank 6, a furnace 7, an air inlet tube for a stove core 8, a stove bridge 9, a ventilating opening and an ash discharge opening 10. The utility model is characterized in that the soot filtering channel 4 is communicated with the hearth and the smoke discharge tube 3. The furnace 7 is arranged in the hearth. An outer wall at the lower part of the furnace 7 is provided with a venthole and an outer wall at the upper part is sealed. The middle part of the stove bladder is connected with a material feeding opening 14 and the bottom part is arranged on the stove bridge 9. The inner part of the stove bladder 7 is provided with the fire buffering ring 2 and the air inlet tube for the stove core 8 is arranged below the stove bladder. The external side at the lower part of the furnace 7 is provided with the water tank 6. The lower part of the stove bridge 9 is provided with the ventilating opening and ash discharge opening 10. The utility model has the advantages of air feeding for multiple times, completely sufficient combustion, energy saving, pollution reducing, strong firepower, etc. The utility model is suitable for cooking at family and public occasions.

Description

A kind of novel firewood-saving stove
Technical field
The utility model relates to a kind of stove and accessory, and more particularly, the utility model relates to a kind of firewood-saving stove.
Background technology
Firewood-saving stove commonly used is made up of airtight flue usually, and the defective of this structure is, owing to the air supply is insufficient, causes the stove and accessory fuel combustion incomplete, and heat-energy losses is big, and heat is little, and flame intensity is not enough.Some firewood-saving stoves itself are not equipped with water tank and filtrating smoke dust device, cause heat energy not make full use of, and flue dust can not get effective filtration, just enters atmosphere, causes atmosphere pollution.
Summary of the invention
The purpose of this utility model is to overcome the deficiencies in the prior art, and a kind of sufficient combustion is provided, and can make full use of heat energy, reduces the novel firewood-saving stove of smoke contamination.
The purpose of this utility model is achieved by following technical proposals.
Divide into filtrating smoke dust water channel 4 at furnace panel 1, be communicated with burner hearth in the filtrating smoke dust water channel 4, link to each other with smoke exhaust pipe 3 outward; Establish flue 7 in the burner hearth, flue 7 bottoms place on the grate 9, and flue 7 bottom outer walls are established air vent, the sealing of flue 7 external wall of upper portion; Air inlet duct 5 is established in flue 7 upper outside appropriate locations; Establish slow pyrosphere 2 on flue 7 inside, in be connected with charge door 14, divide into stove heart blast pipe 8; Ventilating opening and ash discharging hole 10 are established in grate 9 bottoms; Establish by outlet pipe 11 water inlet 12, the water tank 6 that buoy 13 is formed in the outside, flue 7 bottoms.
The beneficial effects of the utility model are:
1, because ventilating opening and ash discharging hole 10 are arranged, grate 9, stove heart blast pipe 8, flue 7 bottom outer wall air vents, flue 7 upper outside air inlet ducts 5, multiple air inlets such as slow pyrosphere 2, so fuel is in the burner hearth internal combustion cmpletely, firepower is powerful.
2, because the outside, flue 7 bottoms is provided with water tank, and the water in the water tank fully absorbs radiant heat, produce hot water, use, reduced the loss of heat energy for cooking.
3, set filtrating smoke dust water channel 4 can filter out the flue dust that produces in the combustion process, alleviates atmosphere pollution.
Description of drawings

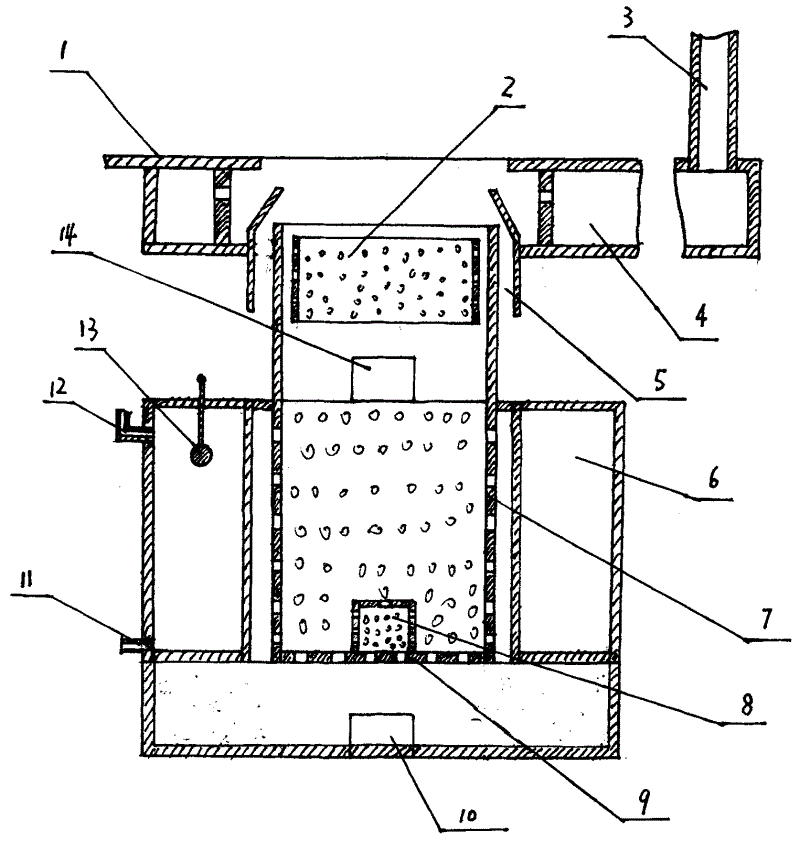

Accompanying drawing is the utility model structural representation
The specific embodiment
The utility model will be further described below in conjunction with accompanying drawing.
Make panel 1 with refractory material or metal material, filtrating smoke dust water channel 4, air inlet duct 5, smoke exhaust pipe 3, flue 7, grate 9, ventilating opening and ash discharging hole 10 are made water tank 6 with metal material, slow pyrosphere 2, stove heart blast pipe 8 is assembled then.
During assembling, panel 1, filtrating smoke dust water channel 4, air inlet duct 5, smoke exhaust pipe 3 will fuse, and is fixed in top; Flue 7 is arranged on the grate 9, slow going up enclosed 2 tops of being fixed in the flue 7, stove heart blast pipe 8 is arranged at the medium position of flue 7 bottoms on the grate 9, flue 7 bottom arranged outside water tanks 6, and be fixedly connected on the pedestal with flue 7, ventilating opening and ash discharging hole 10 are established in the middle part of pedestal, and charge door 14 is established at flue 7 middle parts.
During operation, fuel is dropped into from charge door 14, and ignite with matches, at this moment be filled in the fuel of flue 7 bottoms, be subjected to flue 7 outer wall air vents, the air-breathing of stove heart blast pipe 8 and grate 9, fire fall into to leap up and carry out flame to slow pyrosphere 2 and be dispensed to stockhole, at this moment be subjected to the air-breathing that air inlet duct 5 is come in once more, make it further burning and arrive cooker cmpletely.The radiant heat of flue 7 bottom outer walls is the water in the heating water tank 6 then, can be used for cooking and shower etc.The flue dust that produces in the burner hearth enters by the cigarette hole that communicates with filtrating smoke dust water channel 4 and enters atmosphere after filtrating smoke dust water channel 4 absorbs, and has alleviated atmosphere pollution.

Claims (1)

1. novel firewood-saving stove, it is by furnace panel (1), slow pyrosphere (2), smoke exhaust pipe (3), filtrating smoke dust water channel (4), air inlet duct (5), water tank (6), flue (7) stove heart blast pipe (8), grate (9), ventilating opening and ash discharging hole (10) are formed, it is characterized in that, divide into filtrating smoke dust water channel (4) at furnace panel (1), be communicated with burner hearth in the filtrating smoke dust water channel (4), link to each other with smoke exhaust pipe (3) outward; Establish flue (7) in the burner hearth, flue (7) bottom places on the grate (9), flue (7) bottom outer wall is established air vent, the sealing of flue (7) external wall of upper portion, air inlet duct (5) is established in flue (7) upper outside appropriate location, flue (7) is established slow pyrosphere (2) on the inside, in be connected with charge door (14), divide into stove heart blast pipe (8); Ventilating opening and ash discharging hole (10) are established in grate (9) bottom; Establish by outlet pipe (11) water inlet (12), the water tank (6) that buoy (13) is formed in the outside, flue (7) bottom.
