CN115440498A

CN115440498A - Novel wire winding dog-ear intelligence machine

Info

Publication number: CN115440498A
Application number: CN202211079759.4A
Authority: CN
Inventors: 伍宜松; 杨燕丽; 伍向南; 吴梦瑶
Original assignee: Guangdong Xinxin Intelligent Equipment Co ltd
Current assignee: Guangdong Xinxin Intelligent Equipment Co ltd
Priority date: 2022-09-05
Filing date: 2022-09-05
Publication date: 2022-12-06

Abstract

The invention discloses a novel winding and angle folding intelligent machine which comprises a framework feeding mechanism, a framework positioning mechanism, a rotary workpiece transfer mechanism, a paint stripping mechanism, a copper wire feeding mechanism, a winding and wire loading mechanism, a hot air blowing mechanism, a wire cutting mechanism, a pin folding upper die mechanism, a pin folding side die mechanism, a pin folding lower die mechanism and a blanking mechanism, wherein the winding and wire loading mechanism is used for winding a copper wire into a coil and loading the coil on a framework, the hot air blowing mechanism is used for blowing hot air, the pin cutting mechanism is used for cutting short pins of the coil, the pin folding upper die mechanism is used for stamping the pins of the coil to enable the pins of the coil to be bent into a vertical shape, the pin folding side die mechanism is used for stamping the pins of the coil to enable the pins of the coil to be bent to be close to the bottom surface of the framework, and the pin folding lower die mechanism is used for stamping the tail ends of the pins of the coil upwards and enabling the tail ends of the pins of the coil to be close to the side surface of the framework, and the blanking mechanism. The automatic coil pin cutting machine can realize a series of automatic operations of automatic copper wire stripping, automatic winding, automatic coil skeleton assembly, automatic coil pin cutting, automatic coil pin bending and the like, improves the production efficiency and ensures the production quality.

Description

Novel wire winding dog-ear intelligence machine

Technical Field

The invention relates to the technical field of automation equipment, in particular to a novel winding and angle folding intelligent machine.

Background

Inductance element is one of three major components and parts in the electronic components industry, has occupied very important role in the electronic industry, in current inductance element production line, needs the staff to wind the copper line on the skeleton, the staff cuts out the pin of copper line and bends the copper line, and the staff operates above-mentioned step and comparatively troublesome time-consuming, and production efficiency is low, and production quality is difficult to guarantee, is unfavorable for production.

Disclosure of Invention

The invention aims to overcome the defects in the prior art and provides a novel winding and angle folding intelligent machine.

To achieve the above object, the present invention provides a novel intelligent winding and beveling machine, comprising a framework feeding mechanism for feeding a framework, a framework positioning mechanism for positioning the framework, a rotary workpiece transfer mechanism for driving a workpiece to perform station conversion, a paint peeling mechanism for peeling paint from a copper wire, a copper wire feeding mechanism for feeding the copper wire, a winding and wire loading mechanism for winding the copper wire into a coil and loading the coil onto the framework, a hot air blowing mechanism for blowing hot air to the coil to make the coil thermally fixed, a wire cutting mechanism for cutting the copper wire, a pin cutting mechanism for shortening the pins of the coil, a beveling upper die mechanism for punching the pins of the coil from above to make the pins of the coil bent into a vertical shape, a beveling side die mechanism for punching the pins of the coil from the sides to make the pins of the coil bent to abut against the bottom surface of the framework, a beveling lower die mechanism for punching the pins of the coil from below to make the ends of the pins of the coil bent and abut against the side surfaces of the framework, and a rotary workpiece transfer mechanism for positioning the edge of the copper wire winding and the workpiece, wherein the rotary workpiece feeding mechanism and the rotary workpiece transfer mechanism are arranged along the winding and side edge of the rotary workpiece transfer mechanism, the rotary workpiece feeding mechanism, wire cutting mechanism is located between copper line feed mechanism's the discharge end and the wire winding station of wire winding wiring mechanism, book foot lower die mechanism arranges in rotation type work piece transfer mechanism's carousel edge below and is located book foot side form mechanism openly.

Compared with the prior art, the invention has the beneficial effects that:

the automatic copper wire stripping device is simple and novel in structure and reasonable in design, can realize a series of automatic operations of automatic copper wire stripping, automatic wire winding, automatic coil framework assembling, automatic coil pin cutting, automatic coil pin bending and the like, is high in automation degree, replaces manual operation, greatly improves production efficiency, can guarantee production quality, and can meet the requirement of large-scale production of enterprises.

Drawings

In order to more clearly illustrate the embodiments or technical solutions of the present invention, the drawings used in the embodiments or technical solutions in the prior art are briefly introduced below, and it is obvious that the drawings in the following description are some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

FIG. 1 is a first schematic structural diagram provided in an embodiment of the present invention;

FIG. 2 is a second schematic structural diagram provided in the present embodiment;

FIG. 3 is an enlarged schematic view of a station change-over location provided by an embodiment of the present invention;

FIG. 4 is a schematic structural view of a feeding portion of the framework provided in the embodiment of the present invention;

FIG. 5 is a schematic view of a rotary workpiece transfer mechanism according to an embodiment of the present invention;

fig. 6 is an enlarged schematic view of a workpiece positioning fixture according to an embodiment of the present invention;

fig. 7 is a schematic structural diagram of a finished product empty material detection mechanism or a skeleton empty material detection mechanism provided in an embodiment of the present invention;

FIG. 8 is a first schematic structural diagram of a winding portion according to an embodiment of the present invention;

FIG. 9 is a second schematic structural diagram of a winding portion according to an embodiment of the present invention;

FIG. 10 is an enlarged schematic view of a winding station provided by an embodiment of the present invention;

FIG. 11 is a schematic structural diagram of a winding head according to an embodiment of the present invention;

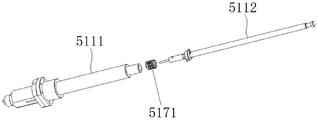

FIG. 12 is an exploded view of a bobbin provided in accordance with an embodiment of the present invention;

fig. 13 is a cross-sectional view of the lower end of a bobbin provided in accordance with an embodiment of the present invention;

FIG. 14 is an enlarged schematic view of the lower end of the bobbin provided by an embodiment of the present invention;

FIG. 15 is a schematic structural diagram of a copper outgoing line and a copper paint stripping portion provided by an embodiment of the invention;

FIG. 16 is a schematic structural diagram of a twisted wire portion of a paint stripping mechanism according to an embodiment of the present invention;

fig. 17 is a schematic structural diagram of a twisted wire portion of the paint stripping mechanism according to the embodiment of the present invention (hidden paint stripping box);

FIG. 18 is a schematic structural diagram of part of a paint stripping mechanism provided in an embodiment of the invention;

FIG. 19 is a half-sectional view of a twisted wire portion of a paint stripping mechanism provided in accordance with an embodiment of the present invention;

FIG. 20 is a schematic structural diagram of a wire guide mechanism provided in an embodiment of the present invention;

FIG. 21 is a schematic structural diagram of a wire pulling device provided by an embodiment of the present invention;

FIG. 22 is a schematic structural diagram of a foot cutting mechanism provided in an embodiment of the present invention;

FIG. 23 is a schematic structural diagram of a leg folding upper die mechanism according to an embodiment of the present invention;

fig. 24 is a schematic structural view (cross section) of a lifting portion of the leg-folding upper die mechanism according to the embodiment of the present invention;

fig. 25 is a schematic structural view of a leg folding side die mechanism and a leg folding lower die mechanism provided in the embodiment of the present invention;

fig. 26 is a schematic (cross-sectional) drawing of a leg-folding side die mechanism and a leg-folding lower die mechanism provided in the embodiment of the present invention;

FIG. 27 is an enlarged view of a blanking portion provided in an embodiment of the present invention;

fig. 28 is a flow chart of the foot cutting and folding provided by the embodiment of the invention.

Detailed Description

In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are some, but not all embodiments of the present invention. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1 to 27, an embodiment of the present invention provides a novel winding bevel intelligent machine, which includes a frame 28, a frame feeding mechanism 1 for feeding a frame, a frame positioning mechanism 15 for positioning the frame, a rotary workpiece transfer mechanism 2 for driving a workpiece to perform station conversion, a pulling device 26 for opening a clamping block 222 of a workpiece positioning jig 22, a frame blank detection mechanism 19 for detecting whether the frame is successfully fed, a paint stripping mechanism 3 for stripping paint from a copper wire, a copper wire feeding mechanism for feeding the copper wire, a copper wire tension mechanism 17, a wire guiding mechanism 18 for guiding the copper wire, a winding wire loading mechanism 5 for winding the copper wire into a coil and loading the coil onto the frame, a ccd camera 27, a hot air blowing mechanism 16 for blowing hot air to the coil so as to make the coil thermally fixed, a wire cutting mechanism 6 for cutting the copper wire, a pin cutting mechanism 7 for cutting the pin of the coil short, an upper die mechanism 8 for punching the pin of the coil from the upper side to make the coil pin bent into a straight shape, a lower die cutting mechanism for punching the pin from the coil pin to make the coil bent by using the lower die mechanism for detecting whether the pin punching mechanism for punching the pin is successfully bent from the lower die side of the coil, and a lower die cutting mechanism for detecting whether the pin punching mechanism for punching the pin to detect the pin.

The automatic feeding device comprises a framework feeding mechanism 1, a framework positioning mechanism 15, a rotary workpiece transfer mechanism 2, a framework empty material detection mechanism 19, a copper wire feeding mechanism, a copper wire tension mechanism 17, a paint stripping mechanism 3, a wire guide mechanism 18, a winding wire loading mechanism 5, a hot air blowing mechanism 16, a pin cutting mechanism 7, a pin folding upper die mechanism 8, a pin folding side die mechanism 9, a blanking mechanism 11 and a finished product empty material detection mechanism 20 which are all installed at the top of a rack 28, the framework feeding mechanism 1, the framework empty material detection mechanism 19, the winding wire loading mechanism 5, the pin cutting mechanism 7, the pin folding upper die mechanism 8, the pin folding side die mechanism 9, the blanking mechanism 11 and the finished product empty material detection mechanism 20 are sequentially arranged on the side edge of the rotary workpiece transfer mechanism 2 along the feeding direction of the rotary workpiece transfer mechanism 2, and the framework positioning mechanism 15 is located between the framework feeding mechanism 1 and the rotary workpiece transfer mechanism 2.

Preferably, the framework feeding mechanism 1 may include a vibration disk 12, a straight vibration feeding rail 13 and two framework carrying devices 14, a feeding end of the straight vibration feeding rail 13 is abutted to an output portion of the vibration disk 12, one framework carrying device 14 is located between a discharging end of the straight vibration feeding rail 13 and the framework positioning mechanism 15, and the other framework carrying device 14 is located between the framework positioning mechanism 15 and the rotary workpiece transfer mechanism 2.

Wherein, the framework positioning mechanism 15 can include an air chuck 151 with four jaws, the air chuck 151 is arranged upward, two framework carrying devices 14 can include a framework carrying bracket 141, a framework carrying traversing cylinder 142, a framework carrying lifting cylinder 143 and a framework carrying suction nozzle 144, the framework carrying traversing cylinder 142 is transversely installed at the top of the framework carrying bracket 141, the framework carrying lifting cylinder 143 is arranged downward and connected to the traversing position of the framework carrying traversing cylinder 142, and the framework carrying suction nozzle 144 is longitudinally installed at the lifting position of the framework carrying lifting cylinder 143. Wherein, the air chuck 151 of this embodiment is a purchased part, and it can choose any one kind of air chuck on the market for use.

Preferably, the rotary workpiece transfer mechanism 2 may include a rotary table 21, a rotary table rotating motor 23 and a cam divider 24, an output shaft of the rotary table rotating motor 23 is in transmission connection with an input portion of the cam divider 24 through a transmission assembly 25, a central portion of the rotary table 21 is connected with an output portion of the cam divider 24, and a plurality of workpiece positioning jigs 22 for positioning and placing a workpiece are uniformly arranged on the edge of the rotary table 21. The transmission assembly 25 may be a transmission device (such as a synchronous wheel + a synchronous belt) commonly available in the market, but not limited to this embodiment.

Each workpiece positioning jig 22 may include a placing plate 221, a clamping block 222, and a clamping block mounting seat 224, a workpiece discharging slot 2211 for placing a workpiece is concavely provided at the top of the outer end of the placing plate 221, a avoiding slot 2212 for bending and avoiding coil pins is provided at the outer end of the placing plate 221, the avoiding slots are respectively communicated with two side portions of the workpiece discharging slot 2211 corresponding to the outer end of the placing plate 221, the clamping block mounting seat 224 is located at the inner end of the placing plate 221, the clamping block 222 is translatably mounted on the clamping block mounting seat 224, a clamping spring 223 arranged parallel to the translation direction of the clamping block 222 is provided between the back of the clamping block 222 and the clamping block mounting seat 224, and the front end of the clamping block 222 extends into the workpiece discharging slot 2211 of the placing plate 221.

The two pulling devices 26 are respectively arranged on the fixed plate 29, the fixed plate 29 is positioned above the turntable 21, the two pulling devices 26 are respectively positioned on the side edge of the feeding station and the side edge of the discharging station of the rotary workpiece transfer mechanism 2, each pulling device 26 comprises a pulling bracket 261, a pulling block 262 and a pulling block transverse moving cylinder 263, the pulling block transverse moving cylinder 263 is transversely arranged on the pulling bracket 261, the output shaft of the pulling block transverse moving cylinder 263 is connected with the pulling block 262, and the extending part of the lower end of the pulling block 262 is positioned on the side edge of the protruding part of the upper end of the clamping block 222.

As shown in fig. 7, each of the skeleton empty material detecting mechanism 19 and the finished product empty material detecting mechanism 20 may include an empty material detecting sensor 191 and an empty material detecting bracket 192, and the empty material detecting sensor 191 is installed downward on the empty material detecting bracket 192. The empty material detection sensor can be a common visual sensor on the market, an in-place sensor or other sensors capable of realizing empty material detection, and the non-embodiment is limited.

The winding and loading mechanism 5 may include an upper winding module 51 and a wire blocking block 52, wherein the wire blocking block 52 is located below the upper winding module 51.

The upper winding module 51 comprises a winding shaft 511, a Y-axis translation driving device 512, an X-axis translation driving device 513, a Z-axis lifting driving device 514, a wire clamping rod 515, a winding shaft rotation driving device 516 and a lifting mandrel lifting driving device 517, wherein the X-axis translation driving device 513 is installed at the translation part of the Y-axis translation driving device 512, and the Z-axis lifting driving device 514 is installed at the translation part of the X-axis translation driving device 513. Wherein, X-axis translation drive device 513 can adopt the common translation drive device on the market (such as translation module + translation seat), Y-axis translation drive device 512 can adopt the common translation drive device on the market (such as motor + lead screw + nut + translation seat), Z-axis lift drive device 514 can adopt the common lift drive device on the market (such as lift module + lift seat), but this embodiment does not relate to the improvement in this respect, and no longer repeated here.

The winding shaft 511 comprises a sleeve shaft 5111 and a lifting mandrel 5112, the sleeve shaft 5111 is longitudinally and rotatably mounted at a lifting part of a Z-axis lifting driving device 514, the lifting mandrel 5112 is liftably mounted in a central hole of the sleeve shaft 5111, the lower end of the lifting mandrel 5112 extends out of the bottom of the sleeve shaft 5111, a wire clamping rod 515 is longitudinally mounted at the lower end of the sleeve shaft 5111 and is located at a side edge of the lifting mandrel 5112, the lower end of the wire clamping rod 515 extends out of the bottom of the sleeve shaft 5111, a winding shaft rotary driving device 516 is mounted at the lifting part of the Z-axis lifting driving device 514 and is in transmission connection with the winding shaft 511, a wire blocking block central hole for inserting the lower end of the lifting mandrel 5112 is arranged at the center of the wire blocking block 52, a wire guiding groove located at a side edge of the wire blocking block central hole is concavely arranged at the top of the wire blocking block 52, and the height of the wire guiding groove 521 is gradually reduced from one end close to one end far away from the copper wire feeding mechanism. The spool rotation driving device 516 may adopt any rotation driving structure (such as motor + synchronous belt + synchronous wheel) on the market, but this embodiment does not relate to the improvement in this aspect, and is not described herein again.

The lifting mandrel lifting driving device 517 is installed at a lifting part of the Z-axis lifting driving device 514, the lifting mandrel lifting driving device 517 may include a return spring 5171, a lower pressing cylinder 5172, a lower pressing block 5173, a lifting block 5174 and a lifting block lifting cylinder 5175, the lower pressing cylinder 5172 is installed at the lifting part of the Z-axis lifting driving device 514 in a downward direction, the lower pressing block 5173 is installed on an output shaft of the lower pressing cylinder 5172 and located above the lifting mandrel 5112, the return spring 5171 is sleeved outside the lifting mandrel 5112 and located in a central hole of the sleeve 5111, the return spring 5171 is located between the sleeve 5111 and a spring limiting seat 5113 arranged on the lifting mandrel 5112, the lifting block lifting cylinder 5175 is arranged upward and located on one side of the upper end of the lifting mandrel 5112, the lifting block 5174 is connected with the output shaft of the lifting block lifting cylinder 5175, a T-shaped part at the upper end of the lifting mandrel 5112 is inserted into the lifting block 5174, and the lifting hole lifting driving device 517 can drive the lifting hole 5112 to lift the lifting block 5111 up and down relative to lift relative to the sleeve 5111.

The hot air blowing mechanism 16 is located on the side of the winding station of the winding and wire loading mechanism 5, wherein the hot air blowing mechanism 16 may include a hot air blower 161, a hot air duct 162 and a hot air blower mounting frame 163, the hot air blower 161 is mounted on the hot air blower mounting frame 163, the inlet end of the hot air duct 162 is connected with the hot air blower 161, and the outlet end of the hot air duct 162 points to the winding station of the winding and wire loading mechanism 5.

CCD camera 27 is located wire winding loading mechanism 5's wire winding station side, and CCD camera 27 can adopt arbitrary CCD camera on the market, and the CCD camera is towards wire winding loading mechanism 5's wire winding station, and the setting of CCD camera can be used to detect the wire winding operating mode.

Copper line feed mechanism arranges in wire winding station side of wire winding wire loading mechanism 5.

Specifically, copper line feed mechanism can include the guide block 41 of being qualified for the next round of competitions, be used for placing the material of copper line book rack 42 and be used for pulling the copper line to the draw off mechanism 43 of wire winding station antedisplacement, is equipped with the guide hole of being qualified for the next round of competitions that supplies the copper line to pass through on the guide block 41 of being qualified for the next round of competitions, and material book rack 42, copper line tension mechanism 17, shell lacquer mechanism 3, wire mechanism 18, draw off mechanism 43 and the guide block 41 of being qualified for the next round of competitions are arranged along the moving direction of copper line in proper order.

The copper wire tension mechanism 17 may include a tension bracket 171 and a tension pulley 172, wherein the tension bracket 171 is provided with a longitudinal guide rod 173, the guide rod 173 is connected with a tension lifting seat 174 in a lifting manner, the tension pulley 172 is mounted on the tension lifting seat 174, the upper end of the tension bracket 171 is provided with a longitudinal adjusting screw 175 located above the tension lifting seat 174, a longitudinal first tension spring 176 is connected between the lower end of the adjusting screw 175 and the top of the tension lifting seat 174, and a longitudinal second tension spring 177 is connected between the bottom of the tension lifting seat 174 and the lower end of the tension bracket 171.

The paint stripping mechanism 3 can comprise a paint stripping support 36, a laser paint stripping device 31, a threading rotating shaft 37, a twisted wire frame 32, a threading block 33, a twisted wire frame rotation driving device 34, a wire pressing device 35, a paint stripping box 38, a cooling fan 39 and a paint stripping lifting driving device 40 for driving the laser paint stripping device 31 to lift, wherein the threading rotating shaft 37 is transversely and rotatably arranged on the paint stripping support 36, the twisted wire frame rotation driving device 34 is in transmission connection with one end of the threading rotating shaft 37, the twisted wire frame 32 is U-shaped, one side of the twisted wire frame 32 is connected with the other end of the threading rotating shaft 37, the threading block 33 is provided with two parts which are respectively and symmetrically arranged at two sides of the twisted wire frame 32, the two threading blocks 33 and the threading rotating shaft 37 are both positioned on a moving path of a copper wire, the middle parts of the two threading holes are respectively arranged in a penetrating manner, the two threading devices 35 are respectively arranged at two ejection positions of the twisted wire frame 32, a laser paint passing hole is arranged between the two wire pressing devices 35, the laser paint stripping device 31 is arranged on the paint stripping lifting driving device 40 and driven by the paint stripping device 40, the laser paint stripping device 31 is arranged at the top of the laser paint stripping frame 32, and the laser paint stripping device 38 is arranged at the top of the laser paint stripping box 38 and positioned at the laser paint stripping frame 32. Wherein, the laser of this embodiment is shelled lacquer device 31 and is purchased the piece outward, and it can adopt any kind can realize on the market that the copper line is shelled the laser machine of lacquer, shells lacquer lifting drive device 40 and can set up to common lifting die set on the market.

In this embodiment, the wire pressing device 35 may include a fixing pressing block 351, a lifting pressing block 352 and a lifting pressing block lifting cylinder 353, the lifting pressing block lifting cylinder 353 is installed on the twisting frame 32, the fixing pressing block 351 is installed at the inner side upper end position of the twisting frame 32, and the lifting pressing block 352 is located below the fixing pressing block 351 and connected with an output shaft of the lifting pressing block lifting cylinder 353.

In a specific implementation, the twisting frame rotation driving device 34 may include a twisting frame rotating motor 341, two belt pulleys 342 and a belt 343, where one of the two belt pulleys 342 is installed on an output shaft of the twisting frame rotating motor 341, the other belt pulley 342 is installed on the threading rotating shaft 37, and the two belt pulleys 342 are synchronously connected through the belt 343.

In order to prevent the copper wire from being unnecessarily twisted and swung, the cross section of the threading hole of the threading block 33 corresponds to the cross section of the copper wire, so that the front and rear positions of the paint stripping position of the copper wire can be limited, and the copper wire is prevented from being unnecessarily swung when being stripped.

As shown in fig. 20, the wire guiding mechanism 18 may include a wire supporting frame 181, an upper guide pulley 182, a lower guide pulley 183, and a wire lifting block 184, wherein the wire lifting block 184 is slidably mounted on the wire supporting frame 181 in the up-down direction, the upper guide pulley 182 is mounted on the wire lifting block 184, the lower guide pulley 183 is mounted on the wire supporting frame 181 and located below the upper guide pulley 182, and a longitudinal wire spring 185 is connected between the wire lifting block 184 and both side portions of the wire supporting frame 181.

As shown in fig. 21, the wire pulling device 43 may include a wire pulling translation module 431, a wire pulling fixing clamp block 432, a wire pulling lifting clamp block 433, and a clamp block lifting cylinder 434, wherein the wire pulling translation module 431 is horizontally arranged, the wire pulling fixing clamp block 432 is installed at a translation position of the wire pulling translation module 431, the clamp block lifting cylinder 434 is installed at a translation position of the wire pulling translation module 431 upward, and the wire pulling lifting clamp block 433 is located below the wire pulling fixing clamp block 432 and is in transmission connection with the clamp block lifting cylinder 434.

The wire cutting mechanism 6 is positioned between the discharge end of the copper wire feeding mechanism and the winding station of the winding and wire loading mechanism 5. In this embodiment, wire cutting mechanism 6 can include wire cutter 61 and wire cutter lift cylinder 62, and wire cutter lift cylinder 62 arranges up, and wire cutter lift cylinder 62 is connected and can drive wire cutter 61 with wire cutter 61 transmission and go up and down, and wire cutter 61 is located the discharge end of copper line feed mechanism's the guide block 41 that is qualified for the next round of competitions.

As shown in fig. 22, the foot cutting mechanism 7 may include a foot cutting support 71, an upper cutter 72, a lower cutter 73, a lower cutter lifting cylinder 74 and an upper cutter lifting cylinder 75, wherein the upper cutter lifting cylinder 75 is installed downward on the foot cutting support 71, the upper cutter 72 is in transmission connection with the upper cutter lifting cylinder 75, and the lower cutter 73 is located below the upper cutter 72 and in transmission connection with the lower cutter lifting cylinder 74.

As shown in fig. 23 and 24, the leg folding upper die mechanism 8 may include a bending upper die 81, a first pressing pin 82, and a bending upper die lifting cylinder 83, the bending upper die lifting cylinder 83 is disposed downward, the bending upper die 81 is mounted downward on an output shaft of the bending upper die lifting cylinder 83 through a bending upper die lifting seat 84, the first pressing pin 82 is longitudinally mounted at a lower end of the bending upper die lifting seat 84 and located at a side of the bending upper die 81, an upper end of the first pressing pin 82 is inserted into a first pressing pin mounting hole provided in the bending upper die lifting seat 84, and a longitudinal first spring 85 located between the upper end of the first pressing pin 82 and the bending upper die lifting seat 84 is provided in the first pressing pin mounting hole.

As shown in fig. 25 and 26, the stitch side die mechanism 9 may include a horizontal pushing punch 91, a horizontal pushing punch translation cylinder 92, a second presser pin 93, and a second presser pin lifting cylinder 94, the horizontal pushing punch translation cylinder 92 is transversely disposed, the horizontal pushing punch 91 is connected to an output shaft of the horizontal pushing punch translation cylinder 92, the second presser pin lifting cylinder 94 is disposed downward, the second presser pin 93 is mounted on the output shaft of the second presser pin lifting cylinder 94 through a presser pin mounting block 95 and located above a front end of the horizontal pushing punch 91, an upper end of the second presser pin 93 is inserted into a second presser pin mounting hole provided at a lower end of the presser pin mounting block 95, and a second spring 96 longitudinally located between the upper end of the second presser pin 93 and the presser pin mounting block 95 is provided in the second presser pin mounting hole.

The lower leg-folding die mechanism 10 is arranged below the edge of the rotary table 21 of the rotary workpiece transfer mechanism 2 and is positioned on the front surface of the side leg-folding die mechanism 9.

As shown in fig. 25, the leg folding lower die mechanism 10 may include a jacking punch 101 and a jacking punch lifting cylinder 102, the jacking punch lifting cylinder 102 is disposed upward, and the jacking punch 101 is located above the jacking punch lifting cylinder 102 and connected to an output shaft of the jacking punch lifting cylinder 102.

As shown in fig. 27, the blanking mechanism 11 may include a blanking frame 111, a blanking traversing cylinder 112, a blanking lifting cylinder 113, and a blanking electromagnetic chuck 114, wherein the blanking traversing cylinder 112 is horizontally mounted on the blanking frame 111, the blanking lifting cylinder 113 is mounted at a traversing position of the blanking traversing cylinder 112 in a downward direction, and the blanking electromagnetic chuck 114 is longitudinally arranged and connected with a lifting position of the blanking lifting cylinder 113.

The working principle of the invention is as follows:

when the pneumatic clamping device works, a framework is output from a vibration disc and enters a direct vibration feeding track, then the framework output by the direct vibration feeding track is conveyed to a framework positioning mechanism by a framework conveying device, four clamping jaws of a pneumatic chuck move towards the center to clamp the framework to position the framework, after the positioning is finished, the framework conveying device conveys the framework to a workpiece positioning jig, a pulling device positioned at a feeding station pulls open clamping blocks of the workpiece positioning jig, after the framework is placed on the jig, the pulling device is released, the clamping blocks clamp the framework under the action of clamping springs, then a turntable drives the framework to move to a framework empty material detection station, the framework empty material detection mechanism detects whether the framework is successfully fed, and then the framework moves to a coil installation station;

a copper wire coil is arranged on a coil holder, a copper wire sequentially passes through a copper wire tension mechanism, a paint stripping mechanism, a wire guide mechanism, a wire drawing device and a wire outlet guide block, when the copper wire is stripped, two wire pressing devices press the front part and the rear part of a part of the copper wire to be stripped, then the laser paint stripping device strips paint on the surface of the copper wire, then a wire twisting frame rotary driving device drives a wire twisting frame to rotate, so that the copper wire is twisted to enable the side surface of the copper wire to face upwards, then the laser paint stripping device strips paint on the side surface of the copper wire, when the copper wire is wound, a Z-axis lifting driving device drives a winding shaft to descend to the top of a wire blocking block, a wire clamping rod, the lower end of a lifting mandrel, the bottom of a sleeve shaft and a wire guide groove of the wire blocking block form a threading channel for one end of the copper wire to insert and pass through, then the wire drawing device pulls the copper wire to enable one end of the copper wire to pass through the threading channel, the lower ends of the wire clamping rod and the lifting mandrel are matched to clamp a copper wire, then a winding shaft rotation driving device drives the winding shaft to rotate, a Z-axis lifting driving device drives the winding shaft to ascend while the winding shaft rotates, so that the copper wire is wound on the lower end of the lifting mandrel, a hot air blowing mechanism can blow hot air to a coil to enable the coil to be in a hot fixing type, after winding is completed, a wire cutting mechanism cuts off the copper wire, then an X-axis translation driving device and a Y-axis translation driving device drive a rotating shaft to move above a framework, the Z-axis lifting driving device drives the winding shaft to descend, meanwhile, a lifting block drives the lifting mandrel to ascend relative to the winding shaft, so that the lower end of the lifting mandrel withdraws from a central hole of the coil, meanwhile, a sleeve shaft pushes the coil downwards, the framework is sleeved on the coil, and therefore, winding of the copper wire and installation of the coil are completed;

the rotary workpiece transfer mechanism sequentially drives a workpiece to move to a pin cutting station, a bending upper punching station, a bending side punching station and a blanking station, when the workpiece is cut, an upper cutter and a lower cutter are matched to cut short pins of a coil, when the workpiece is bent by an upper punch, the upper die is lowered to bend the pins of the coil into a vertical shape, when the workpiece is bent by the side punching, a flat-pushing punch punches the pins of the coil from the side surface to enable the pins of the coil to be bent upwards and lean against the bottom of the framework, a jacking punch ascends and punches the tail ends of the pins of the coil from the lower part to enable the tail ends of the pins of the coil to be bent upwards and lean against the side surface of the framework, when the workpiece is blanked, a pulling device positioned at the blanking station pulls open a clamping block, and a blanking mechanism takes out a finished product for blanking.

In conclusion, the automatic copper wire stripping device is simple and novel in structure and reasonable in design, can realize a series of automatic operations of automatic copper wire stripping, automatic winding, automatic coil skeleton assembly, automatic coil pin cutting, automatic coil pin bending and the like, is high in automation degree, replaces manual operation, greatly improves production efficiency, can guarantee production quality, and can meet the large-scale production requirements of enterprises.

The above embodiments are preferred embodiments of the present invention, but the present invention is not limited to the above embodiments, and any other changes, modifications, substitutions, combinations, and simplifications which do not depart from the spirit and principle of the present invention should be construed as equivalents thereof, and all such changes, modifications, substitutions, combinations, and simplifications are intended to be included in the scope of the present invention.

Claims

1. The utility model provides a novel wire winding dog-ear intelligence machine which characterized in that: comprises a framework feeding mechanism (1) for feeding a framework, a framework positioning mechanism (15) for positioning the framework, a rotary workpiece transfer mechanism (2) for driving a workpiece to perform station conversion, a paint stripping mechanism (3) for stripping paint from a copper wire, a copper wire feeding mechanism for feeding the copper wire, a winding and wire loading mechanism (5) for winding the copper wire into a coil and loading the coil on the framework, a hot air blowing mechanism (16) for blowing hot air to the coil to enable the coil to be in a hot fixing type, a wire cutting mechanism (6) for cutting off the copper wire, a pin cutting mechanism (7) for cutting off pins of the coil, and a pin folding upper die mechanism (8) for stamping the pins of the coil from the upper part to enable the pins of the coil to be bent into a vertical shape, A roll over foot side form mechanism (9) for following side punching press coil pin and make the coil pin buckle to leaning on closing on the bottom surface of skeleton for the end of up punching press coil pin makes the end of coil pin upwards buckle and lean on closing a foot lower die mechanism (10) in the side of skeleton from the below to and be used for unloading mechanism (11) of finished product unloading, a plurality of is used for fixing a position work piece positioning jig (22) of placing the work piece has evenly been arranged at carousel (21) edge of rotation type work piece transfer mechanism (2), skeleton feed mechanism (1), wire winding dress line mechanism (5), foot cutting mechanism (7), roll over foot upper die mechanism (8), roll over foot side form mechanism (9) and unloading mechanism (11) arrange in proper order in rotation type work piece transfer mechanism's (2) pay-off direction along rotation type work piece transfer mechanism's (2) in proper order A transfer mechanism (2) side, skeleton positioning mechanism (15) are located between skeleton feed mechanism (1) and rotation type work piece transfer mechanism (2), copper line feed mechanism arranges in the wire winding station side of wire winding dress line mechanism (5), blow hot-blast mechanism (16) and be located the wire winding station side of wire winding dress line mechanism (5), it arranges on the pay-off route of copper line to shell lacquer mechanism (3), thread cutting mechanism (6) are located between the wire winding station of the discharge end of copper line feed mechanism and wire winding dress line mechanism (5), roll over foot lower die mechanism (10) arrange in carousel (21) edge below of rotation type work piece transfer mechanism (2) and be located roll over foot side form mechanism (9) openly.

2. The novel winding bevel intelligent machine according to claim 1, characterized in that: each workpiece positioning jig (22) comprises a placing plate (221), a clamping block (222) and a clamping block mounting seat (224), a workpiece placing groove (2211) for placing a workpiece is concavely arranged at the top of the outer end of the placing plate (221), avoiding grooves (2212) which are respectively communicated with two side parts of the corresponding workpiece placing groove (2211) and used for bending and avoiding coil pins are arranged at the outer end of the placing plate (221), the clamping block mounting seat (224) is located at the inner end of the placing plate (221), the clamping block (222) can be translationally mounted on the clamping block mounting seat (224), clamping springs (223) which are arranged in parallel to the translation direction of the clamping block (222) are arranged between the back of the clamping block (222) and the clamping block mounting seat (224), and the front end of the clamping block (222) extends into the workpiece placing groove (2211) of the placing plate (221).

3. The novel winding bevel intelligent machine according to claim 1, characterized in that: the workpiece positioning device further comprises two pulling devices (26) for opening the clamping blocks (222) of the workpiece positioning jig (22), and the two pulling devices (26) are respectively positioned on the side edge of the feeding station and the side edge of the discharging station of the rotary workpiece transfer mechanism (2).

4. The novel winding bevel intelligent machine according to claim 1, characterized in that: the winding and wire-loading mechanism (5) comprises an upper winding module (51) and a wire blocking block (52), the wire blocking block (52) is positioned below the upper winding module (51), the upper winding module (51) comprises a winding shaft (511), a Y-axis translation driving device (512), an X-axis translation driving device (513), a Z-axis lifting driving device (514), a wire clamping rod (515), a winding shaft rotation driving device (516) and a lifting mandrel lifting driving device (517), the X-axis translation driving device (513) is installed at the translation part of the Y-axis translation driving device (512), and the Z-axis lifting driving device (514) is installed at the translation part of the X-axis translation driving device (513), spool (511) are including cover axle (5111) and lift dabber (5112), cover axle (5111) are vertical and rotatably install the lift position at Z axle lift drive (514), install in the centre bore of cover axle (5111) with lift dabber (5112), the lower extreme of lift dabber (5112) stretches out cover axle (5111) bottom, thread clamping rod (515) are vertically installed at cover axle (5111) lower extreme and are located lift dabber (5112) side, the lower extreme of thread clamping rod (515) stretches out cover axle (5111) bottom, the lift position at Z axle lift drive (514) is installed in spool rotation drive (516) and with spool (511) transmission And the lifting mandrel lifting driving device (517) is arranged at the lifting part of the Z-axis lifting driving device (514) and can drive the lifting mandrel (5112) to lift up and down relative to the sleeve shaft (5111), and a wire blocking block center hole for inserting the lower end of the lifting mandrel (5112) is formed in the center of the wire blocking block (52).

5. The novel intelligent winding bevel machine according to claim 4, wherein: the lifting mandrel lifting driving device (517) comprises a return spring (5171), a lower pressing cylinder (5172), a lower pressing block (5173), a lifting block (5174) and a lifting block lifting cylinder (5175), wherein the lower pressing cylinder (5172) is downwards installed at the lifting position of the Z-axis lifting driving device (514), the lower pressing block (5173) is installed on the output shaft of the lower pressing cylinder (5172) and is located above the lifting mandrel (5112), the return spring (5171) is sleeved outside the lifting mandrel (5112) and is located in a central hole of the sleeve shaft (5111), the return spring (5171) is located between a spring limiting seat (5113) arranged on the sleeve shaft (5111) and the lifting mandrel (5112), the lifting block lifting cylinder (5175) is upwards arranged and is located on one side of the upper end of the lifting mandrel (5112), the lifting block (5174) is connected with the output shaft of the lifting block lifting cylinder (5175), and the lifting block (5112) penetrates through a T-shaped lifting block (5174) at the upper end of the lifting mandrel (5112).

6. The novel winding bevel intelligent machine according to claim 1, characterized in that: strip lacquer mechanism (3) and strip lacquer device (31), twist wire frame (32), threading piece (33), twist wire frame rotary driving device (34) and cord grip (35) including laser, it is the U type to turn round wire frame (32), the one side of twisting wire frame (32) is connected with twisting wire frame rotary driving device (34) transmission, threading piece (33) are equipped with two and respectively the symmetry and install the both sides position at twisting wire frame (32), and the middle part of two threading pieces (33) all runs through and is provided with the through wires hole, cord grip (35) are equipped with two and install respectively at two inside positions of twisting wire frame (32), strip the lacquer station for laser between two cord grip (35), the laser that laser was stripped lacquer device (31) jets out the position and is located laser is stripped lacquer station top.

7. The novel winding bevel intelligent machine according to claim 6, characterized in that: the wire twisting frame is characterized by further comprising a heat dissipation fan (39), wherein the heat dissipation fan (39) is arranged on one side of the wire twisting frame (32).

8. The novel winding bevel intelligent machine according to claim 1, characterized in that: still empty material detection mechanism (19) of skeleton that is used for detecting whether the skeleton is successful material loading and the finished product that is used for detecting the finished product is successful unloading empty material detection mechanism (20), empty material detection mechanism (19) of skeleton are arranged in rotation type work piece transfer mechanism (2) side and are located between wire winding loading mechanism (5) and skeleton feed mechanism (1), empty material detection mechanism (20) of finished product are arranged in rotation type work piece transfer mechanism (2) side and are located between skeleton feed mechanism (1) and unloading mechanism (11).

9. The novel winding bevel intelligent machine according to claim 1, characterized in that: the wire guiding device further comprises a wire guiding mechanism (18) used for guiding the feeding of the copper wires, wherein the wire guiding mechanism (18) is arranged on the moving path of the copper wires.

10. The novel winding bevel intelligent machine according to claim 1, characterized in that: still include copper line tension mechanism (17), copper line tension mechanism (17) arrange on the moving path of copper line.
