The invention discloses a seedling transplanting and soil excavating power assisting device, which relates to the technical field of garden gardening and comprises a power assisting device body and an excavating device, wherein the power assisting device body also comprises a frame, a first fixing plate is arranged at the top of the frame, a first fixing plate is arranged at the bottom of the first fixing plate, the first fixing plate is fixedly connected with a bearing, a first air cylinder is arranged at the bottom end of the bearing, a first sliding groove is formed in the outer surface of the top of the frame, the bottom of the first air cylinder is fixedly connected with a steering wheel, a two-way motor is arranged at the top of the frame, and the output end of the two-way motor is fixedly connected with a threaded drill bit. Convenient removal, the flexibility is high and the advantage that the practicality is high.
Description
Technical Field
The invention relates to the technical field of garden gardening, in particular to a nursery stock transplanting, soil digging and power assisting device.
Background
Gardening and gardening is an art about garden design and landscape plant, mainly about designing landscape planning of green lands such as parks, roads, districts, scenic spots and the like, recognizing various garden flower trees, knowing living habits of the garden flower trees, being suitable for being applied in places, planting and maintaining and the like, wherein gardening is fruit trees and vegetables, adopting management measures and advanced technology to cultivate high-quality fruits, planting seedlings cultivated by a sowing or vegetative propagation method and having high seedling density and small nutritional space occupied by each seedling, transplanting big seedlings to be cultivated, transplanting once or repeatedly according to requirements of garden greening on the seedlings of various specifications and requirements of cultivation modes, transplanting the seedlings to expand the nutritional space for seedling growth, such as illumination space, ventilation space and branch growth space, space for root growth, space for absorbing moisture and nutrition, and trimming the root system during transplanting, the method has the advantages that the method can stimulate the root system development of seedlings, grow more fibrous roots and improve the greening survival rate, flower and tree transplanting is an important process in garden gardening work, different plants have different soil requirements, manual excavation is very time-consuming and labor-consuming work, on the contrary, a device capable of reducing the labor amount of excavation is needed, and the characteristic of transplanting large-size seedlings is that compared with general seedlings, the technical requirement for transplanting large-size seedlings is complex, the quality requirement for transplanting is high, a large amount of manpower, material resources and financial resources are consumed, the transplanting of large-size seedlings has huge tree bodies and weight and can be completed by means of certain mechanical force, meanwhile, the root system of the large-size seedlings tends to or reaches the maximum root width, and most of absorbed roots at the bases of main roots die.
The prior art has the following defects: when transplanting the great nursery stock of specification, current nursery stock is transplanted and is passed through artifical the native, consuming time and wasting force, and after the earth was dug out to the manpower, still need extract the nursery stock together with the root system, some tiny root must still bury in the soil, cause and lift up the difficulty, more waste manpower, cause the nursery stock to transplant the difficulty, still need the manpower to transport the nursery stock on the car or near other places need staff to carry or shoulder when planting, increase staff's tired degree, it is inefficient to transplant.
Therefore, the invention is necessary to develop a power assisting device for transplanting seedlings and digging soil.
Disclosure of Invention
Therefore, the invention provides a nursery stock transplanting and soil digging assisting device which is characterized in that a first air cylinder is rotatably connected with a fixed plate through a bearing, the outer surface of the first air cylinder is rotatably connected with a sliding groove, four groups of threaded drill bits are arranged at the bottom of a frame, a nylon brush is tightly attached to the outer surface of the threaded drill bits, two groups of third air cylinders and a soil inserting plate are obliquely arranged at the bottom of the frame, the two groups of second air cylinders are arranged at the bottom of the frame, two groups of soil inserting plates are inserted into two groups of insertion holes, the end parts of the soil inserting plates are arc-shaped, and the edge of the bottom end of an insertion knife is acute-angled, so that the problems in the background technology are solved.
In order to achieve the above purpose, the invention provides the following technical scheme: a nursery stock transplanting and soil excavating power assisting device comprises a power assisting device body and an excavating device, wherein the power assisting device body further comprises a frame, a first fixing plate is mounted at the top of the frame, a first fixing plate is mounted at the bottom of the first fixing plate, the first fixing plate is fixedly connected with a bearing, a first air cylinder is mounted at the bottom end of the bearing, a first sliding groove is formed in the outer surface of the top of the frame, the bottom of the first air cylinder is fixedly connected with a steering wheel, a bidirectional motor is mounted at the top of the frame, the output end of the bidirectional motor is fixedly connected with a threaded drill bit, a side fixing rod is mounted at the bottom of the frame, a nylon brush is fixedly connected at the bottom end of the side fixing rod, a second air cylinder is mounted at the bottom of the frame, a third air cylinder is mounted on the inner wall of the frame, and an earth inserting plate is fixedly connected at the output end of the third air cylinder;
the frame top is installed fixed plate two, fixed plate two bottom fixed connection cylinder four, the wheel is installed to four bottoms of cylinder, sliding tray two has been seted up to frame top surface, frame top fixed connection electric telescopic handle, the side fixing base is installed on the electric telescopic handle top, side fixing base one side fixed connection excavating gear, excavating gear is still including installing the solid fixed ring at the top, the jack has been seted up to excavating gear one side surface, the slotting tool is installed to excavating gear bottom.
Preferably, the first air cylinder is rotatably connected with the fixed plate through a bearing, and the outer surface of the first air cylinder is rotatably connected with the sliding groove.
Preferably, the number of the bidirectional motors and the number of the thread drills are four, and the thread drills are arranged at the bottom of the frame.
Preferably, the number of the side fixing rods and the nylon brushes is four, and the nylon brushes are tightly attached to the outer surface of the threaded drill.
Preferably, the number of the third cylinder and the soil inserting plate is two, and the third cylinder and the soil inserting plate are obliquely arranged at the bottom of the frame.
Preferably, the number of the second air cylinders is four, and the second air cylinders are arranged at the bottom of the frame.
Preferably, the number of the jacks is two, and the two groups of the soil inserting plates are inserted into the two groups of the jacks.
Preferably, the end part of the soil inserting plate is arc-shaped, and the soil inserting plate and the soil digging device are made of aluminum alloy.
Preferably, an opening is formed in the outer surface of one side of the soil digging device, and the edge of the bottom end of the slotting tool is set to be an acute angle.
The invention has the beneficial effects that:
1. firstly, a worker pushes the power assisting device body, turns a steering wheel to roll on the ground together with the wheel, puts a seedling into an opening (not marked in the figure) formed in the outer surface of one side of the soil digging device, enables the soil digging device to surround the seedling at the middle position, then starts a first air cylinder and a fourth air cylinder to contract backwards, lowers a frame, enables threaded drill bits fixed at the output ends of four groups of two-way motors to be inserted on the ground as bearing points, then starts the four groups of two-way motors to drive the threaded drill bits to drill into the ground, at the moment, the worker retracts upwards by starting an electric telescopic rod, at the moment, the soil digging device and a slotting tool at the bottom end enable the slotting tool to be inserted into the ground under the action of downward driving of the electric telescopic rod and the pulling force of the threaded drill bits fixed in the ground (as shown in figure 2), (at the moment, jacks on the side surface of the soil digging device are just level with the extension tracks of the third air cylinder and the soil inserting plate), then, the worker starts the third air cylinder to drive the soil inserting plate to extend into the insertion hole in the side face of the soil excavating device until the insertion hole is obliquely inserted into the soil by the extending thrust of the third air cylinder and the pulling force of the threaded drill bit fixed in the soil, at the moment, the soil inserting plate and the slotting tool wrap the root of the seedling and the soil of the root (shown in figure 3), finally, the worker starts the two-way motor again to rotate reversely to drive the threaded drill bit to rotate and rise from the soil and return to the surface of the soil, and finally, the four groups of third air cylinders are started to lift the frame together with the seedling root and the soil wrapped in the soil excavating device upwards to complete the soil excavating and the lifting of the seedling (shown in figure 4), so that the effects of conveniently excavating the soil and lifting the seedling are achieved;
2. the worker starts the first cylinder and the fourth cylinder to extend the steering wheel and the wheels downwards, lifts the four groups of drill bits, starts the second cylinder to contract upwards, enables the steering wheel and the wheels to contact the ground, can push the push handle at the moment, conveys the power assisting device body together with the dug seedlings and soil to a vehicle or other places for planting, directly drives the soil inserting plates to withdraw through the third cylinder when taking out the seedlings or planting, can drop the seedlings and the soil in the soil digging device into the dug pits in advance due to no fixation of the soil inserting plates at the moment, completes planting, and can also use the soil digging device through the method by utilizing the power assisting device body to dig the pits before planting the seedlings, thereby achieving the effects of improving the transplanting efficiency and saving manpower;
3. the utility model discloses a two-way motor, including the soil board, the soil board is inserted to the bush cutter, the bush cutter bottom edge sets up to the acute angle, the tip of soil board sets up to the arc, all be in can inserting the soil more easily for the bush cutter with the soil board of inserting, reduce the resistance when inserting the soil, the effect of nylon brush does, weeds that the two-way motor drive drill bit was drawn together on the drill bit surface when making a round trip to bore into the soil are cleared up, prevent that the earth weeds at drill bit middle part are too much, get into two-way motor, cause two-way motor's damage, the material of soil board and soil device of inserting sets up to the aluminum alloy, the aluminum alloy has wear-resisting, it is corrosion-resistant, hardness is high, plasticity advantage, improve the durability and the intensity of soil board and soil device of inserting.
Drawings

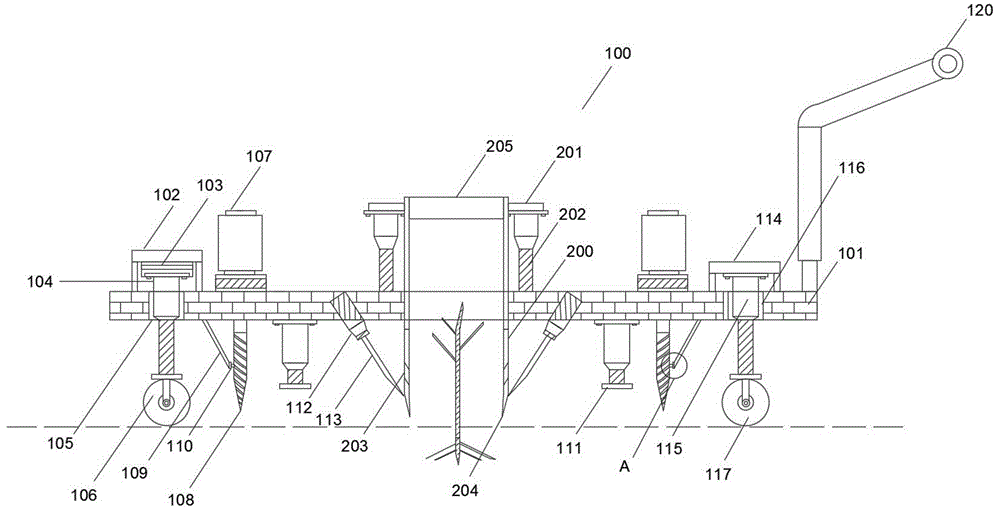

FIG. 1 is a schematic structural view of a power assisting device provided by the present invention;
FIG. 2 is a schematic structural view of the power assisting device provided by the present invention in use;
FIG. 3 is a schematic structural view of the power assisting device provided by the present invention in use;
FIG. 4 is a schematic structural view of the power assisting device provided by the present invention in use;
FIG. 5 is a top view of a booster body provided by the present invention;
FIG. 6 is a bottom view of the body of the booster of the present invention;
FIG. 7 is a diagram illustrating the effect of the present invention;
fig. 8 is an enlarged view of a in fig. 1 according to the present invention.
In the figure: the power assisting device comprises a power assisting device body 100, a frame 101, a first fixing plate 102, a bearing 103, a first air cylinder 104, a first sliding groove 105, a steering wheel 106, a bidirectional motor 107, a thread drill 108, a side fixing rod 109, a nylon brush 110, a second air cylinder 111, a third air cylinder 112, an earth inserting plate 113, a second fixing plate 114, a fourth air cylinder 115, a second sliding groove 116, wheels 117, a push handle 120, an earth excavating device 200, a side fixing seat 201, an electric telescopic rod 202, a jack 203, a slotting tool 204 and a fixing ring 205.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are described herein for the purpose of illustration and explanation and not limitation.
Referring to the attached drawings 1-8, the invention provides a seedling transplanting, soil digging and power assisting device, which aims to achieve the purpose and adopts the following technical scheme: a nursery stock transplanting and soil excavating power assisting device comprises a power assisting device body 100 and a soil excavating device 200, wherein the power assisting device body 100 further comprises a frame 101, a first fixing plate 102 is installed at the top of the frame 101, a first fixing plate 102 is installed at the bottom of the first fixing plate 102, the first fixing plate 102 is fixedly connected with a bearing 103, a first cylinder 104 is installed at the bottom end of the bearing 103, a first sliding groove 105 is formed in the outer surface of the top of the frame 101, the bottom of the first cylinder 104 is fixedly connected with a steering wheel 106, a bidirectional motor 107 is installed at the top of the frame 101, the output end of the bidirectional motor 107 is fixedly connected with a threaded drill bit 108, a side fixing rod 109 is installed at the bottom of the frame 101, a nylon brush 110 is fixedly connected at the bottom end of the side fixing rod 109, a second cylinder 111 is installed at the bottom of the frame 101, a third cylinder 112 is installed on the inner wall of the frame 101, and the output end of the third cylinder 112 is fixedly connected with a soil inserting plate 113;
a second fixing plate 114 is installed at the top of the frame 101, a fourth cylinder 115 is fixedly connected to the bottom of the second fixing plate 114, wheels 117 are installed at the bottom end of the fourth cylinder 115, a second sliding groove 116 is formed in the outer surface of the top of the frame 101, an electric telescopic rod 202 is fixedly connected to the top of the frame 101, a side fixing seat 201 is installed at the top end of the electric telescopic rod 202, a side fixing seat 201 is fixedly connected to one side of the side fixing seat 201, the excavating device 200 further comprises a fixing ring 205 installed at the top, a jack 203 is formed in the outer surface of one side of the excavating device 200, and a slotting tool 204 is installed at the bottom end of the excavating device 200.
Further, the first cylinder 104 is rotatably connected with the first fixing plate 102 through a bearing 103, the outer surface of the first cylinder 104 is rotatably connected with the first sliding groove 105, the number of the bidirectional motors 107 and the threaded drills 108 is four, the positions of the threaded drills 108 are arranged at the bottom of the frame 101, the number of the third cylinder 112 and the soil-inserting plates 113 is two, the three cylinders 112 and the soil-inserting plates 113 are obliquely arranged at the bottom of the frame 101, the number of the second cylinder 111 is four, the positions of the second cylinder 111 are arranged at the bottom of the frame 101, the number of the jacks 203 is two, the two soil-inserting plates 113 are inserted into the two jacks 203, the ends of the soil-inserting plates 113 are arc-shaped, the soil-inserting plates 113 and the soil-excavating device 200 are made of aluminum alloy, an opening (not marked in the figure) is arranged on the outer surface of one side of the soil-excavating device 200, the bottom edge of the cutter 204 is acute angle, when the power-assisted device body 100 is used for transplanting seedlings, firstly, a worker pushes the power assisting device body 100, turns the steering wheel 106 through steering, rolls on the ground together with the wheel 117, puts a seedling in an opening (not marked in the figure) formed in the outer surface of one side of the soil digging device 200, enables the soil digging device 200 to enclose the seedling at a middle position, then retracts backwards through the actuating cylinder I104 and the cylinder IV 115, lowers the frame 101, enables the threaded drill bits 108 fixed at the output ends of the four groups of the two-way motors 107 to be inserted on the ground as bearing points, then actuates the four groups of the two-way motors 107 to drive the threaded drill bits 108 to drill into the ground, at the moment, the worker retracts upwards through actuating the electric telescopic rod 202, at the moment, the soil digging device 200 and the slotting tools 204 at the bottom end enable the slotting tools 204 to be inserted into the ground under the action of downward driving of the electric telescopic rod 202 and the pulling force of the threaded drill bits 108 fixed in the ground (as shown in figure 2), (at the moment, the insertion holes 203 on the side surface of the soil digging device 200 are just level with the extending tracks of the cylinder III 112 and the soil inserting plate 113), then the worker starts the third cylinder 112 to drive the soil-inserting plate 113 to extend into the insertion hole 203 on the side surface of the soil-digging device 200 until the insertion hole 203 is obliquely inserted into the soil by the extending thrust of the third cylinder 112 and the pulling force of the thread drill 108 fixed in the soil, at this time, the root of the seedling and the soil at the root are covered by the soil-inserting plate 113 and the cutter 204 (as shown in figure 3), finally, the worker starts the two-way motor 107 again to rotate reversely to drive the thread drill 108 to rotate and rise from the soil and return to the surface of the soil, finally, the four groups of third cylinders 112 are started to lift the frame 101 and the root of the seedling and the soil covered in the soil-digging device 200 upwards to complete the soil digging and the lifting of the seedling (as shown in figure 4), the soil-inserting plate 113 and the soil-inserting device 200 are made of aluminum alloy, and the aluminum alloy has the characteristics of wear resistance, corrosion resistance and high hardness, the advantage of strong plasticity, the durability and the strength of the soil-inserting plate 113 and the soil-inserting device 200 are improved;
after the nursery stock is lifted by digging, the worker extends the steering wheel 106 and the wheels 117 downwards by starting the first air cylinder 104 and the fourth air cylinder 115, lifts the four sets of drill bits 108, simultaneously, the four groups of cylinders II 111 are started to contract upwards, so that the steering wheels 106 and the wheels 117 contact the ground, at the moment, a worker can push the push handle 120, the power assisting device body 100 together with the dug seedlings and soil are conveyed to a vehicle or other places for planting, when the seedlings are taken out or planted, the soil inserting plate 113 is directly driven to be retracted by starting the third cylinder 112, at the moment, the seedlings and soil in the excavating device 200 can fall into the dug pits in advance because the soil inserting plate 113 is not fixed, after planting, the power assisting device body 100 can be used for using the excavating device 200 through the method, the operation of digging holes is carried out before the saplings are planted, so that the effects of improving the transplanting efficiency and saving manpower are achieved.
Further, the number of the side fixing rods 109 and the nylon brushes 110 is set to be four groups, the nylon brushes 110 are tightly attached to the outer surface of the threaded drill bit 108, and the nylon brushes 110 are used for cleaning weeds on the surface of the drill bit 108 when the drill bit 108 is driven by the bidirectional motor 107 to drill back and forth into the ground, so that the situation that the bidirectional motor 107 is damaged due to the fact that too much soil and weeds are arranged in the middle of the drill bit 108 and enter the bidirectional motor 107 is avoided.
The using process of the invention is as follows: when the power assisting device body 100 is used for transplanting seedlings, firstly, workers in the field push the power assisting device body 100, the steering wheel 106 is turned to roll on the ground together with the wheels 117, the seedlings are placed in an opening (not marked in the drawing) formed in the outer surface of one side of the soil digging device 200, the soil digging device 200 surrounds the seedlings at the middle position, then the vehicle frame 101 is contracted backwards by starting the first air cylinder 104 and the fourth air cylinder 115, the threaded drill heads 108 fixed at the output ends of the four groups of the two-way motors 107 are inserted on the ground as bearing points, then the four groups of the two-way motors 107 are started, the threaded drill heads 108 are driven to drill into the ground, at the moment, the workers contract upwards by starting the electric telescopic rod 202, at the moment, the soil digging device 200 and the slotting tools 204 at the bottom end are driven downwards by the electric telescopic rod 202 and under the tension of the threaded drill heads 108 fixed in the ground, inserting the slotting tool 204 into the ground (as shown in fig. 2), (at this time, the insertion hole 203 on the side of the excavating device 200 is just flush with the extending tracks of the cylinder three 112 and the slotting plate 113), then the worker starts the cylinder three 112 to drive the slotting plate 113 to extend into the insertion hole 203 on the side of the excavating device 200 until the extending thrust of the cylinder three 112 and the pulling force of the thread drill 108 fixing the thread drill 108 into the ground insert the insertion hole 203 into the ground obliquely, at this time, the slotting plate 113 and the slotting tool 204 wrap the root of the seedling and the soil on the root (as shown in fig. 3), finally, the worker starts the two-way motor 107 again, rotates reversely to drive the thread drill 108 to rotate and lift from the ground to the ground surface, finally, the four groups of cylinder three 112 are started, the frame 101 together with the root of the seedling wrapped in the excavating device 200 and the soil are lifted upwards, and the soil excavation and the lifting of the seedling are completed (as shown in fig. 4);
when the seedlings are dug and lifted, the worker starts the first cylinder 104 and the fourth cylinder 115 to extend the steering wheel 106 and the wheel 117 downwards, lifts the four groups of drill bits 108, starts the second cylinder 111 to contract upwards at the same time, so that the steering wheel 106 and the wheel 117 contact the ground, the worker can push the push handle 120 at the moment, the power assisting device body 100 together with the seedlings and soil dug out just now are conveyed to a vehicle or other places to be planted, when the seedlings are taken out or planted, the soil inserting plate 113 is directly driven to be retracted through the third cylinder 112, the seedlings and soil in the soil digging device 200 can fall into a pit dug in advance due to no fixation of the soil inserting plate 113, the planting is completed, the soil digging device 200 can be used by utilizing the power assisting device body 100 through the method, the hole digging operation is carried out before the seedlings are planted, and the effects of improving the transplanting efficiency and saving manpower are achieved, the bottom edge of slotting tool 204 sets up to the acute angle, the tip of inserting native board 113 sets up to the arc, all be in order that slotting tool 204 and inserting native board 113 can insert the soil more easily, reduce the resistance when inserting the soil, the effect of nylon brush 110 does, make a round trip to bore the weeds that the soil in the time of the soil was drawn out to the drill bit 108 surface and clear up in two-way motor 107 drive drill bit 108, prevent that the earth weeds at drill bit 108 middle part are too much, get into two-way motor 107 in, cause the damage of two-way motor 107, insert native board 113 and insert the material of native device 200 and set up to the aluminum alloy, the aluminum alloy has wear-resisting, it is corrosion-resistant, hardness is high, the strong advantage of plasticity, improve the durability and the intensity of inserting native board 113 and inserting native device 200.
The above is only a preferred embodiment of the present invention, and any person skilled in the art may modify the present invention or modify it into an equivalent technical solution by using the technical solution described above. Therefore, any simple modifications or equivalent substitutions made in accordance with the technical solution of the present invention are within the scope of the claims of the present invention.
Claims (9)
1. The utility model provides a nursery stock is transplanted and is dug native booster unit, includes booster unit body (100) and digging device (200), its characterized in that: the booster unit body (100) further comprises a frame (101), a first fixing plate (102) is installed at the top of the frame (101), the first fixing plate (102) is installed at the bottom of the first fixing plate (102), the first fixing plate (102) is fixedly connected with a bearing (103), a first cylinder (104) is installed at the bottom end of the bearing (103), a first sliding groove (105) is formed in the outer surface of the top of the frame (101), the first cylinder (104) is fixedly connected with a steering wheel (106) at the bottom, a two-way motor (107) is installed at the top of the frame (101), a threaded drill bit (108) is fixedly connected with the output end of the two-way motor (107), a side fixing rod (109) is installed at the bottom of the frame (101), a nylon brush (110) is fixedly connected with the bottom end of the side fixing rod (109), a second cylinder (111) is installed at the bottom of the frame (101), and a third cylinder (112) is installed on the inner wall of the frame (101), the output end of the third cylinder (112) is fixedly connected with a soil inserting plate (113);
fixed plate two (114) is installed at frame (101) top, fixed plate two (114) bottom fixed connection cylinder four (115), wheel (117) are installed to cylinder four (115) bottom, sliding tray two (116) have been seted up to frame (101) top surface, frame (101) top fixed connection electric telescopic handle (202), side fixing base (201) are installed on electric telescopic handle (202) top, side fixing base (201) one side fixed connection excavating gear (200), excavating gear (200) are still including installing solid fixed ring (205) at the top, jack (203) have been seted up to excavating gear (200) one side surface, slotting tool (204) are installed to excavating gear (200) bottom.
2. The nursery stock transplanting, soil digging and assisting device as claimed in claim 1, wherein: the first air cylinder (104) is rotatably connected with the first fixing plate (102) through a bearing (103), and the outer surface of the first air cylinder (104) is rotatably connected with the first sliding groove (105).
3. The nursery stock transplanting, soil digging and assisting device as claimed in claim 1, wherein: the number of the bidirectional motors (107) and the number of the thread drills (108) are four, and the thread drills (108) are arranged at the bottom of the frame (101).
4. The nursery stock transplanting, soil digging and assisting device as claimed in claim 1, wherein: the number of the side fixing rods (109) and the nylon brushes (110) is set to be four groups, and the nylon brushes (110) are tightly attached to the outer surface of the threaded drill bit (108).
5. The nursery stock transplanting, soil digging and assisting device as claimed in claim 1, wherein: the number of the third cylinder (112) and the soil inserting plate (113) is two, and the third cylinder (112) and the soil inserting plate (113) are obliquely arranged at the bottom of the frame (101).
6. The nursery stock transplanting, soil digging and assisting device as claimed in claim 1, wherein: the number of the second air cylinders (111) is four, and the second air cylinders (111) are arranged at the bottom of the frame (101).
7. The nursery stock transplanting, soil digging and assisting device as claimed in claim 1, wherein: the number of the jacks (203) is two, and the two groups of the soil inserting plates (113) are inserted into the two groups of the jacks (203).
8. The nursery stock transplanting, soil digging and assisting device as claimed in claim 1, wherein: the end part of the soil inserting plate (113) is arc-shaped, and the soil inserting plate (113) and the soil excavating device (200) are made of aluminum alloy.
9. The nursery stock transplanting, soil digging and assisting device as claimed in claim 1, wherein: an opening is formed in the outer surface of one side of the excavating device (200), and the edge of the bottom end of the slotting tool (204) is set to be an acute angle.
