Abstract
The invention relates to the technical field of drying, in particular to drying and conveying equipment with a good effect for cutting plates. According to the invention, the collecting box and the conveying part are arranged, so that the plate cut by the cutting system is conveyed into the collecting box and then conveyed out from the discharge hole of the collecting box; meanwhile, the lifting part is arranged, so that the plate at the bottom of the collecting box can be conveyed to the uppermost end, the plate is convenient to take manually, the structure is simple, and the efficiency is high; the lifting part and the pressing part are matched to compress the plate in the collecting box.
Description
Technical Field
The invention relates to the technical field of drying, in particular to drying and conveying equipment with a good effect for cutting a plate.
Background
The plate is an important material and needs to be stored, but the sizes of the plates supplied in the market are inconsistent, so that the storage requirement cannot be met. Therefore, it is necessary to cut the sheet material purchased in the market and then store the cut sheet material. At present, the long-time moist phenomenon that can appear stacking of panel of purchasing back from the market, when carrying out panel cutting, need dry earlier to panel, secondly, the panel cutting is artifical manual cutting, cutting efficiency is slow, simultaneously in cutting process, can produce a large amount of heats, panel cutting position can blacken, serious can damage cutting tool, if adopt the cooling water to cool off, can cause the panel moist, need dry once more to panel after the cutting is accomplished, it is time and energy consuming, low efficiency, and need consume huge manpower and materials.
Simultaneously, panel is tailor and is accomplished the back, needs to retrieve the panel of tailorring, then packs, and at present, panel is tailor and is accomplished the back, adopts the mode of artifical transport, collects the recovery in carrying panel to the collecting box, because the weight and the size of panel are great, carries panel and need consume huge manpower and material resources, wastes time and energy.
Disclosure of Invention
The technical problem to be solved by the invention is as follows: in order to overcome one of the technical problems in the prior art, the invention provides drying and conveying equipment for cutting a plate material, which has good effect and comprises,
the material collecting system comprises a collecting box, a discharge port arranged on one side of the collecting box, a conveying part arranged in the collecting box, and
the conveying part comprises a conveying frame, conveying belts arranged on two sides of the conveying frame and a driving part for driving the conveying belts to rotate;
and a lifting part is also arranged between the conveying frames and is suitable for lifting the plates in the collecting box to the top of the collecting box.
Further, the lifting part comprises a lifting frame and a lifting cylinder in transmission connection with the lifting frame, wherein,
the width of the lifting frame is matched with the width between the conveyor belts.
Furthermore, the side wall of the collecting box is also rotated with a compressing part, the compressing part comprises a mounting cavity arranged on the side wall of the collecting box, a pressure plate rotationally arranged in the mounting cavity and a rotary cylinder fixed in the mounting cavity, wherein,
the piston of the rotary cylinder is in transmission connection with a transmission plate, the transmission plate is hinged with a connecting rod, and the connecting rod is hinged with the pressing plate to drive the pressing plate to rotate.
Further, the driving part comprises a motor, and driving rollers are rotated at both ends of the conveying frame, wherein,
the motor is in transmission connection with the transmission roller through a belt;
the conveying belt is rotatably arranged on the driving roller.
Furthermore, one side of the collecting box is also provided with a feed inlet corresponding to the position of the cutting system, wherein,
the side wall of the collecting box is also fixed with a guide rod which is positioned at the feed inlet.
Further, the size of discharge gate and the thickness adaptation of panel.
Furthermore, the cutting system comprises a first conveying part, the first conveying part comprises a support, a cooling part arranged on the support and a drying part arranged on the support, the cooling part comprises a water tank, an upper cover plate and a lower cover plate, the upper cover plate and the lower cover plate are arranged at the upper end and the lower end of the water tank in a sliding mode, the upper cover plate and the lower cover plate are arranged in the water tank in a sliding mode, a water inlet and a water outlet are further formed in the water tank, and an elastic mechanism is further arranged between the upper cover plate and the lower cover plate to enable the upper cover plate to block the water inlet;
the second conveying part comprises a conveying belt and a flexible pressing plate arranged on the conveying belt;
the cutting part is positioned at the end of the second conveying part and is suitable for cutting the plate conveyed on the second conveying part, and the position of the cutting part corresponds to the position of the water outlet; wherein the content of the first and second substances,
when the first conveying part conveys the plate to the second conveying part, the plate passes through the upper part of the drying part to be dried, the plate continues to move to the upper cover plate, and the plate presses the upper cover plate to open the water inlet and inject water into the water tank;
when the second conveying part conveys the plate conveyed by the first conveying part to the cutting part, the plate extrudes the flexible pressing plate, the flexible pressing plate extrudes the upper cover plate, so that the upper cover plate extrudes water in the water tank, the water is extruded out from the water outlet under pressure, meanwhile, the plate is positioned at the cutting part for cutting, and the water sprayed out from the water outlet cools the plate; and after the plate is cut, drying again below the drying part.
Further, the drying part includes a cooling fan rotatably provided on the supporter, wherein,
the cooling fan is located at the initial position of the first conveying part.
Furthermore, a second scraper is fixedly connected to the upper cover plate, a groove suitable for placing the second scraper is also arranged on the bracket, wherein,
one end of the second scraper blade is also provided with a storage cavity suitable for storing impurities scraped off by the second scraper blade.
Has the advantages that: 1. the invention relates to drying and conveying equipment for cutting a plate with good effect, which is characterized in that a collecting box and a conveying part are arranged, the plate cut by a cutting system is conveyed into the collecting box and then conveyed out from a discharge hole of the collecting box; meanwhile, the lifting part is arranged, so that the plate at the bottom of the collecting box can be conveyed to the uppermost end, the plate is convenient to take manually, the structure is simple, and the efficiency is high; the lifting part and the pressing part are matched to compress the plate in the collecting box.
2. The invention utilizes the gravity of the plate to press the upper cover plate downwards, thereby opening the water inlet; the flexible pressing plate is extruded through the plate, so that the flexible pressing plate upwards presses down the cover plate, the lower cover plate extrudes water in the water tank, and the water in the water tank is extruded by the water jet under pressure to cool the cutting part.
3. According to the invention, the drying part is arranged to dry the plate entering the first conveying part, and the processed plate is dried, so that the drying efficiency is improved; meanwhile, impurities such as scraps on the plate can be removed.
4. The upper cover plate is provided with the inclined surface, so that water flow can conveniently flow into the water tank to play a role in drainage, and meanwhile, the upper cover plate can be conveniently extruded downwards by a plate to play a role in guiding.
5. The upper cover plate is provided with the clamping groove, the clamping groove can be tightly attached to the flanging, line sealing is changed into surface sealing, and the sealing effect is improved.
6. The second scraper is also provided with a storage cavity for storing impurities scraped off by the second scraper.
Drawings

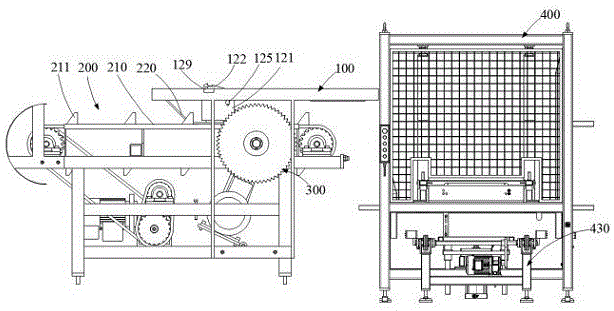

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the receiving system according to the present invention;
FIG. 3 is a schematic view of the lifting portion of the present invention;
FIG. 4 is a schematic view of the first conveying unit, the second conveying unit and the cutting unit according to the present invention;
FIG. 5 is a schematic view of the cooling portion of the present invention;
FIG. 6 is a schematic view of a flexible platen according to the present invention;
in the figure:
100. the device comprises a first conveying part, a second conveying part, a second conveying part;
200. the second conveying part 210, the conveying belt 211, the clamping block 220, the flexible pressing plate 221 and the concave cavity;
300. a cutting part;
400. the receiving system comprises a 410 collecting box, 420, a discharging port, 430, a conveying part, 431, a conveying frame, 432, a conveying belt, 433, a motor, 434, a driving roller, 435, a belt, 436, a driving rod, 440, a lifting part, 441, a lifting frame, 442, a lifting cylinder, 450, a guide rod, 460, a feeding port, 470, a pressing part, 471, an installation cavity, 472, a pressing plate, 473, a rotating cylinder, 474, a driving plate, 475 and a connecting rod.
Detailed Description
In order to make the technical solutions of the present invention better understood, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Reference herein to "one embodiment" or "an embodiment" means that a particular feature, structure, or characteristic may be included in at least one implementation of the invention. In the description of the present invention, it is to be understood that the terms "upper", "top", "bottom", and the like, as used herein, refer to an orientation or positional relationship based on that shown in the drawings, which is for convenience in describing the present invention and simplifying the description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed in a particular orientation, and be operated, and thus, should not be taken as limiting the present invention. Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. Moreover, the terms "first," "second," and the like are used for distinguishing between similar elements and not necessarily for describing a particular sequential or chronological order. It is to be understood that the data so used is interchangeable under appropriate circumstances such that the embodiments of the invention described herein are capable of operation in sequences other than those illustrated or described herein.
Example one
As shown in FIGS. 1 to 6, a drying and conveying apparatus for cutting a plate material with excellent effects comprises,
a cutting system and a material receiving system 400 arranged at one side of the cutting system, wherein the material receiving system 400 comprises a collecting box 410, a discharge port 420 arranged at one side of the collecting box 410, a conveying part 430 arranged in the collecting box 410, and
the conveying part 430 comprises a conveying frame 431, conveying belts 432 arranged at two sides of the conveying frame 431, and a driving part for driving the conveying belts 432 to rotate; a lifting part 440 is further arranged between the conveying frames 431, and the lifting part 440 is suitable for lifting the plates in the collecting box 410 to the top of the collecting box 410;
the cutting system comprises a first conveying part 100, wherein the first conveying part 100 comprises a support 110, a cooling part 120 arranged on the support 110 and a drying part 140 arranged on the support 110, the cooling part 120 comprises a water tank 121, an upper cover plate 122 and a lower cover plate 123 which are arranged at the upper end and the lower end of the water tank 121 in a sliding manner, the upper cover plate 122 and the lower cover plate 123 are both arranged in the water tank 121 in a sliding manner, a water inlet 124 and a water outlet 125 are further arranged on the water tank 121, and an elastic mechanism 126 is further arranged between the upper cover plate 122 and the lower cover plate 123 so that the upper cover plate 122 blocks the water inlet 124;
a second conveying part 200, wherein the second conveying part 200 comprises a conveying belt 210 and a flexible pressing plate 220 arranged on the conveying belt 210;
a cutting part 300, wherein the cutting part 300 is positioned at the end of the second conveying part 200 and is suitable for cutting the plate conveyed on the second conveying part 200, and the position of the cutting part 300 corresponds to the position of the water outlet 125; wherein the content of the first and second substances,
when the first conveying part 100 conveys the plate material to the second conveying part 200, the plate material passes through the upper part of the drying part 140, the plate material is dried, the plate material continues to move to the upper cover plate 122, and the plate material presses the upper cover plate 122 to open the water inlet 124, so that water is injected into the water tank 121;
when the second conveying part 200 conveys the plate conveyed by the first conveying part 100 to the cutting part 300, the plate presses the flexible pressing plate 220, the flexible pressing plate 220 presses the upper cover plate 122, so that the upper cover plate 122 presses water in the water tank 121, the water is pressed and sprayed out from the water outlet 125, meanwhile, the plate is positioned in the cutting part 300 for cutting, and the water sprayed out from the water outlet 125 cools the plate; after the cutting of the plate is completed, the plate is dried again through the lower part of the drying part 140.
Cutting system
The cutting system is suitable for drying and cutting the plate.
A drying and conveying device for cutting plates is disclosed, wherein a first conveying part 100 is provided, the first conveying part 100 comprises a support 110, a cooling part 120 arranged on the support 110 and a drying part 140 arranged on the support 110, the cooling part 120 comprises a water tank 121, an upper cover plate 122 and a lower cover plate 123 which are arranged at the upper end and the lower end of the water tank 121 in a sliding manner, the upper cover plate 122 and the lower cover plate 123 are both arranged in the water tank 121 in a sliding manner, the water tank 121 is also provided with a water inlet 124 and a water outlet 125, and an elastic mechanism 126 is arranged between the upper cover plate 122 and the lower cover plate 123 so that the upper cover plate 122 blocks the water inlet 124; a second conveying part 200, wherein the second conveying part 200 comprises a conveying belt 210 and a flexible pressing plate 220 arranged on the conveying belt 210; a cutting part 300, wherein the cutting part 300 is positioned at the end of the second conveying part 200 and is suitable for cutting the plate conveyed on the second conveying part 200, and the position of the cutting part 300 corresponds to the position of the water outlet 125; when the first conveying part 100 conveys the plate to the second conveying part 200, the plate passes above the drying part 140 to be dried, the plate continues to move to the upper cover plate 122, and the plate presses the upper cover plate 122 to open the water inlet 124 and fill the water tank 121 with water; when the second conveying part 200 conveys the plate conveyed by the first conveying part 100 to the cutting part 300, the plate presses the flexible pressing plate 220, the flexible pressing plate 220 presses the upper cover plate 122, so that the upper cover plate 122 presses water in the water tank 121, the water is pressed and sprayed out from the water outlet 125, meanwhile, the plate is positioned in the cutting part 300 for cutting, and the water sprayed out from the water outlet 125 cools the plate; after the cutting of the plate is completed, the plate is dried again through the lower part of the drying part 140. The second conveying part 200 is located below the first conveying part 100, the first conveying part 100 can be conveyed in a manner that a plate is pushed by an air cylinder or manually, and the plate falls onto the second conveying part 200 after passing through the first conveying part 100 and is conveyed to the cutting part 300 by the second conveying part 200 for cutting. The conveyor belt 210 may be driven to rotate by a drive connection with a rotary cylinder 473.
The drying part 140 includes a cooling fan 141 rotatably provided on the supporter 110, wherein the cooling fan 141 is located at a start position of the first conveying part 100. The position of the cooling fan 141 corresponds to a starting position where the plate material is fed by the first feeding unit 100 and also corresponds to a position where the plate material cut by the cutting unit 300 is fed. When the plate is put into the first conveying part 100, the cooling fan 141 blows air to dry the plate that enters, and also blows off impurities such as dust on the plate. After the board is cut out from the cutting part 300, the board is dried by blowing air again, and the cut chips are blown off.
The upper cover plate 122 is fixedly connected with a second scraper 127, the bracket 110 is further provided with a groove 129 for placing the second scraper 127, and one end of the second scraper 127 is further provided with a storage cavity 128 for storing impurities scraped off by the second scraper 127. When the plate is conveyed on the first conveying part 100, the plate passes through the second scraper 127, the second scraper 127 scrapes impurities on the plate into the storage cavity 128, meanwhile, the plate can extrude the upper cover plate 122, when the upper cover plate 122 moves downwards, the second scraper 127 can be driven to move downwards, in order to ensure the stability of the movement of the plate, the groove 129 is formed in the support 110, when the second scraper 127 moves downwards, the plate can be placed in the groove 129, and the smoothness of the first conveying part 100 is ensured.
The upper cover plate 122 is provided with a clamping groove 130, the upper end and the lower end of the side wall of the water tank 121 are both extended with flanges 131, wherein the clamping groove 130 is attached to the flanges 131 to ensure the tightness between the upper cover plate 122 and the water tank 121. The flanges 131 are rectangular, and the slots 130 formed in the upper cover plate 122 are also rectangular, so that the slots 130 in the upper cover plate 122 can be tightly attached to the rectangular flanges 131, and the line sealing is changed into the surface sealing, thereby improving the sealing property. Meanwhile, when water just flows into the water tank 121 from the upper cover plate 122, the water can flow in from the clamping groove 130, and the water is prevented from being blocked by the flanging 131 to cause splashing.
Third baffles 132 extend from two sides of the lower cover plate 123, wherein the third baffles 132 are adapted to abut against the flanges 131 to limit the sliding stroke of the lower cover plate 123. The third stop 132 abuts against the flange 131, so that the lower cover plate 123 cannot be separated from the water tank 121 and slide out of the water tank 121.
Limiting plates 133 extend from two sides of the upper cover plate 122, wherein the limiting plates 133 are adapted to abut against the flanges 131 to limit the sliding stroke of the upper cover plate 122. The stopper plate 133 abuts against the flange 131, so that the upper cover plate 122 cannot be separated from the water tank 121 and slide out of the water tank 121.
The side of the upper cover plate 122 away from the water tank 121 is an inclined surface 134, wherein the locking groove 130 is disposed on the inclined surface 134. The upper cover plate 122 is provided with the inclined plane 134, so that water flows into the water tank 121 from the inclined plane 134 conveniently, a drainage effect is achieved, meanwhile, the upper cover plate 122 is squeezed downwards by the plates conveniently, and a guiding effect is achieved.
The conveying belt 210 is provided with a plurality of clamping blocks 211, wherein the distance between every two adjacent clamping blocks 211 is matched with the length of the plate. The fixture block 211 fixes the plate, so that the plate is prevented from shaking during cutting, and the cutting precision is prevented from being influenced.
The cross section of the flexible pressing plate 220 is L-shaped, wherein the distance from the flexible pressing plate 220 to the conveying belt 210 is less than the thickness of the plate. The flexible pressing plate 220 is L-shaped, a cavity 221 is formed in the middle of the flexible pressing plate 220, the position of the cavity 221 corresponds to the position of the second scraper 127, and when the second scraper 127 scrapes off impurities on the plate, part of the impurities can fall into the cavity 221 for storage.
The elastic mechanism 126 is a spring, wherein one end of the spring abuts against the upper cover plate 122, and the other end abuts against the lower cover plate 123. The spring ensures that the upper cover plate 122 can block the water inlet 124 when in the initial state of the spring, and also ensures that the lower cover plate 123 can keep the water tank 121 sealed without squeezing the water in the water tank 121 when in the initial state of the spring.
Charging system
The receiving system 400 is suitable for recovering and collecting the cut plates.
The material receiving system 400 comprises a collecting box 410, a discharge hole 420 arranged on one side of the collecting box 410 and a conveying part 430 arranged in the collecting box 410, wherein the conveying part 430 comprises a conveying frame 431, conveying belts 432 arranged on two sides of the conveying frame 431 and a driving part for driving the conveying belts 432 to rotate. The cut plate by the cutting part 300 drops into the collection box 410, and the collection box 410 is matched with the cut plate, so that the plate is conveyed to the outside for boxing by the conveying part 430.
In order to convey the plate at the bottom of the collecting box 410 to the uppermost end, the plate is convenient to be taken by people. A lifting part 440 is further provided between the transfer racks 431, and the lifting part 440 is adapted to lift the sheet material in the collecting box 410 to the top of the collecting box 410.
The lifting unit 440 includes a lifting frame 441 and a lifting cylinder 442 drivingly connected to the lifting frame 441, wherein the width of the lifting frame 441 is adapted to the width between the conveyor belts 432. When the plate needs to be pushed up, the lifting cylinder 442 drives the lifting frame 441 to move upward, so that the plate is pushed up. When the lifting frame 441 is not needed, the lifting frame 441 is positioned below the two conveying frames 431, and does not affect the conveying part 430 to convey the plate material.
The driving part comprises a motor 433, and driving rollers 434 are rotated at two ends of the conveying frame 431, wherein the motor 433 is in transmission connection with the driving rollers 434 through a belt 435; the conveyor belt 432 is rotatably provided on the driving roller 434. The motor 433 drives the belt 435 to rotate, the belt 435 drives the transmission rod 436 to rotate, the transmission rod 436 is in transmission connection with the transmission rollers on two sides of the transmission frame 431, the transmission rod 436 drives the transmission roller 434 to rotate, and the transmission roller 434 drives the transmission belt 432 to rotate.
One side of the collecting box 410 is further provided with a feeding hole 460 corresponding to the position of the cutting system, wherein a guide bar 450 is further fixed on the side wall of the collecting box 410, and the guide bar 450 is located at the feeding hole 460. The size of the discharge hole 420 is adapted to the thickness of the plate. After the cutting part 300 finishes cutting the plates, the plates fall into the collecting box 410 from the feeding hole 460, the guide rod 450 is arranged, the guide rod 450 is arc-shaped, and the plates slide down to the collecting box 410 along the guide rod 450, so that the guide function is achieved.
The side wall of the collecting box 410 is further rotated with a pressing part 470, the pressing part 470 comprises a mounting cavity 471 arranged on the side wall of the collecting box 410, a pressing plate 472 rotatably arranged in the mounting cavity 471, and a rotating cylinder 473 fixed in the mounting cavity 471, wherein a piston of the rotating cylinder 473 is in transmission connection with a transmission plate 474, a connecting rod 475 is hinged on the transmission plate 474, and the connecting rod 475 is hinged with the pressing plate 472 to drive the pressing plate 472 to rotate. When the plates in the collection box 410 need to be pressed, the rotating cylinder 473 drives the connecting rod 475 to rotate, and the connecting rod 475 drives the pressing plate 472 to rotate, so that the pressing plate 472 extends out of the installation cavity 471 to press the plates in the collection box 410. When the plates in the collection box 410 are not required to be pressed, the pressing plate 472 rotates into the installation cavity 471, and the plates are not influenced to slide into the collection box 410.
The working principle is as follows: the plate is placed on the first conveying part 100 and conveyed to the second conveying part 200, and is cooled and impurities on the plate are removed under the action of the cooling fan 141 of the drying part 140; the plate is continuously conveyed to the cooling part 120, the plate presses the upper cover plate 122, the upper cover plate 122 moves downwards, the water inlet 124 is opened, and water flows into the water tank 121 from the water inlet 124 for water injection; while the plate material passes through the cooling portion 120, the second scraper 127 scrapes impurities on the plate material into the storage chamber 128, and part of the impurities may fall into the cavity 221 of the flexible pressing plate 220. The plate material continues to move on the first conveying part 100, and when the plate material does not pass through the cooling part 120, the upper cover plate 122 is restored by the spring to block the water filling port.
When the plate material is conveyed from the first conveying part 100 to the second conveying part 200, the plate material is conveyed to the cutting part 300 by the second conveying part 200, the plate material is limited between the clamping blocks 211, when the plate material contacts the flexible pressing plate 220, the flexible pressing plate 220 is pressed upwards in the process that the plate material moves to the cutting part 300, so that the flexible pressing plate 220 moves upwards to press the lower end cover, the lower end cover moves upwards to press the water in the water tank 121, and the water is sprayed out from the water outlet 125 under pressure. Meanwhile, the plate is pressed by the flexible pressing plate 220, the plate continues to move to the cutting part 300 for cutting, and the water sprayed from the water outlet 125 cools the plate being cut. After the cutting of the sheet material is completed, the sheet material is continuously blown by the cooling fan 141 of the drying part 140 above the second conveying part 200, so that the sheet material is dried and impurities such as chips on the sheet material are removed.
After the cutting part 300 finishes cutting the plate material, the plate material slides from the feeding hole 460 to the collection box 410 for collection under the transportation of the second transportation part 200. When it is desired to transport the sheets in the collection magazine 410, the conveyor belt rotates, the conveyor belt transports the lowermost sheet of the collection magazine 410 away from the discharge opening 420, and the remaining sheets in the collection magazine 410 are caught by the side walls of the collection magazine 410 in the collection magazine 410. When the lowermost sheet in the collection box 410 is conveyed away, the sheet in the collection box 410 falls onto the conveyor 432 due to its own weight, and waits for the next transportation. When the plate is not required to be transported, the lifting part 440 lifts the plate in the collection box 410 upwards until the pressing part 470 of the side wall can press the plate in the collection box 410, and finally the plate is fixed. Meanwhile, the lifting part 440 also transports the plate at the bottom end of the collecting box 410 upwards, so that the plate at the bottom of the collecting box 410 can be conveniently taken by the hand.
The above description is only for the purpose of illustrating the preferred embodiments of the present invention and is not to be construed as limiting the invention, and any modifications, equivalents, improvements and the like that fall within the spirit and principle of the present invention are intended to be included therein.
Claims (9)
1. The drying and conveying equipment for cutting the plate with good effect is characterized by comprising,
the material collecting system comprises a collecting box, a discharge port arranged on one side of the collecting box, a conveying part arranged in the collecting box, and
the conveying part comprises a conveying frame, conveying belts arranged on two sides of the conveying frame and a driving part for driving the conveying belts to rotate;
and a lifting part is also arranged between the conveying frames and is suitable for lifting the plates in the collecting box to the top of the collecting box.
2. A drying and conveying apparatus for cutting a board with good effect as claimed in claim 1,
the lifting part comprises a lifting frame and a lifting cylinder in transmission connection with the lifting frame, wherein,
the width of the lifting frame is matched with the width between the conveyor belts.
3. A drying and conveying apparatus for cutting a board with good effect as claimed in claim 2,
the side wall of the collecting box is also rotated with a compressing part, the compressing part comprises a mounting cavity arranged on the side wall of the collecting box, a pressure plate rotationally arranged in the mounting cavity and a rotary cylinder fixed in the mounting cavity, wherein,
the piston of the rotary cylinder is in transmission connection with a transmission plate, the transmission plate is hinged with a connecting rod, and the connecting rod is hinged with the pressing plate to drive the pressing plate to rotate.
4. A drying and conveying apparatus for cutting a board with good effect as claimed in claim 1,
the driving part comprises a motor, driving rollers are arranged at two ends of the conveying frame in a rotating way, wherein,
the motor is in transmission connection with the transmission roller through a belt;
the conveying belt is rotatably arranged on the driving roller.
5. A drying and conveying apparatus for cutting a board with good effect as claimed in claim 1,
one side of the collecting box is also provided with a feed inlet corresponding to the position of the cutting system, wherein,
the side wall of the collecting box is also fixed with a guide rod which is positioned at the feed inlet.
6. A drying and conveying apparatus for cutting a board with good effect as claimed in claim 1,
the size of the discharge hole is matched with the thickness of the plate.
7. A drying and conveying apparatus for cutting a board with good effect as claimed in claim 1,
the cutting system comprises a first conveying part, the first conveying part comprises a support, a cooling part arranged on the support and a drying part arranged on the support, the cooling part comprises a water tank, an upper cover plate and a lower cover plate, the upper cover plate and the lower cover plate are arranged at the upper end and the lower end of the water tank in a sliding mode, the upper cover plate and the lower cover plate are both arranged in the water tank in a sliding mode, a water inlet and a water outlet are further formed in the water tank, and an elastic mechanism is further arranged between the upper cover plate and the lower cover plate so that the upper cover plate can block the water inlet;
the second conveying part comprises a conveying belt and a flexible pressing plate arranged on the conveying belt;
the cutting part is positioned at the end of the second conveying part and is suitable for cutting the plate conveyed on the second conveying part, and the position of the cutting part corresponds to the position of the water outlet; wherein the content of the first and second substances,
when the first conveying part conveys the plate to the second conveying part, the plate passes through the upper part of the drying part to be dried, the plate continues to move to the upper cover plate, and the plate presses the upper cover plate to open the water inlet and inject water into the water tank;
when the second conveying part conveys the plate conveyed by the first conveying part to the cutting part, the plate extrudes the flexible pressing plate, the flexible pressing plate extrudes the upper cover plate, so that the upper cover plate extrudes water in the water tank, the water is extruded out from the water outlet under pressure, meanwhile, the plate is positioned at the cutting part for cutting, and the water sprayed out from the water outlet cools the plate; and after the plate is cut, drying again below the drying part.
8. A drying and conveying apparatus for cutting a board with good effect as set forth in claim 7,
the drying part includes a cooling fan rotatably provided on the supporter, wherein,
the cooling fan is located at the initial position of the first conveying part.
9. A drying and conveying apparatus for cutting a board with good effect as claimed in claim 8,
the upper cover plate is fixedly connected with a second scraper, the bracket is also provided with a groove suitable for placing the second scraper, wherein,
one end of the second scraper blade is also provided with a storage cavity suitable for storing impurities scraped off by the second scraper blade.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202111299346.2A CN113967934B (en) | 2021-11-04 | 2021-11-04 | Drying conveying equipment for cutting plate with good effect |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202111299346.2A CN113967934B (en) | 2021-11-04 | 2021-11-04 | Drying conveying equipment for cutting plate with good effect |
Publications (2)
| Publication Number | Publication Date |
|---|---|
| CN113967934A true CN113967934A (en) | 2022-01-25 |
| CN113967934B CN113967934B (en) | 2023-04-28 |
Family
ID=79589715
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202111299346.2A Active CN113967934B (en) | 2021-11-04 | 2021-11-04 | Drying conveying equipment for cutting plate with good effect |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN113967934B (en) |
Cited By (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN114407281A (en) * | 2022-02-21 | 2022-04-29 | 苏州望浅塔电子科技有限公司 | Efficient injection molding plate conveying device and working method thereof |
| CN114735398A (en) * | 2022-03-01 | 2022-07-12 | 苏州春兴精工股份有限公司 | Material system is received in fin concentration |
Citations (6)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US20090069102A1 (en) * | 2007-09-11 | 2009-03-12 | Chi Hyun Kim | Method and apparatus for collating nails |
| CN107775677A (en) * | 2016-08-30 | 2018-03-09 | 天津市金丞泰节能建材科技有限公司 | A kind of high-efficiency insulated plate cutter device with functions/drying |
| CN211101806U (en) * | 2019-11-12 | 2020-07-28 | 上海峰怿实业有限公司 | Plate shearing machine |
| CN212329801U (en) * | 2019-12-23 | 2021-01-12 | 定州市德通汽车零部件制造有限公司 | Quick positioner is tailor to plate shearing machine |
| CN113182581A (en) * | 2021-05-26 | 2021-07-30 | 山东省宁津县宏业汽配有限公司 | Plate shearing machine |
| CN113443415A (en) * | 2021-08-31 | 2021-09-28 | 江苏德励达新材料股份有限公司 | Plate cutting and conveying device |
-
2021
- 2021-11-04 CN CN202111299346.2A patent/CN113967934B/en active Active
Patent Citations (6)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US20090069102A1 (en) * | 2007-09-11 | 2009-03-12 | Chi Hyun Kim | Method and apparatus for collating nails |
| CN107775677A (en) * | 2016-08-30 | 2018-03-09 | 天津市金丞泰节能建材科技有限公司 | A kind of high-efficiency insulated plate cutter device with functions/drying |
| CN211101806U (en) * | 2019-11-12 | 2020-07-28 | 上海峰怿实业有限公司 | Plate shearing machine |
| CN212329801U (en) * | 2019-12-23 | 2021-01-12 | 定州市德通汽车零部件制造有限公司 | Quick positioner is tailor to plate shearing machine |
| CN113182581A (en) * | 2021-05-26 | 2021-07-30 | 山东省宁津县宏业汽配有限公司 | Plate shearing machine |
| CN113443415A (en) * | 2021-08-31 | 2021-09-28 | 江苏德励达新材料股份有限公司 | Plate cutting and conveying device |
Cited By (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN114407281A (en) * | 2022-02-21 | 2022-04-29 | 苏州望浅塔电子科技有限公司 | Efficient injection molding plate conveying device and working method thereof |
| CN114735398A (en) * | 2022-03-01 | 2022-07-12 | 苏州春兴精工股份有限公司 | Material system is received in fin concentration |
Also Published As
| Publication number | Publication date |
|---|---|
| CN113967934B (en) | 2023-04-28 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN113967934A (en) | Drying and conveying equipment with good effect for cutting plates | |
| CN113734734B (en) | Stable drying and conveying equipment for plate cutting | |
| CN109964732B (en) | Vertical automatic bagging machine for black fungus | |
| CN109466815B (en) | File bag packagine machine | |
| CN214216327U (en) | Bag opening system of automatic tissue bag packaging machine | |
| CN210212955U (en) | Sausage bagging device | |
| CN218429904U (en) | Automatic feeding structure for rubber hot-pressing processing | |
| CN212058154U (en) | Moisture drying-machine | |
| CN213897048U (en) | Cleaning device capable of compressing water surface garbage | |
| CN115475730A (en) | Rubber coating device is used in heated board processing | |
| CN113276308A (en) | Plastic particle cooling device with drying function | |
| CN207948377U (en) | Edible mushroom Intelligent horizontal type baling press | |
| CN113148328A (en) | Be used for flour bagging-off sealing equipment | |
| CN214600450U (en) | New media advertisement management removes sorter | |
| CN214777081U (en) | Several devices are used in facial mask production and processing | |
| CN214003569U (en) | Paper ejection of compact waste discharge mechanism | |
| CN216360055U (en) | Finished product packaging equipment for PP-based plastic particles | |
| CN220742249U (en) | Automatic ejecting hydraulic waste baling press of packing piece | |
| CN220392632U (en) | Flour bag stacking device | |
| CN220408918U (en) | Automatic discharging mechanism for konjak processing dry-wet separator | |
| CN220164360U (en) | Post-treatment adjusting device of tobacco packing machine | |
| CN218811286U (en) | Prevent livestock-raising solid waste treatment facility of jam | |
| CN216468849U (en) | Bagging-off instrument is used in grain food processing | |
| CN219009321U (en) | Conveying device capable of uniformly feeding and combining materials | |
| CN212468033U (en) | Convenient to use's aquatic products fodder granulator |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| GR01 | Patent grant | ||
| GR01 | Patent grant |
