The invention discloses a vertical multifunctional automatic wall tile sticking device for building construction, which relates to the technical field of building construction and solves the problems that the existing automatic wall tile sticking device generally realizes the coating of a binder in a spraying mode, the uniform coating is difficult to ensure, the coating of the binder can be realized sometimes even if the coating is carried out by a coating device outside a wall tile which is easy to spray, and the coating effect is poor; the bottom of the left side of the mounting seat is fixedly connected with a group of feeding driving pieces; and two groups of feeding driving screw rods are respectively and rotatably connected to the front and the back of the inner part of the left side of the mounting seat. The automatic adhesive discharging device realizes automatic control of automatic discharging of the adhesive by adopting the lifting of the adhesive baffle, realizes discharging and leveling of the adhesive by the adhesive discharging groove, and has the advantages of good coating effect, simple structure, small volume, low manufacturing cost, simple operation, simple structure, small volume, convenient carrying and use and high working efficiency.
Description
Technical Field
The invention relates to the technical field of building construction, in particular to a vertical multifunctional automatic wall tile sticking device for building construction.
Background
Wall tiles (wall tiles for short) are suitable for facade decoration of toilets, kitchens and outdoor balconies, wall tiles are an effective way for protecting wall surfaces from water splashing, are not only used for wall surfaces and used for edge decoration of doors and windows, but also are interesting decorative elements, and are mostly pasted by adopting an automatic wall tile pasting device in order to improve construction efficiency in the building construction process.
For example, application No.: CN201710265904.0 vertical automatic wall tile device for construction belongs to construction equipment field, wall brick storehouse elevating gear includes bottom plate, driven arm, axle, driving arm, wheel, wall brick elevating gear slave cylinder and wall brick elevating gear initiative pneumatic cylinder, the bottom plate articulates with the driven arm, the driven arm passes through axle and driving arm swivelling joint, the driving arm articulates with the upper plate, the driving arm articulates with wall brick elevating gear initiative pneumatic cylinder, two wheels are installed to the driving arm lower extreme, driven arm articulates with wall brick elevating gear slave cylinder, two wheels are installed to the driven arm upper end. According to the automatic concrete stirring device, the concrete is automatically stirred through the concrete stirring box, the wall bricks are automatically moved through the wall brick storage lifting device and the first brick pushing device, and the manual labor force is reduced through automatic feeding of the pump.
Based on the above, the existing automatic wall tile sticking device generally realizes the coating of the binder in a spraying manner, so that the uniform coating is difficult to ensure, the coating of the binder can be realized sometimes even by coating through a coating device outside the wall tile which is easy to spray, the coating effect is poor, the volume is large, and the use and the transportation are inconvenient; therefore, the existing requirements are not met, and a vertical multifunctional automatic wall tile sticking device for building construction is provided for the requirements.
Disclosure of Invention
The invention aims to provide a vertical multifunctional automatic wall tile sticking device for building construction, which aims to solve the problems that the existing automatic wall tile sticking device in the background art generally realizes the coating of a binder in a spraying mode, the uniform coating is difficult to ensure, the coating of the binder can be realized only by coating the wall tiles which are easy to spray and sometimes even by a coating device, the coating effect is poor, the volume is large, and the use and the transportation are inconvenient.
In order to achieve the purpose, the invention provides the following technical scheme: a vertical multifunctional automatic wall tile sticking device for building construction comprises a mounting seat; the bottom of the left side of the mounting seat is fixedly connected with a group of feeding driving pieces; two groups of feeding driving screw rods are respectively and rotatably connected to the front and the back of the inner part of the left side of the mounting seat; the four groups of feeding driving screw rods are connected with a group of feeding material supporting plates in a common threaded transmission manner; a group of feeding pushing cylinders is fixedly connected to the front and the rear of the top of the left side of the mounting seat; the top of the mounting seat is fixedly connected with a group of wall brick binder coating pieces; the top of the right side of the mounting seat is connected with a group of adhesive feeding plates in a sliding manner; a group of adhesive driving pieces are fixedly connected to the right side of the mounting seat; the piston rod of the sticking driving piece is fixedly connected with the sticking feeding plate; the left side of the pasting feeding plate is fixedly connected with a group of overturning driving pieces; the top of the right side of the sticking feeding plate is hinged with a group of sticking turnover plates; the mounting seat also comprises feeding rollers, and the top of the mounting seat is uniformly distributed and rotatably connected with a group of feeding rollers; the pasting turnover plate also comprises wall brick fixing suckers, and four groups of wall brick fixing suckers are uniformly distributed and fixedly connected at the top of the pasting turnover plate.
Preferably, the feeding driving part is further provided with a feeding driving gear, a group of feeding driving gears are coaxially and fixedly connected to the bottom of the feeding driving part, the feeding driving screw is further provided with a feeding driven gear, a group of feeding driven gears are coaxially and fixedly connected to the bottom of each group of feeding driving screw, and the feeding driving gear and the four groups of feeding driven gears are connected through a transmission chain to form a transmission chain transmission mechanism together.
Preferably, the four groups of feeding driving screw rods are simultaneously in threaded transmission connection with the feeding support plates, and a screw rod nut transmission mechanism is formed between the feeding driving screw rods and the feeding support plates.
Preferably, the feeding pushing cylinder further comprises a feeding push plate, and a group of feeding push plates are fixedly connected to piston rods of the two groups of feeding pushing cylinders together.
Preferably, the wall brick binder coating piece further comprises a binder outlet and a binder baffle, the bottom of the wall brick binder coating piece is of an inclined structure, the left side of the wall brick binder coating piece is provided with a group of binder outlets, and the left side of each binder outlet is connected with a group of binder baffles in a sliding mode.
Preferably, the wall brick binder coating piece further comprises a binder discharge chute, the bottom of the binder baffle is uniformly distributed and provided with the binder discharge chute, and a guide inclined plane is arranged on the left side of the bottom of the binder baffle.
Preferably, paste the feed plate and still including feed plate sliding guide groove, paste the front and back terminal surface of feed plate and all seted up a set of feed plate sliding guide groove, paste the feed plate and pass through feed plate sliding guide groove and mount pad sliding connection.
Preferably, the overturning driving part further comprises an overturning lead screw and an overturning sliding block, a group of overturning lead screws are coaxially and fixedly connected to a rotating shaft of the overturning driving part, and the overturning lead screws and the overturning sliding blocks are in threaded transmission connection to form a lead screw nut transmission pair together.
Preferably, the turnover driving part further comprises a turnover connecting rod, the top of the turnover sliding block is hinged with a group of turnover connecting rods, the turnover connecting rods are hinged with the bottom of the pasting turnover plate, and the turnover sliding block, the turnover connecting rods, the pasting turnover plate and the pasting feeding plate form a crank sliding block transmission mechanism together.
Compared with the prior art, the invention has the beneficial effects that:
when the automatic feeding device is used, the feeding driving piece drives the four groups of feeding driving screws to rotate through a transmission chain transmission mechanism which is formed by jointly connecting the feeding driving gear and the four groups of feeding driven gears through a transmission chain, the feeding driving screws drive the feeding material supporting plates to slide up and down through a screw nut transmission mechanism which is formed by jointly connecting the feeding driving screws and the feeding material supporting plates, and the automatic feeding of a wallboard is realized through the up-and-down sliding of the feeding material supporting plates; the feeding pushing cylinder drives the feeding pushing plate to slide left and right, the feeding pushing plate pushes a group of wall boards at the top of the feeding supporting plate to the right side, pushing action on wall bricks is realized, when the wall bricks jack up the binder baffle, the binder in the wall brick binder coating piece flows onto the wall bricks through the binder discharging groove, automatic coating of the wall brick binder is realized, under the pushing action of the feeding pushing plate, the wall boards are conveyed to the top of the pasting turnover plate through the feeding rollers, the wall boards are adsorbed and fixed through the wall bricks fixing suction cups, the turnover driving piece drives the turnover sliding block to slide left and right through a screw nut transmission pair formed by jointly connecting a turnover screw rod and a turnover sliding block in a threaded transmission manner, the turnover sliding block drives the pasting turnover plate to turn over through a crank block transmission mechanism formed by jointly among the turnover sliding block, the turnover connecting rod, the pasting turnover plate and the pasting feeding plate, and standing action on the wall bricks is realized, paste the driving piece and drive and paste the feed plate and turn right side slip, realize the action of pasting to the wall brick.
The automatic wall brick feeding and pasting machine has the advantages that the actions of automatic wall brick feeding, automatic material pushing, automatic binder coating, wall brick standing, automatic wall brick attaching and the like are realized, the automatic wall brick pasting can be realized, the automatic binder discharging is realized by adopting the lifting of the binder baffle, the discharging and the floating of the binder are realized by the binder discharging groove, the coating effect is good, the structure is simple, the size is small, the manufacturing cost is low, the operation is simple, meanwhile, the structure is simple, the size is small, the carrying and the use are convenient, and the working efficiency is high.
Drawings

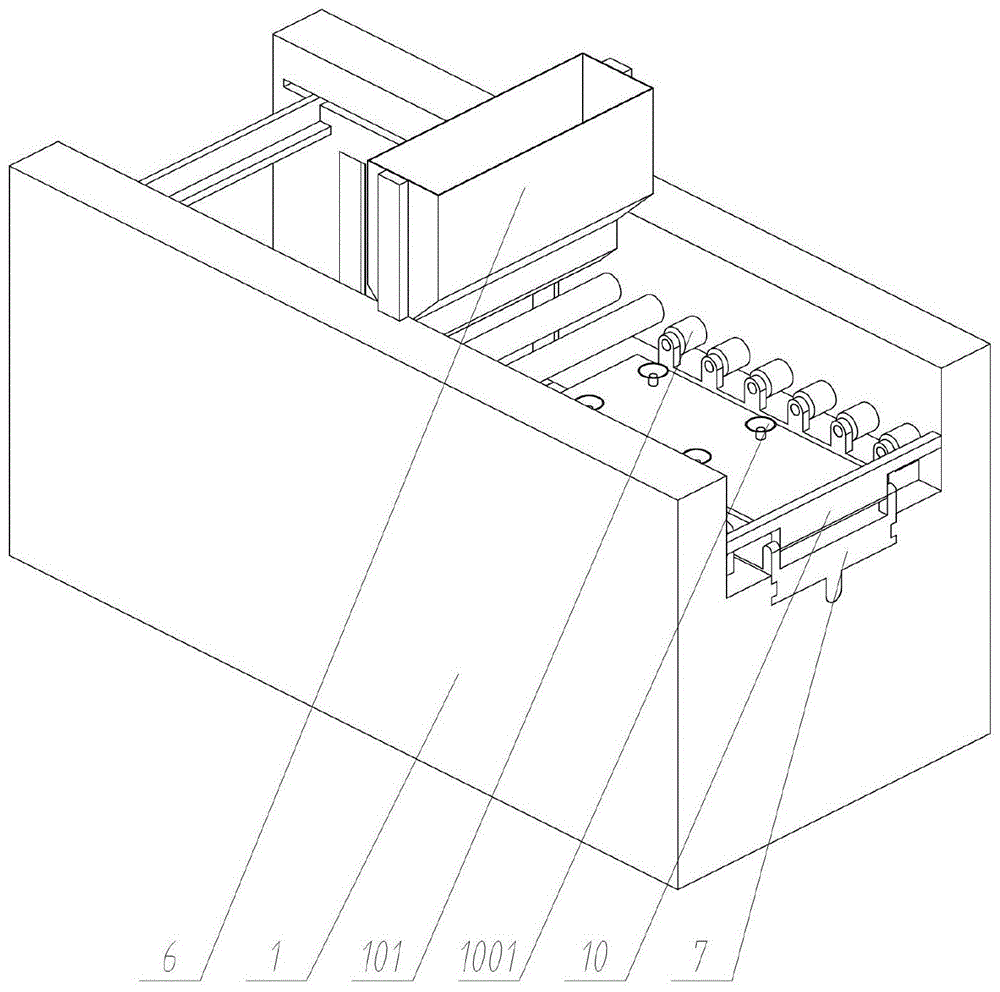

FIG. 1 is a schematic side view of the present invention;
FIG. 2 is a schematic side view of the internal drive shaft of the present invention;
FIG. 3 is a schematic side view of a transmission shaft of the feeding retainer plate of the present invention;
FIG. 4 is a schematic side view of the feed drive screw drive shaft of the present invention;
FIG. 5 is a schematic view of the side structure of the transmission shaft of the adhesive turning plate of the present invention;
FIG. 6 is a schematic axial side view of the wall tile adhesive applicator of the present invention;
FIG. 7 is a schematic side view of an adhesive dam mounting shaft of the present invention;
FIG. 8 is a schematic isometric cross-sectional view of an adhesive dam installation of the present invention;
in the figure: 1. a mounting seat; 101. a feeding roller; 2. a feed drive; 201. a feed drive gear; 3. a feed drive screw; 301. a feed driven gear; 4. feeding a material supporting plate; 5. a feed pushing cylinder; 501. a feeding push plate; 6. a wall tile adhesive coating; 601. an adhesive outlet; 602. an adhesive baffle; 603. a binder discharge chute; 7. sticking a feeding plate; 701. a feed plate sliding guide groove; 8. pasting a driving piece; 9. turning over the driving piece; 901. turning over the lead screw; 902. turning over the sliding block; 903. turning over the connecting rod; 10. sticking a turnover plate; 1001. wall brick fixing sucker.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
Referring to fig. 1 to 8, an embodiment of the present invention includes: a vertical multifunctional automatic wall tile sticking device for building construction comprises a mounting base 1; the bottom of the left side of the mounting seat 1 is fixedly connected with a group of feeding driving pieces 2; two groups of feeding driving screw rods 3 are respectively connected with the inner part of the left side of the mounting seat 1 in a front-back rotating manner; the four groups of feeding driving screw rods 3 are in common threaded transmission connection with a group of feeding material supporting plates 4; a group of feeding pushing cylinders 5 are fixedly connected to the front and the back of the top of the left side of the mounting seat 1; the top of the mounting seat 1 is fixedly connected with a group of wall brick adhesive coating pieces 6; the top of the right side of the mounting seat 1 is connected with a group of sticking feed plates 7 in a sliding way; a group of adhesive driving pieces 8 are fixedly connected to the right side of the mounting seat 1; a piston rod of the sticking driving piece 8 is fixedly connected with the sticking feeding plate 7; the left side of the pasting feeding plate 7 is fixedly connected with a group of overturning driving pieces 9; the top of the right side of the sticking feed plate 7 is hinged with a group of sticking turnover plates 10; the mounting seat 1 further comprises feeding rollers 101, and the top of the mounting seat 1 is uniformly distributed and rotatably connected with a group of feeding rollers 101; the pasting roll-over plate 10 further comprises wall brick fixing suckers 1001, and four groups of wall brick fixing suckers 1001 are uniformly arranged and fixedly connected at the top of the pasting roll-over plate 10.
Further, feeding driving piece 2 is still including feeding drive gear 201, a set of feeding drive gear 201 of the coaxial fixedly connected with in bottom of feeding driving piece 2, feeding drive lead screw 3 is still including feeding driven gear 301, a set of feeding driven gear 301 of the equal coaxial fixedly connected with in bottom of every group feeding drive lead screw 3, feeding drive gear 201 and four sets of feeding driven gear 301 are connected through the drive chain transmission and are constituted transmission chain drive mechanism jointly, in use, feeding driving piece 2 drives four sets of feeding drive lead screws 3 rotatoryly through the drive chain drive mechanism that is connected and constitutes jointly by feeding drive gear 201 and four sets of feeding driven gear 301 through the drive chain transmission.
Further, four groups of feeding driving screws 3 are simultaneously in threaded transmission connection with the feeding material supporting plates 4, a screw nut transmission mechanism is jointly formed between the feeding driving screws 3 and the feeding material supporting plates 4, when the four groups of feeding driving screws 3 rotate in use, the feeding driving screws 3 drive the feeding material supporting plates 4 to slide up and down through the screw nut transmission mechanism jointly formed between the feeding driving screws 3 and the feeding material supporting plates 4, and automatic feeding of the wall plate is achieved through up-down sliding of the feeding material supporting plates 4.
Further, feeding promotes cylinder 5 and still including feeding push pedal 501, and common fixedly connected with a set of feeding push pedal 501 on the piston rod of two sets of feeding promotion cylinders 5, in use, feeding promotes cylinder 5 and drives feeding push pedal 501 horizontal slip, realizes pushing away the material action to the wall brick.
Further, the wall brick adhesive coating member 6 further comprises an adhesive outlet 601 and an adhesive baffle 602, the bottom of the wall brick adhesive coating member 6 is of an inclined structure, the left side of the wall brick adhesive coating member 6 is provided with a group of adhesive outlets 601, the left side of the adhesive outlets 601 is connected with a group of adhesive baffles 602 in a sliding mode, and in use, the adhesive outlets 601 are sealed through the adhesive baffles 602.
Further, wall brick binder coating member 6 is still including binder blown down tank 603, and the bottom of binder baffle 602 is evenly arranged and has been seted up binder blown down tank 603, and the bottom left side of binder baffle 602 is provided with the direction inclined plane, and in use, through leading the inclined plane make things convenient for the wall brick card to go into the bottom of binder baffle 602, and when the wall brick passes through the direction inclined plane and jacks up binder baffle 602, the binder in wall brick binder coating member 6 flows to the wall brick through binder blown down tank 603 on, realizes the automatic coating to the wall brick binder.
Further, paste feed plate 7 still including feed plate sliding guide groove 701, paste the front and back terminal surface of feed plate 7 and all seted up a set of feed plate sliding guide groove 701, paste feed plate 7 and pass through feed plate sliding guide groove 701 and mount pad 1 sliding connection, in use, realize the direction to pasting feed plate 7 through feed plate sliding guide groove 701.
Further, the turnover driving member 9 further includes a turnover lead screw 901 and a turnover slider 902, a group of turnover lead screws 901 is coaxially and fixedly connected to a rotating shaft of the turnover driving member 9, the turnover lead screws 901 and the turnover slider 902 are in threaded transmission connection to form a lead screw nut transmission pair, and in use, the turnover driving member 9 drives the turnover slider 902 to slide left and right through the lead screw nut transmission pair formed by the turnover lead screws 901 and the turnover slider 902 in threaded transmission connection.
Further, the turnover driving member 9 further comprises a turnover connecting rod 903, the top of the turnover sliding block 902 is hinged with a group of turnover connecting rods 903, the turnover connecting rods 903 are hinged with the bottom of the pasting turnover plate 10, the turnover sliding block 902, the turnover connecting rod 903, the pasting turnover plate 10 and the pasting feeding plate 7 jointly form a slider-crank transmission mechanism, when the turnover sliding block 902 slides left and right, the turnover sliding block 902 drives the pasting turnover plate 10 to turn over through the slider-crank transmission mechanism formed jointly by the turnover sliding block 902, the turnover connecting rod 903, the pasting turnover plate 10 and the pasting feeding plate 7, and the standing action of the wall brick is realized.
The working principle is as follows: when the automatic feeding device is used, the feeding driving piece 2 drives the four groups of feeding driving screws 3 to rotate through a transmission chain transmission mechanism which is formed by jointly connecting the feeding driving gear 201 and the four groups of feeding driven gears 301 through a transmission chain, the feeding driving screws 3 drive the feeding material supporting plates 4 to slide up and down through a screw nut transmission mechanism which is formed by jointly connecting the feeding driving screws 3 and the feeding material supporting plates 4, and the automatic feeding of a wallboard is realized through the up-and-down sliding of the feeding material supporting plates 4; the feeding pushing cylinder 5 drives the feeding pushing plate 501 to slide left and right, the feeding pushing plate 501 pushes a group of wall boards at the top of the feeding supporting plate 4 to the right side, pushing action on wall bricks is realized, when the wall bricks jack up the binder baffle 602, the binder in the wall brick binder coating part 6 flows onto the wall bricks through the binder discharge chute 603, automatic coating of the wall brick binder is realized, under the pushing action of the feeding pushing plate 501, the wall boards are conveyed to the top of the pasting turnover plate 10 through the feeding rollers 101, the wall boards are adsorbed and fixed through the wall brick fixing suction cups 1001, the turnover driving part 9 drives the turnover sliding block 902 to slide left and right through a screw nut transmission pair formed by connecting the turnover lead screw 901 and the turnover sliding block 902 in a threaded transmission manner, the turnover sliding block 902 drives the pasting turnover plate 10 to turn over through a crank sliding block transmission mechanism formed by the turnover sliding block 902, the turnover connecting rod 903, the pasting turnover plate 10 and the pasting feeding plate 7, the wall brick is erected, the pasting driving piece 8 drives the pasting feeding plate 7 to slide towards the right side, and the wall brick is pasted.
It will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (7)
1. The utility model provides a construction is with vertical multi-functional automatic tiling device which characterized in that: comprises a mounting seat (1); the bottom of the left side of the mounting seat (1) is fixedly connected with a group of feeding driving pieces (2); two groups of feeding driving screw rods (3) are respectively and rotatably connected to the front and the back of the inner part of the left side of the mounting seat (1); the four groups of feeding driving screw rods (3) are connected with a group of feeding material supporting plates (4) in a common screw thread transmission manner; a group of feeding pushing cylinders (5) are fixedly connected to the front and the rear of the top of the left side of the mounting seat (1); the top of the mounting seat (1) is fixedly connected with a group of wall brick adhesive coating pieces (6); the top of the right side of the mounting seat (1) is connected with a group of adhesive feeding plates (7) in a sliding manner; a group of adhesive driving pieces (8) is fixedly connected to the right side of the mounting seat (1); a piston rod of the sticking driving piece (8) is fixedly connected with the sticking feeding plate (7); the left side of the pasting feeding plate (7) is fixedly connected with a group of overturning driving pieces (9); the top of the right side of the sticking feeding plate (7) is hinged with a group of sticking turnover plates (10); the mounting seat (1) further comprises feeding rollers (101), and the top of the mounting seat (1) is uniformly distributed and rotatably connected with a group of feeding rollers (101); the sticking turnover plate (10) also comprises wall brick fixing suckers (1001), and four groups of wall brick fixing suckers (1001) are uniformly distributed and fixedly connected at the top of the sticking turnover plate (10); the wall brick adhesive coating piece (6) further comprises an adhesive outlet (601) and an adhesive baffle (602), the bottom of the wall brick adhesive coating piece (6) is of an inclined structure, the left side of the wall brick adhesive coating piece (6) is provided with a group of adhesive outlets (601), and the left side of each adhesive outlet (601) is connected with a group of adhesive baffles (602) in a sliding manner; the wall brick adhesive coating piece (6) further comprises an adhesive discharge chute (603), the adhesive discharge chute (603) is uniformly distributed at the bottom of the adhesive baffle (602), and a guide inclined plane is arranged on the left side of the bottom of the adhesive baffle (602).
2. The vertical multifunctional automatic wall tile sticking device for building construction according to claim 1, wherein: feeding driving piece (2) are still including feeding drive gear (201), a set of feeding drive gear (201) of the coaxial fixedly connected with in bottom of feeding driving piece (2), feeding drive lead screw (3) are still including feeding driven gear (301), the equal coaxial fixedly connected with in bottom of every group feeding drive lead screw (3) a set of feeding driven gear (301), feeding drive gear (201) are connected through the drive chain transmission with four sets of feeding driven gear (301) and are constituted drive chain drive mechanism jointly.
3. The vertical multifunctional automatic wall tile sticking device for building construction according to claim 1, characterized in that: the four groups of feeding driving screw rods (3) are simultaneously in threaded transmission connection with the feeding material supporting plate (4), and a screw rod nut transmission mechanism is formed between the feeding driving screw rods (3) and the feeding material supporting plate (4) together.
4. The vertical multifunctional automatic wall tile sticking device for building construction according to claim 1, characterized in that: the feeding pushing cylinder (5) further comprises a feeding push plate (501), and a group of feeding push plates (501) are fixedly connected to piston rods of the two groups of feeding pushing cylinders (5) together.
5. The vertical multifunctional automatic wall tile sticking device for building construction according to claim 1, wherein: paste feed plate (7) still including feed plate sliding guide groove (701), paste the front and back terminal surface of feed plate (7) and all seted up a set of feed plate sliding guide groove (701), paste feed plate (7) and pass through feed plate sliding guide groove (701) and mount pad (1) sliding connection.
6. The vertical multifunctional automatic wall tile sticking device for building construction according to claim 1, wherein: the overturning driving piece (9) further comprises an overturning lead screw (901) and an overturning sliding block (902), a group of overturning lead screws (901) are coaxially and fixedly connected to a rotating shaft of the overturning driving piece (9), and the overturning lead screws (901) and the overturning sliding block (902) are in threaded transmission connection to form a lead screw nut transmission pair together.
7. The vertical multifunctional automatic wall tile sticking device for building construction according to claim 1, wherein: upset driving piece (9) are still including upset connecting rod (903), and the top hinged joint of upset slider (902) has a set of upset connecting rod (903), upset connecting rod (903) and the bottom hinged joint who pastes returning face plate (10), and upset slider (902), upset connecting rod (903), paste returning face plate (10), paste and constitute crank block drive mechanism jointly between feed plate (7).
