Abstract
The invention discloses an intelligent kitchen disinfection cabinet, which comprises a disinfection cabinet body and a plurality of bowl and chopstick racks arranged in the disinfection cabinet body and used for supporting tableware, wherein auxiliary draining devices for performing auxiliary draining on bowls and chopsticks on the bowl and chopstick racks before the bowls and chopsticks are placed in the disinfection cabinet for disinfection are arranged below the plurality of bowl and chopstick racks, the auxiliary draining devices are arranged below the corresponding bowl and chopstick racks in the disinfection cabinet body, so that the bowls and chopsticks on the bowl and chopstick racks are accelerated to drain, when water is collected, the water can flow into a through groove which can be rotated and moved along a concave part of a guide plate, meanwhile, the guide plate and a rotating shaft are arranged in the disinfection cabinet body at a certain inclination angle, the water entering the rotating shaft flows into a material collecting shell at one end of the rotating shaft from a rotating shaft and then flows into a bottom shell from the shell, so that the collection of the water is realized, and in the disinfection process, the guide plates rotate mutually, the flow of air flow in the bowl and chopstick rack can be accelerated, and the disinfection effect of the disinfection cabinet is further accelerated.
Description
Technical Field
The invention relates to the technical field of disinfection cabinets, in particular to an intelligent kitchen disinfection cabinet.
Background
The disinfection cabinet is a tool for drying, sterilizing, preserving heat and dehumidifying articles such as tableware, towels, clothes, hairdressing tools, medical instruments and the like in the modes of ultraviolet rays, far infrared rays, high temperature, ozone and the like, and is generally box-shaped, most of the cabinet body is made of stainless steel, and the panel is made of toughened glass or stainless steel.
At present, with the development of science and technology, the household kitchen disinfection cabinets are various in types, and for the vertical type disinfection cabinet, because the tableware is required to be cleaned and drained before being put into the disinfection cabinet when the tableware is disinfected, the existing users in many families often put the bowls and chopsticks into the disinfection cabinet directly without draining, the water on the non-dried bowls and chopsticks is easy to cause the mildew to propagate and attach on the tableware, which is easy to cause the phenomenon that the bowls and chopsticks go moldy, meanwhile, when the tableware with residual moisture is put into the disinfection cabinet, the moist air is difficult to be discharged in time, which easily causes the phenomenon that the infrared heating tube in the disinfection cabinet is oxidized due to being moistened, reduce the life of sterilizer simultaneously, the current "waterlogging caused by excessive rainfall frame" of adopting nevertheless, the time that the waterlogging caused by excessive rainfall was carried out to the tableware to waterlogging caused by excessive rainfall frame on the one hand is longer, and effectual space in the on the other hand waterlogging caused by excessive rainfall frame occupies the kitchen, is not convenient for use. Therefore, an intelligent kitchen disinfection cabinet is provided.
Disclosure of Invention
The invention aims to provide an intelligent kitchen disinfection cabinet to solve the problems in the background technology.
In order to achieve the purpose, the invention provides the following technical scheme: an intelligent kitchen disinfection cabinet comprises a disinfection cabinet body and a plurality of chopstick and bowl racks which are arranged in the disinfection cabinet body and support tableware, wherein auxiliary draining devices for performing auxiliary draining on chopsticks and bowls on the chopstick and bowl racks before the chopsticks and bowls are placed in the disinfection cabinet for disinfection are arranged below the chopstick and bowl racks;
the top of the disinfection cabinet body is provided with a movable blowing device for accelerating the draining of bowls and chopsticks.
Preferably, the auxiliary draining device comprises a plurality of guide plates which are arranged below the bowl and chopstick rack in an inclined angle, a rotating shaft penetrates through the middle of the plurality of guide plates, and a guide part matched with the guide plates is arranged on the rotating shaft;
a plurality of the one end of axis of rotation is connected with the driving piece that carries out synchronous drive to it each other, and a plurality of the other end of axis of rotation is connected with the collection device that carries out synchronous collection to its rivers of deriving each other, through the supplementary device of driping that is equipped with to play and carry out supplementary effect of driping to the bowls and chopsticks of sterilizer body inside.
Preferably, the guide plate is Y-shaped, and the center of the guide plate is provided with a mounting groove for mounting the rotating shaft, so that the rotating shaft is stably mounted.
Preferably, the water conservancy diversion spare is including setting up the logical groove in the rotation axis is inside, and is equipped with the opening in the rotation axis, opening and logical groove intercommunication, the position and the guide plate intercommunication of rotation axis opening part are through the water conservancy diversion spare that is equipped with to play and make rotation axis and guide plate carry out the effect of cooperation water guide.
Preferably, the driving part comprises a sealing shell sleeved at the outer side of one end of the plurality of rotating shafts, the outer side of the sealing shell is fixedly connected with an insulating block, and the outer side of the insulating block is fixedly connected with the inner wall of the poison cabinet body;
the driving motor is fixedly connected inside the sealing shell, the output end of the driving motor is fixedly connected with any one rotating shaft through a coupler, the outer sides of the rotating shafts at one end inside the sealing shell are fixedly connected with driving gears, and the outer sides of the driving gears are connected with gear chains in a meshing manner;
the gear chain outside is equipped with a plurality of and carries out taut locating part when its transmission, through the driving piece that is equipped with to play and carry out synchronous pivoted effect to a plurality of axis of rotation to bowl chopsticks frame bottom.
Preferably, the locating part includes that the transmission is connected at the drive wheel in the gear train outside, the drive wheel is inside to rotate through the bearing and is connected with the connecting rod, and connecting rod and this inner wall fixed connection of poison cabinet, through the locating part that is equipped with to play the guide effect when rotating the gear train.
Preferably, the collecting device comprises three collecting shells communicated with one ends of the plurality of rotating shafts, the rotating shafts are rotatably connected with the collecting shells through bearings, and the collecting shells and the plurality of rotating shafts are distributed in an inclined angle;
it is three one side that is close to the sterilizer body of shell that gathers materials all communicates there is the honeycomb duct, and is three the one end of honeycomb duct is passed the sterilizer body and is communicated each other there is the pressure manifold, and is equipped with the drain pan below the pressure manifold, honeycomb duct and sterilizer body fixed connection through the collection device that is equipped with to play the effect of collecting the moisture of a plurality of axis of rotation one end.
Preferably, the angle value formed between the flow guide plate positioned below the bowl and chopstick rack and the bowl and chopstick rack is larger than 5 degrees and smaller than 45 degrees, so that the flow guide plate does not occupy more area inside the disinfection cabinet body.
Preferably, the guide plates and the rotating shaft are made of aluminum alloy materials, so that the guide plates are light in weight and play a certain role in heat dissipation.
Preferably, remove blast apparatus including setting up two fixed plates on the inside top of sterilizer body, two rotate between the fixed plate and be connected with the drive lead screw, arbitrary fixed plate outside fixedly connected with rotates the motor, it passes fixed plate and drive lead screw fixed connection to rotate the motor output, it passes through the bearing and is connected with the fixed plate rotation to rotate the motor output, the drive lead screw outside is rotated and is cup jointed and is removed the cover, and removes cover sliding connection at the inside top of sterilizer, remove cover bottom end fixedly connected with hair-dryer, through the removal blast apparatus that is equipped with to play and carry out the moisture in the outside to the bowl chopsticks and drip the effect of doing with higher speed.
Compared with the prior art, the invention has the beneficial effects that:
the invention adopts the principle of a shutter, namely the auxiliary draining device is composed of a plurality of guide plates, the centers of the guide plates are connected with a rotating shaft, the guide plates are Y-shaped, and the centers of the rotating shafts are semicircular hollow, further, when collecting water, the water can flow into a through groove which can be rotated to go along the concave part of the guide plates, and the guide plates and the rotating shafts are arranged in the disinfection cabinet body at a certain inclination angle, so that the water entering the rotating shaft flows into the collecting shell at one end of the rotating shaft from the rotating shaft and then flows into the bottom shell from the collecting shell, thereby realizing the collection of the water, and the guide plates rotate mutually in the disinfection process, the flow of air flow in the bowl and chopstick rack can be accelerated, and the disinfection effect of the disinfection cabinet can be further accelerated.
Drawings
FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a side view of the overall structure of the present invention;
FIG. 3 is a schematic view of the structure of the chopsticks rack and the flow guide plate according to the present invention;
FIG. 4 is a schematic view of the header structure of the present invention;
FIG. 5 is a schematic view of the aggregate shell structure of the present invention;
FIG. 6 is a schematic view of a rotating shaft according to the present invention;
FIG. 7 is a schematic view of a baffle configuration of the present invention;

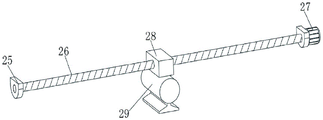

figure 8 is a schematic view of a blower according to the present invention;
FIG. 9 is an enlarged view of area A of FIG. 5 according to the present invention.
In the figure: 1-disinfection cabinet body; 2-a bowl and chopstick rack; 3-auxiliary draining device; 4-moving the blowing device; 5-a deflector; 6-rotating shaft; 7-a flow guide part; 8-a driving member; 9-a collecting device; 10-mounting grooves; 11-a through slot; 12-an opening; 13-sealing the shell; 14-an insulating block; 15-driving the motor; 16-a drive gear; 17-a gear train; 18-a limit stop; 19-a transmission wheel; 20-a connecting rod; 21-aggregate shell; 22-a draft tube; 23-collecting pipe; 24-a bottom shell; 25-fixing the plate; 26-driving a screw rod; 27-a rotating motor; 28-a moving sleeve; 29-blower.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-9, the present invention provides a technical solution: an intelligent kitchen disinfection cabinet comprises a disinfection cabinet body 1 and a plurality of bowl and chopstick racks 2 which are arranged inside the disinfection cabinet body 1 and support tableware, wherein the bowl and chopstick racks 2 are preferably three groups in the application, a plurality of auxiliary draining devices 3 which are used for performing auxiliary draining on bowls and chopsticks on the bowl and chopstick racks 2 before the bowls and chopsticks are placed in the disinfection cabinet for disinfection are arranged below the bowl and chopstick racks 2, each auxiliary draining device 3 comprises a plurality of guide plates 5 which are arranged below the bowl and chopstick racks 2 in an inclined angle, the guide plates 5 and rotating shafts are made of aluminum alloy materials, each guide plate 5 is Y-shaped, a mounting groove 10 used for mounting a rotating shaft 6 is formed in the center of each guide plate 5, the guide plates 5 on one bowl and chopstick rack 2 are in a closed state and are positioned on the same horizontal plane, and the rotating shafts 6 are fixedly penetrated in the middles of the guide plates 5, the rotating shaft 6 is provided with a flow guide part 7 matched with the flow guide plate 5, the angle value formed between the flow guide plate 5 positioned below the bowl and chopstick rack 2 and the bowl and chopstick rack 2 is larger than 5 degrees and smaller than 45 degrees, and in the application, the preferable angle between the flow guide plate 5 and the bowl and chopstick rack 2 is 10 degrees;
the water conservancy diversion spare 7 is including setting up at the inside logical groove 11 of axis of rotation 6, and is equipped with opening 12 on the axis of rotation 6, opening 12 and leading to groove 11 intercommunication, the position and the 5 intercommunications of guide plate of 6 opening 12 departments of axis of rotation, and the one end that axis of rotation 6 and driving piece 8 are connected is solid form, and the one end that axis of rotation 6 and aggregate shell 21 are connected is the cavity shape, and then guarantees to flow to opening 12 department by guide plate 5 by the rivers that drop down to flow into the logical groove 11 of axis of rotation 6 by opening 12 in, then flow into the shell 21 that gathers materials along leading to groove 11 afterwards inside.
One end of each of the rotating shafts 6 is connected with a driving piece 8 for synchronously driving the rotating shafts, each driving piece 8 comprises a sealing shell 13 sleeved outside one end of each of the rotating shafts 6, an insulating block 14 is fixedly connected outside each sealing shell 13, and the outside of each insulating block 14 is fixedly connected with the inner wall of the poison cabinet body 1;
a driving motor 15 is fixedly connected inside the sealing shell 13, the output end of the driving motor 15 is fixedly connected with any one of the rotating shafts 6 through a coupler, the outer sides of the ends, located inside the sealing shell 13, of the rotating shafts 6 are fixedly connected with driving gears 16, and the outer sides of the driving gears 16 are connected with gear chains 17 in a meshed mode;
a plurality of limiting pieces 18 for tensioning the gear chain 17 during transmission are arranged on the outer side of the gear chain 17, each limiting piece 18 comprises a transmission wheel 19 which is in transmission connection with the outer side of the gear chain 17, a connecting rod 20 is rotatably connected inside each transmission wheel 19 through a bearing, and each connecting rod 20 is fixedly connected with the inner wall of the poison cabinet body 1;
when bowls and chopsticks are placed on the bowls and chopsticks for draining, the driving motor 15 operates, so that one rotating shaft 6 can synchronously rotate a plurality of rotating shafts 6 under the transmission action of the driving gear 16 and the gear chain 17, and further a plurality of guide plates 5 can synchronously rotate, and the effect that the top ends of the rotating shafts are positioned on the same plane and collect water flow falling from the bowl and chopstick rack 2 is realized.
The other ends of the plurality of rotating shafts 6 are mutually connected with a collecting device 9 for synchronously collecting water flow guided out of the rotating shafts, the collecting device 9 comprises three collecting shells 21 communicated with one ends of the plurality of rotating shafts 6, the rotating shafts 6 are rotatably connected with the collecting shells 21 through bearings, and the collecting shells 21 and the plurality of rotating shafts 6 are distributed in an inclined angle;
three one side that is close to sterilizer body 1 of shell 21 that gathers materials all communicates with honeycomb duct 22, and is three the one end of honeycomb duct 22 passes sterilizer body 1 and communicates each other with pressure manifold 23, and pressure manifold 23 below is equipped with drain pan 24, honeycomb duct 22 and sterilizer body 1 fixed connection.
The top end of the disinfection cabinet body 1 is provided with a movable blowing device 4 for accelerating draining of bowls and chopsticks, the movable blowing device 4 comprises two fixing plates 25 arranged at the top end inside the disinfection cabinet body 1, a driving screw rod 26 is rotatably connected between the two fixing plates 25, a rotating motor 27 is fixedly connected to the outer side of any one of the fixing plates 25, the output end of the rotating motor 27 penetrates through the fixing plates 25 to be fixedly connected with the driving screw rod 26, the output end of the rotating motor 27 is rotatably connected with the fixing plates 25 through bearings, a movable sleeve 28 is rotatably sleeved on the outer side of the driving screw rod 26, the movable sleeve 28 is slidably connected to the top end inside the disinfection cabinet, and the bottom end of the movable sleeve 28 is fixedly connected with a blower 29;
and in the process of draining the bowls and chopsticks on the bowl and chopstick rack 2, the rotating motor 27 operates to enable the driving screw rod 26 to rotate between the two fixing plates 25 and provide driving force for the moving sleeve 28, and due to the limiting effect of the moving sleeve 28 on the top end inside the disinfection cabinet body 1, the moving sleeve 28 further enables to horizontally move along the driving screw rod 26, the effect of driving and adjusting the position of the moving sleeve 28 relative to the inside of the disinfection cabinet body 1 is further realized, and the effect of synchronously moving the blower 29 is realized while moving.
The working principle is as follows: when the washed bowls and chopsticks are disinfected, the bowls and chopsticks are sequentially placed on the three layers of bowl and chopstick racks 2 in the disinfection cabinet body 1, then the driving motor 15 operates to enable the corresponding three layers of guide plates 5 to rotate to the same horizontal plane, at the same time, the motor 27 operates to enable the blower 29 to drain moisture on the outer sides of the bowls and chopsticks on the top layer at an accelerated speed, meanwhile, a timer can be arranged in the disinfection cabinet body 1, after the blower 29 operates for a period of time, the driving motor 15 at the bottom end of the bowl and chopstick rack 2 on the top layer operates in the reverse direction to enable the guide plates 5 to be distributed in parallel, then air flow above the blower blows into the bowl and chopstick rack 2 on the second layer, the accelerated draining effect on the bowl and chopstick rack 2 on the second layer is achieved, the accelerated draining effect on the bowl and chopstick rack 2 on the third layer is sequentially achieved, and water flowing out from the rotating shaft 6 flows into the guide pipe 22 through the shell 21, and the water in the three guide pipes 22 is converged by the collecting pipe 23 and finally flows into the bottom shell 24, so that the effect of discharging the water out of the inside of the disinfection cabinet body 1 is realized, and meanwhile, when disinfection is performed, the three driving motors 15 respectively run in the forward and reverse directions, and further, the effect that the plurality of guide plates 5 respectively correspondingly swing back and forth below the bowl and chopstick rack 2 is realized, so that the effect of accelerating the flow of the air flow in the disinfection cabinet body 1 and further accelerating the disinfection is realized.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (9)
1. The utility model provides an intelligence kitchen sterilizer, includes sterilizer body (1) and sets up inside a plurality of chopsticks frame (2) that just support the tableware at sterilizer body (1), its characterized in that: auxiliary draining devices (3) for auxiliary draining the bowls and chopsticks on the bowl and chopstick racks (2) before the bowls and chopsticks on the bowl and chopstick racks (2) are placed in a disinfection cabinet for disinfection are arranged below the bowl and chopstick racks (2);
the top end of the disinfection cabinet body (1) is provided with a movable blowing device (4) for accelerating the draining of bowls and chopsticks, the auxiliary draining device (3) comprises a plurality of guide plates (5) which are arranged below the bowl and chopstick rack (2) in an inclined angle, a rotating shaft (6) is fixedly penetrated in the middle of the plurality of guide plates (5), and guide pieces (7) matched with the guide plates (5) are arranged on the rotating shaft (6);
a plurality of the one end of axis of rotation (6) is connected with driving piece (8) of carrying out synchronous drive to it each other, and a plurality of the other end of axis of rotation (6) is connected with collection device (9) that carry out synchronous collection to its rivers of deriving each other.
2. The intelligent kitchen disinfection cabinet of claim 1, wherein: the guide plate (5) is Y-shaped, and a mounting groove (10) for mounting the rotating shaft (6) is formed in the center of the guide plate (5).
3. The intelligent kitchen disinfection cabinet of claim 1, wherein: guide member (7) are including setting up logical groove (11) in axis of rotation (6) inside, and are equipped with opening (12) on axis of rotation (6), opening (12) and logical groove (11) intercommunication, the position and guide plate (5) intercommunication of axis of rotation (6) opening (12) department.
4. The intelligent kitchen disinfection cabinet of claim 1, wherein: the driving piece (8) comprises a sealing shell (13) sleeved outside one end of each of the plurality of rotating shafts (6), an insulating block (14) is fixedly connected outside the sealing shell (13), and the outside of the insulating block (14) is fixedly connected with the inner wall of the disinfection cabinet body (1);
the driving motor (15) is fixedly connected inside the sealing shell (13), the output end of the driving motor (15) is fixedly connected with any one rotating shaft (6) through a coupler, the outer sides of the ends, located inside the sealing shell (13), of the rotating shafts (6) are fixedly connected with driving gears (16), and the outer sides of the driving gears (16) are connected with gear chains (17) in a meshed mode;
and a plurality of limiting parts (18) for tensioning the gear chain (17) during transmission are arranged on the outer side of the gear chain.
5. The intelligent kitchen disinfection cabinet of claim 4, wherein: the limiting part (18) comprises a transmission wheel (19) which is in transmission connection with the outer side of the gear chain (17), a connecting rod (20) is rotatably connected inside the transmission wheel (19) through a bearing, and the connecting rod (20) is fixedly connected with the inner wall of the disinfection cabinet body (1).
6. The intelligent kitchen disinfection cabinet of claim 1, wherein: the collecting device (9) comprises three collecting shells (21) communicated with one ends of the plurality of rotating shafts (6), the rotating shafts (6) are rotatably connected with the collecting shells (21) through bearings, and the collecting shells (21) are distributed with the plurality of rotating shafts (6) at an inclined angle;
three one side that is close to sterilizer body (1) of shell (21) that gathers materials all communicates there is honeycomb duct (22), and is three the one end of honeycomb duct (22) is passed sterilizer body (1) and is communicated each other there is pressure manifold (23), and pressure manifold (23) below is equipped with drain pan (24), honeycomb duct (22) and sterilizer body (1) fixed connection.
7. The intelligent kitchen disinfection cabinet of claim 1, wherein: the angle value formed between the guide plate (5) positioned below the bowl and chopstick rack (2) and the bowl and chopstick rack (2) is more than 5 degrees and less than 45 degrees.
8. The intelligent kitchen disinfection cabinet of claim 1, wherein: the guide plates (5) and the rotating shaft are made of aluminum alloy materials.
9. The intelligent kitchen disinfection cabinet of claim 1, wherein: remove blast apparatus (4) including setting up two fixed plate (25) on sterilizer body (1) inside top, two it is connected with drive lead screw (26), arbitrary to rotate between fixed plate (25) outside fixedly connected with rotates motor (27), it passes fixed plate (25) and drive lead screw (26) fixed connection to rotate motor (27) output, it is connected with fixed plate (25) rotation through the bearing to rotate motor (27) output, drive lead screw (26) outside is rotated and has been cup jointed and move cover (28), and moves cover (28) sliding connection on the inside top of sterilizer, it has hair-dryer (29) to move cover (28) bottom fixedly connected with.
