本发明公开了一种低能耗的工业新风机，包括机箱，机箱内设置有隔板，隔板将机箱内分为进风区域和排风区域，机箱内部且位于进风区域内设置有电机和传动机构，机箱内部设置有第一送风机构、第二送风机构、第一减能装置和第二减能装置，第一送风机构的一侧固定连接有第一齿轮，第二送风机构的一侧固定连接有第二齿轮，第一齿轮与第一减能装置啮合连接，第二齿轮与第二减能装置啮合连接，机箱还设置有空气换能器，空气换能器位于进风区域内的出气口端设置有除尘器，进风区域内的出气端依次设置有空气过滤器和电加热器，本发明涉及工业空气净化技术领域。该种低能耗的工业新风机，解决了当前工业新风机能耗较大的问题，减少使用成本。
The invention discloses an industrial fresh air fan with low energy consumption, comprising a chassis, a partition plate is arranged in the chassis, the partition plate divides the chassis into an air intake area and an air exhaust area, and a motor and a motor and a motor are arranged inside the chassis and located in the air intake area. The transmission mechanism is provided with a first air supply mechanism, a second air supply mechanism, a first energy reduction device and a second energy reduction device inside the chassis. One side of the first air supply mechanism is fixedly connected with a first gear, and the second air supply mechanism One side of the mechanism is fixedly connected with a second gear, the first gear is meshed with the first energy reduction device, the second gear is meshed with the second energy reduction device, and the chassis is also provided with an air transducer, and the air transducer is located in the inlet. The air outlet end in the air area is provided with a dust collector, and the air outlet end in the air inlet area is sequentially provided with an air filter and an electric heater. The invention relates to the technical field of industrial air purification. The low-energy-consumption industrial fresh air fan solves the problem of large energy consumption of the current industrial fresh air fan and reduces the use cost.
Description
Technical Field
The invention relates to the technical field of industrial air purification, in particular to an industrial fresh air machine with low energy consumption.
Background
The industrial fresh air machine is effective air purification equipment, can circulate indoor air, on one hand, exhausts indoor dirty air outdoors, on the other hand, inputs outdoor fresh air into the room after measures such as filtering and the like, and enables the room to be fresh and clean air at all times. The new fan of industry application new trend convection current patent technique makes the room air realize the convection current through independently supplying air and induced air to the furthest carries out the room air replacement, and the new fan built-in multi-functional clean system of putting guarantees to get into indoor air clean and healthy. However, the current industrial fresh air machine continuously works, so that the overall energy consumption is high, and certain cost is brought to enterprises.
Disclosure of Invention
Technical problem to be solved
Aiming at the defects of the prior art, the invention provides the industrial fresh air machine with low energy consumption, solves the problem of higher energy consumption of the current industrial fresh air machine, and reduces the use cost.
(II) technical scheme
In order to achieve the purpose, the invention is realized by the following technical scheme: a low-energy-consumption industrial fresh air fan comprises a case, wherein a partition plate is arranged in the case, the partition plate divides the interior of the case into an air inlet area and an air outlet area, a motor and a transmission mechanism are arranged in the case and positioned in the air inlet area, a first air supply mechanism, a second air supply mechanism, a first energy reduction device and a second energy reduction device are arranged in the case, a first gear is fixedly connected to one side of the first air supply mechanism, a second gear is fixedly connected to one side of the second air supply mechanism, the first gear is meshed with the first energy reduction device and is meshed with the second energy reduction device, the case is further provided with an air transducer, an air outlet end of the air transducer positioned in the air inlet area is provided with an air inlet dust remover, and an air outlet end in the air inlet area is sequentially provided with an air filter and an electric heater;
the first energy reducing device comprises a supporting seat, a central fixedly connected with fixing shaft of the supporting seat, a cylinder is connected to the surface of the fixing shaft in a rotating mode, a first magnet is fixedly connected to the top of one side of the supporting seat through a fixing sleeve, a sliding rod is fixedly connected to the inner wall of the cylinder, the sliding rod array is arranged on the inner wall of the cylinder, a second magnet is connected to the surface of the sliding rod in a sliding mode, a spring is arranged between the second magnet and the inner wall of the cylinder, and fixing teeth are arranged on the outer surface of the cylinder.
Preferably, the surface of the case is fixedly connected with a waste gas inlet connecting seat, a fresh air exhaust connecting seat, a waste gas exhaust connecting seat and a fresh air inlet connecting seat.
Preferably, the transmission mechanism comprises a transmission case, an input shaft is rotatably connected in the transmission case, a first conical gear is fixedly connected to the surface of the input shaft, second conical gears are meshed and connected to two sides of the first conical gear, an output shaft is fixedly connected to the center of the second conical gear, and the input shaft is fixedly connected with the output shaft end of the motor.
Preferably, the first air supply mechanism comprises an air box, a blade shaft is connected in the air box in a rotating mode, fan blades are fixedly connected to the surface of the blade shaft, an air inlet and an air outlet are formed in the surface of the air box, the first gear is fixed to one end of the blade shaft, and the other end of the blade shaft is fixedly connected with an output shaft end of the transmission mechanism.
Preferably, the fan blades are cross-flow impellers.
Preferably, the electric heater is a PTC heater.
Preferably, the dust remover is an electrostatic dust remover.
Preferably, one side of the first magnet close to the second magnet and one side of the second magnet close to the first magnet are homopolar.
(III) advantageous effects
The invention provides an industrial fresh air machine with low energy consumption, which has the following beneficial effects: an energy reducing device is connected to one side of the air supply mechanism in a meshing transmission mode, the energy reducing device enables another magnet close to the magnet to be far away through homopolar repulsion and separation of the magnet, so that the torque is increased, the cylinder is driven to rotate, the air supply mechanism can be driven to rotate, and the energy consumption of the motor is reduced to a certain extent; in addition, the energy of indoor air and outdoor air can be exchanged through the air energy converter, the use of heaters is reduced, and therefore the purpose of reducing energy consumption is achieved.
Drawings

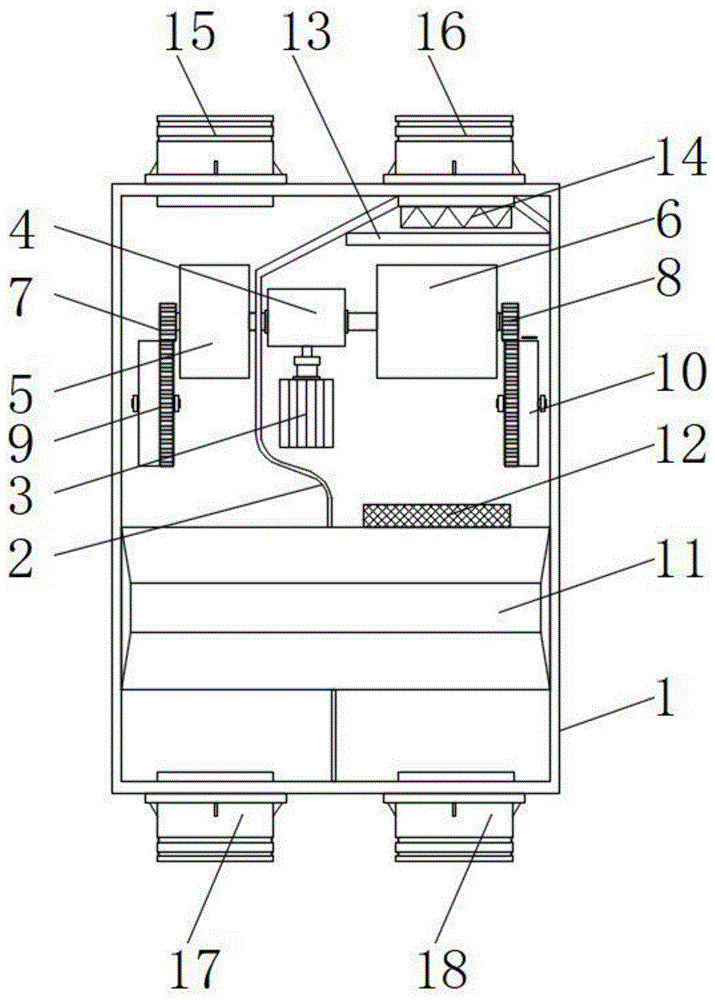

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic structural diagram of the transmission mechanism of the present invention;
FIG. 3 is a schematic structural view of a first blowing mechanism according to the present invention;
fig. 4 is a schematic structural diagram of a first energy reducing device according to the present invention.
In the figure: 1-case, 2-partition board, 3-motor, 4-transmission mechanism, 41-transmission case, 42-input shaft, 43-first conical gear, 44-second conical gear, 45-output shaft, 5-first air supply mechanism, 51-air box, 52-blade shaft, 53-fan blade, 54-air outlet, 55-air inlet, 6-second air supply mechanism, 7-first gear, 8-second gear, 9-first energy reducing device, 91-supporting seat, 92-fixed shaft, 93-cylinder, 94-fixed sleeve, 95-first magnet, 96-slide bar, 97-second magnet, 98-spring, 99-fixed tooth, 10-second energy reducing device, 11-air transducer, 12-a dust remover, 13-an air filter, 14-an electric heater, 15-a waste gas inlet connecting seat, 16-a fresh air exhaust connecting seat, 17-a waste gas exhaust connecting seat and 18-a fresh air inlet connecting seat.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: a low-energy-consumption industrial fresh air fan comprises a case 1, a partition plate 2 is arranged in the case 1, the partition plate 2 divides the interior of the case 1 into an air inlet area and an air outlet area, a motor 3 and a transmission mechanism 4 are arranged in the case 1 and positioned in the air inlet area, a first air supply mechanism 5 and a second air supply mechanism 6 are arranged in the case 1, the energy-saving air conditioner comprises a first energy-reducing device 9 and a second energy-reducing device 10, wherein one side of a first air supply mechanism 5 is fixedly connected with a first gear 7, one side of a second air supply mechanism 6 is fixedly connected with a second gear 8, the first gear 7 is meshed with the first energy-reducing device 9, the second gear 8 is meshed with the second energy-reducing device 10, the case 1 is further provided with an air transducer 11, a dust remover 12 is arranged at an air outlet end, located in an air inlet area, of the air transducer 11, and an air filter 13 and an electric heater 14 are sequentially arranged at the air outlet end in the air inlet area;
the first energy reducing device 9 comprises a supporting seat 91, a fixed shaft 92 is fixedly connected to the center of the supporting seat 91, a cylinder 93 is rotatably connected to the surface of the fixed shaft 92, a first magnet 95 is fixedly connected to the top of one side of the supporting seat 91 through a fixed sleeve 94, a sliding rod 96 is fixedly connected to the inner wall of the cylinder 93, the sliding rod 96 is arrayed on the inner wall of the cylinder 93, a second magnet 97 is slidably connected to the surface of the sliding rod 96, a spring 98 is arranged between the second magnet 97 and the inner wall of the cylinder 93, fixed teeth 99 are arranged on the outer surface of the cylinder 93, one side, close to the second magnet 97, of the first magnet 95 is homopolar with one side, close to the first magnet 95, of the first magnet 95, it is guaranteed that the second magnet 97 can move along the sliding rod 96 when being close to the first magnet 95 along with the rotation of.
The surface of the case 1 is fixedly connected with a waste gas inlet connecting seat 15, a fresh air exhaust connecting seat 16, a waste gas exhaust connecting seat 17 and a fresh air inlet connecting seat 18.
The transmission mechanism 4 comprises a transmission case 41, an input shaft 42 is connected in the transmission case 41 in a rotating mode, a first conical gear 43 is fixedly connected to the surface of the input shaft 42, second conical gears 44 are meshed and connected to the two sides of the conical gears 43, an output shaft 45 is fixedly connected to the center of the second conical gear 44, the input shaft 42 is fixedly connected with the output shaft end of the motor 3, cost can be reduced by adopting one motor to drive the motor, and space is saved for the case 1.
The first air supply mechanism 5 comprises an air box 51, a blade shaft 52 is rotationally connected in the air box 51, a fan blade 53 is fixedly connected to the surface of the blade shaft 52, the fan blade 53 is a cross-flow impeller, an air inlet 55 and an air outlet 54 are formed in the surface of the air box 51, a first gear 7 is fixed at one end of the blade shaft 52, and the other end of the blade shaft 52 is fixedly connected with an output shaft end of the transmission mechanism 4.
The electric heater 14 is a PTC heater, which has the advantages of low thermal resistance and high heat exchange efficiency.
The dust collector 12 is an electrostatic dust collector, and has high dust collection efficiency, can purify a large gas flow, and has a wide particle size range of particles to be removed.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. The term "comprising", without further limitation, means that the element so defined is not excluded from the group consisting of additional identical elements in the process, method, article, or apparatus that comprises the element.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (8)
1. The utility model provides a new fan of industry of low energy consumption, includes quick-witted case (1), its characterized in that: the air purifier is characterized in that a partition plate (2) is arranged in the case (1), the partition plate (2) divides the interior of the case (1) into an air inlet area and an air outlet area, a motor (3) and a transmission mechanism (4) are arranged in the air inlet area and in the case (1), a first air supply mechanism (5), a second air supply mechanism (6), a first energy reducing device (9) and a second energy reducing device (10) are arranged in the case (1), a first gear (7) is fixedly connected to one side of the first air supply mechanism (5), a second gear (8) is fixedly connected to one side of the second air supply mechanism (6), the first gear (7) is meshed with the first energy reducing device (9), the second gear (8) is meshed with the second energy reducing device (10), an air transducer (11) is further arranged on the case (1), a dust remover (12) is arranged at an air outlet end of the air transducer (11) in the air inlet area, an air outlet end in the air inlet area is sequentially provided with an air filter (13) and an electric heater (14);
the first energy reducing device (9) comprises a supporting seat (91), a fixed shaft (92) is fixedly connected to the center of the supporting seat (91), a cylinder (93) is connected to the surface of the fixed shaft (92) in a rotating mode, a first magnet (95) is fixedly connected to the top of one side of the supporting seat (91) through a fixed sleeve (94), a sliding rod (96) is fixedly connected to the inner wall of the cylinder (93), the sliding rod (96) is arrayed on the inner wall of the cylinder (93), a second magnet (97) is connected to the surface of the sliding rod (96) in a sliding mode, a spring (98) is arranged between the second magnet (97) and the inner wall of the cylinder (93), and fixed teeth (99) are arranged on the outer surface of the cylinder.
2. The industrial fresh air machine with low energy consumption according to claim 1, characterized in that: the surface of the case (1) is fixedly connected with a waste gas inlet connecting seat (15), a fresh air exhaust connecting seat (16), a waste gas exhaust connecting seat (17) and a fresh air inlet connecting seat (18).
3. The industrial fresh air machine with low energy consumption according to claim 1, characterized in that: the transmission mechanism (4) comprises a transmission case (41), an input shaft (42) is connected in the transmission case (41) in a rotating mode, a first conical gear (43) is fixedly connected to the surface of the input shaft (42), second conical gears (44) are meshed and connected to the two sides of each conical gear (43), an output shaft (45) is fixedly connected to the center of each second conical gear (44), and the input shaft (42) is fixedly connected with the output shaft end of the motor (3).
4. The industrial fresh air machine with low energy consumption according to claim 1, characterized in that: first air supply mechanism (5) are including bellows (51), bellows (51) internal rotation is connected with blade axle (52), the fixed surface of blade axle (52) is connected with flabellum (53), air intake (55) and air outlet (54) have been seted up on the surface of bellows (51), the one end at blade axle (52) is fixed in first gear (7), the other end and drive mechanism (4) output shaft end fixed connection of blade axle (52).
5. The industrial fresh air machine with low energy consumption according to claim 4, characterized in that: the fan blades (53) are cross flow impellers.
6. The industrial fresh air machine with low energy consumption according to claim 1, characterized in that: the electric heater (14) is a PTC heater.
7. The industrial fresh air machine with low energy consumption according to claim 1, characterized in that: the dust remover (12) is an electrostatic dust remover.
8. The industrial fresh air machine with low energy consumption according to claim 1, characterized in that: one side of the first magnet (95) close to the second magnet (97) and one side of the second magnet (97) close to the first magnet (95) are homopolar.
