Abstract
The invention discloses an environment-friendly curtain wall for a building, which relates to the technical field of curtain walls and comprises a curtain wall main body, wherein the back surface of the curtain wall main body is provided with a stand column, the back surface of the curtain wall main body is provided with a cross beam, the front surface of the curtain wall main body is fixedly connected with a first connecting rod, the front surface of the curtain wall main body is fixedly connected with a second connecting rod, the first connecting rod and the second connecting rod are mutually crossed, and the front surface of the curtain wall main body is provided with a curtain wall block. The invention can store and recycle the solar energy absorption by combining the solar energy absorption layer and the storage battery, saves resources, provides energy for the heating device by the solar energy absorption layer, heats the water pipe in the heating layer, can ensure that the clamping between the clamping block and the clamping groove is more stable by the arrangement of the movable element and the through hole, can ensure that the curtain wall block slides in the beam by the combined arrangement of the sliding block and the sliding groove, and is convenient for installing and disassembling the curtain wall block.
Description
Technical Field
The invention relates to the technical field of curtain walls, in particular to an environment-friendly curtain wall for a building.
Background
The curtain wall is an outer wall enclosure of a building and is hung like a curtain, so the curtain wall is also called a hanging wall and is a light wall body with decoration effect commonly used by modern large and high-rise buildings, and the curtain wall has the characteristics of environmental protection, attractive appearance, decoration and the like.
The following problems exist in the prior art:
1. some curtain walls on the market at present are inconvenient to install and disassemble, particularly the curtain walls are installed on a single curtain wall block, the curtain wall block is carried to a corresponding position when the existing curtain wall block is installed, and then the curtain wall block is fixed by using rivets in butt joint, so that the operation is complex and laborious, and the use is unsafe;
2. the outside protection to with the curtain of most existing curtain is perfect inadequately, can not carry out effectual protection to ultraviolet ray's direct injection, when the curtain receives the washing away of rainwater, carries out moisture in the curtain, and long-time not clear up causes the harm to the inside of curtain easily.
3. The existing curtain wall mostly has no environment-friendly and energy-saving function and cannot effectively utilize light energy, so that the energy is not fully utilized, the original purpose of environment-friendly use cannot be achieved, the applicability of the environment-friendly curtain wall for the building is poor, and therefore structural innovation is needed to be carried out to solve the specific problem.
Disclosure of Invention
The invention provides an environment-friendly curtain wall for a building, which aims to provide a labor-saving mounting and dismounting capability and solve the problem that the curtain wall is inconvenient to mount and dismount; the other purpose is to solve the problem of external protection of the curtain wall so as to achieve the effect of effectively protecting ultraviolet rays and rainwater, and the other purpose is to reasonably and effectively utilize light energy and recycle resources.
In order to solve the technical problems, the technical scheme adopted by the invention is as follows:
the utility model provides an environmental protection curtain for building, includes the curtain main part, the back of curtain main part is provided with the stand, the back of curtain main part is provided with the crossbeam, the positive fixedly connected with head rod of curtain main part, the positive fixedly connected with second connecting rod of curtain main part, head rod and second connecting rod intercrossing, the front of curtain main part is provided with the curtain piece.
The technical scheme of the invention is further improved as follows: the left end fixedly connected with anti ultraviolet layer of curtain main part, the left end fixedly connected with drying layer on anti ultraviolet layer, drying layer's left end is provided with the waterproof layer, the left end fixedly connected with solar energy absorbed layer of waterproof layer, the lower extreme of curtain main part is provided with the battery.
The technical scheme of the invention is further improved as follows: the top of stand is provided with fixing device, the right-hand member of stand is provided with the fixed block, the inside screw hole that has seted up of fixed block, the lower extreme of fixed block is provided with the bolt, the bolt runs through the upper and lower both ends of stand, the top of bolt is provided with the fixed pin, the fixed pin runs through the upper and lower both ends of bolt, the right-hand member of fixed block is provided with the base, the left end of base is provided with the inflation screw, the inflation screw runs through both ends and the base about both ends about the fixed block.
The technical scheme of the invention is further improved as follows: the upper end of curtain wall piece is provided with the axis of rotation, the right-hand member fixedly connected with glass window of axis of rotation, the right-hand member fixedly connected with folding leg of curtain wall piece, the right-hand member of folding leg and the lower extreme fixed connection of glass window.
The technical scheme of the invention is further improved as follows: the glass window is fixedly connected with the lower end of the curtain wall block through the arranged folding frame, and the glass window is movably connected with the upper end of the curtain wall block through the arranged rotating shaft.
The technical scheme of the invention is further improved as follows: the right-hand member of curtain piece is provided with heating device, heating device's inside is provided with the zone of heating, the inside of zone of heating is provided with the water pipe, heating device's outside is provided with fixed element, fixed element fixed mounting is at the surface of curtain piece, the right-hand member fixedly connected with pipeline of water pipe.
The technical scheme of the invention is further improved as follows: the curtain wall structure is characterized in that a clamping groove is formed in the first connecting rod, a clamping block is fixedly connected to the right end of the curtain wall block, a movable element is arranged at the lower end of the clamping block, and a through hole is formed in the lower end of the first connecting rod.
The technical scheme of the invention is further improved as follows: the inside of second connecting rod is provided with the spout, the lower extreme fixedly connected with slider of curtain piece, the lower extreme of slider is provided with the spliced pole, the right-hand member of spliced pole is provided with the gyro wheel.
The technical scheme of the invention is further improved as follows: the spliced pole runs through both ends about the slider, the inner wall of gyro wheel and the outer wall fixed connection of spliced pole, the slider is through spliced pole, gyro wheel and the spout sliding connection who sets up.
The technical scheme of the invention is further improved as follows: the through hole and the movable element are on the same horizontal line, a spring is arranged inside the movable element, and the clamping block is clamped with the clamping groove through the arranged movable element.
Due to the adoption of the technical scheme, compared with the prior art, the invention has the technical progress that:
1. the invention provides an environment-friendly curtain wall for buildings, which is ingenious in design, can store and recycle solar energy absorption by adopting the combination of a solar energy absorption layer and a storage battery, saves resources, in addition, the solar energy absorption layer provides energy for a heating device to heat a water pipe in a heating layer, and in addition, the arrangement of a waterproof layer, a drying layer and an ultraviolet-proof layer can protect rainwater and avoid humidity, and in addition, the arrangement of the ultraviolet-proof layer can effectively prevent ultraviolet rays from directly irradiating the skin of a person.
2. The invention provides an environment-friendly curtain wall for buildings, which can realize the stable installation of an upright post by adopting the combined arrangement of the upright post and a fixing device, is convenient to open a glass window on a curtain wall block by combining the glass window with a folding frame and a rotating shaft, and can support the glass window by the folding frame and protect people at the same time.
3. The invention provides an environment-friendly curtain wall for buildings, which can enable clamping connection of a clamping block and a clamping groove to be more stable through arrangement of a movable element and a through hole, and can enable a curtain wall block to slide in a second connecting rod through combination of a sliding block and a sliding groove, so that the curtain wall block is convenient to mount and dismount.
Drawings
FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic side view of the curtain wall body of the present invention;
FIG. 3 is a schematic view of the fixing device of the present invention,
FIG. 4 is a schematic view of the curtain wall block structure of the present invention.
Fig. 5 is a schematic structural diagram of the heating device of the present invention.

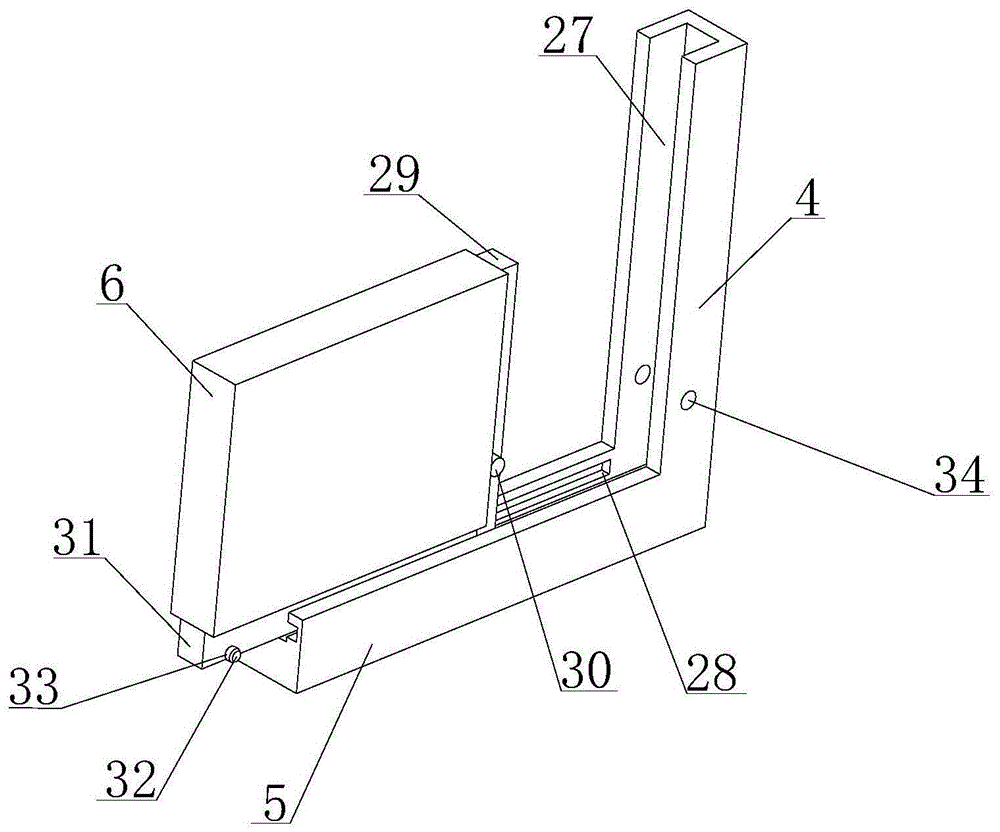

Fig. 6 is a schematic structural view of the sliding device of the present invention.
In the figure: 1. a curtain wall main body; 2. a column; 3. a cross beam; 4. a first connecting rod; 5. a second connecting rod; 6. a curtain block; 7. an ultraviolet-proof layer; 8. drying the layer; 9. a waterproof layer; 10. a solar energy absorbing layer; 11. a storage battery; 12. a fixing device; 13. a fixed block; 14. a bolt; 16. a fixing pin; 17. an expansion screw; 18. a base; 19. a folding frame; 20. a rotating shaft; 21. a glass window; 22. a heating device; 23. a heating layer; 24. a water pipe; 25. a fixing element; 26. a pipeline; 27. a card slot; 28. a chute; 29. a clamping block; 30. a movable element; 31. a slider; 32. connecting columns; 33. a roller; 34. and a through hole.
Detailed Description
The present invention will be described in further detail with reference to the following examples:
example 1
As shown in fig. 1-6, the invention provides an environmental protection curtain wall for buildings, which comprises a curtain wall main body 1, wherein a vertical column 2 is arranged on the back surface of the curtain wall main body 1, a cross beam 3 is arranged on the back surface of the curtain wall main body 1, the vertical column 2 and the cross beam 3 are combined to make the curtain wall main body 1 more stable, a first connecting rod 4 is fixedly connected to the front surface of the curtain wall main body 1, a second connecting rod 5 is fixedly connected to the front surface of the curtain wall main body 1, the first connecting rod 4 is intersected with the second connecting rod 5, the curtain wall main body 1 can be divided into a plurality of units by the first connecting rod 4 and the second connecting rod 5, so that the curtain wall main body looks neat, a curtain wall block 6 is arranged on the front surface of the curtain wall main body 1.
In this embodiment, curtain main part 1's left end fixedly connected with prevents ultraviolet layer 7, can prevent the direct injury of the ultraviolet ray of higher strength to the human body, prevent ultraviolet layer 7's left end fixedly connected with drying layer 8, drying layer 8 can effectively prevent the inside humidity of curtain main part 1, drying layer 8's left end is provided with waterproof layer 9, be used for blockking the inside that the rainwater entered into curtain main part 1, waterproof layer 9's left end fixedly connected with solar energy absorbed layer 10, be used for absorbing solar energy and carry out the reuse of light energy, realize environmental protection and energy saving's effect, the lower extreme of curtain main part 1 is provided with battery 11, be used for storing the electric energy by the light energy conversion.
As shown in fig. 1 to 5, in this embodiment, a fixing device 12 is disposed on the top of an upright column 2, a fixing block 13 is disposed at the right end of the upright column 2, a threaded hole is formed in the fixing block 13, a bolt 14 is disposed at the lower end of the fixing block 13, the fixing block 13 is fixedly mounted on the back of the upright column 2 through connection of the bolt 14 and the threaded hole of the fixing block 13, the bolt 14 penetrates through the upper and lower ends of the upright column 2, a fixing pin 16 is disposed at the top of the bolt 14, the fixing pin 16 penetrates through the upper and lower ends of the bolt 14, a base 18 is disposed at the right end of the fixing block 13, an expansion screw 17 is disposed at the left end of the base 18, the expansion screw 17 penetrates through the left and right ends of the fixing block 13 and the left and right ends of the base 18, preferably, a rotating shaft 20 is disposed at the upper end, curtain wall piece 6's right-hand member fixedly connected with folding leg 19, folding leg 19's right-hand member and glass window 21's the other glass window 21 of lower extreme fixed connection and folding leg 19, the combination setting of axis of rotation 20, conveniently open the glass window 21 on curtain wall piece 6, folding leg 19 can be to a support of glass window 21 in addition, also make simultaneously a protection to the people, it is preferred, glass window 21 is through the folding leg 19 that sets up and the lower extreme fixed connection of curtain wall piece 6, glass window 21 is through the axis of rotation 20 and the upper end swing joint of curtain wall piece 6 that set up.
Example 2
As shown in fig. 1 to 5, on the basis of embodiment 1, the present invention provides a technical solution: curtain wall piece 6's right-hand member is provided with heating device 22, be connected through heating device 22 and solar energy absorbed layer 10, the inside that can heating device 22 is provided with zone of heating 23, solar energy absorbed layer 10 provides the energy for heating device 22, heat water pipe 24 in the zone of heating 23, the inside of zone of heating 23 is provided with water pipe 24, heating device 22's outside is provided with fixed component 25, fixed component 25 fixed mounting is at curtain wall piece 6's surface, it is indoor to transmit through pipeline 26 after the rivers heating is accomplished, water pipe 24's right-hand member fixedly connected with pipeline 26.
Example 3
As shown in fig. 1 to 6, on the basis of the embodiment 1 and the embodiment 2, the present invention provides a technical solution: the inside of head rod 4 is provided with draw-in groove 27, the right-hand member fixedly connected with fixture block 29 of curtain piece 6, the lower extreme of fixture block 29 is provided with movable element 30, the setting of the interior spring of movable element 30 can make movable element 30 automatic alternate on through-hole 34, the lower extreme of head rod 4 is provided with through-hole 34, it is preferred, the inside of second connecting rod 5 is provided with spout 28, the lower extreme fixedly connected with slider 31 of curtain piece 6, the lower extreme of slider 31 is provided with spliced pole 32, combination setting through slider 31 and spout 28, can make curtain piece 6 slide in the inside of second connecting rod 5, the convenience is to the installation and the dismantlement of curtain piece 6, the right-hand member of spliced pole 32 is provided with gyro wheel 33.
Example 4
As shown in fig. 6, on the basis of embodiment 1, embodiment 2, and embodiment 3, the present invention provides a technical solution: spliced pole 32 runs through both ends about slider 31, both ends respectively are equipped with a gyro wheel 33 about spliced pole 32, the inner wall of gyro wheel 33 and spliced pole 32's outer wall fixed connection, spliced pole 32 that slider 31 is through setting up, gyro wheel 33 and spout 28 sliding connection, use gyro wheel 33 slidable mounting in spout 28, time saving and labor saving, and make the installation of curtain piece 6 be difficult to produce the uneven problem of dislocation, in order to avoid causing the incident, through-hole 34 is on same water flat line with movable element 30, movable element 30's inside is provided with the spring, fixture block 29 is through movable element 30 and the draw-in groove 27 joint that sets up, setting through movable element 30 and through-hole 34, can make fixture block 29 and draw-in groove 27's joint more firm.
The working principle of the environmental protection curtain wall for building is described in detail below.
As shown in fig. 1-6, the upright post 2 is fixedly installed by installing the fixing device 12, the fixing block 13 on the fixing device 12 is clamped with the back of the upright post 2, the fixing block 13 can be fixed with the upright post 2 by connecting the bolt 14 with the threaded hole, in addition, one end of the bolt 14 is penetrated by the fixing pin 16, then the base 18 and the fixing element 25 are fixedly installed on the wall body by the expansion screw 17, the glass window 21 can be opened by pushing the bottom of the glass window 21, the rotating shaft 20 at the upper end of the glass window 21 is rotated and the folding bracket 19 is folded, the energy absorbed by the solar energy absorbing layer 10 is transmitted into the heating device 22, the water pipe 24 in the heating device 22 can be heated, the energy is saved, the environment is protected and energy is saved, the utility is practical, the curtain block 6 is pushed to make the roller 33 at the bottom of the curtain block 6 slide rightwards along the chute 28, the clamping block 29 at the right end of the curtain block, then, the movable member 30 is pressed to compress the spring in the movable member 30, and when the movable member 30 reaches the through hole, the movable member 30 performs the repulsive force of the spring to restore the original shape and is engaged with the inner wall of the through hole 34.
The present invention has been described in general terms in the foregoing, but it will be apparent to those skilled in the art that modifications and improvements can be made thereto based on the present invention. Therefore, modifications or improvements are within the scope of the invention without departing from the spirit of the inventive concept.
Claims (10)
1. The utility model provides an environmental protection curtain for building, includes curtain main part (1), its characterized in that: the back of curtain main part (1) is provided with stand (2), the back of curtain main part (1) is provided with crossbeam (3), the positive fixedly connected with head rod (4) of curtain main part (1), the positive fixedly connected with second connecting rod (5) of curtain main part (1), head rod (4) and second connecting rod (5) intercrossing, the front of curtain main part (1) is provided with curtain piece (6).
2. The environmental curtain wall for building of claim 1, wherein: the curtain wall comprises a curtain wall body (1), and is characterized in that an anti-ultraviolet layer (7) is fixedly connected to the left end of the curtain wall body (1), a drying layer (8) is fixedly connected to the left end of the anti-ultraviolet layer (7), a waterproof layer (9) is arranged at the left end of the drying layer (8), a solar absorption layer (10) is fixedly connected to the left end of the waterproof layer (9), and a storage battery (11) is arranged at the lower end of the curtain wall body (1).
3. The environmental curtain wall for building of claim 1, wherein: the top of stand (2) is provided with fixing device (12), the right-hand member of stand (2) is provided with fixed block (13), the inside set up threaded hole of fixed block (13), the lower extreme of fixed block (13) is provided with bolt (14), bolt (14) run through the upper and lower both ends of stand (2), the top of bolt (14) is provided with fixed pin (16), fixed pin (16) run through the upper and lower both ends of bolt (14), the right-hand member of fixed block (13) is provided with base (18), the left end of base (18) is provided with inflation screw (17), inflation screw (17) run through both ends and the left and right sides both ends of base (18) about fixed block (13).
4. The environmental curtain wall for building of claim 1, wherein: the upper end of curtain wall piece (6) is provided with axis of rotation (20), the right-hand member fixedly connected with glass window (21) of axis of rotation (20), the right-hand member fixedly connected with folding leg (19) of curtain wall piece (6), the right-hand member of folding leg (19) and the lower extreme fixed connection of glass window (21).
5. The environmental curtain wall for building of claim 4, wherein: glass window (21) are through the lower extreme fixed connection of folding leg (19) and curtain piece (6) that set up, glass window (21) are through the upper end swing joint of axis of rotation (20) and curtain piece (6) that set up.
6. The environmental curtain wall for building of claim 1, wherein: the right-hand member of curtain piece (6) is provided with heating device (22), the inside of heating device (22) is provided with zone of heating (23), the inside of zone of heating (23) is provided with water pipe (24), the outside of heating device (22) is provided with fixed element (25), fixed element (25) fixed mounting is at the surface of curtain piece (6), the right-hand member fixedly connected with pipeline (26) of water pipe (24).
7. The environmental curtain wall for building of claim 1, wherein: the curtain wall block is characterized in that a clamping groove (27) is formed in the first connecting rod (4), a clamping block (29) is fixedly connected to the right end of the curtain wall block (6), a movable element (30) is arranged at the lower end of the clamping block (29), and a through hole (34) is formed in the lower end of the first connecting rod (4).
8. The environmental curtain wall for building of claim 1, wherein: the inside of second connecting rod (5) is provided with spout (28), lower extreme fixedly connected with slider (31) of curtain piece (6), the lower extreme of slider (31) is provided with spliced pole (32), the right-hand member of spliced pole (32) is provided with gyro wheel (33).
9. The environmental curtain wall for building of claim 8, wherein: the spliced pole (32) run through both ends about slider (31), the inner wall of gyro wheel (33) and the outer wall fixed connection of spliced pole (32), slider (31) are through spliced pole (32), gyro wheel (33) and spout (28) sliding connection who sets up.
10. The environmental curtain wall for building of claim 7, wherein: the through hole (34) and the movable element (30) are on the same horizontal line, a spring is arranged in the movable element (30), and the clamping block (29) is clamped with the clamping groove (27) through the arranged movable element (30).
