CN112205101A - Double-row type flexible weeding part between rice field plants - Google Patents
Double-row type flexible weeding part between rice field plants Download PDFInfo
- Publication number
- CN112205101A CN112205101A CN202010993613.5A CN202010993613A CN112205101A CN 112205101 A CN112205101 A CN 112205101A CN 202010993613 A CN202010993613 A CN 202010993613A CN 112205101 A CN112205101 A CN 112205101A
- Authority
- CN
- China
- Prior art keywords
- brush
- weeding
- flexible
- inclination angle
- fastening
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Images
Classifications
-
- A—HUMAN NECESSITIES
- A01—AGRICULTURE; FORESTRY; ANIMAL HUSBANDRY; HUNTING; TRAPPING; FISHING
- A01B—SOIL WORKING IN AGRICULTURE OR FORESTRY; PARTS, DETAILS, OR ACCESSORIES OF AGRICULTURAL MACHINES OR IMPLEMENTS, IN GENERAL
- A01B39/00—Other machines specially adapted for working soil on which crops are growing
- A01B39/12—Other machines specially adapted for working soil on which crops are growing for special purposes, e.g. for special culture
- A01B39/18—Other machines specially adapted for working soil on which crops are growing for special purposes, e.g. for special culture for weeding
-
- A—HUMAN NECESSITIES
- A01—AGRICULTURE; FORESTRY; ANIMAL HUSBANDRY; HUNTING; TRAPPING; FISHING
- A01B—SOIL WORKING IN AGRICULTURE OR FORESTRY; PARTS, DETAILS, OR ACCESSORIES OF AGRICULTURAL MACHINES OR IMPLEMENTS, IN GENERAL
- A01B39/00—Other machines specially adapted for working soil on which crops are growing
- A01B39/20—Tools; Details
- A01B39/26—Arrangements for protecting plants, e.g. fenders
Landscapes
- Life Sciences & Earth Sciences (AREA)
- Engineering & Computer Science (AREA)
- Mechanical Engineering (AREA)
- Soil Sciences (AREA)
- Environmental Sciences (AREA)
- Soil Working Implements (AREA)
Abstract
The invention relates to a double-row type flexible weeding component between rice plants, which comprises flexible weeding brush fingers, a brush finger fixing device, a brush finger fastening clamping plate, a height adjusting device and an inclination angle adjusting device, wherein the brush finger fixing device is arranged on the brush finger fastening clamping plate; the flexible weeding brush fingers are strip-shaped and comprise front row and rear row flexible weeding brush fingers which are arranged in the front and rear direction of the traveling direction of the weeding machine; each row of flexible weeding brush fingers are fixed on a brush finger fastening splint, the brush finger fastening splint is connected to an inclination angle adjusting device in an angle-adjustable manner, the inclination angle adjusting device is connected to a brush finger fixing device in a height-adjustable manner through a height adjusting device, and the brush finger fixing device is connected with a weeding machine; the working inclination angle of the flexible weeding brush fingers is less than 90 degrees. The flexible weeding brush fingers are double rows, the working inclination angles, the brush finger diameters and the arrangement intervals of the flexible weeding brush fingers on the front row and the rear row can be adjusted, and the appropriate operation parameters can be selected according to the actual conditions of the rice field, so that the weeding rate is improved and the seedling injury rate is reduced, and the flexible weeding brush fingers belong to the field of mechanical weeding.
Description
Technical Field
The invention relates to the field of mechanical weeding, in particular to a double-row type flexible weeding component between rice plants.
Background
Chemical weeding is an important method for preventing and controlling paddy weeds, but long-term, large-amount and high-frequency application of the herbicide can easily cause the problems of drug resistance of the weeds, phytotoxicity of crops, environmental pollution and the like. The development of environment-friendly mechanical weeding is realized, and the reduction of the application amount of the herbicide is the key of sustainable development of agriculture. However, due to the small planting distance of rice and the interference of rice rows during weeding, the weeding executive component is difficult to avoid rice plants to selectively prevent and remove weeds among the plants, so that the harm of near-plant weeds among the plants is serious, and the development of a mechanical weeding technology is restricted. Therefore, it is necessary to develop a research on inter-plant weeding parts of rice.
The conventional rice inter-plant weeding parts mainly comprise a counter rotating type, a swinging type and a fixed type, and the difference of weeding effects of the 3 weeding parts is not large. The contra-rotating inter-plant weeding part is a pair of rotating elastic fluted discs. However, the biggest problem of such weeding units is that the weeding units must be operated strictly in line, otherwise the seedling damage rate is increased dramatically. However, the paddy field operation machine has unstable line and changes the bending degree of the seedling belt, so that the row aligning quality is difficult to ensure in the actual operation.
The swing type inter-plant weeding mainly adopts the comb teeth which swing left and right to complete inter-plant weeding, and during traveling operation, because the working comb teeth have gaps, rice plants can pass through the gaps of the comb teeth, so that the dependence of a contra-rotating weeding part on the row is eliminated, but because the comb teeth are shorter and have higher rigidity, and the comb teeth are vertical to the ground during operation, the damage to the root system of rice seedlings is serious; in addition, the weeding effect is greatly influenced by the advancing speed of the machine, is difficult to be matched with the row weeding parts, cannot realize the efficient synchronous weeding of the existing weeds, and limits the application and popularization of the weeding parts.
When the fixed inter-plant weeding component works, the weeding elastic wires cross over the two sides of the rice row and drag, pull or bury and press the inter-plant weeds along with the forward movement of the machine. Such inter-plant weeding techniques also have serious row requirements, otherwise the weeding member may not accurately enter the inter-plant area or the weeding member may not avoid the rice plant, resulting in that the weeds in the inter-plant area cannot be controlled or the rice seedlings are damaged.
Therefore, aiming at the transplanted rice field, the invention controls the operation intensity of the weeding part according to the root soil fixation difference between the rice plant and the weed without aligning the row (avoiding the seedling), and removes the weed among the plants without damaging the rice seedling.
Disclosure of Invention
Aiming at the technical problems in the prior art, the invention aims to: provides a double-row type flexible weeding component between rice plants, which can improve the weeding rate and reduce the seedling damage of rice.
In order to achieve the purpose, the invention adopts the following technical scheme:
a double-row type flexible weeding component between rice plants comprises flexible weeding brush fingers, a brush finger fixing device, brush finger fastening clamping plates, a height adjusting device and an inclination angle adjusting device; the flexible weeding brush fingers are strip-shaped, the number of the flexible weeding brush fingers is multiple, the flexible weeding brush fingers comprise a front row of flexible weeding brush fingers and a rear row of flexible weeding brush fingers, and the flexible weeding brush fingers are arranged in the front and the rear of the traveling direction of the weeding machine; each row of flexible weeding brush fingers are fixed on a brush finger fastening splint, the brush finger fastening splint is connected to an inclination angle adjusting device in an angle-adjustable manner, the inclination angle adjusting device is connected to a brush finger fixing device in a height-adjustable manner through a height adjusting device, and the brush finger fixing device is connected with a weeding machine; the working inclination angle of the flexible weeding brush fingers is less than 90 degrees. After the structure is adopted, the flexible weeding brush fingers are double rows, the working inclination angles, the brush finger diameters and the arrangement intervals of the flexible weeding brush fingers of the front row and the rear row can be adjusted, and suitable operation parameters can be selected according to the actual conditions of the rice field, wherein the working inclination angles are included angles formed by the flexible weeding brush fingers and the ground in the advancing direction of the weeding component during working, and the arrangement intervals are the distances between the adjacent flexible weeding brush fingers in each row of flexible weeding brush fingers.
Preferably, the flexible weeding brush fingers are circular in cross section; the diameter of the cross section, the working inclination angle and the arrangement distance of the flexible weeding brush fingers of the front row are all larger than those of the back row. By adopting the structure, higher weed removal rate and smaller seedling injury rate can be obtained.
Preferably, the brush finger fixing device comprises a clamping plate and a clamping groove; the clamping groove and the clamping plate are fixedly connected and enclose an annular part, and the annular part is sleeved on a machine frame of the weeding machine; the height adjusting device comprises a height adjusting bolt, a fixing nut and a height adjusting valve, the height adjusting bolt and the fixing nut are installed on the clamping plate in a matched mode, the height adjusting valve is fixed at the head of the height adjusting bolt, and the height adjusting bolt drives the brush finger fastening clamping plate to lift through rotating the height adjusting valve to adjust the lifting of the height adjusting bolt.
After adopting this kind of structure, rotate the altitude mixture control valve and can realize altitude mixture control, convenient and reliable.
Preferably, the brush finger fixing device further comprises a supporting plate, a base plate and a detachable and replaceable cushion block; the cushion block is placed in the clamping groove, the brush finger fixing device is fixed on the weeding machine through the matching of the clamping groove, the cushion block and the clamping plate, the surface of the cushion block is provided with a convex structure, the inner surface of the clamping groove is provided with a concave structure, and the convex structure is clamped into the concave structure; the cushion block is made of rubber; the supporting plate is arranged at the top end of the clamping plate and is provided with a through hole matched with the rod part of the height adjusting bolt, and the base plate is arranged between the supporting plate and the fixing nut; the backing plate is made of rubber. By adopting the structure, the cushion blocks with different sizes can be replaced, the structure of the conventional inter-row weeder is not required to be changed, and the inter-row weeder can be matched with the inter-row weeder, so that the synchronous and efficient mechanical weed control among the rows and the plants of the rice field is realized; the convex strips on the cushion block can be used for skid prevention and limiting; the backing plate is made of rubber materials, so that the weeding component has a buffering effect when the height limit is adjusted.
Preferably, the brush finger fastening clamping plate comprises an upper clamping plate and a lower clamping plate, fastening grooves are formed in the inner sides of the upper clamping plate and the lower clamping plate and comprise transverse grooves and longitudinal grooves which are arranged in a staggered mode, the flexible weeding brush fingers are placed in the longitudinal grooves, and the distance between the adjacent flexible weeding brush fingers is controlled through the empty number of the longitudinal grooves. After adopting this kind of structure, can arrange the interval between the flexible weeding brush finger according to the actual operation condition.
Preferably, the transverse cross-sectional shape of the longitudinal groove is semicircular; the longitudinal section of the transverse groove is rectangular, the number of the transverse grooves is 2, the longitudinal groove is divided into three parts, and the elastic layer is arranged in the transverse groove. After adopting this kind of structure, the semicircular concave surface is used for fixing flexible weeding brush and indicates, and the elastic material in the cross slot is used for compressing tightly flexible weeding brush and indicates, prevents that flexible weeding brush indicates to remove in brush indicates fastening splint.
Preferably, the inclination angle adjusting device comprises an inclination angle fixing disc, a fastening nut and a fastening bolt, the inclination angle fixing disc is connected with the tail part of the fastening bolt, the fastening nut is sleeved on the rod part of the fastening bolt, a plurality of holes are uniformly distributed in the circumferential direction on the inclination angle fixing disc, an inclination angle adjusting disc matched with the inclination angle fixing disc in structure is arranged at the end part of the brush finger fastening clamping plate, and the inclination angle adjusting disc is connected with the inclination angle fixing disc in an angle-adjustable mode. After the structure is adopted, the working inclination angle adjustment of the flexible weeding brush finger can be realized only by rotating the inclination angle adjusting disc to a proper position and then fixing the inclination angle adjusting disc and the inclination angle fixing disc again.
Preferably, a circular hanging ring is fixedly arranged at the tail end of the height adjusting bolt, and a fastening bolt in the inclination angle adjusting device is sleeved in the hanging ring; a hollow groove is further formed in the middle of the clamping plate, the fastening bolt extends into the hollow groove, and the head of the fastening bolt and the fastening nut are respectively located on two sides of the clamping plate and are matched with the fixed inclination angle adjusting device. After the structure is adopted, the fastening bolt is matched with the fastening nut, so that the inclination angle adjusting device can be fixed on the clamping plate, and the height of the flexible weeding brush finger is fixed.
Preferably, the inclination angle fixing disc is provided with a threaded hole which is in threaded connection with the fastening bolt, and the fastening direction of the inclination angle fixing disc is consistent with the force application direction of the flexible brush finger on the fastening bolt during working. After adopting this kind of structure, when weeder during operation, can realize the auto-lock of inclination fixed disk, difficult pine takes off.
Preferably, the flexible weeding brush fingers are arranged into a front row and a rear row, a left row and a right row, and four brush finger fastening splints are correspondingly arranged; the flexible weeding brush finger is made of glass fiber, and the brush finger fastening clamping plate is of a cantilever beam structure with one end connected with the inclination angle adjusting device and the other end being a free end. After adopting this kind of structure, the weeding part has certain flexibility.
Overall, the invention also has the following advantages:
the weeding component fully considers the fusion of agricultural machinery and agriculture, utilizes the biomechanics and soil fixation difference of transplanted paddy rice and weed roots, adopts glass fiber materials and a cantilever beam structure, enables the weeding component to have certain flexibility, can damage the weed roots without damaging the rice seedlings under the condition of not avoiding the rice seedlings, and solves the technical problem of mechanical weed prevention and removal among rice field plants.
Drawings

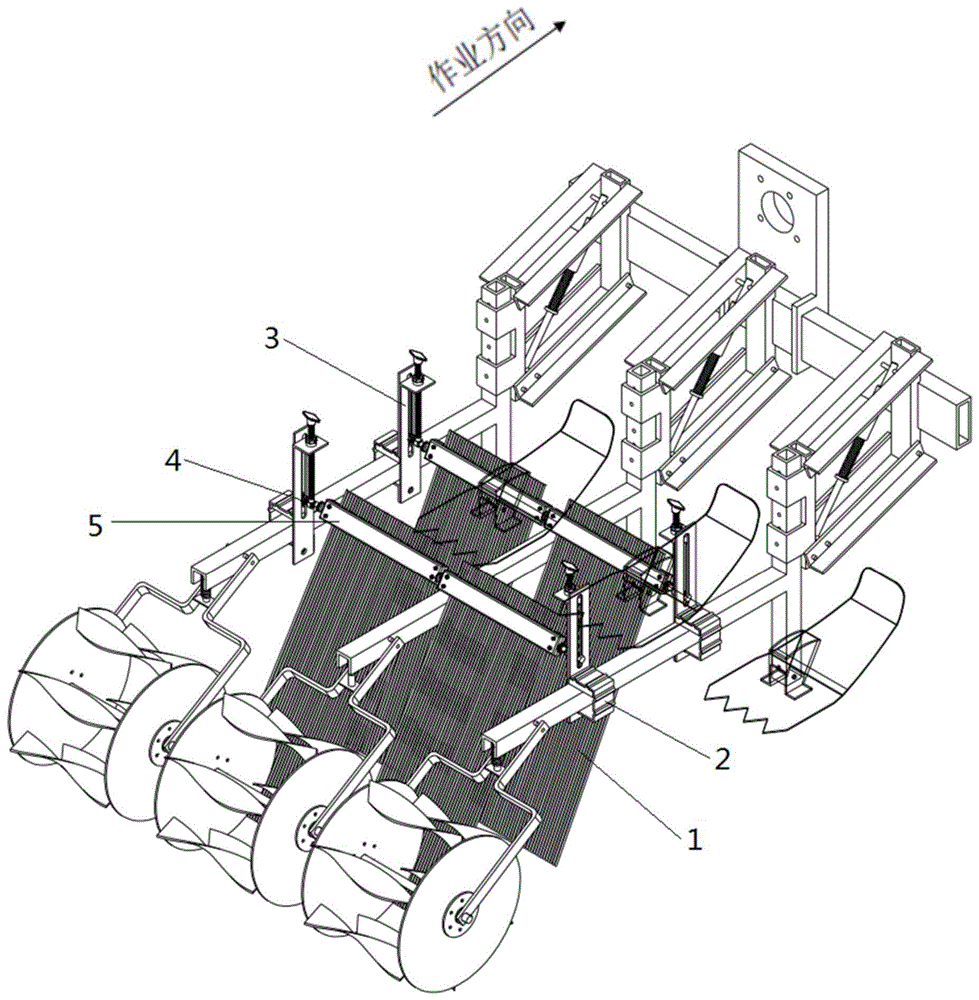

Fig. 1 is a structure and installation diagram of a double-row flexible weeding member between rice plants.
Fig. 2 is a structure diagram of a flexible weeding brush finger.
Fig. 3 is a structural view of a brush finger fixing device.
Fig. 4 is a structure view of a brush finger fastening splint.
Fig. 5 is a view showing the structure of the upper plate.
Fig. 6 is a view showing the structure of the lower plate.
Fig. 7 is a structural view of the height adjusting device.
Fig. 8 is a structural view of the reclining device.
Wherein, 1 is a flexible weeding brush finger; 2 is a brush finger fixing device; 3 is a tilt angle adjusting device; 4 is a height adjusting device; 5 is a brush finger fastening splint; 6 is a clamping plate; 7 is a clamping groove; 8 is a cushion block; 9 is a backing plate; 10 is a supporting plate; 11 is a longitudinal groove; 12 is a transverse groove; 13 is a tilt angle adjusting disc; 14 is a height adjusting valve; 15 is a fixed nut; 16 is a hanging ring; 17 is a height adjusting bolt; 18 is a fastening nut; 19 is an inclination angle fixed disc; and 20, a fastening bolt.
Detailed Description
The present invention will be described in further detail with reference to specific embodiments.
Example one
A double-row type flexible weeding component between rice plants comprises flexible weeding brush fingers, a brush finger fixing device, brush finger fastening clamping plates, a height adjusting device and an inclination angle adjusting device; the flexible weeding brush fingers are strip-shaped, the number of the flexible weeding brush fingers is multiple, the flexible weeding brush fingers comprise a front row of flexible weeding brush fingers and a rear row of flexible weeding brush fingers, and the flexible weeding brush fingers are arranged in the front and the rear of the traveling direction of the weeding machine; each row of flexible weeding brush fingers are fixed on a brush finger fastening splint, the brush finger fastening splint is connected to an inclination angle adjusting device in an angle-adjustable manner, the inclination angle adjusting device is connected to a brush finger fixing device in a height-adjustable manner, and the brush finger fixing device is connected with a weeding machine; the working inclination angle of the flexible weeding brush fingers is smaller than 90 degrees, the diameter of the cross section of the flexible weeding brush fingers in the front row, the working inclination angle and the arrangement distance are all larger than those in the rear row, the working inclination angle is the included angle between the flexible weeding brush fingers and the advancing direction of the weeding part, and the arrangement distance is the distance between the adjacent flexible weeding brush fingers in each row of flexible weeding brush fingers.
The length of the brush finger selected by the flexible weeding component is 100cm, and the diameters of the brush finger can be selected from 2mm, 4mm and 6 mm. The splint for fixing the brush fingers is 30cm long, 5cm wide and 4mm thick. The diameter of the internal thread hole of the inclination angle fixing disc on two sides is 6mm, and the diameter of the disc is 12 mm.
The brush finger fixing device comprises a clamping plate, a clamping groove, a supporting plate, a base plate and a cushion block, wherein the clamping groove and the clamping plate are fixedly connected and enclose an annular part, the annular part is sleeved on a frame of the weeding machine, and the supporting plate is arranged at the top end of the clamping plate and used for being connected with a height adjusting device; the backing plate is arranged above the supporting plate and is made of rubber; the cushion block is placed in the clamping groove, the brush finger fixing device is fixed on the weeding machine through the matching of the clamping groove, the cushion block and the clamping plate, the surface of the cushion block is provided with a convex structure, the inner surface of the groove on the clamping groove is provided with a concave structure, and the convex structure is clamped into the concave structure; the cushion block is made of rubber.
The height adjusting device comprises a height adjusting bolt, a fixing nut and a height adjusting valve, a through hole which is matched with the rod part of the height adjusting bolt is formed in a supporting plate at the top end of the clamping plate, the height adjusting bolt is installed on the clamping plate through the through hole, the height adjusting valve is fixed at the head part of the height adjusting bolt, the height adjusting valve comprises a fixing part and a rotating part, the fixing part and the clamping plate are relatively fixed, the rotating part and the fixing nut are relatively fixed, the rotating part is rotated, the fixing nut rotates along with the rotating part, the height adjusting bolt goes up and down, the installation height of the height adjusting bolt is adjusted through the rotating height adjusting valve, and therefore the; the height adjusting bolt and the fixing nut adopt the model of M6.
The brush finger fastening splint comprises an upper splint and a lower splint, fastening grooves are formed in the inner sides of the upper splint and the lower splint, the fastening grooves comprise transverse grooves and longitudinal grooves which are arranged in a staggered mode, the transverse cross section of each longitudinal groove is semicircular, the flexible weeding brush fingers are placed in the longitudinal grooves, and the distance between every two adjacent flexible weeding brush fingers is controlled through the number of empty longitudinal grooves; the longitudinal section of the transverse groove is rectangular, the number of the transverse groove is 2, the longitudinal groove is divided into three parts, and an elastic layer is arranged in the transverse groove and used for fastening the flexible weeding finger brush in the longitudinal groove.
The inclination angle adjusting device comprises an inclination angle fixing disc, a fastening nut and a fastening bolt, wherein the inclination angle fixing disc is connected with the tail part of the fastening bolt, the fastening nut is sleeved on the rod part of the fastening bolt, and 12 circular holes which are uniformly distributed in the circumferential direction are formed in the inclination angle fixing disc; the fastening nuts and the fastening bolts are dimensioned in the M6 model.
The end of the brush finger fastening clamping plate is provided with an inclination angle adjusting disc, the inclination angle adjusting disc is provided with a round hole matched with the inclination angle fixing disc in structure, the inclination angle adjusting disc is connected with the inclination angle fixing disc in a matched mode, after the working inclination angle of the flexible weeding brush finger is adjusted, two fastening devices are inserted into the round hole, and the angle fixing of the flexible weeding brush finger is achieved.
A circular hanging ring is fixedly arranged at the tail end of the height adjusting bolt, and a fastening bolt in the inclination angle adjusting device is sleeved in the hanging ring; a hollow groove is further formed in the middle of the clamping plate, the fastening bolt extends into the hollow groove, and the head of the fastening bolt and the fastening nut are respectively located on two sides of the clamping plate and are matched with the fixed inclination angle adjusting device.
The inclination angle fixing disc is provided with a threaded hole which is in threaded connection with the fastening bolt, and the fastening direction of the inclination angle fixing disc is consistent with the force application direction of the flexible brush finger on the fastening bolt during working.
Before the machine works, the weeding machine is fixed on the frame, and the weeding brush fingers are positioned on the weeding parts between adjacent rows, namely the working area is the inter-plant area of rice. And selecting and adjusting the working height, the working inclination angle, the brush finger spacing and the brush finger diameter of the front row and the rear row of brush fingers according to the actual condition of the soil of the transplanted rice field and the growth difference of rice seedlings and weeds.
The method specifically comprises the step of adjusting the working height of a brush finger according to the main body length of the root system of the weeds in a mechanical weeding period (10-25 days of rice transplanting) and the depth of the brush finger in soil is 4-8cm, wherein the working height has the advantage of early growth of transplanted rice, the root system is thicker than the weeds, and the soil fixation capacity is strong, so that mechanical damage to rice seedlings can be avoided. Regarding the working inclination angle, the larger the working inclination angle is, the better the weeding effect is, but the more serious the seedling injury is, in order to obtain higher weeding rate and smaller seedling injury rate, the mechanical weeding strength adopts a progressive mode, namely the working inclination angle adopted by the front row is larger than that adopted by the rear row during adjustment, so that under the condition that the brush fingers of the front row are used for mechanically disturbing the soil, the rice plant root system and the weed root system, the smaller working inclination angle is adopted by the rear row, the secondary soil disturbance strength is reduced, and the rice seedling loss is protected. The brush finger spacing and the brush finger diameter need to be matched with each other, and an arrangement mode that the brush fingers in the front row are relatively sparse in spacing and relatively large in diameter and the brush fingers in the rear row are relatively dense in spacing and relatively small in diameter is adopted. When the weeding brush is in work, the front row of brush fingers weed and disturb soil to form longitudinal strip-shaped disturbance marks, the mechanical strength of the soil between the disturbance marks is greatly weakened, the separation of a weed root system and the soil is facilitated, but the effective operation range is small due to the fact that the brush fingers are large in distance, and weed removal is easy to cause. Therefore, the double-row weeding structure is adopted, the brush finger space corresponding to the back row is small, the operation range is effectively enlarged, the probability of missed weeding is reduced, but the dense brush finger space easily causes mechanical damage to rice seedlings, and therefore the brush finger diameter corresponding to the back row is smaller, and the damage to the rice seedlings is relieved to a certain extent.
When the machine works, the weeding brush fingers can randomly work, because the bending strength of the brush fingers is smaller in the vertical advancing direction, the brush fingers can automatically deform under the blockage of the stem base parts or the roots of rice seedlings when passing through the rice seedlings, and then the rice seedlings are avoided, and after passing through the rice seedlings, the original shape of the brush fingers is restored under the action of the elasticity of the brush fingers, and the weeding operation is continued. In the proceeding direction, the weeding brush fingers have certain depth of penetration into the soil, and the brush fingers have the effects of drawing, raking, pressing and burying and the like on the weed root systems, so that the weed root systems are separated from the soil, and the separated weed root systems can float on the accumulated water in the paddy field, thereby preventing the root systems from contacting with the soil. In addition, although the roots of the weeds which do not float up are not completely separated from the soil, the weeds are seriously damaged mechanically, the growth of the weeds is inhibited, and the purpose of mechanically controlling the weeds is also achieved.
Example two
In this embodiment, the tip of brush finger fastening splint is equipped with the inclination adjustment dish, is equipped with the round axle that suits with the round hole structure on the inclination fixed disk on the inclination adjustment dish, through round hole and round axle cooperation, realizes that the inclination adjustment dish is connected with the inclination fixed disk.
The parts not mentioned in this embodiment are the same as those in the first embodiment.
The above embodiments are preferred embodiments of the present invention, but the present invention is not limited to the above embodiments, and any other changes, modifications, substitutions, combinations, and simplifications which do not depart from the spirit and principle of the present invention should be construed as equivalents thereof, and all such changes, modifications, substitutions, combinations, and simplifications are intended to be included in the scope of the present invention.
Claims (10)
1. A double-row type flexible weeding component between rice plants is characterized in that: comprises a flexible weeding brush finger, a brush finger fixing device, a brush finger fastening clamping plate, a height adjusting device and an inclination angle adjusting device; the flexible weeding brush fingers are strip-shaped, the number of the flexible weeding brush fingers is multiple, the flexible weeding brush fingers comprise a front row of flexible weeding brush fingers and a rear row of flexible weeding brush fingers, and the flexible weeding brush fingers are arranged in the front and the rear of the traveling direction of the weeding machine; each row of flexible weeding brush fingers are fixed on a brush finger fastening splint, the brush finger fastening splint is connected to an inclination angle adjusting device in an angle-adjustable manner, the inclination angle adjusting device is connected to a brush finger fixing device in a height-adjustable manner through a height adjusting device, and the brush finger fixing device is connected with a weeding machine; the working inclination angle of the flexible weeding brush fingers is less than 90 degrees;
the working inclination angle is an included angle formed by the flexible weeding brush fingers and the ground in the advancing direction of the weeding component during working.
2. A double row inter-plant flexible herbicidal member according to claim 1, wherein: the cross section of the flexible weeding brush finger is circular; the diameter of the cross section, the working inclination angle and the arrangement distance of the flexible weeding brush fingers in the front row are all larger than those in the rear row;
the arrangement interval is the distance between the adjacent flexible weeding brush fingers in each row of flexible weeding brush fingers.
3. A double row inter-plant flexible herbicidal member according to claim 1, wherein:
the brush finger fixing device comprises a clamping plate and a clamping groove; the clamping groove and the clamping plate are fixedly connected and enclose an annular part, and the annular part is sleeved on a machine frame of the weeding machine;
the height adjusting device comprises a height adjusting bolt, a fixing nut and a height adjusting valve, the height adjusting bolt and the fixing nut are installed on the clamping plate in a matched mode, the height adjusting valve is fixed at the head of the height adjusting bolt, and the height adjusting bolt drives the brush finger fastening clamping plate to lift through rotating the height adjusting valve to adjust the lifting of the height adjusting bolt.
4. A double row inter-plant flexible herbicidal member according to claim 3, wherein: the brush finger fixing device also comprises a supporting plate, a base plate and a detachable and replaceable cushion block; the cushion block is placed in the clamping groove, the brush finger fixing device is fixed on the weeding machine through the matching of the clamping groove, the cushion block and the clamping plate, the surface of the cushion block is provided with a convex structure, the inner surface of the clamping groove is provided with a concave structure, and the convex structure is clamped into the concave structure; the cushion block is made of rubber; the supporting plate is arranged at the top end of the clamping plate and is provided with a through hole matched with the rod part of the height adjusting bolt, and the base plate is arranged between the supporting plate and the fixing nut; the backing plate is made of rubber.
5. A double row inter-plant flexible herbicidal member according to claim 1, wherein: the brush indicates that fastening splint include punch holder and lower plate, and the inboard of punch holder and lower plate all is equipped with the fastening groove, and the fastening groove is including staggered arrangement's cross slot and indulge the groove, and flexible weeding brush indicates to place in indulging the inslot, controls the distance between adjacent flexible weeding brush indicates through the vacant number of indulging the groove.
6. A double row inter-plant flexible herbicidal member according to claim 5, wherein: the transverse section of the longitudinal groove is semicircular; the longitudinal section of the transverse groove is rectangular, the number of the transverse grooves is 2, the longitudinal groove is divided into three parts, and the elastic layer is arranged in the transverse groove.
7. A double row inter-plant flexible herbicidal member according to claim 3, wherein: the inclination angle adjusting device comprises an inclination angle fixing disc, a fastening nut and a fastening bolt, the inclination angle fixing disc is connected with the tail portion of the fastening bolt, the fastening nut is sleeved on the rod portion of the fastening bolt, a plurality of holes are evenly distributed in the circumferential direction on the inclination angle fixing disc, an inclination angle adjusting disc matched with the inclination angle fixing disc in structure is arranged at the end portion of the brush finger fastening clamping plate, and the inclination angle adjusting disc is connected with the inclination angle fixing disc in an angle-adjustable mode.
8. A double row inter-plant flexible herbicidal member according to claim 7, wherein: a circular hanging ring is fixedly arranged at the tail end of the height adjusting bolt, and a fastening bolt in the inclination angle adjusting device is sleeved in the hanging ring; a hollow groove is further formed in the middle of the clamping plate, the fastening bolt extends into the hollow groove, and the head of the fastening bolt and the fastening nut are respectively located on two sides of the clamping plate and are matched with the fixed inclination angle adjusting device.
9. A double row inter-plant flexible herbicidal member according to claim 7, wherein: the inclination angle fixing disc is provided with a threaded hole which is in threaded connection with the fastening bolt, and the fastening direction of the inclination angle fixing disc is consistent with the force application direction of the flexible brush finger on the fastening bolt during working.
10. A double row inter-plant flexible herbicidal member according to claim 1, wherein: the flexible weeding brush fingers are arranged into a front row and a rear row, a left row and a right row, and four brush finger fastening splints are correspondingly arranged; the flexible weeding brush finger is made of glass fiber, and the brush finger fastening clamping plate is of a cantilever beam structure with one end connected with the inclination angle adjusting device and the other end being a free end.
