Abstract
A stable construction device comprises a template, a driving device, a supporting block, a connecting rod, a traveling system, a base, a main axle, a square platform, a supporting column, a workbench, a traction claw, a traction rod, a traction wheel, a storage type rack, a storage type guardrail, a front axle, a slope, a rear axle, a traction rope bayonet and a concrete slab; the support legs are arranged below the base and comprise connecting frames, mounting holes, universal hinge pieces, support legs and rubber pads; the bolt passes the mounting hole to with the link is connected to on the base, the link both ends are equipped with respectively and are equipped with a universal articulated elements, universal articulated elements below is connected the stabilizer blade, the stabilizer blade passes through universal articulated elements can for the link rotates in order to adapt to different road conditions, the stabilizer blade below is equipped with the rubber pad.
Description
Technical Field
The invention relates to the field of tunnel construction, in particular to a stable construction device.
Background
In the construction process of various mine roadways, railway and highway tunnels, water conservancy culverts, various underground engineering, high-rise building foundation pits, military engineering and the like in China, the inverted arch is used as a foundation structure of the tunnel and is the core part of the whole tunnel. The general working procedures of inverted arch construction include excavation, slag discharge, arch frame erection, concrete spraying protection, reinforcing steel bar binding, formwork erection, concrete pouring and the like. Various construction equipment includes inverted arch trolleys, inverted arch trestles, wet blasting machines, arch erection machines and the like.
In actual use of each construction equipment, there are the following problems:
1. in the prior art, different processes are finished by an inverted arch trolley, an inverted arch trestle, a wet spraying machine, an arch frame installing machine and the like, and the processes are mutually influenced due to the fact that tunnel construction is limited by space. Various construction equipment are mutually influenced, and the purchase, transportation, coordination, simultaneous construction and the like of a plurality of equipment are complicated.
2. The lining pouring in the prior art needs to be provided with special tools such as a trolley or a bottom layer working vehicle to move the template, the trolley type moving function is single, the bottom layer working vehicle needs to be provided with an independent track, and the construction cost and the working efficiency are greatly increased.
3. The inverted arch trestle in the prior art pays more and more attention to the length requirement of a front axle, the front axle of dozens of meters is not rare, however, the front axle still uses a cantilever mode, an oil cylinder arranged on a main axle is used for lifting the front axle, the front axle of dozens of meters has high requirement on the driving force of a lifting oil cylinder, and simultaneously, the requirement on the balance weight of the main axle is also greatly increased.
4. The prior art is from eminence pouring lining cutting, and what often used is the rack, and the rack is bulky, can't accomodate, no matter causes very big influence to efficiency of construction or cost.
5. When the trestle in the prior art moves, the trestle is usually moved only by a track and a pair of wheels, is difficult to adapt to the complex ground conditions of a tunnel, and is easy to skid or stop.
6. When prior art carries out concrete placement, often need extra transportation come concrete form, interfere with landing stage or platform truck emergence, influence each other, and inefficiency.
7. The trestle in the prior art is difficult to stably move due to the influence of dregs in the tunnel during moving, and is easy to incline.
Disclosure of Invention
In order to overcome the above problems, the present invention proposes a solution to solve the above problems simultaneously.
The technical scheme adopted by the invention for solving the technical problems is as follows: a stable construction device comprises a template, a driving device, a supporting block, a connecting rod, a traveling system, a base, a main axle, a square platform, a supporting column, a workbench, a traction claw, a traction rod, a traction wheel, a storage type rack, a storage type guardrail, a front axle, a slope, a rear axle, a traction rope bayonet and a concrete slab; a front axle oil cylinder and a rear axle oil cylinder are arranged on the base; the support legs are arranged below the base and comprise connecting frames, mounting holes, universal hinge pieces, support legs and rubber pads;
a bolt penetrates through the mounting hole to connect the connecting frame to the base, two ends of the connecting frame are respectively provided with a universal hinge, the lower part of the universal hinge is connected with the support leg, the support leg can rotate relative to the connecting frame through the universal hinge to adapt to different road conditions, and the lower part of the support leg is provided with the rubber pad;
the square platform is arranged above the main bridge, the supporting column is arranged above the square platform, the workbench is arranged above the supporting column, traction rods respectively extend from the upper part of the workbench along three directions, wire grooves are formed in the traction rods, pouring pipelines are arranged in the wire grooves, traction claws are arranged above the traction rods, the traction claws are connected with the template to drive the template to move, and the pouring pipelines are connected with pouring holes formed in the template;
the supporting column is provided with two grooves, each groove is used for accommodating a traction wheel, and the traction wheels are connected with the traction rope bayonets through steel wire ropes so as to traction the front axle; an accommodating groove is formed in the upper portion of the side wall of the square platform to accommodate the accommodating type rack, the accommodating type rack is unfolded or accommodated through rotating action, an accommodating type guardrail is arranged on the upper surface of the accommodating type rack, and the accommodating type guardrail can be accommodated in the upper surface of the accommodating type rack; when the storage type rack and the storage type guardrail are unfolded, an operator can close the template and pour through pouring holes formed in the template;
a base and a walking system are arranged below the main bridge, one end of the main bridge is provided with the front bridge, the other end of the main bridge is provided with the rear bridge, the other end of the front bridge is provided with the slope, the front bridge is divided into a left front bridge and a right front bridge, a concrete plate is arranged below each of the left front bridge and the right front bridge, the concrete plates are detachably arranged on the front bridge, and the front bridge is erected above an inverted arch layer and a concrete space during working;
the lower ends of the two sides of the template are internally provided with driving devices for driving the template to be matched with or demoulded, the lower part of the driving device is provided with the supporting blocks, the supporting blocks on the two sides are connected through connecting rods to form a whole, and the supporting blocks are stably supported on the inverted arch layer.
Preferably, the storage type rack comprises at least two storage type racks.
Preferably, the number of the legs is eight.
Preferably, the rubber pad is provided with a gap, and a space is reserved for deformation of the rubber pad when the support legs incline.
Preferably, the rubber pad is provided in plurality and is connected to the support leg by a screw.
Preferably, the driving device is a telescopic oil cylinder.
Preferably, the two stowable racks are located at different heights of the square table.
Preferably, the two stowable racks are located on different side walls of the square table.
The invention has the beneficial effects that:
1. aiming at the 1 st point of the background technology, a part of functions of an inverted arch trestle, an inverted arch trolley and a wet spraying machine are integrated, a template is driven to move through the trestle, and the functions of die assembly, demoulding, pouring and lining, spraying and the like are realized on the trestle.
2. Aiming at the 2 nd point of the background technology, on the basis that the trestle drives the template to move, a driving device, a supporting block and a connecting rod are arranged in a matching manner to carry out die assembly and demoulding.
3. To the 3 rd point that the background art provided, when the trestle drove the template and removed, adopted the mode of drawing to carry out the tractive to cantilever front axle to the cable-stayed, alleviated the pressure of lifting hydro-cylinder greatly.
4. To the 4 th point that the background art provided, adopted and to have accomodate the rotation type rack, there is the guardrail that can accomodate on the rack, strengthened the security greatly, improved space utilization, saved the cost and improved efficiency.
5. To the 5 th point that the background art provided, adopted two segmentation tracks and rail wheel, gyro wheel mode of mutually supporting, strengthened stability greatly.
6. To the 6 th point that the background art provided, set up concrete slab in front under the axle for concrete form pouring is convenient more high-efficient.
7. The 7 th point that proposes to the background art, adopted the cooperation of universal stabilizer blade and rubber pad, be adapted to various road conditions.
Note: the foregoing designs are not sequential, each of which provides a distinct and significant advance in the present invention over the prior art.
Drawings
The invention is further illustrated with reference to the following figures and examples.

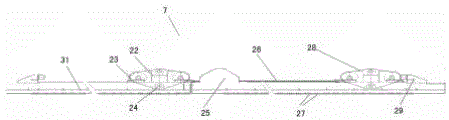

FIG. 1 is a general front view of the present invention
FIG. 2 is a structural diagram of a trestle system of the invention
FIG. 3 is a structural view of the walking system of the present invention
FIG. 4 is a step diagram of the trestle bridge of the invention
FIG. 5 is a front view of a leg of the present invention
FIG. 6 is a side view of a leg of the present invention
In the figures, the reference numerals are as follows:
1. the concrete space 7, the traveling system 8, a base 9, a main bridge 10, a square platform 11, a workbench 12, a traction claw 13, a traction rod 14, a traction wheel 15, a storage type platform 16, a storage type guardrail 17, a front bridge 18, a slope 19, a rear bridge 20, a traction rope bayonet 21, a concrete slab 22, a first bracket 23, a roller 24, a track wheel 25, a traction piece 26, a chain 27, a cushion 28, a second bracket 29, a limit platform 30, a support column 31, a track 32, a connecting frame 33, a mounting hole 34, a universal hinge 35, a support leg 36 and a rubber pad.
Detailed Description
As shown in the figure: a stable construction device comprises a template, a driving device, a supporting block, a connecting rod, a traveling system, a base, a main axle, a square platform, a supporting column, a workbench, a traction claw, a traction rod, a traction wheel, a storage type rack, a storage type guardrail, a front axle, a slope, a rear axle, a traction rope bayonet and a concrete slab; a front axle oil cylinder and a rear axle oil cylinder are arranged on the base; the walking system comprises a track, a first support, a roller, a track wheel, a traction piece, a chain, a cushion pad, a second support and a limiting table;
the support legs are arranged below the base and comprise connecting frames, mounting holes, universal hinge pieces, support legs and rubber pads; a bolt penetrates through the mounting hole to connect the connecting frame to the base, two ends of the connecting frame are respectively provided with a universal hinge, the lower part of the universal hinge is connected with the support leg, the support leg can rotate relative to the connecting frame through the universal hinge to adapt to different road conditions, and the lower part of the support leg is provided with the rubber pad;
the square platform is arranged above the main bridge, the supporting column is arranged above the square platform, the workbench is arranged above the supporting column, traction rods respectively extend from the upper part of the workbench along three directions, wire grooves are formed in the traction rods, pouring pipelines are arranged in the wire grooves, traction claws are arranged above the traction rods, the traction claws are connected with the template to drive the template to move, and the pouring pipelines are connected with pouring holes formed in the template;
as shown in the figure: the supporting column is provided with two grooves, each groove is used for accommodating a traction wheel, and the traction wheels are connected with the traction rope bayonets through steel wire ropes so as to traction the front axle; an accommodating groove is formed in the upper portion of the side wall of the square platform to accommodate the accommodating type rack, the accommodating type rack is unfolded or accommodated through rotating action, an accommodating type guardrail is arranged on the upper surface of the accommodating type rack, and the accommodating type guardrail can be accommodated in the upper surface of the accommodating type rack; when the storage type rack and the storage type guardrail are unfolded, an operator can close the template and pour through pouring holes formed in the template;
a base and a walking system are arranged below the main bridge, one end of the main bridge is provided with the front bridge, the other end of the main bridge is provided with the rear bridge, the other end of the front bridge is provided with the slope, the front bridge is divided into a left front bridge and a right front bridge, a concrete plate is arranged below each of the left front bridge and the right front bridge, the concrete plates are detachably arranged on the front bridge, and the front bridge is erected above an inverted arch layer and a concrete space during working;
as shown in the figure: driving devices are arranged inside the lower ends of the two sides of the template to drive the template to be matched with or demoulded, the supporting blocks are arranged on the lower portion of the driving devices, the supporting blocks on the two sides are connected through connecting rods to form a whole, and the supporting blocks are stably supported on the inverted arch layer;
a cushion pad is arranged below a track of the traveling system, a first support and a second support are arranged above the track, two rollers are erected in the first support, two rollers are erected in the second support, the track wheels are arranged below the rollers, and the limiting tables are arranged at two ends of the track; the traction piece drives the idler wheel and the track wheel to move through the chain.
As shown in the figure: the storage type rack is at least two. The traction piece is a gear transmission system. The gear transmission system comprises a driving wheel and two driven wheels. The gear transmission system is driven by a motor. The driving device is a telescopic oil cylinder. The two storage type racks are located at different heights of the square platform. The two storage type racks are positioned on different side walls of the square table. The number of the supporting legs is eight. Gaps are arranged on the rubber pads, and spaces are reserved for deformation of the rubber pads when the supporting legs incline. The rubber pads are multiple and are connected to the supporting feet through screws.
As shown in fig. 4: the walking steps of the trestle are as follows: a. lifting the trestle by the jacking oil cylinder, and lifting the trestle; b. driving the trestle to move forwards through a driving mechanism; c. after the trestle is moved forwards, lifting the track through a jacking oil cylinder; d. the track is driven to move forwards through a driving structure, and a displacement cycle is completed.
The above detailed description is specific to possible embodiments of the present invention, and the embodiments are not intended to limit the scope of the present invention, and all equivalent implementations or modifications that do not depart from the scope of the present invention are intended to be included within the scope of the present invention.
Claims (8)
1. The utility model provides a steady formula construction equipment which characterized in that: the concrete slab traction device comprises a template, a driving device, a supporting block, a connecting rod, a walking system, a base, a main bridge, a square platform, a supporting column, a workbench, a traction claw, a traction rod, a traction wheel, a storage type rack, a storage type guardrail, a front bridge, a slope, a rear bridge, a traction rope bayonet and a concrete slab; a front axle oil cylinder and a rear axle oil cylinder are arranged on the base; the support legs are arranged below the base and comprise connecting frames, mounting holes, universal hinge pieces, support legs and rubber pads;
a bolt penetrates through the mounting hole to connect the connecting frame to the base, two ends of the connecting frame are respectively provided with a universal hinge, the lower part of the universal hinge is connected with the support leg, the support leg can rotate relative to the connecting frame through the universal hinge to adapt to different road conditions, and the lower part of the support leg is provided with the rubber pad;
the square platform is arranged above the main bridge, the supporting column is arranged above the square platform, the workbench is arranged above the supporting column, traction rods respectively extend from the upper part of the workbench along three directions, wire grooves are formed in the traction rods, pouring pipelines are arranged in the wire grooves, traction claws are arranged above the traction rods, the traction claws are connected with the template to drive the template to move, and the pouring pipelines are connected with pouring holes formed in the template;
the supporting column is provided with two grooves, each groove is used for accommodating a traction wheel, and the traction wheels are connected with the traction rope bayonets through steel wire ropes so as to traction the front axle; an accommodating groove is formed in the upper portion of the side wall of the square platform to accommodate the accommodating type rack, the accommodating type rack is unfolded or accommodated through rotating action, an accommodating type guardrail is arranged on the upper surface of the accommodating type rack, and the accommodating type guardrail can be accommodated in the upper surface of the accommodating type rack; when the storage type rack and the storage type guardrail are unfolded, an operator can close the template and pour through pouring holes formed in the template;
a base and a walking system are arranged below the main bridge, one end of the main bridge is provided with the front bridge, the other end of the main bridge is provided with the rear bridge, the other end of the front bridge is provided with the slope, the front bridge is divided into a left front bridge and a right front bridge, a concrete plate is arranged below each of the left front bridge and the right front bridge, the concrete plates are detachably arranged on the front bridge, and the front bridge is erected above an inverted arch layer and a concrete space during working;
the lower ends of the two sides of the template are internally provided with driving devices for driving the template to be matched with or demoulded, the lower part of the driving device is provided with the supporting blocks, the supporting blocks on the two sides are connected through connecting rods to form a whole, and the supporting blocks are stably supported on the inverted arch layer.
2. A smooth type construction apparatus according to claim 1, wherein: the storage type rack is at least two.
3. A smooth type construction apparatus according to claim 1, wherein: the number of the supporting legs is eight.
4. A smooth type construction apparatus according to claim 1, wherein: gaps are arranged on the rubber pads, and spaces are reserved for deformation of the rubber pads when the supporting legs incline.
5. A smooth type construction apparatus according to claim 1, wherein: the rubber pads are multiple and are connected to the supporting feet through screws.
6. A smooth type construction apparatus according to claim 1, wherein: the driving device is a telescopic oil cylinder.
7. A smooth type construction apparatus according to claim 2, wherein: the two storage type racks are located at different heights of the square platform.
8. A smooth type construction apparatus according to claim 2, wherein: the two storage type racks are positioned on different side walls of the square table.
