Abstract
The invention relates to a mute type air water generator for intelligent furniture based on the Internet of things, which comprises a main body, an air inlet arranged on one side of the main body and a water outlet arranged on the other side of the main body, wherein the main body is provided with a display screen, a plurality of indicator lamps and a plurality of operation keys, the mute type air water generator for intelligent furniture based on the Internet of things simultaneously controls the opening and closing of an air inlet valve and an air outlet valve through a driving unit, so that air is conveniently discharged after entering an air inlet mechanism, no noise pollution is caused during the circulation process of the air due to the adoption of a driven gear driving connection mode, the quiet environment of intelligent home is ensured, in addition, blades are rotated through a second driving motor to generate air flow, and under the action of air flow centrifugal force, harmful substances and the like impurities in the air are thrown out of an air flow center and adsorbed on a filter screen in a clean air pipe, so as to achieve, the health of the generated water quality is ensured.
Description
Technical Field
The invention relates to a mute type air water generator for intelligent furniture based on the Internet of things.
Background
The air water generator is a high-tech product which takes air in various environments as an original raw material and liquefies the air through a plurality of technical means such as air purification, air heating, air condensation and water purification, thereby obtaining drinking water meeting the sanitary standard.
Air water generator is when the operation, thereby mainly introduce the air through inside mechanism of admitting air and carry out system water work, but current mechanism of admitting air adopts the mode that the fan was aired exhaust usually, though can satisfy the demand of admitting air during the fan operation, but in the course of the work, the noise easily produces, in intelligent furniture environment, people need a relatively quiet environment to relax, obviously produce noise pollution's air water generator and produce the interference to people's rest easily, air water generator lacks to carry out effectual purification work to the air of introducing simultaneously, even be equipped with air purification mechanism in the part equipment, nevertheless because the air does not carry out abundant effectual contact with the filter screen, thereby make air purification efficiency descend, lead to the water quality decline of formation, make air water generator's practicality reduce.
Disclosure of Invention
The technical problem to be solved by the invention is as follows: in order to overcome the defects of the prior art, the mute type air water generator based on the Internet of things and used for intelligent furniture is provided.
The technical scheme adopted by the invention for solving the technical problems is as follows: a mute type air water generator for intelligent furniture based on the Internet of things comprises a main body, an air inlet and a water outlet, wherein the air inlet is formed in one side of the main body, the water outlet is formed in the other side of the main body, and a display screen, a plurality of indicator lamps and a plurality of operation keys are arranged on the main body;
an air inlet mechanism and an air purifying mechanism are arranged in the air inlet, the air inlet mechanism is connected with the air purifying mechanism, and the air purifying mechanism is connected with the main body;
the air inlet mechanism comprises a horizontally arranged air inlet pipe, a vertically arranged air outlet pipe, a vertically arranged air storage tank and a connecting pipe, wherein the air outlet pipe and the air storage tank are both communicated with the air inlet pipe;
the air inlet unit comprises a first moving block, a first transmission assembly and an air inlet valve which are vertically arranged, the first moving block is in transmission connection with the air inlet valve through the first transmission assembly, and the top end of the air inlet valve is hinged with the top end of the inner wall of the air inlet pipe;
the air outlet unit comprises a second moving block, a second transmission assembly and an air outlet valve which are horizontally arranged, the second moving block is in transmission connection with the air outlet valve through the second transmission assembly, and one end of the air outlet valve is hinged with one end of the inner wall of the air outlet pipe;
the driving unit comprises a fixed rod, a first driving motor, a first driving shaft, a driving gear, a driven gear, a first eccentric shaft, a second eccentric shaft, a first connecting rod, a second connecting rod and a third connecting rod, the fixed rod is fixed on the inner wall of the connecting pipe, the first driving motor is fixed on the fixed rod, the first driving motor is in transmission connection with the first driving shaft, the driving gear is fixed on the first driving shaft, the driven gear is meshed with the driving gear, the first eccentric shaft is fixed on one side of the driven gear, the second eccentric shaft is fixed on the other side of the driven gear, the driven gear is hinged to the piston through the first eccentric shaft, the driven gear is hinged to a first moving block through the first eccentric shaft, and the driven gear is hinged to a second moving block through the second eccentric shaft;
the air purifying mechanism comprises an air purifying pipe, a first air duct arranged on one side of the air purifying pipe and a second air duct arranged on the other side of the air purifying pipe, the air outlet pipe is communicated with the air purifying pipe through the first air duct, and the air purifying pipe is communicated with the inside of the main body through the second air duct;
the air purifying unit is arranged in the air purifying pipe and comprises a second driving motor, a second driving shaft, a filter screen and a plurality of blades, the second driving shaft is horizontally arranged, the vertical section of the filter screen is annular, the filter screen is fixed on the inner wall of the air purifying pipe, the second driving motor is fixed at one end, far away from the second air duct, of the air purifying pipe, the blades are uniformly distributed on the periphery of the second driving shaft in the circumferential direction, and the second driving motor is in transmission connection with the blades through the second driving shaft;
the main part is internally provided with a central processing unit, the central processing unit is internally provided with a wireless communication module, and the first driving motor and the second driving motor are both electrically connected with the central processing unit.
Preferably, in order to detect the state of the intake valve through pressure data, the first transmission assembly comprises a first sleeve pipe which is horizontally arranged, the vertical cross section of the first sleeve pipe is U-shaped, a first pressure sensor, a first spring which is horizontally arranged and a first glass bead are arranged in the first sleeve pipe, the first pressure sensor is fixed at the bottom end of the first sleeve pipe, one end of the first spring is fixed on the first pressure sensor, the other end of the first spring is fixed on the first glass bead, and the first glass bead is connected with the intake valve.
Preferably, in order to detect the state of the gas outlet valve through pressure data, the second transmission assembly comprises a second sleeve which is vertically arranged, the vertical section of the second sleeve is U-shaped, a second pressure sensor, a second spring which is vertically arranged and a second glass bead are arranged in the second sleeve, the second pressure sensor is fixed at the bottom end in the second sleeve, the bottom end of the second spring is fixed on the second pressure sensor, the top end of the second spring is fixed on the second glass bead, and the second glass bead is connected with the gas outlet valve.
Preferably, in order to improve the driving capability of the driving unit and accelerate the working frequency of the air inlet valve and the air outlet valve, so as to improve the air inlet capability, the first driving motor is a direct current servo motor.
Preferably, in order to reduce the moving friction force of the first moving block and the second moving block, the first moving block and the second moving block are coated with lubricating oil.
Preferably, in order to keep the second connecting shaft rotating along the central axis of the second connecting shaft, a connecting block is arranged at one end, close to the second air duct, in the air cleaning duct, the vertical section of the connecting block is U-shaped, and one end, far away from the second driving motor, of the second driving shaft is arranged in the connecting block.
Preferably, the shape of the intake port is a trumpet shape in order to increase the intake air amount of the intake port.
Preferably, in order to facilitate the movement of the air water generator, a plurality of universal wheels are arranged below the main body.
The mute type air water generator for the intelligent furniture based on the Internet of things has the advantages that the air inlet valve and the air outlet valve are controlled to be opened and closed simultaneously through the driving unit, air can be conveniently discharged after entering the air inlet mechanism, the air is free of noise pollution in the circulation process due to the fact that the driven gear is used for driving and connecting, the quiet environment of the intelligent home is guaranteed, besides, the blades are rotated through the second driving motor to generate air flow, impurities, harmful substances and the like in the air are thrown out of the center of the air flow and adsorbed on the filter screen in the air purifying pipe under the action of centrifugal force of the air flow, the purpose of air purification is achieved, and the health of generated water quality is guaranteed.
Drawings
The invention is further illustrated with reference to the following figures and examples.

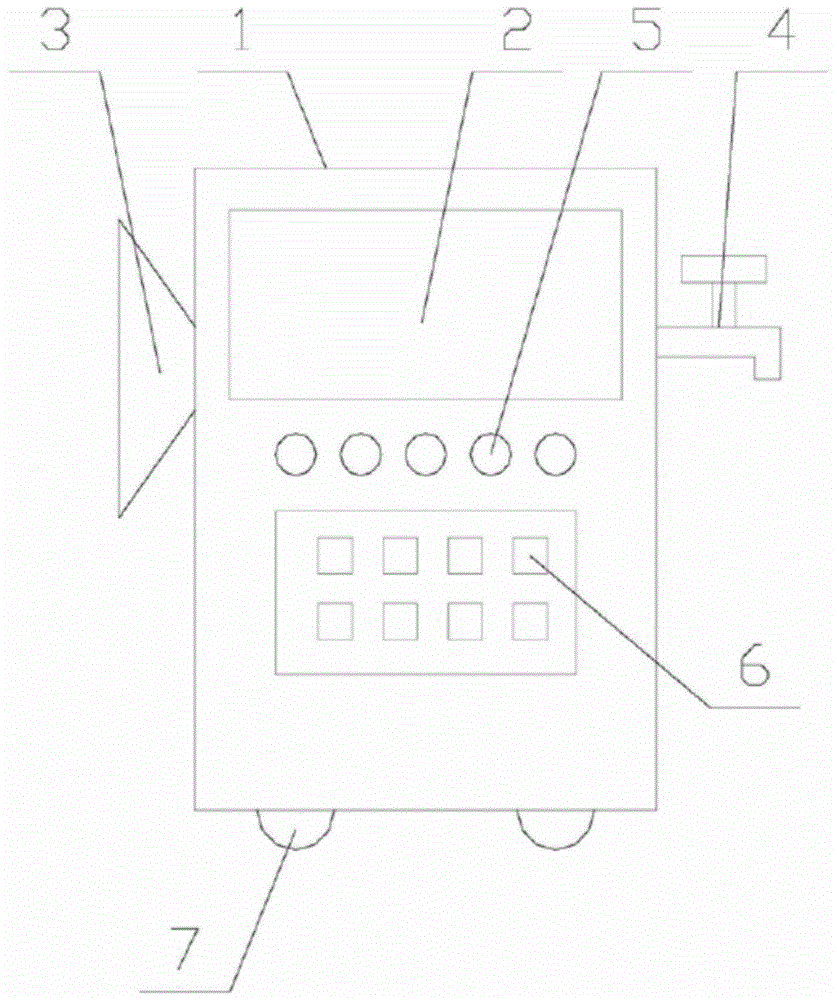

Fig. 1 is a schematic structural diagram of a silent air water generator for intelligent furniture based on the internet of things;
fig. 2 is a schematic structural diagram of an air intake mechanism of a silent air-to-water machine for intelligent furniture based on the internet of things;
fig. 3 is a schematic structural diagram of a driving unit of the internet of things-based silent air water generator for intelligent furniture, disclosed by the invention;
fig. 4 is a schematic structural diagram of a driving unit of the internet of things-based silent air water generator for intelligent furniture, disclosed by the invention;
fig. 5 is a schematic structural diagram of an air inlet pipe of the internet of things-based silent air water generator for intelligent furniture, disclosed by the invention;
fig. 6 is a schematic structural diagram of an air outlet pipe of the internet-of-things-based silent air water generator for intelligent furniture, disclosed by the invention;
fig. 7 is a schematic structural diagram of a clean air pipe of the internet of things-based silent air water generator for intelligent furniture, disclosed by the invention;
fig. 8 is a schematic structural diagram of a clean air pipe of the internet of things-based silent air water generator for intelligent furniture, disclosed by the invention;
in the figure: 1. the air conditioner comprises a main body, a display screen, an air inlet, an air outlet, a water outlet, an indicator light, an operating button, a universal wheel, an air inlet pipe, an air outlet pipe, an air storage tank, a connecting pipe, an air inlet unit, an air outlet unit, a driving unit, a piston, a fixing rod, a first driving motor, a first driving shaft, a driving gear, a driven gear, a first eccentric shaft, a second eccentric shaft, a first connecting rod, a second connecting rod, a third connecting rod, a first moving block, a first connecting block, a second connecting rod, a third moving block, a second connecting block, a second air inlet valve, a first sleeve, a first pressure sensor, a first spring, a first glass bead, a second moving block, a second connecting rod, a third connecting rod, a, 38. air purifying pipe, 39, first air duct, 40, second air duct, 41, second driving motor, 42, second driving shaft, 43, blade, 44, filtering net, 45 and connecting block.
Detailed Description
The present invention will now be described in further detail with reference to the accompanying drawings. These drawings are simplified schematic views illustrating only the basic structure of the present invention in a schematic manner, and thus show only the constitution related to the present invention.
As shown in fig. 1-8, a mute type air water generator for intelligent furniture based on the internet of things comprises a main body 1, an air inlet 3 arranged on one side of the main body 1 and a water outlet 4 arranged on the other side of the main body 1, wherein a display screen 2, a plurality of indicator lamps 5 and a plurality of operation keys 6 are arranged on the main body 1;
an air inlet mechanism and an air purifying mechanism are arranged in the air inlet 3, the air inlet mechanism is connected with the air purifying mechanism, and the air purifying mechanism is connected with the main body 1;
the air inlet mechanism comprises an air inlet pipe 8, an air outlet pipe 9, an air storage tank 10 and a connecting pipe 11, wherein the air inlet pipe 8, the air outlet pipe 9, the air storage tank 10 and the connecting pipe 11 are horizontally arranged, the air outlet pipe 9 is communicated with the air storage tank 10 through the connecting pipe 11, an air inlet unit 12 is arranged in the air inlet pipe 8, an air outlet unit 13 is arranged in the air outlet pipe 9, a piston 15 is horizontally arranged in the air storage tank 10, a driving unit 14 is arranged in the connecting pipe 11, and the driving unit 14 is in transmission connection with the air inlet unit 12, the air outlet unit 13 and the piston 15 respectively;
the air inlet unit 12 comprises a first moving block 26, a first transmission assembly and an air inlet valve 27 which are vertically arranged, the first moving block 26 is in transmission connection with the air inlet valve 27 through the first transmission assembly, and the top end of the air inlet valve 27 is hinged with the top end of the inner wall of the air inlet pipe 8;
the air outlet unit 13 comprises a second moving block 32, a second transmission assembly and an air outlet valve 33 which are horizontally arranged, the second moving block 32 is in transmission connection with the air outlet valve 33 through the second transmission assembly, and one end of the air outlet valve 33 is hinged with one end of the inner wall of the air outlet pipe 9;
the driving unit 14 includes a fixing lever 16, a first driving motor 17, a first driving shaft 18, a driving gear 19, a driven gear 20, a first eccentric shaft 21, a second eccentric shaft 22, a first connecting rod 23, a second connecting rod 24 and a third connecting rod 25, the fixing rod 16 is fixed on the inner wall of the connecting pipe 11, the first driving motor 17 is fixed on the fixing rod 16, the first driving motor 17 is in transmission connection with a first driving shaft 18, the driving gear 19 is fixed on the first driving shaft 18, the driven gear 20 is engaged with the driving gear 19, the first eccentric shaft 21 is fixed to one side of the driven gear 20, the second eccentric shaft 22 is fixed on the other side of the driven gear 20, the driven gear 20 is hinged with the piston 15 through the first eccentric shaft 21, the driven gear 20 is hinged with a first moving block 26 through a first eccentric shaft 21, and the driven gear 20 is hinged with a second moving block 32 through a second eccentric shaft 22;
the air purifying mechanism comprises an air purifying pipe 38, a first air duct 39 arranged on one side of the air purifying pipe 38 and a second air duct 40 arranged on the other side of the air purifying pipe 38, the air outlet pipe 9 is communicated with the air purifying pipe 38 through the first air duct 39, and the air purifying pipe 38 is communicated with the inside of the main body 1 through the second air duct 40;
a gas purification unit is arranged in the gas purification pipe 38 and comprises a second driving motor 41, a second driving shaft 42, a filter screen 44 and a plurality of blades 43, the second driving shaft 42 is horizontally arranged, the vertical section of the filter screen 44 is annular, the filter screen 44 is fixed on the inner wall of the gas purification pipe 38, the second driving motor 41 is fixed at one end, far away from the second gas guide pipe 40, in the gas purification pipe 38, the blades 43 are uniformly distributed on the periphery of the second driving shaft 42 in the circumferential direction, and the second driving motor 41 is in transmission connection with the blades 43 through the second driving shaft 42;
the main part 1 is internally provided with a central processing unit, the central processing unit is internally provided with a wireless communication module, and the first driving motor 17 and the second driving motor 41 are electrically connected with the central processing unit.
Preferably, in order to detect the state of the intake valve 27 through the pressure data, the first transmission assembly includes a first sleeve 28 horizontally arranged, the first sleeve 28 has a U-shaped vertical cross section, a first pressure sensor 29, a first spring 30 horizontally arranged, and a first glass bead 31 are arranged in the first sleeve 28, the first pressure sensor 29 is fixed at the bottom end of the first sleeve 28, one end of the first spring 30 is fixed on the first pressure sensor 29, the other end of the first spring 30 is fixed on the first glass bead 31, and the first glass bead 31 is connected with the intake valve 27.
Preferably, in order to detect the state of the gas outlet valve 33 through the pressure data, the second transmission assembly includes a second sleeve 34 vertically disposed, the second sleeve 34 has a U-shaped vertical cross section, a second pressure sensor 35, a second spring 36 vertically disposed, and a second glass bead 37 are disposed in the second sleeve 34, the second pressure sensor 35 is fixed at the bottom end of the second sleeve 34, the bottom end of the second spring 36 is fixed on the second pressure sensor 35, the top end of the second spring 36 is fixed on the second glass bead 37, and the second glass bead 37 is connected to the gas outlet valve 33.
Preferably, in order to increase the driving capability of the driving unit 14, the operating frequency of the intake valve 27 and the exhaust valve 33 is increased, so as to increase the intake capability, and the first driving motor 17 is a dc servo motor.
Preferably, in order to reduce the moving friction force between the first moving block 26 and the second moving block 33, lubricating oil is applied to the first moving block 26 and the second moving block 32.
Preferably, in order to keep the second connecting shaft 42 rotating along its own central axis, a connecting block 45 is provided at an end of the clean air pipe 38 close to the second air pipe 40, the connecting block 45 has a U-shaped vertical cross section, and an end of the second driving shaft 42 away from the second driving motor 41 is provided in the connecting block 45.
Preferably, the intake port 3 is shaped like a trumpet in order to increase the intake air amount of the intake port 3.
Preferably, a plurality of universal wheels 7 are arranged below the main body 1 for facilitating the movement of the air water maker.
When air is introduced into the air intake mechanism in the air intake 3 of the air water generator, the first driving motor 17 in the connecting pipe 11 rotates to drive the driving gear 19 on the first driving shaft 18 to rotate along the central axis of the first driving shaft 18, and the driven gear 20 rotates due to the engagement of the driven gear 20 and the driving gear 19. In the rotation process of the driven gear 20, the first eccentric shaft 21 on the driven gear 20 rotates along the central axis of the driven gear 20, the piston 15 in the air storage tank 10 moves up and down through the hinging action of the first connecting rod 23, in addition, the first moving block 26 in the air inlet pipe 8 moves left and right through the hinging action of the second connecting rod 24, the first sleeve 28 moves left and right, the air inlet valve 27 is opened or closed through the first glass bead 31, meanwhile, the second moving block 32 moves up and down through the hinging action of the third connecting rod 25 on the second eccentric shaft 22 on the other side of the driven gear 20, and the air outlet valve 33 is opened or closed through the middle action of the second sleeve 34, so that the air circulation is convenient. When the piston 15 moves downwards, the air inlet valve 27 is opened, the air outlet valve 33 is closed, in the process that the piston 15 moves downwards, air enters the air storage tank 10 from the air inlet valve 27 in the air inlet pipe 8, the driven gear 20 rotates to enable the piston 15 to move upwards, at the moment, the air inlet valve 27 is closed, the air outlet valve 33 is opened, and air which originally flows into the air storage tank 10 flows out of the air outlet pipe 9 through the air outlet valve 33 which is opened through the air outlet pipe 9 and enters the air purifying mechanism. This silence type air to water machine for intelligent furniture based on thing networking passes through the drive unit 14 and controls opening of air inlet valve 27 and air outlet valve 33 simultaneously and close, makes things convenient for the air to get into and discharges behind the mechanism of admitting air, owing to use driven gear 20 drive mode of connecting, makes the air at the circulation in-process noiseless pollution, guarantees the quiet environment of intelligent house.
In the air purifying mechanism, air enters the inside of the air purifying pipe 38 from the first air duct 39, in the process that the air purifying pipe 38 flows to the second air duct 40, the second driving motor 41 is used for working, the second driving shaft 42 is driven to rotate along the central axis of the second driving shaft 42, the blade 43 is driven to rotate, the blade 43 generates air flow rotating along the central axis of the second driving shaft 42 in the rotating process, the air flow rotates, under the action of centrifugal force, impurities, harmful substances and the like in the air are thrown out of the center of the air flow and adsorbed on the filter screen 44 in the air purifying pipe 38, and finally the air fills the second air duct 40 and flows out of the inside of the main body 1 to carry out water preparation work. This silence type air to water machine for intelligent furniture based on thing networking makes blade 43 rotatory through second driving motor 41, produces the air current, and under the effect of air current centrifugal force, impurity harmful substance etc. in the air are thrown away the air current center and adsorbed on filter screen 44 in air-purifying pipe 38 to reach air purification's purpose, guaranteed the health that generates quality of water.
Compared with the prior art, this a silence type air to water machine for intelligent furniture based on thing networking passes through the drive unit 14 and controls opening of air inlet valve 27 and air outlet valve 33 simultaneously and close, make things convenient for the air to get into and discharge behind the mechanism of admitting air, owing to use driven gear 20 drive mode of connecting, make the air at the circulation in-process noiselessness pollution, guarantee the quiet environment of intelligent house, moreover, make blade 43 rotatory through second driving motor 41, produce the air current, under the effect of air current centrifugal force, impurity harmful substance etc. in the air is thrown away the air current center and adsorbed on filter screen 44 in air purification pipe 38, thereby reach air purification's purpose, the health of the formation quality of water has been guaranteed.
In light of the foregoing description of the preferred embodiment of the present invention, many modifications and variations will be apparent to those skilled in the art without departing from the spirit and scope of the invention. The technical scope of the present invention is not limited to the content of the specification, and must be determined according to the scope of the claims.
Claims (2)
1. A mute type air water generator based on the Internet of things and used for intelligent furniture is characterized by comprising a main body (1), an air inlet (3) arranged on one side of the main body (1) and a water outlet (4) arranged on the other side of the main body (1), wherein a display screen (2), a plurality of indicator lamps (5) and a plurality of operation keys (6) are arranged on the main body (1); an air inlet mechanism and an air purifying mechanism are arranged in the air inlet (3), the air inlet mechanism is connected with the air purifying mechanism, and the air purifying mechanism is connected with the main body (1); the air inlet mechanism comprises a horizontally arranged air inlet pipe (8), a vertically arranged air outlet pipe (9), a vertically arranged air storage tank (10) and a connecting pipe (11), the air outlet pipe (9) and the air storage tank (10) are communicated with the air inlet pipe (8), the air outlet pipe (9) is communicated with the air storage tank (10) through the connecting pipe (11), an air inlet unit (12) is arranged in the air inlet pipe (8), an air outlet unit (13) is arranged in the air outlet pipe (9), a horizontally arranged piston (15) is arranged in the air storage tank (10), a driving unit (14) is arranged in the connecting pipe (11), and the driving unit (14) is in transmission connection with the air inlet unit (12), the air outlet unit (13) and the piston (15) respectively; the air inlet unit (12) comprises a first moving block (26), a first transmission assembly and an air inlet valve (27), wherein the first moving block (26) is vertically arranged, the first transmission assembly is in transmission connection with the air inlet valve (27), and the top end of the air inlet valve (27) is hinged with the top end of the inner wall of the air inlet pipe (8); the air outlet unit (13) comprises a second moving block (32), a second transmission assembly and an air outlet valve (33), the second moving block (32) is horizontally arranged, the second transmission assembly is in transmission connection with the air outlet valve (33), and one end of the air outlet valve (33) is hinged with one end of the inner wall of the air outlet pipe (9); the driving unit (14) comprises a fixing rod (16), a first driving motor (17), a first driving shaft (18), a driving gear (19), a driven gear (20), a first eccentric shaft (21), a second eccentric shaft (22), a first connecting rod (23), a second connecting rod (24) and a third connecting rod (25), the fixing rod (16) is fixed on the inner wall of the connecting pipe (11), the first driving motor (17) is fixed on the fixing rod (16), the first driving motor (17) is in transmission connection with the first driving shaft (18), the driving gear (19) is fixed on the first driving shaft (18), the driven gear (20) is meshed with the driving gear (19), the first eccentric shaft (21) is fixed on one side of the driven gear (20), the second eccentric shaft (22) is fixed on the other side of the driven gear (20), the driven gear (20) is hinged with the piston (15) through a first eccentric shaft (21), the driven gear (20) is hinged with a first moving block (26) through the first eccentric shaft (21), and the driven gear (20) is hinged with a second moving block (32) through a second eccentric shaft (22); the air purifying mechanism comprises an air purifying pipe (38), a first air duct (39) arranged on one side of the air purifying pipe (38) and a second air duct (40) arranged on the other side of the air purifying pipe (38), the air outlet pipe (9) is communicated with the air purifying pipe (38) through the first air duct (39), and the air purifying pipe (38) is communicated with the inside of the main body (1) through the second air duct (40); a gas purification unit is arranged in the gas purification pipe (38), the gas purification unit comprises a second driving motor (41), a second driving shaft (42) which is horizontally arranged, a filter screen (44) and a plurality of blades (43), the vertical section of the filter screen (44) is annular, the filter screen (44) is fixed on the inner wall of the gas purification pipe (38), the second driving motor (41) is fixed at one end, far away from the second gas guide pipe (40), in the gas purification pipe (38), the blades (43) are uniformly distributed on the periphery of the second driving shaft (42) in the circumferential direction, and the second driving motor (41) is in transmission connection with the blades (43) through the second driving shaft (42); a central processing unit is arranged in the main body (1), a wireless communication module is arranged in the central processing unit, and the first driving motor (17) and the second driving motor (41) are electrically connected with the central processing unit; the first transmission assembly comprises a first sleeve (28) which is horizontally arranged, the vertical section of the first sleeve (28) is U-shaped, a first pressure sensor (29), a first spring (30) and a first glass bead (31) which are horizontally arranged are arranged in the first sleeve (28), the first pressure sensor (29) is fixed at the bottom end of the first sleeve (28), one end of the first spring (30) is fixed on the first pressure sensor (29), the other end of the first spring (30) is fixed on the first glass bead (31), and the first glass bead (31) is connected with the air inlet valve (27); the first driving motor (17) is a direct current servo motor.
2. The internet of things-based silent air water generator for intelligent furniture according to claim 1, wherein the second transmission assembly comprises a second sleeve (34) which is vertically arranged, the vertical section of the second sleeve (34) is in a U shape, a second pressure sensor (35), a second spring (36) which is vertically arranged and a second glass bead (37) are arranged in the second sleeve (34), the second pressure sensor (35) is fixed at the bottom end in the second sleeve (34), the bottom end of the second spring (36) is fixed on the second pressure sensor (35), the top end of the second spring (36) is fixed on the second glass bead (37), and the second glass bead (37) is connected with the air outlet valve (33).
