CN103569785A - Automatic thrum clamping and fixing device - Google Patents
Automatic thrum clamping and fixing device Download PDFInfo
- Publication number
- CN103569785A CN103569785A CN201310547713.5A CN201310547713A CN103569785A CN 103569785 A CN103569785 A CN 103569785A CN 201310547713 A CN201310547713 A CN 201310547713A CN 103569785 A CN103569785 A CN 103569785A
- Authority
- CN
- China
- Prior art keywords
- yarn
- plug
- automatic
- group
- thrum
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Images
Landscapes
- Replacing, Conveying, And Pick-Finding For Filamentary Materials (AREA)
Abstract
The invention relates to an automatic thrum clamping and fixing device which comprises a yarn cluster core rod, a yarn clamping hand and a yarn winding rod. The yarn cluster core rod is installed on a guide rail through an installation frame and performs reciprocating movement along the guide rail, the lower end of the installation frame is in sliding connection with the guide rail, an air cylinder is fixedly installed on the installation frame, a piston of the air cylinder is upwards connected with an ejector rod, the lower portion of the ejector rod is sleeved with a spring, the other end of the spring is connected with the installation frame, the upper portion of the ejector rod is installed inside the hollow yarn cluster core rod, the upper end of the ejector rod extends out of the hollow yarn cluster core rod to be connected with a thrum gland, the yarn winding rod is wound with yarns, and a yarn grabbing mechanical arm is installed above the position between the yarn winding rod and the yarn cluster core rod. According to the automatic thrum clamping and fixing device, as the full-automatic thrum fixing scheme is adopted, the thrum fixing operation of an automatic winder is completed through a machine, dependence of the automatic winder on workers is reduced, and the automation degree of the automatic winder is improved.
Description
Technical field
The invention belongs to technical field of textile machine, particularly relate to a kind of loose thread Automatic-clamping anchor fitting.
Background technology
Doff, as the preceding working procedure of weavening carpet, has important effect.Winder changes into yarn group by reeled yarn, changes the package form of yarn, forms the yarn group of suitable yarn capacity, removes the various faults on yarn simultaneously.
Winder has a plurality of unit to work simultaneously, and each unit carries out the reel work of resultant yarn group of reeled yarn simultaneously.When a unit of winder starts to reel a yarn group, workman needs first the loose thread of reeled yarn to be fixed on the plug of yarn group, then by the winding mechanism of winder, reel for yarn is formed to yarn group on plug.When the length of yarn group reaches requirement, workman stops winding mechanism, and the yarn between reeled yarn and yarn are rolled into a ball cuts off, and takes off the yarn group of winding, then loose thread is fixed on plug, carries out the coiling of next yarn group.The winding speed of winder is fast, after preparation before coiling starts and coiling complete, taking off yarn group all must have workman's operation just can complete, workpeople needs to make an inspection tour back and forth nervously each doff unit, in time the yarn group that reaches length is taken off and carry out the coiling of new yarn group.
Existing winder, by workman's M/C, is fixed on the loose thread of reeled yarn on the plug of yarn group by workman.The winding speed of winder is fast, and workman must take off the yarn group that reaches requirement length in time, and the loose thread of reeled yarn is fixed on plug.This just determined a workman can responsible doff element number be very limited, when work in a large amount of winder unit of needs simultaneously, required number of workers is also very many.
The loose thread fixing means of existing winder has following shortcoming: by workman's M/C, completed, when doff element number is larger, need expend a large amount of manually, waste time and energy simultaneously.
Summary of the invention
Technical matters to be solved by this invention is to provide a kind of loose thread Automatic-clamping anchor fitting, can substitute the operation that workman is fixed loose thread, the loose thread of reeled yarn is fixed on yarn group plug automatically, solves in winder operational process and must be carried out by a large amount of workmans the problem of reeled yarn loose thread fixing operation.
The technical solution adopted for the present invention to solve the technical problems is: a kind of loose thread Automatic-clamping anchor fitting is provided, comprise yarn group plug, yarn tong and reel for yarn are around bar, described yarn is rolled into a ball plug and is arranged on guide rail by erecting frame, reciprocating along guide rail, described erecting frame lower end becomes sliding block joint with guide rail, on described erecting frame, be installed with cylinder, described cylinder piston upwards connects push rod, described push rod bottom cover has spring, described spring other end connection frame, described push rod top is arranged in hollow yams group plug, upper end is stretched out hollow yams group plug and is connected loose thread gland, described reel for yarn is equipped with yarn on bar, the top of described reel for yarn between bar and yarn group plug is equipped with and grabbed yarn manipulator.
The described yarn manipulator of grabbing comprises that horizontal gear rack drives device connects main frame body, controls main frame body horizontal direction crank motion, on described main frame body, install and vertically drive lead screw device, connection sliding block in described vertical driving lead screw device, described vertical driving lead screw device is controlled vertically crank motion of slide block, and yarn tong and electric shear are installed on described slide block.
Beneficial effect
The present invention is owing to having adopted the scheme of full-automatic fixedly loose thread, and the operation of the fixedly loose thread of automatic bobbin winder is completed by machinery, has reduced the dependence of automatic bobbin winder to workman, has improved the degree of automation of automatic bobbin winder.
Accompanying drawing explanation

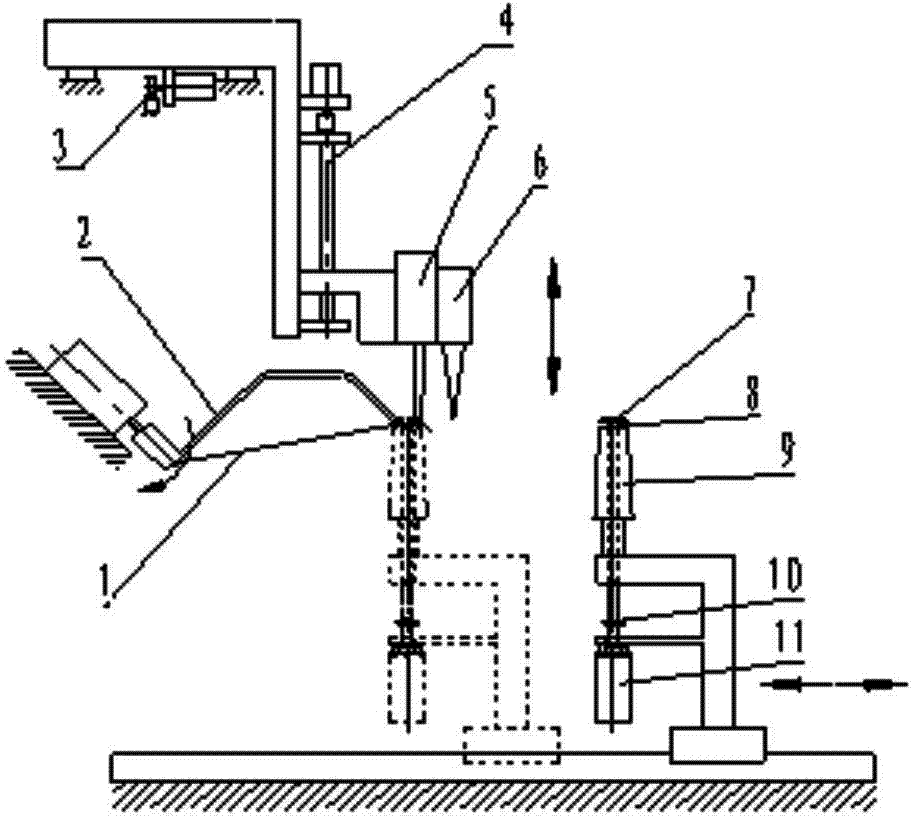

Fig. 1 is structural representation of the present invention.
Fig. 2 is construction profile schematic diagram of the present invention.
The specific embodiment
Below in conjunction with specific embodiment, further set forth the present invention.Should be understood that these embodiment are only not used in and limit the scope of the invention for the present invention is described.In addition should be understood that those skilled in the art can make various changes or modifications the present invention after having read the content of the present invention's instruction, these equivalent form of values fall within the application's appended claims limited range equally.
As illustrated in fig. 1 and 2, a kind of loose thread Automatic-clamping anchor fitting, comprise yarn group plug 9, yarn tong 5 and reel for yarn are around bar 2, described yarn is rolled into a ball plug 9 and is arranged on guide rail by erecting frame, reciprocating along guide rail, described erecting frame lower end becomes sliding block joint with guide rail, on described erecting frame, be installed with cylinder 11, described cylinder 11 pistons upwards connect push rod 8, described push rod 8 bottom covers have spring 10, described spring 10 other end connection framves, described push rod 8 tops are arranged in hollow yams group plug 9, upper end is stretched out hollow yams group plug 9 and is connected loose thread gland 7, described reel for yarn is equipped with yarn 1 on bar 2, the top of described reel for yarn between bar 2 and yarn group plug 9 is equipped with and grabbed yarn manipulator.
The described yarn manipulator 10 of grabbing comprises that horizontal gear rack drives device 3 connects main frame body, controls main frame body horizontal direction crank motion, on described main frame body, install and vertically drive lead screw device 4, connection sliding block in described vertical driving lead screw device 4, described vertical driving lead screw device 4 is controlled vertically crank motion of slide block, and yarn tong 5 and electric shear 6 are installed on described slide block.
In actual applications: described coiling bar 2 is wound in described yarn by described yarn 1 and rolls into a ball on plug 9, when winder completes after the coiling of a yarn group, described reel for yarn maintains static around bar 2, described vertical driving lead screw device 4 drives described yarn tong 5 to be moved downward to described coiling bar 2 places, described yarn tong 5 is clamped yarn 1, described yarn group's plug 9 and yarn group drive integral body to exit to the right by actuating device, yarn between described yarn tong 5 and described yarn group plug 9 is cut off by electric shear 6 afterwards, and yarn group is removed.When grabbing the loose thread that yarn tong 5 is caught yarn 1 of grabbing of yarn manipulator, reel for yarn maintains static around bar 2, and the cylinder 9 of described yarn group plug 9 parts is jack-up push rod 8 and loose thread gland 7 upwards, and described loose thread gland 7 is rolled into a ball between plug 9 and formed a gap with described hollow yams.The plug of reeling is afterwards whole meanwhile, grabs yarn manipulator and moves forward toward moving left, and arrives the position shown in dotted line as shown in Figure 1, Figure 2, and yarn is snapped in the gap between loose thread gland 7 and hollow yams group plug 9.Cylinder 11 is regained downwards, and described push rod 8 and described loose thread gland 5 compress loose thread under the effect of spring 10, and described yarn tong 5 unclamps yarn 1, and the loose thread of yarn 1 is fixed in the gap between described yarn gland 7 and hollow plug 9.Coiling plug integral body continues to be moved to the left to normal winding position, and described vertical driving lead screw device 4 drives yarn tong 5 and electric shear 6 to be moved upward to holding fix, and described coiling bar 2 starts to rotate the coiling that carries out next yarn group.
Claims (2)
1. a loose thread Automatic-clamping anchor fitting, comprise yarn group plug (9), yarn tong (5) and reel for yarn are around bar (2), it is characterized in that, described yarn group's plug (9) is arranged on guide rail by erecting frame, reciprocating along guide rail, described erecting frame lower end becomes sliding block joint with guide rail, on described erecting frame, be installed with cylinder (11), described cylinder (11) piston upwards connects push rod (8), described push rod (8) bottom cover has spring (10), described spring (10) other end connection frame, described push rod (8) top is arranged in hollow yams group's plug (9), upper end is stretched out hollow yams group's plug (9) and is connected loose thread gland (7), described reel for yarn is equipped with yarn (1) on bar (2), the top of described reel for yarn between bar (2) and yarn group's plug (9) is equipped with and grabbed yarn manipulator.
2. a kind of loose thread Automatic-clamping anchor fitting according to claim 1, it is characterized in that, the described yarn manipulator (10) of grabbing comprises that horizontal gear rack drives device (3) connects main frame body, controls main frame body horizontal direction crank motion, on described main frame body, install and vertically drive lead screw device (4), the upper connection sliding block of described vertical driving lead screw device (4), described vertical driving lead screw device (4) is controlled vertically crank motion of slide block, and yarn tong (5) and electric shear (6) are installed on described slide block.
