本发明公开了一种用于制作钢筋混凝土梁的预制外壳及模具,该模具包括:I形内挡板、U形外挡板、外侧模、外底模、内侧模、内底模、连接杆;I形内挡板与U形外挡板相组合,并设置在内侧模与内底模两端的内部,内侧模设置在内底模的两侧,内侧模通过连接杆固定为一整体,内侧模的外侧设置有外侧模,内底模的下部设置有外底模。该预制外壳呈U形并配有箍筋,侧面和底面有向内突出的内肋且内表面呈凹凸状,箍筋浇注在内肋中,内肋为竖肋,U形预制外壳内表面呈凹凸状且带内肋,使U形预制外壳能够很好地保证后浇的核心混凝土与预制外壳的可靠粘结和共同工作,牢固性及可靠性较高,结构简单,实用性强,具有较强的推广与应用价值。
The invention discloses a prefabricated shell and mold for making reinforced concrete beams. The mold comprises: an I-shaped inner baffle, a U-shaped outer baffle, an outer mold, an outer bottom mold, an inner mold, an inner bottom mold, and a connecting rod ; The I-shaped inner baffle is combined with the U-shaped outer baffle, and is arranged inside the two ends of the inner mold and the inner bottom mold. The inner mold is arranged on both sides of the inner bottom mold. The outside of the mold is provided with an outer mold, and the bottom of the inner bottom mold is provided with an outer mold. The prefabricated shell is U-shaped and equipped with stirrups. The side and bottom surfaces have inner ribs protruding inward and the inner surface is concave-convex. The stirrups are poured into the inner ribs, and the inner ribs are vertical ribs. Concave-convex shape with internal ribs, so that the U-shaped prefabricated shell can well ensure the reliable bonding and joint work of the post-cast core concrete and the prefabricated shell, with high firmness and reliability, simple structure, strong practicability, and high Strong promotion and application value.
Description
技术领域technical field
本发明属于建筑材料技术领域,尤其涉及一种用于制作钢筋混凝土梁的预制外壳及模具。The invention belongs to the technical field of building materials, and in particular relates to a prefabricated shell and a mold for making reinforced concrete beams.
背景技术Background technique
装配式钢筋混凝土结构是我国建筑结构发展的重要方向之一,它有利于我国建筑工业化的发展,提高生产效率、节约能源,发展绿色环保建筑,并且有利于提高和保证建筑工程质量。Prefabricated reinforced concrete structure is one of the important directions for the development of my country's building structure. It is conducive to the development of my country's building industrialization, improving production efficiency, saving energy, developing green and environmentally friendly buildings, and is conducive to improving and ensuring the quality of construction projects.
国内外学者对装配式RC结构做了大量的研究工作,欧美地区装配式混凝土结构应用非常普遍,主要包括建筑预制外墙和结构预制构件两大系列,已经编制了一系列的工程标准和应用手册;日本在借鉴欧美成功经验的基础上开发出预制侧面板现浇核心混凝土、预制梁、柱外壳现浇核心混凝土等多种装配整体式RC结构形式;国内从20世纪五六十年代开始研究装配式RC结构,目前已有多种装配式结构形式在我国得到应用与推广,例如,60年代引进的装配式大板结构;1977年从南斯拉夫引入的整体预应力装配式板柱体系(IMS体系);由日本引入的装配式预应力结构;1999年南京大地集团从法国引进的预制预应力混凝土装配整体式框架,简称世构体系(SCOPE)等。Scholars at home and abroad have done a lot of research work on prefabricated RC structures. Prefabricated concrete structures are widely used in Europe and the United States, mainly including two series of building prefabricated exterior walls and structural prefabricated components. A series of engineering standards and application manuals have been compiled. ; On the basis of learning from the successful experience of Europe and the United States, Japan has developed a variety of assembled integral RC structural forms such as prefabricated side panel cast-in-place core concrete, prefabricated beams, column shell cast-in-place core concrete; domestic research on assembly since the 1950s and 1960s At present, a variety of prefabricated structural forms have been applied and promoted in China, for example, the prefabricated large slab structure introduced in the 1960s; the integral prestressed fabricated slab-column system (IMS system) introduced from Yugoslavia in 1977 ; The prefabricated prestressed structure introduced by Japan; the prefabricated prestressed concrete assembled monolithic frame introduced by Nanjing Dadi Group from France in 1999, referred to as SCOPE, etc.
外壳预制核心现浇装配整体式RC结构是一种新型装配式结构形式,与传统装配式RC结构相比,其特点是主要受力构件——梁、柱的保护层预制作为外壳,而核心部分混凝土以及节点部分混凝土全部采用现浇,从而使其结构性能得到保证。The prefabricated core cast-in-place assembly monolithic RC structure of the outer shell is a new type of assembled structure. Compared with the traditional assembled RC structure, it is characterized in that the protective layer of the main force-bearing components-beams and columns is prefabricated as the outer shell, while the core part The concrete and the concrete of the nodes are all cast-in-place, so that the structural performance is guaranteed.
发明内容Contents of the invention
本发明提供了一种用于制作钢筋混凝土梁的预制外壳,旨在解决现有技术提供的预制外壳不能很好地与后浇的核心混凝土可靠地粘结和共同工作,牢固性及可靠性较差的问题。The invention provides a prefabricated shell for making reinforced concrete beams, aiming to solve the problem that the prefabricated shell provided by the prior art cannot be reliably bonded and work together with the post-cast core concrete, and the firmness and reliability are relatively low. bad question.
本发明的目的在于提供一种用于制作钢筋混凝土梁的预制外壳,该预制外壳呈U形并配有箍筋,侧面和底面有向内突出的内肋且内表面呈凹凸状,所述箍筋浇注在所述内肋中。The purpose of the present invention is to provide a prefabricated shell for making reinforced concrete beams, the prefabricated shell is U-shaped and equipped with stirrups, the side and bottom have internal ribs protruding inward and the inner surface is concave-convex, the stirrups Ribs are cast into the inner ribs.
进一步,所述内肋为竖肋。Further, the inner ribs are vertical ribs.
本发明的另一目的在于提供一种制备用于制作钢筋混凝土梁的预制外壳的模具,该模具包括:I形内挡板、U形外挡板、外侧模、外底模、内侧模、内底模、连接杆、;Another object of the present invention is to provide a mold for preparing the prefabricated shell of a reinforced concrete beam, the mold comprising: an I-shaped inner baffle, a U-shaped outer baffle, an outer mold, an outer bottom mold, an inner mold, an inner Bottom mold, connecting rod,;
所述I形内挡板与所述U形外挡板相组合,并设置在所述内侧模与内底模两端的内部,所述内侧模设置在所述内底模的两侧,所述内侧模通过所述连接杆固定为一整体,所述内侧模的外侧设置有所述外侧模,所述内底模的下部设置有所述外底模。The I-shaped inner baffle is combined with the U-shaped outer baffle, and is arranged inside the two ends of the inner mold and the inner bottom mold, and the inner mold is arranged on both sides of the inner bottom mold. The inner mold is fixed as a whole through the connecting rod, the outer mold is arranged on the outer side of the inner mold, and the outer bottom mold is arranged on the lower part of the inner bottom mold.
进一步,所述外侧模、外底模与所述内侧模、内底模形成的空间中设置有箍筋。Further, stirrups are arranged in the space formed by the outer mold, outer bottom mold and the inner mold, inner bottom mold.
进一步,所述内底模的外表面设置有凸起的方块和水平向凹槽,所述内侧模的外表面设置有凸起的方块和竖向凹槽。Further, the outer surface of the inner bottom mold is provided with raised squares and horizontal grooves, and the outer surface of the inner mold is provided with raised squares and vertical grooves.
进一步,该模具制备用于制作钢筋混凝土梁的预制外壳的具体方法为:Further, the specific method of preparing the mold for making the prefabricated shell of the reinforced concrete beam is as follows:
步骤一,用连接杆将两片内侧模拼成整体,通过螺栓安装I形内挡板,逐个套上箍筋同时逐块装上内底模,并安装箍筋卡件;Step 1: Use connecting rods to assemble the two inner molds into a whole, install the I-shaped inner baffle plate through bolts, put the stirrups one by one, install the inner bottom mold piece by piece, and install the stirrup clips;
步骤二,将外底模放在平整的场地上,浇筑预制外壳的底部混凝土;Step 2, placing the outer base formwork on a level ground, and pouring the bottom concrete of the prefabricated shell;
步骤三,将安装好箍筋的内侧模、内底模、I形内挡板、U形外挡板放置在刚浇好的预制外壳的混凝土底板上;Step 3, place the inner mold, inner bottom mold, I-shaped inner baffle, and U-shaped outer baffle with the stirrups installed on the concrete floor of the prefabricated shell just poured;
步骤四,组装两端的U形外挡板和两边的外侧模;Step 4, assemble the U-shaped outer baffles at both ends and the outer molds on both sides;
步骤五,在内侧模与外侧模组成的空间中浇注混凝土,并用振动棒振捣;Step five, pouring concrete in the space formed by the inner mold and the outer mold, and vibrating with a vibrating rod;
步骤六,待混凝土初凝后拆模。Step 6, remove the formwork after the initial setting of the concrete.
进一步,在步骤五中,在内侧模与外侧模组成的空间中浇注混凝土时,采用扁型振动棒进行振捣。Further, in Step 5, when pouring concrete in the space formed by the inner mold and the outer mold, a flat vibrating rod is used for vibration.
进一步,在步骤六中,拆模顺序为:脱掉I形内挡板、抽掉连接杆、逐块脱掉内侧模、脱掉内底模、脱掉两端的U形外挡板、脱掉两边的外侧模、脱掉外底模。Further, in step 6, the demoulding sequence is: take off the I-shaped inner baffle, take off the connecting rod, take off the inner mold piece by piece, take off the inner bottom mold, take off the U-shaped outer baffle at both ends, take off the The outer mold on both sides, take off the outer bottom mold.
本发明提供的用于制作钢筋混凝土梁的预制外壳,该预制外壳呈U形并配有箍筋,侧面和底面有向内突出的内肋且内表面呈凹凸状,箍筋浇注在内肋中,内肋为竖肋,U形预制外壳内表面呈凹凸状且带内肋,使U形预制外壳能够很好地保证后浇的核心混凝土与预制外壳的可靠粘结和共同工作,牢固性及可靠性较高,结构简单,实用性强,具有较强的推广与应用价值。The invention provides a prefabricated shell for making reinforced concrete beams. The prefabricated shell is U-shaped and equipped with stirrups. The side and bottom surfaces have inner ribs protruding inward and the inner surface is concave-convex. The stirrups are poured into the inner ribs. , the inner ribs are vertical ribs, and the inner surface of the U-shaped prefabricated shell is concave-convex with inner ribs, so that the U-shaped prefabricated shell can well ensure the reliable bonding and co-operation of the post-cast core concrete and the prefabricated shell, and the firmness and The utility model has the advantages of high reliability, simple structure, strong practicability, and strong promotion and application value.
附图说明Description of drawings

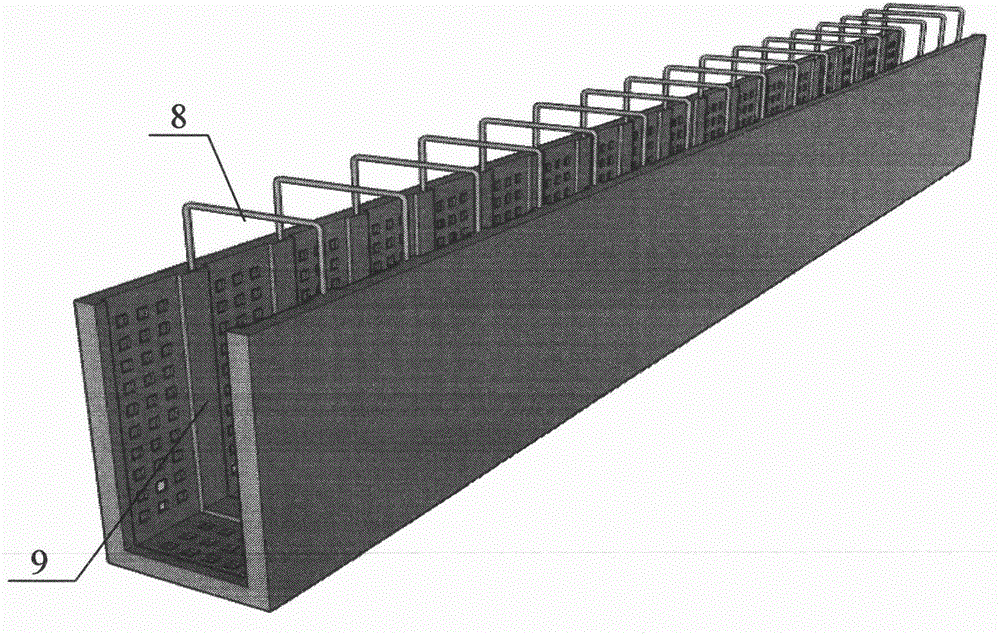

图1是本发明实施例提供的用于制作钢筋混凝土梁的预制外壳的结构示意图;Fig. 1 is a schematic structural view of a prefabricated shell for making a reinforced concrete beam provided by an embodiment of the present invention;
图2是本发明实施例提供的制备用于制作钢筋混凝土梁的预制外壳的模具的结构示意图;Fig. 2 is the structural representation of the mold for making the prefabricated shell of the reinforced concrete beam provided by the embodiment of the present invention;
图3是本发明实施例提供的模具制备用于制作钢筋混凝土梁的预制外壳的具体方法的实现流程图。Fig. 3 is a flow chart of a specific method for preparing a prefabricated shell of a reinforced concrete beam using a mold provided by an embodiment of the present invention.
图中:1、I形内挡板;2、U形外挡板;3、外侧模;4、外底模;5、内侧模;6、内底模;7、连接杆;8、箍筋;9、内肋;10、卡件。In the figure: 1. I-shaped inner baffle; 2. U-shaped outer baffle; 3. Outer mold; 4. Outer bottom mold; 5. Inner bottom mold; 6. Inner bottom mold; 7. Connecting rod; 8. Stirrup ; 9, inner rib; 10, clip.
具体实施方式Detailed ways
为了使本发明的目的、技术方案及优点更加清楚明白,以下结合附图及实施例,对本发明进行进一步的详细说明。应当理解,此处所描述的具体实施例仅仅用以解释本发明,并不用于限定发明。In order to make the purpose, technical solution and advantages of the present invention more clear, the present invention will be further described in detail below in conjunction with the accompanying drawings and embodiments. It should be understood that the specific embodiments described here are only used to explain the present invention, not to limit the invention.
图1示出了本发明实施例提供的用于制作钢筋混凝土梁的预制外壳的结构。Fig. 1 shows the structure of a prefabricated shell for making a reinforced concrete beam provided by an embodiment of the present invention.
该预制外壳呈U形并配有箍筋8,侧面和底面有向内突出的内肋9且内表面呈凹凸状,箍筋8浇注在内肋9中。The prefabricated shell is U-shaped and equipped with
在本发明实施例中,内肋9为竖肋。In the embodiment of the present invention, the
图2示出了本发明实施例提供的制备用于制作钢筋混凝土梁的预制外壳的模具的结构。为了便于说明,仅示出了与本发明相关的部分。Fig. 2 shows the structure of the mold for making the prefabricated shell of the reinforced concrete beam provided by the embodiment of the present invention. For ease of illustration, only the parts relevant to the present invention are shown.
本发明的另一目的在于提供一种制备用于制作钢筋混凝土梁的预制外壳的模具,该模具包括:I形内挡板1、U形外挡板2、外侧模3、外底模4、内侧模5、内底模6、连接杆7;Another object of the present invention is to provide a mold for preparing the prefabricated shell of a reinforced concrete beam, the mold comprising: I-shaped inner baffle 1, U-shaped outer baffle 2, outer mold 3, outer bottom mold 4, Inner mold 5, inner bottom mold 6, connecting rod 7;
I形内挡板1与U形外挡板2相组合,并设置在内侧模5与内底模6两端的内部,内侧模5设置在内底模6的两侧,内侧模5通过连接杆7固定为一整体,内侧模5的外侧设置有外侧模3,内底模6的下部设置有外底模4。The I-shaped inner baffle plate 1 is combined with the U-shaped outer baffle plate 2, and is arranged inside the two ends of the inner mold 5 and the inner bottom mold 6. The inner mold 5 is arranged on both sides of the inner bottom mold 6, and the inner mold 5 passes through the connecting rod. 7 is fixed as a whole, the outside of the inner mold 5 is provided with the outer mold 3, and the bottom of the inner mold 6 is provided with the outer mold 4.
在本发明实施例中,外侧模3、外底模4与内侧模5、内底模6形成的空间中设置有箍筋8。In the embodiment of the present invention,
在本发明实施例中,内底模6的外表面设置有凸起的方块和水平向凹槽,内侧模5的外表面设置有凸起的方块和竖向凹槽。In the embodiment of the present invention, the outer surface of the inner bottom mold 6 is provided with raised squares and horizontal grooves, and the outer surface of the inner mold 5 is provided with raised squares and vertical grooves.
图3示出了本发明实施例提供的模具制备用于制作钢筋混凝土梁的预制外壳的具体方法的实现流程。Fig. 3 shows the implementation process of a specific method for preparing a prefabricated shell of a reinforced concrete beam using a mold provided by an embodiment of the present invention.
在本发明实施例中,该模具制备用于制作钢筋混凝土梁的预制外壳的具体方法为:In the embodiment of the present invention, the specific method for preparing the mold for making the prefabricated shell of the reinforced concrete beam is as follows:
在步骤S301中,用连接杆7将两片内侧模5拼成整体,通过螺栓安装I形内挡板1,逐个套上箍筋8同时逐块装上内底模6,并安装箍筋卡件10;In step S301, use the connecting rod 7 to assemble the two inner molds 5 into a whole, install the I-shaped inner baffle plate 1 through bolts, put the
在步骤S302中,将外底模4放在平整的场地上,浇筑预制外壳的底部混凝土;In step S302, the outer bottom mold 4 is placed on a level ground, and the bottom concrete of the prefabricated shell is poured;
在步骤S303中,将安装好箍筋8的内侧模5、内底模6、I形内挡板1、U形外挡板2放置在刚浇好的预制外壳的混凝土底板上;In step S303, the inner mold 5, the inner bottom mold 6, the I-shaped inner baffle 1, and the U-shaped outer baffle 2 with the
在步骤S304中,组装两端的U形外挡板2和两边的外侧模3;In step S304, the U-shaped outer baffles 2 at both ends and the outer molds 3 on both sides are assembled;
在步骤S305中,在内侧模5与外侧模3组成的空间中浇注混凝土,并用振动棒振捣;In step S305, pour concrete in the space formed by the inner mold 5 and the outer mold 3, and vibrate with a vibrating rod;
在步骤S306中,待混凝土初凝后拆模。In step S306, the formwork is removed after the initial setting of the concrete.
在本发明实施例中,在步骤S305中,在内侧模5与外侧模3组成的空间中浇注混凝土时,采用扁型振动棒进行振捣。In the embodiment of the present invention, in step S305, when pouring concrete in the space formed by the inner formwork 5 and the outer formwork 3, a flat vibrating rod is used for vibration.
在本发明实施例中,在步骤S306中,拆模顺序为:脱掉I形内挡板1、抽掉连接杆7、逐块脱掉内侧模5、脱掉内底模6、脱掉两端的U形外挡板2、脱掉两边的外侧模3、脱掉外底模4。In the embodiment of the present invention, in step S306, the mold removal sequence is: take off the I-shaped inner baffle plate 1, take off the connecting rod 7, take off the inner mold 5 piece by piece, take off the inner bottom mold 6, take off the two The U-shaped outer baffle plate 2 at the end, the outer mold 3 on both sides, and the outer bottom mold 4 are taken off.
下面结合附图及具体实施例对本发明的应用原理作进一步描述。The application principle of the present invention will be further described below in conjunction with the accompanying drawings and specific embodiments.
该U形预制外壳采用普通混凝土制作,U形混凝土外壳内侧呈凹凸状,并且侧面和底面有向内突出的内肋9,箍筋8大部分浇筑在内肋9内,这样保证后插主筋到U形混凝土外壳外表面的距离为RC梁的保护层厚度。The U-shaped prefabricated shell is made of ordinary concrete. The inner side of the U-shaped concrete shell is concave-convex, and there are
制作带内肋9且内表面凹凸混凝土U形配箍筋8预制外壳的模具包括:外侧模3、内侧模5、外底模4、内底模6、U形外挡板2、I形内挡板1、连接杆7、箍筋8;The mold for making the prefabricated shell with
该模具能够制作出带内肋9且内表面凹凸混凝土U形配箍筋8预制外壳;The mold can produce a prefabricated shell with
预制外壳内表面呈凹凸状能够有效增强预制外壳与后浇混凝土的粘结、保证其共同工作;The concave-convex shape of the inner surface of the prefabricated shell can effectively enhance the bond between the prefabricated shell and the post-cast concrete and ensure that they work together;
I形内挡板1通过螺栓与内侧模5连接,保证了内侧模5的稳定,而且使内侧模5中的连接杆7抽出方便;The I-shaped inner baffle plate 1 is connected with the inner mold 5 by bolts, which ensures the stability of the inner mold 5, and makes it easy to extract the connecting rod 7 in the inner mold 5;
U形外挡板2通过螺栓与内侧模5、外侧模3连接,保证了内侧模5、外侧模3形成整体,同时也作为U形预制外壳的端模板;The U-shaped outer baffle plate 2 is connected with the inner mold 5 and the outer mold 3 through bolts, which ensures that the inner mold 5 and the outer mold 3 form a whole, and also serves as the end template of the U-shaped prefabricated shell;
内侧模5外表面带若干凸起的方块和竖向凹槽,能够使制作的U形预制外壳内侧表面呈凹凸状且带竖肋,内侧模5由多块模板组成,方便脱模;The outer surface of the inner mold 5 has several raised squares and vertical grooves, which can make the inner surface of the U-shaped prefabricated shell be concave-convex and have vertical ribs. The inner mold 5 is composed of multiple templates, which is convenient for demoulding;
内底模6外表面带若干凸起的方块和水平向凹槽,能够使制作的U形预制外壳内底表面呈凹凸状且带水平肋;The outer surface of the inner bottom mold 6 has some raised squares and horizontal grooves, which can make the inner bottom surface of the U-shaped prefabricated shell be concave-convex and have horizontal ribs;
连接杆7可将分块的内侧模5组装成整体,方便支模。The connecting rod 7 can assemble the inner mold 5 of the blocks into a whole, which is convenient for mold supporting.
制作工艺:1、内模组装及箍筋8安装,用连接杆7将两片内侧模5拼成整体,通过螺栓安装I形内挡板1,逐个套上箍筋8同时逐块装上内底模6,安装箍筋卡件10;Manufacturing process: 1. Assembly of the inner mold and installation of the
2、将外底模4放在平整的场地上,然后浇筑梁预制外壳的底部混凝土;2. Put the outer bottom mold 4 on a flat field, and then pour concrete at the bottom of the beam prefabricated shell;
3、将安装好箍筋8的内模整体放置在刚浇好的梁预制外壳的混凝土底板上;3. Place the inner form with the
4、组装两端的U形外挡板2和两边的外侧模3;4. Assemble the U-shaped outer baffles 2 at both ends and the outer molds 3 on both sides;
5、浇筑梁预制外壳侧边混凝土:在内侧模5与外侧模3组成的空间中浇注混凝土,并用振动棒进行振捣,由于外壁混凝土层较薄,需用扁型振动棒振捣,在振捣过程中一方面要保证振捣密实;5. Pouring concrete on the side of the prefabricated shell of the beam: pour concrete in the space formed by the inner mold 5 and the outer mold 3, and vibrate with a vibrating rod. During the pounding process, on the one hand, the vibration and compaction should be ensured;
6、脱模:待混凝土初凝以后即可拆模,拆模顺序为:拧开连接螺栓脱掉I形内挡板1,抽掉连接杆7,逐块脱掉内侧模5,脱掉内底模6,拧开连接螺栓脱掉两端的U形外挡板2,脱掉两边的外侧模3,脱掉外底模4;6. Demoulding: After the initial setting of the concrete, the formwork can be removed. The order of demoulding is: unscrew the connecting bolts and take off the I-shaped inner baffle 1, pull out the connecting rod 7, take off the inner mold 5 piece by piece, and take off the inner Bottom mold 6, unscrew the connecting bolts and take off the U-shaped outer baffles 2 at both ends, take off the outer molds 3 on both sides, and take off the outer bottom mold 4;
带内肋9且内表面凹凸混凝土U形配箍筋8预制外壳的优点:Advantages of the prefabricated shell with
(1)U形预制外壳内表面呈凹凸状且带内肋9,使本发明能够很好保证后浇的核心混凝土与预制外壳的可靠粘结和共同工作;(1) The inner surface of the U-shaped prefabricated shell is concave-convex and has
(2)U形预制外壳的制作工艺的内模,带若干凸出方块的外表面可以使U形预制外壳的内表面形成凹凸,所带的凹槽可以形成内肋9,同时也起定位箍筋8的作用。(2) The inner mold of the manufacturing process of the U-shaped prefabricated shell, the outer surface with several protruding squares can make the inner surface of the U-shaped prefabricated shell form concave-convex, and the grooves can form the
本发明实施例提供的用于制作钢筋混凝土梁的预制外壳,该预制外壳呈U形并配有箍筋8,侧面和底面有向内突出的内肋9且内表面呈凹凸状,箍筋8浇注在内肋9中,内肋9为竖肋,U形预制外壳内表面呈凹凸状且带内肋9,使U形预制外壳能够很好地保证后浇的核心混凝土与预制外壳的可靠粘结和共同工作,牢固性及可靠性较高,结构简单,实用性强,具有较强的推广与应用价值。The prefabricated shell for making reinforced concrete beams provided by the embodiment of the present invention, the prefabricated shell is U-shaped and equipped with
以上仅为本发明的较佳实施例而已,并不用以限制本发明,凡在本发明的精神和原则之内所作的任何修改、等同替换和改进等,均应包含在本发明的保护范围之内。The above are only preferred embodiments of the present invention, and are not intended to limit the present invention. Any modifications, equivalent replacements and improvements made within the spirit and principles of the present invention should be included in the protection scope of the present invention. Inside.
