WO2006028339A1

WO2006028339A1 - Nano-emulsion, the use thereof, and preparation method thereof

Info

Publication number: WO2006028339A1
Application number: PCT/KR2005/002929
Authority: WO
Inventors: Young Dae Kim; Keun Ja Park; Jung Soo Kim; Ji Soo Kim
Original assignee: Young Dae Kim; Keun Ja Park; Jung Soo Kim; Ji Soo Kim
Priority date: 2004-09-04
Filing date: 2005-09-03
Publication date: 2006-03-16
Also published as: EP1784163A4; EP1784163B1; CN101031281A; KR100623013B1; EP1784163A1; KR20060021778A; US20100119560A1

Abstract

The present invention relates to nanoemulsions, the use thereof and preparation method thereof wherein, nanoemulsions contain polyoxypropylene-polyoxyethylene vitamin E as emulsifiers and polyacrylic acid or polyacrylic acid derivative crosspolymers as emulsion assistants, In the present invention nanoemulsions containing POP-POE vitamin E as emulsifiers and polyacrylic acid or polyacrylic acid derivative crosspolymers as emulsion assistants have a very small mean droplet diameter ranging from 43 to 96 nm and are very stable and safe. By using the nanoemulsions described above the inventors prepared nanoemulsion cosmetic compositions with a much smaller mean droplet diameter than nanoemulsions prepared only with emulsifiers, polyoxypropylene-polyoxycthylcne vitamin E. The nanoemulsion cosmetic compositions in the present invention have good effects such as skin softening, skin moisturizing, improving dry atopy skin, skin firming and good spreadability when applied on the skin. Particularly, nanoemulsion skin treating compositions in present invention have an advantage of having a long lasting effect of skin treating due to the favorable penetration of active drug components into the skin.

Description

[DESCRIPTION]

[Invention Title]

NANO CML 1 SION, Ti ll- USE THEREOF, AND PREPARATION METHOD THEREOF

[Technical Field]

The present invention relates to nanoemulsions, the use thereof, and preparation method thereof More precisely, the invention relates to cosmetic compositions and their preparation methods of oil-in— w ater (o/w) nanoemulsions, w hich arc prepared with polyoxypropylene-polyoxyethylene (POP POO vitamin It, as cmulsifiers and polyau vlic acid crosspolymers or polvacrvlic acid derivativ e crosspolymers as emulsion assistants under the conditions of forming a complex of an oil phase and a water phase along with emulsifiers and emulsion assistants having a viscoelastic property at constant temperature (θ-point) by the proper control of the ratio of oil phase to oil phase plus water phase

[Background Art]

Emulsion is a non-homogeneous system which one liquid is dispersed closely in another as a droplet The mean droplet diameter of emulsion generally exceeds 0 1 μm hut droplet diameters of emulsions in practical use are in the range of 0 5 to 100 um Emulsions have some demerits such as i thermodynamic instability and poor absorption ability intu the skin due to their ldi ge di oplet size

The smallei droplet size of emulsions not only suppresses the coalescence or coagulation of emulsion droplets but also suppresses the precipitation of emulsions and also helps to deliver the active agents into

But in the case of nanoemulsions thermodynamic stability is improved very much and also the skin absorption ability of active agents is improved since the droplet size of nanoemulsions is much smaller than that of emulsions and the surface area of nanoemulsions is much larger than that of emulsions The droplet size of nanoemulsions is defined differently depending on the author In general the droplet size of nanoemulsions is defined as between 20 and 500 nm [Flockhart, I R etc Nanoemulsions derived from lanolin show promising drug delivery properties I Pharm Pharmacol 50 (Supplement) 1998, 141 J

I here are generally tw o processes for production of nanoemulsions The first and most c ommon procedure is to use a high pressure homogenizer at high pressure along with surfactants and co-surfactants The second procedure is to use the phase inversion temperature (PI I ) principle

But in the case of the procedure using a high pressure homogenizer there are some problems such as poor productivity and component deterioration due to difficult mass production and generation of much heat, respectively, since nanocmulsions should be prepared by contacting an oil phase with a water phase instantly through a narrow valve slit under a high pressure, for example, under 500-1,600 atmospheric pressure.

And since low viscosity emulsions can only be manufactured by this procedure high viscosity nanoemulsion creams can not be prepared because of the poor miscibility and aggregation of the phases. Therefore, by this method generally only oil in water liquid nanoemulsions of less than 20% oil phase can be prepared and cream nanoemulsions of high viscosity or hardness with a mean droplet diameter lower than 200 nm can not be prepared.

And in the case of the latter method of using a phase-inversion principle it is also difficult to control the PIT and the rapid cooling process during preparation. Also nanoemulsions prepared using the PIT principle have an instability problem of phase inversion near PIT since emulsions prepared by this method inverse at PIT easily.

Even though there are many problems described above nanoemulsions of low viscosity with a high amount of phospholipids as emulsifiers are mainly manufactured by using a high pressure homogenizer. And since the fluidity of droplets for instant contacting, mixing and the adsorption of surfactants at interfaces are important in the procedure of using a high pressur e homυgc ni/er the use of polymeric thickeners like Carbomers which decrease the fluidity of droplets and may hinder the adsorption of surfactants at interfac e s w as avoided

1 he production of very small droplets in emulsions requires a large amount of energy and needs to decrease the surface tension Particularly, since there w ere not any good methods utilizing energy efficiently the emulsification method of using the inefficient high pressure homogemzer was mainly employed But in this method a safety problem was triggered by the use of a large amount of surfactants These problems were the mam causes in limiting the practical application of nanoemulsions m cosmetics drugs etc

In this context after recognizing the importance of nanoemulsions in the industries of c osmetics drugs etc the inventors studied nanoemulsions continuously and proposed the preparation method of nanoemulsion using POP-POE vitamin as emulsifiers (Korea patent no 488220) which can prepare nanoemulsions not only of low viscosity but also of high viscosity or hardness by simple stirring using a stirrer or a homoge mzer at 1 atmospheric pressure The preparation method described above is different from the diffu ult and inefficient conventional nanoemulsific ation methods of using a high-pressure homogemzer or a PIT principle In the nanoemulsification method described above stable nanoemulsions can be prepared simply by the economical way of the ' 2 phase complex emulsificdtion method' ^■which consists of tw o steps of foi mation of high viscosity c omplex of an oil soluble phase and a water soluble phase of nanoemulsions by previous mixing and heating and then emulsification of the high viscosity complex by a high speed propeller mixer And the inventors, acquired the certificate of Excellent New Technology(NT # 2002-027) entitled "Manufacturing Method of Antioxidative-Amphiphilit

Tocopherol based Nano Products ' for the nanoemulsion technology described above from the Agency of Standards and Materials of Ministry of Commerce Industry and Energy of the Korean Government Afterwards the inventors presented the study results of the nanoemulsion technology described above at the 22nd IFSCC Congress (\ oung-Dae Kim, etc Novel Nanoemulsions of POP-POE Tocopheryl Ether, Edinburgh, October 14-17, 2002) and at the 23rd IFSCC Congress (\ oung Dae Kim etc A Novel Nanoemulsification Method Stirring of a Mixture of Tocopherol-Containing Block Co-Polymer Emulsifier at Θ-Point, Orlando, October 24-7 2004) and the 3rd World Congress on Emulsion (Young-Dae Kim etc The Formation and Stability of Liquid Nanoemulsions from Tocopherol Derivative Nonionic Amphiphiles, Lyon, September 24-27, 2002 ) and also published a paper m IFSCC Magazine (Young-Dae Kim, etc A Novel Nanoemulsification Method of Stirring at the Θ-Point with the Tocopherol-Based Block Copolymer Nonionic Emulsifier PPG-20 Tocophereth-50, vol 7, no 4, Sept/Decem /2004 pp319-326)

The nanoemulsificatiυri method (Korea patent no 488220) described above w as more economical than those using a high pressure homogemzer or using a PI i principle and prepared excellent nanoemulsions of mean droplet diameter range of 20fi to 455 nm

[Disclosure]

[Technic al Problem]

But the minimum droplet diameter of nanoemulsions prepared by the iianoemulsification method described above was 206 nm, which is a much larget value than 20 nm, the minimum droplet diameter of nanoemulsion defined Therefore, improvement in the reduction of the droplet diameters is required

One of the objects in this invention is to provide the O/W nanoemulsions of smaller di oplet diameter w ith safety and stability by using a small amount of emulsifiers and emulsion assistants Another object in this invention is to provide the cosmetic compositions food compositions and drug compositions containing O/W nanoemulsions And another object in this invention is to provide economical preparation methods of nanoemulsion compositions described above

[Technical Solution]

In order to achieve the technical object in this invention, the inv entors provide nanoemulsions containing polyoxypropylene-polyoxyethylene vitamin E as emulsifiers described in general formula 1 ; and polyacrylic acid crosspolymers or polyacrylic acid derivative crosspolymers as emulsion assistants (i.e. polyacrylic acids or their derivative crosspolymers). [General formula Il

wherein, Ri is ^m , m is an integer of 0 to 300, R₂ is

CH₃

H(OCH(CH₃)CH₂),,- . . -CHXH-

, n IS an integer of 1 to 250, A is ² or

-C(CHs)=CH-; B is -CH3 at the 5^~, 7- or 8- position of vitamin E; and p is an integer of 1 to 3.

Of the total content of the nanoemulsions the content of polyoxypropylene-polyoxyethylene vitamin E is 0.5 to 60% by weight, preferably 1 to 30% by weight and that of polyacrylic acid or their derivative crosspolymcrs is 0.01 to 40% by weight, preferably 0.02 to 20% by weight and the remnant components are water soluble and oil soluble components for nanoemulsion compositions in this invention.

Another technical object in this invention is to produce nanoemulsion compositions containing the previously mentioned nanoemulsions

Another technical object in this invention is to produce nanoemulsion topical treating compositions containing the previously mentioned nanoemulsions

Another technical object in this invention is to create a preparation method of nanoemulsions, wherein oil soluble and water soluble components are mixed with the emulsifiers polyoxypropylene-polyoxyethylene vitamin L described in general formula 1 and emulsion assistants, pυlyacrylic acid or their derivative crosspolymers

Strictly speaking, the technical object is to provide the prepai ation method of nanoemulsion cosmetic c ompositions w herein nanoemulsion cosmetic compositions of cosmetics, topical treatments and foods are obtained by the preparation of the viscoelastic complex of oil soluble phase and water soluble phase along with emulsifiers and emulsion assistants wherein, the weight ratio of oil soluble phase to oil soluble phase plus water soluble phase is in the range of 0 4 to 0 75 by using emulsifiers, polyoxyprop-ylene-polyoxyethylene vitamin E described in general formula 1 and emulsion assistants, polyacrylic acid or their derivative crosspolymers at Θ-Point of above 40 "C , preferably above 50 ^°C The final nanoemulsification is then cai i ied out aftei adding the remnant oil soluble or water soluble components if needed [General formula 1 ]

₎

wherein, Ki is , m is an integer of 0 to 300, Rz is

CH₃

H(OCH(CH₃)CH₂),,- . . -CH_?CH-

, n is an integer of 1 to 250, A is ² or

-C(CH^)=CH-; B is -CH3 at the 5-, 7- or 8- position of vitamin H; and p is an integer of 1 to 3.

Nanoemulsions can he prepared by high-speed mixing since the complex of oil soluble and water soluble phase in this invention has a viscoelastic property above 40 ^°C .

The above nanoemulsifications are carried out by using a disperser or a propeller or a homogenizer, etc. [Advantageous Effects]

In this invention nanoemulsions containing POP-POE vitamin E as emulsifiers and polyacrylic acid or polyacrylic acid derivative crosspolymers as emulsion assistants have a very small mean droplet diameter ranging from 43 to 96 nm and are very stable and safe.

By the nanoemulsions described above the inventors obtained nanoemulsion cosmetic compositions with a much smaller mean droplet diameter lhan nanoemulsions prepared w ithout emulsion assistants, polvdcrylic acid or polyacrylic acid derivative ciosspυlymers by emulsifying using a simple high speed mixer such as a propeller, a disperser and a homogemzer due to the much improved properties when forming visc oelastic complex of oil soluble phase and water soluble phase above 4OT [Description of Drawings]

Figure 1 shows a microphotograph of a Cryogenic Transmission Elec tron Microscope (Cryo-TEM) of nanoemulsion cosmetic composition in Example 6 in this invention 1 da> after preparation

Figure 2 shows a Cryo- I EM microphotograph of nanoemulsion cosmetic composition in Comparative Example 6 in this invention I day after preparation

Figure 3 show s a microphotograph of an Atomic Force Microscope (AFM) of nanoemulsion cosmetic composition in Example 7 in this invention, I day after preparation

Figure 4 shov. b an AFM microphotograph of nanoemulsion cosmetic composition in Comparative Example 7 in this invention I day after preparation [Detailed Description of the Invention]

Hereinafter, tht invention will be described in more detail O/W stable nanoemulsions of mean droplet diameter range of 43 to 96 nm having good productivity and safety due to the fact that they contain emulsifiers, polyoxypropylene-polyoxyethylene vitamin E described in general formula 1 and emulsion assistants, polyacrylic acid or their derivative crosspolymers, are provided in this invention.

[General formula I l

-(0-CH₂CH₂),,,- whcrcin, Ri is , m is an integer of O to 300, Ra is

CH₃

n is an integer of 1 to 250; A is ^"CH₂CH- or

-C(CI Is)=CI I- ; B is -CHs at the 5-, 7- or 8- position of vitamin E; and p is an integer of 1 to 3.

The above polyacrylic acid or polyacrylic acid derivative crosspolymers are homopolymers, Carbomers, obtained by the cross linking reaction of polyacrylic acid described in general formula 2 below with allylether of polyol or allyk'thur of propylene or copolymers, acrylates/Cβ-Cω alkylacrylate crosspolymers prepared by the crosslinking reaction of Cβ-Cio alkylacrylates or more than 1 acrylic acid or methacrylic i t acid or their esters with allylether of polyol. In this invention, unlimited examples of allylethers of polyol could be used, but allylether of pentacrythπtol or allylether of sucrose are suggested [General formula 2]

R₄

- (H₂C - C - )_k-

I C=O

I OH

Wherein, Ri is I I or CI I₃, k is an integer of 10 to 100,000.

The nanoemulsions described above are not limited to a particular use but are applicable to several industrial areas such as cosmetics, foods, topical treatments, etc.

Hereinafter, nanoemulsion cosmetic compositions containing nanoemulsions and their preparation method will be described precisely.

The emulsifiers in nanoemulsion compositions in this invention are POP-POE vitamin E as described in general formula 1 wherein, preferably m is an integer of 0 to 300 and m is an integer of 1 to 250, more preferably m is an integer of 20 to 150 and n is an integer of 10 to 100. POP-POE vitamin E in general formula 1 can be prepared by the preparation method in Korea Patent Laid-open publication No 2000-0000840 or arc commercially available

\ λ Emulsion assistants, polyacrylic acids or their derivative crosspolymers are manufactured using the method described above or are commercially available. Of Carbomers, product names that are commercially available in the markets are, for example, Carbopol 910, -934, -940, -934p, -954, -961, -980, -9890, -981, -2984, -5984, -ETD2001, ETD2050, Carbopol Ultretz 10 of Goodrich company, Acritamcr 501E, -504E, -934, -943, -941 of Rita. Of acrylates/C6-C40 alkylacrylate crosspolymers, commercial products arc, for example, Carbopol 1342, - 1382, ETD 2020, Pemulen-TR- 1 , -TR-2 of Goodrich company.

On the other hand the principles of forming nanoemulsions investigated by the inventors in this invention are as follows.

The ratio of the depth of adsorption layer (δ) of emulsifier to the diameter of droplet (R) in the nanoemulsion with a smaller droplet diameter is larger than that with a larger droplet diameter. Therefore, the repulsive force is very large and prevents the aggregation of the systems. For droplets to be stable, complete coverage of droplet surfaces is required. If this condition is not fulfilled the dispersion is destabilized. If the dispersed droplets are coated partially with polymeric emulsifiers and the molecular weight of polymers is large enough the polymeric emulsifiers can bind up the two droplets coated with polymeric emulsifiers, i.e. polymeric emulsifiers make a bridge and cause flocculation. But at high shear rate the large flocculated dt opk ts are disentangled and dispersed in equal distance If the distance between droplets becomes close to any value the dispersion system show s a rapid increase in viscosity and at this time the viscoelastic behavior of the system is dependent on the ratio of δ to R The reduction in δ -with increasing volume or weight fraction of the dispersed phase (Φ) may be attributed to the interpenetration and/or compression of chains with increasing Φ Also the i eduction in δ value can also be attributed to compression of chains on close approach without the need to invoke any interpenetration

Thus if the droplet size is small not only aggregation or coalescence but also precipitation is prevented Polymeric emulsifiers give steric stability and help active components transport into the skin effectively because of the favorable absorption properties But these properties are the main reasons that nanoemulsions can not be prepared by the conventional method of using a high pressure homogcnizer (ca 500-1600 atmospheric pressure) in the condition of

nanoemulsions having more than 20% of inner oil phase in general If the distance between droplets becomes less than the critical distance by high pressure the droplets become aggregated easily and heterogeneous Therefore novel nanoemulsification methods other than that using a high pressure homogenizer is required for preparing nanoemulsions of higher quality

1 1 Basic dllv steric stabilization is dependent on the flocculatioπ of steπcdlly stabilized dispersion Θ-point is the temperature when interaction between polymers and solve nt is just as high as that between segments of the polymers But in this invention Θ-pomt is defined as the temperature when a viscoelastic complex of high viscosity or hardness is formed by the interaction of oil phase and water phase

The Θ-pomt is determined by the measurement of the viscoelastic property of emulsion systems on heating and stirring slowly In order to prevent the coupling of the formed droplets an energy barrier should be formed When a stabilizing age nt is added to the emulsion systems an energy barrier is formed wherein a boundary of mono molecules or multi-layer liquid crystals are formed Foi the systems to be steπcally stable interac tion between droplets should be large e nough For these reasons good polymeric emulsifiers should have tails dissolved in the outer phase and segments insoluble in the outer phase and also segments adhered to the di oplets in the inner phase contributing to the stability of the emulsion system

When linear polymers are put into solvent molecules they penetrate into the vacant area formed b> the decreased mutual interaction between poly mer molecules and the non-crystal areas first and gradually penetrate into crystal areas of high density Therefore, in the beginning, parts of the linear polymers become swollen by coupling with the crystal area or by entanglement. Dissolution is obtained when this coupling is decoupled and molecular segments are free to move. When polymer ends are combined to any other than ends the reaction is called a cross linking reaction and the branched part is called a crosslink. If some parts of molecular chains are bound by crosshnking, each molecular chain is not separated and can not be swollen to a constant size. The crosslinking reaction occurs by the proper monomers or occurs by several reactions after polymerization. The crosslinking reactions make crosspolymers of different degrees of crosslinking by the crosslinking method and conditions applied. Crosslinking polymers of low degrees or high degrees can be obtained by controlling the number of crosslinks in the definite length of chains, fewer crosslinked polymers have a good recovering (elastic) property as described above. In any swollen state with remnant network structures by the cross-links, liquid crystal phase or entanglement is called gel. Gel is divided into viscoelastic gels and non viscoelastic gels.

Therefore, the inventors took the facts described above and studied them to improve the invention of patent (Korea Patent No.488220) of nanoemulsion cosmetic compositions containing polymeric emulsifier POP-POE vitamin E forming nanoemulsions of a mean droplet diameter of

206-455 nm and their preparation method. Finally, the inventors completed the invention of nanoemulsion cosmetic compositions with a mean droplet diameter of 43-96 nm and their preparation method by using polyacrylic acid oi polyac rylic ac id derivative crosspolymers as assistant emulsifiers which themselves have poor emulsifying abilities but good gel forming properties along with emulsifiers, PO-POE vitamin E at the Θ-pomt above 40 °C, preferably above 50 °C through the study of energy transferring systems of high efficiency which can absorb the rotational frictional energy by high-speed stirring

The nanoemulsions prepared with emulsifiers, POP POE vitamin E, along with emulsion assistants, polyacrylic acid or polyacrylic acid derivative crosspolymers by high-speed stirring in this invention showed much improved properties in the formation of viscoelastic complex of high viscosity or hardness of oil soluble phase and water soluble phase i e improved emulsification properties than those prepared only with emulsifiers, POP-POE vitamin E only due to improved properties to absorb rotational frictional enei gy necessary for emulsification to fine droplets

The o/w nanoemulsion cosmetic compositions in this invention comprise 0 5 to bθ% by weight preferably 1 0 to 30 % by weight If the content of POP-POF vitamin E is below 0 5% the stability of nanoemulsion is deteriorated and if the content of POP-POE vitamin E is over 60% the properties of nanoemulsion such as the feeling when applied on the skin become undesirable

W hen POP-POE vitamin E is used as an emulsifier the emulsifiers are adsoi bed easily at the interface of oil soluble phase and water soluble phase by the easy formation of liquid crystals resulting in the favorable formation of complex of oil soluble phase and water soluble phase which makes smaller oil-soluble phase droplets by stirring

And O/Λ nanoemusion cosmetic compositions in this invention arc safe by the use of polymeric emulsifiors which are limited in penetration into the skin In this invention the skin piotcctmg agents and skm treating agents in the o/w nanoemulsion cosmetic compositions show more improved effects of skm protection and skin treating than in emulsion compositions by the properties of nanoemulsion such as stability and excellent skin penetration activitv

The OΛΛ nanoemulsion cosmetic compositions in this invention comprise 0 01 to 40 % by weight emulsion assistants polyacrylic acid or its derivative crosspolymers preferably 0 02 to 10% by weight It is not desirable to use polyacrylic acid or its derivative crosspolymers below 0 01% by weight since the effect of droplet size decrease is poor because of the reduction of the cohesive energy of the complex of oil soluble phase and water soluble phase Also it is not desirable to use assistants polyacrylic acid or its derivative crosspolymers over 40 % by weight due to an undesirable feeling when applied on the skin

In this invention components of o/w nanomemulsion cosmetic compositions together with emulsifiers, POP-POE vitamin E emulsifiers, and emulsion assistants, polyacrylic acid or its derivative crosspolymers oil-soluble components and water soluble components being generally used to form product and to protect skin in cosmetic compositions The representative oil soluble materials are as follows hydrocarbon materials of paraffin oil, squalano, squalene, synthetic triglycerides such as caprylic/capπc ti iglyceπde (Ncobee M-5) obtained from the reaction of natural material, synthetic ester oils such as cetyloctanoate, octyldodecanol (Eutanol G), isopropyl palmitate, plant oils such as jojoba oil, olive oil, safflower oil, evening primrose oil, Chinese pepper oil, sesame oil, shark oil. oil soluble vitamins such as vitamin A, E, F and their derivatives and representative water soluble materials as follows, polyols such as propylene glycol, butylene glycol, glycerine, polyethylene glycol, mucopolysaccharides such as hyaluronic acid, condroitm sulfate, glucosamine, water-soluble vitamins and their derivatives such as vitamin C and panthenol

Nanoemulsion cosmetic compositions were prepared as follows, first emulsification was earned out at a 0.4 to 0 75 weight ratio of oil soluble phase to oil soluble plus water soluble phase and finally the second emulsification was carried out after adding all remnant materials Weight ratio (φ) of oil soluble phase to oil soluble plus water soluble phase below 0.4 is not desirable since the Θ-point above 40°C is not easily obtained in these conditions because of the weakened interaction by the increase in distance between droplets, and weight ratio (φ) over 0.75 is not desirable also since the Θ-point above 40 ^°C is not easily obtained because of the weakened interaction of droplets due to the limited solubility of emulsifier and emulsion assistants in the water soluble phase therefore, the decreased interface areas.

For stability and feel when applied on the skin in this invention other than the emulsion assistants, polyacrylic acid or its derivative crosspolymers used for decreasing emulsion droplet size, polymers such as polyvinyl pyrolidonc, methylcellulose, hydroxymethylcellulose (Natrosol 250HR), and thickeners such as magnesium aluminium silicate (Veegum HV), sodium aluminium silicate (Laponite XLG) are preferably used individually or together at the contents of 0.01 to 40 % by weight, but more preferably 0.05 to 20 % by weight. It is not desirable to use thickeners out of this range because the feeling when applied on the skin and stability of nanoemulsion compositions become deteriorated in this condition.

Additives of o/w nanoemulsion cosmetic compositions in this invention are used as much as 0.1 to 30% by weight of total compositions according to the purpose of the products. If the content of additives is less than 0.1 % by weight the effect of addition of additives is very small and using additives over 30 % by weight is not desirable because the stability of compositions become deteriorated and the droplet size also becomes large.

The additives described above are as follows: ultra violet ray absorbers of benzophenone derivatives such as homomenthylsalisilates, benzophenone, 2-hydroxybenzophenone, 4-methoxybenzophenone, cinnamic acid derivatives such as ethylhexyl-p-methoxy cinnamate, octylmethoxycinamate, butylmethoxydibenzophenone; skin whitening agents such as arbutin, kojic acid, a.uvaursi extract, etc.: skin cell circulation promoting agents such as alpha-hydroxy acid, pancreatin, good skin protecting agents such as allantoin, amino acid, protein, flavonoids, milk, honcyl skin protecting natural plant extracts such as extracts of angelica acutiloba, cnidium officinale, Chinese bellflower, calendula arvensis, ginseng, green lea; skin coloring dihydroxyacetone and zinc oxide having a skin soothing effect. And also as the components of skin protecting agents and skin treating agents of nanoemulsions drugs for curing skin diseases might also make use of this technology. These are, some examples: hydroquinone skin depigmentation agent and those accelerating the turnover of corneous layers such as salicylic acid, alpha-hydroxy acid, sulfur and enzyme pancreatin in acne skin curing products and skin disease curing agent hydrocortisone, a component of adrenaline hormones. The components described above can be used without any limitations and these example s do not limit the use of am other components which can be used generally in skin protecting produc ts and skm disease curing products

0/w nanoemulsion cosmetic compositions in this invention can be classified into cream products and lotion prorluc ts The former have no fluidity and the latter have fluidity at room temperature and these prorluc ts can be used according to the added active materials as several kinds of skin protecting products and skin disease curing products such as skin c are cosmetics, moisture c reams and lotions, night creams eye creams, cleansing creams and lotions, sunsc re e n creams and lotions, suntanning creams and lotions skin whitening creams & lotions, anti-wrinkle creams and lotions, acne care creams and lotions and atopy care creams and lotions and dispersion type make-up cosmetics, foundation make-up base and hair care cosmetics of creams and lotions hair dye hair treatment cream, hair cream and skin curing topical drugs of creams and lotions, skm depigmentation products, anti— wrinkle products acne curing products and adrenalin hormone products

O/w nanoemulsion cosmetic compositions in this invention are pi epared characteristically only under the condition that the complex of oil soluble phase and water soluble phase becomes highly viscous or hard at O point above 40 °C The nanoemulsion in this invention can be prepared in an

12 economical way due to the efficient energy transfer of the high viscosity complex of oil-soluble phase and water soluble phase along with emulsifiers and emulsion assistants at θ-point wherein, the viscosity of the complex was not decreased by heating but rather was maintained or increased.

In the preparation of o/w nanoemulsion cosmetic compositions in this invention high speed rotational mixers such as propellers, dispersers, and homogenizers generating enough frictional energy can be used for forming the high-viscosity complex of oil soluble components and water soluble components above 40 °C of Θ-point.

The invention will be described more precisely through the examples below. But these examples are only suggestions in this invention and the range in this invention is not restricted to them.

Examples 1 - 4 and Comparative Examples 1-4: O/W nanoemulsion cosmetic base compositions

According Io the compositions in Table 1 oil soluble materials and emulsifiers were poured into (.he manufacturing tank and heated to 50 °C followed by adding water soluble materials previously heated and dispersed. After confirming the occurrence of Θ-point of the mixture by slow heating and stirring using a propeller mixer the o/w nanoemulsion base compositions in Examples 1-4 were prepared by emulsifying using a high speed mixer (ca. 1,000-8,000 RPM) at 1 atmospheric pressure and cooling to 30 r .

Comparative Examples 1-4 in Table 1 were prepared by the same method employed in Examples 1-4. [Table 13

Experimental Example 1: Evaluation of nanoemulsion stability by measuring the droplet sizes and the changes of droplet sizes

The droplet sizes of o/w nanoemulsion cosmetic base compositions prepared according to Examples 1-4 and Comparative Examples 1-4 in this invention were measured by the dynamic light scattering method using the Master sizer 2000(Malvern Instrument, U.K.). The measurement of droplet sizes wei e carried out after diluting emulsions with deionized watei to 10 20% obscuration under the following conditions and the test i esults art shown in Table 2

Measuring time 2 mm Measuring times per second 5 x 10^° Temperature 20^°C Viscosity 0 89 centipoise Diffraction rate of particles 4 Diffr action rate of dispersion phase 1 όό

Thermodynamic stability of nanoemulsions was evaluated by measuring the droplet size of nanoemulsions two times 1 day after preparing and 6 months after storing at 40 C

Experimental Example 2 Emulsion stability by visual observation

Stability of o/w nanoemulsion cosmetic base compositions obtained in Examples 1 -4 above was evaluated by visual observation together w ith droplet size measurements according to the following procedure The- test results are show n in Table 2

Emulsion states of c ompositions in Examples 1-4 and Comparative Examples 1 -4 were c omparatively observed both lday after preparation and 6 months after storing at 40 C The instabilities such as sedimentation separation drain creaming and coalescence were visually observed

Stability of emulsions is evaluated by the percentage of stable portion of the total portion and is e xpr essed by the following equation Emulsion stability(%)=(Total portion-instable portion)/total portion)^"* 100% [Table 2]

As shown in Table 2, the mean droplet diameter of o/w nanoemulsion cosmetic base compositions in Examplel -4 prepared by the emulsification method of simple mixing using a propeller mixer at 1 atmospheric pressure was in the range of 48 to 85 nm 1 day after preparation, which is a very close value to the minimum droplet diameter of nanoemulsions, 20 nm. and much smaller than those in Comparative Examples 1-4. And in the evaluation of stability by measuring the droplet size 6 months after storing at 40^°C the mean droplet diameter increase (%) in Examples 1-4 in this invention was about 4.8% which is smaller than that of Comparative Examples 1-4, 8.5%.

Also in Table 2 the stability(%) of o/w nanoemulsion cosmetic base compositions in Examples 1-4 by visual observation 6 months after storing at 40 ^°C is shown. As shown in Table 2 above the compositions in Examples 1-4 were more stable than those in Comparative Examples 1-4.

Experimental Example 8' Human patch test

In order to confirm the safety of cosmetic compositions in Examples 1-4 and those in Comparative Examples 1-4 in this invention a human patch test was earned out. Confirmations of the safety of nanoemulsions is considered important since skin irritation problems occurred often with conventional nanoemulsions because of using relatively a high amount of emulsifier phospholipids to obtain a smaller droplet. The Finn chamber human patch test for o/w nanoemulsion cosmetic base compositions of Examples 1-4 in this invention was carried out and the test results are shown in Table 3.

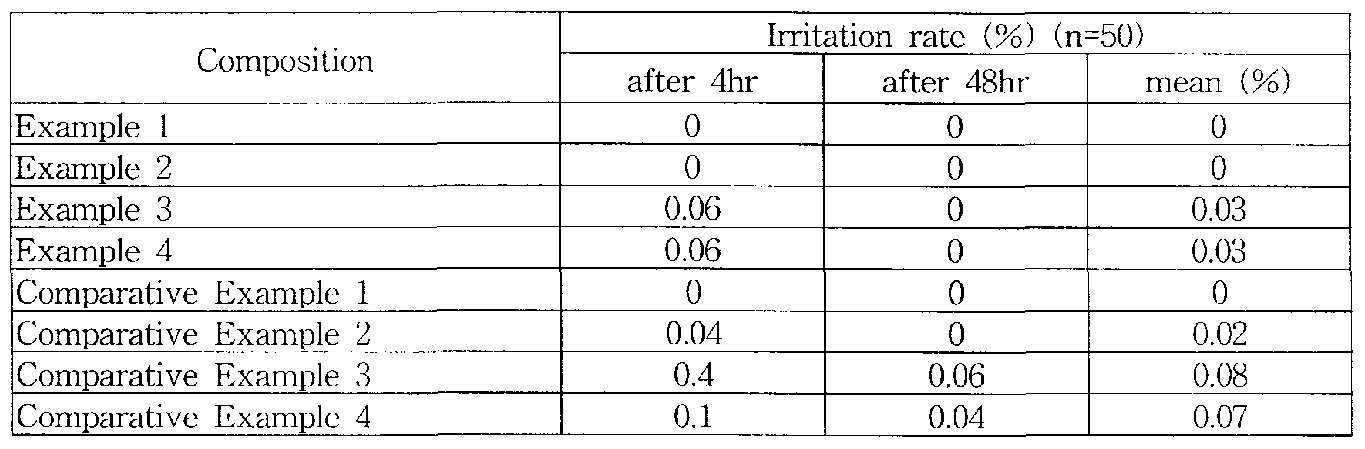

Λs shown in Table 3, o/w nanoemulsion cosmetic base compositions in Examples 1 -4 were safer than those in Comparative Examples 1-4. [Table 3]

Example 5 and Comparative Examples b- l~5^~5: O/W nanoemulsioπ cosmetic base compositions

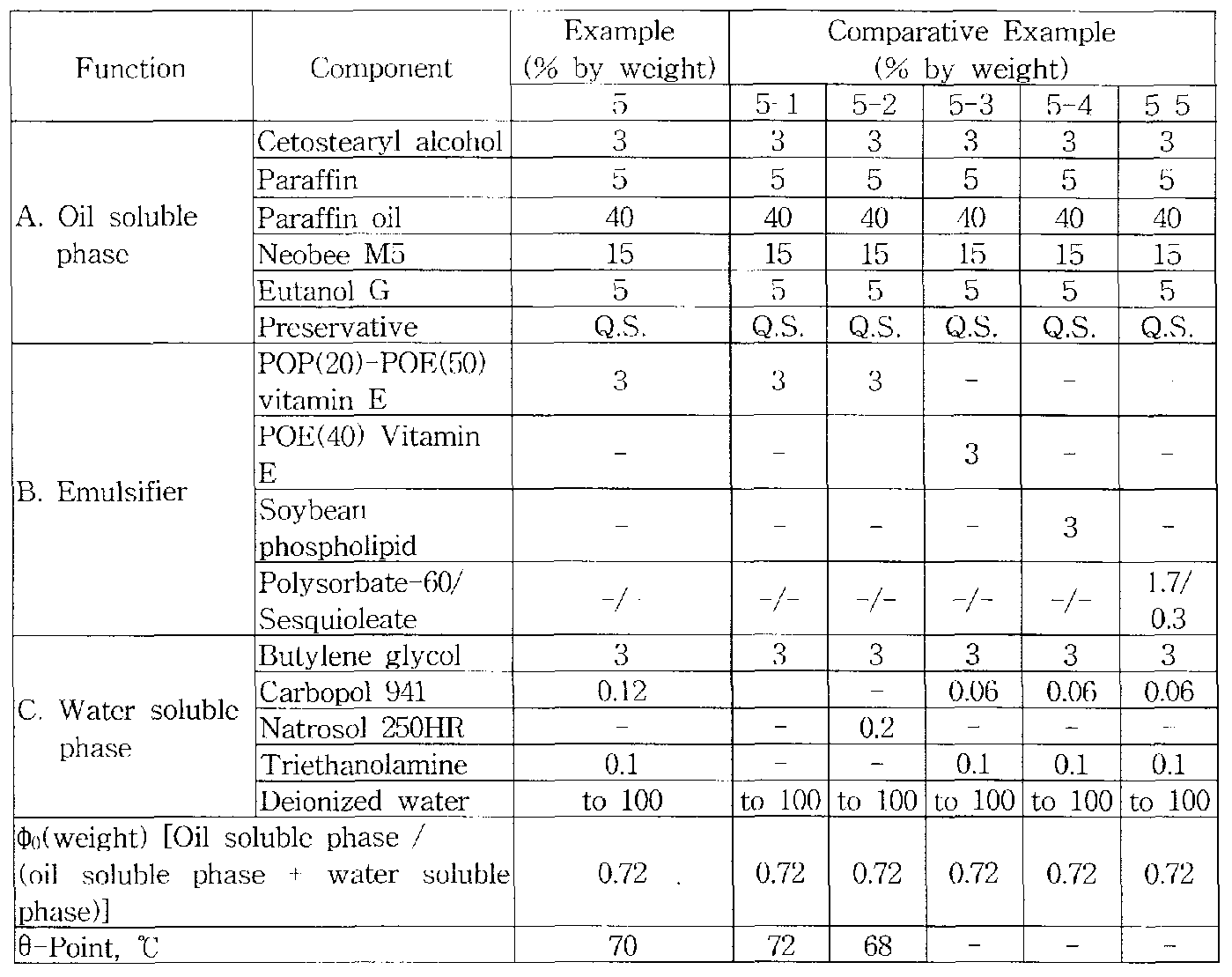

According to the compositions in Table 4, oil soluble phase and emulsifier were poured into the manufacturing tank followed by heating them to 50°C and the dispersed water soluble phase preheated to 50^°C was added. The o/w nanoemulsion cosmetic base composition in Example 5 was prepared by the emulsification method using a high speed disperscr mixer (ca. 1,000-8,000 RPM) at 1 atmospheric pressure after confirming the formation of high viscosity complex at Θ-point by stirring slowly on heating the mixtures of oil soluble phase with emulsifier and water-soluble phase and cooling down to RT. Those of Comparative Examples 5-1 , -2, -3, -4, -5 in Table 4 were prepared by the same method employed in Example 5. [Table 4]

Experimental Example 1: Evaluation of nanoemulsion by measuring the droplet sizes and the changes of droplet sizes

The droplet sizes of o/w nanoemulsion cosmetic base compositions prepared according to Example 5 and Comparative Examples 5-1 to 5-5 in this invention were measured by the same method employed in Experimental Example 1-4 in Example 1-4 and the test result 1 day after and 6 months after storing at 40 ^°C are shown in Table 5. [Table 5]

The "-" sign in Table 5 means that the composition was not emulsified by the emulsification method employed in this invention.

As shown in Table 5 the mean droplet diameters of o/w nanoemulsion cosmetic base composition of Example 5 in this invention prepared by the simple rotational mixing method using a disperser mixer at 1 atmospheric pressure 1 day after preparation at room temperature(RT) was 45 nm, which is close to the minimum value of the nanoemulsion droplet diameter range, 20-500 nm but that of Comparative Examples 5-1 and 5-2 was 235 nm. On the other hand, nanoemulsions were not prepared when the base compositions of Comparative Examples 5-3, 5-4 and 5-5 were emulsified by the same nanoemulsification method using a simple rotational mixer employed in Example 5. Namely, those compositions did not form the high viscositv complex when the oil soluble phase w as mixed with the w ater soluble phase along w ith an emulsifier and an emulsion assistant Carbopol

1 e the mixture did not show a Θ-point The mean droplet diameter of the compositions of Comparative Examples 5 3 5 4 and 5^~5 were 1 675 nm

2 278 nm and 3 258 nm respectively when prepared by the emulsification method using a homogemzer Increase (%) in mean droplet diameters of composition in Example 5 by evaluating the droplet diameters of the emulsion compositions 6 months after storing at 40 ^°C w as ca 2 2% which is much smaller than that of Comparative Examples 5- 1 and 5-2 ca 8 6% Examples 6~7 and Comparativ e Examples 6-7 OAV nanoemulsion cosmetic cream compositions

The purpose of Examples 6-7 is to confirm the effect of additives in preparing nanoemulsions since the property of nanoemulsions can be affected by the additives even though the droplet diameter of emulsion or nanoemulsion is mainly dependent on the base components

Act ording to the compositions in Table 1 oil soluble materials and emulsifiers were poured into the manufacturing tank and heated to 50 °C followed by adding water soluble materials previously heated to 50 ^°L and dispersed After confirming the occurrence of Θ-point of the mixture by slow heating and stirring using a propeller mixer the o/w nanoemulsion base compositions in examples 1-4 were prepared by emulsifying using a high speed mixer (ca 1,000-8,000 RPM) at 1 atmospheric pressure and cooling to 30 ^°C

Comparative Examples 1-1 in Table 1 were manufactured bv the same method for comparison

According to compositions in Table 6, oil-soluble raw materials 1 - 11 were poured into a manufacturing tank followed by melting on heating to 7 0°C The tank was kept after adding raw materials 12-14 Next, water soluble raw materials 18 29 dissolved in a supplementary tank at 50 °C were added to the manufacturing tank Afterwards the high viscosity 2 phase complex of oil soluble phase and water soluble phase were prepared by slowly mixing using a homogemzer on increasing the temperature to Θ point O/w nanoemulsion moisture cream was prepared by cooling homogenized emulsions to 30 ^°C , which had been subjected previously to stirring again using a disperser (1,000-8,000 RPM) after cooling to 50 ^°C and adding oil soluble materials 15- 17 to the high viscosity complex at 1 atmospheric prt ssur e [ i able 6]

Experimental Example 1 Evaluation of nanoemulsion stability by measuring the droplet size and the change of droplet size

For evaluating nanoemulsion stability of o/w nanoemulsion cosmetic moisture cream compositions obtained in Examples 6 7 and Comparative Examples 6 7 the mean droplet sizes of those compositions were measured by the same method employed in Experimental Example 1 of Examples 1 -4

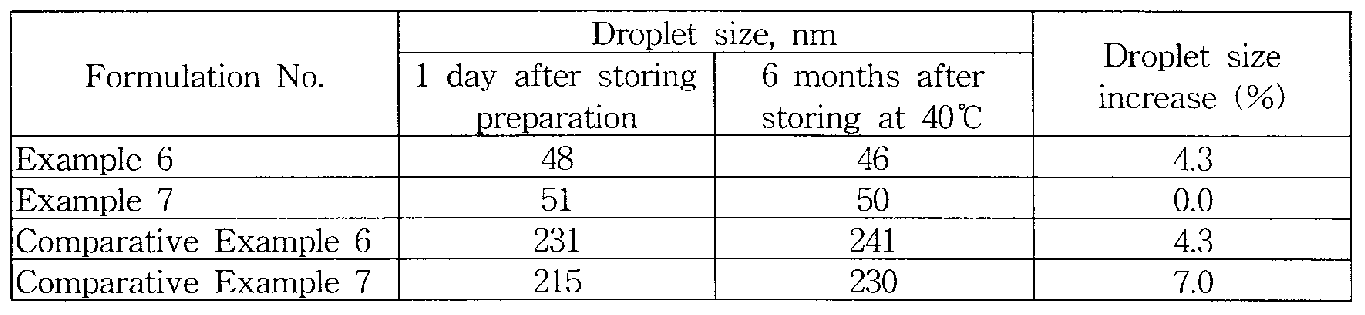

1 he test re sult of the mean dropk t diameters of o/w nanoemulsion moistm e cream compositions of Examples 6-7 and Comparative Examples 6-7 in Table 6, 1 day after preparation and 6 months after storing at 40 °C are shown in Table 7 [Table 7]

As show n in Table 7 the mean droplet diameter of o/w nanoemulsion cosmetic compositions prepared by simple rotational mixing using a disperser mixer 1 day after preparation was in the range of 48 to 51 nm, which is a very close value to the minimum value of nanoemulsions, 20 nm

On the other hand the mean droplet diameter of nanoemulsion compositions of Comparative Examples 6-7 was in the range of 215 to 231 nm, which is larger than that of Examples 6-7 by 182 nm In the evaluation of stability b> measuring the mean droplet diameter after storing for 6 months at 40 ^°C the increase (%) of the mean droplet diameter of compositions of Examples 6-7 in this invention was 1 1%, which is much smaller than that of Comparative Examples 6-7, b.7%.

Experimental Example 2- Observation of nanoemulsions by

Cryogenic-Transmission Electron Microscope (Cryo-TKM)

Droplet sizes of emulsions in general can be measured by the indirect method of dynamic light scattering using a laser light. But in case of smaller nanoemulsions a direct measuring method along with an indirect measuring method provides more precise droplet size data for nanoemlsions. Observing fine droplets using a Cryo-TRM is a direct precise method, which can measure the droplet size without changing the state. Therefore, Cryo-TEM was used to confirm the mean droplet diameter of o/w nanoemulsion of Example 6, 45 ran, by the light scattering method, which is close to the minimum value of nanoemulsions, 20 nm. Cryo-TEM (CEM902A, Zeiss, D-Oberkochen, Philips, CM120, NL-Edinhoven) was operated both at 80 kV and 120 kV. An image of nanoemulsion droplets was acquired for the nanoemulsions diluted with deionized water, sonicated and applicated on a copper grid as thin as possible and frozen at 77-100 ⁰K for image treating systems (Kontron IBAS).

Figure 1 is a microphotograph of Cryo-TEM for the nanoemulsion composition of Example 6, 1 day after preparation. From Figure 1 we can see that the mean droplet diameter of o/w nanoemulsion cosmetic moisture cream of Example 6 is 50 nm, which is very similar to the value of 48 nm obtained by the dynamic light scattering method.

Figure 2 is a microphotograμh of nanoemulsions in Comparative Example 6, 1 day after preparation. From Figure 2 we can see that the mean droplet diameter of nanoemulsion compositions of Comparative Example 6 is 210 nm, which is also a very similar value, to 231 nm that obtained by the dynamic light scattering method.

Experimental Example 3: Observation of emulsion droplets by atomic force microscope (AFM)

Recently, atomic force microscopes (AFM) are used for the morphological study of materials. The merit of using this device is that the particles can be observed at RT and at 1 atmospheric pressure without any deformation of particles. In Experimental Example 3 an AFM was employed to observe the droplets of o/w nanoemulsion cosmetic moisture cream in Example 7 in this invention.

The test sample was prepared using a pyramidal silicon nitride contilever with a force constant at 0.26 N/m. A photographic image was obtained with a non-contact scanning probe microscope (AutoProbe-CP: Park Scientific Instruments, CA, U.S.A.).

Figure 3 is an AFM mocrophotograph of nanoemulsion cosmetic moisture cream in Example 7 in this invention 1 day after preparation and Figure 4 is that in Comparative Example 7, 1 day after preparation. The mean droplet diameters of nanoemulsions in Figure 3 and Figure 4 are 43 nm and 186 nm, respectively. Experimental Example 4: Product Effectiveness Test

To measure the effectiveness of o/w nanoemulsion cosmetic moisture cream compositions in Example 6 and Comparative Example 6, 4 groups of 80 women aged 20 to 50 were employed for a 3 month test. Among them 30 women had a atopy skin bothered with severe dryness and itching. The main items of use in the test were the effects of moisturizing, skin firming, skin wrinkle decreasing, whitening and atopy skin soothing, which were observed in priority. Other effects such as stickiness during application, spreadability on the skin, skin wetness and skin sheen were evaluated and given 4 grades of excellent, good, average and poor. The test results are shown in Table 8. [Table 8]

As shown in Table 8 o/w nanoemulsion cosmetic moisture cream in Example 6 in this invention showed better effects than that in Comparative Example 6 and particularly, an improved effect on itchy atopy skin caused from severe dryness was excellent.

Examples 8-9 and Comparative Examples 8-9: p/w nanoemulsion cosmetic- moisture lotion compositions

So far the inventors have described cream o/w nanoemulsion cosmetic compositions and their preparation method through Examples 1-7 and Comparative Examples 1-7. Now the inventors will explain lotion or nanoemulsion lotion. It is generally defined as cream with no fluidity but lotion with fluidity at RT.

O/w lotions have in general less amount of waxes with high melting points and oils as inner phase than creams and have a characteristic soft feel when applied on the skin. Emulsion lotions are stabilized using polymeric thickeners such as Carbomers since the thermal stability of emulsion lotions is much inferior to that of creams due to a lower viscosity. But these polymers do not generally make small emulsion droplets. Basically emulsion lotions have very similar compositions to that of emulsion creams except for having a much smaller amount of wax with a high melting point and oil soluble components. Therefore, emulsion lotions have very similar effects to those of cream.

According to the compositions in Table ϋ, oil soluble components, raw materials 1 — 11, were poured into a manufacturing tank and melted on heating Lo 70^°C . Subsequently, emulsifiers, raw materials 12-14, were added and dissolved in the tank and was maintained at 5()°C . Next, water soluble components, raw materials 17-26, dissolved previously in a supplementary tank at 50 "C were added to the manufacturing tank. Then, the high viscosity 2-phase complex of oil soluble phase and water soluble phase was formed by slowly mixing using a propeller mixer (1,000-8,000RPM) on increasing temperature to θ-poini. Homogeneous emulsion compositions were prepared by high speed mixing of the previous high viscosity complex using a propeller mixer at 1 atmospheric pressure and cooling to 50 ^°C. And next, raw material 27 was added to the homogeneous emulsion composition, which was stirred again at 1,000-8,000 RPM. Finally, o/w nanoemulsion cosmetic moisture lotion was prepared by stirring the homogeneous emulsion composition homogeneously after adding oil soluble components, raw materials 15-16 and cooling to 30^°C . Compositions of Comparative Examples 8-9 were prepared by the same method employed in those of Examples 8-9. [Table 9]

Experimental Example 1- Evaluation of nanoemulsion stability by measuring droplet sizes and the change of droplet sizes

For confirming droplet sizes and evaluating the stability of o/w nanoemulsion cosmetic moisture lotion compositions, the droplet sizes of compositions in Examples 8-9 and Compositions Examples 8~9 were measured by the same method employed in Experimental Example 1 in Examples 1-4. The emulsion droplet diameter test results of o/w nanoemulsion moisture lotion compositions in Examples 8-9 and those in Comparative Examples 8-9 in Table 9, lday after preparation and 6 months after storing at 40 ^°C are shown in Table 10. [Table 10]

As shown in Table 10, the mean droplet diameters of nanoemulsion compositions in Examples 8-9 prepared by simple mixing using a propeller stirrer 1 day after and 6 month after storing at 40 ^°C in this experiment were below 100 nm and the increase(%) in emulsion droplet sizes 6 months after storing at 40 ^°C had a relatively low value of 4.fi%. On the other hand, the mean droplet diameter of nanoemulsion compositions prepared in Comparative Examples 8-9 was 333 nm, which is also in the droplet size range of nanoemulsions but much larger than that of compositions in Examples 8-9. Examples 10- 11 and Comparative Examples 10-11 O/W nanoemulsion skin depigmentation c ream compositions

According to compositions in Table 11, oil soluble components, raw materials 1-9 were poured into a manufacturing tank and melted on heating to 70^°C Subsequently, emulsifiers raw materials 10 1 1, were added and dissolved in the tank and the tank was maintained at 50 ^°C Next, water soluble components raw materials 12-19 and 22, dissolved previously in a supplementary tank at 50 ^°C w as added Io the manufacturing tank Then, the 2 phase complex of high viscosity of oil soluble phase and water soluble phase was formed by slowly mixing using a disperser Next, homogeneous emulsion compositions were prepared by high speed mixing of the previous complex using a disperser (1,000-8,000 RPM) at 1 atmospheric pressure and cooling to 50^°C And next, raw material 20 previously dissolved in dcionized ^■water was added to the homogeneous emulsion composition Finally, o/w nanoemulsion cosmetic moisture lotion was prepared by stirring the above emulsion composition homogeneously using a disperser followed by adding raw material 21 to adjust the pH to 4 0 to 6 0 and cooling to 30^°C Compositions m Compai ative Examples 10- 11 were prepared by the same method employed in those in Examples 10-11 [Table 11 ]

Experimental Example 1 : Evaluation of nanoemulsion stability by measuring emulsion droplet sizes and the change of droplet sizes

For confirming droplet sizes and evaluating the stability of o/w nanoemulsion skin depigmentation cream compositions in Examples 10-11 the droplet sizes of compositions in Examples 10-11 and those in Comparative Examples 10- 11 were measured by the same method employed in Experimental Example 1 of Examples 1-4.

In Table 12, the test results of droplet sizes of compositions in Examples 10-11 and Comparative Examples 10-11 in Table 11 are shown. [Table 12]

As shown in Table 12, the droplet diameter of o/w nanoemulsion cosmetic skin depigmentation cream compositions in Examples 10-11 is 69 nm, which is a very close value to the minimum diameter of nanoemulsions, 50 nm.

On the other hand, the mean droplet diameter of compositions in Comparative Examples 10-11 is 307 nm, which is much larger than that of compositions in Examples 10-11. And the mean droplet size increase(%) of nanoemulsions in Examples 10-11 is 2.3 % and that of Comparative Examples 10-11 is 7.0 %, respectively.

Examples 12-13 and Comparative Examples 12-13: O/w nanoemulsion acne skin treating cream compositions

According to the compositions in Table 13, oil soluble raw materials 1-9 and emulsifiers, raw materials 10-14, were poured into a manufacturing tank, which was heated to 70 ^°C. Then, a high viscosity complex of an oil soluble phase and a water soluble phase was prepared by slowly mixing using a homogenizer after adding the vvatei soluble raw materials 17-22 previously dispersed homogeneously in a complementary tank Next, o/w nanoemulsion acne skm treating cream was prepared by stirring the mixture of the previous homogeneous complex using a propeller mixer after adding raw materials 15-16 and cooling to 30 ^"C [Table 13]

Experimental Example 1 Evaluation of nanoemulsion stability by measuring emulsion droplet sizes dnd the change of droplet sizes

For confirming di oplet sizes and evaluating the stability of o/w nanoemulsion acne skin treating i ream compositions droplet sizes of compositions in Examples 12- 13 and those in Comparative Examples 12 I i were measured b> the same method employed in Experimental Example 1 of Example 1 4

The test results of droplet size measurement of o/w nanoemulsion cosmetic acne skin treating cream compositions I day after pre paration and 6 months after storing at 40 ^°C are shown in Table 14 [Table 14]

As shown in I able 14 the mean droplet diameter of o/w nanoemulsion acne skin treating cream compositions in I xample 12- IJ is 92 nm which is close to the minimum value of nanoemulsion droplet size range of 20 to 50 nm in this invention On the other hand that of Comparative Examples 12- 13 is 443 nm which is close to the maximum value of nanoemulsion droplet size 500 nm

4f The mean droplet size mct edse(%) of nanoemulsions in Examples 12 1 -! 6 months after storing at 40 C is b 9% but thai of Comparative Examples 12 13 6 months after storing at 40 °C is 11 7%

[Industrial Applicability]

In this invention nanoemulsions containing POP POE vitamin E as emulsifiers and polyacrylic acid or polyacrvhc acid derivative crosspolymers as emulsion assistants have a very small mean droplet diameter ranging from 43 to 46 nm and are very stable and safe

B> the nanoemulsions described above the inventors obtained nanoemulsion cosmetic compositions with a much smaller mean droplet diametei than nanoemulsions prepared without emulsion assistants pol> acrylic acid or polyacrylic acid derivative crosspolymers by emulsifying using a simple high speed mixer such as a propeller a disperser and a homogemzer due to the much impi oved properties when forming viscoelastic complex of oil soluble phase and water soluble phase above 40 °C

The economical productivity of the invention is very high since the nanoemulsion cosmetic compositions could be prepared by simple mixing at 1 atmospheric pressure in this invention Also nanoemulsion cosmetic compositions in this invention have good effects such as skin absorption skin softening skin moisturizing skin firming improving itchy dry skm and good spreadability when applied on the skin and particularly, have the merits of a long lasting effect due to the favorable penetration of active drug components into the skin

Claims

[CLAIMS] [Claim 1 ]

A nanoemulsion comprising polyoxypropylene-polyoxyethylene vitamin E represented by the following general formula 1 as an emulsifier and polyacrylic acid or polyacrylic acid derivative crosspolymer as an emulsion assistant:

[General formula 1 ]

-(G-CH₂CH₂)_m- whcrcin, Ri is , m is an integer of 0 to 300, R₂ is

CH₃

H(OCH(CHj)CH₂),,- . . -CH₂CH-

, n is an integer of 1 to 250, A is ² or

-C(CHs)=CH-; B is -CI I3 at the 5, 7 or 8 position of vitamin E; and p is an integer of 1 to 3. [Claim 2]

The nanoemulsion according to claim 1, wherein the polyacrylic acid or polyacrylic acid derivative crosspolymers is a Carbomer, a homopolymer of acrylic acid crosslinked with an allyl ether of pentaerythritol, an allyl ether of sucrose or an allyl ether of propylene or acrylales/C6^~C4o alkyl acrylate crosspolymers, copolymer of C0-C40 alkyl acrylates and one or more nanomers of acrylic acid, methacrylic acid or one of their simple esters crosslinkcd with an allyl ether of sucrose or an allyl elher of penta crythritol represented by the following general formula 2^'- [Genenal formula 2 ]

wherein, R4 is I I or CI I3, k is an integer of 10 to 100,000. [Claim 3]

The nanoemulsion according to claim 2, wherein the ether of polyol is an allyl ether of pentaerythritol or an allyl ether of sucrose. [Claim 4 ]

The nanoemulsion according to claim 1 , wherein the vitamin E of polyoxypropylene-polyoxycthylene vitamin E is a natural vitamin E or a synthetic vitamin E. [Claim 5]

The nanoemulsion according to claim 1, wherein the content of polyoxypropylene-polyoxyethylene vitamin E in the total nanoemulsion is 0.5 to 60% by weight. [Claim 6]

The nanoemulsion according to c laim 2 wherein the content of the polydcrylic acid or the polyacryhc acid derivative crosspol>mer of total nanoemulsion is 0 01 to 40% by weight [Claim 71

The nanoemulsion according to claim 1 wherein mean droplet diameter of the nanoemulsion is in the range of 43 to 96 nm [Claim 8]

A cosmetic composition comprising the nanoemulsion according to claim 1 to claim 7 [Claim 9]

The cosmetic composition according to claim 8 wherein the cosmetic composition is one product selected among the group of cream or lotion type products of skm protecting atopy skin improving skin depigmentation wrinkle improving acne treating and adrenalin cortex hormone [Claim 10]

A skm treating composition comprising the nanoemulsion according to claim 1 to c laim 7 [Claim 11]

A preparation methods of a nanoemulsion cosmetic composition wherein oil soluble components and w ater soluble components are mixed with pυlyoxypropyluno-polyoxycthylene viatmin E expressed in general formula 1 as emulsifier and polyacrylic acid or polyacrylic acid derivative crosspolymer as emulsion assistant: [ General formula 1 ]

-(O-CH₂CH₂),_T,- whercin, Ri is , m is an integer of 0 to 300, R₂ is

CH₃

H(OCH(CH₃)CH₂),,- . . -CH₂CH-

, n is an integer of 1 to 250, A is ² or

-C(CHa)=CH-; B is -CH-! at the 5-, 7- or 8- position of vitamin E; and p is an integer of 1 to 3. [Claim 12]

The preparation method according to claim 11, wherein the nanoemulsion cosmetic composition is prepared by emulsifying the viscoelastic complex of oil soluble phase and water soluble phase, wherein the weight ratio(φ) of oil soluble phase to oil soluble phase plus water soluble phase is 0.4 to 0.75, and then if necessry emulsifying the emulsified viscoelastic complex again after adding the remnant oil soluble phase and water soluble phase. [Claim L-S]

The preparation method according to claim 11 or claim 12, w herein the nanoemulsion c osmetic composition is prepared b> high speed mixing of the c omplex of oil soluble phase and water soluble phase at θ-point above 40^°C w hen the previous complex shows viscoelastic properties

[Claim 14]

The preparation method according to claim 13, wherein the nanoemulsion cosmetic composition is prepared at 1 atmospheric pressure by a high speed mixer selected from a group comprised of a propeller, a dispcrser an agitator and a homogenizer
