Description

  The present invention relates to a handrail for a toilet bowl that can be attached to an existing Western-style toilet bowl (hereinafter referred to as a toilet bowl) to assist the operation of an elderly person with weak legs, particularly for a toilet bowl that can be smoothly transferred from a wheelchair. Regarding handrails.

  An example of a handrail for a toilet attached to an existing toilet is shown in FIG. As shown in the figure, the toilet handrail 70 is provided with a pair of base frames 71, 71 disposed on the left and right sides of the toilet A installed on the floor, and on the rear side of the respective base frames 71, 71. Standing members 72, 72 provided, handrail members 73, 73 supported on the upper ends of the standing members 72, 72, a connecting member 74 for mutually connecting the pair of standing members 72, 72, and a toilet A pair of clamping members 75 and 75 that sandwich both sides of A are provided.

  Support members for supporting the handrail members 73 and 73 are fixed to the upper end portions of the upright members 72 and 72, respectively, and the handrail members 73 and 73 are rotatably supported by the support members. The supported members 73a are respectively fixed, and the handrail members 73 and 73 can be flipped up to the rear side as indicated by a two-dot chain line in FIG.

  Therefore, when an elderly person with weak legs sitting in a wheelchair performs a stool, the wheelchair is moved to one side of the toilet A, and the handrail member 73 closer to the wheelchair is flipped up to secure a movement space. Will transfer to toilet A.

JP 2009-45196 A

  However, when an elderly person with weak legs sitting in a wheelchair moves from the wheelchair to the toilet A to which the above-described toilet handrail 70 is attached, if the handrail member 73 is flipped up to secure a moving space, the transfer to the toilet A is in progress. If you want to support the body with a hand, you have to support the body by putting your hand on the raised handrail member 73 and cannot support the body in a stable state, so it is difficult to transfer in another sense. Will occur.

  Then, the subject of this invention is providing the handrail for toilet bowls which can support a body in the stable state, when transferring to a toilet bowl in the state which raised the handrail member.

In order to solve the above-mentioned problem, the invention according to claim 1 is directed to a main body having a pair of upright members standing on both the left and right sides of the Western-style toilet, and an upper end of the upright member so that the tip can be flipped up backward. A handrail member having an armrest attached to a portion, a fixing member attached to the main body portion and fixing the main body portion to the Western-style toilet, and a locking means for locking the handrail member at a predetermined flip-up position. In the handrail for a toilet bowl provided, the handrail member has a grip that is provided continuously with the armrest and protrudes downward from a lower surface of the armrest that is positioned at the armrest position, and the grip includes the armrest When the arm is flipped up to a predetermined flip-up position, it is projected to the front side in a substantially horizontal state. That is configured to be able to support their body by grasping the is to provide a toilet bowl handrail according to claim.

As described above, in the handrail for a toilet according to the first aspect, the handrail member has a grip connected to the armrest, and an elderly person with weak legs sitting on a wheelchair jumps up the handrail member. When you transfer from a wheelchair to a toilet, you can support the body by grasping the grip so that you can support the body in a more stable state than when you support the body by directly placing your hand on the raised armrest It is possible to obtain an effect that it is easy to transfer to the toilet.

Also, grip, are continuously provided on the lower surface of the armrest located in the armrest position, when flipped up the elbow hook up to a predetermined flip-up position, so as to project to the front side grip a substantially horizontal state Therefore, it is possible to obtain an effect that it becomes easy for an elderly person or the like who is going to transfer to the toilet bowl to grasp the grip.

It is a perspective view which shows the installation state of the handrail for toilet bowls concerning this invention. It is a front view which shows the installation state of the handrail for toilet bowl same as the above. It is a top view which shows the installation state of the handrail for toilet bowl same as the above. It is a side view which shows the installation state of the handrail for toilet bowl same as the above. It is detail drawing which shows the fixing member of the handrail for toilet bowl same as the above. It is a partial expanded side view which shows the state which raised the armrest of the handrail for toilet bowl same as the above. It is sectional drawing along the XX line of FIG. (A) is a side view which shows the to-be-supported member in the handrail for toilet bowl same as the above, (b) is a side view which shows the support member in the handrail for toilet bowl same as the above. (A) is explanatory drawing for demonstrating the relationship between a guide hole and a long hole, and a locking axis | shaft when the armrest in the handrail for toilet bowl same as the above is lowered to an armrest position, (b) is an armrest in the handrail for toilet bowl same as the above. It is explanatory drawing for demonstrating the relationship between a guide hole and a long hole, and a latching shaft when raising to a predetermined flip-up position. It is a perspective view which shows the state which raised the armrest same as the above to the predetermined flip-up position. It is a side view which shows the state which raised the armrest same as the above to the predetermined flip-up position. It is a top view which shows the state which raised the armrest same as the above to the predetermined flip-up position. It is a perspective view which shows the installation state of the conventional handrail for toilet bowls.

  Hereinafter, embodiments will be described with reference to the drawings. As shown in FIGS. 1 to 4, the toilet handrail 1 is a flat metal corner disposed along both sides of a floor fixing part a of a toilet A fixedly installed on the floor of a toilet. A pair of left and right base members 10 made of pipes, a pair of left and right upright members 20 erected on each base member 10, a connecting member 30 that connects the pair of left and right upright members 20 to each other, and attachment to the connecting member 30 A pair of left and right handrail members, and a pair of left and right handrail members 50 respectively supported by the upper end portions of the upright members 20 so that the tip portion can be flipped up to the rear side. 50 is locked at a predetermined flip-up position that rises substantially vertically by the locking means.

  The upright member 20 has a lower column 21 made of a metal square pipe fixed to the rear side of the base member 10 with its upper end side slightly inclined inward (toiletboard A side), and an upper end of the lower column 21 on its upper end. The upper column 22 is composed of a metal square pipe that is inserted from the side and slides up and down in the lower column 21. A handrail member 50 is rotatably supported on the upper end of the upper column 22. A support member 23 is fixed.

  Also, a plurality of bolt insertion holes 21 a are formed vertically on the front surface of the lower support column 21, and a knob bolt 20 </ b> A passed through any one of the bolt insertion holes 21 a is screw holes ( The upper support column 22 can be fixed to a predetermined height in a stepwise manner by screwing and tightening it (not shown).

  The connecting member 30 is fixed to an intermediate height position on the rear surface of the lower struts 21, 21 so as to project inward from the lower struts 21, 21 constituting the pair of left and right standing members 20, 20. A pair of left and right straight portions 31, 31 extending in the width direction of the toilet bowl A, and a front end of the floor fixing portion a in the toilet bowl A, both ends of which are connected to the front surface on the inner end side of the pair of left and right straight portions 31, 31 respectively. The center part is comprised from the bending part 32 bent in the substantially U shape so that the upper part may be surrounded, and the linear part 31 is formed with a metal square pipe, and the bending part 32 is formed with a metal round pipe, respectively. Has been.

  A movable arm 33 made of a metal square pipe that slides left and right in each linear portion 31 is inserted into each linear portion 31 of the connecting member 30 from each outer end side. Synthetic resin caps are respectively attached to the inner ends.

  Each movable arm 33, 33 is closed at its tip, a screw hole is formed at the closed tip, and a pressing member 35 that presses against the wall of the toilet is pressed into the screw hole. It is screwed so that it can move forward and backward.

  A long hole (not shown) extending in the left-right direction is formed on the rear surface of each linear portion 31, and a knob bolt 34 that passes through the long hole is formed into a screw hole formed on the rear surface of the inner end of the movable arm 33 ( Each movable arm 33 can be fixed at an arbitrary position within the range of the length of the long hole by being screwed and tightened (not shown).

  As shown in FIGS. 1 to 5, the fixing member 40 includes support legs 41, 41 erected on the outer ends of the straight portions 31, 31 of the connecting member 30, and upper ends of the support legs 41, 41. A pair of fixed arms 42 and 42 that are fixed to each other and rise obliquely upward toward the inside, movable arms 43 and 43 that are inserted into the respective fixed arms 42 from their upper ends and slide in the vertical direction, and each movable arm 43 and 43, and is composed of a pressing portion 45 that abuts and presses against the curved upper outer surface b of the toilet bowl A, and the fixed arm 42 and the movable arm 43 are made of metal square pipes. Is formed.

  A long hole 42 a extending in the vertical direction is formed on the upper surface of the fixed arm 42, and a knob bolt 44 passed through the long hole 42 a is a screw hole (not shown) formed in the lower end portion of the movable arm 43. The movable arm 43 can be fixed at an arbitrary position within the range of the length of the long hole 42a by being screwed into and tightened.

  As shown in the figure, the pressing portion 45 includes an adjuster 46 attached to the upper end of the movable arm 43 and a free attachment 47 attached to the adjuster 46.

  The adjuster 46 includes an entire screw bolt 46a that is screwed into a screw hole (not shown) formed at the upper end of the movable arm 43, and a rotation operation unit 46b that is fixed to the entire screw bolt 46a and rotates the entire screw bolt 46a. By rotating the rotation operation portion 46b, all the screw bolts 46a advance and retract while rotating, and the free attachment 47 advances and retracts in the extending direction of the fixed arm 42.

  The universal attachment 47 is attached to the adjuster 46 through a universal joint, and has a certain degree of freedom according to the curved state of the upper outer surface b of the toilet bowl A as shown by a two-dot chain line in FIG. The contact angle can be adjusted.

  As shown in FIGS. 1 to 4, 6, and 7, the handrail member 50 protrudes downward from an armrest 51 in which a metal frame is covered with a resin cover, and a lower surface of the armrest 51. The arm 52 includes a pair of grips 52 that are connected to the rear end of the frame so as to sandwich the support member 23 of the upright member 20. The support member 23 is rotatably supported via the supported member 53.

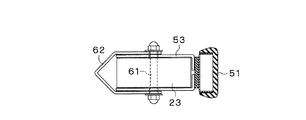

  As shown in FIGS. 7 and 8A and 8B, the locking means includes a long hole 54 formed in a pair of supported members 53 and a long hole 54 that is movable in the long hole 54. The locking shaft 61 is inserted in a state where the locking shaft 61 is inserted, the guide hole 24 formed in the support member 23 into which the locking shaft 61 is movably inserted, and the supported members 53. It is comprised from the operation member 62 with which the front-end | tip was formed in the V shape, and was connected with the both ends so that rotation was possible.

  The guide hole 24 formed in the support member 23 includes an arcuate rotation hole portion 24a in which the locking shaft 61 moves as the handrail member 50 rotates, and a rear end portion of the rotation hole portion 24a. It is comprised from the linear locking hole 24b extended in the downward side, and is penetrated by the long hole 54 formed in a pair of supported member 53 as shown to Fig.9 (a), (b). The locking shaft 61 is moved between the front end portion and the rear end portion of the arcuate rotation hole portion 24a in the guide hole 24, so that the handrail member 50 has a predetermined armrest position and a flip-up position. It is designed to rotate between.

  When the handrail member 50 is rotated to a predetermined flip-up position, the long hole 54 formed in the supported member 53 has its longitudinal direction facing the vertical direction as shown in FIG. The locking shaft 61 that has been moved to the rear end of the rotation hole 24a falls in the long hole 54 so as to coincide with the locking hole 24b of the guide hole 24 formed in the support member 23. Then, by entering the locking hole portion 24b of the guide hole 24, the supported member 53 cannot be rotated with respect to the support member 23, whereby the handrail member 50 is locked.

  As shown in FIG. 4, the operation member 62 hangs down with the armrest 51 of the handrail member 50 facing the lower side when the armrest 51 is in a substantially horizontal armrest position. As the armrest 51 of the 50 is flipped up, it is lifted along the outer edge of the supported member 53, and when the handrail member 50 is locked at the predetermined lifted position, as shown in FIG. In this state, a finger can be put on the V-shaped tip.

  Therefore, when the handrail member 50 is locked at the predetermined flip-up position, when the operating member 62 is pulled up by placing a finger on the V-shaped tip, the locking shaft 61 to which the operating member 62 is connected is lifted. Since the guide hole 24 moves from the locking hole 24b to the rotation hole 24a, the handrail member 50 is unlocked, and the handrail member 50 can be rotated to the initial armrest position. .

  In addition, adjusters 11 and 11 for adjusting the height are attached to the front and rear ends of each base member 10 on the lower surface side, and the floor of the toilet is inclined in consideration of drainage and the like. Even if it exists, since height adjustment can be performed partially by each adjuster 11 and 11, the shakiness of the handrail 1 for toilet bowl installed can be eliminated.

  As described above, in the handrail 1 for the toilet bowl, the handrail member 50 has the grip 52 connected to the armrest 51. Therefore, an elderly person with weak legs sitting on a wheelchair jumps up the handrail member 50. In this state, when transferring from the wheelchair to the toilet A, the body can be supported by grasping the grip 52. Therefore, as compared with the case where the body is supported by directly placing a hand on the armrest that is flipped up, the body can be supported in a stable state, and the effect of being easily transferred to the toilet A can be obtained.

  In particular, in the handrail 1 for the toilet bowl, when the armrest 51 is flipped up to a predetermined flip-up position, the grip 52 protrudes in a substantially horizontal state and further forwards. The effect that it becomes easy for the elderly and the like who are trying to grasp the grip 52 is obtained.

  In the toilet handrail 1, the locking shaft 61 enters the locking hole portion 24 b of the guide hole 24 formed in the support member 23 only by lifting the handrail member 50 to a predetermined flip-up position. Since the handrail member 50 is automatically locked in the flip-up state, it is not necessary to perform a special locking operation. Therefore, when an elderly person or the like moves from the wheelchair to the toilet bowl A, an unforeseen situation occurs in which the handrail member 50 rotates to a predetermined flip-up position even if the body is supported by gripping the grip 52 of the handrail member 50 that is flipped up. This makes it possible for an elderly person or the like to transfer to the toilet A with a sense of security.

  Further, after the elderly person or the like is seated on the toilet seat, the operating member 62 is pulled up to lift the locking shaft 61 that has entered the locking hole 24b of the guide hole 24 from the locking hole 24b. Since the lock of the member 50 can be easily released, the handrail member 50 can be immediately returned to a predetermined armrest position.

  In the above-described embodiment, the grip 52 is connected to the substantially central portion in the longitudinal direction of the metal frame constituting the armrest 51. However, the present invention is not limited to this. The position may be appropriately set in consideration of the height position of the grip 52 when the armrest 51 is flipped up.

  In the embodiment described above, the grip 52 is connected to the metal frame so as to protrude downward from the lower surface of the armrest 51. However, the present invention is not limited to this, and the outer portion of the armrest 51 is not limited thereto. A grip may be continuously provided on the side surface of the armrest 51 so as to protrude outward from the arm rest.

  Further, in the above-described embodiment, the lock unit that automatically locks the handrail member 50 when the handrail member 50 is flipped up to a predetermined flip-up position is employed. However, the present invention is not limited to this. It is also possible to employ locking means for manually locking the handrail member. Specifically, pin insertion holes that coincide with each other in a state in which the handrail member is raised to a predetermined flip-up position are provided on the support member fixed to the upper end portion of the standing member and the supported member fixed to the handrail member. It is possible to lock the handrail member in the flipped-up state by inserting a lock pin or the like into the pin insertion holes that coincide with each other in the state where the handrail member is jumped up to a predetermined flip-up position. Conceivable.

  The present invention can be used as a handrail for an existing Western-style toilet.

DESCRIPTION OF SYMBOLS 1 Handrail for toilet bowl 10 Base member 11 Adjuster 20 Standing member 20A Knob bolt 21 Lower column 21a Bolt insertion hole 22 Upper column 23 Support member 24 Guide hole 24a Rotating hole 24b Locking hole 30 Connecting member 31 Linear portion 32 Bending portion 33 movable arm 34 knob bolt 35 pressing member 40 fixed member 41 support leg 42 fixed arm 43 movable arm 44 knob bolt 45 pressing part 46 adjuster 46a full screw bolt 46b rotation operation part 47 free attachment 50 handrail member 51 armrest 52 grip 53 supported member 54 length Hole 61 Locking shaft 62 Operation member A Toilet a Floor fixing part b Upper outer surface

Claims (1)

A main body having a pair of standing members that stand on both the left and right sides of the western-style toilet;
A handrail member having an armrest attached to the upper end portion of the upright member so that the tip portion can be flipped up to the rear side;
A fixing member attached to the main body, and fixing the main body to the Western-style toilet;
In the handrail for toilet bowl provided with a lock means for locking the handrail member at a predetermined flip-up position,
The handrail member has a grip that protrudes downward from the lower surface of the armrest that is connected to the armrest and is located at the armrest position .
The grip protrudes forward in a substantially horizontal state when the armrest is flipped up to a predetermined flip-up position,
A handrail for a toilet, wherein the handrail is configured to be able to support his / her body by grasping the grip in a state where the armrest is flipped up to a predetermined flip-up position .
