JP5260552B2 - パンクロマティック画素を使用した鮮鋭化方法 - Google Patents
パンクロマティック画素を使用した鮮鋭化方法 Download PDFInfo
- Publication number
- JP5260552B2 JP5260552B2 JP2009545537A JP2009545537A JP5260552B2 JP 5260552 B2 JP5260552 B2 JP 5260552B2 JP 2009545537 A JP2009545537 A JP 2009545537A JP 2009545537 A JP2009545537 A JP 2009545537A JP 5260552 B2 JP5260552 B2 JP 5260552B2
- Authority
- JP
- Japan
- Prior art keywords
- image
- panchromatic image
- high frequency
- block
- panchromatic
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
- 238000000034 method Methods 0.000 title claims description 15
- 230000004044 response Effects 0.000 claims description 7
- 238000010586 diagram Methods 0.000 description 30
- 230000004048 modification Effects 0.000 description 19
- 238000012986 modification Methods 0.000 description 19
- 238000004422 calculation algorithm Methods 0.000 description 14
- 238000012545 processing Methods 0.000 description 14
- 238000004364 calculation method Methods 0.000 description 9
- 230000035945 sensitivity Effects 0.000 description 6
- 238000001514 detection method Methods 0.000 description 5
- 230000003287 optical effect Effects 0.000 description 5
- 230000006870 function Effects 0.000 description 3
- 238000013459 approach Methods 0.000 description 2
- 230000008859 change Effects 0.000 description 2
- 238000004891 communication Methods 0.000 description 2
- 238000004590 computer program Methods 0.000 description 2
- 238000003384 imaging method Methods 0.000 description 2
- 230000000873 masking effect Effects 0.000 description 2
- 230000008569 process Effects 0.000 description 2
- 230000009466 transformation Effects 0.000 description 2
- 230000003044 adaptive effect Effects 0.000 description 1
- 230000003321 amplification Effects 0.000 description 1
- 238000006243 chemical reaction Methods 0.000 description 1
- 239000003086 colorant Substances 0.000 description 1
- 238000012937 correction Methods 0.000 description 1
- 238000003708 edge detection Methods 0.000 description 1
- 230000000694 effects Effects 0.000 description 1
- 239000000463 material Substances 0.000 description 1
- 238000005259 measurement Methods 0.000 description 1
- 238000002715 modification method Methods 0.000 description 1
- 238000003032 molecular docking Methods 0.000 description 1
- 238000003199 nucleic acid amplification method Methods 0.000 description 1
- 230000008520 organization Effects 0.000 description 1
- 229920001690 polydopamine Polymers 0.000 description 1
- 229910052709 silver Inorganic materials 0.000 description 1
- 239000004332 silver Substances 0.000 description 1
- -1 silver halide Chemical class 0.000 description 1
- 230000003595 spectral effect Effects 0.000 description 1
- 230000000007 visual effect Effects 0.000 description 1
Images
Classifications
-
- G—PHYSICS
- G06—COMPUTING; CALCULATING OR COUNTING
- G06T—IMAGE DATA PROCESSING OR GENERATION, IN GENERAL
- G06T5/00—Image enhancement or restoration
- G06T5/73—Deblurring; Sharpening
-
- G—PHYSICS
- G06—COMPUTING; CALCULATING OR COUNTING
- G06T—IMAGE DATA PROCESSING OR GENERATION, IN GENERAL
- G06T5/00—Image enhancement or restoration
- G06T5/50—Image enhancement or restoration using two or more images, e.g. averaging or subtraction
-
- G—PHYSICS
- G06—COMPUTING; CALCULATING OR COUNTING
- G06T—IMAGE DATA PROCESSING OR GENERATION, IN GENERAL
- G06T2207/00—Indexing scheme for image analysis or image enhancement
- G06T2207/10—Image acquisition modality
- G06T2207/10024—Color image
Landscapes
- Physics & Mathematics (AREA)
- General Physics & Mathematics (AREA)
- Engineering & Computer Science (AREA)
- Theoretical Computer Science (AREA)
- Image Processing (AREA)
- Color Television Image Signal Generators (AREA)
Description
(a) カラー画素とパンクロマティック画素との両方を有する二次元センサ・アレイを使用してシーンの画像を捕捉するステップ;
(b) 捕捉されたカラー画素に応答してフルカラー画像を形成し、該捕捉されたパンクロマティック画素に応答して基準パンクロマティック画像を形成するステップ;
(c) 該基準パンクロマティック画像から高周波数パンクロマティック画像を形成するステップ;そして
(d) 該高周波数パンクロマティック画像及び該フルカラー画像に応答して、鮮鋭化されたフルカラー画像を提供するステップ
を含んで成るシーンのフルカラー画像を鮮鋭化する方法によって達成される。
112 マイクロプロセッサをベースとするユニット
114 ディスプレイ
116 キーボード
118 マウス
120 ディスプレイ上のセレクタ
122 ディスク・ドライブ・ユニット
124 コンパクトディスク読み出し専用メモリ(CD−ROM)
126 フロッピー(登録商標)ディスク
127 ネットワーク接続
128 プリンタ
130 パーソナルコンピュータ・カード(PCカード)
132 PCカードリーダ
134 デジタルカメラ
136 カメラ・ドッキング・ポート
138 ケーブル接続
140 ワイヤレス接続
200 RGBP CFA画像
202 パンクロマティック画像補間
204 基準パンクロマティック画像
206 RGB CFA画像補間
208 フルカラー画像
210 高周波数パンクロマティック画像生成
212 高周波数パンクロマティック画像
214 鮮鋭化されたフルカラー画像生成
216 鮮鋭化されたフルカラー画像
218 高周波数パンクロマティック画像生成
220 高周波数パンクロマティック画像
222 高周波数パンクロマティック画像変更
224 変更された高周波数パンクロマティック画像
226 鮮鋭化されたフルカラー画像生成
228 鮮鋭化されたフルカラー画像

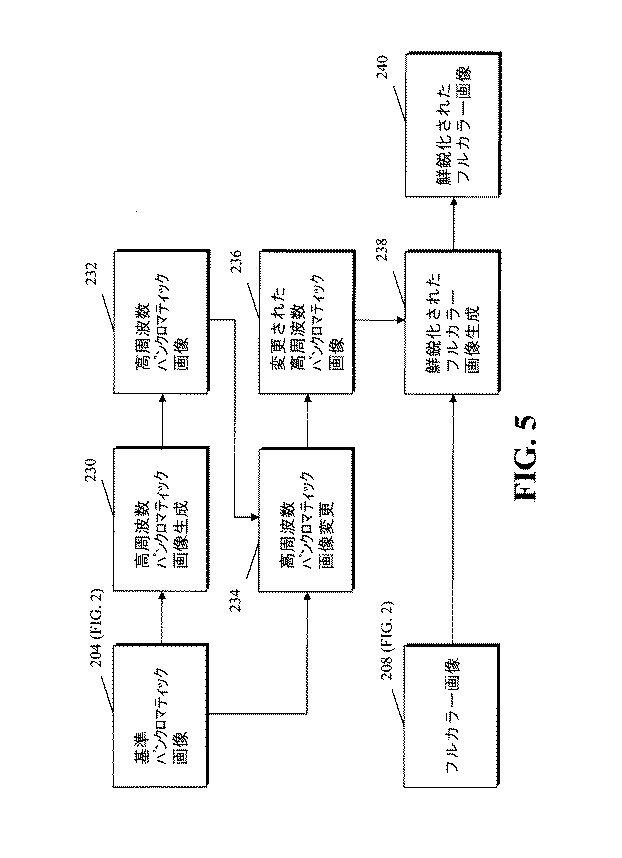

230 高周波数パンクロマティック画像生成
232 高周波数パンクロマティック画像
234 高周波数パンクロマティック画像変更
236 変更された高周波数パンクロマティック画像
238 鮮鋭化されたフルカラー画像生成
240 鮮鋭化されたフルカラー画像
242 エッジ・マスク生成
244 エッジ・マスク
246 高周波数パンクロマティック画像スケーリング
248 エッジ・マスク生成
250 エッジ・マスク
252 高周波数パンクロマティック画像スケーリング
254 スケーリングされた高周波数パンクロマティック画像
256 コアリング
258 エッジ・マスク生成
260 エッジ・マスク
262 コアリング
264 コアリングされたエッジ・マスク
266 高周波数パンクロマティック画像スケーリング
268 エッジ・マスク生成
270 エッジ・マスク
272 高周波数パンクロマティック画像スケーリング
274 コアリング
276 コアリングされた高周波数パンクロマティック画像
278 基準パンクロマティック画像を変更
280 変更された基準パンクロマティック画像
282 高周波数パンクロマティック画像を計算
284 高周波数パンクロマティック画像
286 コアリング
288 低周波数パンクロマティック画像を計算
290 低周波数パンクロマティック画像
292 コアリングされた高周波数パンクロマティック画像
294 変更された基準パンクロマティック画像を生成
296 基準パンクロマティック画像を変更
298 変更された基準パンクロマティック画像
300 低周波数パンクロマティック画像を計算
302 低周波数パンクロマティック画像
304 変更された基準パンクロマティック画像を生成
306 高周波数パンクロマティック画像を計算
308 高周波数パンクロマティック画像
310 高周波数パンクロマティック画像をマスキング
312 エッジ・マスクを生成
314 エッジ・マスク
316 マスキングされた高周波数パンクロマティック画像
318 基準パンクロマティック画像を変更
320 変更された基準パンクロマティック画像
322 フォトメトリック空間変換
324 変更された基準パンクロマティック画像
326 変更された基準パンクロマティック画像
328 変更された基準パンクロマティック画像
Claims (3)
- (a) カラー画素とパンクロマティック画素との両方を有する二次元センサ・アレイを使用してシーンの画像を捕捉するステップと、
(b) 捕捉されたカラー画素に応答してフルカラー画像を形成し、該捕捉されたパンクロマティック画素に応答して基準パンクロマティック画像を形成するステップと、
(c) 該基準パンクロマティック画像から高周波数パンクロマティック画像を形成するステップと、
(d) 該基準パンクロマティック画像から生成されたエッジ・マスクを使用することにより該高周波数パンクロマティック画像を変更するステップと、
(e) 該高周波数パンクロマティック画像及び該フルカラー画像に応答して、鮮鋭化されたフルカラー画像を提供するステップと
を含む、シーンのフルカラー画像を鮮鋭化する方法。 - 該エッジ・マスクを使用して該高周波数パンクロマティック画像をスケーリングして、変更された高周波数パンクロマティック画像を生成することをさらに含む、請求項1に記載の方法。
- 該変更が、該高周波数パンクロマティック画像をコアリングすることをさらに含む、請求項1に記載の方法。
Applications Claiming Priority (3)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
US11/621,139 US7769241B2 (en) | 2007-01-09 | 2007-01-09 | Method of sharpening using panchromatic pixels |
US11/621,139 | 2007-01-09 | ||
PCT/US2007/025355 WO2008085248A2 (en) | 2007-01-09 | 2007-12-12 | Method of sharpening using panchromatic pixels |
Publications (3)
Publication Number | Publication Date |
---|---|
JP2010516176A JP2010516176A (ja) | 2010-05-13 |
JP2010516176A5 JP2010516176A5 (ja) | 2011-08-04 |
JP5260552B2 true JP5260552B2 (ja) | 2013-08-14 |
Family
ID=39585115
Family Applications (1)
Application Number | Title | Priority Date | Filing Date |
---|---|---|---|
JP2009545537A Active JP5260552B2 (ja) | 2007-01-09 | 2007-12-12 | パンクロマティック画素を使用した鮮鋭化方法 |
Country Status (5)
Country | Link |
---|---|
US (1) | US7769241B2 (ja) |
EP (1) | EP2102815B1 (ja) |
JP (1) | JP5260552B2 (ja) |
TW (1) | TWI430202B (ja) |
WO (1) | WO2008085248A2 (ja) |
