EP1777458A1 - Improvement of the performances of a combustion chamber by multiperforating the walls - Google Patents

Improvement of the performances of a combustion chamber by multiperforating the walls Download PDF

Info

Publication number
EP1777458A1
EP1777458A1 EP06120816A EP06120816A EP1777458A1 EP 1777458 A1 EP1777458 A1 EP 1777458A1 EP 06120816 A EP06120816 A EP 06120816A EP 06120816 A EP06120816 A EP 06120816A EP 1777458 A1 EP1777458 A1 EP 1777458A1
Authority
EP
European Patent Office
Prior art keywords
holes
wall
cooling
combustion chamber
bores
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Granted
Application number
EP06120816A
Other languages
German (de)
French (fr)
Other versions
EP1777458B1 (en
Inventor
Daniel Bernier
Jean-Michel Campion
Stéphane Touchaud
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Safran Aircraft Engines SAS
Original Assignee
SNECMA SAS
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by SNECMA SAS filed Critical SNECMA SAS
Publication of EP1777458A1 publication Critical patent/EP1777458A1/en
Application granted granted Critical
Publication of EP1777458B1 publication Critical patent/EP1777458B1/en
Active legal-status Critical Current
Anticipated expiration legal-status Critical

Links

Images

Classifications

    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F23—COMBUSTION APPARATUS; COMBUSTION PROCESSES
    • F23R—GENERATING COMBUSTION PRODUCTS OF HIGH PRESSURE OR HIGH VELOCITY, e.g. GAS-TURBINE COMBUSTION CHAMBERS
    • F23R3/00—Continuous combustion chambers using liquid or gaseous fuel
    • F23R3/002—Wall structures
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F23—COMBUSTION APPARATUS; COMBUSTION PROCESSES
    • F23R—GENERATING COMBUSTION PRODUCTS OF HIGH PRESSURE OR HIGH VELOCITY, e.g. GAS-TURBINE COMBUSTION CHAMBERS
    • F23R3/00—Continuous combustion chambers using liquid or gaseous fuel
    • F23R3/02—Continuous combustion chambers using liquid or gaseous fuel characterised by the air-flow or gas-flow configuration
    • F23R3/04—Air inlet arrangements
    • F23R3/06—Arrangement of apertures along the flame tube
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F23—COMBUSTION APPARATUS; COMBUSTION PROCESSES
    • F23R—GENERATING COMBUSTION PRODUCTS OF HIGH PRESSURE OR HIGH VELOCITY, e.g. GAS-TURBINE COMBUSTION CHAMBERS
    • F23R2900/00—Special features of, or arrangements for continuous combustion chambers; Combustion processes therefor
    • F23R2900/03041—Effusion cooled combustion chamber walls or domes
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F23—COMBUSTION APPARATUS; COMBUSTION PROCESSES
    • F23R—GENERATING COMBUSTION PRODUCTS OF HIGH PRESSURE OR HIGH VELOCITY, e.g. GAS-TURBINE COMBUSTION CHAMBERS
    • F23R2900/00—Special features of, or arrangements for continuous combustion chambers; Combustion processes therefor
    • F23R2900/03042—Film cooled combustion chamber walls or domes

Definitions

  • the present invention relates to the general field of turbomachine combustion chambers. It relates more particularly to an annular wall for combustion chamber cooled by a so-called "multiperforation" process.
  • annular turbomachine combustion chamber is formed of an inner annular wall and an outer annular wall which are connected upstream by a transverse wall forming a chamber bottom.
  • the inner and outer walls are each provided with a plurality of holes and various orifices allowing air circulating around the combustion chamber to penetrate inside thereof.
  • so-called “primary” and “dilution” holes are formed in these walls to convey air inside the combustion chamber.
  • the air passing through the primary holes helps to create an air / fuel mixture that is burned in the chamber, while the air from the dilution holes is intended to promote the dilution of the same air / fuel mixture.
  • the inner and outer walls which are generally metallic, are subject to the high temperatures of the gases from the combustion of the air / fuel mixture.
  • additional holes called multiperforation holes are also drilled through the walls over their entire surface. These multiperforation holes allow the air circulating outside the chamber to penetrate inside thereof by forming along the walls of the cooling air films.
  • the main object of the present invention is therefore to overcome such drawbacks by proposing an annular wall of a combustion chamber provided with additional bores intended to cool the zones situated directly downstream of the primary and dilution holes.
  • annular wall of a turbomachine combustion chamber having a cold side and a hot side, the wall being provided with a plurality of primary holes and dilution holes to allow circulating air the cold side of the wall to enter the hot side to respectively provide combustion and dilution of an air / fuel mixture, the primary holes and the dilution holes being distributed in circumferential rows, and a plurality of cooling orifices for allowing the air flowing from the cold side of the wall to enter the warm side to form a cooling air film along said wall, the cooling orifices being distributed in a plurality of circumferential rows; axially spaced from each other, the number of cooling orifices being identical in each row, characterized in that it further comprises a plurality of of bores arranged directly downstream of the primary holes and the dilution holes and distributed in circumferential rows, the bores of the same row having a substantially identical diameter, being spaced at a constant pitch and having intrinsic characteristics different from those of the cooling holes of adjacent
  • intrinsic characteristics of the holes we mean the number, the inclination and the diameter of these holes.
  • the presence of holes having intrinsic characteristics different from those of the cooling orifices and arranged directly downstream of the primary and dilution holes makes it possible to ensure efficient cooling of these zones. Any risk of formation of cracks is thus avoided.
  • the specific holes are distributed in circumferential rows, have the same diameter and are spaced a constant pitch which greatly facilitates the drilling operations and thus reduces the costs and manufacturing time of the wall.
  • the number of holes in the same row may be different from the number of cooling orifices of the adjacent rows.
  • the inclination of the bores of the same row relative to a normal to the wall may be different from that of the cooling orifices of adjacent rows.
  • the diameter of the bores of the same row may be different from that of the cooling holes of adjacent rows.
  • the present invention also relates to a combustion chamber and a turbomachine (having a combustion chamber) comprising an annular wall as defined above.
  • FIG. 1 illustrates a combustion chamber for a turbomachine.
  • a turbomachine comprises in particular a compression section (not shown) in which air is compressed before being injected into a chamber housing 2, then into a combustion chamber 4 mounted inside thereof.
  • Compressed air is introduced into the combustion chamber and mixed with fuel before being burned.
  • the gases resulting from this combustion are then directed to a high-pressure turbine 5 disposed at the outlet of the combustion chamber 4.
  • the combustion chamber 4 is of annular type. It is formed of an inner annular wall 6 and an outer annular wall 8 which are connected upstream by a transverse wall 10 forming a chamber bottom.
  • the inner 6 and outer 8 walls extend along a longitudinal axis X-X slightly inclined relative to the longitudinal axis Y-Y of the turbomachine.
  • the chamber bottom 10 is provided with a plurality of openings 12 in which fuel injectors 14 are mounted.
  • the chamber casing 2 which is formed of an inner casing 2a and an outer casing 2b, furnishes with the combustion chamber 4 an annular space 16 in which compressed air for combustion is admitted to the chamber. dilution and cooling of the chamber.
  • the inner 6 and outer 8 walls each have a cold side 6a, 8a disposed on the side of the annular space 16 in which the compressed air circulates and a hot side 6b, 8b facing the inside of the combustion chamber 4 ( Figure 3).
  • the combustion chamber 4 is divided into a so-called “primary” zone (or combustion zone) and a so-called “secondary” zone (or dilution zone) located downstream of the previous one (the downstream means with respect to the general direction of flow of gases from the combustion of the air / fuel mixture inside the combustion chamber).
  • the air which supplies the primary zone of the combustion chamber 4 is introduced by one or more circumferential rows of primary holes 18 made in the inner and outer walls 6 of the chamber.
  • the air supplying the secondary zone of the chamber it borrows a plurality of dilution holes 20 also formed in the inner 6 and outer 8 walls. These dilution holes 20 are aligned in one or more circumferential rows which are axially offset. downstream from the rows of primary holes 18.
  • the primary holes 18 and the dilution holes 20 are distributed on the inner 6 and outer 8 walls in rows extending over the entire circumference of the walls.
  • a plurality of cooling orifices 22 are provided (FIGS. 2 and 3).
  • These orifices 22, which provide a cooling of the walls 6, 8 by multiperforation, are distributed in a plurality of circumferential rows spaced axially from each other. These rows of multiperforation holes cover almost the entire surface of the walls 6, 8 of the chamber.
  • the number and the diameter d1 of the cooling orifices 22 are identical in each of the rows.
  • the pitch p1 between two orifices 22 of the same row is also identical throughout the row.
  • the adjacent rows of cooling orifices are arranged so that the orifices 22 are arranged in staggered rows as shown in FIG.
  • the cooling orifices 22 generally have an angle of inclination ⁇ with respect to a normal N to the annular wall 6, 8 through which they are pierced.
  • This inclination ⁇ allows the air passing through these orifices to form a film of air along the hot side 6b, 8b of the annular wall 6, 8.
  • it also makes it possible to increase the surface area. of the annular wall which is cooled.
  • the inclination ⁇ of the cooling orifices 22 is directed so that the film of air thus formed flows in the direction of flow of the combustion gases inside the chamber (shown schematically by the arrow on Figure 3).
  • the diameter d 1 of the cooling orifices 22 may be between 0.3 and 1. mm, the pitch p1 between 1 and 10 mm and their inclination ⁇ between -80 ° and + 80 °.
  • primary holes 18 and the dilution holes 20 have a diameter of the order of 5 to 20 mm.
  • each annular wall 6, 8 of the combustion chamber further comprises a plurality of bores 24 which are arranged directly downstream of the primary holes 18 and dilution 20 and which are distributed in circumferential rows.
  • the bores 24 of the same row have a substantially identical diameter d2 , are spaced at a constant pitch P2 and have intrinsic characteristics different from those of the cooling orifices 22 of adjacent rows.
  • these holes 24 are thus distributed in one or more rows (for example from 1 to 3 rows) which are arranged directly downstream of said hole 18, 20.
  • the intrinsic characteristics of these holes 24 are different from those of the cooling orifices 22, that is to say that the number of holes in the same row is different from that of a row of cooling orifices, and / or or the inclination of the bores of the same row with respect to a normal N to the wall 6, 8 is different from that of the cooling orifices, and / or the diameter d2 of the bores of the same row is different from that of d1 22. It should be noted that these three intrinsic characteristics of the holes 24 can be added.
  • the number of bores 24 on the same row may be, over the entire circumference of the wall, of the order of 860 when the number of cooling orifices 22 is of the order of 576. .
  • the inclination of the bores 24 relative to a normal to the walls 6, 8 is zero (that is to say that the bores are substantially perpendicular to the walls), while the inclination ⁇ of the cooling orifices 22 with respect to this same normal is between 30 ° and 70 °.
  • the bores 24 of the same row have an identical diameter d2 and are spaced by a constant pitch p2 .
  • Such holes are typically made by laser using a machine programmed according to the position of each of the holes to be made.
  • the characteristics of the holes according to the invention make it possible, with respect to a localized treatment (for which the bores are made only in the direct vicinity of each of the primary and dilution holes), to considerably simplify the programming of the machine, and thus to reduce the costs and manufacturing delays.

Landscapes

  • Engineering & Computer Science (AREA)
  • Chemical & Material Sciences (AREA)
  • Combustion & Propulsion (AREA)
  • Mechanical Engineering (AREA)
  • General Engineering & Computer Science (AREA)
  • Turbine Rotor Nozzle Sealing (AREA)

Abstract

The annular wall (6-8) for turbomachine combustion chambers has circumferential rows of primary air inlets (18) and dilution inlets (20). The wall is covered with circumferential rows of cooling inlets (22) which are smaller than the other inlets and are arranged in circumferential rows with an equal number of inlets. There is a row of larger cooling inlets (24) immediately downstream from the primary and dilution inlets. An independent claim is included for turbomachines fitted with the wall.

Description

Arrière-plan de l'inventionBackground of the invention

La présente invention se rapporte au domaine général des chambres de combustion de turbomachine. Elle vise plus particulièrement une paroi annulaire pour chambre de combustion refroidie par un procédé dit de « multiperforation ».The present invention relates to the general field of turbomachine combustion chambers. It relates more particularly to an annular wall for combustion chamber cooled by a so-called "multiperforation" process.

Typiquement, une chambre de combustion annulaire de turbomachine est formée d'une paroi annulaire interne et d'une paroi annulaire externe qui sont reliées en amont par une paroi transversale formant fond de chambre.Typically, an annular turbomachine combustion chamber is formed of an inner annular wall and an outer annular wall which are connected upstream by a transverse wall forming a chamber bottom.

Les parois interne et externe sont chacune pourvues d'une pluralité de trous et d'orifices divers permettant à de l'air circulant autour de la chambre de combustion de pénétrer à l'intérieur de celle-ci.The inner and outer walls are each provided with a plurality of holes and various orifices allowing air circulating around the combustion chamber to penetrate inside thereof.

Ainsi, des trous dits « primaires » et « de dilution » sont formés dans ces parois pour acheminer de l'air à l'intérieur de la chambre de combustion. L'air empruntant les trous primaires contribue à créer un mélange air/carburant qui est brûlé dans la chambre, tandis que l'air provenant des trous de dilution est destiné à favoriser la dilution de ce même mélange air/carburant.Thus, so-called "primary" and "dilution" holes are formed in these walls to convey air inside the combustion chamber. The air passing through the primary holes helps to create an air / fuel mixture that is burned in the chamber, while the air from the dilution holes is intended to promote the dilution of the same air / fuel mixture.

Les parois interne et externe, qui sont généralement métalliques, sont soumises aux températures élevées des gaz provenant de la combustion du mélange air/carburant. Afin d'assurer leur refroidissement, des orifices supplémentaires dits de multiperforation sont également percés au travers des parois sur toute leur surface. Ces orifices de multiperforation permettent à l'air circulant à l'extérieur de la chambre de pénétrer à l'intérieur de celle-ci en formant le long des parois des films d'air de refroidissement.The inner and outer walls, which are generally metallic, are subject to the high temperatures of the gases from the combustion of the air / fuel mixture. To ensure their cooling, additional holes called multiperforation holes are also drilled through the walls over their entire surface. These multiperforation holes allow the air circulating outside the chamber to penetrate inside thereof by forming along the walls of the cooling air films.

En pratique, il a été constaté que la zone des parois interne et externe qui est située directement en aval de chacun des trous primaires et de dilution bénéficie d'un faible niveau refroidissement avec le risque de formation de criques que cela implique.In practice, it has been found that the area of the inner and outer walls which is located directly downstream of each of the primary and dilution holes has a low cooling level with the risk of formation of cracks that implies.

Afin de résoudre ce problème, le document US 6,145,319 propose de pratiquer des trous de transition dans la zone des parois située directement en aval de chacun des trous primaires et de dilution, ces trous de transition ayant une inclinaison plus importante que celle des orifices de multiperforation. Etant donné qu'il s'agit d'un traitement localisé, cette proposition est cependant particulièrement onéreuse à réaliser et augmente la durée de fabrication.In order to solve this problem, the document US 6,145,319 proposes to make transition holes in the wall zone located directly downstream of each of the primary and dilution holes, these transition holes having a greater inclination than that of the multiperforation orifices. Since this is a spot treatment, this proposal is however particularly expensive to achieve and increases the manufacturing time.

Objet et résumé de l'inventionObject and summary of the invention

La présente invention a donc pour but principal de pallier de tels inconvénients en proposant une paroi annulaire de chambre de combustion munie de perçages supplémentaires destinés à refroidir les zones situées directement en aval des trous primaires et de dilution.The main object of the present invention is therefore to overcome such drawbacks by proposing an annular wall of a combustion chamber provided with additional bores intended to cool the zones situated directly downstream of the primary and dilution holes.

A cet effet, il est prévu une paroi annulaire de chambre de combustion de turbomachine, comportant un côté froid et un côté chaud, la paroi étant munie d'une pluralité de trous primaires et de trous de dilution pour permettre à de l'air circulant du côté froid de la paroi de pénétrer du côté chaud afin d'assurer respectivement la combustion et la dilution d'un mélange air/carburant, les trous primaires et les trous de dilution étant répartis selon des rangées circonférentielles, et d'une pluralité d'orifices de refroidissement pour permettre à l'air circulant du côté froid de la paroi de pénétrer du côté chaud afin de former un film d'air de refroidissement le long de ladite paroi, les orifices de refroidissement étant répartis selon une pluralité de rangées circonférentielles espacées axialement les unes des autres, le nombre d'orifices de refroidissement étant identique dans chaque rangée, caractérisée en ce qu'elle comporte en outre une pluralité de perçages disposés directement en aval des trous primaires et des trous de dilution et répartis selon des rangées circonférentielles, les perçages d'une même rangée présentant un diamètre sensiblement identique, étant espacé d'un pas constant et présentant des caractéristiques intrinsèques différentes de celles des orifices de refroidissement des rangées adjacentes.For this purpose, there is provided an annular wall of a turbomachine combustion chamber, having a cold side and a hot side, the wall being provided with a plurality of primary holes and dilution holes to allow circulating air the cold side of the wall to enter the hot side to respectively provide combustion and dilution of an air / fuel mixture, the primary holes and the dilution holes being distributed in circumferential rows, and a plurality of cooling orifices for allowing the air flowing from the cold side of the wall to enter the warm side to form a cooling air film along said wall, the cooling orifices being distributed in a plurality of circumferential rows; axially spaced from each other, the number of cooling orifices being identical in each row, characterized in that it further comprises a plurality of of bores arranged directly downstream of the primary holes and the dilution holes and distributed in circumferential rows, the bores of the same row having a substantially identical diameter, being spaced at a constant pitch and having intrinsic characteristics different from those of the cooling holes of adjacent rows.

Par caractéristiques intrinsèques des perçages, on entend le nombre, l'inclinaison et le diamètre de ces perçages. La présence de perçages ayant des caractéristiques intrinsèques différentes de celles des orifices de refroidissement et disposés directement en aval des trous primaires et de dilution permet d'assurer un refroidissement efficace de ces zones. Tout risque de formation de criques est ainsi évité. En outre, les perçages spécifiques sont répartis selon des rangées circonférentielles, présentent un même diamètre et sont espacés d'un pas constant ce qui facilite grandement les opérations de perçage et réduit donc les coûts et les délais de fabrication de la paroi.By intrinsic characteristics of the holes, we mean the number, the inclination and the diameter of these holes. The presence of holes having intrinsic characteristics different from those of the cooling orifices and arranged directly downstream of the primary and dilution holes makes it possible to ensure efficient cooling of these zones. Any risk of formation of cracks is thus avoided. In addition, the specific holes are distributed in circumferential rows, have the same diameter and are spaced a constant pitch which greatly facilitates the drilling operations and thus reduces the costs and manufacturing time of the wall.

Selon un mode de réalisation de l'invention, le nombre de perçages d'une même rangée peut être différent du nombre d'orifices de refroidissement des rangées adjacentes.According to one embodiment of the invention, the number of holes in the same row may be different from the number of cooling orifices of the adjacent rows.

Selon un autre mode de réalisation de l'invention, l'inclinaison des perçages d'une même rangée par rapport à une normale à la paroi peut être différente de celle des orifices de refroidissement des rangées adjacentes.According to another embodiment of the invention, the inclination of the bores of the same row relative to a normal to the wall may be different from that of the cooling orifices of adjacent rows.

Selon encore un autre mode de réalisation de l'invention, le diamètre des perçages d'une même rangée peut être différent de celui des orifices de refroidissement des rangées adjacentes.According to yet another embodiment of the invention, the diameter of the bores of the same row may be different from that of the cooling holes of adjacent rows.

La présente invention a également pour objet une chambre de combustion et une turbomachine (ayant une chambre de combustion) comportant une paroi annulaire telle que définie précédemment.The present invention also relates to a combustion chamber and a turbomachine (having a combustion chamber) comprising an annular wall as defined above.

Brève description des dessinsBrief description of the drawings

D'autres caractéristiques et avantages de la présente invention ressortiront de la description faite ci-dessous, en référence aux dessins annexés qui en illustrent un exemple de réalisation dépourvu de tout caractère limitatif. Sur les figures :

  • la figure 1 est une vue en coupe longitudinale d'une chambre de combustion de turbomachine dans son environnement ;
  • la figure 2 est une vue partielle et en développé de l'une des parois annulaires de la chambre de combustion de la figure 1 selon un mode de réalisation de l'invention ; et
  • la figure 3 est une vue en coupe selon III-III de la figure 2.
Other features and advantages of the present invention will emerge from the description given below, with reference to the accompanying drawings which illustrate an embodiment having no limiting character. In the figures:
  • Figure 1 is a longitudinal sectional view of a turbomachine combustion chamber in its environment;

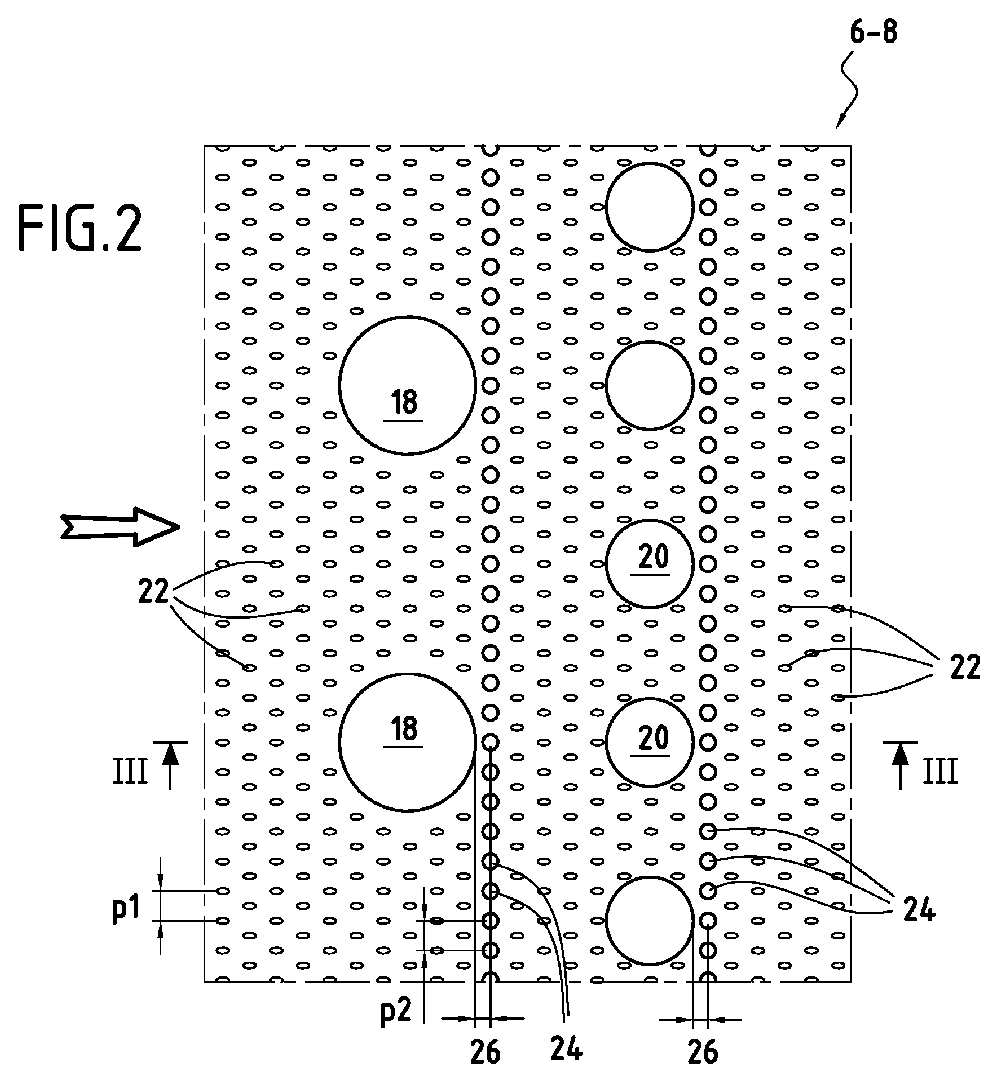

  • Figure 2 is a partial view in developed of one of the annular walls of the combustion chamber of Figure 1 according to one embodiment of the invention; and
  • Figure 3 is a sectional view along III-III of Figure 2.

Description détaillée d'un mode de réalisationDetailed description of an embodiment

La figure 1 illustre une chambre de combustion pour turbomachine. Une telle turbomachine comporte notamment une section de compression (non représentée) dans laquelle de l'air est comprimé avant d'être injecté dans un carter de chambre 2, puis dans une chambre de combustion 4 montée à l'intérieur de celui-ci.FIG. 1 illustrates a combustion chamber for a turbomachine. Such a turbomachine comprises in particular a compression section (not shown) in which air is compressed before being injected into a chamber housing 2, then into a combustion chamber 4 mounted inside thereof.

L'air comprimé est introduit dans la chambre de combustion et mélangé à du carburant avant d'y être brûlé. Les gaz issus de cette combustion sont alors dirigés vers une turbine haute-pression 5 disposée en sortie de la chambre de combustion 4.Compressed air is introduced into the combustion chamber and mixed with fuel before being burned. The gases resulting from this combustion are then directed to a high-pressure turbine 5 disposed at the outlet of the combustion chamber 4.

La chambre de combustion 4 est de type annulaire. Elle est formée d'une paroi annulaire interne 6 et d'une paroi annulaire externe 8 qui sont réunies en amont par une paroi transversale 10 formant fond de chambre.The combustion chamber 4 is of annular type. It is formed of an inner annular wall 6 and an outer annular wall 8 which are connected upstream by a transverse wall 10 forming a chamber bottom.

Les parois interne 6 et externe 8 s'étendent selon un axe longitudinal X-X légèrement incliné par rapport à l'axe longitudinal Y-Y de la turbomachine. Le fond de chambre 10 est pourvu d'une pluralité d'ouvertures 12 dans lesquelles sont montés des injecteurs de carburant 14.The inner 6 and outer 8 walls extend along a longitudinal axis X-X slightly inclined relative to the longitudinal axis Y-Y of the turbomachine. The chamber bottom 10 is provided with a plurality of openings 12 in which fuel injectors 14 are mounted.

Le carter de chambre 2, qui est formé d'une enveloppe interne 2a et d'une enveloppe externe 2b, ménage avec la chambre de combustion 4 un espace annulaire 16 dans lequel est admis de l'air comprimé destiné à la combustion, à la dilution et au refroidissement de la chambre.The chamber casing 2, which is formed of an inner casing 2a and an outer casing 2b, furnishes with the combustion chamber 4 an annular space 16 in which compressed air for combustion is admitted to the chamber. dilution and cooling of the chamber.

Les parois interne 6 et externe 8 présentent chacune un côté froid 6a, 8a disposé du côté de l'espace annulaire 16 dans lequel circule l'air comprimé et un côté chaud 6b, 8b tourné vers l'intérieur de la chambre de combustion 4 (figure 3).The inner 6 and outer 8 walls each have a cold side 6a, 8a disposed on the side of the annular space 16 in which the compressed air circulates and a hot side 6b, 8b facing the inside of the combustion chamber 4 ( Figure 3).

La chambre de combustion 4 se divise en une zone dite « primaire » (ou zone de combustion) et une zone dite « secondaire » (ou zone de dilution) située en aval de la précédente (l'aval s'entend par rapport à la direction générale d'écoulement des gaz issus de la combustion du mélange air/carburant à l'intérieur de la chambre de combustion).The combustion chamber 4 is divided into a so-called "primary" zone (or combustion zone) and a so-called "secondary" zone (or dilution zone) located downstream of the previous one (the downstream means with respect to the general direction of flow of gases from the combustion of the air / fuel mixture inside the combustion chamber).

L'air qui alimente la zone primaire de la chambre de combustion 4 est introduit par une ou plusieurs rangées circonférentielles de trous primaires 18 pratiqués dans les parois interne 6 et externe 8 de la chambre. Quant à l'air alimentant la zone secondaire de la chambre, il emprunte une pluralité de trous de dilution 20 également formés dans les parois interne 6 et externe 8. Ces trous de dilution 20 sont alignés selon une ou plusieurs rangées circonférentielles qui sont décalées axialement vers l'aval par rapport aux rangées des trous primaires 18.The air which supplies the primary zone of the combustion chamber 4 is introduced by one or more circumferential rows of primary holes 18 made in the inner and outer walls 6 of the chamber. As for the air supplying the secondary zone of the chamber, it borrows a plurality of dilution holes 20 also formed in the inner 6 and outer 8 walls. These dilution holes 20 are aligned in one or more circumferential rows which are axially offset. downstream from the rows of primary holes 18.

Les trous primaires 18 et les trous de dilution 20 sont répartis sur les parois interne 6 et externe 8 selon des rangées s'étendant sur toute la circonférence des parois.The primary holes 18 and the dilution holes 20 are distributed on the inner 6 and outer 8 walls in rows extending over the entire circumference of the walls.

Afin de refroidir les parois interne 6 et externe 8 de la chambre de combustion qui sont soumises aux températures élevées des gaz de combustion, il est prévu une pluralité d'orifices de refroidissement 22 (figures 2 et 3).In order to cool the inner 6 and outer 8 walls of the combustion chamber which are subjected to the high temperatures of the combustion gases, a plurality of cooling orifices 22 are provided (FIGS. 2 and 3).

Ces orifices 22, qui assurent un refroidissement des parois 6, 8 par multiperforation, sont répartis selon une pluralité de rangées circonférentielles espacées axialement les unes des autres. Ces rangées d'orifices de multiperforation couvrent presque toute la surface des parois 6, 8 de la chambre.These orifices 22, which provide a cooling of the walls 6, 8 by multiperforation, are distributed in a plurality of circumferential rows spaced axially from each other. These rows of multiperforation holes cover almost the entire surface of the walls 6, 8 of the chamber.

Le nombre et le diamètre d1 des orifices de refroidissement 22 sont identiques dans chacune des rangées. Le pas p1 entre deux orifices 22 d'une même rangée est également identique sur toute la rangée. Par ailleurs, les rangées adjacentes d'orifices de refroidissement sont arrangées de façon à ce que les orifices 22 soient disposés en quinconce comme représenté sur la figure 1.The number and the diameter d1 of the cooling orifices 22 are identical in each of the rows. The pitch p1 between two orifices 22 of the same row is also identical throughout the row. Moreover, the adjacent rows of cooling orifices are arranged so that the orifices 22 are arranged in staggered rows as shown in FIG.

Comme illustré sur la figure 3, les orifices de refroidissement 22 présentent généralement un angle d'inclinaison α par rapport à une normale N à la paroi annulaire 6, 8 au travers de laquelle ils sont percés. Cette inclinaison α permet à l'air empruntant ces orifices de former un film d'air le long du côté chaud 6b, 8b de la paroi annulaire 6, 8. Par rapport à des orifices non inclinés, elle permet également d'augmenter la surface de la paroi annulaire qui est refroidie.As illustrated in FIG. 3, the cooling orifices 22 generally have an angle of inclination α with respect to a normal N to the annular wall 6, 8 through which they are pierced. This inclination α allows the air passing through these orifices to form a film of air along the hot side 6b, 8b of the annular wall 6, 8. With respect to non-inclined orifices, it also makes it possible to increase the surface area. of the annular wall which is cooled.

En outre, l'inclinaison α des orifices de refroidissement 22 est dirigée de sorte que le film d'air ainsi formé s'écoule dans le sens d'écoulement des gaz de combustion à l'intérieur de la chambre (schématisé par la flèche sur la figure 3).In addition, the inclination α of the cooling orifices 22 is directed so that the film of air thus formed flows in the direction of flow of the combustion gases inside the chamber (shown schematically by the arrow on Figure 3).

A titre d'exemple, pour une paroi annulaire 6, 8 réalisée en matériau métallique ou céramique et ayant une épaisseur comprise entre 0,8 et 3,5mm, le diamètre d1 des orifices de refroidissement 22 peut être compris entre 0,3 et 1 mm, le pas p1 compris entre 1 et 10 mm et leur inclinaison α comprise entre -80° et +80°. A titre de comparaison, pour une paroi annulaire ayant les même caractéristiques, les trous primaires 18 et les trous de dilution 20 possèdent un diamètre de l'ordre de 5 à 20 mm.By way of example, for an annular wall 6, 8 made of metallic or ceramic material and having a thickness of between 0.8 and 3.5 mm, the diameter d 1 of the cooling orifices 22 may be between 0.3 and 1. mm, the pitch p1 between 1 and 10 mm and their inclination α between -80 ° and + 80 °. By way of comparison, for an annular wall having the same characteristics, primary holes 18 and the dilution holes 20 have a diameter of the order of 5 to 20 mm.

Selon l'invention, chaque paroi annulaire 6, 8 de la chambre de combustion comporte en outre une pluralité de perçages 24 qui sont disposés directement en aval des trous primaires 18 et de dilution 20 et qui sont répartis selon des rangées circonférentielles.According to the invention, each annular wall 6, 8 of the combustion chamber further comprises a plurality of bores 24 which are arranged directly downstream of the primary holes 18 and dilution 20 and which are distributed in circumferential rows.

Les perçages 24 d'une même rangée présentent un diamètre d2 sensiblement identique, sont espacés d'un pas p2 constant et présentent des caractéristiques intrinsèques différentes de celles des orifices de refroidissement 22 des rangées adjacentes.The bores 24 of the same row have a substantially identical diameter d2 , are spaced at a constant pitch P2 and have intrinsic characteristics different from those of the cooling orifices 22 of adjacent rows.

Pour chaque trou primaire 18 et de dilution 20, ces perçages 24 sont ainsi répartis selon une ou plusieurs rangées (par exemple de 1 à 3 rangées) qui sont disposées directement en aval dudit trou 18, 20.For each primary hole 18 and dilution hole 20, these holes 24 are thus distributed in one or more rows (for example from 1 to 3 rows) which are arranged directly downstream of said hole 18, 20.

Les caractéristiques intrinsèques de ces perçages 24 sont différentes de celles des orifices de refroidissement 22, c'est-à-dire que le nombre de perçages d'une même rangée est différent de celui d'une rangée d'orifices de refroidissement, et/ou l'inclinaison des perçages d'une même rangée par rapport à une normale N à la paroi 6, 8 est différente de celle des orifices de refroidissement, et/ou le diamètre d2 des perçages d'une même rangée est différent de celui d1 des orifices de refroidissement 22. Il est à noter que ces trois caractéristiques intrinsèques des perçages 24 peuvent s'additionner.The intrinsic characteristics of these holes 24 are different from those of the cooling orifices 22, that is to say that the number of holes in the same row is different from that of a row of cooling orifices, and / or or the inclination of the bores of the same row with respect to a normal N to the wall 6, 8 is different from that of the cooling orifices, and / or the diameter d2 of the bores of the same row is different from that of d1 22. It should be noted that these three intrinsic characteristics of the holes 24 can be added.

Ainsi, selon un exemple de réalisation, le nombre de perçages 24 sur une même rangée peut être, sur toute la circonférence de la paroi, de l'ordre de 860 lorsque le nombre d'orifices de refroidissement 22 est de l'ordre de 576.Thus, according to an exemplary embodiment, the number of bores 24 on the same row may be, over the entire circumference of the wall, of the order of 860 when the number of cooling orifices 22 is of the order of 576. .

Selon un autre exemple de réalisation illustré sur la figure 3, l'inclinaison des perçages 24 par rapport à une normale aux parois 6, 8 est nulle (c'est-à-dire que les perçages sont sensiblement perpendiculaires aux parois), tandis que l'inclinaison α des orifices de refroidissement 22 par rapport à cette même normale est comprise entre 30° et 70°.According to another exemplary embodiment illustrated in FIG. 3, the inclination of the bores 24 relative to a normal to the walls 6, 8 is zero (that is to say that the bores are substantially perpendicular to the walls), while the inclination α of the cooling orifices 22 with respect to this same normal is between 30 ° and 70 °.

Comme indiqué précédemment, les perçages 24 d'une même rangée présentent un diamètre d2 identique et sont espacés d'un pas p2 constant. De tels perçages sont typiquement réalisés au laser à l'aide d'une machine programmée en fonction de la position de chacun des perçages à réaliser. Aussi, les caractéristiques des perçages selon l'invention permettent, par rapport à un traitement localisé (pour lequel les perçages sont réalisés uniquement dans le voisinage direct de chacun des trous primaires et de dilution), de simplifier considérablement la programmation de la machine, et donc de réduire les coûts et les délais de fabrication.As indicated above, the bores 24 of the same row have an identical diameter d2 and are spaced by a constant pitch p2 . Such holes are typically made by laser using a machine programmed according to the position of each of the holes to be made. Also, the characteristics of the holes according to the invention make it possible, with respect to a localized treatment (for which the bores are made only in the direct vicinity of each of the primary and dilution holes), to considerably simplify the programming of the machine, and thus to reduce the costs and manufacturing delays.

Claims (6)

Paroi annulaire (6, 8) de chambre de combustion (4) de turbomachine, comportant un côté froid (6a, 8a) et un côté chaud (6b, 8b), ladite paroi étant munie : d'une pluralité de trous primaires (18) et de trous de dilution (20) pour permettre à de l'air circulant du côté froid (6a, 8a) de la paroi (6, 8) de pénétrer du côté chaud (6b, 8b) afin d'assurer respectivement la combustion et la dilution d'un mélange air/carburant, les trous primaires (18) et les trous de dilution (20) étant répartis selon des rangées circonférentielles ; et d'une pluralité d'orifices de refroidissement (22) pour permettre à l'air circulant du côté froid (6a, 8a) de la paroi (6, 8) de pénétrer du côté chaud (6b, 8b) afin de former un film d'air de refroidissement le long de ladite paroi, lesdits orifices de refroidissement (22) étant répartis selon une pluralité de rangées circonférentielles espacées axialement les unes des autres, le nombre d'orifices de refroidissement (22) étant identique dans chaque rangée ; caractérisée en ce qu'elle comporte en outre une pluralité de perçages (24) disposés directement en aval des trous primaires (18) et des trous de dilution (20) et répartis selon des rangées circonférentielles, les perçages (24) d'une même rangée présentant un diamètre (d2) sensiblement identique, étant espacé d'un pas (p2) constant et présentant des caractéristiques intrinsèques différentes de celles des orifices de refroidissement (22) des rangées adjacentes.Turbomachine combustion chamber (4) annular wall (6, 8) having a cold side (6a, 8a) and a hot side (6b, 8b), said wall being provided with: a plurality of primary holes (18) and dilution holes (20) to allow air flowing from the cold side (6a, 8a) of the wall (6, 8) to enter the hot side (6b, 8b) to respectively provide combustion and dilution of an air / fuel mixture, the primary holes (18) and the dilution holes (20) being distributed in circumferential rows; and a plurality of cooling orifices (22) for allowing the cold air (6a, 8a) of the wall (6, 8) to enter the warm side (6b, 8b) to form a film cooling air along said wall, said cooling orifices (22) being distributed in a plurality of circumferential rows axially spaced from one another, the number of cooling orifices (22) being identical in each row; characterized in that it further comprises a plurality of bores (24) arranged directly downstream of the primary holes (18) and dilution holes (20) and distributed in circumferential rows, the bores (24) of the same row having a substantially identical diameter ( d2 ) being spaced a constant pitch ( p2 ) and having intrinsic characteristics different from those of the cooling orifices (22) of adjacent rows. Paroi selon la revendication 1, dans laquelle le nombre de perçages (24) d'une même rangée est différent du nombre d'orifices de refroidissement (22) des rangées adjacentes.Wall according to claim 1, wherein the number of bores (24) in the same row is different from the number of cooling holes (22) of the adjacent rows. Paroi selon l'une des revendications 1 et 2, dans laquelle l'inclinaison des perçages (24) d'une même rangée par rapport à une normale (N) à la paroi est différente de celle des orifices de refroidissement (22) des rangées adjacentes.Wall according to one of claims 1 and 2, wherein the inclination of the bores (24) of the same row relative to a normal ( N ) to the wall is different from that of the cooling holes (22) rows adjacent. Paroi selon l'une quelconque des revendications 1 à 3, dans laquelle le diamètre (d2) des perçages (24) d'une même rangée est différent de celui des orifices de refroidissement (22) des rangées adjacentes.Wall according to any one of claims 1 to 3, wherein the diameter ( d2 ) of the bores (24) of the same row is different from that of the cooling holes (22) of adjacent rows. Chambre de combustion (4) de turbomachine, comportant au moins une paroi annulaire (6, 8) selon l'une quelconque des revendications 1 à 4.Turbomachine combustion chamber (4) having at least one annular wall (6, 8) according to one of Claims 1 to 4. Turbomachine comportant une chambre de combustion (4) ayant au moins une paroi annulaire (6, 8) selon l'une quelconque des revendications 1 à 4.Turbomachine comprising a combustion chamber (4) having at least one annular wall (6, 8) according to any one of Claims 1 to 4.
EP06120816.1A 2005-10-18 2006-09-18 Improvement of the performances of a combustion chamber by multiperforating the walls Active EP1777458B1 (en)

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
FR0510584A FR2892180B1 (en) 2005-10-18 2005-10-18 IMPROVING THE PERFOMANCE OF A COMBUSTION CHAMBER BY MULTIPERFORATING THE WALLS

Publications (2)

Publication Number Publication Date
EP1777458A1 true EP1777458A1 (en) 2007-04-25
EP1777458B1 EP1777458B1 (en) 2015-08-12

Family

ID=36263914

Family Applications (1)

Application Number Title Priority Date Filing Date
EP06120816.1A Active EP1777458B1 (en) 2005-10-18 2006-09-18 Improvement of the performances of a combustion chamber by multiperforating the walls

Country Status (4)

Country Link
US (1) US7748222B2 (en)
EP (1) EP1777458B1 (en)
FR (1) FR2892180B1 (en)
RU (1) RU2413134C2 (en)

Cited By (7)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
FR2922629A1 (en) * 2007-10-22 2009-04-24 Snecma Sa COMBUSTION CHAMBER WITH OPTIMIZED DILUTION AND TURBOMACHINE WHILE MUNIED
FR2974162A1 (en) * 2011-04-14 2012-10-19 Snecma Ferrule e.g. external ferrule, for flame tube of combustion chamber in turbomachine of aircraft, has three sets of bores, where third sets of bores are inclined opposite to air flow direction through ferrule from outer face of ferrule
FR2975465A1 (en) * 2011-05-19 2012-11-23 Snecma WALL FOR TURBOMACHINE COMBUSTION CHAMBER COMPRISING AN OPTIMIZED AIR INLET ORIFICE ARRANGEMENT
RU2478875C2 (en) * 2007-10-22 2013-04-10 Снекма Combustion chamber wall with optimised liquefaction and cooling; combustion chamber and gas turbine engine equipped with such wall
FR2981733A1 (en) * 2011-10-25 2013-04-26 Snecma AIRCRAFT TURBOMACHINE COMBUSTION CHAMBER MODULE AND METHOD FOR DESIGNING THE SAME
RU2584746C2 (en) * 2011-02-25 2016-05-20 Снекма Annular combustion chamber for gas turbine engine containing improved holes for cooling
EP3040615A1 (en) * 2014-12-17 2016-07-06 United Technologies Corporation Combustor dilution hole active heat transfer control apparatus and system

Families Citing this family (27)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US7614235B2 (en) * 2005-03-01 2009-11-10 United Technologies Corporation Combustor cooling hole pattern
US8171634B2 (en) * 2007-07-09 2012-05-08 Pratt & Whitney Canada Corp. Method of producing effusion holes
US7905094B2 (en) * 2007-09-28 2011-03-15 Honeywell International Inc. Combustor systems with liners having improved cooling hole patterns
US8616004B2 (en) * 2007-11-29 2013-12-31 Honeywell International Inc. Quench jet arrangement for annular rich-quench-lean gas turbine combustors
US8127554B2 (en) * 2007-11-29 2012-03-06 Honeywell International Inc. Quench jet arrangement for annular rich-quench-lean gas turbine combustors
US8056342B2 (en) * 2008-06-12 2011-11-15 United Technologies Corporation Hole pattern for gas turbine combustor
US8091367B2 (en) * 2008-09-26 2012-01-10 Pratt & Whitney Canada Corp. Combustor with improved cooling holes arrangement
US8438856B2 (en) * 2009-03-02 2013-05-14 General Electric Company Effusion cooled one-piece can combustor
US9062884B2 (en) 2011-05-26 2015-06-23 Honeywell International Inc. Combustors with quench inserts
FR2982008B1 (en) * 2011-10-26 2013-12-13 Snecma ANNULAR ROOM OF COMBUSTION CHAMBER WITH IMPROVED COOLING AT THE PRIMARY HOLES AND DILUTION HOLES
FR2991028B1 (en) * 2012-05-25 2014-07-04 Snecma TURBOMACHINE COMBUSTION CHAMBER VIROLE
US10260748B2 (en) * 2012-12-21 2019-04-16 United Technologies Corporation Gas turbine engine combustor with tailored temperature profile
EP2971966B1 (en) * 2013-03-15 2017-04-19 Rolls-Royce Corporation Gas turbine engine combustor liner
WO2014149081A1 (en) * 2013-03-15 2014-09-25 Rolls-Royce Corporation Counter swirl doublet combustor
WO2015126501A2 (en) 2013-12-06 2015-08-27 United Technologies Corporation Co-swirl orientation of combustor effusion passages for gas turbine engine combustor
FR3035707B1 (en) * 2015-04-29 2019-11-01 Safran Aircraft Engines COMBUSTION CHAMBER WITH TURBOMACHINE
US10670267B2 (en) * 2015-08-14 2020-06-02 Raytheon Technologies Corporation Combustor hole arrangement for gas turbine engine
GB201518345D0 (en) * 2015-10-16 2015-12-02 Rolls Royce Combustor for a gas turbine engine
JP6026028B1 (en) * 2016-03-10 2016-11-16 三菱日立パワーシステムズ株式会社 Combustor panel, combustor, combustion apparatus, gas turbine, and method for cooling combustor panel
DE102016219424A1 (en) * 2016-10-06 2018-04-12 Rolls-Royce Deutschland Ltd & Co Kg Combustion chamber arrangement of a gas turbine and aircraft gas turbine
US11015529B2 (en) 2016-12-23 2021-05-25 General Electric Company Feature based cooling using in wall contoured cooling passage
US20180266687A1 (en) * 2017-03-16 2018-09-20 General Electric Company Reducing film scrubbing in a combustor
US10816202B2 (en) 2017-11-28 2020-10-27 General Electric Company Combustor liner for a gas turbine engine and an associated method thereof
US11255543B2 (en) 2018-08-07 2022-02-22 General Electric Company Dilution structure for gas turbine engine combustor
DE102019105442A1 (en) * 2019-03-04 2020-09-10 Rolls-Royce Deutschland Ltd & Co Kg Method for producing an engine component with a cooling duct arrangement and engine component
EP3848556A1 (en) * 2020-01-13 2021-07-14 Ansaldo Energia Switzerland AG Gas turbine engine having a transition piece with inclined cooling holes
CN116202106B (en) * 2023-03-08 2024-05-03 中国科学院工程热物理研究所 Engine combustion chamber flame tube structure with coupling design of air film holes and blending holes

Citations (6)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
FR1493144A (en) * 1966-08-19 1967-08-25 Lucas Industries Ltd Improvements to combustion devices for gas turbine engines
US5261223A (en) * 1992-10-07 1993-11-16 General Electric Company Multi-hole film cooled combustor liner with rectangular film restarting holes
US5775108A (en) * 1995-04-26 1998-07-07 Societe Nationale D'etude Et De Construction De Moteurs D'aviation "Snecma" Combustion chamber having a multi-hole cooling system with variably oriented holes
EP0943868A2 (en) * 1998-03-18 1999-09-22 General Electric Company Gas turbine combustor
EP1001222A2 (en) * 1998-11-13 2000-05-17 General Electric Company Multi-hole film cooled combustor liner
US6145319A (en) * 1998-07-16 2000-11-14 General Electric Company Transitional multihole combustion liner

Family Cites Families (17)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US3572031A (en) * 1969-07-11 1971-03-23 United Aircraft Corp Variable area cooling passages for gas turbine burners
GB1492049A (en) * 1974-12-07 1977-11-16 Rolls Royce Combustion equipment for gas turbine engines
US4244178A (en) * 1978-03-20 1981-01-13 General Motors Corporation Porous laminated combustor structure
US4180972A (en) * 1978-06-08 1980-01-01 General Motors Corporation Combustor support structure
US4269032A (en) * 1979-06-13 1981-05-26 General Motors Corporation Waffle pattern porous material
US4302940A (en) * 1979-06-13 1981-12-01 General Motors Corporation Patterned porous laminated material
US4296606A (en) * 1979-10-17 1981-10-27 General Motors Corporation Porous laminated material
US5241827A (en) * 1991-05-03 1993-09-07 General Electric Company Multi-hole film cooled combuster linear with differential cooling
US6474070B1 (en) * 1998-06-10 2002-11-05 General Electric Company Rich double dome combustor
US6434821B1 (en) * 1999-12-06 2002-08-20 General Electric Company Method of making a combustion chamber liner
US6427446B1 (en) * 2000-09-19 2002-08-06 Power Systems Mfg., Llc Low NOx emission combustion liner with circumferentially angled film cooling holes
US6408629B1 (en) * 2000-10-03 2002-06-25 General Electric Company Combustor liner having preferentially angled cooling holes
US6620457B2 (en) * 2001-07-13 2003-09-16 General Electric Company Method for thermal barrier coating and a liner made using said method
US6513331B1 (en) * 2001-08-21 2003-02-04 General Electric Company Preferential multihole combustor liner
US7093439B2 (en) * 2002-05-16 2006-08-22 United Technologies Corporation Heat shield panels for use in a combustor for a gas turbine engine
US7216485B2 (en) * 2004-09-03 2007-05-15 General Electric Company Adjusting airflow in turbine component by depositing overlay metallic coating
US7895841B2 (en) * 2006-07-14 2011-03-01 General Electric Company Method and apparatus to facilitate reducing NOx emissions in turbine engines

Patent Citations (6)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
FR1493144A (en) * 1966-08-19 1967-08-25 Lucas Industries Ltd Improvements to combustion devices for gas turbine engines
US5261223A (en) * 1992-10-07 1993-11-16 General Electric Company Multi-hole film cooled combustor liner with rectangular film restarting holes
US5775108A (en) * 1995-04-26 1998-07-07 Societe Nationale D'etude Et De Construction De Moteurs D'aviation "Snecma" Combustion chamber having a multi-hole cooling system with variably oriented holes
EP0943868A2 (en) * 1998-03-18 1999-09-22 General Electric Company Gas turbine combustor
US6145319A (en) * 1998-07-16 2000-11-14 General Electric Company Transitional multihole combustion liner
EP1001222A2 (en) * 1998-11-13 2000-05-17 General Electric Company Multi-hole film cooled combustor liner

Cited By (13)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
RU2478875C2 (en) * 2007-10-22 2013-04-10 Снекма Combustion chamber wall with optimised liquefaction and cooling; combustion chamber and gas turbine engine equipped with such wall
FR2922629A1 (en) * 2007-10-22 2009-04-24 Snecma Sa COMBUSTION CHAMBER WITH OPTIMIZED DILUTION AND TURBOMACHINE WHILE MUNIED
EP2053312A3 (en) * 2007-10-22 2014-10-29 Snecma Combustion chamber with optimised dilution and turbomachine equipped with same
RU2474763C2 (en) * 2007-10-22 2013-02-10 Снекма Combustion chamber with optimised dissolution and turbomachine equipped with such chamber
RU2584746C2 (en) * 2011-02-25 2016-05-20 Снекма Annular combustion chamber for gas turbine engine containing improved holes for cooling
FR2974162A1 (en) * 2011-04-14 2012-10-19 Snecma Ferrule e.g. external ferrule, for flame tube of combustion chamber in turbomachine of aircraft, has three sets of bores, where third sets of bores are inclined opposite to air flow direction through ferrule from outer face of ferrule
FR2975465A1 (en) * 2011-05-19 2012-11-23 Snecma WALL FOR TURBOMACHINE COMBUSTION CHAMBER COMPRISING AN OPTIMIZED AIR INLET ORIFICE ARRANGEMENT
FR2981733A1 (en) * 2011-10-25 2013-04-26 Snecma AIRCRAFT TURBOMACHINE COMBUSTION CHAMBER MODULE AND METHOD FOR DESIGNING THE SAME
WO2013060985A1 (en) * 2011-10-25 2013-05-02 Snecma Aircraft turbomachine combustion chamber module and method for designing same
GB2511440A (en) * 2011-10-25 2014-09-03 Snecma Aircraft turbomachine combustion chamber module and method for designing same
US9765970B2 (en) 2011-10-25 2017-09-19 Safran Aircraft Engines Aircraft turbomachine combustion chamber module and method for designing same
GB2511440B (en) * 2011-10-25 2019-02-27 Snecma Aircraft turbomachine combustion chamber module having improved air distribution within the combustion chamber and method for designing same
EP3040615A1 (en) * 2014-12-17 2016-07-06 United Technologies Corporation Combustor dilution hole active heat transfer control apparatus and system

Also Published As

Publication number Publication date
US20070084219A1 (en) 2007-04-19
FR2892180A1 (en) 2007-04-20
EP1777458B1 (en) 2015-08-12
RU2413134C2 (en) 2011-02-27
US7748222B2 (en) 2010-07-06
RU2006136873A (en) 2008-04-27
FR2892180B1 (en) 2008-02-01

Similar Documents

Publication Publication Date Title
EP1777458B1 (en) Improvement of the performances of a combustion chamber by multiperforating the walls
EP3267111B1 (en) Annular wall of a combustion chamber with improved cooling at the primary and/or dilution holes
CA2987526C (en) Annular wall of a combustion chamber with optimised cooling
CA2504171C (en) Fixed ring assembly for a gas turbine
CA2639980C (en) Turbomachine combustion chamber
CA2531519C (en) Cooling circuit for gas turbine fixed ring
CA2503066C (en) Turbine ring
CA2782661C (en) Turbine engine combustion chamber
EP1634021B1 (en) Annular combustion chamber for a turbomachine
EP1489359B1 (en) Annular combustion chamber for turbomachine
EP2053311B1 (en) Combustion chamber walls with optimised dilution and cooling, combustion chamber and turbomachine equipped with same
EP3569929A1 (en) Assembly for a turbine engine combustion chamber
FR2982009A1 (en) Annular wall for combustion chamber of turboshaft engine, has dilution holes whose rectangular sections exhibit equal axial length and width in direction transverse to axial direction of flow of combustion gases
FR3021351B1 (en) TURBOMACHINE WALL HAVING AT LEAST ONE PORTION OF COOLING ORIFICES OBSTRUCTIONS
FR3072448B1 (en) TURBOMACHINE COMBUSTION CHAMBER
FR3019270A1 (en) ANNULAR ROOM OF COMBUSTION CHAMBER HAVING IMPROVED COOLING BODIES AT FLANGE JOINT LEVELS
EP4179256B1 (en) Annular combustion chamber for an aircraft turbomachine
FR3098569A1 (en) ANNULAR WALL FOR TURBOMACHINE COMBUSTION CHAMBER INCLUDING PRIMARY HOLES, DILUTION HOLES AND INCLINED COOLING PORTS
FR3081974A1 (en) COMBUSTION CHAMBER OF A TURBOMACHINE
WO2018134501A2 (en) High-permeability turbomachine combustion chamber
EP3853445B1 (en) Turbine seal
FR3090746A1 (en) POST-COMBUSTION NOZZLE COMPRISING AN OBLIQUE PERFORATION SHIRT
FR2999277A1 (en) Annular internal or external wall for e.g. direct flow combustion chamber, of turboshaft engine, has cooling holes whose drilling axes are directed according to direction of air flow so as to maintain supply of air axially across holes
FR3070751A1 (en) COMBUSTION CHAMBER HAVING AN IMPROVED DISTRIBUTION OF COOLING HOLES
FR2727500A1 (en) Gas burner for use esp. in iron and steel making

Legal Events

Date Code Title Description
PUAI Public reference made under article 153(3) epc to a published international application that has entered the european phase

Free format text: ORIGINAL CODE: 0009012

17P Request for examination filed

Effective date: 20060918

AK Designated contracting states

Kind code of ref document: A1

Designated state(s): AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HU IE IS IT LI LT LU LV MC NL PL PT RO SE SI SK TR

AX Request for extension of the european patent

Extension state: AL BA HR MK YU

AKX Designation fees paid

Designated state(s): DE FR GB IT

17Q First examination report despatched

Effective date: 20130326

GRAP Despatch of communication of intention to grant a patent

Free format text: ORIGINAL CODE: EPIDOSNIGR1

INTG Intention to grant announced

Effective date: 20150410

GRAS Grant fee paid

Free format text: ORIGINAL CODE: EPIDOSNIGR3

GRAA (expected) grant

Free format text: ORIGINAL CODE: 0009210

AK Designated contracting states

Kind code of ref document: B1

Designated state(s): DE FR GB IT

REG Reference to a national code

Ref country code: GB

Ref legal event code: FG4D

Free format text: NOT ENGLISH

REG Reference to a national code

Ref country code: FR

Ref legal event code: PLFP

Year of fee payment: 10

REG Reference to a national code

Ref country code: DE

Ref legal event code: R096

Ref document number: 602006046235

Country of ref document: DE

REG Reference to a national code

Ref country code: DE

Ref legal event code: R097

Ref document number: 602006046235

Country of ref document: DE

PLBE No opposition filed within time limit

Free format text: ORIGINAL CODE: 0009261

STAA Information on the status of an ep patent application or granted ep patent

Free format text: STATUS: NO OPPOSITION FILED WITHIN TIME LIMIT

26N No opposition filed

Effective date: 20160513

REG Reference to a national code

Ref country code: FR

Ref legal event code: PLFP

Year of fee payment: 11

REG Reference to a national code

Ref country code: FR

Ref legal event code: PLFP

Year of fee payment: 12

REG Reference to a national code

Ref country code: FR

Ref legal event code: CD

Owner name: SAFRAN AIRCRAFT ENGINES, FR

Effective date: 20170719

REG Reference to a national code

Ref country code: FR

Ref legal event code: PLFP

Year of fee payment: 13

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: IT

Payment date: 20230822

Year of fee payment: 18

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: DE

Payment date: 20240820

Year of fee payment: 19

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: GB

Payment date: 20240822

Year of fee payment: 19

PGFP Annual fee paid to national office [announced via postgrant information from national office to epo]

Ref country code: FR

Payment date: 20240820

Year of fee payment: 19
