Push button switch for irreversibly closing an electric circuit and low voltage lighting unit or bottlelike houseware using the same Download PDF

Info

Publication number
EP1237167A3
EP1237167A3 EP01127459A EP01127459A EP1237167A3 EP 1237167 A3 EP1237167 A3 EP 1237167A3 EP 01127459 A EP01127459 A EP 01127459A EP 01127459 A EP01127459 A EP 01127459A EP 1237167 A3 EP1237167 A3 EP 1237167A3
Authority
EP
European Patent Office
Prior art keywords
bottlelike
houseware
low voltage
push button
electric circuit
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Withdrawn
Application number
EP01127459A
Other languages
German (de)
French (fr)
Other versions
EP1237167A2 (en
Inventor
Necati Kaya
Martin Knura
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Individual
Original Assignee
Individual
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Priority claimed from DE20020638U external-priority patent/DE20020638U1/en
Application filed by Individual filed Critical Individual
Publication of EP1237167A2 publication Critical patent/EP1237167A2/en
Publication of EP1237167A3 publication Critical patent/EP1237167A3/en
Withdrawn legal-status Critical Current

Links

Classifications

    • A—HUMAN NECESSITIES
    • A47—FURNITURE; DOMESTIC ARTICLES OR APPLIANCES; COFFEE MILLS; SPICE MILLS; SUCTION CLEANERS IN GENERAL
    • A47G—HOUSEHOLD OR TABLE EQUIPMENT
    • A47G7/00—Flower holders or the like
    • A47G7/02—Devices for supporting flower-pots or cut flowers
    • A47G7/06—Flower vases
    • A—HUMAN NECESSITIES
    • A47—FURNITURE; DOMESTIC ARTICLES OR APPLIANCES; COFFEE MILLS; SPICE MILLS; SUCTION CLEANERS IN GENERAL
    • A47G—HOUSEHOLD OR TABLE EQUIPMENT
    • A47G19/00—Table service
    • A47G19/22—Drinking vessels or saucers used for table service
    • A47G19/2205—Drinking glasses or vessels
    • A47G19/2227—Drinking glasses or vessels with means for amusing or giving information to the user
    • H—ELECTRICITY
    • H01—ELECTRIC ELEMENTS
    • H01H—ELECTRIC SWITCHES; RELAYS; SELECTORS; EMERGENCY PROTECTIVE DEVICES
    • H01H9/00—Details of switching devices, not covered by groups H01H1/00 - H01H7/00
    • H01H9/02—Bases, casings, or covers
    • A—HUMAN NECESSITIES
    • A47—FURNITURE; DOMESTIC ARTICLES OR APPLIANCES; COFFEE MILLS; SPICE MILLS; SUCTION CLEANERS IN GENERAL
    • A47G—HOUSEHOLD OR TABLE EQUIPMENT
    • A47G19/00—Table service
    • A47G19/22—Drinking vessels or saucers used for table service
    • A47G19/2205—Drinking glasses or vessels
    • A47G19/2227—Drinking glasses or vessels with means for amusing or giving information to the user
    • A47G2019/2238—Drinking glasses or vessels with means for amusing or giving information to the user with illumination means
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21V—FUNCTIONAL FEATURES OR DETAILS OF LIGHTING DEVICES OR SYSTEMS THEREOF; STRUCTURAL COMBINATIONS OF LIGHTING DEVICES WITH OTHER ARTICLES, NOT OTHERWISE PROVIDED FOR
    • F21V33/00—Structural combinations of lighting devices with other articles, not otherwise provided for
    • F21V33/0004—Personal or domestic articles
    • F21V33/0024—Household or table equipment
    • F21V33/0036—Table-ware or table equipment, e.g. dishes, cutlery or trays
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F21—LIGHTING
    • F21Y—INDEXING SCHEME ASSOCIATED WITH SUBCLASSES F21K, F21L, F21S and F21V, RELATING TO THE FORM OR THE KIND OF THE LIGHT SOURCES OR OF THE COLOUR OF THE LIGHT EMITTED
    • F21Y2115/00—Light-generating elements of semiconductor light sources
    • F21Y2115/10—Light-emitting diodes [LED]
    • H—ELECTRICITY
    • H01—ELECTRIC ELEMENTS
    • H01H—ELECTRIC SWITCHES; RELAYS; SELECTORS; EMERGENCY PROTECTIVE DEVICES
    • H01H3/00—Mechanisms for operating contacts
    • H01H3/02—Operating parts, i.e. for operating driving mechanism by a mechanical force external to the switch
    • H01H2003/0273—Manually irreversibly actuated switch

Landscapes

  • Cookers (AREA)
  • Arrangement Of Elements, Cooling, Sealing, Or The Like Of Lighting Devices (AREA)

Abstract

Ein Druckschalter (120) zum irreversiblen Zuschalten eines elektrischen Stromkreises (126) ist mit einem ersten und einem zweiten Schaltkontakt (127, 128), die in einem Halter (121) angeordnet sind und die einenends mit dem Stromkreis (126) verbunden und andernends über ein axial bewegbares Betätigungselement (135) elektrisch mittelbar oder unmittelbar kontaktierend verbindbar sind, versehen. Um einen derartigen Druckschalter unter Reduzierung notwendiger Bauelemente in einfacher und kostengünstigere Weise zu realisieren, ist vorgesehen, dass der Halter (121) aus elektrisch isolierendem Material mit einer axialen Sacklochausnehmung (129) versehen ist, in die das freie Ende mindestens eines der beiden Schaltkontakte (127, 128) ragt, und dass der Boden (135) der Sacklochbohrung (129) in seiner Ausgangsstellung zur Bildung des axial beweglichen Betätigungselementes dünnwandig und außenseitig konvex derart ausgebildet ist, dass er bzw. es auf axialen Druck in eine stabile in die Sacklochbohrung (129) mit seiner nun konvexen Innenseite ragende Zuschaltstellung schnappt.

Figure 00000001

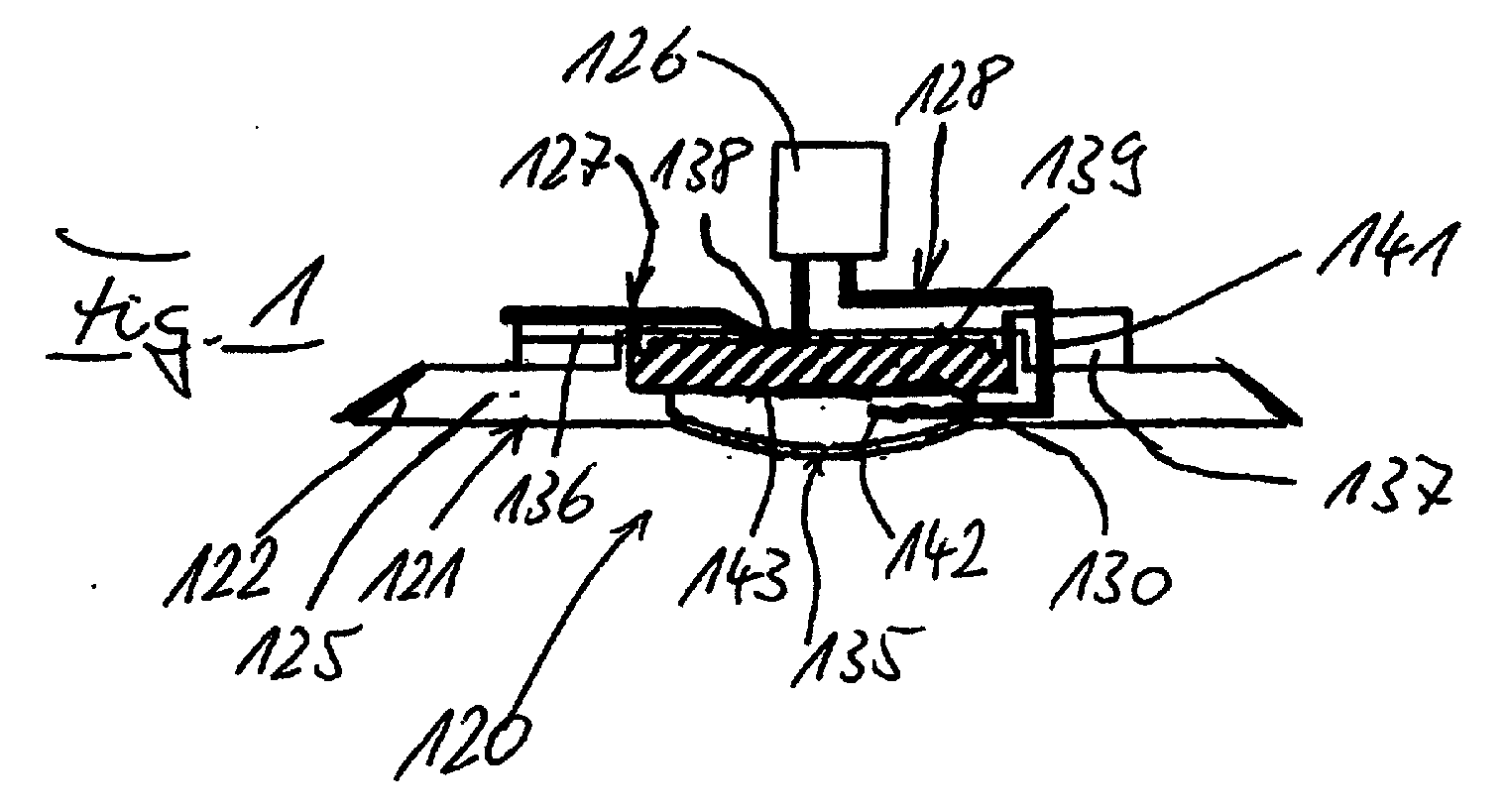

A pressure switch (120) for irreversibly switching on an electrical circuit (126) is connected to a first and a second switching contact (127, 128), which are arranged in a holder (121) and which are connected at one end to the circuit (126) and at the other via an axially movable actuating element (135) can be connected electrically indirectly or directly in contact. In order to implement such a pressure switch in a simple and cost-effective manner while reducing the number of necessary components, it is provided that the holder (121) made of electrically insulating material is provided with an axial blind hole recess (129) into which the free end of at least one of the two switching contacts ( 127, 128), and that the bottom (135) of the blind hole (129) in its initial position to form the axially movable actuating element is thin-walled and convex on the outside in such a way that it or it is subjected to axial pressure in a stable blind hole ( 129) snaps with its now convex inner position.
Figure 00000001
EP01127459A 2000-12-05 2001-11-28 Push button switch for irreversibly closing an electric circuit and low voltage lighting unit or bottlelike houseware using the same Withdrawn EP1237167A3 (en)

Applications Claiming Priority (6)

Application Number Priority Date Filing Date Title
DE20020638U DE20020638U1 (en) 2000-12-05 2000-12-05 Vessel-like household object and lighting unit provided therefor
DE20020638U 2000-12-06
DE10129439 2001-06-19
DE10129439A DE10129439A1 (en) 2000-12-05 2001-06-19 Vessel-shaped object like drinks flask, glass, beaker, cup, plate, vase or similar has outside in curve of bottom or foot, low voltage lighting unit inserted with retaining element for lamp body
DE10149433 2001-10-06
DE10149433A DE10149433A1 (en) 2000-12-05 2001-10-06 Vessel-shaped object like drinks flask, glass, beaker, cup, plate, vase or similar has outside in curve of bottom or foot, low voltage lighting unit inserted with retaining element for lamp body

Publications (2)

Publication Number Publication Date
EP1237167A2 EP1237167A2 (en) 2002-09-04
EP1237167A3 true EP1237167A3 (en) 2004-08-18

Family

ID=27214479

Family Applications (1)

Application Number Title Priority Date Filing Date
EP01127459A Withdrawn EP1237167A3 (en) 2000-12-05 2001-11-28 Push button switch for irreversibly closing an electric circuit and low voltage lighting unit or bottlelike houseware using the same

Country Status (1)

Country Link
EP (1) EP1237167A3 (en)

Families Citing this family (5)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
EP2662304B1 (en) * 2003-06-12 2016-07-20 Benmore Ventures Limited Container with light generator
WO2013104016A1 (en) * 2012-01-10 2013-07-18 Illuminated Industries Pty Ltd An improved beverage container
FR2991752A1 (en) * 2012-06-08 2013-12-13 Jean Luc Vallat Lighting device for e.g. glass bottle, has waterproof enclosure including autonomous battery, and LED placed on upper surface, where enclosure is made of material to be embedded by pressure in outer concave portion of bottom of bottle
US10415816B2 (en) 2016-05-31 2019-09-17 Light Up The World, Llc Illuminated liquid vessel
RU2645662C1 (en) * 2017-03-22 2018-02-26 Евгений Александрович Вавилов Bottle for beverage with back-light
