EP0885600A2 - Federelastischer Fusseinsatz für einen Kunstfuss - Google Patents
Federelastischer Fusseinsatz für einen Kunstfuss Download PDFInfo
- Publication number
- EP0885600A2 EP0885600A2 EP98102575A EP98102575A EP0885600A2 EP 0885600 A2 EP0885600 A2 EP 0885600A2 EP 98102575 A EP98102575 A EP 98102575A EP 98102575 A EP98102575 A EP 98102575A EP 0885600 A2 EP0885600 A2 EP 0885600A2
- Authority
- EP
- European Patent Office
- Prior art keywords
- spring
- leg
- foot
- foot insert
- insert according
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Images
Classifications
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61F—FILTERS IMPLANTABLE INTO BLOOD VESSELS; PROSTHESES; DEVICES PROVIDING PATENCY TO, OR PREVENTING COLLAPSING OF, TUBULAR STRUCTURES OF THE BODY, e.g. STENTS; ORTHOPAEDIC, NURSING OR CONTRACEPTIVE DEVICES; FOMENTATION; TREATMENT OR PROTECTION OF EYES OR EARS; BANDAGES, DRESSINGS OR ABSORBENT PADS; FIRST-AID KITS
- A61F2/00—Filters implantable into blood vessels; Prostheses, i.e. artificial substitutes or replacements for parts of the body; Appliances for connecting them with the body; Devices providing patency to, or preventing collapsing of, tubular structures of the body, e.g. stents
- A61F2/50—Prostheses not implantable in the body
- A61F2/60—Artificial legs or feet or parts thereof
- A61F2/66—Feet; Ankle joints
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61F—FILTERS IMPLANTABLE INTO BLOOD VESSELS; PROSTHESES; DEVICES PROVIDING PATENCY TO, OR PREVENTING COLLAPSING OF, TUBULAR STRUCTURES OF THE BODY, e.g. STENTS; ORTHOPAEDIC, NURSING OR CONTRACEPTIVE DEVICES; FOMENTATION; TREATMENT OR PROTECTION OF EYES OR EARS; BANDAGES, DRESSINGS OR ABSORBENT PADS; FIRST-AID KITS
- A61F2/00—Filters implantable into blood vessels; Prostheses, i.e. artificial substitutes or replacements for parts of the body; Appliances for connecting them with the body; Devices providing patency to, or preventing collapsing of, tubular structures of the body, e.g. stents
- A61F2/50—Prostheses not implantable in the body
- A61F2/60—Artificial legs or feet or parts thereof
- A61F2/66—Feet; Ankle joints
- A61F2/6607—Ankle joints
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61F—FILTERS IMPLANTABLE INTO BLOOD VESSELS; PROSTHESES; DEVICES PROVIDING PATENCY TO, OR PREVENTING COLLAPSING OF, TUBULAR STRUCTURES OF THE BODY, e.g. STENTS; ORTHOPAEDIC, NURSING OR CONTRACEPTIVE DEVICES; FOMENTATION; TREATMENT OR PROTECTION OF EYES OR EARS; BANDAGES, DRESSINGS OR ABSORBENT PADS; FIRST-AID KITS
- A61F2/00—Filters implantable into blood vessels; Prostheses, i.e. artificial substitutes or replacements for parts of the body; Appliances for connecting them with the body; Devices providing patency to, or preventing collapsing of, tubular structures of the body, e.g. stents
- A61F2/50—Prostheses not implantable in the body
- A61F2/76—Means for assembling, fitting or testing prostheses, e.g. for measuring or balancing, e.g. alignment means
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61F—FILTERS IMPLANTABLE INTO BLOOD VESSELS; PROSTHESES; DEVICES PROVIDING PATENCY TO, OR PREVENTING COLLAPSING OF, TUBULAR STRUCTURES OF THE BODY, e.g. STENTS; ORTHOPAEDIC, NURSING OR CONTRACEPTIVE DEVICES; FOMENTATION; TREATMENT OR PROTECTION OF EYES OR EARS; BANDAGES, DRESSINGS OR ABSORBENT PADS; FIRST-AID KITS
- A61F2/00—Filters implantable into blood vessels; Prostheses, i.e. artificial substitutes or replacements for parts of the body; Appliances for connecting them with the body; Devices providing patency to, or preventing collapsing of, tubular structures of the body, e.g. stents
- A61F2/02—Prostheses implantable into the body
- A61F2/30—Joints
- A61F2002/30001—Additional features of subject-matter classified in A61F2/28, A61F2/30 and subgroups thereof
- A61F2002/30108—Shapes
- A61F2002/30199—Three-dimensional shapes
- A61F2002/30224—Three-dimensional shapes cylindrical
- A61F2002/30235—Three-dimensional shapes cylindrical tubular, e.g. sleeves
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61F—FILTERS IMPLANTABLE INTO BLOOD VESSELS; PROSTHESES; DEVICES PROVIDING PATENCY TO, OR PREVENTING COLLAPSING OF, TUBULAR STRUCTURES OF THE BODY, e.g. STENTS; ORTHOPAEDIC, NURSING OR CONTRACEPTIVE DEVICES; FOMENTATION; TREATMENT OR PROTECTION OF EYES OR EARS; BANDAGES, DRESSINGS OR ABSORBENT PADS; FIRST-AID KITS
- A61F2/00—Filters implantable into blood vessels; Prostheses, i.e. artificial substitutes or replacements for parts of the body; Appliances for connecting them with the body; Devices providing patency to, or preventing collapsing of, tubular structures of the body, e.g. stents
- A61F2/02—Prostheses implantable into the body
- A61F2/30—Joints
- A61F2002/30001—Additional features of subject-matter classified in A61F2/28, A61F2/30 and subgroups thereof
- A61F2002/30316—The prosthesis having different structural features at different locations within the same prosthesis; Connections between prosthetic parts; Special structural features of bone or joint prostheses not otherwise provided for
- A61F2002/30329—Connections or couplings between prosthetic parts, e.g. between modular parts; Connecting elements
- A61F2002/30433—Connections or couplings between prosthetic parts, e.g. between modular parts; Connecting elements using additional screws, bolts, dowels, rivets or washers e.g. connecting screws
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61F—FILTERS IMPLANTABLE INTO BLOOD VESSELS; PROSTHESES; DEVICES PROVIDING PATENCY TO, OR PREVENTING COLLAPSING OF, TUBULAR STRUCTURES OF THE BODY, e.g. STENTS; ORTHOPAEDIC, NURSING OR CONTRACEPTIVE DEVICES; FOMENTATION; TREATMENT OR PROTECTION OF EYES OR EARS; BANDAGES, DRESSINGS OR ABSORBENT PADS; FIRST-AID KITS
- A61F2/00—Filters implantable into blood vessels; Prostheses, i.e. artificial substitutes or replacements for parts of the body; Appliances for connecting them with the body; Devices providing patency to, or preventing collapsing of, tubular structures of the body, e.g. stents
- A61F2/02—Prostheses implantable into the body
- A61F2/30—Joints
- A61F2002/30001—Additional features of subject-matter classified in A61F2/28, A61F2/30 and subgroups thereof
- A61F2002/30316—The prosthesis having different structural features at different locations within the same prosthesis; Connections between prosthetic parts; Special structural features of bone or joint prostheses not otherwise provided for
- A61F2002/30329—Connections or couplings between prosthetic parts, e.g. between modular parts; Connecting elements
- A61F2002/30462—Connections or couplings between prosthetic parts, e.g. between modular parts; Connecting elements retained or tied with a rope, string, thread, wire or cable
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61F—FILTERS IMPLANTABLE INTO BLOOD VESSELS; PROSTHESES; DEVICES PROVIDING PATENCY TO, OR PREVENTING COLLAPSING OF, TUBULAR STRUCTURES OF THE BODY, e.g. STENTS; ORTHOPAEDIC, NURSING OR CONTRACEPTIVE DEVICES; FOMENTATION; TREATMENT OR PROTECTION OF EYES OR EARS; BANDAGES, DRESSINGS OR ABSORBENT PADS; FIRST-AID KITS
- A61F2/00—Filters implantable into blood vessels; Prostheses, i.e. artificial substitutes or replacements for parts of the body; Appliances for connecting them with the body; Devices providing patency to, or preventing collapsing of, tubular structures of the body, e.g. stents
- A61F2/50—Prostheses not implantable in the body
- A61F2002/5001—Cosmetic coverings
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61F—FILTERS IMPLANTABLE INTO BLOOD VESSELS; PROSTHESES; DEVICES PROVIDING PATENCY TO, OR PREVENTING COLLAPSING OF, TUBULAR STRUCTURES OF THE BODY, e.g. STENTS; ORTHOPAEDIC, NURSING OR CONTRACEPTIVE DEVICES; FOMENTATION; TREATMENT OR PROTECTION OF EYES OR EARS; BANDAGES, DRESSINGS OR ABSORBENT PADS; FIRST-AID KITS
- A61F2/00—Filters implantable into blood vessels; Prostheses, i.e. artificial substitutes or replacements for parts of the body; Appliances for connecting them with the body; Devices providing patency to, or preventing collapsing of, tubular structures of the body, e.g. stents
- A61F2/50—Prostheses not implantable in the body
- A61F2002/5038—Hinged joint, e.g. with transverse axle restricting the movement
- A61F2002/5039—Hinged joint, e.g. with transverse axle restricting the movement allowing only for single rotation
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61F—FILTERS IMPLANTABLE INTO BLOOD VESSELS; PROSTHESES; DEVICES PROVIDING PATENCY TO, OR PREVENTING COLLAPSING OF, TUBULAR STRUCTURES OF THE BODY, e.g. STENTS; ORTHOPAEDIC, NURSING OR CONTRACEPTIVE DEVICES; FOMENTATION; TREATMENT OR PROTECTION OF EYES OR EARS; BANDAGES, DRESSINGS OR ABSORBENT PADS; FIRST-AID KITS
- A61F2/00—Filters implantable into blood vessels; Prostheses, i.e. artificial substitutes or replacements for parts of the body; Appliances for connecting them with the body; Devices providing patency to, or preventing collapsing of, tubular structures of the body, e.g. stents
- A61F2/50—Prostheses not implantable in the body
- A61F2002/5038—Hinged joint, e.g. with transverse axle restricting the movement
- A61F2002/5043—Hinged joint, e.g. with transverse axle restricting the movement with rotation-limiting stops, e.g. projections or recesses
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61F—FILTERS IMPLANTABLE INTO BLOOD VESSELS; PROSTHESES; DEVICES PROVIDING PATENCY TO, OR PREVENTING COLLAPSING OF, TUBULAR STRUCTURES OF THE BODY, e.g. STENTS; ORTHOPAEDIC, NURSING OR CONTRACEPTIVE DEVICES; FOMENTATION; TREATMENT OR PROTECTION OF EYES OR EARS; BANDAGES, DRESSINGS OR ABSORBENT PADS; FIRST-AID KITS
- A61F2/00—Filters implantable into blood vessels; Prostheses, i.e. artificial substitutes or replacements for parts of the body; Appliances for connecting them with the body; Devices providing patency to, or preventing collapsing of, tubular structures of the body, e.g. stents
- A61F2/50—Prostheses not implantable in the body
- A61F2/5044—Designing or manufacturing processes
- A61F2002/5055—Reinforcing prostheses by embedding particles or fibres during moulding or dipping, e.g. carbon fibre composites
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61F—FILTERS IMPLANTABLE INTO BLOOD VESSELS; PROSTHESES; DEVICES PROVIDING PATENCY TO, OR PREVENTING COLLAPSING OF, TUBULAR STRUCTURES OF THE BODY, e.g. STENTS; ORTHOPAEDIC, NURSING OR CONTRACEPTIVE DEVICES; FOMENTATION; TREATMENT OR PROTECTION OF EYES OR EARS; BANDAGES, DRESSINGS OR ABSORBENT PADS; FIRST-AID KITS
- A61F2/00—Filters implantable into blood vessels; Prostheses, i.e. artificial substitutes or replacements for parts of the body; Appliances for connecting them with the body; Devices providing patency to, or preventing collapsing of, tubular structures of the body, e.g. stents
- A61F2/50—Prostheses not implantable in the body
- A61F2/60—Artificial legs or feet or parts thereof
- A61F2/66—Feet; Ankle joints
- A61F2002/6614—Feet
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61F—FILTERS IMPLANTABLE INTO BLOOD VESSELS; PROSTHESES; DEVICES PROVIDING PATENCY TO, OR PREVENTING COLLAPSING OF, TUBULAR STRUCTURES OF THE BODY, e.g. STENTS; ORTHOPAEDIC, NURSING OR CONTRACEPTIVE DEVICES; FOMENTATION; TREATMENT OR PROTECTION OF EYES OR EARS; BANDAGES, DRESSINGS OR ABSORBENT PADS; FIRST-AID KITS
- A61F2/00—Filters implantable into blood vessels; Prostheses, i.e. artificial substitutes or replacements for parts of the body; Appliances for connecting them with the body; Devices providing patency to, or preventing collapsing of, tubular structures of the body, e.g. stents
- A61F2/50—Prostheses not implantable in the body
- A61F2/60—Artificial legs or feet or parts thereof
- A61F2/66—Feet; Ankle joints
- A61F2002/6614—Feet
- A61F2002/6657—Feet having a plate-like or strip-like spring element, e.g. an energy-storing cantilever spring keel
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61F—FILTERS IMPLANTABLE INTO BLOOD VESSELS; PROSTHESES; DEVICES PROVIDING PATENCY TO, OR PREVENTING COLLAPSING OF, TUBULAR STRUCTURES OF THE BODY, e.g. STENTS; ORTHOPAEDIC, NURSING OR CONTRACEPTIVE DEVICES; FOMENTATION; TREATMENT OR PROTECTION OF EYES OR EARS; BANDAGES, DRESSINGS OR ABSORBENT PADS; FIRST-AID KITS
- A61F2/00—Filters implantable into blood vessels; Prostheses, i.e. artificial substitutes or replacements for parts of the body; Appliances for connecting them with the body; Devices providing patency to, or preventing collapsing of, tubular structures of the body, e.g. stents
- A61F2/50—Prostheses not implantable in the body
- A61F2/60—Artificial legs or feet or parts thereof
- A61F2/66—Feet; Ankle joints
- A61F2002/6614—Feet
- A61F2002/6657—Feet having a plate-like or strip-like spring element, e.g. an energy-storing cantilever spring keel
- A61F2002/6671—C-shaped
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61F—FILTERS IMPLANTABLE INTO BLOOD VESSELS; PROSTHESES; DEVICES PROVIDING PATENCY TO, OR PREVENTING COLLAPSING OF, TUBULAR STRUCTURES OF THE BODY, e.g. STENTS; ORTHOPAEDIC, NURSING OR CONTRACEPTIVE DEVICES; FOMENTATION; TREATMENT OR PROTECTION OF EYES OR EARS; BANDAGES, DRESSINGS OR ABSORBENT PADS; FIRST-AID KITS
- A61F2220/00—Fixations or connections for prostheses classified in groups A61F2/00 - A61F2/26 or A61F2/82 or A61F9/00 or A61F11/00 or subgroups thereof
- A61F2220/0025—Connections or couplings between prosthetic parts, e.g. between modular parts; Connecting elements
- A61F2220/0041—Connections or couplings between prosthetic parts, e.g. between modular parts; Connecting elements using additional screws, bolts, dowels or rivets, e.g. connecting screws
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61F—FILTERS IMPLANTABLE INTO BLOOD VESSELS; PROSTHESES; DEVICES PROVIDING PATENCY TO, OR PREVENTING COLLAPSING OF, TUBULAR STRUCTURES OF THE BODY, e.g. STENTS; ORTHOPAEDIC, NURSING OR CONTRACEPTIVE DEVICES; FOMENTATION; TREATMENT OR PROTECTION OF EYES OR EARS; BANDAGES, DRESSINGS OR ABSORBENT PADS; FIRST-AID KITS
- A61F2220/00—Fixations or connections for prostheses classified in groups A61F2/00 - A61F2/26 or A61F2/82 or A61F9/00 or A61F11/00 or subgroups thereof
- A61F2220/0025—Connections or couplings between prosthetic parts, e.g. between modular parts; Connecting elements
- A61F2220/0075—Connections or couplings between prosthetic parts, e.g. between modular parts; Connecting elements sutured, ligatured or stitched, retained or tied with a rope, string, thread, wire or cable
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61F—FILTERS IMPLANTABLE INTO BLOOD VESSELS; PROSTHESES; DEVICES PROVIDING PATENCY TO, OR PREVENTING COLLAPSING OF, TUBULAR STRUCTURES OF THE BODY, e.g. STENTS; ORTHOPAEDIC, NURSING OR CONTRACEPTIVE DEVICES; FOMENTATION; TREATMENT OR PROTECTION OF EYES OR EARS; BANDAGES, DRESSINGS OR ABSORBENT PADS; FIRST-AID KITS
- A61F2230/00—Geometry of prostheses classified in groups A61F2/00 - A61F2/26 or A61F2/82 or A61F9/00 or A61F11/00 or subgroups thereof
- A61F2230/0063—Three-dimensional shapes
- A61F2230/0069—Three-dimensional shapes cylindrical
Definitions
- the invention relates to a resilient foot insert for Arrangement within a molded foot part of an articulated foot for a leg prosthesis, approximated in longitudinal section C-shaped with opening to the rear first spring and one connected to the lower C-leg, formed as a leaf spring second spring that approximates parallel to the sole area forward beyond the C-spring extends and with its front end to the toe area protrudes.
- the first proposed solutions saw a rigid, e.g. B. wooden version before, which later with a Joint has been provided to mimic the function of the ankle.
- a spring-elastic, foot insert composed of leaf springs provided, which has been lined with foam (see e.g. US-A-4,959,073).
- DE 40 38 063 C2 discloses a jointless prosthetic foot a one-piece, at least one plantar and dorsiflexion as well as a foot insert that enables axial compression, in the longitudinal foot section an approximately S-shaped formation having.
- the upper leg forms with one below at an obtuse angle adjoining the front oblique leg overall rigid angle element, at the lower end of which middle, leaf spring-like leg connects to his rear end via an approximately semicircular leg connection is connected to the lower leg. It extends the lower end of the rigid angle element up to about the area of the tough basic joints.
- FR-A1-26 40 499 discloses the jointless described above Artificial foot, in which the middle part of the approximately C-shaped trained foot insert in about the front third of the length Sole lies with the upper C-leg connecting the leg prosthesis.
- the C-shaped foot insert takes one Spring function by a placed between the two C-legs elastic cushion is added to a certain To achieve suppleness when putting the foot on.
- this artificial foot does not enables natural gait.
- the tapered leg ends point to her free end towards a decreasing material thickness, while the Thigh ends are provided with thickenings.
- the lower U-leg is screwed to a leaf spring at its free end, while the upper U-leg with the inclusion of a Leg connector is connected.
- the leaf spring can be made of carbon fiber or titanium.
- the space between the free U-legs can be filled with a soft polyurethane foam be.
- This spring element is supposed to be a foot movement in the sense a pro-subination around the longitudinal axis of the foot and a natural one Allow movement.
- the invention is based on the object described above articulated articulated foot with regard to the damping of the appearance the heel, the deflection, the rolling and the lateral stability to improve, so that the wearer a natural Allow gear, allowing the wearer to be able is supposed to go both normally and physical exercises and do sports.
- the bracket can be part of the base spring and, if necessary their rear end form and can rest on a heel wedge support the rear support for the base spring forms.
- front restraint is on an upper pressure plate is provided on the bottom of the upper C-leg and with that on the top of the upper C-leg supporting adapter is screwed.
- the anchoring member serves to change the spring properties of the foot insert.
- the main problem arises from the forefoot load caused by the Moment leads to an expansion of the C-spring.
- the occurring here Forces are according to the invention in the fetlock derived the base attachment.
- the ankle link approximately parallel to the longitudinal axis of the base spring. This arrangement applies the fetlock in both directions of the deformation of the C-spring, So both when bending and when bending. This is done the engagement is soft because that is perpendicular to the direction of movement of a fetlock articulation point there is no limit of the way.
- the saddle is the base spring pulled up to the rear end in a segment of a circle, the C-spring preferably releasably attached to this saddle is. It is essential that this attachment with clear distance behind that guided by the cylinder axis Vertical lies. In front of the attachment point, this is a distance tapering in a wedge shape towards the fastening point between the front section of the lower C-leg and the base spring underneath. The so created Spring deflection contributes significantly to achieving one natural movement.
- the hinged artificial foot indicated in FIG. 1 has a cosmetic one Envelope 1 made of suitable material that has an ankle area 2, a toe area 3, a heel area 4 and defines a sole area 5.
- a base spring designed as a leaf spring is also provided 10, which extends approximately parallel to the sole region 5 and with its front end 12 to the toe area 3 protrudes.
- the underside 10a of the base spring 10 is over the most of the spring length is convex.
- the base spring is provided with a rear extension 11, starting from from which the strength of the base spring 10 to its front end 12 decreases evenly.
- the rear approach 11 goes forward over into a saddle 14 through the top 10b of the base spring 10 is defined and has a curvature that a Can represent a segment of a circle with a center at 0 '.
- the spring-elastic foot insert has still a C-spring 20, which rests on the saddle 14 and is releasably connected to it.
- the C-spring 20 is in the essentially of a cylindrical segment that has a cylinder axis 0 'defined.
- the C-spring is proportionate wide axial slot 22 provided.
- the C-spring 20 is fixed on the saddle 14 by a bolt 26 which is arranged so that its bolt axis 15 the center defined by the cylinder axis 0 ' of the cylindrical segment of the C-spring 20 intersects.
- Figure 1 also shows that the screw connection 15, 26 opposite of the vertical D running through 0 'by an angle ⁇ is arranged offset at the back, preferably between 35 ° and 45 ° but is at 40 °. The connection point between the C-spring 20 and the base spring 10 is thus opposite the vertical D clearly shifted backwards.
- the upper C-leg 23 is attached to one via a captive member 90 arranged behind him bracket 91, the one with the rear End 11 of the base spring 10 is connected and on a Heel wedge 61 supports the rear support for the base spring 10 forms.
- the rear restraint 92 is in the Achilles tendon area, while the front restraint 93 on one Upper pressure plate 34 is provided on the underside of the upper C-leg 23 abuts and with one on the top of the upper C-leg 23 supporting adapter 30 screwed is.
- Figure 1 shows that the fetlock 90 in stress-free condition approximately parallel to the longitudinal axis of the Base spring 10 lies.
- the fetlock member 90 can consist of a textile belt attached to his two restraints 92, 93 over a segment of a circle or a radius is guided. By designing this arcuate Redirection can affect the overall spring property be taken because different radii in one Spreading the C-spring to shorten or extend it of the fetlock. These arc diversions are therefore preferably arranged interchangeably.
- the C-spring 20 can be made of carbon composite. It has It has been shown that the deformation required for the function necessary fatigue strength of this C-spring is too low to absorb the occurring voltages with sufficient certainty to be able to.
- the one shown in FIG. 2 is used to solve the problem Training of the C-spring proposed.
- the C-spring is made up of two parallel C-spring slats 20a, 20b together, which are nested and in their end regions 20c with the interposition of spacers 95 rigidly connected. Between these both end regions 20c have the two C-spring slats a clear radial distance 94 from each other. This will avoided that when the C-spring is compressed the inner Slat 20b puts on the outer slat 20a early, because at the spring characteristics of a system is changed suddenly.
- the parallel connected C-springs make an essential one Improvement in the structural strength of the C-spring 20 achieved without thereby preventing the spring characteristic.
Landscapes
- Health & Medical Sciences (AREA)
- Transplantation (AREA)
- Vascular Medicine (AREA)
- Life Sciences & Earth Sciences (AREA)
- Oral & Maxillofacial Surgery (AREA)
- Engineering & Computer Science (AREA)
- Biomedical Technology (AREA)
- Heart & Thoracic Surgery (AREA)
- Orthopedic Medicine & Surgery (AREA)
- Cardiology (AREA)
- Animal Behavior & Ethology (AREA)
- General Health & Medical Sciences (AREA)
- Public Health (AREA)
- Veterinary Medicine (AREA)
- Prostheses (AREA)
- Rehabilitation Tools (AREA)
- Orthopedics, Nursing, And Contraception (AREA)
Abstract
Description

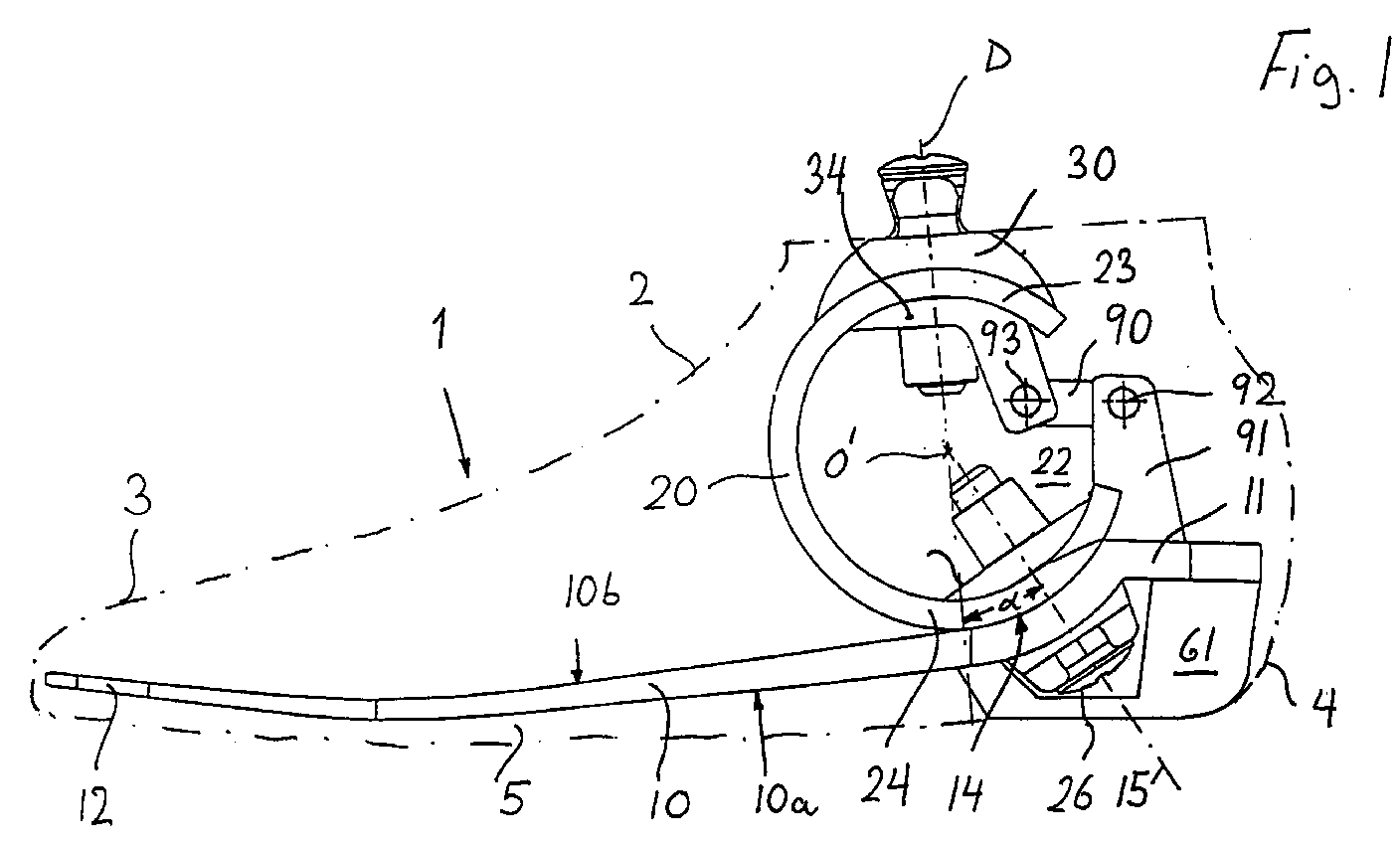

- Figur 1
- zeigt einen federelastischen Fußeinsatz in einem strichpunktiert angedeuteten gelenklosen Kunstfuß im Längsschnitt in der Sagittalebene der Prothese und
- Figur 2
- ein Detail der Figur 1 in abgewandelter Ausführungsform.
Claims (9)
- Federelastischer Fußeinsatz zur Anordnung innerhalb eines Fußformteils (1, 2, 3, 4) eines gelenklosen Kunstfußes für eine Beinprothese, mit einer im Längsschnitt angenähert C-förmig mit nach hinten liegender Öffnung (22) ausgebildeten ersten Feder (C-Feder 20) und einer mit dem unteren C-Schenkel (24) verbundenen, als Blattfeder ausgebildeten zweiten Feder (Basisfeder 10), die sich angenähert parallel zum Sohlenbereich (5) nach vorne über die C-Feder (20) hinaus erstreckt und mit ihrem vorderen Ende (12) bis in den Fußspitzenbereich (3) ragt, gekennzeichnet durch folgende Merkmale:a) Die C-Feder (20) wird im wesentlichen durch ein liegend angeordnetes rohrförmiges zylindrisches Segment gebildet, das eine horizontale Zylinderachse (0') und zur Bildung der genannten hinteren Öffnung (22) einen Axialschlitz aufweist;b) die Unterseite (10a) der Basisfeder (10) ist in dem Bereich zwischen C-Feder (20) und dem freien Basisfederende (12) überwiegend konvex ausgebildet;c) die Oberseite (10b) der Basisfeder (10) bildet in deren hinteren Endbereich einen Sattel (14) zur stützenden Aufnahme und Festlegung eines Abschnittes des unteren C-Schenkels (24);d) der obere C-Schenkel (23) ist mit einem Adapter (30) zur lösbaren Verbindung mit einer Beinprothese bestückt;e) der obere C-Schenkel (23) ist über ein Fesselglied (90) an einem hinter ihm angeordneten Lagerbock (91) angelenkt, der mit dem hinteren Ende (11) der Basisfeder (10) verbunden ist.
- Fußeinsatz nach Anspruch 1, dadurch gekennzeichnet, daß die hintere, am Lagerbock (91) vorgesehene Fessellagerung (92) im Achillessehnenbereich liegt.
- Fußeinsatz nach Anspruch 1 oder 2, dadurch gekennzeichnet, daß die vordere Fessellagerung (93) an einer oberen Druckplatte (34) vorgesehen ist, die an der Unterseite des oberen C-Schenkels (23) anliegt und mit dem sich auf der Oberseite des oberen C-Schenkels (23) abstützenden Adapter (30) verschraubt ist.
- Fußeinsatz nach Anspruch 1 oder 2, dadurch gekennzeichnet, daß die vordere Fessellagerung (93) unmittelbar am Adapter (30) angreift.
- Fußeinsatz nach einem der vorhergehenden Ansprüche, dadurch gekennzeichnet, daß im belastungsfreien Zustand das Fesselglied (90) angenähert parallel zur Längsachse der Basisfeder (10) liegt.
- Fußeinsatz nach einem der vorhergehenden Ansprüche, dadurch gekennzeichnet, daß das Fesselglied (90) aus einem textilen Gurt besteht.
- Fußeinsatz nach Anspruch 6, dadurch gekennzeichnet, daß der das Fesselglied (90) bildende Gurt an seinen beiden Fessellagerungen (92, 93) über je ein vorzugsweise austauschbares Kreissegment geführt ist.
- Fußeinsatz nach einem der vorhergehenden Ansprüche, dadurch gekennzeichnet, daß sich die C-Feder (20) aus zumindest zwei parallel geschalteten C-Feder-Lamellen (20a, 20b) zusammensetzt, die ineinander gesetzt und in ihren Endbereichen (20c) momentenstarr miteinander verbunden sind, zwischen diesen Endbereichen (20c) jedoch einen lichten radialen Abstand (94) voneinander aufweisen.
- Fußeinsatz nach Anspruch 8, dadurch gekennzeichnet, daß in den Endbereichen (20c) zwischen der äußeren und der inneren C-Feder-Lamelle (20a, 20b) Abstandshalter (95) angeordnet sind.
Applications Claiming Priority (2)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
DE19717298A DE19717298C1 (de) | 1997-04-24 | 1997-04-24 | Federelastischer Fußeinsatz für einen Kunstfuß |
DE19717298 | 1997-04-24 |
Publications (3)
Publication Number | Publication Date |
---|---|
EP0885600A2 true EP0885600A2 (de) | 1998-12-23 |
EP0885600A3 EP0885600A3 (de) | 1999-01-20 |
EP0885600B1 EP0885600B1 (de) | 2001-10-17 |
Family
ID=7827605
Family Applications (1)
Application Number | Title | Priority Date | Filing Date |
---|---|---|---|
EP98102575A Expired - Lifetime EP0885600B1 (de) | 1997-04-24 | 1998-02-14 | Federelastischer Fusseinsatz für einen Kunstfuss |
Country Status (8)
Country | Link |
---|---|
US (1) | US6077301A (de) |
EP (1) | EP0885600B1 (de) |
CN (1) | CN1135099C (de) |
AT (1) | ATE206903T1 (de) |
CA (1) | CA2234290C (de) |
DE (2) | DE19717298C1 (de) |
RU (1) | RU2192811C2 (de) |
TW (1) | TW407051B (de) |
Families Citing this family (43)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
US20020087216A1 (en) * | 1996-02-16 | 2002-07-04 | Atkinson Stewart L. | Prosthetic walking system |
US6187052B1 (en) * | 1999-07-14 | 2001-02-13 | Joseph L. Molino | Prosthetic ankle joint |
US20060241783A1 (en) * | 2000-06-30 | 2006-10-26 | Christensen Roland J | Variable resistance cell |
US20050216098A1 (en) * | 2000-06-30 | 2005-09-29 | Roland J. Christensen | Variable resistance cell |
US7686848B2 (en) * | 2000-06-30 | 2010-03-30 | Freedom Innovations, Llc | Prosthetic foot with energy transfer |
US7341603B2 (en) * | 2000-06-30 | 2008-03-11 | Applied Composite Technology, Inc. | Prosthetic foot with energy transfer including variable orifice |
US7572299B2 (en) * | 2000-06-30 | 2009-08-11 | Freedom Innovations, Llc | Prosthetic foot with energy transfer |
DE10049714B4 (de) * | 2000-10-07 | 2004-11-11 | Otto Bock Orthopädische Industrie Besitz-und Verwaltungs GmbH & Co.KG | Fußeinsatz für einen Kunstfuß |
US7611543B2 (en) | 2001-03-30 | 2009-11-03 | Bioquest Prosthetics, Llc | Prosthetic foot with tunable performance |
US6562075B2 (en) * | 2001-03-30 | 2003-05-13 | Barry W. Townsend | Prosthetic foot with tunable performance |
US7410503B2 (en) * | 2001-03-30 | 2008-08-12 | Bioquest Prosthetics Llc | Prosthetic foot with tunable performance |
WO2002051341A1 (fr) * | 2000-12-27 | 2002-07-04 | S.P. Korolev Rocket And Space Public Corporation Energia | Pied artificiel |
US7429272B2 (en) | 2001-03-30 | 2008-09-30 | Bioquest Prosthetics Llc | Prosthetic foot with tunable performance |
US7374578B2 (en) | 2001-03-30 | 2008-05-20 | Bioquest Prosthetics, Llc | Prosthetic foot with tunable performance |
US7578852B2 (en) * | 2001-03-30 | 2009-08-25 | Bioquest Prosthetics, Llc | Prosthetic foot with tunable performance and improved vertical load/shock absorption |
US7507259B2 (en) * | 2001-03-30 | 2009-03-24 | Bioquest Prosthetics, Llc | Prosthetic foot with tunable performance |
US8070829B2 (en) | 2003-09-30 | 2011-12-06 | Bioquest Prosthetics Llc | Prosthetic foot with tunable performance |
US8236062B2 (en) | 2001-03-30 | 2012-08-07 | Bioquest Prosthetics Llc | Prosthetic foot with tunable performance |
US20070213841A1 (en) * | 2001-03-30 | 2007-09-13 | Townsend Barry W | Prosthetic foot with tunable performance |
US6764521B2 (en) | 2001-08-24 | 2004-07-20 | Joseph L. Molino | Multi-axial ankle joint |
US8574314B2 (en) | 2003-09-30 | 2013-11-05 | Bioquest Prosthetics Llc | Resilient prosthetic and orthotic components which incorporate a plurality of sagittally oriented struts |
US7520904B2 (en) * | 2003-10-21 | 2009-04-21 | Freedom Innovations, Llc | Prosthetic foot with an adjustable ankle and method |
CA2561314C (en) | 2004-04-01 | 2010-03-23 | Barry W. Townsend | Prosthetic foot with tunable performance |
US20060173555A1 (en) * | 2005-02-02 | 2006-08-03 | Chuen-Sen Harn | Elastic energy-stored artificial foot |
US7618464B2 (en) * | 2006-08-03 | 2009-11-17 | Freedom Innovations, Llc | Prosthetic foot with variable medial/lateral stiffness |
US7824446B2 (en) * | 2006-12-06 | 2010-11-02 | Freedom Innovations, Llc | Prosthetic foot with longer upper forefoot and shorter lower forefoot |
US7727285B2 (en) * | 2007-01-30 | 2010-06-01 | Freedom Innovations, Llc | Prosthetic foot with variable medial/lateral stiffness |
US7794506B2 (en) * | 2007-09-18 | 2010-09-14 | Freedom Innovations, Llc | Multi-axial prosthetic ankle |
US11020248B2 (en) | 2007-09-19 | 2021-06-01 | Proteor USA, LLC | Vacuum system for a prosthetic foot |
US10405998B2 (en) | 2007-09-19 | 2019-09-10 | Ability Dynamics Llc | Mounting bracket for connecting a prosthetic limb to a prosthetic foot |
US8034121B2 (en) | 2008-04-18 | 2011-10-11 | Freedom Innovations, Llc | Prosthetic foot with two leaf-springs joined at heel and toe |
US9011554B2 (en) * | 2008-07-25 | 2015-04-21 | Fillauer Composites Llc | High-performance multi-component prosthetic foot |
US8500825B2 (en) | 2010-06-29 | 2013-08-06 | Freedom Innovations, Llc | Prosthetic foot with floating forefoot keel |
US9028559B2 (en) | 2011-09-26 | 2015-05-12 | össur hf | Frictionless vertical suspension mechanism for prosthetic feet |
US9017421B2 (en) | 2011-12-01 | 2015-04-28 | össur hf | Prosthetic foot with dual foot blades and vertically offset toe |
EP2879623B1 (de) | 2012-08-01 | 2019-11-27 | Ossur Hf | Gelenkprothesenmodul |
EP3160399B1 (de) | 2014-06-30 | 2022-01-05 | Össur HF | Prothesenfüsse |
EP3244841A4 (de) | 2015-01-15 | 2018-09-12 | Ability Dynamics, LLC | Fussprothese |
USD795433S1 (en) | 2015-06-30 | 2017-08-22 | Össur Iceland Ehf | Prosthetic foot cover |
EP3290006B1 (de) * | 2016-08-30 | 2024-01-24 | Fillauer Europe AB | Prothesenvorrichtung |
US10927915B2 (en) * | 2017-12-15 | 2021-02-23 | Otis Elevator Company | Spring useful for elevator safety device |
USD915596S1 (en) | 2018-04-10 | 2021-04-06 | Össur Iceland Ehf | Prosthetic foot with tapered fasteners |
CN109199653B (zh) * | 2018-10-09 | 2020-07-21 | 广东兰湾智能科技有限公司 | 假肢足 |
Citations (4)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
US5139525A (en) * | 1989-07-31 | 1992-08-18 | Kristinsson Oessur | Prosthetic foot |
WO1994010942A1 (fr) * | 1992-10-11 | 1994-05-26 | Composites-Busch & Cie | Prothese de pied |
FR2734151A1 (fr) * | 1995-05-15 | 1996-11-22 | Corima | Structure reactive de pied prothetique |
EP0793949A1 (de) * | 1996-03-04 | 1997-09-10 | Otto Bock Orthopädische Industrie Besitz- und Verwaltungs-Kommanditgesellschaft | Gelenkloser Kunstfuss |
Family Cites Families (12)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
DE8804228U1 (de) * | 1988-03-29 | 1988-05-05 | Ipos Gmbh & Co Kg, 2120 Lueneburg, De | |
US4959073A (en) * | 1988-06-06 | 1990-09-25 | John Merlette | Foot prosthesis and method of making same |
FR2640499A1 (fr) * | 1988-12-15 | 1990-06-22 | Palfray Michel | Nouvelle structure de pied prothetique |
US5037444A (en) * | 1989-01-05 | 1991-08-06 | Phillips L Van | Prosthetic foot |
DE4037928A1 (de) * | 1990-11-24 | 1992-05-27 | Hms Antriebssysteme Gmbh | Prothesenfuss |
DE4038063C2 (de) * | 1990-11-29 | 1995-04-20 | Bock Orthopaed Ind | Gelenkloser Prothesenfuß |
US5258039A (en) * | 1991-11-15 | 1993-11-02 | The National University Of Singapore | Energy storing composite prosthetic foot |
US5443528A (en) * | 1992-11-17 | 1995-08-22 | Allen; Scott | Coil spring prosthetic foot |
WO1994010943A1 (en) * | 1992-11-17 | 1994-05-26 | Allen Scott E | Coil spring prosthetic foot |
US5653767A (en) * | 1992-11-17 | 1997-08-05 | Medonics, Llc | Prosthetic foot |
DE9315665U1 (de) * | 1993-10-14 | 1993-12-09 | Ipos Gmbh & Co Kg | Sprunggelenkfederelement für Beinprothesen und Kunstfuß |
TW386434U (en) * | 1994-08-15 | 2000-04-01 | L Van Phillips | Prosthesis with foam block ankle |
-
1997
- 1997-04-24 DE DE19717298A patent/DE19717298C1/de not_active Expired - Fee Related
-
1998
- 1998-02-14 AT AT98102575T patent/ATE206903T1/de not_active IP Right Cessation
- 1998-02-14 EP EP98102575A patent/EP0885600B1/de not_active Expired - Lifetime
- 1998-02-14 DE DE59801741T patent/DE59801741D1/de not_active Expired - Lifetime
- 1998-03-02 TW TW087102960A patent/TW407051B/zh not_active IP Right Cessation
- 1998-03-16 RU RU98105505/14A patent/RU2192811C2/ru active
- 1998-03-23 CN CNB98105756XA patent/CN1135099C/zh not_active Expired - Lifetime
- 1998-04-08 CA CA002234290A patent/CA2234290C/en not_active Expired - Lifetime
- 1998-04-22 US US09/064,093 patent/US6077301A/en not_active Expired - Lifetime
Patent Citations (4)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
US5139525A (en) * | 1989-07-31 | 1992-08-18 | Kristinsson Oessur | Prosthetic foot |
WO1994010942A1 (fr) * | 1992-10-11 | 1994-05-26 | Composites-Busch & Cie | Prothese de pied |
FR2734151A1 (fr) * | 1995-05-15 | 1996-11-22 | Corima | Structure reactive de pied prothetique |
EP0793949A1 (de) * | 1996-03-04 | 1997-09-10 | Otto Bock Orthopädische Industrie Besitz- und Verwaltungs-Kommanditgesellschaft | Gelenkloser Kunstfuss |
Also Published As
Publication number | Publication date |
---|---|
RU2192811C2 (ru) | 2002-11-20 |
EP0885600A3 (de) | 1999-01-20 |
ATE206903T1 (de) | 2001-11-15 |
DE19717298C1 (de) | 1998-05-07 |
EP0885600B1 (de) | 2001-10-17 |
US6077301A (en) | 2000-06-20 |
TW407051B (en) | 2000-10-01 |
CA2234290C (en) | 2005-01-25 |
CN1135099C (zh) | 2004-01-21 |
CA2234290A1 (en) | 1998-10-24 |
DE59801741D1 (de) | 2001-11-22 |
CN1196916A (zh) | 1998-10-28 |
Similar Documents
Publication | Publication Date | Title |
---|---|---|
EP0885600B1 (de) | Federelastischer Fusseinsatz für einen Kunstfuss | |
EP0793949B1 (de) | Gelenkloser Kunstfuss | |
DE10049714B4 (de) | Fußeinsatz für einen Kunstfuß | |
DE2849588C2 (de) | Prothesengelenk | |
EP0487852B1 (de) | Gelenkloser Prothesenfuss | |
DE102004037877B4 (de) | Fußprothese | |
EP0407650B1 (de) | Kunstfuss für eine Beinprothese | |
EP0334989A2 (de) | Kunstfuss für eine Beinprothese | |
DE102006004132B4 (de) | Künstlicher Fuß und Verfahren zur Steuerung der Bewegung eines künstlichen Fußes | |
DE60208889T2 (de) | Fussgelenksorthose | |
DE102006046928B4 (de) | Prothese mit einem Schaft zur Aufnahme eines Amputationsstumpfes | |
DE60002875T2 (de) | Unterschenkelprothese | |
EP3139869A1 (de) | Prothesenfuss | |
DE3808994A1 (de) | Unterschenkelprothese | |
DE2341887C3 (de) | Kunstfuß für eine Beinprothese | |
DE10053259A1 (de) | Fussprothese | |
EP0439028A2 (de) | Schwenkverbindung zwischen zwei Teilen eines orthopädie-technischen Hilfsmittels | |
EP0648479A1 (de) | Sprunggelenkfederelement für Beinprothesen und Kunstfuss | |
DE19529824A1 (de) | Bikondyläre Knie-Endoprothese | |
EP1072240B1 (de) | Hüftgelenk für ein Kunstbein | |
DE102016105704B4 (de) | Grundkörper für einen Prothesenfuß und Prothesenfuß damit | |
DE102004027252A1 (de) | Orthese | |
CH719427A1 (de) | Unterschenkelorthese. | |
DE4208941A1 (de) | Fussprothese mit hilfsknoechelkonstruktion | |
DE102006055846A1 (de) | Stützfeder und Unterschenkelorthese |
Legal Events
Date | Code | Title | Description |
---|---|---|---|
PUAI | Public reference made under article 153(3) epc to a published international application that has entered the european phase |
Free format text: ORIGINAL CODE: 0009012 |
|
PUAL | Search report despatched |
Free format text: ORIGINAL CODE: 0009013 |
|
AK | Designated contracting states |
Kind code of ref document: A2 Designated state(s): AT CH DE FR GB IT LI NL SE |
|
AX | Request for extension of the european patent |
Free format text: AL;LT;LV;MK;RO;SI |
|
AK | Designated contracting states |
Kind code of ref document: A3 Designated state(s): AT BE CH DE DK ES FI FR GB GR IE IT LI LU MC NL PT SE |
|
AX | Request for extension of the european patent |
Free format text: AL;LT;LV;MK;RO;SI |
|
17P | Request for examination filed |
Effective date: 19990126 |
|
AKX | Designation fees paid |
Free format text: AT CH DE FR GB IT LI NL SE |
|
GRAG | Despatch of communication of intention to grant |
Free format text: ORIGINAL CODE: EPIDOS AGRA |
|
17Q | First examination report despatched |
Effective date: 20010504 |
|
GRAG | Despatch of communication of intention to grant |
Free format text: ORIGINAL CODE: EPIDOS AGRA |
|
GRAH | Despatch of communication of intention to grant a patent |
Free format text: ORIGINAL CODE: EPIDOS IGRA |
|
GRAA | (expected) grant |
Free format text: ORIGINAL CODE: 0009210 |
|
AK | Designated contracting states |
Kind code of ref document: B1 Designated state(s): AT CH DE FR GB IT LI NL SE |
|
REF | Corresponds to: |
Ref document number: 206903 Country of ref document: AT Date of ref document: 20011115 Kind code of ref document: T |
|
REG | Reference to a national code |
Ref country code: CH Ref legal event code: NV Representative=s name: BRAUN & PARTNER PATENT-, MARKEN-, RECHTSANWAELTE Ref country code: CH Ref legal event code: EP |
|
REF | Corresponds to: |
Ref document number: 59801741 Country of ref document: DE Date of ref document: 20011122 |
|
REG | Reference to a national code |
Ref country code: GB Ref legal event code: IF02 |
|
GBT | Gb: translation of ep patent filed (gb section 77(6)(a)/1977) |
Effective date: 20020122 |
|
ET | Fr: translation filed | ||
RAP2 | Party data changed (patent owner data changed or rights of a patent transferred) |
Owner name: OTTO BOCK HEALTHCARE GMBH |
|
PLBE | No opposition filed within time limit |
Free format text: ORIGINAL CODE: 0009261 |
|
STAA | Information on the status of an ep patent application or granted ep patent |
Free format text: STATUS: NO OPPOSITION FILED WITHIN TIME LIMIT |
|
NLT2 | Nl: modifications (of names), taken from the european patent patent bulletin |
Owner name: OTTO BOCK HEALTHCARE GMBH |
|
26N | No opposition filed | ||
PGFP | Annual fee paid to national office [announced via postgrant information from national office to epo] |
Ref country code: AT Payment date: 20060222 Year of fee payment: 9 |
|
PGFP | Annual fee paid to national office [announced via postgrant information from national office to epo] |
Ref country code: CH Payment date: 20060301 Year of fee payment: 9 |
|
PG25 | Lapsed in a contracting state [announced via postgrant information from national office to epo] |
Ref country code: LI Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES Effective date: 20070228 Ref country code: CH Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES Effective date: 20070228 |
|
REG | Reference to a national code |
Ref country code: CH Ref legal event code: PL |
|
PG25 | Lapsed in a contracting state [announced via postgrant information from national office to epo] |
Ref country code: AT Free format text: LAPSE BECAUSE OF NON-PAYMENT OF DUE FEES Effective date: 20070214 |
|
REG | Reference to a national code |
Ref country code: DE Ref legal event code: R082 Ref document number: 59801741 Country of ref document: DE Representative=s name: GRAMM, LINS & PARTNER PATENT- UND RECHTSANWAEL, DE |
|
REG | Reference to a national code |
Ref country code: FR Ref legal event code: PLFP Year of fee payment: 19 |
|
REG | Reference to a national code |
Ref country code: FR Ref legal event code: PLFP Year of fee payment: 20 |
|
PGFP | Annual fee paid to national office [announced via postgrant information from national office to epo] |
Ref country code: FR Payment date: 20170220 Year of fee payment: 20 Ref country code: DE Payment date: 20170222 Year of fee payment: 20 Ref country code: SE Payment date: 20170221 Year of fee payment: 20 |
|
PGFP | Annual fee paid to national office [announced via postgrant information from national office to epo] |
Ref country code: GB Payment date: 20170221 Year of fee payment: 20 Ref country code: NL Payment date: 20170220 Year of fee payment: 20 |
|
PGFP | Annual fee paid to national office [announced via postgrant information from national office to epo] |
Ref country code: IT Payment date: 20170217 Year of fee payment: 20 |
|
REG | Reference to a national code |
Ref country code: DE Ref legal event code: R071 Ref document number: 59801741 Country of ref document: DE Ref country code: NL Ref legal event code: MK Effective date: 20180213 |
|
REG | Reference to a national code |
Ref country code: GB Ref legal event code: PE20 Expiry date: 20180213 |
|
PG25 | Lapsed in a contracting state [announced via postgrant information from national office to epo] |
Ref country code: GB Free format text: LAPSE BECAUSE OF EXPIRATION OF PROTECTION Effective date: 20180213 |
