EP0806784A3 - Switchgear with movable connection lines - Google Patents

Switchgear with movable connection lines Download PDF

Info

Publication number
EP0806784A3
EP0806784A3 EP97890079A EP97890079A EP0806784A3 EP 0806784 A3 EP0806784 A3 EP 0806784A3 EP 97890079 A EP97890079 A EP 97890079A EP 97890079 A EP97890079 A EP 97890079A EP 0806784 A3 EP0806784 A3 EP 0806784A3
Authority
EP
European Patent Office
Prior art keywords
switchgear
connection lines
movable connection
lines
installation
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Granted
Application number
EP97890079A
Other languages
German (de)
French (fr)
Other versions
EP0806784A2 (en
EP0806784B1 (en
Inventor
Gerhard Schuh
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Felten and Guilleaume Austria AG
Original Assignee
Felten and Guilleaume Austria AG
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Felten and Guilleaume Austria AG filed Critical Felten and Guilleaume Austria AG
Priority to AT97890079T priority Critical patent/ATE254335T1/en
Publication of EP0806784A2 publication Critical patent/EP0806784A2/en
Publication of EP0806784A3 publication Critical patent/EP0806784A3/en
Application granted granted Critical
Publication of EP0806784B1 publication Critical patent/EP0806784B1/en
Anticipated expiration legal-status Critical
Expired - Lifetime legal-status Critical Current

Links

Classifications

    • H—ELECTRICITY
    • H01—ELECTRIC ELEMENTS
    • H01H—ELECTRIC SWITCHES; RELAYS; SELECTORS; EMERGENCY PROTECTIVE DEVICES
    • H01H71/00—Details of the protective switches or relays covered by groups H01H73/00 - H01H83/00
    • H01H71/08—Terminals; Connections
    • H01H71/082—Connections between juxtaposed circuit breakers

Landscapes

  • Patch Boards (AREA)
  • Switch Cases, Indication, And Locking (AREA)
  • Coupling Device And Connection With Printed Circuit (AREA)
  • Push-Button Switches (AREA)
  • Trip Switchboards (AREA)
  • Input Circuits Of Receivers And Coupling Of Receivers And Audio Equipment (AREA)
  • Keying Circuit Devices (AREA)
  • Cable Accessories (AREA)
  • Structure Of Telephone Exchanges (AREA)
  • Breakers (AREA)
  • Casings For Electric Apparatus (AREA)
  • Mechanical Light Control Or Optical Switches (AREA)
  • Use Of Switch Circuits For Exchanges And Methods Of Control Of Multiplex Exchanges (AREA)

Abstract

Schaltgerät für den Einbau in einen Schaltschrank, welches Schaltgerät (1) Leitungen (2) zum Herstellen elektrischer Verbindungen zu den Anschlußklemmen (3) eines unmittelbar benachbart angeordneten weiteren Schaltgerätes (4) aufweist, wobei die Leitungen (2) relativ zum Schaltgerät (1) längs eines vorbestimmten Weges bewegbar an diesem festgelegt sind.

Figure 00000001

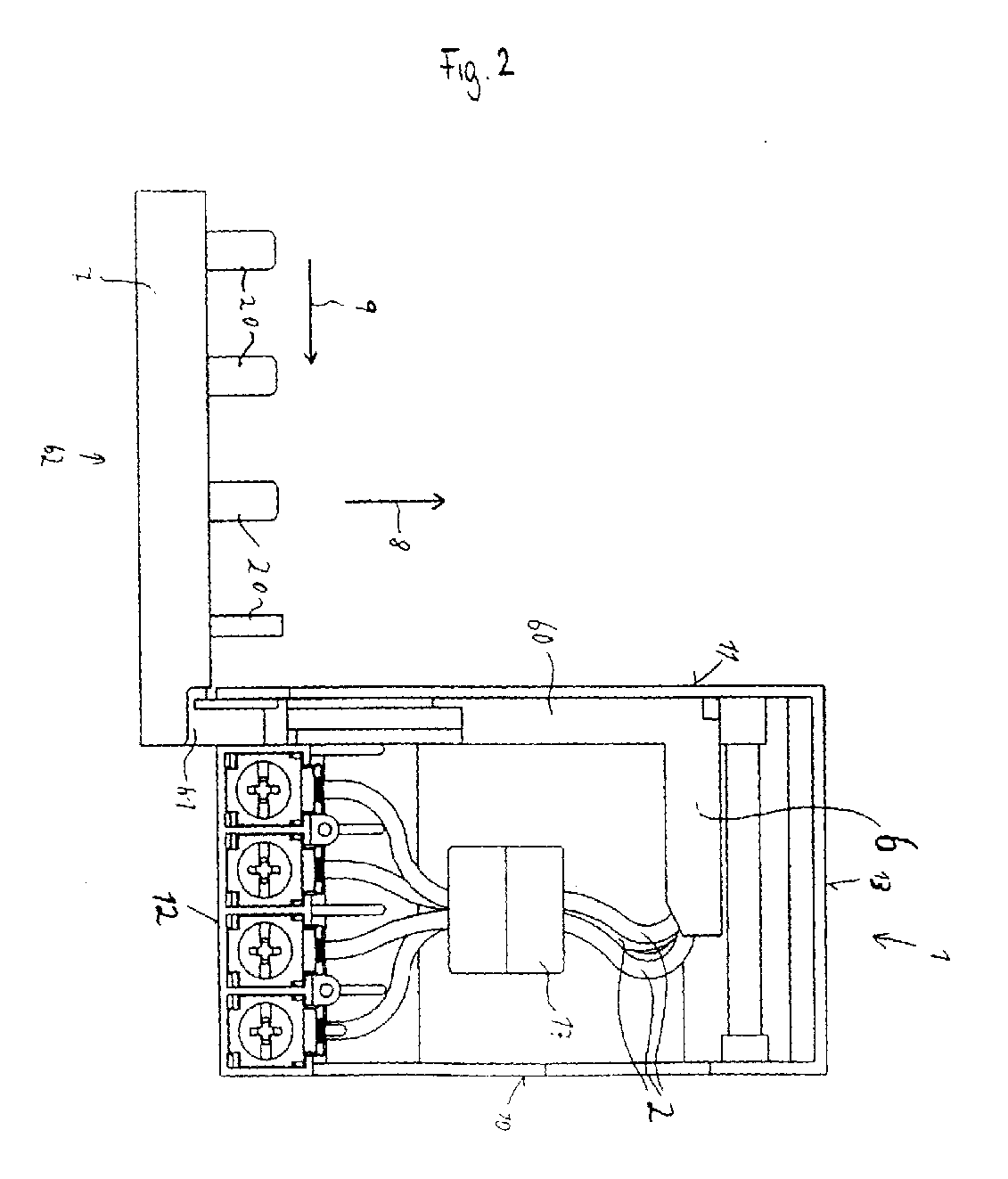

Switchgear for installation in a switchgear cabinet, which switchgear (1) has lines (2) for establishing electrical connections to the connection terminals (3) of another switchgear (4) arranged directly adjacent, the lines (2) relative to the switchgear (1) are movably fixed along a predetermined path.
