EP0337902A1 - Display-box for advertisement or information - Google Patents

Display-box for advertisement or information Download PDF

Info

Publication number
EP0337902A1
EP0337902A1 EP89420126A EP89420126A EP0337902A1 EP 0337902 A1 EP0337902 A1 EP 0337902A1 EP 89420126 A EP89420126 A EP 89420126A EP 89420126 A EP89420126 A EP 89420126A EP 0337902 A1 EP0337902 A1 EP 0337902A1
Authority
EP
European Patent Office
Prior art keywords
images
boxes
frame
mirror
support
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Withdrawn
Application number
EP89420126A
Other languages
German (de)
French (fr)
Inventor
Johannès Atalla
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
INTERNATIONAL CONCEPTION SYSTEMES ELECTRONIQUES (SARL)
Original Assignee
INTERNATIONAL CONCEPTION SYSTEMES ELECTRONIQUES (SARL)
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by INTERNATIONAL CONCEPTION SYSTEMES ELECTRONIQUES (SARL) filed Critical INTERNATIONAL CONCEPTION SYSTEMES ELECTRONIQUES (SARL)
Publication of EP0337902A1 publication Critical patent/EP0337902A1/en
Withdrawn legal-status Critical Current

Links

Images

Classifications

    • G—PHYSICS
    • G09—EDUCATION; CRYPTOGRAPHY; DISPLAY; ADVERTISING; SEALS
    • G09F—DISPLAYING; ADVERTISING; SIGNS; LABELS OR NAME-PLATES; SEALS
    • G09F27/00—Combined visual and audible advertising or displaying, e.g. for public address
    • G—PHYSICS
    • G09—EDUCATION; CRYPTOGRAPHY; DISPLAY; ADVERTISING; SEALS
    • G09F—DISPLAYING; ADVERTISING; SIGNS; LABELS OR NAME-PLATES; SEALS
    • G09F13/00—Illuminated signs; Luminous advertising
    • G09F13/04—Signs, boards or panels, illuminated from behind the insignia
    • G09F13/12—Signs, boards or panels, illuminated from behind the insignia using a transparent mirror or other light reflecting surface transparent to transmitted light whereby a sign, symbol, picture or other is visible only when illuminated

Definitions

  • the subject of the invention is an advertising and / or information medium.
  • the invention relates to the technical sector of advertising media by projection of light and / or sound images.
  • Information media comprising a display screen activated by the introduction of a token or coin.
  • the aim sought after according to the invention was to seek a new support concept offering possibilities of advertising and other information according to specific interventions, also offering a new aesthetic of products, and allowing very easily and in a very short intervention time. to change the choice of advertisements and / or of information.
  • the goal is achieved which aims at an advertising and / or information support of simple manufacturing, inexpensive and having the particularity of maintaining or creating an action and momentary active attention on the part of a person near his location.
  • the advertising and / or information medium according to the invention is remarkable in that it comprises a frame forming a box closed by a door comprising a mirror, said frame being arranged internally with a plurality of boxes for receiving images, photographs and similar and lighting means, and one or more boxes receiving control means authorizing the successive and / or simultaneous exchange of the various aforementioned images, according to a predetermined programming and timing, the display of said images being effected on the part mirror of the support in projection flash, means arranged in the frame controlling the operation of the support and the lighting of the images according to the passage of people.
  • the information and / or advertising medium includes a frame (1) forming an external box of all profiles, dimensions, and made of any suitable material.
  • This frame receives on its front face a door (2) articulated and pivotally mounted for example by one of its lateral sides.
  • this door receives a mirror (3) forming a mirror.
  • This glass has the particularity of being one-way which gives it the property on its face before having the same appearance as a classic mirror.
  • this mirror lets through the bright images arranged inside the aforementioned frame.
  • the frame is arranged to form a plurality of boxes (4) of varied profiles and dimensions capable of corresponding and each receiving an image, photograph and the like intended to be projected and illuminated.
  • These boxes (4) are established in the thickness of the frame whose bottom (1.1) is closed and are arranged internally to each receive a support (5) of a hallogen lamp (6) or the like.
  • the front face of the frame is arranged on all or part of the peripheral profile of the boxes (4) with profiled slides (7) or equivalent means for receiving, guiding and holding in position said photographic images thus positioned each in front of the hallogenic lamps.
  • the profile of the boxes can vary, we have shown in the drawings boxes having the shape of a square, of a rectangle.
  • separation strips capable of corresponding very exactly to the profiles of said boxes and thus from the mirror define a separation .
  • the dividing strips can be removable and detachable depending on the profile of the boxes. These strips are for example self-adhesive.
  • the frame there is provided in the frame at any place or places, such as those illustrated in the drawings, at least one and preferably two boxes (9) arranged differently from the boxes (4) while receiving internally means authorizing the operation and / or sound reinforcement of the object of the invention. More precisely, the box or boxes (9) receive an electronic unit (10) programmed with timing means allowing the successive and / or simultaneous lighting of one or more images for a predetermined time, one or more speakers (11) associated with a tape recorder (12) allow the unfolding of a soundtrack (speech and music) accompanying each image using a cassette recording.
  • an electronic unit 10 programmed with timing means allowing the successive and / or simultaneous lighting of one or more images for a predetermined time
  • one or more speakers (11) associated with a tape recorder (12) allow the unfolding of a soundtrack (speech and music) accompanying each image using a cassette recording.
  • the imaging of the mirror is obtained by the intervention of photoelectric cells (19) arranged in the box or boxes (9) and allowing, when a person passes, the triggering of the advertising information program.
  • a hidden area (14) having an opening (15) for the passage of the light ray controlling the photoelectric cell.
  • the boxes (9) reserved for positioning the electrical operating and public address means can be provided in various locations and for example be located on an upper or lower or lateral border of the frame.
  • the hallogenic lamps are held in position by means ensuring both their positioning and contact, known to those skilled in the art and appropriately attached to the frame.
  • the support makes appear on the surface of the mirror a very bright image for the time necessary for its combined visualization if necessary with an audible comment.
  • the other images are illuminated, each image appearing at a different point on the surface of the mirror which maintains attention while avoiding monotony.
  • the lighting of the various means can be carried out by following the order of positioning of the images on the frame, or preferably in a different and varied manner to give the impression of information flashes.
  • the advertising medium according to the invention is therefore active and gives a succession of impactful images attracting and maintaining the attention of the person or persons who will have triggered their animation while passing in front of the photoelectric cell or cells. In the absence of triggering of the cells, the advertising medium does not work and lets appear the only mirror whose aesthetics and proper function of ice are likely to attract people.
  • the aforementioned support can be placed against a wall, as simply as a table, or be placed on an information stand or the like.

Landscapes

  • Physics & Mathematics (AREA)
  • General Physics & Mathematics (AREA)
  • Engineering & Computer Science (AREA)
  • Theoretical Computer Science (AREA)
  • Illuminated Signs And Luminous Advertising (AREA)

Abstract

This advertising carrier is remarkable in that it comprises a frame (1), forming a box which is closed by a door (2) comprising a mirror (3), there being arranged inside the said frame a plurality of compartments (4) for receiving images, photographs (P) and the like and lighting means, and one or more compartments (9) receiving control means permitting successive and/or simultaneous illumination of the various images mentioned in accordance with a predetermined programming and time delay, the said images being displayed on the mirror (3) of the carrier by flash projection; means disposed in the frame controlling the functioning of the carrier and the illumination of the images being triggered by passers-by. <IMAGE>

Description

L'invention a pour objet un support publicitaire et/ou d'informations.The subject of the invention is an advertising and / or information medium.

L'invention se rattache au secteur technique des sup­ports de publicité par projection d'images lumineuses et/ou so­norisées.The invention relates to the technical sector of advertising media by projection of light and / or sound images.

On connait déjà de nombreux supports publicitaires permettant la projection d'images et de représentations. Ce peut être par exemple des panneaux publicitaires présentant des ban­des d'enroulement supports de messages fonctionnant selon un mouvement en va et vient ou de défilement continu sur une bande sans fin dans un plan horizontal ou vertical. Les mécanismes en sont complexes et bien qu'ils offrent une possibilité de change­ment des messages, on ne peut intervenir trop souvent. En outre, les supports sont passifs en ce sens que les personnes les vi­sualisant n'ont aucune action d'intervention.We already know many advertising media allowing the projection of images and representations. It may for example be billboards having winding strips supporting messages operating in a back and forth movement or continuous scrolling on an endless strip in a horizontal or vertical plane. The mechanisms are complex and although they offer a possibility of changing messages, one cannot intervene too often. In addition, the supports are passive in the sense that the people viewing them have no intervention action.

On connait également la possibilité de réaliser des films video de quelques minutes permettant de mettre en valeur une entreprise, ses produits, une région ou autres à des fins économiques, touristiques et autres. Dans ce cas, l'écoute attentive du film vidéo nécessite plusieurs minutes d'attention, et la mise en place du film et de la bande sonore accompagnante fait l'objet d'une programmation et d'un défilement continu. Le film vidéo est réalisé une fois pour toute et sa conception en­traine un coût élevé.We also know the possibility of making video films of a few minutes to highlight a business, its products, a region or others for economic, tourism and other purposes. In this case, attentive listening to the video film requires several minutes of attention, and the installation of the film and the accompanying sound track is subject to continuous programming and scrolling. The video film is made once and for all and its design involves a high cost.

On connait aussi des supports d'informations compre­nant un écran de visualisation mis en marche par l'introduction d'un jeton ou pièce de monnaie.Information media are also known comprising a display screen activated by the introduction of a token or coin.

Tous ces supports présentant un intérêt certain dans leurs applications respectives.All these supports having a certain interest in their respective applications.

Le but recherché selon l'invention était de rechercher un nouveau concept de support offrant des possibilités d'infor­mations publicitaires et autres selon des interventions ponc­tuelles, offrant également une nouvelle esthétique de produits, et permettant très facilement et dans un temps d'intervention très court de changer le choix des annonces publicitaires et/ou d'informations.The aim sought after according to the invention was to seek a new support concept offering possibilities of advertising and other information according to specific interventions, also offering a new aesthetic of products, and allowing very easily and in a very short intervention time. to change the choice of advertisements and / or of information.

Le but est atteint qui vise un support publicitaire et/ou d'informations de fabrication simple, peu coûteu et ayant la particularité d'entretenir ou de créer une action et atten­tion active momentanée de la part d'une personne à proximité de son emplacement.The goal is achieved which aims at an advertising and / or information support of simple manufacturing, inexpensive and having the particularity of maintaining or creating an action and momentary active attention on the part of a person near his location.

Le support publicitaire et/ou d'information selon l'invention est remarquable en ce qu'il comprend un encadrement formant caisson fermé par une porte comprenant un miroir, ledit encadrement étant agencé intérieurement avec une pluralité de cases réceptrices d'images, photographies et similaires et des moyens d'éclairage, et une ou des cases recevant des moyens de commande autorisant l'échange successif et/ou simultané des dif­férentes images précitées, selon une programmation et temporisa­tion prédéterminées, l'affichage desdites images s'effectuant sur la partie miroir du support en flash de projection, des mo­yens disposés dans l'encadrement commandant le fonctionnement du support et l'éclairage des images en fonction du passage des personnes.The advertising and / or information medium according to the invention is remarkable in that it comprises a frame forming a box closed by a door comprising a mirror, said frame being arranged internally with a plurality of boxes for receiving images, photographs and similar and lighting means, and one or more boxes receiving control means authorizing the successive and / or simultaneous exchange of the various aforementioned images, according to a predetermined programming and timing, the display of said images being effected on the part mirror of the support in projection flash, means arranged in the frame controlling the operation of the support and the lighting of the images according to the passage of people.

Ces caractéristiques et d'autres encore ressortiront bien de la description.These characteristics and others will become apparent from the description.

Pour fixer l'objet de l'invention illustrée d'une ma­nière non limitative aux figures des dessins où :

  • - La figure 1 est une perspective d'un support publi­citaire et/ou d'informations en position fermé.
  • - La figure 2 est une vue en perspective du support selon la figure 1 en position ouverte.
  • - La figure 3 est une vue en coupe selon la ligne bri­sée 3-3 de la figure 1.
  • - La figure 4 est une vue partielle en coupe selon la ligne 4-4 de la figure 2.
To fix the subject of the invention illustrated in a nonlimiting manner in the figures of the drawings where:

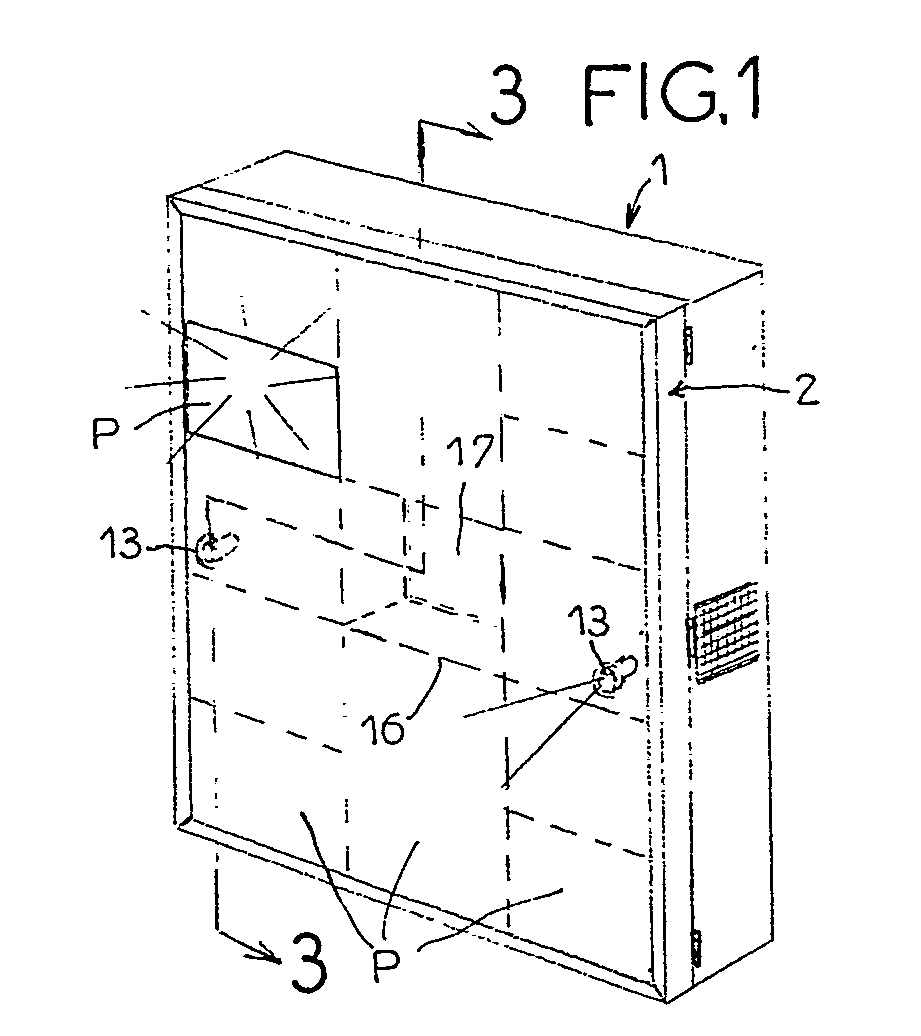

  • - Figure 1 is a perspective of an advertising medium and / or information in the closed position.
  • - Figure 2 is a perspective view of the support according to Figure 1 in the open position.
  • - Figure 3 is a sectional view along the broken line 3-3 of Figure 1.
  • - Figure 4 is a partial sectional view along line 4-4 of Figure 2.

Afin de rendre plus concret l'objet de l'invention, on le décrit maintenant d'une manière non limitative illustrée aux figures du dessin.In order to make the object of the invention more concrete, it is now described in a nonlimiting manner illustrated in the figures of the drawing.

Le support d'informations et/ou publicitaires comprend un encadrement (1) formant caisson extérieur de tous profils, dimensions, et réalisés en tout matériaux appropriés. Cet enca­drement reçoit sur sa face avant une porte (2) articulée et mon­tée pivotante par exemple par l'un de ses côtés latéraux. Selon une première disposition importante de l'invention, cette porte reçoit une glace (3) formant miroir. Cette glace présente la particularité d'être sans tain ce qui lui donne la propriété sur sa face avant d'avoir la même apparence qu'un miroir classique. Par contre, ce miroir laisse passer les images lumineuses dispo­sées à l'intérieur de l'encadrement précité.The information and / or advertising medium includes a frame (1) forming an external box of all profiles, dimensions, and made of any suitable material. This frame receives on its front face a door (2) articulated and pivotally mounted for example by one of its lateral sides. According to a first important arrangement of the invention, this door receives a mirror (3) forming a mirror. This glass has the particularity of being one-way which gives it the property on its face before having the same appearance as a classic mirror. On the other hand, this mirror lets through the bright images arranged inside the aforementioned frame.

Ainsi qu'il apparait aux dessins, l'encadrement est agencé pour former une pluralité de cases (4) de profils et di­mensions variées susceptibles de correspondre et de recevoir chacune une image, photographie et similaire destinée à être projetée et éclairée. Ces cases (4) sont établies dans l'épais­seur de l'encadrement dont le fond (1.1) est fermé et sont agen­cées intérieurement pour recevoir chacun un support (5) d'une lampe hallogène (6) ou similaire. La face avant de l'encadrement est agencée sur tout ou partie du profil périphérique des cases (4) avec des glissières (7) profilées ou moyens équivallents pour recevoir, guider et maintenir en position lesdites images photographies positionnées ainsi chacune devant les lampes hal­logènes. Le profil des cases peut varier, on a représenté aux dessins des cases ayant la forme d'un carré, d'un rectangle. Compte tenu de l'emplacement des cases sur l'encadrement, il est prévu d'agencer la face interne du support avec des bandes de séparation (8) susceptibles de correspondre très exactement aux profils desdites cases et ainsi à partir du miroir définir une séparation. Les bandes de séparations peuvent être amovibles et détachables en fonction du profil des cases. Ces bandes sont par exemple auto-collantes.As it appears in the drawings, the frame is arranged to form a plurality of boxes (4) of varied profiles and dimensions capable of corresponding and each receiving an image, photograph and the like intended to be projected and illuminated. These boxes (4) are established in the thickness of the frame whose bottom (1.1) is closed and are arranged internally to each receive a support (5) of a hallogen lamp (6) or the like. The front face of the frame is arranged on all or part of the peripheral profile of the boxes (4) with profiled slides (7) or equivalent means for receiving, guiding and holding in position said photographic images thus positioned each in front of the hallogenic lamps. The profile of the boxes can vary, we have shown in the drawings boxes having the shape of a square, of a rectangle. Given the location of the boxes on the frame, it is planned to arrange the internal face of the support with separation strips (8) capable of corresponding very exactly to the profiles of said boxes and thus from the mirror define a separation . The dividing strips can be removable and detachable depending on the profile of the boxes. These strips are for example self-adhesive.

Selon une autre disposition de l'invention, il est prévu dans l'encadrement à un ou des endroits quelconques, tels que ceux illustrés aux dessins, au moins une et de préférence deux cases (9) agencées différemment des cases (4) en recevant intérieurement des moyens autorisant le fonctionnement et/ou la sonorisation du supportr objet de l'invention. Plus précisém­ment, la ou les cases (9) reçoivent un boîtier électronique (10) programmé avec des moyens de temporisation autorisant l'éclaira­ge successif et/ou simultané de une ou plusieurs images pendant un temps prédéterminé, un ou des hauts parleurs (11) associés à un magnétophone (12) permettent le déroulement d'une bande sono­re (parole et musique) accompagnant chaque image à l'aide d'un enregistrement sur cassette.According to another arrangement of the invention, there is provided in the frame at any place or places, such as those illustrated in the drawings, at least one and preferably two boxes (9) arranged differently from the boxes (4) while receiving internally means authorizing the operation and / or sound reinforcement of the object of the invention. More precisely, the box or boxes (9) receive an electronic unit (10) programmed with timing means allowing the successive and / or simultaneous lighting of one or more images for a predetermined time, one or more speakers (11) associated with a tape recorder (12) allow the unfolding of a soundtrack (speech and music) accompanying each image using a cassette recording.

Selon une disposition originale de l'invention la mise en image du miroir est obtenue par l'intervention de cellules photo-électriques (19) disposées dans la ou les cases (9) et permettant lors du passage d'une personne, le déclenchement du programme d'informations publicitaires. Pour ce faire, il est prévu sur le miroir en regard de la ou des cases (9) une zone (14) occultée présentant une ouverture (15) pour le passage du rayon lumineux commandant la cellule photo-électrique.According to an original arrangement of the invention, the imaging of the mirror is obtained by the intervention of photoelectric cells (19) arranged in the box or boxes (9) and allowing, when a person passes, the triggering of the advertising information program. To do this, there is provided on the mirror opposite the box or boxes (9) a hidden area (14) having an opening (15) for the passage of the light ray controlling the photoelectric cell.

Accessoirement, il peut être envisagé de réserver dans l'espace de l'encadrement une ou des cases (16) situées par exemple dans la partie centrale de l'encadrement pour la présen­tation physique d'un produit, tel que flacons de parfums, stylo, montre ou tous autres objets, ledit produit étant mis en valeur par un jeu de glaces (17) disposé sur le fond de la case (16) et éventuellement sur ses côtés périphériques d'encadrement verti­caux et horizontaux.Incidentally, it can be envisaged to reserve in the space of the frame one or more boxes (16) situated for example in the central part of the frame for the physical presentation of a product, such as perfume bottles, pen , watch or any other object, said product being enhanced by a set of mirrors (17) arranged on the bottom of the case (16) and possibly on its peripheral vertical and horizontal framing sides.

Sans sortir du cadre de l'invention, on peut prévoir un agencement démontable du support afin de s'adapter au mieux aux formats de différentes images et photographies présentées. Les cases (9) réservées au positionnement des moyens électriques de fonctionnement et de sonorisation peuvent être prévues dans des emplacements variés et par exemple se trouver sur une bordu­re supérieure ou inférieure ou latérale de l'encadrement.Without departing from the scope of the invention, it is possible to provide a removable arrangement of the support in order to best adapt to the formats of the various images and photographs presented. The boxes (9) reserved for positioning the electrical operating and public address means can be provided in various locations and for example be located on an upper or lower or lateral border of the frame.

Ainsi qu'il apparait figure 4, les lampes hallogènes sont maintenues en position par des moyens assurant à la fois leur positionnement et contact, connus de l'homme de l'art et fixés de façon appropriée à l'encadrement.As appears in FIG. 4, the hallogenic lamps are held in position by means ensuring both their positioning and contact, known to those skilled in the art and appropriately attached to the frame.

Ainsi selon l'invention le support fait apparaitre à la surface du miroir une image très lumineuse pendant le temps nécessaire à sa visualisation combinée si besoin est avec un commentaire sonore. A la suite ou simultanément, les autres ima­ges sont éclairées, chaque image apparaissant à un point diffé­rent de la surface du miroir ce qui maintient l'attention tout en évitant la monotonie. L'éclairage des différents moyens peut s'effectuer en suivant l'ordre de positionnement des images sur le cadre, ou de préférence de manière différente et variée pour donner une impression de flashs d'informations.Thus according to the invention the support makes appear on the surface of the mirror a very bright image for the time necessary for its combined visualization if necessary with an audible comment. Following or simultaneously, the other images are illuminated, each image appearing at a different point on the surface of the mirror which maintains attention while avoiding monotony. The lighting of the various means can be carried out by following the order of positioning of the images on the frame, or preferably in a different and varied manner to give the impression of information flashes.

Le support publicitaire selon l'invention est donc actif et donne une succession d'images percutantes attirant et maintenant l'attention de la ou des personnes qui auront déclen­ché son animation en passant devant la ou les cellules photo-­électriques. En l'absence de déclenchement des cellules, le sup­port publicitaire ne fonctionne pas et laisse apparaitre le seul miroir dont l'esthétique et la fonction propre de glace sont susceptibles d'attirer les personnes.The advertising medium according to the invention is therefore active and gives a succession of impactful images attracting and maintaining the attention of the person or persons who will have triggered their animation while passing in front of the photoelectric cell or cells. In the absence of triggering of the cells, the advertising medium does not work and lets appear the only mirror whose aesthetics and proper function of ice are likely to attract people.

Le support précité peut être placé contre un mur, aus­si simplement qu'un tableau, ou être disposé sur un stand d'in­formations ou autres.The aforementioned support can be placed against a wall, as simply as a table, or be placed on an information stand or the like.

Il présente un avantage particulier dans la facilité de modifier les images présentées, d'inverser leur ordre de pré­sentation en intervenant si nécessaire sur la bande sonore. Ce support est facilement transportable et adaptable.It has a particular advantage in the ease of modifying the images presented, of reversing their order of presentation by intervening if necessary on the soundtrack. This support is easily transportable and adaptable.

Sont coût de fabrication est réduit, par suppression tous mécanismes complexes de défilement des images. Il a en ou­tre le grand avantage d'être actif en égard aux passants et spectateurs.Its manufacturing cost is reduced, by eliminating all complex mechanisms for scrolling images. It also has the great advantage of being active with respect to passers-by and spectators.

La mise en oeuvre du système électronique et de sa programmation relève de la technique connue.The implementation of the electronic system and its programming is known technique.

Claims (9)

-1- Support publicitaire et/ou d'information caractérisé en ce qu'il comprend un encadrement (1) formant caisson fermé par une porte (2) comprenant un miroir (3), ledit encadrement étant agencé intérieurement avec une pluralité de cases (4) réceptri­ces d'images, photographies (P) et similaires et des moyens d'é­clairage, et une ou des cases (9) recevant des moyens de comman­de autorisant l'éclairage successif et/ou simultané des diffé­rentes images précitées, selon une programmation et temporisa­tion prédéterminées, l'affichage desdites images s'effectuant sur la partie miroir (3) du support en flash de projection ; des moyens disposés dans l'encadrement commandant le fonctionnement du support et l'éclairage des images en fonction du passage des personnes.-1- Advertising and / or information support, characterized in that it comprises a frame (1) forming a box closed by a door (2) comprising a mirror (3), said frame being arranged internally with a plurality of boxes ( 4) receiving images, photographs (P) and the like and lighting means, and one or more boxes (9) receiving control means authorizing the successive and / or simultaneous lighting of the various aforementioned images, according to a programming and predetermined timing, the display of said images taking place on the mirror part (3) of the support in projection flash; means arranged in the frame controlling the operation of the support and the lighting of the images according to the passage of people. -2- Support selon la revendication 1 caractérisé en ce que le miroir (3) est sans tain lui conférant la propriété sur sa face avant d'avoir l'apparence d'un miroir classique et laissant pas­ser les images lumineuses disposées à l'intérieur de l'encadre­ment.-2- Support according to claim 1 characterized in that the mirror (3) is one-way giving it the property on its face before having the appearance of a conventional mirror and letting pass the bright images arranged inside coaching. -3- Support selon les revendications 1 et 2 ensemble caractérisé en ce que la face arrière du miroir est agencée pour recevoir des bandes de séparation (8) correspondant aux profils des dif­férentes cases (4) (9).-3- Support according to claims 1 and 2 together characterized in that the rear face of the mirror is arranged to receive separation strips (8) corresponding to the profiles of the different boxes (4) (9). -4- Support selon la revendication 1 caractérisé en ce que la face avant de l'encadrement est agencée sur tout ou partie du profil périphérique des cases (4) avec des glissières (7) et moyens similaires de fixation des images, photographies et simi­laires.-4- Support according to claim 1 characterized in that the front face of the frame is arranged on all or part of the peripheral profile of the boxes (4) with slides (7) and similar means for fixing images, photographs and the like . -5- Support selon la revendication 1 caractérisé en ce que cha­que case (4) reçoit intérieurement un moyen d'éclairage du type lampe hallogène (6) montée sur un support (5) fixé audit enca­drement.-5- Support according to claim 1 characterized in that each box (4) internally receives a lighting means of the type hallogen lamp (6) mounted on a support (5) fixed to said frame. -6- Support selon la revendication 1 caractérisé en ce que les moyens de commande disposés dans la ou les cases (9) sont cons­titués par un boitier électronique (10) et par des cellules pho­to-électriques (13) assurant la mise en marche et l'éclairage successif des différentes images.-6- Support according to claim 1 characterized in that the control means arranged in the box or boxes (9) are constituted by an electronic box (10) and by photoelectric cells (13) ensuring the starting and successive lighting of the different images. -7- Support selon les revendications 1 et 6 ensemble caractérisé en ce que des moyens sonores comprenant des hauts parleurs (11) et magnétophone (12) sont disposés dans les cases (9) et fonc­tionnent en combinaison avec l'éclairage successif des images.-7- Support according to claims 1 and 6 together characterized in that sound means comprising speakers (11) and tape recorder (12) are arranged in the boxes (9) and operate in combination with the successive lighting of the images. -8- Support selon les revendications 1, 2, et 6 ensemble carac­térisé en ce que le miroir comprend en regard des cases (9) des zones occultées (14) présentant une ouverture face aux cellules photo-électriques (13).-8- Support according to claims 1, 2, and 6 together characterized in that the mirror comprises opposite boxes (9) hidden areas (14) having an opening facing the photoelectric cells (13). -9- Support selon la revendication 1 caractérisé en ce qu'il comprend dans l'espace de l'encadrement une ou des cases (16) pour la présentation physique d'objets, la ou lesdites cases étant agencées avec des jeux de glaces (17).-9- Support according to claim 1 characterized in that it comprises in the space of the frame one or more boxes (16) for the physical presentation of objects, the said box or boxes being arranged with sets of mirrors ( 17).
