Abstract

contraption for automatically raising beds from the horizontal position above the bed Room floor in a vertical position in front of the room wall. thereby characterized in that a commercial bed, a single bed or a double bed (1) by an electric drive (2) from the horizontal position above the room floor in one vertical position is raised in front of the room wall.

Description

contraption for automatically raising beds from a horizontal position in a vertical position.

contraption for automatically pulling up commercial beds.

The Bed moves over from the horizontal position through the device the floor of the room raised in a vertical position in front of the room wall.

The space occupied by the bed on the floor of the room is substantially reduced. The space gain at the room floor amounts to a double bed over 3.0 m ² .

Various devices have already been proposed which serve to lift a bed against the ceiling after use. " EP 0453409 "or manually swing, with springs as a swivel aid." DE 3145222 "

The previously known devices for lifting or swinging beds are complicated and expensive to manufacture. The practical Applicability is very problematic. All found inventions could not be placed on the market.

The Object of the present invention is a simple and inexpensive Lifting device to create which the disadvantages of the known Turns off inventions. Advantage of the device is that all commercially available Beds from the horizontal position in a vertical position in front a room wall can be raised. The device solves a space problem in the bedroom. With the protection claim 1 specified invention is achieved that bedroom in small apartments after sleeping z. B. used as a study can be. For those wheelchair bound People can press the change from bed to wheelchair a switch more than 2/3 of the space use on the bed was standing. The bedroom becomes an accessible area.

The developed lifting device is characterized in that the Bed headboard attached to two guide rails mounted in front of the room wall transported by an electric drive from the floor towards the ceiling becomes. The foot of the bed rolls on two on the bedstead mounted rollers on the floor towards the room wall.

An embodiment of the invention will be described with reference to FIGS 1 and 2 explained. Show it:

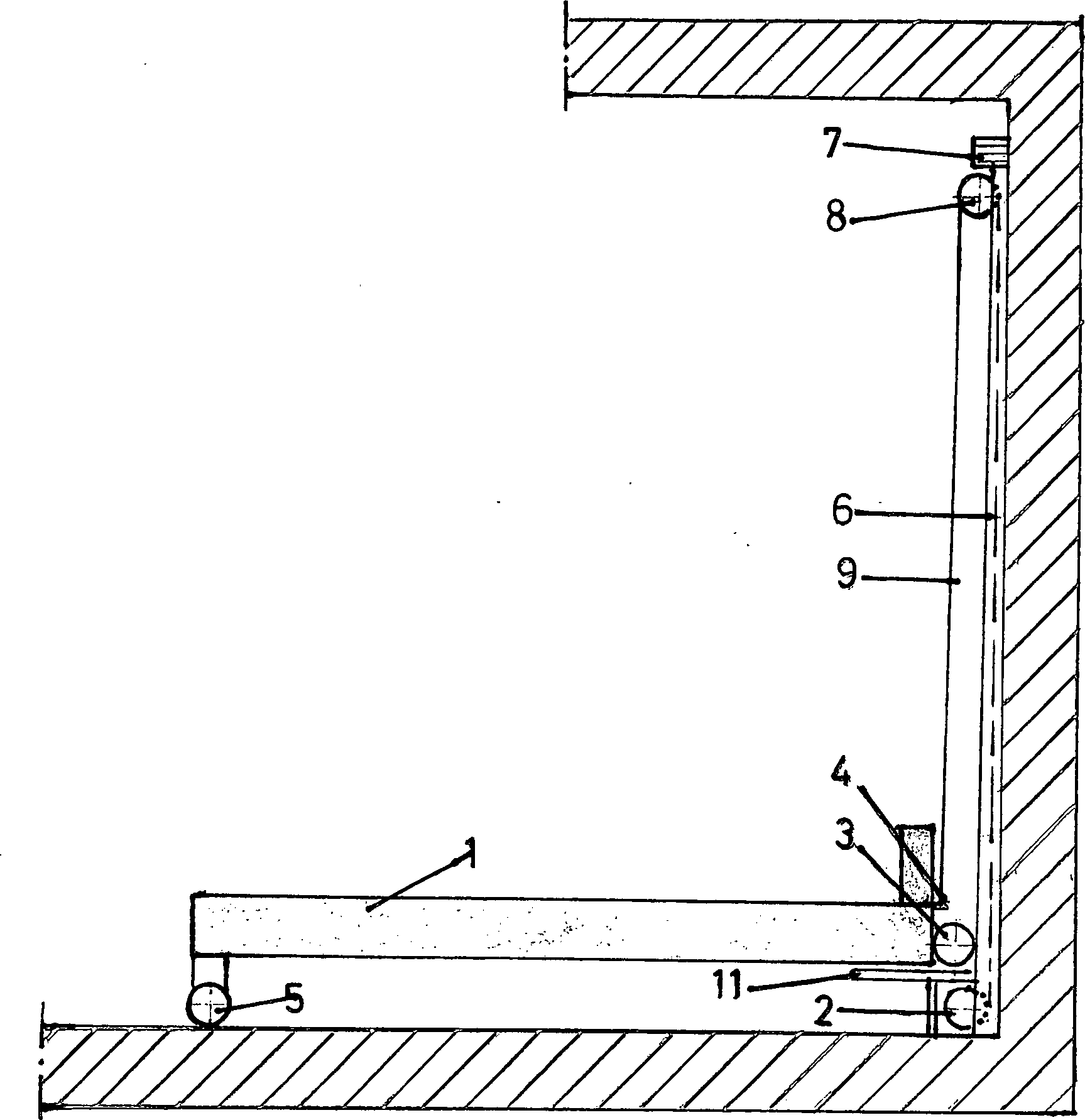

1 a side view of the bed on the room floor

2 a side view of the raised bed on the wall of the room.

QUOTES INCLUDE IN THE DESCRIPTION

This list The documents listed by the applicant have been automated generated and is solely for better information recorded by the reader. The list is not part of the German Patent or utility model application. The DPMA takes over no liability for any errors or omissions.

Cited patent literature

• EP 0453409 [0005]
• - DE 3145222 [0005]

Claims (10)

Device for automatically raising beds from the horizontal position above the floor of the room to a vertical position in front of the wall of the room. characterized in that a commercial bed, a single bed or a double bed ( 1 ) by an electric drive ( 2 ) is raised from the horizontal position above the floor in a vertical position in front of the room wall. Device for automatically raising beds according to claim 1, characterized in that at the head of the bed two rollers ( 3 ) and a hook ( 4 ) and on both bed feet at the foot of the bed a roll ( 5 ) is attached. Device for automatically raising beds according to one of the preceding claims, characterized in that two guide rails ( 6 ) with a crossbeam ( 7 ) are mounted on the wall of the room. Device for the automatic raising of beds according to one of the preceding claims, characterized in that at the bottom of the room between the guide rails ( 6 ) an electric drive ( 2 ) is mounted with a belt roller. Device for automatically raising beds according to one of the preceding claims, characterized in that under the traverse ( 7 ) a role ( 8th ) is attached Device for automatically raising beds according to one of the preceding claims, characterized in that a drawstring ( 9 ) off the hook ( 4 ) about the role ( 8th ) to the belt roller ( 2 ) to be led. Device for automatically raising beds according to one of the preceding claims, characterized in that the head end of the bed ( 1 ) by the on the hook ( 4 ) attached drawstring ( 9 ) can be moved up and down. Device for the automatic raising of beds according to one of the preceding claims, characterized in that with a switch ( 10 Ab) the position of the bed via the electric drive ( 2 ) is controlled. Device for automatically raising beds according to one of the preceding claims, characterized in that the foot end of the bed ( 1 ) when moving up or down on rollers ( 5 ) is moved over the room floor. Device for automatically raising beds according to one of the preceding claims, characterized in that the foot end of the bed ( 1 ) when mounting in front of the wall of the room against a telescopic tube ( 11 ) is pressed, which always initiates the downward movement with a spring force.
