CN2824495Y - Piano key type multi-stage LED light modulating desk lamp - Google Patents
Piano key type multi-stage LED light modulating desk lamp Download PDFInfo
- Publication number
- CN2824495Y CN2824495Y CN200520045236.3U CN200520045236U CN2824495Y CN 2824495 Y CN2824495 Y CN 2824495Y CN 200520045236 U CN200520045236 U CN 200520045236U CN 2824495 Y CN2824495 Y CN 2824495Y
- Authority
- CN
- China
- Prior art keywords
- led
- resistance
- light
- capacitor
- key type
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 238000000034 method Methods 0.000 claims abstract description 3
- 239000003990 capacitor Substances 0.000 claims description 11
- 230000001105 regulatory effect Effects 0.000 description 3
- 238000005286 illumination Methods 0.000 description 2
- 238000004020 luminiscence type Methods 0.000 description 2
- 238000012356 Product development Methods 0.000 description 1
- 230000006837 decompression Effects 0.000 description 1
- 238000010586 diagram Methods 0.000 description 1
- 230000000694 effects Effects 0.000 description 1
- 238000004134 energy conservation Methods 0.000 description 1
- 238000001914 filtration Methods 0.000 description 1
- 238000004519 manufacturing process Methods 0.000 description 1
- 230000006641 stabilisation Effects 0.000 description 1
- 238000011105 stabilization Methods 0.000 description 1
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
- Y02B20/00—Energy efficient lighting technologies, e.g. halogen lamps or gas discharge lamps
- Y02B20/40—Control techniques providing energy savings, e.g. smart controller or presence detection
Landscapes
- Circuit Arrangement For Electric Light Sources In General (AREA)
Abstract
一种琴键式多档LED调光台灯，它是将市电220V经三组不同电参数的RC阻容限流电路，并由桥式整流器转换成直流高压点亮LED发光二极管串联组件，同时由多档亮度调节开关选择不同电流，达到发光二极管“强、中、弱”变化，从而取代白炽灯的调光，其电能转换成光能全过程均为低功耗。
A piano key type multi-level LED dimming table lamp, which is a 220V commercial power through three sets of RC resistance-capacity current limiting circuits with different electrical parameters, and is converted into a DC high voltage by a bridge rectifier to light up LED light-emitting diodes in series. The multi-level brightness adjustment switch selects different currents to achieve "strong, medium, and weak" changes in the light-emitting diodes, thereby replacing the dimming of incandescent lamps, and the entire process of converting electrical energy into light energy is low power consumption.
Description
Affiliated technical field: the utility model relates to a kind of lamp dimmer device, many grades of LED lamp dimmers of especially a kind of piano type.
Technical background: at present, its light source of lamp dimmer civilian on the household electrical appliance market of various places nearly all is an incandescent lamp bulb, and the exploitation H of minority producer energy-conservation cast is also arranged once in a while.Although these desk lamps with dimmer switch are awfully hot pin on market, people like very that also its power consumption is bigger, especially incandescent lamp bulb.Along with the new product development of electronic applications, it is the LED light-emitting diode that a kind of novel electric light source is arranged, and its power consumption approximately is 1/100 of an incandescent lamp bulb, has great luminous efficiency and extremely long useful life.
In order to respond the call of the national energy savings that proposes, the utility model provides a kind of new LED lamp dimmer, it can replace all kinds of desk lamps with dimmer switch on the market fully, brightness does not weaken, save remarkable benefit, especially burn in the other nothing heat of desk lamp and feel, have characteristics such as low-power consumption, noiseless and volume are little, allow 21 century this revolution of green illumination enter each family.
Summary of the invention: technical solution adopted in the utility model is: input 220V civil power is through the RC capacitance-resistance current-limiting circuit by three groups of different electrical parameters, and converts dc high voltage to by bridge rectifier and light luminescence component by the series connection of LED light-emitting diode.Simultaneously select different electric currents by many grades of brightness regulating switch, " strong, in, weak " that reach light-emitting diode changes, thereby replaces the light modulation of incandescent lamp bulb, and its electric energy converts the luminous energy overall process to and is low-power consumption.
The utility model has adopted such scheme only to manage cost and has slightly raise, but along with the raising of production efficiency, also can overcome, and the more important thing is and saved the energy, and the multiple glow color of LED tool, range of application is very wide.
Description of drawings: many grades of LED lamp dimmers of the utility model piano type are described in further detail below in conjunction with drawings and Examples.

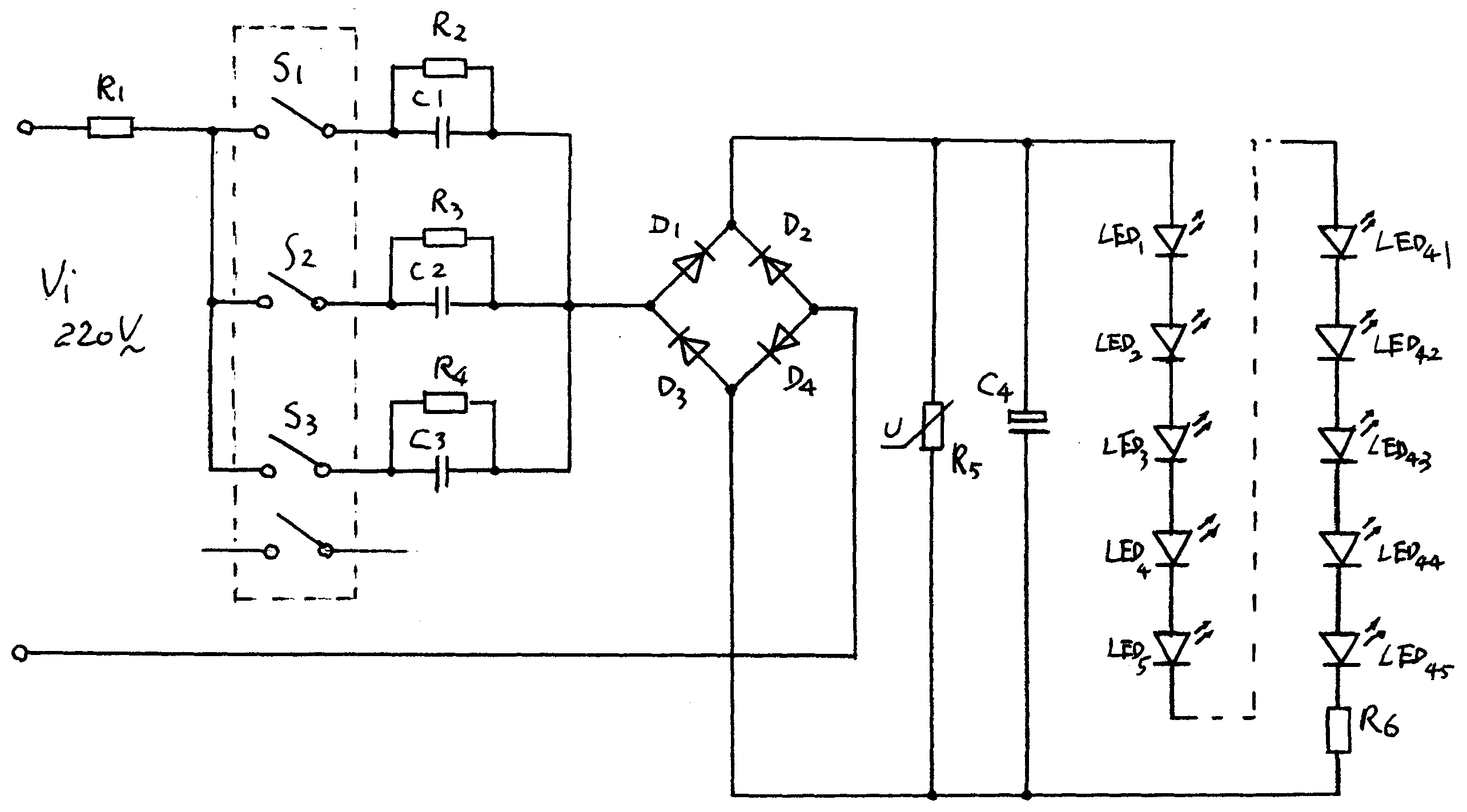

Fig. 1 is the electrical schematic diagram of many grades of LED lamp dimmers of the utility model piano type.
Comprise by R referring to Fig. 1 the utility model
2C
1, R
3C
2, R
4C
3Three groups of resistance-capacitance depressurization current-limiting circuits are by multi-gear switch S
1, S
2, S
3And S
4The brightness regulating switch of forming is by rectifier diode D
1～D
4The AC/DC changeover switch of forming, and by LED
1～LED
45Circuit such as the light-emitting diode series connection luminescence component of forming are formed, and below the each part mentioned above circuit are described one by one:
Embodiment: input civil power 220V one end and resistance R
1The connection of one end, the civil power other end and rectifier diode bridge heap D
2With D
3Connect.R
1The other end respectively with multi-gear switch S
1, S
2, S
3An end connect; S
1The other end and " resistor-capacitor unit " R
2, C
1An end connect; S
2The other end and " resistor-capacitor unit " R
3, C
2An end connect; S
3The other end and " resistor-capacitor unit " R
4, C
3An end connect; The other end of three " group is held part " is in parallel piles D with the rectifier diode bridge
1With D
4Connect.Multi-gear switch S
4Be separate state.Rectifier diode bridge heap " just " output and piezo-resistance R
5One end, capacitor C
4"+" utmost point, LED
1Anode connects; Rectifier diode bridge heap " bearing " output and piezo-resistance R
5The other end, capacitor C
4"-" utmost point, current-limiting resistance R
6One end connects.LED
1～LED
45Be series connection, LED
45Negative electrode and current-limiting resistance R
6The other end connects.
The above multi-gear switch S
1, S
2, S
3And S
4Brightness regulating switch can adopt for example many grades of interlock switch of piano type.
The above LED
1～LED
45Light-emitting diode can adopt for example ultra-bright LED, and brightness is at 14000～20000 pipes and tubes.
Next the course of work of many grades of LED lamp dimmers of the utility model piano type is described:
Civil power 220V is through resistance R
1Current limliting, its effect is equivalent to fuse.If multi-gear switch S
1Get through, because capacitor C
1Act on its current stabilization about 25MA, for LED sends out the high light data.At this moment, rectifier diode bridge heap D
1～D
4The commercial power rectification is become high direct voltage, because piezo-resistance R
5Effect, output voltage remains on about 160V, through capacitor C
4LED is lighted in filtering
1～LED
45The tandem light-emitting diode, terminal resistance R
6Be current-limiting protection, for the usefulness of illumination.Multi-gear switch S
2, S
3Capacitor C in like manner,
2, C
3It is middle light and low light level data that electric current is located at 12MA, 4MA respectively.Here multi-gear switch S
4Be separate state, for civil power turn-offs character.Capacitance decompression current-limiting circuit computing formula is: I ≈ 69C, C are UF, and I is MA, and suitable voltage is 220V, and frequency is the alternating current of 50HZ.
The above only is the embodiment of a common lamp dimmer of many grades of LED lamp dimmers of the utility model piano type, according to design of the present utility model, principle, also can be developed into fourth gear or five grades, even develop into and decorate pendent lamp light modulation etc. and still belong to scope of the present utility model.
Claims (2)
1, many grades of LED lamp dimmers of a kind of piano type, it comprises that input civil power process is by resistance R
2Capacitor C
1, resistance R
3Capacitor C
2, resistance R
4Capacitor C
3The resistance-capacitance depressurization current-limiting circuit of three groups of different electrical parameters forming, and by rectifier diode bridge heap D
1～D
4The AC/DC changeover switch of forming becomes high direct voltage and lights LED
1～LED
45The light-emitting diode component of forming is simultaneously by multi-gear switch S
1, S
2, S
3And S
4Select different electric currents, " strong, in, weak " that reach light-emitting diode changes, and it is characterized in that: LED
1～LED
45Be tandem, and by resistance R
6Protection.
2, many grades of LED lamp dimmers of piano type as claimed in claim 1 is characterized in that: described multi-gear switch S
1, S
2, S
3And S
4Be interlocking.
