The utility model discloses a handy hanger, comprising a support frame (1), an upper fixing plate (2), a lower fixing plate (3), an upper fastening bolt (4), and a lower fastening bolt (5). The support frame (1) is rectangle comprising an upper hanging plate (11), a lower hanging plate (12) and two pieces of angle steels (13, 14), which are welded together. The upper hanging plate (11) and the lower hanging plate (12) are respectively provided with two installation threaded holes distributed symmetrically. The two wings of the upper hanging plate (11) are respectively provided with symmetrical half-round clamping grooves (15). After a positioning pin at the upper end of communication equipment is led into the half-round clamping groove (15), the installation hole of the communication equipment is automatically aligned the threaded hole of the suspension bracket of the equipment. The upper hanging plate (11) and the upper fixing plate (2) are fastened on a mast (16) or a wall surface through the upper fastening bolt (4). The lower hanging plate (12) and the lower fixing plate (3) are fastened on the mast (16) or the wall surface through the lower fastening bolt (5). The installation reliability and security of the communication equipment can be enhanced. The engineering installation and the site operation are convenient through the handy hanger.
Description
Technical field
The novel femto cell that relates to the mobile communcations system clock of this use, the communication apparatus hanger that install in particularly a kind of high-altitude.
Background technology
Along with developing rapidly of mobile communication market, more and more for the demand of mobile communication equipment, also more and more higher for the installation requirement of relevant device.The installation method of existing little base station, repeater and other communication apparatus is very loaded down with trivial details, generally be directly with equipment with clip, screw on mast or wall.Because communication apparatus volume and weights such as little base station, repeater are all bigger, in the equipment installation process, need a lot of people to lift these equipment, directly be located on the set thing, fastening bolt simultaneously, this traditional way is unusual labor intensive not only, and in installation process, cause danger easily, very dangerous.
Summary of the invention
The purpose of this utility model provides the communication apparatus hanger of a kind of convenience, safety, to overcome loaded down with trivial details, the problem that has potential safety hazard of prior art.
The communication apparatus hanger that the utility model is constructed comprises support, upper mounted plate, bottom plate, tightens bolt and following fastening bolt;
Described support is a rectangle, is welded by upper hanging plate, following link plate and two angle steel, and installation screw two symmetrical distributions, that be fit to mast, metope installation is arranged respectively on described upper hanging plate and the described link plate down; Described upper hanging plate both wings have the semicircle draw-in groove of symmetry respectively, the alignment pin of communication apparatus upper end is imported described semicircle draw-in groove, the screw of communication apparatus will be aimed at automatically with described installation screw after loosing one's grip, on mast or metope, described link plate down and described bottom plate are fastened on mast or the metope by described fastening bolt down by the described bolted that tightens for described upper hanging plate and described upper mounted plate.
Tighten bolt and following fastening bolt and comprise screw rod, plain cushion, bullet pad and nut respectively.Upper mounted plate and bottom plate are formed by the steel plate bending, and material is the 3.5mm steel plate, have identical structure, embrace the button mast.
Compare with the installation method of existing little base station, repeater, by the communication apparatus hanger that adopts the utility model to construct, can change traditional by lifting the repeater casing, again by the phenomenon of the fastening expansion bolt of another people, alleviated the labour intensity of site operation, improve the reliability and the fail safe of installing, be very easy to project installation and site operation.
Description of drawings

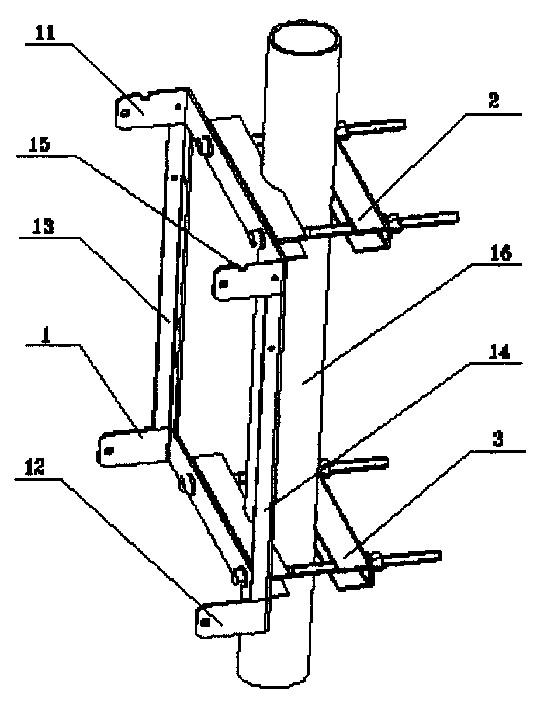

Fig. 1 is communication apparatus hanging rack structure figure described in the utility model.
Fig. 2 is a communication apparatus installation process schematic diagram in the utility model.
Fig. 3 is the state diagram of communication apparatus installation described in the utility model.
Embodiment
The utility model is described in further detail below in conjunction with accompanying drawing.
The utility model is divided into two parts with the installation of communication apparatus, and first mounting bracket 1 hangs over communication apparatus on the support 1 again, uses fastening bolt 4 and 5 lockings of following fastening bolt then.
As shown in Figure 1, communication apparatus hanger described in the utility model has comprised support 1, upper mounted plate 2, bottom plate 3, has tightened parts such as bolt 4 and following fastening bolt 5.
Described support 1 is a rectangle, is welded by upper hanging plate 11, following link plate 12 and two angle steel 13,14, and installation screw two symmetrical distributions, that be fit to mast, metope installation is arranged respectively on described upper hanging plate 11 and the described link plate 12 down; Described upper hanging plate 11 both wings have the semicircle draw-in groove 15 of symmetry respectively, after the alignment pin of communication apparatus upper end imported described semicircle draw-in groove 15, the installation screw of communication apparatus will be aimed at automatically with the screw of equipment hanger, described upper hanging plate 11 is fastened on mast 16 or the metope by the described bolt 4 that tightens with described upper mounted plate 2, and described link plate 12 down is fastened on mast 16 or the metope by described fastening bolt 5 down with described bottom plate 3.
Above-mentioned upper mounted plate 2 and down circle decide plate 3 and form by the bending of 3.5mm steel plate and get final product, armful detaining mast 16, can satisfy the installation requirements of φ 60～160mm mast fully.In addition, the alignment pin of communication apparatus will match with semicircle draw-in groove 15 on the communication apparatus link plate that the utility model is constructed, to guarantee to be affiliated to the realization of function.
As shown in Figure 2, when beginning to install, earlier the communication apparatus hanger is anchored on mast or the metope, then communication apparatus is tilted according to direction as shown, the half garden shape draw-in groove that just imports communication apparatus hanger upper hanging plate 11 with the alignment pin on this communication apparatus is advisable, after hanging up, can loose one's grip, loose one's grip the back because the effect of communication apparatus self gravitation makes communication apparatus sagging naturally, be adjacent to upper hanging plate 11 and following link plate 12, simultaneously, screw on the communication apparatus is just aimed at automatically with the installation screw on the support, locks to tighten bolt 4 and following fastening bolt 5, can finish whole installation processes.As can be seen, adopt communication apparatus hanger described in the utility model, can very easily communication apparatus be installed on mast or the metope, and safe and reliable.
Shown in Figure 3 is communication apparatus location and all installation screws that aligns automatically, and locking tightens bolt 4 and following fastening bolt 5, the schematic diagram after the installation.
Claims (3)
1, a kind of portable hanging frame device is characterized in that, comprises support (1), upper mounted plate (2), bottom plate (3), tightens bolt (4) and following fastening bolt (5);
Described support (1) is a rectangle, is welded by upper hanging plate (11), following link plate (12) and two angle steel (13,14), and installation screw two symmetrical distributions, that be fit to mast, metope installation is arranged respectively on described upper hanging plate (11) and the described link plate (12) down; Described upper hanging plate (11) both wings have the semicircle draw-in groove (15) of symmetry respectively, after the alignment pin of communication apparatus upper end imports described semicircle draw-in groove (15), the screw of communication apparatus is aimed at automatically with described installation screw, described upper hanging plate (11) is fastened on mast (16) or the metope by the described bolt (4) that tightens with described upper mounted plate (2), and described link plate (12) down is fastened on mast (16) or the metope by described fastening bolt (5) down with described bottom plate (3).
2, portable hanging frame device according to claim 1 is characterized in that, described upper mounted plate (2) and bottom plate (3) are formed by the steel plate bending, have identical structure, embraces button mast (16).
3, portable hanging frame device according to claim 1 and 2 is characterized in that, the material of described upper mounted plate (2) and bottom plate (3) is the 3.5mm steel plate.
