CN219335525U

CN219335525U - Stamping forming device

Info

Publication number: CN219335525U
Application number: CN202223051014.5U
Authority: CN
Inventors: 蒋培军
Original assignee: Individual
Current assignee: Individual
Priority date: 2022-11-16
Filing date: 2022-11-16
Publication date: 2023-07-14
Anticipated expiration: 2032-11-16

Abstract

The utility model relates to the technical field of stamping forming, and discloses a stamping forming device, which comprises a supporting plate, wherein a forming frame is fixedly arranged at the top of the supporting plate; a stamping block which is matched with the forming frame and can move up and down is arranged in the forming frame; a supporting guide piece is arranged on one side of the supporting plate, which is positioned on the forming frame; and the supporting guide piece is provided with a feeding ejection mechanism. The utility model provides a stamping forming device, which is provided with a supporting guide piece to place a plate piece and is matched with a feeding ejection mechanism to feed the plate piece and remove the stamping forming plate piece at the same time so as to finish the feeding and discharging effects, thereby improving the production efficiency.

Description

Stamping forming device

Technical Field

The utility model relates to the field of stamping forming, in particular to a stamping forming device.

Background

The press forming is a process for forming a workpiece (stamping part) of a desired shape and size by applying an external force to a plate, a strip, a pipe, a profile, etc. by a press and a die to cause plastic deformation or separation.

The existing stamping forming dies need to manually remove the stamped piece after stamping the plate into the required shape, and the stamped piece is put into the plate to be stamped again, so that the phenomenon of time consumption is caused, and the production efficiency is not improved.

In order to solve the above problems, a press forming device is proposed in the present application.

Disclosure of Invention

Object of the utility model

In order to solve the technical problems in the background art, the utility model provides the stamping forming device, which is provided with the supporting guide piece to place the plate piece and is matched with the feeding ejection mechanism to feed the plate piece and remove the stamping forming plate piece at the same time so as to finish the feeding and discharging effects, thereby improving the production efficiency.

(II) technical scheme

In order to solve the problems, the utility model provides a stamping forming device, which comprises a supporting plate, wherein a forming frame is fixedly arranged at the top of the supporting plate;

a stamping block which is matched with the forming frame and can move up and down is arranged in the forming frame;

a supporting guide piece is arranged on one side of the supporting plate, which is positioned on the forming frame;

and the supporting guide piece is provided with a feeding ejection mechanism.

Preferably, a supporting frame is fixedly arranged on the supporting plate, a hydraulic cylinder is fixedly arranged on the supporting frame, and a hydraulic cylinder driving rod is fixedly connected with the stamping block.

Preferably, the support guide member comprises a support frame and a rotating roller, wherein the support frame is fixedly arranged on the support plate, and one end of the rotating roller is rotationally connected with the support frame through a rotating shaft.

Preferably, the feeding ejection mechanism comprises a guide rail, a right-angle ejector rod and a push rod, wherein the guide rail is fixedly arranged in the supporting frame, and a sliding table of the guide rail is fixedly connected with the push rod through the right-angle ejector rod.

Preferably, limiting plates are fixedly arranged on two sides of the supporting frame and two sides of the forming frame.

Preferably, a material guide plate is fixedly arranged on one side, far away from the supporting frame, of the supporting plate.

The technical scheme of the utility model has the following beneficial technical effects:

the hydraulic cylinder is started to drive the stamping block to move towards the inside of the forming frame so as to stamp and form the plate, the plate to be stamped is placed on the rotating roller, the push rod is pushed to move along the length direction of the supporting plate so as to drive the plate to move forward until the plate is placed on the forming frame, and the right-angle ejector rod horizontally ejects the plate positioned in the forming frame when the plate moves forward, so that the synchronous feeding and discharging are completed, and the production efficiency is improved.

Drawings

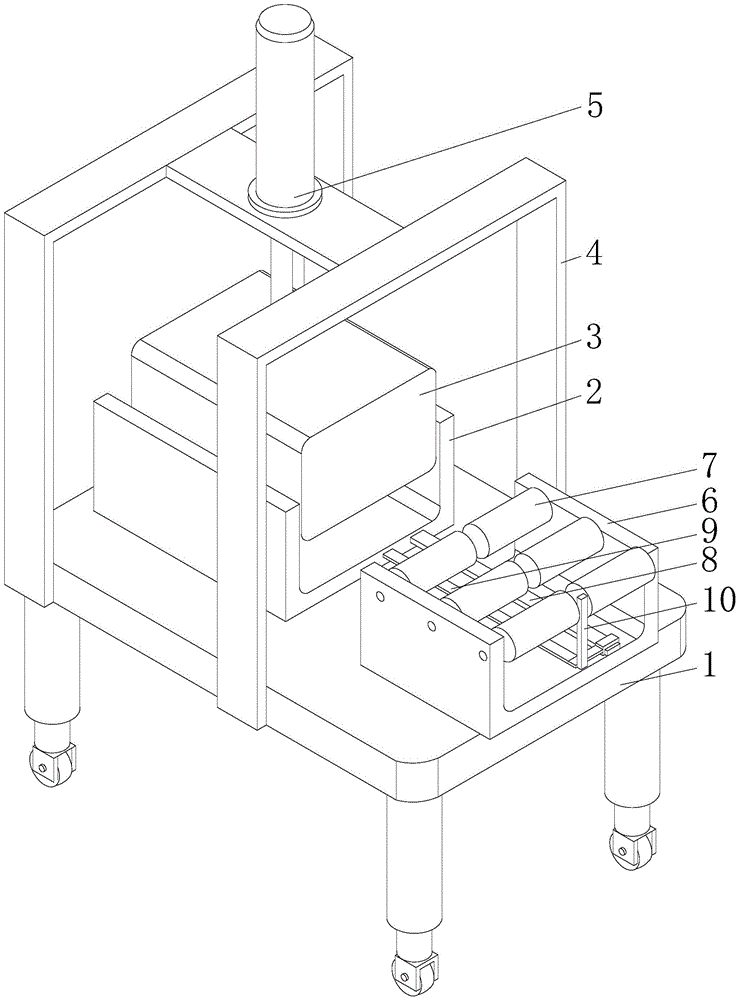

Fig. 1 is a schematic structural diagram of a press forming device according to the present utility model.

Fig. 2 is a schematic view of a part of a press forming device according to the present utility model.

Fig. 3 is a schematic structural diagram of a sheet member formed in a forming frame in a press forming apparatus according to the present utility model.

Reference numerals: 1. a support plate; 2. forming a frame; 3. stamping blocks; 4. a support frame; 5. a hydraulic cylinder; 6. a support frame; 7. a rotating roller; 8. a guide rail; 9. a right-angle ejector rod; 10. a push rod.

Detailed Description

The objects, technical solutions and advantages of the present utility model will become more apparent by the following detailed description of the present utility model with reference to the accompanying drawings. It should be understood that the description is only illustrative and is not intended to limit the scope of the utility model. In addition, in the following description, descriptions of well-known structures and techniques are omitted so as not to unnecessarily obscure the present utility model.

As shown in fig. 1-2, the press forming device provided by the utility model comprises a supporting plate 1, wherein a forming frame 2 is fixedly arranged at the top of the supporting plate 1;

a stamping block 3 which is matched with the forming frame 2 and can move up and down is arranged in the forming frame;

a support guide piece is arranged on one side of the support plate 1, which is positioned on the forming frame 2;

and a feeding ejection mechanism is arranged on the supporting guide piece.

Further, the bottom of the supporting plate 1 is fixedly provided with supporting legs, and the supporting legs are provided with rollers, so that the whole device can be moved conveniently.

In an alternative embodiment, a support frame 4 is fixedly arranged on the support plate 1, a hydraulic cylinder 5 is fixedly arranged on the support frame 4, and a driving rod of the hydraulic cylinder 5 is fixedly connected with the stamping block 3.

In an alternative embodiment, the support guide comprises a support frame 6 and a rotating roller 7, the support frame 6 being fixedly mounted on the support plate 1, one end of the rotating roller 7 being rotatably connected to the support frame 6 by means of a rotation shaft.

The rubber sleeve is fixedly sleeved on the periphery of the rotary roller 7; the top of the rotating roller 7 is flush with the top of the forming frame 2, so that the plate piece can smoothly move to the forming frame 2 for placement.

In an alternative embodiment, the feeding ejection mechanism comprises a guide rail 8, a right-angle ejector rod 9 and a push rod 10, wherein the guide rail 8 is fixedly arranged in the support frame 6, and a sliding table of the guide rail 8 is fixedly connected with the push rod 10 through the right-angle ejector rod 9.

Further, the guide rail 8 can be replaced by a rodless cylinder, and a sliding table of the rodless cylinder is fixedly connected with one end of the right-angle ejector rod 9, so that the rapidity of the action is improved.

The number of the rollers 7 is plural, the rollers 7 are equally divided into two groups, and a space region through which the push rod 10 passes is formed between the two groups of rollers 7.

In an alternative embodiment, limiting plates are fixedly arranged on both sides of the supporting frame 6 and the forming frame 2.

It should be noted that, under the effect of the limiting plate, the plate member can be limited in the horizontal direction.

In an alternative embodiment, a guide plate is fixedly mounted on the side of the support plate 1 remote from the support frame 6.

The forming plate removed from the inside of the forming frame 2 may be guided out by a guide plate.

According to the utility model, the hydraulic cylinder 5 is started to drive the stamping block 3 to move towards the inside of the forming frame 2 so as to stamp and form the plate, the push rod 10 is pushed to move along the length direction of the supporting plate 1 by placing the plate to be stamped on the rotating roller 7 so as to drive the plate to move forward until the plate is placed on the forming frame 2, and the right-angle ejection rod 9 ejects the plate formed in the forming frame 2 horizontally while the plate moves forward, so that the synchronous feeding and discharging are completed, and the production efficiency is improved.

It is to be understood that the above-described embodiments of the present utility model are merely illustrative of or explanation of the principles of the present utility model and are in no way limiting of the utility model. Accordingly, any modification, equivalent replacement, improvement, etc. made without departing from the spirit and scope of the present utility model should be included in the scope of the present utility model. Furthermore, the appended claims are intended to cover all such changes and modifications that fall within the scope and boundary of the appended claims, or equivalents of such scope and boundary.

Claims

1. Press forming device, comprising a support plate (1), characterized in that: the top of the supporting plate (1) is fixedly provided with a forming frame (2);

a stamping block (3) which is matched with the forming frame (2) and can move up and down is arranged in the forming frame;

a supporting guide piece is arranged on one side of the supporting plate (1) positioned on the forming frame (2);

and the supporting guide piece is provided with a feeding ejection mechanism.

2. The stamping forming device according to claim 1, characterized in that a supporting frame (4) is fixedly arranged on the supporting plate (1), a hydraulic cylinder (5) is fixedly arranged on the supporting frame (4), and a driving rod of the hydraulic cylinder (5) is fixedly connected with the stamping block (3).

3. The stamping forming device according to claim 1, characterized in that the support guide comprises a support frame (6) and a rotating roller (7), wherein the support frame (6) is fixedly arranged on the support plate (1), and one end of the rotating roller (7) is rotatably connected with the support frame (6) through a rotating shaft.

4. A press forming device according to claim 3, characterized in that the feeding ejection mechanism comprises a guide rail (8), a right-angle ejector rod (9) and a push rod (10), the guide rail (8) is fixedly installed in the supporting frame (6), and a sliding table of the guide rail (8) is fixedly connected with the push rod (10) through the right-angle ejector rod (9).

5. The stamping forming device according to claim 4, wherein limiting plates are fixedly arranged on both sides of the supporting frame (6) and the forming frame (2).

6. A press forming device according to claim 1, characterized in that the side of the support plate (1) remote from the support frame (6) is fixedly provided with a guide plate.
