Abstract

The utility model provides an animal feed additive feeding machine, belonging to the technical field of feed processing, comprising: a box body, a partition plate, a feeding mechanism, at least two feeding pipes, a stirring shaft, a feeding port, a feeding box, and a rotating shaft , screw blade and feeding detection mechanism; the box is a hollow cavity, and the top of the box is provided with a feeding port; the partition plate is embedded in the box to divide the box into the first cavity and the second cavity; feeding The mechanism includes at least two feeding tanks and at least two first solenoid valves, the feeding tanks are provided with first solenoid valves, and the feeding tanks are respectively fixed on one side of the box body; Monitoring and control are carried out to facilitate the control of the amount of additives, avoid the imbalance of the nutritional ratio of the formulated feed, and drive the feed to move through the spiral blades, avoiding the phenomenon that the feed is accumulated in one place and is not easy to discharge.

Description

A feeding machine for animal feed additives

technical field

The utility model belongs to the technical field of feed processing, in particular to an animal feed additive feeding machine.

Background technique

In the process of feed preparation, in order to ensure that the fed animals can obtain the required nutrients and trace substances, it is necessary to add a certain amount of additives to the raw materials, so as to improve the nutritional quality of the feed.

In the existing technology, it is inconvenient to control the amount of additives when preparing feed, too much or too little added will affect the quality of the feed, resulting in an imbalance in the nutritional ratio of the formulated feed, and when the feed is cut, the formulated The feed is easy to accumulate in one place and is not easy to discharge.

Utility model content

Based on the above technical problems, the utility model provides a feeder for animal feed additives, which monitors and controls the feeding of additives through a feeding detection mechanism, so as to facilitate the control of the amount of additives and avoid the imbalance of the nutritional ratio of the formulated feed, and The helical blade drives the feed to move, avoiding the phenomenon that the feed is accumulated in one place and is not easy to discharge.

Its specific technical plan is:

A feeding machine for animal feed additives, comprising: a box body, a partition plate, a feeding mechanism, at least two feeding pipes, a stirring shaft, a discharge port, a feeding box, a rotating shaft, a spiral blade, and a feeding detection mechanism; the box body is A hollow cavity, and the top of the box is provided with a feed port; a partition plate is embedded in the box to divide the box into a first cavity and a second cavity; the feeding mechanism includes at least two feeding tanks and at least two The first solenoid valve is provided with a first solenoid valve on the feeding tank, and the feeding tanks are respectively fixed on one side of the box body; one end of at least two feeding pipes is respectively connected with at least two feeding tanks, and at least two feeding pipes are respectively connected to each other. The other end of the feed pipe is connected with the first cavity; at least part of the stirring shaft is embedded in the first cavity; the discharge port is arranged on the partition plate; the material delivery box is a hollow cavity, and at least part of the material delivery box is embedded in the second cavity. In the cavity, the top of the feeding box is provided with a material receiving port, and the bottom of the feeding box is provided with a discharge port, and the material receiving port is opposite to the discharging port; the two ends of the rotating shaft are respectively connected to the two sides of the feeding box. , and the rotating shaft is embedded in the feeding box; the spiral blade is arranged on the outside of the rotating shaft; the feeding detection mechanism includes a liquid level sensor and a controller, the liquid level sensor is arranged in the feeding tank, and the controller is connected with the liquid level sensor and the first electromagnetic valve respectively connected.

In addition, the animal feed additive feeder in the above technical solution provided by the utility model can also have the following additional technical features:

In the above technical solution, it also includes: an installation case, a first motor, a first gear and a second gear; the installation case is fixed on the top of the box; the first motor includes a first output shaft, and the first motor is fixed on the installation case ; The first gear is sleeved on the outside of the first output shaft of the first motor, and the first gear is embedded in the installation shell; the second gear is sleeved on the outside of the stirring shaft, and the second gear is meshed with the first gear.

In the above technical solution, it also includes: a second motor; the second motor includes a second output shaft, the second motor is fixed on one side of the box, and the second output shaft is connected to the rotating shaft.

In the above technical solution, it also includes: two baffles and two electric push rods; the two baffles are respectively connected to the two sides of the inner wall of the feed inlet; the two electric push rods are respectively connected to the two sides of the inner wall of the feed inlet Rotationally connected, and the telescopic ends of the two electric push rods are respectively connected to the two baffles in rotation.

In the above technical solution, it also includes: two material guide plates; the two material guide plates are respectively arranged on both sides of the partition plate.

In the above technical solution, it also includes: an observation window and a scale line; the observation window is set on one side of the feeding tank; the scale line is set at the observation window.

In the above technical solution, it also includes: a second electromagnetic valve; the second electromagnetic valve is arranged on the discharge port.

Compared with the prior art, a feeder for animal feed additives of the utility model has the beneficial effects as follows:

1. Put the raw material into the first chamber through the feed port, and control the opening of the first solenoid valve, so that the additive in the feeding tank enters the box, and the liquid level sensor monitors the amount of additive. When the additive capacity in the feeding tank drops At the predetermined position, the liquid level sensor transmits the detected water level signal to the controller, and the controller controls the first solenoid valve to close, so that the additive can be added to the first cavity according to the set amount, and the excessive dosage of the additive can be avoided. Too much or too little will lead to an imbalance in the nutritional ratio of the formulated feed.

2. By controlling the rotation of the stirring shaft, the raw materials and additives are quickly mixed evenly. The mixed material enters the conveying box through the discharge port, and the spiral blade drives the material to move, so that it moves to the discharge port and is discharged. Thereby, the phenomenon that the feed is accumulated in one place and is not convenient to discharge is avoided.

Description of drawings

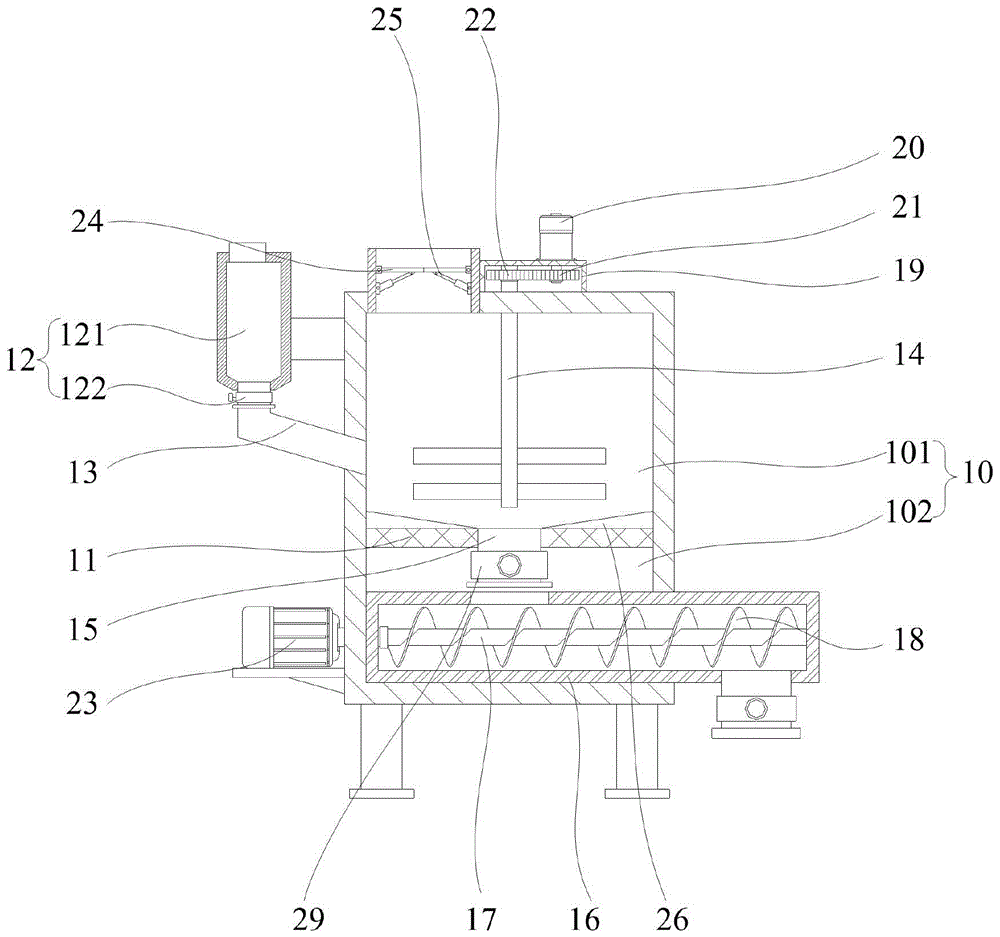

Fig. 1 is the front view of a kind of animal feed additive feeding machine of the present utility model;

Fig. 2 is the side view of a kind of animal feed additive feeding machine of the present utility model;

Fig. 3 is the front view of a kind of animal feed additive feeding machine of the present utility model;

Wherein, the corresponding relationship between reference numerals and component names in Fig. 1 to Fig. 3 is:

10 box body, 101 first cavity, 102 second cavity, 11 partition plate, 12 feeding mechanism, 121 feeding tank, 122 first solenoid valve, 13 feeding pipe, 14 stirring shaft, 15 material outlet, 16 Conveyor box, 17 rotating shaft, 18 helical blade, 19 installation shell, 20 first motor, 21 first gear, 22 second gear, 23 second motor, 24 baffle plate, 25 electric push rod, 26 guide plate, 27 Observation window, 28 scale marks, 29 second solenoid valve.

Detailed ways

The utility model will be further described below in conjunction with specific implementation examples and accompanying drawings 1-3, but the utility model is not limited to these embodiments.

A feeding machine for animal feed additives, as shown in Figure 1-3, comprising: a box body 10, a partition plate 11, a feeding mechanism 12, at least two feeding pipes 13, a stirring shaft 14, a discharge port 15, a feeding Box 16, rotating shaft 17, screw blade 18 and feeding detection mechanism; The box body 10 is a hollow cavity, and the top of the box body 10 is provided with a feeding port; The partition plate 11 is embedded in the box body 10, so that the Divided into a first cavity 101 and a second cavity 102; the feeding mechanism 12 includes at least two feeding tanks 121 and at least two first electromagnetic valves 122, the feeding tank 121 is provided with a first electromagnetic valve 122, and the feeding tank 121 respectively fixed on one side of the box body 10; one end of at least two feeding pipes 13 communicates with at least two feeding tanks 121 respectively, and the other ends of at least two feeding pipes 13 communicate with the first cavity 101 ; At least part of the stirring shaft 14 is embedded in the first cavity 101; the discharge port 15 is arranged on the dividing plate 11; the feeding box 16 is a hollow cavity, at least part of the feeding box 16 is embedded in the second cavity 102, The top of the material box 16 is provided with a material receiving port, and the bottom of the material delivery box 16 is provided with a discharge port, and the material receiving port is opposite to the discharge port 15; Connected, and the rotating shaft 17 is embedded in the feeding box 16; the spiral blade 18 is arranged on the outside of the rotating shaft 17; the feeding detection mechanism includes a liquid level sensor and a controller, and the liquid level sensor is arranged in the feeding tank 121, and the controller is connected with the liquid level respectively. The sensor is connected to the first solenoid valve 122 .

By making the box body 10 a hollow cavity, and the top of the box body 10 is provided with a feed port, and the partition plate 11 is embedded in the box body 10, to divide the box body 10 into a first cavity 101 and a second cavity 101. The cavity 102 realizes determining the position of the partition plate 11; again, by including the feeding mechanism 12 at least the feeding tank 121 and at least two first electromagnetic valves 122, the feeding tank 121 is provided with the first electromagnetic valve 122, and the feeding The tanks 121 are respectively fixed on one side of the box body 10, realizing the first electromagnetic valve 122 to control the additive in the feeding tank 121 to enter the box body 10, thereby increasing the nutrition in the raw material, and by setting at least two feeding tanks 121 , to realize the effect of adding various nutritional elements and trace substances; again, by connecting one end of at least two feeding pipes 13 with at least two feeding tanks 121 respectively, and the other ends of at least two feeding pipes 13 being connected to The first cavity 101 is connected to realize the additive in the feeding tank 121 entering the box body 10 through the feeding pipe 13; again, by embedding at least part of the stirring shaft 14 in the first cavity 101, the control of stirring is realized. Shaft 14 rotates, thereby the raw material and the additive in the first chamber 101 are mixed evenly; Again, by setting the discharge port 15 on the partition plate 11, and making the material delivery box 16 a hollow cavity, at least part The material delivery box 16 is embedded in the second cavity 102, the top of the material delivery box 16 is provided with a material receiving port, the bottom of the material delivery box 16 is provided with a discharge port, and the material receiving port is opposite to the material outlet 15, realizing The mixed material enters the effect in the material delivery box 16 through the discharge port 15; again, by rotating the two ends of the rotating shaft 17 respectively with the both sides of the material delivery box 16, and the rotating shaft 17 is embedded in the material delivery box 16, and The helical blade 18 is arranged outside the rotating shaft 17 to control the rotation of the rotating shaft 17 and drive the helical blade 18 to rotate, so that the helical blade 18 drives the material to move, thereby facilitating the material to be moved to the discharge port and discharged, avoiding accumulation in one place Cause the phenomenon of clogging to take place; Again, by including liquid level sensor and controller by feeding detection mechanism, liquid level sensor is arranged in the feeding tank 121, and controller is connected with liquid level sensor and first solenoid valve 122 respectively, has realized liquid level sensor. The level sensor monitors the amount of additive in the feeding tank 121. When the additive in the feeding tank 121 drops to the set position, the liquid level sensor transmits the monitored water level signal to the controller, so that the controller controls the first electromagnetic The valve 122 is closed, thereby realizing the control of the dosage of the additive, so as to avoid the effect that the dosage of the additive is too much or too little to affect the quality of the feed. With the above structure, by putting raw materials into the first cavity 101 through the feed port, and controlling the opening of the first electromagnetic valve 122, the additive in the feeding tank 121 enters the tank 10, and the liquid level sensor monitors the amount of the additive. , when the additive capacity in the feeding tank 121 drops to a predetermined position, the liquid level sensor will transmit the detected water level signal to the controller, and the controller will control the first electromagnetic valve 122 to close, so as to achieve the additive according to the set amount It is added into the first cavity 101 to avoid too much or too little amount of additives, resulting in an imbalance in the nutrient ratio of the prepared feed. And by controlling the rotation of the stirring shaft 14, the raw materials and additives are quickly mixed evenly, and the mixed material enters the feeding box 16 through the discharge port 15, so that the spiral blade 18 drives the material to move, so that it moves to the discharge port. And discharged, thereby avoiding the phenomenon that the feed is accumulated in one place and is not easy to discharge.

Specifically, the model of the liquid level sensor is LS-10, and the model of the controller is STM32.

In the embodiment of the present utility model, as shown in Figures 1-3, it also includes: a mounting shell 19, a first motor 20, a first gear 21 and a second gear 22; the mounting shell 19 is fixed on the top of the box body 10; The first motor 20 includes a first output shaft, the first motor 20 is fixed on the installation shell 19; the first gear 21 is sleeved on the outside of the first output shaft of the first motor 20, and the first gear 21 is embedded in the installation shell 19 ; The second gear 22 is sheathed on the outside of the stirring shaft 14 , and the second gear 22 is meshed with the first gear 21 .

By fixing the installation shell 19 on the top of the box body 10, the position of the installation shell 19 is determined; again, by including the first output shaft with the first motor 20, the first motor 20 is fixed on the installation shell 19, and the determination is realized. The position of the first motor 20; again, by the first gear 21 being sleeved on the outside of the first output shaft of the first motor 20, and the first gear 21 is embedded in the mounting shell 19, and the second gear 22 is sleeved on the The outside of the stirring shaft 14, and the second gear 22 meshes with the first gear 21 to realize the operation of the first motor 20, and the first output shaft drives the first gear 21 to rotate, so that the first gear 21 meshes with the second gear 22 , so as to drive the stirring shaft 14 to rotate to quickly mix the raw materials and additives uniformly.

In the embodiment of the present utility model, as shown in Fig. 1-3, also include: second motor 23; The two output shafts are connected with the rotating shaft 17 .

By making the second motor 23 include a second output shaft, the second motor 23 is fixed on one side of the casing 10, and the second output shaft is connected with the rotating shaft 17, so that the operation of the second motor 23 is realized, and the second output shaft drives the rotating shaft 17 rotates, thereby controlling the rotation of the spiral blade 18, driving the material to move to the discharge port and discharge.

In the embodiment of the present invention, as shown in Fig. 1-3, it also includes: two baffles 24 and two electric push rods 25; the two baffles 24 are respectively connected to the two sides of the inner wall of the feed port; The two electric push rods 25 are respectively rotatably connected to both sides of the inner wall of the feed opening, and the telescopic ends of the two electric push rods 25 are respectively rotatably connected to the two baffles 24 .

By connecting the two baffles 24 to the both sides of the inner wall of the feed port, the baffle plate 24 can rotate around the feed port; again, by connecting the two electric push rods 25 to the inner wall of the feed port The two sides of the push rod 25 are rotated and connected, and the telescopic ends of the two electric push rods 25 are respectively connected to the two baffles 24, so that the electric push rod 25 is telescopic, and the baffle 24 is driven to rotate, thereby closing the feed inlet. , to avoid the effect that foreign matter enters the box body 10 through the feed port and affects the quality of the feed when the feed is processed.

In the embodiment of the present utility model, as shown in FIGS. 1-3 , it further includes: two material guide plates 26 ; the two material guide plates 26 are respectively arranged on both sides of the partition plate 11 .

By arranging the two material guide plates 26 on both sides of the partition plate 11 respectively, the material guide plates 26 can guide the materials, so that the materials in the first cavity 101 can be discharged through the discharge port 15 .

In the embodiment of the present invention, as shown in Figures 1-3, it also includes: an observation window 27 and a scale line 28; the observation window 27 is set on one side of the feeding tank 121; the scale line 28 is set at the observation window 27.

By setting the observation window 27 on one side of the feed tank 121, and setting the scale mark 28 at the observation window 27, it is convenient for the staff to observe the remaining material situation in the feed tank 121 through the observation window 27, and when the feed tank 121 When there are too few additives, it is convenient for the staff to add them in time.

In the embodiment of the present invention, as shown in FIGS. 1-3 , it further includes: a second solenoid valve 29 ; the second solenoid valve 29 is arranged on the discharge port 15 .

By arranging the second solenoid valve 29 on the discharge port 15 , the second solenoid valve 29 is opened or closed, so that the material is discharged through the discharge port 15 .

The implementation process: put the raw material into the first cavity 101 through the feed port, and control the opening of the first electromagnetic valve 122, so that the additive in the feeding tank 121 enters the tank 10, and the liquid level sensor monitors the amount of the additive. When the additive capacity in the feeding tank 121 drops to a predetermined position, the liquid level sensor transmits the detected water level signal to the controller, and the controller controls the first solenoid valve 122 to close, so that the additive can be added according to the set amount. Into the first cavity 101, avoid excessive or too little additive dosage, resulting in an imbalance in the nutritional ratio of the formulated feed. And by controlling the rotation of the stirring shaft 14, the raw materials and additives are quickly mixed evenly, and the mixed material enters the feeding box 16 through the discharge port 15, so that the spiral blade 18 drives the material to move, so that it moves to the discharge port. And discharged, thereby avoiding the phenomenon that the feed is accumulated in one place and is not easy to discharge.

In the description of the present utility model, the term "plurality" refers to two or more than two. Unless otherwise clearly defined, the orientation or positional relationship indicated by the terms "upper" and "lower" are based on the figures shown in the accompanying drawings. The orientation or positional relationship is only for the convenience of describing the utility model and simplifying the description, but does not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, so it cannot be understood as a reference to the utility model. The terms "connection", "installation" and "fixation" should be interpreted in a broad sense, for example, "connection" can be a fixed connection, a detachable connection, or an integral connection; it can be directly connected, or It can be connected indirectly through an intermediary. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model according to specific situations.

In the description of the present invention, descriptions of the terms "one embodiment", "some embodiments", "specific embodiments" and the like mean that specific features, structures, materials or characteristics described in conjunction with the embodiment or example are included in the present invention In at least one embodiment or example of the utility model. In the present invention, the schematic representations of the above terms do not necessarily refer to the same embodiment or example. Furthermore, the specific features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The above descriptions are only preferred embodiments of the utility model, and are not intended to limit the utility model. For those skilled in the art, the utility model can have various modifications and changes. Any modification, equivalent replacement, improvement, etc. made within the spirit and principles of the present utility model shall be included in the protection scope of the present utility model.

Claims (7)

1. A feeder for animal feed additives, characterized in that it comprises: A box body, the box body is a hollow cavity, and the top of the box body is provided with a feeding port; a partition plate embedded in the box to divide the box into a first cavity and a second cavity; A feeding mechanism, the feeding mechanism includes at least two feeding tanks and at least two first solenoid valves, the feeding tanks are provided with first solenoid valves, and the feeding tanks are respectively fixed on one side of the box; At least two feed pipes, one end of the at least two feed pipes communicates with the at least two feeding tanks respectively, and the other ends of the at least two feed pipes are connected with the first cavity Pass; a stirring shaft, at least part of which is embedded in the first cavity; a discharge port, the discharge port is arranged on the partition plate; A material delivery box, the delivery box is a hollow cavity, at least part of the delivery box is embedded in the second cavity, the top of the delivery box is provided with a material receiving port, and the bottom of the delivery box is provided with There is a discharge port, and the position of the material receiving port is opposite to the position of the discharge port; A rotating shaft, the two ends of the rotating shaft are rotatably connected to both sides of the feeding box, and the rotating shaft is embedded in the feeding box; a helical blade, the helical blade is arranged on the outside of the rotating shaft; A feeding detection mechanism, the feeding detection mechanism includes a liquid level sensor and a controller, the liquid level sensor is arranged in the feeding tank, and the controller is connected to the liquid level sensor and the first electromagnetic valve respectively . 2. A feeder for animal feed additives according to claim 1, further comprising: an installation shell, the installation shell is fixed on the top of the box; a first motor, the first motor includes a first output shaft, and the first motor is fixed on the installation shell; a first gear, the first gear is sleeved on the outside of the first output shaft of the first motor, and the first gear is embedded in the installation shell; A second gear, the second gear is sleeved on the outside of the stirring shaft, and the second gear is meshed with the first gear. 3. A feeder for animal feed additives according to claim 2, further comprising: A second motor, the second motor includes a second output shaft, the second motor is fixed on one side of the box, and the second output shaft is connected to the rotating shaft. 4. A kind of animal feed additive feeder according to claim 3, is characterized in that, also comprises: Two baffles, the two baffles are respectively connected to the two sides of the inner wall of the feed inlet in rotation; Two electric push rods, the two electric push rods are respectively rotatably connected to the two sides of the inner wall of the feed inlet, and the telescopic ends of the two electric push rods are respectively rotatably connected to the two baffle plates. 5. A kind of animal feed additive feeder according to claim 4, is characterized in that, also comprises: Two material guide plates, the two material guide plates are respectively arranged on both sides of the partition plate. 6. A feeder for animal feed additives according to claim 5, further comprising: an observation window, the observation window is arranged on one side of the feeding tank; A scale line, the scale line is set at the observation window. 7. A feeder for animal feed additives according to claim 6, further comprising: A second solenoid valve, the second solenoid valve is arranged on the discharge port.
