CN219127320U

CN219127320U - Cervical vertebra rehabilitation instrument

Info

Publication number: CN219127320U
Application number: CN202223425092.7U
Authority: CN
Inventors: 沈翔宇; 陈博诚; 王杰龙
Original assignee: Suzhou University
Current assignee: Suzhou University
Priority date: 2022-12-19
Filing date: 2022-12-19
Publication date: 2023-06-06
Anticipated expiration: 2032-12-19

Abstract

The utility model discloses a cervical vertebra rehabilitation instrument, belonging to the field of rehabilitation medical instruments; the utility model provides a cervical vertebra rehabilitation apparatus, includes the bed body, has offered the groove of stepping down on the bed body, the bed body below is fixed with two backup pads, and every backup pad upper end is fixed with a guide bar, is provided with the mounting panel that can go up and down above the backup pad, and two guide bars run through the mounting panel along vertical direction and with mounting panel sliding connection; a concave frame is arranged above the mounting plate, a pressing cylinder is fixed on the concave frame, and the pressing cylinder can pass through the abdication groove and act on cervical vertebrae of a patient; through the control mounting panel lift, can make the pressure section of thick bamboo stretch out the groove of stepping down and massage patient's cervical vertebra portion to help cervical vertebra rehabilitation.

Description

Cervical vertebra rehabilitation instrument

Technical Field

The utility model belongs to the field of rehabilitation medical appliances, and particularly relates to a cervical vertebra rehabilitation appliance.

Background

The cervical spondylosis is a common disease affecting the health of modern people, and tends to be younger, and the treatment means of the cervical spondylosis comprise physical treatment and rehabilitation treatment, wherein the physical treatment equipment mainly comprises a tractor and a reset fixer, the rehabilitation treatment takes a rehabilitation pillow matched with a correct bedridden rest posture as a main rehabilitation means, and meanwhile, the rehabilitation of the cervical spondylosis is well promoted by adopting a massage means; for this purpose, a cervical vertebra rehabilitation apparatus is provided.

Disclosure of Invention

Aiming at the defects of the prior art, the utility model aims to provide a cervical vertebra rehabilitation instrument.

The aim of the utility model can be achieved by the following technical scheme:

the utility model provides a cervical vertebra rehabilitation apparatus, includes the bed body, has offered the groove of stepping down on the bed body, the bed body below is fixed with two backup pads, and every backup pad upper end is fixed with a guide bar, is provided with the mounting panel that can go up and down above the backup pad, and two guide bars run through the mounting panel along vertical direction and with mounting panel sliding connection; a concave frame is arranged above the mounting plate, a pressing cylinder is fixed on the concave frame, and the pressing cylinder can pass through the abdication groove and act on cervical vertebrae of a patient.

Through the control mounting panel lift, can make the pressure section of thick bamboo stretch out the groove of stepping down and massage patient's cervical vertebra portion to help cervical vertebra rehabilitation.

The utility model has the beneficial effects that:

1. the lifting mounting plate is arranged below the bed body, the concave frame is arranged on the mounting plate, the pressing cylinder is fixed on the concave frame, and the lifting mounting plate is controlled to enable the pressing cylinder to extend out of the abdicating groove and massage the cervical vertebra of a patient, so that the cervical vertebra rehabilitation is facilitated;

2. the reciprocating driving assembly is arranged, the rotary turntable is arranged in the reciprocating driving assembly, the pushing rod is hinged to the eccentric position of the turntable, and the pushing rod is hinged to the bottom of the mounting plate, so that the mounting plate is driven to reciprocate and lift;

3. the electric cylinder is arranged between the concave frame and the mounting plate to control the distance between the concave frame and the mounting plate, so that the maximum height of the pressing cylinder is adjusted, and the height position of the pressing cylinder can be changed according to the thickness of the neck of a patient and the body feeling requirement of the patient, and the pressing amplitude is adjusted.

Drawings

In order to more clearly illustrate the embodiments of the present utility model or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described, and it will be obvious to those skilled in the art that other drawings can be obtained according to these drawings without inventive effort.

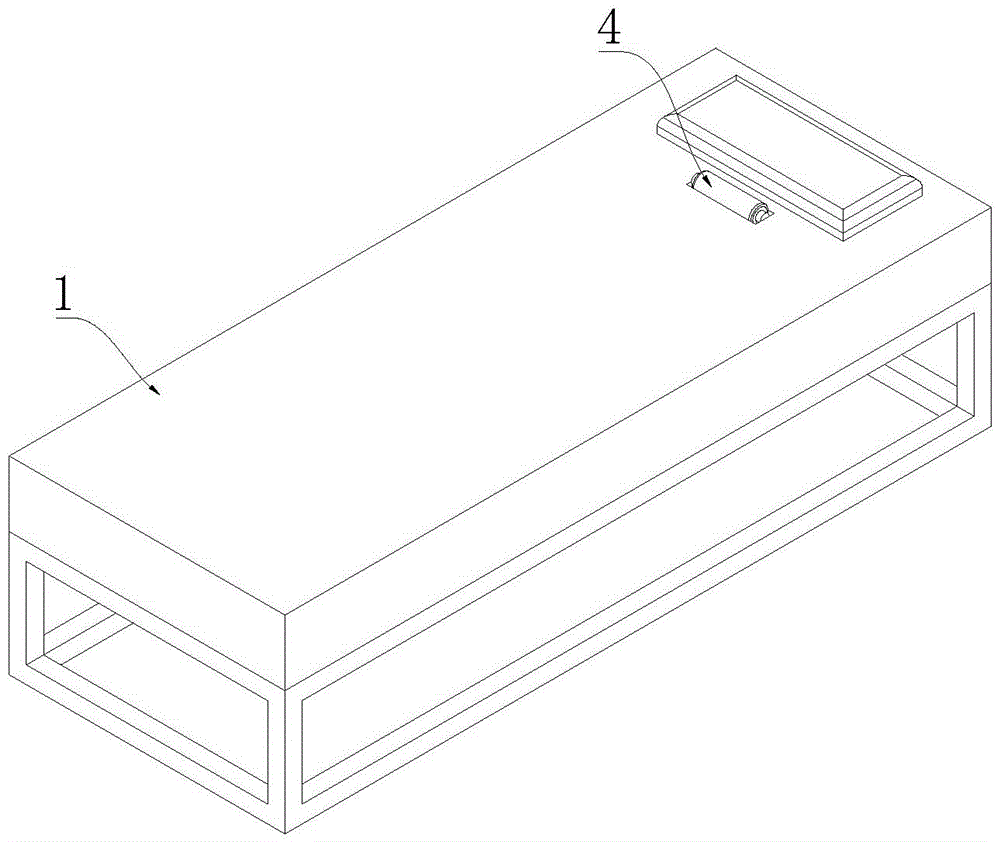

FIG. 1 is a schematic view of the overall structure of the present utility model;

FIG. 2 is a bottom view of the overall structure of the present utility model;

FIG. 3 is an enlarged schematic view of the utility model at I;

FIG. 4 is a side view of the overall structure of the present utility model;

FIG. 5 is a cross-sectional view A-A of the present utility model;

FIG. 6 is a schematic view of the structure of the lower part of the bed body of the utility model;

in the figure, 1, a bed body; 2. a relief hole; 3. a mounting plate; 4. a pressing cylinder; 5. a support plate; 6. a guide rod; 7. a circular plate; 8. a push rod; 9. a fixing plate; 10. a rotating shaft; 11. a motor; 12. a drive gear; 13. a driven gear; 14. an electric cylinder; 15. a concave frame.

Detailed Description

The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.

As shown in fig. 1 to 4, a cervical vertebra rehabilitation apparatus comprises a bed body 1, wherein a yielding hole 2 is formed in the bed body 1, a pressing cylinder 4 capable of lifting is arranged in the yielding hole 2, and the pressing cylinder 4 performs reciprocating linear motion in the vertical direction, so that massage on the cervical vertebra of a patient can be realized, and rehabilitation treatment is facilitated;

as shown in fig. 5 to 6, two support plates 5 are fixed below the bed body 1, a guide rod 6 is fixed at the upper end of each support plate 5, a mounting plate 3 is arranged above the support plates 5, and the two guide rods 6 penetrate through the mounting plate 3 along the vertical direction and are in sliding connection with the mounting plate 3; a concave frame 15 is arranged above the mounting plate 3, the pressing cylinder 4 is fixed on the concave frame 15, and the pressing cylinder 4 can massage the cervical vertebra of a patient by controlling the mounting plate 3 to lift up and down in a reciprocating manner;

as shown in fig. 3 and 6, in the present embodiment, the reciprocating up-and-down movement of the mounting plate 3 is achieved by providing a reciprocating drive assembly below the mounting plate 3; the reciprocating driving assembly comprises a fixed plate 9 fixed at the lower end of the bed body 1, a rotating shaft 10 is rotatably connected to the fixed plate 9, a driven gear 12 and a rotary table 7 are fixed on the rotating shaft 10, a motor 11 is also fixed on the bed body 1, a driving gear 12 is fixed on a driving shaft of the motor 11, the driving gear 12 is meshed with the driven gear 13, and the rotation of the rotary table 7 can be realized by controlling the motor 11 to operate; the turntable 7 is provided with a push rod 8, one end of the push rod 8 is hinged with the eccentric position of the turntable 7, the other end of the push rod is hinged with the bottom of the mounting plate 3, and when the turntable 7 rotates, the mounting plate 3 can be driven to reciprocate, so that the pressing cylinder 4 is driven to reciprocate;

of course, the device for driving the mounting plate 3 to reciprocate includes, but is not limited to, a reciprocating driving assembly, and in some disclosures, the massage action of the pressing cylinder 4 can be achieved by installing a telescopic cylinder on the bed body 1 to drive the mounting plate 3 to reciprocate in the vertical direction;

in this embodiment, an electric cylinder 14 is installed between the concave frame 15 and the mounting plate 3, and the electric cylinder 14 can control the distance between the concave frame 15 and the mounting plate 3, so that the maximum height of the pressing cylinder 4 can be adjusted, and the height position of the pressing cylinder 4 can be changed according to the thickness of the neck of a patient and the body feeling requirement of the patient, and the pressing amplitude can be adjusted.

In some disclosures, two pressing cylinders 4 can be arranged, the axial direction of the pressing cylinders 4 is parallel to the cervical vertebra of the human body, and round protrusions are arranged at the end of the pressing cylinders 4 close to the head, so as to achieve the purpose of massaging the upper bundle tip of trapezius muscles; and, the pressing cylinder 4 is provided with a protrusion at intervals for relaxing the neck muscle at fixed points.

The pressing cylinder 3 is sleeved with a silica gel sleeve, and the silica gel sleeve has better elasticity and plasticity, can be more attached to the neck of a patient, and improves the comfort of the patient during use;

in addition, in some disclosures, the compression cylinder 3 may also have a heating function, more contributing to relaxing the neck lifting muscles; medicinal materials can be arranged in the pressing cylinder 4 to carry out auxiliary treatment; for example, moxa is provided in the pressing cylinder 4 to perform moxa therapy.

In this embodiment, a cushion for supporting the head of the patient is fixed to the bed 1, and can function as a pillow.

Working principle:

the lifting mounting plate 3 is arranged below the bed body 1, the concave frame 15 is arranged on the mounting plate 3, the pressing cylinder 4 is fixed on the concave frame 15, and the pressing cylinder 4 can extend out of the abdicating groove 2 and massage the cervical vertebra of a patient by controlling the lifting of the mounting plate 3, so that the cervical vertebra rehabilitation is facilitated; by arranging the reciprocating driving assembly and arranging the rotatable turntable 7 in the reciprocating driving assembly, a pushing rod 8 is hinged to the eccentric position of the turntable 7, and the pushing rod 8 is hinged to the bottom of the mounting plate 3, so that the reciprocating lifting driving of the mounting plate 3 is realized; the electric cylinder 14 is arranged between the concave frame 15 and the mounting plate 3 to control the distance between the concave frame 15 and the mounting plate 3, so that the maximum height of the pressing cylinder 4 is adjusted, and the height position of the pressing cylinder 4 can be changed according to the thickness of the neck of a patient and the body feeling requirement of the patient by the device, and the pressing amplitude is adjusted.

In the description of the present specification, the descriptions of the terms "one embodiment," "example," "specific example," and the like, mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the present utility model. In this specification, schematic representations of the above terms do not necessarily refer to the same embodiments or examples. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The foregoing has shown and described the basic principles, principal features and advantages of the utility model. It will be understood by those skilled in the art that the present utility model is not limited to the embodiments described above, and that the above embodiments and descriptions are merely illustrative of the principles of the present utility model, and various changes and modifications may be made without departing from the spirit and scope of the utility model, which is defined in the appended claims.

Claims

1. The utility model provides a cervical vertebra rehabilitation apparatus, includes bed body (1), has seted up groove (2) of stepping down on the bed body (1), its characterized in that, bed body (1) below is fixed with two backup pads (5), and every backup pad (5) upper end is fixed with a guide bar (6), and backup pad (5) top is provided with mounting panel (3) that can go up and down, and two guide bars (6) run through mounting panel (3) and with mounting panel (3) sliding connection along vertical direction; a concave frame (15) is arranged above the mounting plate (3), a pressing cylinder (4) is fixed on the concave frame (15), and the pressing cylinder (4) can pass through the abdication groove (2) and act on the cervical vertebra of a patient.

2. The cervical vertebra rehabilitation apparatus according to claim 1, wherein a fixed plate (9) is fixed at the lower end of the bed body (1), a rotating shaft (10) is rotatably connected to the fixed plate (9), a driven gear (13) and a turntable (7) are fixed on the rotating shaft (10), a motor (11) is also fixed on the bed body (1), a driving gear (12) is fixed on a driving shaft of the motor (11), and the driving gear (12) is meshed with the driven gear (13); a pushing rod (8) is arranged on the turntable (7), one end of the pushing rod (8) is hinged with the eccentric position of the turntable (7), and the other end is hinged with the bottom of the mounting plate (3).

3. The cervical vertebra rehabilitation apparatus according to claim 1, wherein a telescopic cylinder is fixed at the lower end of the bed body (1) for driving the mounting plate (3) to lift.

4. A cervical rehabilitation device according to claim 1 or 2 or 3, characterised in that an electric cylinder (14) is mounted between the mounting plates (3) of the concave frame (15), the electric cylinder (14) being able to control the distance between the concave frame (15) and the mounting plates (3).

5. The cervical vertebra rehabilitation apparatus according to claim 1, wherein two pressing cylinders (4) are provided, the axial direction of the pressing cylinders (4) is parallel to the cervical vertebra of the human body, and circular protrusions are arranged at the end of the pressing cylinders (4) close to the head, so that the purpose of massaging the upper bundle tip of trapezius muscles is achieved.

6. The cervical vertebra rehabilitation apparatus according to claim 1, wherein the pressing cylinder (4) is sleeved with a silica gel sleeve.

7. A cervical rehabilitation apparatus according to claim 1, characterised in that the pressing cylinder (4) may also have a heating function.

8. The cervical vertebra rehabilitation apparatus according to claim 1, wherein moxa is arranged in the pressing cylinder (4).

9. A cervical rehabilitation apparatus according to claim 1, characterised in that the bed (1) is fixed with a cushion for supporting the patient's head.
