Abstract
The utility model relates to the technical field of medical instruments, in particular to a nursing device for general surgery department, which comprises a sickbed main body, wherein a seat board groove is arranged in the middle position of the lower part of the sickbed main body, a folding seat board is arranged in the seat board groove, the side edge inside the seat board groove is connected with the side edge of the folding seat board through a sliding rail, a medicine cabinet is arranged at the lower part of the sickbed main body close to the rear end, a massage cushion is arranged in the middle position of the upper part of the sickbed main body, a rectangular groove is arranged at the upper part of the sickbed main body close to the front end, a spine massage device is arranged below the rectangular groove, the spine massage device comprises a massage block, the lower end of the massage block is connected with a driving mechanism, and a massage roller is arranged at the upper end of the massage block. Has the advantages that: the waist muscle of the patient can be relaxed, and the lumbar pressure can be relieved; promoting blood flow in a patient; the operation of medical staff is facilitated, and the labor intensity of the medical staff is also reduced.
Description
Technical Field
The utility model relates to the technical field of medical instruments, in particular to a nursing device for general surgery department.
Background
The general surgery department is a clinical discipline which takes operations as a main method to treat other diseases such as liver, biliary tract, pancreas, gastrointestinal tract, anorectum, vascular diseases, thyroid and breast tumors, trauma and the like, and is the biggest special discipline of a surgical system.
The patient generally can not sit or walk on the ground after the postoperative, needs the flat bed of a very long period of time to lie and rest, and long-time flat bed of patient lies and can bring permanent oppression to lumbar vertebrae, backbone, and blood circulation is slow, not only makes the patient feel the ache uncomfortable, still can influence patient's postoperative rehabilitation. In clinic, a manual massage method is generally adopted to massage the lumbar vertebra and the cervical vertebra of a patient, so that blood circulation is promoted, and the pain of the patient is relieved. When in massage, the family members of the patient or the medical care personnel need to stretch the hands into the body of the patient to massage the lumbar vertebra or the cervical vertebra, but the operation space is smaller, so that the massage process is troublesome and labor-consuming, and the massage effect is very little.
SUMMERY OF THE UTILITY MODEL
Aiming at the defects of the prior art, the utility model provides a nursing device for general surgery department, which solves the problems of labor waste and poor massage effect of the existing manual massage.
In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a department of general surgery's nursing device, includes, the sick bed main part, the lower part intermediate position of sick bed main part is equipped with the bedplate groove, be equipped with folding bedplate in the bedplate groove, the side of bedplate inslot portion passes through sliding rail connection with the side of folding bedplate, the lower part of sick bed main part is close to the rear end position and is equipped with the medicine cabinet, sick bed main part upper portion intermediate position is equipped with the massage pad, sick bed main part upper portion is close to the front end position and is equipped with the rectangular channel, the rectangular channel has vertebra massage device, vertebra massage device is including the massage piece, massage piece lower extreme is connected with actuating mechanism, and massage piece upper end is equipped with the massage roller.
As a further improvement of the sickbed, the driving mechanism comprises a lead screw, a nut and a motor, a motor mounting frame and a lead screw mounting frame are arranged at the position, close to the front end, of the lower portion of the sickbed main body, the motor is fixedly connected with the motor mounting frame, the lead screw is rotatably connected with the lead screw mounting frame through a bushing, the motor is in connection transmission with the lead screw through a bevel gear, and the nut is movably connected with the lead screw through threads.
As a further improvement of the utility model, the lower part of the folding seat board is provided with two supporting plates, and the supporting plates are hinged with a supporting frame through hinge shafts.
As a further improvement of the utility model, a first through hole is arranged below the hinge shaft on the supporting plate, a second through hole is arranged beside the hinge shaft, and a snap fastener is arranged at the upper end of the supporting frame and can be matched with the first through hole or the second through hole.
As a further improvement of the utility model, a plurality of massage bulges are arranged on the massage cushion.
Compared with the prior art, the utility model has the following beneficial effects: the utility model is provided with the massage cushion containing the massage bulges, and the massage bulges can relax the waist muscles of the patient and relieve the pressure of the lumbar vertebra by vibration; the massage block arranged in the utility model can do linear reciprocating motion under the driving of the driving device, massage the spine of a patient, relax the muscles around the spine and promote the blood flow; the utility model is provided with the folding seat board and the medicine cabinet, and medical staff can sit on the folding seat board when changing medicine and take the medicine needed by the patient from the medicine cabinet, thereby facilitating the operation of the medical staff and reducing the labor intensity of the medical staff.
Drawings
FIG. 1 is a schematic view of the overall structure of the present invention
FIG. 2 is a side view of the present invention

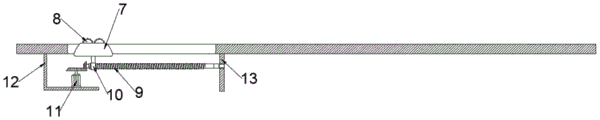

FIG. 3 is a cross-sectional view of the present invention
FIG. 4 is a schematic view of the structure of the folding seat board of the present invention
In the figure: 1. a hospital bed main body; 2. a seat plate groove; 3. a folding seat board; 4. a medicine cabinet; 5. a massage cushion; 6. a rectangular groove; 7. a massage block; 8. a massage roller; 9. a lead screw; 10. a nut; 11. a motor; 12. a motor mounting bracket; 13. a lead screw mounting bracket; 14. a support plate; 15. a support frame; 16. a first through hole; 17. a second through hole; 18. snapping; 19. massaging the bumps.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
The utility model provides a department of general surgery's nursing device, includes, sick bed main part 1, the lower part intermediate position of sick bed main part 1 is equipped with bedplate groove 2, be equipped with folding bedplate 3 in the bedplate groove 2, the side of bedplate groove 2 inside passes through sliding rail connection with folding bedplate 3's side, the lower part of sick bed main part 1 is close to the rear end position and is equipped with medicine cabinet 4, 1 upper portion intermediate position of sick bed main part is equipped with massage pad 5, it is protruding 19 to be equipped with a plurality of massages on pad 5, 1 upper portion of sick bed main part is close to the front end position and is equipped with rectangular channel 6, rectangular channel 6 has the vertebra massage device, the vertebra massage device includes massage piece 7, massage piece 7 lower extreme is connected with actuating mechanism, and massage piece 7 upper end is equipped with massage roller 8.
The drive mechanism comprises a screw rod 9, a nut 10 and a motor 11, a motor mounting frame 12 and a screw rod mounting frame 13 are arranged at the position, close to the front end, of the lower portion of the sickbed main body 1, the motor 11 is fixedly connected with the motor mounting frame 12, the screw rod 9 is connected with the screw rod mounting frame 13 through a bushing in a rotating mode, the motor 11 is connected with the screw rod 9 through a bevel gear in a transmission mode, and the nut 10 is movably connected with the screw rod 9 through threads.
Two supporting plates 14 are arranged at the lower part of the folding seat plate, and a supporting frame 15 is hinged on the supporting plates 14 through hinge shafts.
A first through hole 16 is arranged below the hinge shaft on the supporting plate 14, a second through hole 17 is arranged beside the hinge shaft, a snap fastener 18 is arranged at the upper end of the supporting frame 15, and the snap fastener 18 can be matched with the first through hole 16 or the second through hole 17.
The working principle of the present invention is explained as follows: lay thin mattress on sick bed main part 1, lift the patient after the operation to sick bed main part 1 on, lie flat when patient for a long time, produce waist and neck back untimely, fill up 5 and motor 11 circular telegram for the massage, massage fills up the protruding 19 vibrations of massage that set up on 5, can massage patient's waist, lead screw 9's rotation can make massage piece 7 be linear motion, massage patient's vertebra, promote blood circulation, alleviate patient's muscle fatigue.
When medical staff needs to change the medicine or debride the patient, the folding seat board 3 arranged below the sickbed main body 1 is pulled out, the snap fasteners 18 arranged on the support frames 15 are pressed to be separated from the second through holes 17 and clamped into the first through holes 16, so that the support frames 15 support the folding seat board 3, the medical staff can sit on the folding seat board 3 to change the medicine and debride the patient, the medicine cabinets 4 arranged at the lower part of the sickbed body can store the medicine needed by the patient, the medical staff is not required to carry the needed medicine, the physical strength of the medical staff is saved, the working strength of the medical staff is effectively reduced,
it is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a department of general surgery's nursing device, includes, sick bed main part (1), its characterized in that: the utility model discloses a sick bed, including sick bed main part (1), the lower part intermediate position of sick bed main part (1) is equipped with bedplate groove (2), be equipped with folding bedplate (3) in bedplate groove (2), the side of bedplate groove (2) inside passes through sliding rail connection with the side of folding bedplate (3), the lower part of sick bed main part (1) is close to the rear end position and is equipped with medicine cabinet (4), sick bed main part (1) upper portion intermediate position is equipped with massage pad (5), sick bed main part (1) upper portion is close to the front end position and is equipped with rectangular channel (6), rectangular channel (6) have vertebra massage device, vertebra massage device is including massage piece (7), massage piece (7) lower extreme is connected with actuating mechanism, and massage piece (7) upper end is equipped with massage roller (8).
2. A general surgical care device according to claim 1, wherein: actuating mechanism includes lead screw (9), screw (10), motor (11), sick bed main part (1) lower part is close to the front position and is equipped with motor mounting bracket (12) and lead screw mounting bracket (13), motor (11) with motor mounting bracket (12) fixed connection, lead screw (9) with lead screw mounting bracket (13) are through bush swivelling joint, motor (11) with lead screw (9) are through bevel gear connection transmission, screw (10) through the screw thread with lead screw (9) swing joint.
3. A general surgical care device according to claim 1, wherein: two supporting plates (14) are arranged at the lower part of the folding seat plate, and a supporting frame (15) is hinged on the supporting plates (14) through a hinge shaft.
4. A general surgical care device according to claim 3, wherein: a first through hole (16) is arranged below the hinge shaft on the supporting plate (14), a second through hole (17) is arranged beside the hinge shaft, a snap fastener (18) is arranged at the upper end of the supporting frame (15), and the snap fastener (18) can be matched with the first through hole (16) or the second through hole (17).
5. A general surgical care device according to claim 1, wherein: a plurality of massage bulges (19) are arranged on the massage cushion (5).
