CN219110150U - Hand resumes exercise equipment

Info

Publication number: CN219110150U
Application number: CN202320037923.9U
Authority: CN
Inventors: 苑颖妲
Original assignee: Individual
Current assignee: Individual
Priority date: 2023-01-07
Filing date: 2023-01-07
Publication date: 2023-06-02
Anticipated expiration: 2033-01-07

Abstract

The utility model belongs to the technical field of hand exercise equipment, and discloses hand recovery exercise equipment, which comprises N massage components capable of independently working, wherein N is more than or equal to 1; the massage component comprises an annular base body which can be sleeved on an arm, at least part of the annular base body is a hard arc frame, a driving part and a massage part are arranged on the hard arc frame, and the massage part is driven by the driving part to massage the arm in the annular base body in an intermittent pressing mode. According to the utility model, after the hard arc frame is sleeved on the arm of the person, the arm of the person is extruded and massaged through the driving part and the massaging part, so that the blood flow of the arm of the person is promoted, the meridians of the hand of the person are smooth, the purpose of exercising the hand of the person can be achieved without higher training intensity, the hand of the person is not required to swing greatly, and secondary injury to the person in the exercise process is avoided.

Description

Hand resumes exercise equipment

Technical Field

The utility model belongs to the technical field of hand exercise equipment, and particularly relates to hand recovery exercise equipment.

Background

When the hands of the person recover after accidents, the hand state is obviously worse than the state before accidents, and in order to enable the hand state to approach the state before accidents and even recover to the state before accidents completely, the hands need to be exercised.

The existing hand exercise equipment drives arms to swing or reciprocate to exercise, the fundamental significance of the exercise is that the blood flow of the personnel is promoted, the meridians of the hands of the personnel are smooth, the purpose of exercising the hands of the personnel is achieved, the hands of the personnel can be recovered to exercise in the mode, but the exercise intensity is high, the hands of the personnel can swing greatly, when the personnel are just healed, the equipment easily causes secondary injury to the personnel in the exercise process, and the equipment plays a reaction instead, so that the exercise recovery effect is not achieved, and the existing device excessively covers the arms of the personnel or is insufficient, so that the personnel cannot be fully exercised.

Disclosure of Invention

The utility model aims to provide hand recovery exercise equipment, which solves the problem that the hands of people in the background art swing greatly, and secondary injury is easily caused to the people in the exercise process.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a hand recovery exercise device comprises N massage components which can work independently, wherein N is more than or equal to 1;

the massage component comprises an annular base body which can be sleeved on an arm, at least part of the annular base body is a hard arc frame, a driving part and a massage part are arranged on the hard arc frame, and the massage part is driven by the driving part to massage the arm in the annular base body in an intermittent pressing mode.

Preferably, the driving part comprises a massage roller capable of rotating, the massage part comprises an outer convex part and a concave part which are formed on the surface of the massage roller, and the outer convex part and the concave part are distributed in a staggered way.

Preferably, the driving part further includes a first motor, and an output end of the first motor is connected with the massage roller.

Preferably, the massage part comprises a flexible member capable of being contracted or expanded by the driving part, and at least part of the deformation area of the flexible member is located in the annular base.

Preferably, the driving part further includes an air pump connected to the flexible member through an air pipe.

Preferably, the driving part comprises an electric push rod, the massage part comprises a massage frame, and a movable rod is fixedly connected between the telescopic end of the electric push rod and the massage frame.

Preferably, the massage side of the massage rack is fixedly connected with a massage head.

Preferably, the annular base body further comprises a flexible connecting piece connected with the hard arc frame, and the connecting length of the flexible connecting piece is adjustable.

Preferably, the flexible connecting piece comprises an elastic band, and a connecting rod is fixedly connected between the end part of the elastic band and the end part of the hard arc frame.

Preferably, the flexible connecting piece comprises a nylon belt, a winding roller is fixedly connected to the end portion of the nylon belt, the winding roller is rotatably installed on a hard arc frame, and a second motor for driving the winding roller to wind or release the nylon belt is further arranged on the hard arc frame.

Compared with the prior art, the utility model has the beneficial effects that:

(1) According to the utility model, after the hard arc frame is sleeved on the arm of the person, the arm of the person is extruded and massaged through the driving part and the massaging part, so that the blood flow of the arm of the person is promoted, the meridians of the hand of the person are smooth, the purpose of exercising the hand of the person can be achieved without higher training intensity, the hand of the person is not required to swing greatly, and secondary injury to the person in the exercise process is avoided.

(2) According to the utility model, the flexible connecting pieces and the massage components capable of working independently are arranged, so that the number of the massage components can be adjusted according to the arm length of a person, and when the massage components cover the arms of the person, the positions of the arms of the person, which need to be exercised, can be fully covered, the situation that the positions, which need to be exercised, cannot be exercised due to insufficient coverage is avoided, and the hand exercise recovery efficiency of the person is improved.

Drawings

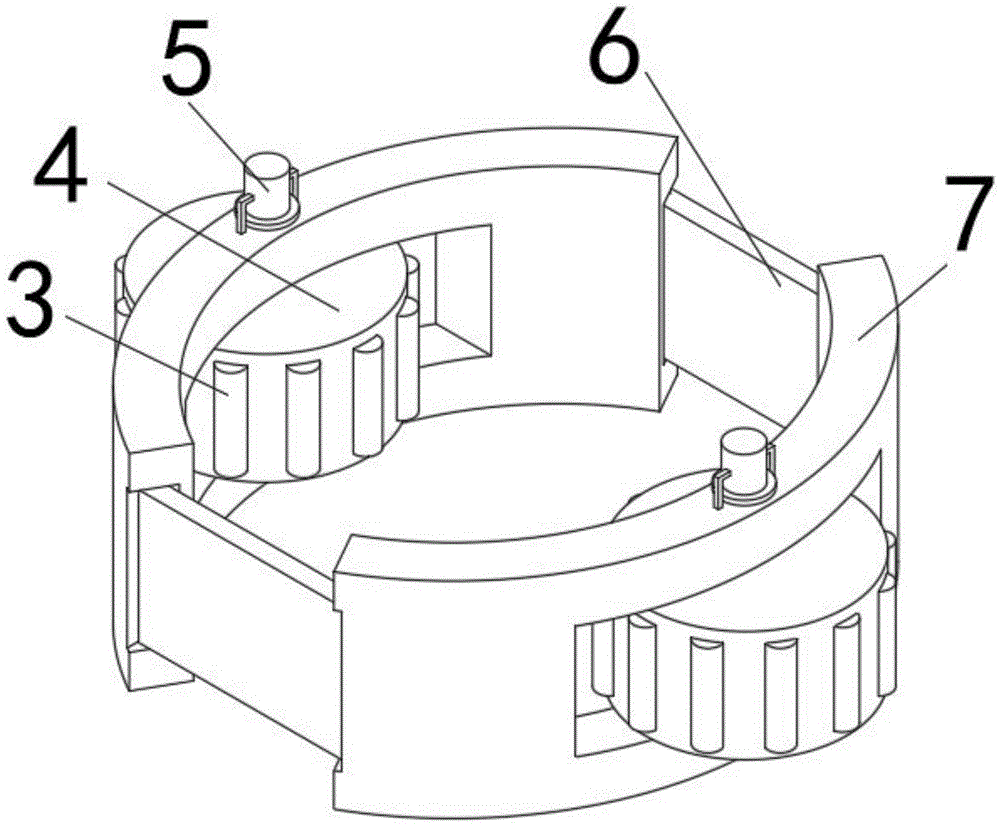

FIG. 1 is one of the perspective views of the present utility model;

FIG. 2 is a second perspective view of the present utility model;

FIG. 3 is a perspective view of the present utility model with the elastic removed;

FIG. 4 is a front view of the present utility model;

FIG. 5 is a top view of the present utility model;

FIG. 6 is a top view of the utility model in use;

FIG. 7 is a front view of the air bag of the present utility model attached to a rigid arc frame;

FIG. 8 is a top view of FIG. 7;

fig. 9 is a top view of the massage bracket of the present utility model connected to a rigid arc bracket;

FIG. 10 is a front view of FIG. 9;

FIG. 11 is a rear view of the wind-up roll of the present utility model connected to a hard arc frame;

FIG. 12 is one of the top views of the present utility model after the number of rigid arc brackets has been adjusted;

FIG. 13 is a second top view of the present utility model after the number of rigid arc frames is adjusted;

FIG. 14 is a third top view of the present utility model after the number of rigid arc brackets has been adjusted;

in the figure: 1. a massage rack; 2. a wind-up roll; 3. an outer protruding portion; 4. a massage roller; 5. a first motor; 6. an elastic band; 7. a hard arc frame; 8. a second motor; 9. a connecting rod; 10. a nylon belt; 11. an air pipe; 12. an air pump; 13. an electric push rod; 14. a flexible member; 15. a massage head; 16. and (3) moving the rod.

Detailed Description

The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.

Referring to fig. 1 to 14, the present utility model provides the following technical solutions:

1-6 and 12-14, in order to enable the hand rehabilitation exercise device to be adjusted according to the arm length of a person, the hand rehabilitation exercise device comprises N massage components which can work independently, wherein N is more than or equal to 1, the massage components comprise an annular base body sleeved on the arm, and for supporting other structures, at least part of the annular base body is a hard arc frame 7, and a dent matched with the arm is formed on the inner side of the hard arc frame 7.

As can be seen from fig. 6 to 7, in order to fix the annular base body, the annular base body can be adjusted according to the arm circumference of a person, the annular base body further comprises a flexible connecting piece connected with the hard arc frame 7, the connecting length of the flexible connecting piece is adjustable, and an insertion space for inserting the arm is formed between the hard arc frame 7 and the flexible connecting piece.

When the hand recovery exercise equipment provided by the utility model is used, the flexible connecting piece is pulled, the length of the flexible connecting piece is further adjusted, after the length of the flexible connecting piece is adjusted, a person inserts an arm to be exercised into an insertion space formed between the hard arc frame 7 and the flexible connecting piece, after the arm is inserted into the insertion space, the length of the flexible connecting piece is adjusted, the length of the flexible connecting piece is shortened until the hard arc frame 7 is fixed on the arm of the person, the massaging members are fixed on the arm of the person, and according to the steps, the massaging members with the required number are fixed on the arm of the person, so that the massaging members cover the position where the arm of the person needs to be exercised, the arm of the person is further exercised, and the arm of the person is convenient to recover.

In summary, the following embodiments are specifically provided in the present utility model with respect to a specific structure of the flexible connection unit:

embodiment one

As can be seen from fig. 1-3, 5, 8-9 and 12-14, the flexible connecting piece comprises an elastic band 6 with elasticity, and a connecting rod 9 is fixedly connected between the end of the elastic band 6 and the end of the hard arc frame 7.

In this embodiment, when the hard arc frame 7 is required to be fixed to the arm of a person, the hard arc frame 7 and the elastic band 6 are pulled to extend the elastic band 6, the arm of the person is inserted between the elastic band 6 and the hard arc frame 7, the elastic band 6 is loosened to retract the elastic band 6 relative to the hard arc frame 7, the arm of the person is abutted by the elastic band 6, and the hard arc frame 7 is fixed to the arm of the person.

Second embodiment

As can be seen from fig. 11, the flexible connection member includes a nylon belt 10, a winding roller 2 is fixedly connected to an end portion of the nylon belt 10, the winding roller 2 is rotatably mounted on a hard arc frame 7, and a second motor 8 for driving the winding roller 2 to wind or release the nylon belt 10 is further arranged on the hard arc frame 7.

In this embodiment, when the hard arc frame 7 is required to be fixed on a person's arm, the second motor 8 works, so that the second motor 8 drives the wind-up roll 2 to rotate, the nylon belt 10 is released by the wind-up roll 2, the nylon belt 10 is stretched, the elastic belt 6 is stretched, the person's arm is inserted between the nylon belt 10 and the hard arc frame 7, the second motor 8 works, so that the second motor 8 drives the wind-up roll 2 to rotate, the nylon belt 10 is wound up by the wind-up roll 2, the nylon belt 10 is retracted relative to the hard arc frame 7, the person's arm is propped against by the nylon belt 10, and the hard arc frame 7 is fixed on the person's arm.

In addition, in order to be convenient for massage personnel's arm, be equipped with drive division and massage part on the stereoplasm arc frame 7, massage part is under drive division's drive with the mode massage that the intermittent type was pressed and is located annular base member's arm, and after stereoplasm arc frame 7 was fixed in personnel's arm, through drive division work, make drive division drive massage part move, make massage part intermittent type press the arm in the annular base member, and then promote personnel's arm blood flow, and then play exercise recovery's effect.

In summary, the following embodiments are specifically provided in the present utility model with respect to specific structures of the massaging portion and the driving portion:

embodiment III

As can be seen from fig. 1 to 5, the massage portion includes a rotatable outer protruding portion 3 and a recessed portion, the outer protruding portion 3 and the recessed portion are staggered, and the outer protruding portion 3 and the recessed portion are used for massaging arms of a person.

Specifically, as to how the outer flange 3 and the recessed portion are rotated, as can be seen from fig. 1 to 5, the driving portion includes a massage roller 4 capable of rotating, and the outer flange 3 and the recessed portion are formed on the surface of the massage roller 4.

In addition, in order to drive the massage roller 4 to rotate, the driving part further comprises a first motor 5, and the output end of the first motor 5 is connected with the massage roller 4.

In this embodiment, when the arm in the annular matrix needs to be massaged, the first motor 5 drives the massage roller 4 to rotate, and when the massage roller 4 rotates, the massage roller 4 drives the outer flange 3 and the concave part to rotate, and when the outer flange 3 and the concave part are in contact with the arm in the annular matrix, the arm is massaged through the outer flange 3 and the concave part, and then the blood of a person flows, so that the arm of the person is exercised and recovered.

Fourth embodiment

As can be seen from fig. 7 to 8, the massage part includes a flexible member 14, the flexible member 14 is capable of being contracted and deformed or expanded and deformed under the driving of the driving part, and at least part of the deformation area of the flexible member 14 is located in the annular base, and the arm of the person is massaged and squeezed by the contraction and deformation or the expansion and the deformation of the flexible member 14.

And in order that the flexible member 14 can be subjected to shrinkage deformation or expansion deformation, the driving part further comprises an air pump 12 connected with the flexible member 14 through an air pipe 11, and the air pump 12 works to enable the air pipe 11 to extract air in the flexible member 14 or input the air into the flexible member 14 so as to enable the flexible member 14 to realize shrinkage deformation or expansion deformation.

In this embodiment, when the arm in the annular matrix is required to be massaged, the air pump 12 works, so that external air is input into the flexible member 14, the flexible member 14 is expanded and deformed, the flexible member 14 is further expanded to squeeze the arm in the annular matrix, after the flexible member 14 squeezes the arm in the annular matrix, the air pump 12 works, so that the air pipe 11 extracts the air in the flexible member 14, and then the air in the flexible member 14 is discharged to the outside of the flexible member 14, so that the flexible member 14 contracts and deforms, and then the flexible member 14 is separated from the arm, and according to the steps, the flexible member 14 continuously squeezes the arm of a massage person, so that the blood flow of the arm of the person is promoted to be accelerated, and the effect of recovering the arm exercise of the person is achieved.

Fifth embodiment

As can be seen from fig. 9 to 10, the driving part comprises an electric push rod 13, the massage part comprises a massage frame 1, and a movable rod 16 is fixedly connected between the telescopic end of the electric push rod 13 and the massage frame 1.

In this embodiment, when the arm in the annular matrix is required to be massaged, the electric push rod 13 works, and then the telescopic end of the electric push rod 13 moves, so that the electric push rod 13 drives the moving rod 16 to move, the moving rod 16 drives the massage frame 1 to reciprocate relative to the arm in the annular matrix, and the massage frame 1 is used for massaging the arm of a person in a reciprocating manner, so that the acceleration of the blood flow of the arm of the person is promoted, and the effect of recovering the arm exercise of the person is achieved.

Preferably, in order to improve the massage effect of the massage rack 1 on the arms of the person, as can be seen from fig. 9, the massage side of the massage rack 1 is fixedly connected with the massage head 15, when the massage rack 1 massages the arms of the person, the massage rack 1 can drive the massage head 15 to move synchronously, and the massage head 15 extrudes the arms of the person, so that when the massage head 15 massages the arms of the person, the blood flow efficiency of the arms of the person is further improved, and the exercise recovery effect of the arms of the person is further improved.

Although embodiments of the present utility model have been shown and described, it will be understood by those skilled in the art that various changes, modifications, substitutions and alterations can be made therein without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A hand rehabilitation exercise device, characterized by: comprises N massage components which can work independently, wherein N is more than or equal to 1;

the massage component comprises an annular base body which can be sleeved on an arm, at least part of the annular base body is a hard arc frame (7), a driving part and a massage part are arranged on the hard arc frame (7), and the massage part is driven by the driving part to massage the arm positioned in the annular base body in an intermittent pressing mode.

2. A hand rehabilitation exercise device according to claim 1, wherein: the driving part comprises a massage roller (4) capable of rotating, the massage part comprises an outer convex part (3) and a concave part which are formed on the surface of the massage roller (4), and the outer convex part (3) and the concave part are distributed in a staggered mode.

3. A hand rehabilitation exercise device according to claim 2, wherein: the driving part also comprises a first motor (5), and the output end of the first motor (5) is connected with the massage roller (4).

4. A hand rehabilitation exercise device according to claim 1, wherein: the massage part comprises a flexible piece (14), the flexible piece (14) can be contracted and deformed or expanded and deformed under the drive of the driving part, and at least part of deformation area of the flexible piece (14) is positioned in the annular base body.

5. A hand rehabilitation exercise device according to claim 4, wherein: the driving part also comprises an air pump (12) connected with the flexible piece (14) through an air pipe (11).

6. A hand rehabilitation exercise device according to claim 1, wherein: the driving part comprises an electric push rod (13), the massage part comprises a massage frame (1), and a movable rod (16) is fixedly connected between the telescopic end of the electric push rod (13) and the massage frame (1).

7. A hand rehabilitation exercise device according to claim 6, wherein: the massage side of the massage rack (1) is fixedly connected with a massage head (15).

8. A hand rehabilitation exercise device according to claim 1, wherein: the annular base body further comprises a flexible connecting piece connected with the hard arc frame (7), and the connecting length of the flexible connecting piece is adjustable.

9. A hand rehabilitation exercise device according to claim 8, wherein: the flexible connecting piece comprises an elastic band (6), and a connecting rod (9) is fixedly connected between the end part of the elastic band (6) and the end part of the hard arc frame (7).

10. A hand rehabilitation exercise device according to claim 8, wherein: the flexible connecting piece comprises a nylon belt (10), a winding roller (2) is fixedly connected to the end portion of the nylon belt (10), the winding roller (2) is rotatably mounted on a hard arc frame (7), and a second motor (8) for driving the winding roller (2) to wind or release the nylon belt (10) is further arranged on the hard arc frame (7).
