Abstract
The utility model relates to the field of auxiliary carrying tools for building construction, in particular to lifting equipment for indoor plate installation. The AAC board installation operation device in the building comprises a movable platform, wherein a vertical frame extending upwards is arranged at the front part of the movable platform, a pulley is arranged at the top of the vertical frame, a winch is arranged on the movable platform, a steel wire rope of the winch bypasses the pulley at the top, the tail end of the steel wire rope is used for connecting an AAC board, and the movable platform comprises a platform board and a plurality of movable wheels arranged below the platform board; the bottom and the top of the vertical frame are respectively provided with a propping device, and the propping device outwards proppes the AAC plate at the front part of the vertical frame.
Description
Technical Field
The utility model relates to the field of auxiliary carrying tools for building construction, in particular to lifting equipment for indoor plate installation.
Background
The existing multi-storey building is generally a concrete frame structure, namely, the frame structure is formed by pouring concrete. There are also a number of multi-story buildings that employ an assembled structure such as a steel structure. For example, government investments require the use of steel structures, fabricated structures.
But also for design or cost reasons. The outer wall of many steel structure buildings does not use glass curtain walls, and the corresponding assembly rate requirement needs to be met, and the structural combination form of the steel frame structure and the outer wall assembled AAC board in the prior art is widely used in the building field. Aiming at the structural combination form of the steel frame structure and the external wall assembly type AAC board, the traditional external wall AAC board is installed in a mode that a tower crane or a crane is used for hoisting outside a main body structure, and an AAC board is manually pulled into a building by a traction rope.
The operation mode of hoisting by the crane has a plurality of defects, on one hand, the safety coefficient of the installation mode of pulling the AAC plate into the building by using the traction rope is low, and the safety of operation constructors during the edge operation cannot be completely ensured; on the other hand, when the tower crane or the crane is used for hoisting outside the main structure, the AAC board cannot be guaranteed not to collide with the structure, so that the integrity of the finished product of the AAC board cannot be guaranteed. Most importantly, the hoisting of the AAC plates can be affected by the outer scaffold, so that the hoisting operation can be carried out only after the outer scaffold is disassembled, or the position can be avoided only at the reserved position when the outer scaffold is built, and the construction difficulty of the outer scaffold is improved.
Disclosure of Invention
The utility model relates to lifting equipment for indoor plate installation.
The technical problems to be solved are as follows: how to erect and handle and install AAC panels inside a building.
In order to solve the technical problems, the utility model relates to indoor plate installation lifting equipment, which adopts the following scheme.
An indoor plate installation lifting device comprises a moving platform, a lifting frame extending upwards is arranged at the front part of the moving platform, a pulley is arranged at the top of the lifting frame,
a winch is arranged on the mobile platform, a steel wire rope of the winch bypasses a pulley at the top, the tail end of the steel wire rope is used for connecting an AAC plate, and the mobile platform comprises a platform plate and a plurality of mobile wheels arranged below the platform plate;
the bottom and the top of the vertical frame are respectively provided with a propping device, and the propping device proppes an AAC plate (7) at the front part of the vertical frame outwards.
Preferably, the erection frame is detachably connected with the mobile platform, the erection frame is divided into a plurality of sections, and the sections are spliced and fixed up and down to form the erection frame.
Preferably, the tail part on the mobile platform is provided with a balancing weight, and the periphery of the mobile platform is fixedly provided with an outwards extending anti-toppling support rod.
Preferably, the moving wheel is a self-locking universal wheel.
Preferably, the top of the jacking device is provided with a soft rubber cushion block.
Preferably, the jacking device is an electric push rod.
Compared with the prior art, the lifting equipment for indoor plate installation has the following beneficial effects:
the building AAC panel, that is, the AAC panel, is previously hoisted into the building from the top during the construction of the building body, and then the AAC panel is erected in a moving installation position by the AAC panel installation work device indoors.
Drawings

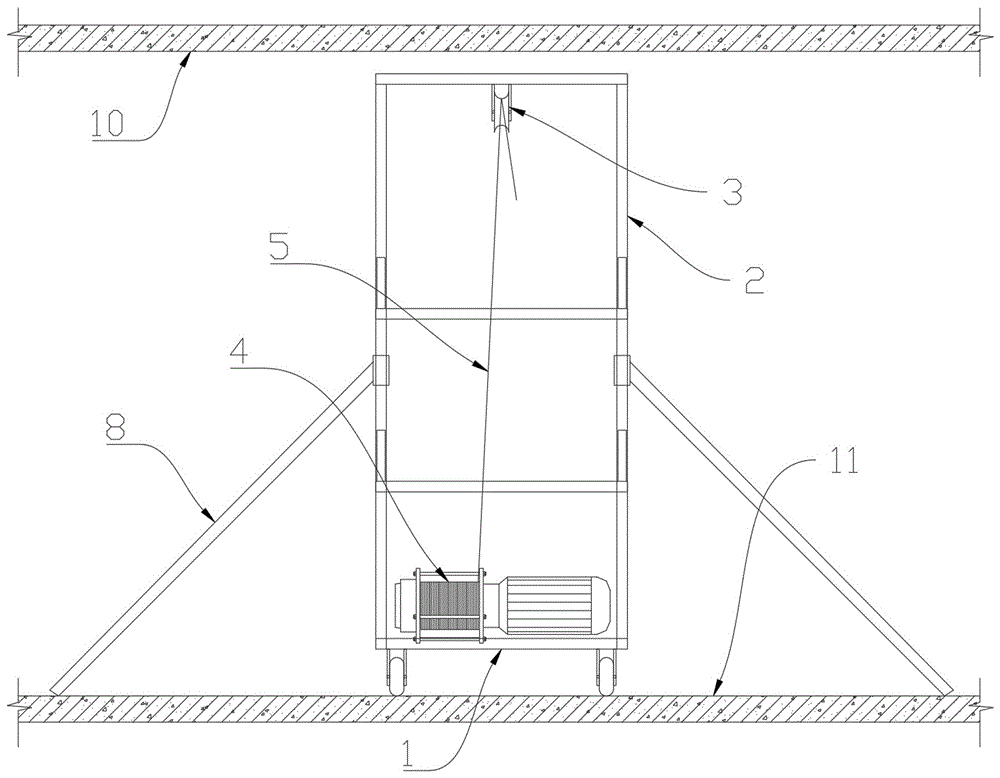

FIG. 1 is a schematic view of an indoor panel installation lifting apparatus of the present utility model in use;
fig. 2 is a side view of fig. 1.
Reference numerals illustrate: the device comprises a 1-moving platform, a 2-lifting vertical frame, 3-pulleys, a 4-winch, 5-steel wire ropes, a 6-jacking device, a 7-AAC plate, 8-anti-toppling support rods, 9-balancing weights, a 10-top plate and 11-bottom plates.
Detailed Description
The following describes specific embodiments of the present utility model in detail with reference to the drawings. It should be understood that the detailed description and specific examples, while indicating and illustrating the utility model, are not intended to limit the utility model.
In the present utility model, unless otherwise indicated, terms of orientation such as "up, down, left, right" are used to refer generally to up, down, left, right as shown with reference to fig. 2; "inner and outer" means inner and outer relative to the contour of the respective parts themselves. The present utility model will be described in detail below with reference to the accompanying drawings in conjunction with embodiments.
In order to solve the problem of how to erect and carry and install AAC panels inside a building, the present utility model proposes an indoor panel installation lifting device as shown in fig. 1 and 2.
The utility model provides an indoor panel installation hoisting equipment, equipment includes moving platform 1, and moving platform 1's front portion installation is upwards extended plays and erects frame 2, and it is provided with pulley 3 to play to erect frame 2 top, installs hoist engine 4 on moving platform 1, and hoist engine 4's wire rope 5 walks around pulley 3 at top, and wire rope 5's end is used for connecting AAC board 7, and play the bottom and the top of erects frame 2 and be provided with respectively and prop up device 6, prop up device 6 will play the outside top of erecting frame 2 anterior AAC board 7 and prop up.
The lifting equipment needs to be carried through a construction elevator, or can be unpacked into a plurality of parts, each part is carried through the construction elevator and then assembled on site, the lifting frame 2 is the most difficult to transport in the lifting equipment, the lifting frame 2 is made of steel pipes in a connecting mode, the lifting frame 2 is detachably connected with the mobile platform 1, the lifting frame 2 is divided into a plurality of sections, and the sections are spliced and fixed up and down to form the lifting frame 2. The height of the preferable lifting frame 2 can be adjusted, on one hand, different heights can be realized by changing the number of the sections in an adjusting mode, on the other hand, the vertical rods of the lifting frame 2 are telescopic rods, the telescopic rods of the lifting frame 2 shrink to reduce the height in the transportation process, and the height of the vertical rods is adjusted according to the actual height of the site during use and then the vertical rods are fixed by bolts.
The tail part on the mobile platform 1 is provided with a balancing weight 9, and the periphery of the mobile platform 1 is fixedly provided with an outwards extending anti-toppling supporting rod 8. The anti-toppling support rod 8 can be detached and fixedly connected with the mobile platform 1, the anti-toppling support rod 8 is arranged radially to the outer side of the mobile platform 1, and the bottom of the anti-toppling support rod 8 can be supported on a building bottom plate 11. The propping device 6 can be a hydraulic cylinder propped forwards or an electric push rod, and the propping device 6 is preferably an electric push rod.
Wherein the movable platform 1 is a platform plate and then a plurality of movable wheels are arranged on the ground of the platform plate. An armrest is also fixed on the mobile platform 1, and an operator can push the mobile platform 1 through the armrest when in use.
The above examples are only illustrative of the preferred embodiments of the present utility model and are not intended to limit the scope of the present utility model, and various modifications and improvements made by those skilled in the art to the technical solution of the present utility model should fall within the scope of protection defined by the claims of the present utility model without departing from the spirit of the design of the present utility model.
Claims (6)
1. An indoor plate installation lifting device is characterized by comprising a mobile platform (1), wherein a lifting frame (2) extending upwards is arranged at the front part of the mobile platform (1), a pulley (3) is arranged at the top of the lifting frame (2),
a winch (4) is arranged on the mobile platform (1), a steel wire rope (5) of the winch (4) bypasses a pulley (3) at the top, the tail end of the steel wire rope (5) is used for being connected with an AAC plate (7), and the mobile platform (1) comprises a platform plate and a plurality of mobile wheels arranged below the platform plate;
the bottom and the top of the vertical frame (2) are respectively provided with a propping device (6), and the propping devices (6) prop the AAC plate (7) at the front part of the vertical frame (2) outwards.
2. An indoor board installation lifting device according to claim 1, wherein the lifting frame (2) is detachably connected with the mobile platform (1), the lifting frame (2) is divided into a plurality of sections, and the sections are spliced and fixed up and down to form the lifting frame (2).
3. The indoor board installation lifting device according to claim 1, wherein the tail part on the mobile platform (1) is provided with a balancing weight (9), and the periphery of the mobile platform (1) is fixedly provided with an outwards extending anti-toppling supporting rod (8).
4. An indoor board installation lifting device according to claim 1, wherein the moving wheel is a self-locking universal wheel.
5. An indoor board installation lifting device as claimed in claim 1, wherein the top of the jacking means (6) is provided with a soft rubber pad.
6. An indoor board installation lifting device as claimed in claim 1, wherein the jacking means (6) is an electric push rod.
