CN219021273U

CN219021273U - Urine sampler

Info

Publication number: CN219021273U
Application number: CN202222609840.0U
Authority: CN
Inventors: 陈大岭; 章玲
Original assignee: Individual
Current assignee: Individual
Priority date: 2022-09-30
Filing date: 2022-09-30
Publication date: 2023-05-16
Anticipated expiration: 2032-09-30

Abstract

The utility model discloses a urine sampler, which relates to the field of medical sample collection and comprises a urethral catheterization cover body, wherein a sampling tube is detachably connected to the urethral catheterization cover body and used for collecting urine, the urethral catheterization cover body is cradle-shaped, and arc-shaped concave openings are formed in edges of two ends of the urethral catheterization cover body. The urine guiding cover body and the sampling tube are combined, so that the urine guiding cover body is suitable for a patient with inconvenient body (such as pregnancy, postoperative and other conditions), the physiological structure of the patient to be detected, and the urine guiding cover body can guide urine in a large range after being close to the urination part of the patient, and urine can accurately enter the urine guiding cover body to realize the circulation of the urine. The urine sample and the guide cover body are detached and separated, so that the stability of the sampling tube in the detaching process can be effectively improved in the process of sealing and transferring, and the phenomena of falling and flowing of the urine sample and the like caused by vibration of the sampling tube are effectively avoided.

Description

Urine sampler

Technical Field

The utility model relates to the field of medical sample collection, in particular to a urine sampler.

Background

Urine examination is usually monitored by urine routine examination, and urine characters, components and the like are comprehensively analyzed by urine routine examination, so that the urine examination has an important role in diagnosing and treating pathological changes of the urinary system. Typically urine routine tests can detect urine specific gravity, urine pH is normal, urine red blood cells are out of standard, and urine white blood cells are within normal limits. It is possible to monitor whether there is an abnormal increase in protein in the urine and whether bacteria are present in the urine. Can monitor whether bilirubin, urobilinogen and other components of urine are normal; it can also monitor whether urine sugar and urine ketone are normal. By monitoring the above-mentioned index, it is of great importance to diagnose diseases.

The current urine sampling device that is used for urine inspection to get, is single cup-shaped structure generally, and the patient who waits to inspect is women, and the patient is because the health is inconvenient (for example, conditions such as pregnancy, postoperative), and when urinating, the splash phenomenon appears easily to the urine, leads to the urine to discharge to cup inside can not be accurate easily, influences urine sampling work's efficiency, simultaneously, the patient is with urine patient discharge urine to measuring glass after, need pour it into the test tube inside again, and the in-process urine is easy to appear unrestrained phenomenon.

Disclosure of Invention

To the above-mentioned problem, the present application provides a urine sampler.

In order to achieve the above purpose, the present application provides the following technical solutions: the urine sampler comprises a urine guiding cover body, wherein a sampling tube is detachably connected to the urine guiding cover body and used for collecting urine, the urine guiding cover body is cradle-shaped, and arc-shaped concave openings are formed in the edges of the two ends of the urine guiding cover body.

The bottom fixedly connected with a pair of external positioning strip of the urethral catheterization cover body, and urethral catheterization cover body bottom fixedly connected with inner catheter, works as when the urethral catheterization cover body is connected with the sampling tube, a pair of external positioning strip laminating is in the outer wall top of sampling tube, inner catheter laminating is in the inner wall top of sampling tube, realizes the circulation of urine.

Preferably, the surface of the outer positioning strip is provided with a channel, the center of the inner wall of the channel is vertically fixed with a guide rod, the outer surface of the guide rod is movably connected with a lifting strip, and the lifting strip extends to the outer side of the outer positioning strip in a natural state.

The bottom fixedly connected with gangbar of lift strip, the bottom fixedly connected with manual strip of gangbar, manual strip is located the below of external positioning strip.

Preferably, a pair of outer positioning rings are fixed on the outer wall of the sampling tube, when the urethral catheterization cover body is connected with the sampling tube, a gap containing the outer positioning rings can be reserved when the manual control strip is pressed down, and the sampling tube is rotated until the outer positioning rings are arranged above the manual control strip.

Preferably, the top end of the manual control strip is fixedly connected with a limit convex strip, when the external positioning ring is arranged above the manual control strip, the manual control strip is lifted, the limit convex strip penetrates through the external positioning ring, and the manual control strip abuts against the lower end face of the external positioning ring.

Preferably, both ends of the urethral catheterization cover body are fixed with raised handles, and the end faces of the raised handles are arc-shaped.

Preferably, the side wall of the sampling tube is provided with a plurality of scale marks in an arrangement mode, and the scale marks and the sampling tube are of an integrated structure.

In summary, the utility model has the technical effects and advantages that:

the urine guiding cover body and the sampling tube are combined, so that the urine guiding cover body is suitable for a patient with inconvenient body (such as pregnancy, postoperative and other conditions), the physiological structure of the patient to be detected, and the urine guiding cover body can guide urine in a large range after being close to the urination part of the patient, and urine can accurately enter the urine guiding cover body to realize the circulation of the urine. The urine sample and the guide cover body are detached and separated, so that the stability of the sampling tube in the detaching process can be effectively improved in the process of sealing and transferring, and the phenomena of falling and flowing of the urine sample and the like caused by vibration of the sampling tube are effectively avoided.

Drawings

In order to more clearly illustrate the embodiments of the present application or the technical solutions in the prior art, the drawings that are required in the embodiments or the description of the prior art will be briefly described below, it being obvious that the drawings in the following description are only some embodiments of the present application, and that other drawings may be obtained according to these drawings without inventive effort for a person skilled in the art.

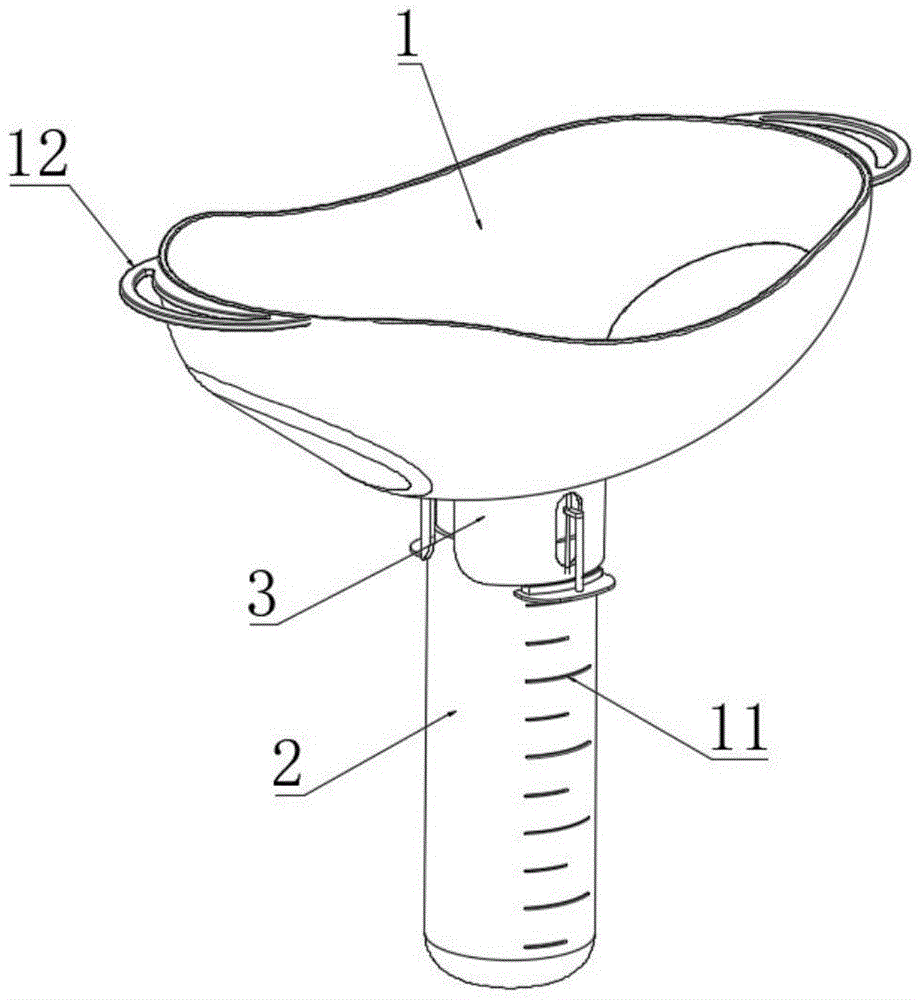

FIG. 1 is a schematic diagram of the structure of the present utility model.

Fig. 2 is a schematic diagram of the structure of the urethral catheterization cover body of the utility model.

Fig. 3 is a schematic view of a second view structure according to the present utility model.

Fig. 4 is a schematic view of a part of the enlarged structure of fig. 3 according to the present utility model.

FIG. 5 is a schematic view of the structure of a sampling tube according to the present utility model.

In the figure: 1. a urinary catheter cover body; 2. a sampling tube; 3. an external positioning strip; 4. an inner catheter; 5. a guide rod; 6. lifting bars; 7. a linkage rod; 8. a manual control bar; 9. limit raised strips; 10. an outer positioning ring; 11. a scale mark; 12. a raised handle.

Detailed Description

The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.

Examples: referring to a urine sampler shown in fig. 1, 2 and 3, including the urethral catheterization cover body 1, can dismantle on the urethral catheterization cover body 1 and be connected with sampling tube 2, sampling tube 2 is used for collecting urine, and at this urine sampler use in-process, treat to detect the patient and can be close to lower part of the body with urethral catheterization cover body 1, the inside of the exhaust urine can get into urethral catheterization cover body 1, in rethread urethral catheterization cover body 1 gets into sampling tube 2, accomplishes the collection of urine.

The urethral catheterization cover body 1 is cradle-shaped, is inconvenient to the body (such as conditions of pregnancy, postoperative and the like), and after the urethral catheterization cover body 1 is close to the urination part of a patient, the urethral catheterization can be performed in a large range, so that urine accurately enters the urethral catheterization cover body 1, and as the whole urethral catheterization cover body 1 is arc-shaped, the falling of the urine can be accelerated, and the arc-shaped concave openings are formed in the edge of the two ends of the urethral catheterization cover body 1, the urethral catheterization cover body is suitable for physiological structures of the patient to be detected, friction and scratch phenomena on the skin of the patient are reduced, and the safety of the urethral catheterization cover body 1 in use is guaranteed.

The bottom fixedly connected with a pair of external positioning strip 3 of the urethral catheterization cover body 1, and catheter 4 in the fixedly connected with in the bottom of the urethral catheterization cover body 1, when the urethral catheterization cover body 1 is connected with sampling tube 2, a pair of external positioning strip 3 laminating in the outer wall top of sampling tube 2, catheter 4 laminating in the inner wall top of sampling tube 2 realizes the circulation of urine.

As shown in fig. 2, 3 and 4, the surface of the outer positioning strip 3 is provided with a channel, the center of the inner wall of the channel is vertically fixed with a guide rod 5, the outer surface of the guide rod 5 is movably connected with a lifting strip 6, and the lifting strip 6 extends to the outer side of the outer positioning strip 3 in a natural state.

The bottom of lifting bar 6 is fixedly connected with gangbar 7, and the bottom of gangbar 7 is fixedly connected with manual control strip 8, and manual control strip 8 is located the below of outer location strip 3. When the urethral catheterization cover body 1 is connected with the sampling tube 2, fingers of a patient to be detected can be placed on the manual control strip 8, and the manual control strip 8 can be smoothly lifted under the connection action of the guide rod 5, the lifting strip 6 and the linkage rod 7 by pressing and lifting the manual control strip 8, so that the imbedding butt joint installation of the sampling tube 2 and the urethral catheterization cover body 1 is carried out.

As shown in fig. 3 and 4, a pair of outer positioning rings 10 are fixed on the outer wall of the sampling tube 2, and when the urethral catheterization cover body 1 is connected with the sampling tube 2, a gap containing the outer positioning rings 10 can be left when the manual control bar 8 is pressed down, and the sampling tube 2 is rotated until the outer positioning rings 10 are arranged above the manual control bar 8. At this time, the upper end surface of the outer positioning ring 10 is propped against the outer positioning strip 3, so that the phenomenon that the sampling tube 2 easily slides and shifts in the installation process can be effectively avoided, the stability in the installation process is ensured, and the operation is convenient.

As shown in fig. 4, the top end of the manual control bar 8 is fixedly connected with a limit convex bar 9, when the upper outer positioning ring 10 is arranged above the manual control bar 8, the manual control bar 8 is lifted, the limit convex bar 9 penetrates through the outer positioning ring 10, and the manual control bar 8 abuts against the lower end face of the outer positioning ring 10. Through spacing sand grip 9 and the embedded installation of outer holding ring 10, can carry out spacing connection to outer holding ring 10 in the inboard of outer holding strip 3 and manual 8, have the locking effect to sampling tube 2, at the in-process that awaits measuring patient discharged urine, avoided sampling tube 2 phenomenon that drops, realize the effective collection of urine.

When the sampling tube 2 is disassembled, the manual control bar 8 can be pressed down, under the connection action of the guide bar 5, the lifting bar 6 and the linkage bar 7, the manual control bar 8 can be smoothly lifted, the embedded connection with the outer positioning ring 10 is released by the limit convex bar 9, the sampling tube 2 is rotated again, the outer positioning ring 10 slides away from the manual control bar 8, the sampling tube 2 can be smoothly separated from the urethral catheterization cover body 1, and the disassembly of the two is completed.

In the process of the disassembly work, the stability of the sampling tube 2 in the disassembly process can be effectively improved by controlling the manual control strip 8, so that the phenomenon that the sampling tube 2 shakes, and urine samples are scattered and flow out is effectively avoided, and the sealing and transferring work of the urine samples is facilitated.

As shown in fig. 2, the two ends of the urethral catheterization cover body 1 are both fixed with a convex handle 12, and the end face of the convex handle 12 is arc-shaped. The purpose of the raised handle 12 is to facilitate the patient to be detected to take the urinary catheter cover 1, so as to control the whole urinary catheter cover 1 to move close to the patient, and the patient who does not need to hold the whole urinary catheter cover 1 is convenient to control the whole urine sampling device.

As shown in fig. 1, 3 and 5, the side wall of the sampling tube 2 is arranged with a plurality of scale marks 11, and the scale marks 11 and the sampling tube 2 are integrated into one piece. The purpose of providing a graduated marking 11 is to facilitate the confirmation of the volume of urine sampled, which can be poured out when the sampled urine volume is greater than the volume required for urine detection.

Finally, it should be noted that: the foregoing description is only illustrative of the preferred embodiments of the present utility model, and although the present utility model has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described, or equivalents may be substituted for elements thereof, and any modifications, equivalents, improvements or changes may be made without departing from the spirit and principles of the present utility model.

Claims

1. A urine sampler, characterized in that: the urine collecting device comprises a urine guiding cover body (1), wherein a sampling tube (2) is detachably connected to the urine guiding cover body (1), the sampling tube (2) is used for collecting urine, the urine guiding cover body (1) is cradle-shaped, and arc-shaped concave openings are formed in the edges of two ends of the urine guiding cover body (1);

the urine guiding device is characterized in that a pair of outer positioning strips (3) are fixedly connected to the bottom of the urine guiding cover body (1), an inner guide tube (4) is fixedly connected to the bottom of the urine guiding cover body (1), and when the urine guiding cover body (1) is connected with the sampling tube (2), the pair of outer positioning strips (3) are attached to the upper portion of the outer wall of the sampling tube (2), and the inner guide tube (4) is attached to the upper portion of the inner wall of the sampling tube (2) so as to realize circulation of urine.

2. The urine sampler of claim 1, wherein: the surface of the outer positioning strip (3) is provided with a channel, the center of the inner wall of the channel is vertically fixed with a guide rod (5), the outer surface of the guide rod (5) is movably connected with a lifting strip (6), and in a natural state, the lifting strip (6) extends to the outer side of the outer positioning strip (3);

the bottom fixedly connected with gangbar (7) of lift strip (6), the bottom fixedly connected with hand control strip (8) of gangbar (7), hand control strip (8) are located the below of external positioning strip (3).

3. The urine sampler of claim 2, wherein: a pair of outer locating rings (10) are fixed on the outer wall of the sampling tube (2), when the urethral catheterization cover body (1) is connected with the sampling tube (2), a gap containing the outer locating rings (10) can be reserved when the manual control strip (8) is pressed down, and the sampling tube (2) is rotated until the outer locating rings (10) are arranged above the manual control strip (8).

4. A urine sampler as claimed in claim 3, wherein: the top fixedly connected with spacing sand grip (9) of manual strip (8), on when outer holding ring (10) are arranged in manual strip (8) top, carry pull manual strip (8), spacing sand grip (9) run through outer holding ring (10), the lower terminal surface of manual strip (8) and outer holding ring (10) offsets.

5. The urine sampler of claim 1, wherein: the two ends of the urethral catheterization cover body (1) are both fixed with a convex handle (12), and the end face of the convex handle (12) is arc-shaped.

6. The urine sampler of claim 1, wherein: the side wall of the sampling tube (2) is provided with a plurality of scale marks (11), and the scale marks (11) and the sampling tube (2) are of an integrated structure.
