Abstract
The utility model discloses a stir-frying device for green tea production, which comprises a base, wherein a connecting frame is arranged on the right side of the upper part of the base, a stir-frying cylinder is hinged on the connecting frame, a support bracket is arranged on the left side of the upper part of the base, the upper part of the support bracket is contacted with the bottom of the connecting frame, a connecting seat is arranged in the middle of the upper part of the base, a groove is formed in the connecting seat, a blanking mechanism is arranged in the groove, a mounting frame is arranged on the right side of the upper connecting frame of the base, a placing frame is arranged on the mounting frame, a filter screen is arranged at the lower end of the inner part of the placing frame, a vibrator is arranged on the right side of the placing frame, and a collecting frame is arranged under the upper placing frame of the base. When the green tea frying machine is used, the green tea can be quickly discharged after the green tea is fried, and meanwhile, the crushed slag in the green tea can be filtered and cleaned when the discharged tea is collected, so that the quality of the green tea is ensured.
Description
Technical Field
The utility model relates to the technical field of green tea production, in particular to a stir-frying device for green tea production.
Background
Green tea is one of the main tea types, and is a beverage prepared by adopting new leaves or buds of tea trees, fermenting, deactivating enzymes, shaping, drying and the like. At present, green tea needs to be roasted when being processed, and after tea roasting is finished, tea leaves in the roasting equipment are stacked at the inner bottom end of the roasting equipment by the existing roasting equipment, so that workers cannot collect the roasted tea leaves easily, and then the crushed residues in the green tea are inconvenient to treat after the green tea roasting is finished, so that the crushed residues and the tea leaves are mixed together to influence the taste of the tea. Accordingly, a person skilled in the art provides a parching apparatus for green tea production to solve the above problems in the background art.
Disclosure of Invention
The utility model aims to provide a stir-frying device for green tea production, which aims to solve the problems in the background technology.
In order to achieve the above purpose, the present utility model provides the following technical solutions: the utility model provides a green tea production is with frying equipment, includes the base, the upper portion right side of base is provided with the link, articulated being provided with on the link fry a section of thick bamboo, the upper portion left side of base is provided with the support bracket, just the upper portion of support bracket and the bottom contact of link, the upper portion middle part of base is provided with the connecting seat, the inside of connecting seat is seted up flutedly, be provided with unloading mechanism in the recess, the right side of the upper portion link of base is provided with the mounting bracket, be provided with on the mounting bracket and place the frame, the inside lower extreme of placing the frame is provided with the filter screen, the right side of placing the frame is provided with the vibrator, be provided with under the upper portion of base and collect the frame.
Preferably, the discharging mechanism comprises a threaded rod, a threaded sleeve and a connecting plate, wherein the threaded rod is rotatably arranged in the groove, the threaded sleeve is arranged on the threaded rod in a threaded mode, the connecting plate is hinged to the upper portion of the threaded sleeve, and the top end of the connecting plate is hinged to the left end of the bottom of the frying cylinder.
Preferably, the heating cavity is formed in the base, a plurality of heating pipes are installed in the heating cavity, the heating pipes are distributed circumferentially, and the heating pipes and the vibrator are electrically connected with an external terminal controller.
Preferably, the right-hand member of connecting seat is installed first motor, just the output shaft of first motor is connected with the right-hand member of threaded rod, the guide bar is all installed to the front and back both sides of the inside threaded rod of recess, just thread bush and guide bar sliding connection, first motor and external terminal controller electric connection.
Preferably, the second motor is installed in the left side of the frying cylinder, the dwang is installed in the inside rotation of the frying cylinder, just the output shaft of second motor is connected with the left end of dwang, install a plurality of stirring vane on the dwang, just second motor and external terminal controller electric connection.
Preferably, a feeding pipe is arranged on the left side of the upper part of the frying cylinder, a discharging pipe is arranged at the lower end of the right side of the frying cylinder, and a valve is arranged on the discharging pipe.
Compared with the prior art, the utility model has the beneficial effects that:
1. after the green tea is fried, the frying cylinder is inclined through the cooperation of the blanking mechanism, the first motor and the guide rod, so that the green tea at the bottom end in the frying cylinder is discharged easily through the discharging pipe, and the fried green tea is collected conveniently;
2. the utility model also provides the mounting frame, the placing frame, the filter screen, the vibrator and the collecting frame, and when the fried green tea is collected, the filter screen and the vibrator are matched for use, so that the broken slag in the tea is conveniently cleaned, and the quality of the green tea is greatly improved.
Drawings

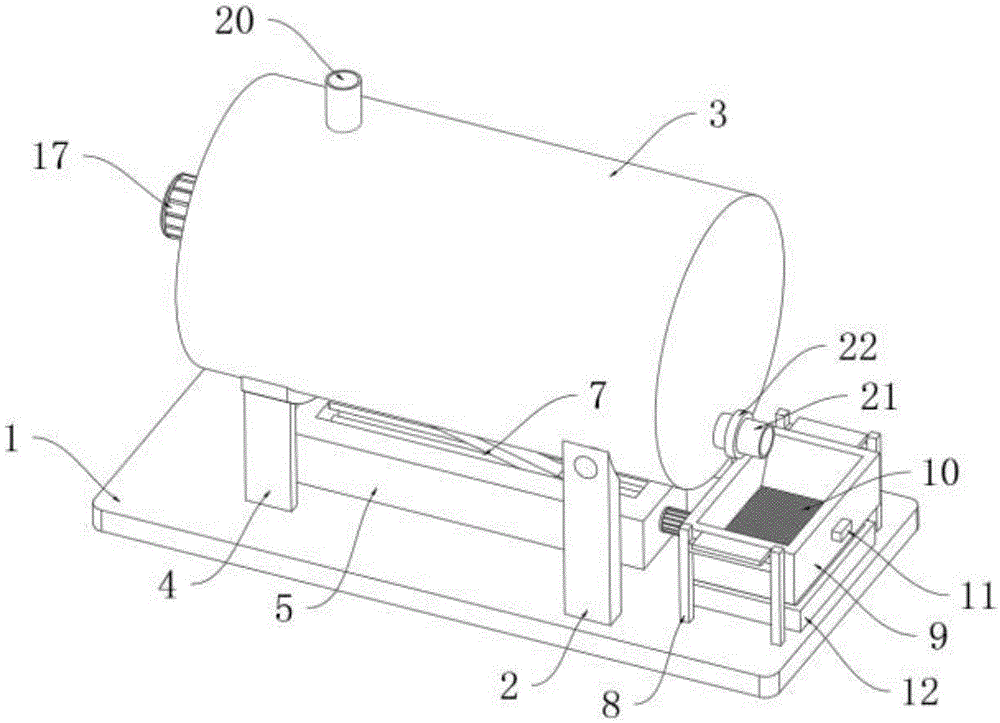

FIG. 1 is a schematic diagram of the structure of the present utility model;
FIG. 2 is a schematic view of a partial cross-sectional structure of the present utility model;
fig. 3 is a schematic cross-sectional view of a connecting seat according to the present utility model.
In the figure: 1. a base; 2. a connecting frame; 3. parching cylinder; 4. a support bracket; 5. a connecting seat; 6. a groove; 7. a blanking mechanism; 701. a threaded rod; 702. a thread sleeve; 703. a connecting plate; 8. a mounting frame; 9. placing a frame; 10. a filter screen; 11. a vibrator; 12. a collection frame; 13. a heating chamber; 14. heating pipes; 15. a first motor; 16. a guide rod; 17. a second motor; 18. a rotating lever; 19. stirring blades; 20. a feed pipe; 21. a discharge pipe; 22. and (3) a valve.
Detailed Description
The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.
Referring to fig. 1-3, the present utility model provides a technical solution: the utility model provides a green tea production is with stir-fry equipment, including base 1, the upper portion right side fixed mounting of base 1 has link 2, articulated mounting has stir-fry section of thick bamboo 3 on the link 2, the upper portion left side fixed mounting of base 1 has support bracket 4, and the upper portion of support bracket 4 contacts with the bottom of link 2, the upper portion middle part fixed mounting of base 1 has connecting seat 5, recess 6 has been seted up to the inside of connecting seat 5, be provided with unloading mechanism 7 in the recess 6, the right side fixed mounting of upper portion link 2 of base 1 has mounting bracket 8, place frame 9 on the mounting bracket 8, place frame 9's inside lower extreme fixed mounting has filter screen 10, place frame 9's right side fixed mounting has vibrator 11, collection frame 12 has been placed under frame 9 is placed to the upper portion of base 1;
the blanking mechanism 7 comprises a threaded rod 701, a threaded sleeve 702 and a connecting plate 703, the threaded rod 701 is rotatably arranged in the groove 6, the threaded sleeve 702 is threadedly arranged on the threaded rod 701, the connecting plate 703 is hinged to the upper part of the threaded sleeve 702, the top end of the connecting plate 703 is hinged to the left end of the bottom of the frying cylinder 3, the gap between the connecting plate 703 and the hinged part of the frying cylinder 3 is large, the frying cylinder 3 can be rotated and inclined through the blanking mechanism 7, and blanking is convenient after green tea frying is finished; the heating cavity 13 is formed in the base 1, a plurality of heating pipes 14 are installed in the heating cavity 13, the plurality of heating pipes 14 are distributed circumferentially, and the heating pipes 14 and the vibrator 11 are electrically connected with an external terminal controller. The tea leaves of the frying cylinder 3 can be heated by the heating pipe 14; the right end of the connecting seat 5 is provided with a first motor 15, an output shaft of the first motor 15 is connected with the right end of the threaded rod 701, guide rods 16 are arranged on the front side and the rear side of the internal threaded rod 701 of the groove 6, a thread bush 702 is in sliding connection with the guide rods 16, the first motor 15 is electrically connected with an external terminal controller, and the threaded rod 701 is more stable during movement through the guide rods 16; the second motor 17 is arranged on the left side of the frying cylinder 3, the rotating rod 18 is rotatably arranged in the frying cylinder 3, an output shaft of the second motor 17 is connected with the left end of the rotating rod 18, a plurality of stirring blades 19 are arranged on the rotating rod 18, the second motor 17 is electrically connected with an external terminal controller, and green tea in the frying cylinder 3 can be fried through the rotating rod 18 and the stirring blades 19; a feed pipe 20 is arranged on the left side of the upper part of the frying cylinder 3, a discharge pipe 21 is arranged at the lower end of the right side of the frying cylinder 3, and a valve 22 is arranged on the discharge pipe 21.
Working principle: when the green tea frying machine is used, firstly, green tea is placed into the frying cylinder 3 through the feeding pipe 20, then the heating pipe 14 and the second motor 17 work, the heating pipe 14 work heats tea leaves in the frying cylinder 3, then the second motor 17 work drives the rotating rod 18 to rotate, green tea in the frying cylinder 3 is fried through the stirring blade 19 on the rotating rod 18, after the green tea is fried, the valve 22 is directly opened, the first motor 15 works to drive the threaded rod 701 to rotate, the threaded rod 701 rotates to drive the threaded sleeve 702 to move leftwards through the cooperation of the guide rod 16, the threaded sleeve 702 moves leftwards through the connection plate 703, then the green tea in the frying cylinder 3 can be discharged through the discharging pipe 21, simplicity and convenience are achieved, the vibrator 11 works after the tea leaves fall into the placing frame 9 through the discharging pipe 21, crushed slag in the green tea can be separated from the tea leaves through the vibrator 11, and then the crushed slag falls into the collecting frame 12 through the filter screen 10, and therefore the practicability of the machine is greatly improved.
When the green tea frying machine is used, the green tea can be quickly discharged after the green tea is fried, and meanwhile, the crushed slag in the green tea can be filtered and cleaned when the discharged tea is collected, so that the quality of the green tea is ensured.
It is noted that relational terms such as first and second, and the like are used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Moreover, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present utility model have been shown and described, it will be understood by those skilled in the art that various changes, modifications, substitutions and alterations can be made therein without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a green tea production is with stir-fry equipment, includes base (1), its characterized in that: the novel frying pan is characterized in that a connecting frame (2) is arranged on the right side of the upper portion of the base (1), a frying barrel (3) is hinged to the connecting frame (2), a supporting bracket (4) is arranged on the left side of the upper portion of the base (1), the upper portion of the supporting bracket (4) is in contact with the bottom of the connecting frame (2), a connecting seat (5) is arranged in the middle of the upper portion of the base (1), a groove (6) is formed in the connecting seat (5), a blanking mechanism (7) is arranged in the groove (6), a mounting frame (8) is arranged on the right side of the upper portion of the base (1), a placement frame (9) is arranged on the mounting frame (8), a filter screen (10) is arranged at the lower end of the inner portion of the placement frame (9), a vibrator (11) is arranged on the right side of the placement frame (9), and a collecting frame (12) is arranged under the upper portion of the base (1).
2. The parching apparatus for green tea production as claimed in claim 1, wherein: unloading mechanism (7) include threaded rod (701), thread bush (702), connecting plate (703), threaded rod (701) rotate and install in recess (6), thread bush (702) screw thread is installed on threaded rod (701), connecting plate (703) are articulated to be installed in the upper portion of thread bush (702), just the top of connecting plate (703) is articulated with the left end of stir-fry system section of thick bamboo (3) bottom.
3. The parching apparatus for green tea production as claimed in claim 1, wherein: the heating device is characterized in that a heating cavity (13) is formed in the base (1), a plurality of heating pipes (14) are installed in the heating cavity (13), the heating pipes (14) are circumferentially distributed, and the heating pipes (14) and the vibrator (11) are electrically connected with an external terminal controller.
4. A parching apparatus for green tea production as claimed in claim 2, wherein: the right-hand member of connecting seat (5) is installed first motor (15), just the output shaft of first motor (15) is connected with the right-hand member of threaded rod (701), guide bar (16) are all installed to the front and back both sides of inside threaded rod (701) of recess (6), just thread bush (702) and guide bar (16) sliding connection, first motor (15) and external terminal controller electric connection.
5. The parching apparatus for green tea production as claimed in claim 1, wherein: the left side of stir-fry section of thick bamboo (3) is installed second motor (17), the inside rotation of stir-fry section of thick bamboo (3) is installed dwang (18), just the output shaft of second motor (17) is connected with the left end of dwang (18), install a plurality of stirring vane (19) on dwang (18), just second motor (17) and external terminal controller electric connection.
6. The parching apparatus for green tea production as claimed in claim 1, wherein: the left side of the upper part of the frying cylinder (3) is provided with a feeding pipe (20), the lower end of the right side of the frying cylinder (3) is provided with a discharging pipe (21), and the discharging pipe (21) is provided with a valve (22).
