CN218751899U

CN218751899U - Material sucking and feeding mechanism for tax receipt

Info

Publication number: CN218751899U
Application number: CN202223090275.8U
Authority: CN
Inventors: 陆积飞; 陆俊元; 陈德聪
Original assignee: Guangdong Feike Machinery Group Co ltd
Current assignee: Guangdong Feike Machinery Group Co ltd
Priority date: 2022-11-17
Filing date: 2022-11-17
Publication date: 2023-03-28
Anticipated expiration: 2032-11-17

Abstract

The utility model discloses a material feeding mechanism is expected in inhaling of tax reciept, including the electric cabinet, double-end hot melt adhesive spreading machine and transfer chain mechanism, the central point at electric cabinet top puts and is fixed with transfer chain mechanism, transfer chain mechanism's inside includes the conveyer, the rotary driving piece, the rotation axis, chain conveyor, limit baffle and protective cover, the both sides activity of conveyer is provided with the rotation axis, the winding has chain conveyor on the rotation axis, the chain conveyor outside is provided with limit baffle, limit baffle evenly sets up to chain conveyor on, limit baffle is provided with a plurality ofly on chain conveyor, the back of conveyer is fixed with the protective cover. The utility model discloses a start the rotary driving spare, the rotary driving spare makes the rotation axis rotate through band pulley and belt to rotate chain conveyor, thereby carry out automatic conveying with the tax badge, thereby save a large amount of manpowers, and efficiency is higher.

Description

Material sucking and feeding mechanism for tax receipts

Technical Field

The utility model relates to a inhale material feeding mechanism specifically is inhaling material feeding mechanism of tax reciept.

Background

The tax receipt is a legal certificate for a taxpayer to fulfill tax obligations legally, the tax completing certificate is a special certificate used by a tax authority for collecting taxes to the taxpayer according to tax, when a newly established company applies for installing invoicing software and machines, local tax companies (namely issuing units of IC cards and invoicing machines) can organize personnel of enterprises to train, and the invoicing personnel must take charge of the duty, how to invoice, after the tax receipt is produced, a material absorbing and feeding mechanism is needed to convey the tax receipt, and the existing tax receipt needs workers to label the tax receipt one by one, so that a large amount of labor is needed, the efficiency is not high, and the cost is high.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a tax reciept inhale material feeding mechanism needs the workman to paste the mark one by one in order to solve the tax reciept production that proposes in the above-mentioned background art to need a large amount of manual works, and efficiency is not high, the great problem of cost.

In order to achieve the above object, the utility model provides a following technical scheme: tax reciept inhale material feeding mechanism, its characterized in that: including electric cabinet, double-end hot melt adhesive spreading machine and transfer chain mechanism, the central point at electric cabinet top puts and is fixed with transfer chain mechanism, the inside of transfer chain mechanism includes conveyer, rotary driving spare, rotation axis, chain conveyor, limit baffle and protective cover, the both sides activity of conveyer is provided with the rotation axis, the winding has chain conveyor on the rotation axis, chain conveyor outside is provided with limit baffle, limit baffle evenly sets up on the chain conveyor, limit baffle is provided with a plurality ofly on chain conveyor, the back of conveyer is fixed with the protective cover, one side that the conveyer is close to the protective cover is fixed with rotary driving spare, the one end of rotation axis is provided with the band pulley, rotary driving spare's output passes through band pulley and belt and the band pulley interconnect of rotation axis one end, the outside of conveyer is provided with product response photoelectricity.

Preferably, double-end hot melt adhesive spreading machine has been placed to the outside one side of electric cabinet, be provided with transparent ya keli shell through the support around the electric cabinet top, the outside one side of transparent ya keli shell is provided with human-computer interface.

Preferably, the back that the electric cabinet top is close to the transfer chain mechanism is provided with the slide through the slide rail slip, the back at electric cabinet top is provided with the threaded rod through the bearing frame activity, the one end of threaded rod is connected with the hand wheel, the top of threaded rod and the mutual swing joint in bottom of slide.

Preferably, the front part of electric cabinet top near the slide is fixed with two head of scraping of rubberizing through the link, one side at slide top is provided with duplex position tax reciept storage bin, one side that the slide top is close to duplex position tax reciept storage bin is provided with the material feeding mechanism body that inhales.

Preferably, a transverse module is fixed at a position, close to the sliding plate, of the top of the electric cabinet through a connecting frame, a movable support is movably arranged inside the transverse module through a lead screw, a material taking and glue scraping cylinder is arranged on one side of the movable support, and a labeling cylinder is arranged on the material taking and glue scraping cylinder.

Preferably, a fixing plate is fixed to the back of the conveyor, which is close to the transverse module, a label corner mechanism is fixed to one end of the fixing plate, an adjusting cylinder is fixed to the position, which is close to the fixing plate, of the back of the conveyor, and an output end of the adjusting cylinder is connected with a label pressing mechanism.

Compared with the prior art, the beneficial effects of the utility model are that: this material feeding mechanism is inhaled to tax reciept is rational in infrastructure, has following advantage:

(1) Through being provided with the conveyer, the rotary driving piece, the rotation axis, chain conveyor, limit baffle and protective cover can carry out automatic conveying with the tax reciept, thereby practice thrift a large amount of manpowers, therefore, high efficiency, during the use, through being provided with chain conveyor, be provided with limit baffle on the chain conveyor, limit baffle can adjust on chain conveyor, thereby can adjust according to the size of tax badge, and put the tax badge on chain conveyor, then through starting rotary driving piece, rotary driving piece passes through band pulley and belt and makes the rotation axis rotate, thereby rotate chain conveyor, thereby carry out automatic conveying with the tax badge, thereby save a large amount of manpowers, and efficiency is higher.

(2) Through being provided with the two head of scraping of rubberizing, duplex position tax reciept blowing storehouse, the hand wheel, threaded rod and slide can separate the tax reciept, therefore, through being provided with duplex position tax reciept blowing storehouse, the tax reciept is placed in duplex position tax reciept blowing storehouse, can absorb the separation and send to rubberizing head the place ahead through inhaling material feeding mechanism body, and can adjust the position of duplex position tax reciept blowing storehouse through hand wheel and threaded rod, thereby whole adjustment when can changing the product and paste the mark position, and through being provided with the two head of scraping of rubberizing, adopt the mode of contact scraping the rubberizing, the even rubber coating of label has been guaranteed, and avoided making the board be the condition of glue everywhere with the glue spraying mode when glue is not wasted.

(3) The tax receipt is conveyed to the front of the gluing head by the material taking and glue scraping cylinder, the cylinder moves downwards to absorb the tax receipt, the tax receipt is then glued by the gluing head under the driving of the module, the tax receipt moves upwards after being glued, the problem that a suction head is glued when the tax receipt is next taken due to the return of the module is avoided, the two tax receipts are taken by the gluing cylinder simultaneously through the labeling cylinder, the label is pasted after the gluing, only one part of the tax receipt is pasted on the upper plane of a product by the labeling cylinder, the other part of the tax receipt needs to be pasted on the side surface of the product by the label rotating angle mechanism, and the part of the tax receipt pasted on the rotating angle is tightly pasted on the product by the label pressing mechanism and the adjusting cylinder.

Drawings

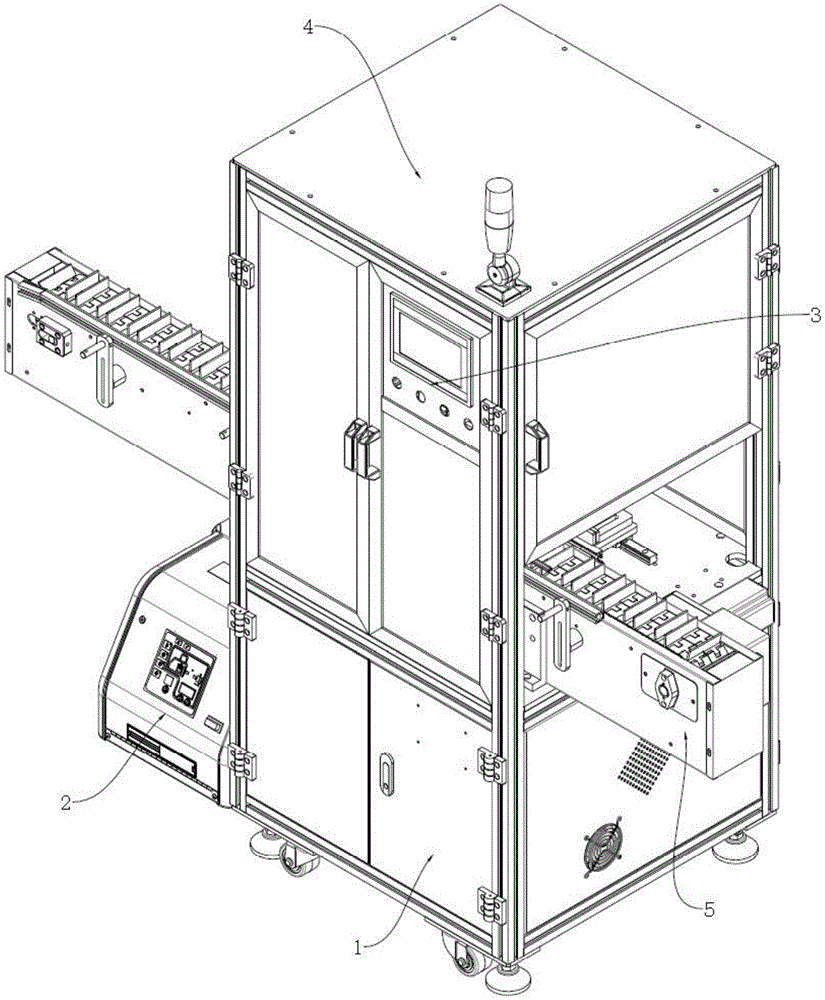

Fig. 1 is a front view of the external structure of the present invention;

FIG. 2 is a schematic view of the front view of the internal three-dimensional structure of the present invention;

FIG. 3 is a schematic view of the back-view internal three-dimensional structure of the present invention;

fig. 4 is a schematic view of the top-view internal three-dimensional structure of the present invention;

fig. 5 is an enlarged schematic structural diagram of a point a in fig. 2 according to the present invention.

In the figure: 1. an electric cabinet; 2. a double-head hot melt adhesive coater; 3. a human-machine interface; 4. a transparent acrylic shell; 5. a conveyor line mechanism; 501. a conveyor; 502. a rotary drive member; 503. a rotating shaft; 504. a chain conveyor; 505. a limit baffle; 506. a protective cover; 6. the product induces photoelectricity; 7. gluing double glue scraping heads; 8. a double-station tax receipt discharge bin; 9. a hand wheel; 10. a threaded rod; 11. a slide plate; 12. a material sucking and feeding mechanism body; 13. labeling an air cylinder; 14. a material taking and glue scraping cylinder; 15. a transverse module; 16. a label pressing mechanism; 17. an adjusting cylinder; 18. a label corner turning mechanism; 19. a fixing plate; 20. and moving the support.

Detailed Description

The technical solution in the embodiment of the present invention will be clearly and completely described below with reference to the drawings in the embodiment of the present invention, and all other embodiments obtained by a person of ordinary skill in the art without creative work belong to the scope of the present invention.

Referring to fig. 1-5, the present invention provides an embodiment: the material sucking and feeding mechanism of the tax reciept comprises an electric cabinet 1, a double-head hot melt adhesive coater 2 and a conveying line mechanism 5, wherein the conveying line mechanism 5 is fixed at the center of the top of the electric cabinet 1, the conveying line mechanism 5 comprises a conveyor 501, a rotary driving part 502, a rotary shaft 503, a chain type conveyor belt 504, a plurality of limit baffles 505 and protective covers 506, the rotary shaft 503 is movably arranged at two sides of the conveyor 501, the chain type conveyor belt 504 is wound on the rotary shaft 503, the limit baffles 505 are arranged outside the chain type conveyor belt 504, the limit baffles 505 are uniformly arranged on the chain type conveyor belt 504, the protective covers 506 are fixed at the back of the conveyor 501, the rotary driving part 502 is fixed at one side of the conveyor 501 close to the protective cover 506, a belt wheel is arranged at one end of the rotary shaft 503, the output end of the rotary driving part 502 is mutually connected with the belt wheel at one end of the rotary shaft 503 through the belt and the belt, and a product sensing photoelectric 6 is arranged outside the conveyor 501;

by arranging the chain type conveyor belt 504, the limiting baffle 505 is arranged on the chain type conveyor belt 504, the limiting baffle 505 can be adjusted on the chain type conveyor belt 504, so that the tax stamps can be adjusted according to the size of the tax stamps, the tax stamps are placed on the chain type conveyor belt 504, then the rotary driving piece 502 is started, the rotary driving piece 502 enables the rotary shaft 503 to rotate through the belt wheel and the belt, so that the chain type conveyor belt 504 rotates, the tax stamps are automatically conveyed, a large amount of manpower is saved, and the efficiency is higher;

a double-head hot melt adhesive coater 2 is arranged on one side outside the electric cabinet 1, a transparent acrylic shell 4 is arranged on the periphery of the top of the electric cabinet 1 through a support, and a human-computer interface 3 is arranged on one side outside the transparent acrylic shell 4;

a sliding plate 11 is arranged on the back of the top of the electric cabinet 1, which is close to the conveying line mechanism 5, in a sliding manner through a sliding rail, a threaded rod 10 is movably arranged on the back of the top of the electric cabinet 1 through a bearing frame, one end of the threaded rod 10 is connected with a hand wheel 9, and the top of the threaded rod 10 is movably connected with the bottom of the sliding plate 11;

the position of the double-station tax receipt discharge bin 8 can be adjusted through the hand wheel 9 and the threaded rod 10, so that the overall adjustment can be realized when the product labeling position is changed;

the front part of the top of the electric cabinet 1, which is close to the sliding plate 11, is fixedly provided with a gluing double-scraping glue head 7 through a connecting frame, the gluing double-scraping glue head 7 is arranged, the uniform gluing of a label is ensured by adopting a contact type gluing scraping mode, the condition that glue is sprayed everywhere on a machine table is avoided while the glue is not wasted, one side of the top of the sliding plate 11 is provided with a double-station tax receipt storage bin 8, a tax receipt is placed in the double-station tax receipt storage bin 8, one side of the top of the sliding plate 11, which is close to the double-station tax receipt storage bin 8, is provided with a material sucking and feeding mechanism body 12, and the tax receipt can be sucked, separated and sent to the front of the gluing head through the material sucking and feeding mechanism body 12;

a transverse module 15 is fixed at a position, close to the sliding plate 11, of the top of the electric cabinet 1 through a connecting frame, a movable support 20 is movably arranged inside the transverse module 15 through a lead screw, a material taking and glue scraping cylinder 14 is arranged on one side of the movable support 20, the material taking and glue scraping cylinder 14 sends the tax receipts to the front of a gluing head, the tax receipts are sucked by moving downwards through the cylinder, then the tax receipts are glued by the module through the gluing head under the driving of the module, the module is prevented from moving upwards after being glued, a suction head is prevented from being stuck to glue when the module returns to take the tax receipts next time, a labeling cylinder 13 is arranged on the material taking and glue scraping cylinder 14, two tax receipts are taken by the labeling cylinder 13 at the same time, the glue is coated and then labeled, and the labeling cylinder 13 only sticks part of the tax receipts to the upper plane of a product;

a fixing plate 19 is fixed on the back of the conveyor 501 close to the transverse module 15, a label corner mechanism 18 is fixed at one end of the fixing plate 19, an adjusting cylinder 17 is fixed on the back of the conveyor 501 close to the fixing plate 19, the output end of the adjusting cylinder 17 is connected with a label pressing mechanism 16, a label is attached to the side face of a product by the label corner mechanism 18, and part of tax receipts attached to the corner are pressed and attached to the product by the label pressing mechanism 16 and the adjusting cylinder 17;

when the device is used, the device is placed at a proper position, then the chain type conveying belt 504 is arranged, the limiting baffle 505 is arranged on the chain type conveying belt 504, the limiting baffle 505 can be adjusted on the chain type conveying belt 504 so as to be adjusted according to the size of a tax stamp, the tax stamp is placed on the chain type conveying belt 504, then the rotary driving piece 502 is started, the rotary driving piece 502 enables the rotary shaft 503 to rotate through the belt wheel and the belt so as to rotate the chain type conveying belt 504, so as to automatically convey the tax stamp, then the double-station tax stamp placing bin 8 is arranged, the tax stamps are placed on the double-station tax stamp placing bin 8, the tax stamps can be sucked and separated through the material sucking and feeding mechanism body 12 and are sent to the front of the gluing head, the position of the double-station tax stamp placing bin 8 can be adjusted through the hand wheel 9 and the threaded rod 10, so that the whole adjustment when the product labeling position can be changed, the double glue scraping heads 7 for gluing are arranged, the mode of contact type glue scraping is adopted, the uniform gluing of the labels is ensured, the situation that glue is sprayed everywhere on a machine table is avoided while the glue is not wasted, then the labeling cylinder 13 and the material taking glue scraping cylinder 14 are moved under the action of the transverse module 15, the material taking glue scraping cylinder 14 sends the tax stamps to the front of the glue spraying heads, the cylinder moves downwards to absorb the tax stamps, the module drives the tax stamps to glue through the glue spraying heads, the module moves upwards after the labels are pasted, the suction head is prevented from being stuck to the labels when the module returns to take the tax stamps next time, the labeling cylinder 13 simultaneously takes two tax stamps through the labeling cylinder 13, the labels are pasted after the glue is pasted, only one part of the tax stamps are pasted on the upper plane of the product through the cylinder 13, and the other part of the tax stamps need to be pasted on the side of the product through the label turning mechanism 18, the partial tax receipt attached to the corner is pressed and attached to the product by a label pressing mechanism 16 and an adjusting cylinder 17.

Claims

1. Tax reciept inhale material feeding mechanism, its characterized in that: including electric cabinet (1), double-end hot melt adhesive spreading machine (2) and transfer chain mechanism (5), the central point at electric cabinet (1) top puts and is fixed with transfer chain mechanism (5), the inside of transfer chain mechanism (5) includes conveyer (501), rotary driving spare (502), rotation axis (503), chain conveyor (504), limit baffle (505) and protective cover (506), the both sides activity of conveyer (501) is provided with rotation axis (503), the winding has chain conveyor (504) on rotation axis (503), chain conveyor (504) outside is provided with limit baffle (505), limit baffle (505) evenly set up on chain conveyor (504), limit baffle (505) are provided with a plurality ofly on chain conveyor (504), the back of conveyer (501) is fixed with protective cover (506), one side that conveyer (501) are close to protective cover (506) is fixed with rotary driving spare (502), the one end of rotation axis (503) is provided with the band pulley, the output of rotary driving spare (502) passes through band pulley and belt and rotation axis (503) one end interconnect, conveyer (501) is provided with photoelectric sensing product (6).

2. The tax reciept material sucking and feeding mechanism as claimed in claim 1, wherein: double-end hot melt adhesive spreader (2) have been placed to electric cabinet (1) outside one side, be provided with transparent ya keli shell (4) through the support around electric cabinet (1) top, one side of transparent ya keli shell (4) outside is provided with human-computer interface (3).

3. The tax reciept material sucking and feeding mechanism as claimed in claim 1, wherein: the back that electric cabinet (1) top is close to transfer chain mechanism (5) is provided with slide (11) through the slide rail slip, the back at electric cabinet (1) top is provided with threaded rod (10) through the bearing bracket activity, the one end of threaded rod (10) is connected with hand wheel (9), the top of threaded rod (10) and the mutual swing joint in bottom of slide (11).

4. The tax reciept material sucking and feeding mechanism as claimed in claim 1, wherein: the double-station tax stamp automatic feeding device is characterized in that the front part, close to the sliding plate (11), of the top of the electric cabinet (1) is fixed with a gluing double-frictioning head (7) through a connecting frame, one side of the top of the sliding plate (11) is provided with a double-station tax stamp storage bin (8), and one side, close to the double-station tax stamp storage bin (8), of the top of the sliding plate (11) is provided with a material sucking and feeding mechanism body (12).

5. The tax reciept material sucking and feeding mechanism as claimed in claim 1, wherein: the utility model discloses a gluing machine, including electric cabinet (1), connecting frame, material scraping cylinder (14), material scraping cylinder (13), horizontal module (15) is fixed with through the link in the position that electric cabinet (1) top is close to slide (11), horizontal module (15) is inside to be provided with through the lead screw activity and to move movable support (20), one side of moving support (20) is provided with gets material scraping cylinder (14), it pastes mark cylinder (13) to be provided with on material scraping cylinder (14).

6. The tax reciept material sucking and feeding mechanism as claimed in claim 1, wherein: the back that conveyer (501) back is close to horizontal module (15) is fixed with fixed plate (19), the one end of fixed plate (19) is fixed with label corner mechanism (18), the position that conveyer (501) back is close to fixed plate (19) is fixed with adjust cylinder (17), the output of adjust cylinder (17) is connected with label hold-down mechanism (16).
