Abstract

The utility model belongs to the technical field of the pitch processing, specifically disclose a modified asphalt low temperature mixes material equipment, including the agitator tank, the agitator tank top is provided with the upper cover, the upper cover top is provided with a driving motor, a driving motor's drive shaft passes the upper cover and is connected with first gear, the first gear outside is provided with the ring gear, the ring gear is with the affiliated same axle center of first gear, be provided with a second gear and a plurality of third gear between first gear and the ring gear, second gear and third gear all rotate and are connected on the upper cover, the second gear respectively with first gear and ring gear between intermeshing, be provided with a plurality of connecting rods on the ring gear, the connecting rod end-to-end connection has the scraper blade, the lateral wall hanging wall of upper cover is equipped with the water distributor, evenly be provided with a plurality of shower nozzles on the water distributor, all be provided with a plurality of nozzles on every shower nozzle, the water filling port setting of water distributor is in the upper cover outside, the upper cover is fixed on the agitator tank for detachable, and the shower nozzle is the cleaning solution to improve the scattering of cleaning solution.

Description

Modified asphalt low temperature mixes material equipment
Technical Field
The utility model relates to a pitch processing technology field specifically is a modified asphalt low temperature mixes material equipment.
Background
The modified asphalt is an asphalt binder prepared by adding external additives (modifiers) such as rubber, resin, high molecular polymer, ground rubber powder or other fillers or by adopting measures such as mild oxidation processing of the asphalt and the like, so that the performance of the asphalt or the asphalt mixture is improved, and the modified asphalt needs to be stirred in the production and processing processes.
The current agitating unit about pitch has the chinese utility model patent of publication number CN202220392857.2 before, discloses an asphalt modifier low temperature mixing device, through set up first bevel gear and second bevel gear structure in rotatory sleeve and pivot, when the operative installations, can make rotatory sleeve and pivot rotate to opposite direction under the effect of first bevel gear and second bevel gear structure through third bevel gear, improves the mixed effect to the material in the device.
However, after the asphalt is mixed at every turn, the interior of the shell needs to be cleaned, but the stirring device can find that the interior of the shell is difficult to clean in the using process, the shell is arranged on the support, and any cleaning structure is not arranged in the shell, so that after the modified asphalt is stirred, if the interior needs to be cleaned, the shell is detached, and then the next wave mixing can be carried out, and the working efficiency is reduced.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a modified asphalt low temperature mixes material equipment to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a modified asphalt low temperature mixes material equipment, including the agitator tank, the agitator tank top is provided with the upper cover, the upper cover top is provided with a driving motor, a driving shaft of a driving motor passes the upper cover and is connected with first gear, the first gear outside is provided with the ring gear, ring gear and the affiliated same axle center of first gear, be provided with a second gear and a plurality of third gear between first gear and the ring gear, second gear and third gear all rotate to be connected on the upper cover, the second gear respectively with first gear and ring gear between intermeshing, third gear and first gear intermeshing, be provided with a plurality of connecting rods on the ring gear, the connecting rod end-to-end connection has the scraper blade, the scraper blade is L shape, the scraper blade laminates with the agitator tank inner wall, the lateral wall of upper cover is equipped with the water distributor, evenly be provided with a plurality of shower nozzles on the water distributor, all be provided with a plurality of nozzles on every shower nozzle, the water filling port of water distributor sets up in the upper cover outside, the upper cover is detachable fixing on the agitator tank, and the shower nozzle is the scattering of improvement.
Preferably, a first stirring rod is fixedly connected to the first gear, and a plurality of first stirring blades are uniformly arranged on the first stirring rod.
Preferably, each third gear is fixedly connected with a third stirring rod, and a plurality of third stirring blades are uniformly arranged on the third stirring rod.
Preferably, a plurality of fourth stirring blades are uniformly arranged on the inner side of the scraping plate, and the third stirring blades are respectively arranged in a crossed manner with the first stirring blades and the fourth stirring blades.
Preferably, the bottom of the stirring tank is provided with a discharge hole, a feed inlet is arranged at a position, close to the upper cover, of one side of the stirring tank, and a discharge barrel is arranged on the discharge hole.
Preferably, a second driving motor is arranged at the end part of the discharge cylinder, an auger is arranged in the discharge cylinder, and a driving shaft of the second driving motor penetrates through the discharge cylinder and is connected with the auger.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses a what set up adds modified asphalt in the agitator tank, then utilize first driving motor to drive the first puddler rotation on the first gear, first gear drives second gear and third gear revolve, make the third puddler on the third gear rotate, make the second gear drive the ring gear and rotate, make the scraper blade on the ring gear rotate, the in-process stirs modified asphalt through first stirring leaf and second stirring leaf, through first stirring leaf, third stirring leaf and fourth stirring leaf improve stirring effect, alright discharge modified asphalt after the stirring is accomplished. When cleaning the agitator tank inner wall, pour into the cleaning solution into in the water distribution pipe, then through the shower nozzle blowout, utilize shower nozzle spun cleaning solution to wash the agitator tank inner wall, then continue to drive first gear revolve through a driving motor, scrub the agitator tank inner wall through the scraper blade to thereby realize automatically cleaning the agitator tank inner wall and improved work efficiency.
Drawings

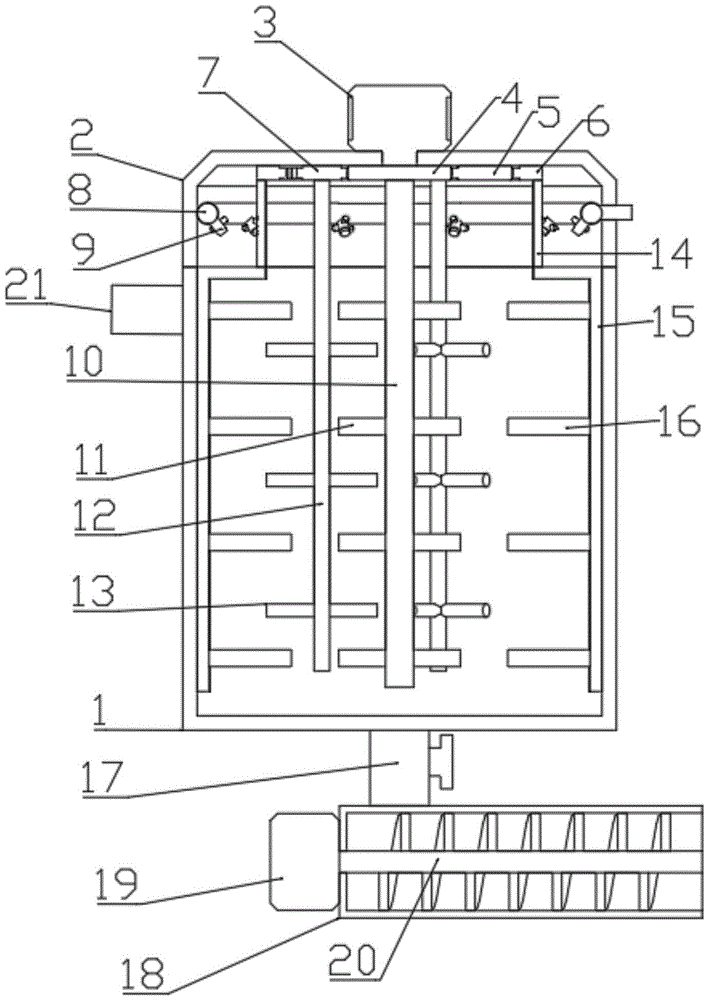

FIG. 1 is a schematic view of the internal structure of the present invention;
fig. 2 is a schematic view of the three-dimensional structure of the upper cover of the present invention.
In the figure: 1. a stirring tank; 2. an upper cover; 3. a first drive motor; 4. a first gear; 5. a second gear; 6. a toothed ring; 7. a third gear; 8. a water distribution pipe; 9. a spray head; 10. a first stirring rod; 11. a first stirring blade; 12. a third stirring rod; 13. a third stirring blade; 14. a connecting rod; 15. a squeegee; 16. a fourth stirring blade; 17. a discharge port; 18. a discharging barrel; 19. a second drive motor; 20. a packing auger; 21. and (4) feeding a material inlet.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "vertical", "upper", "lower", "horizontal", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus should not be construed as limiting the present invention.
In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
Referring to fig. 1-2, the present invention provides a technical solution: the utility model provides a modified asphalt low temperature mixes material equipment, including agitator tank 1, agitator tank 1 top is provided with upper cover 2, 2 tops of upper cover are provided with first driving motor 3, first driving motor 3's drive shaft passes upper cover 2 and is connected with first gear 4, first gear 4 outside is provided with ring gear 6, ring gear 6 and the same axle center that first gear 4 belongs to, be provided with a second gear 5 and a plurality of third gear 7 between first gear 4 and the ring gear 6, second gear 5 and third gear 7 all rotate and are connected on upper cover 2, second gear 5 respectively with first gear 4 and ring gear 6 between intermeshing, third gear 7 and first gear 4 intermeshing, be provided with a plurality of connecting rods 14 on ring gear 6, connecting rod 14 end-to-end connection has scraper 15, scraper 15 is L shape, scraper 15 and the laminating of agitator tank 1 inner wall, the lateral wall of upper cover 2 is equipped with water-distribution pipe 8, evenly be provided with a plurality of shower nozzles 9 on water-distribution pipe 8, all be provided with a plurality of nozzles on every shower nozzle 9, water-distribution pipe 8 sets up the water-injection port setting at the agitator tank 1 outside, and cover 2 outside and improve the shower nozzle and cover 2 that the detachable shower nozzle is the cleaning solution.
Further, a first stirring rod 10 is fixedly connected to the first gear 4, and a plurality of first stirring blades 11 are uniformly arranged on the first stirring rod 10.
Furthermore, each third gear 7 is fixedly connected with a third stirring rod 12, and the third stirring rod 12 is uniformly provided with a plurality of third stirring blades 13.
Furthermore, a plurality of fourth stirring blades 16 are uniformly arranged on the inner side of the scraper 15, and the third stirring blades 13 are respectively arranged to intersect with the first stirring blades 11 and the fourth stirring blades 16.
Further, a discharge hole 17 is formed in the bottom of the stirring tank 1, a feed inlet 21 is formed in a position, close to the upper cover 2, on one side of the stirring tank 1, and a discharge barrel 18 is arranged on the discharge hole 17.
Furthermore, a second driving motor 19 is arranged at the end part of the discharge cylinder 18, an auger 20 is arranged in the discharge cylinder 18, and a driving shaft of the second driving motor 19 penetrates through the discharge cylinder 18 and is connected with the auger 20.
The working principle is as follows: during the use, modified asphalt is added into the stirring tank 1 from the feeding hole 21, then the power supply of the first driving motor 3 is switched on, the first driving motor 3 is enabled to drive the first gear 4 to rotate, the first stirring rod 10 on the first gear 4 is enabled to rotate, the first gear 4 is enabled to drive the second gear 5 and the third gear 7 to rotate, the third stirring rod 12 on the third gear 7 is enabled to rotate, the second gear 5 is enabled to drive the toothed ring 6 to rotate, the scraper 15 on the toothed ring 6 is enabled to rotate, the modified asphalt is stirred through the first stirring blade 11 and the second stirring blade in the process, the modified asphalt is fully mixed, the scraper 15 scrapes the modified asphalt attached to the inner wall of the stirring tank 1, the stirring effect is improved through the first stirring blade 11, the third stirring blade 13 and the fourth stirring blade 16 in a crossed mode, and the modified asphalt can be discharged after the stirring is completed.
After the stirring is finished, the discharge port 17 can be opened, so that the modified asphalt is discharged into the discharge barrel 18 from the discharge port 17, then the power supply of the second driving motor 19 is switched on, the second driving motor 19 is used for driving the packing auger 20 to rotate, and the packing auger 20 is used for conveying the modified asphalt.
When needing to clean 1 inner wall of agitator tank, only need to inject the cleaning solution into water distributor 8, make clean leaf pass through shower nozzle 9 blowout, utilize shower nozzle 9 spun cleaning solution to first puddler 10, third puddler 12 and 1 inner wall of agitator tank wash, then continue to start first driving motor 3, it is rotatory to make first gear 4 continue to drive ring gear 6 through second gear 5, make ring gear 6 scrub 1 inner wall of agitator tank through scraper blade 15, thereby realize that it has improved work efficiency to clean 1 inner wall of agitator tank automatically.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that various changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (6)

1. The utility model provides a modified asphalt low temperature mixes material equipment which characterized in that: including agitator tank (1), agitator tank (1) top is provided with upper cover (2), upper cover (2) top is provided with first driving motor (3), the drive shaft of first driving motor (3) passes upper cover (2) and is connected with first gear (4), first gear (4) outside is provided with ring gear (6), ring gear (6) and first gear (4) belong to same axle center, be provided with one second gear (5) and a plurality of third gear (7) between first gear (4) and ring gear (6), second gear (5) and third gear (7) all rotate and are connected on upper cover (2), second gear (5) respectively with first gear (4) and ring gear (6 between intermeshing, third gear (7) and first gear (4) intermeshing, be provided with a plurality of connecting rods (14) on ring gear (6), connecting rod (14) end-to-end connection has scraper blade (15), scraper blade (15) shape, scraper blade (15) and agitator tank (1) inner wall (8) are equipped with a plurality of water distribution pipe covers (8), water distribution lid (8) are all provided with a plurality of shower nozzle (8) outside water distribution pipe (9), water distribution lid (8) are provided with a plurality of water distribution pipe (8).
2. The low-temperature modified asphalt mixing equipment according to claim 1, characterized in that: fixedly connected with first puddler (10) on first gear (4), evenly be provided with a plurality of first stirring leaves (11) on first puddler (10).
3. The low-temperature modified asphalt mixing equipment according to claim 1, which is characterized in that: every equal fixedly connected with third puddler (12) on third gear (7), evenly be provided with a plurality of third stirring leaves (13) on third puddler (12).
4. The low-temperature modified asphalt mixing equipment according to claim 1, characterized in that: a plurality of fourth stirring blades (16) are uniformly arranged on the inner side of the scraping plate (15), and the third stirring blades (13) are respectively arranged in a crossed manner with the first stirring blades (11) and the fourth stirring blades (16).
5. The low-temperature modified asphalt mixing equipment according to claim 1, characterized in that: a discharge hole (17) is formed in the bottom of the stirring tank (1), a feed inlet (21) is formed in a position, close to the upper cover (2), of one side of the stirring tank (1), and a discharge barrel (18) is arranged on the discharge hole (17).
6. The low-temperature modified asphalt mixing equipment according to claim 5, characterized in that: the end part of the discharge barrel (18) is provided with a second driving motor (19), the packing auger (20) is arranged in the discharge barrel (18), and a driving shaft of the second driving motor (19) penetrates through the discharge barrel (18) and is connected with the packing auger (20).
