CN218681404U

CN218681404U - A environment-friendly deinsectization device for farming

Info

Publication number: CN218681404U
Application number: CN202223048291.0U
Authority: CN
Inventors: 卢彪; 杨丹月
Original assignee: Individual
Current assignee: Individual
Priority date: 2022-11-15
Filing date: 2022-11-15
Publication date: 2023-03-24
Anticipated expiration: 2032-11-15

Abstract

The utility model discloses an environment-friendly deinsectization device for farming, including base with deinsectization device, the top of base is fixed with the support, and the bottom mounting of base has the inserted bar, the bottom mounting of support has solar panel, and the surface mounting of support has the connecting plate, the one end that the support was kept away from to the connecting plate is fixed with the deinsectization case, and the top of deinsectization case is fixed with the shielding plate, the inside of deinsectization case is fixed with the electric wire netting, and the bottom of deinsectization case is provided with lures the worm agent, the surface of connecting plate is provided with the motor, the surface of motor is provided with the output shaft, the one end that the motor was kept away from to the output shaft is fixed with the fan, the surface transmission of output shaft is connected with the drive belt, can strike the pest that can attach on its surface through lasting pivoted striking rod when the electric wire netting pest goes out the kill and make the corpse drop to the electric wire netting.

Description

A environment-friendly deinsectization device for farming

Technical Field

The utility model relates to a deinsectization device technical field specifically is an environment-friendly deinsectization device for farming.

Background

Agriculture is used as a first industry and is closely related to the life of everyone, agricultural planting is mainly used for ensuring the normal growth of crops, harvesting is carried out after fruits are ripe, the current agricultural planting process can be inevitably eroded by pests, and the adopted pest killing mode is a mode of spraying pesticides.

The utility model discloses a be CN206533978U utility model discloses a multifunctional agricultural equipment, including deinsectization pole, deinsectization pole upper end both sides fixed welding has the horizontal pole, the fixed deinsectization device that is provided with of horizontal pole one end, the deinsectization device is provided with the deinsectization casing, deinsectization casing top is provided with solar cell panel, solar cell panel downside electric connection has the electric quantity converter, the fixed lamp stand that is provided with of deinsectization casing top inner wall, the moth-killing lamp is installed to the lamp stand downside, the moth-killing lamp outside is provided with the electric wire netting, the fixed setting of electric wire netting upside is at deinsectization casing top inner wall, the deinsectization casing is provided with all around and lures the worm mouth, the fixed discharger that is provided with of electric wire netting downside, deinsectization casing downside is provided with out the worm funnel. In the document, the electric network kills pests to kill insects, but the dead bodies of more pests are adhered to the surface of the electric network after long-time use, so that the later-period insect killing efficiency is reduced.

SUMMERY OF THE UTILITY MODEL

Not enough to prior art, the utility model provides an environment-friendly deinsectization device for farming has solved the problem that proposes in the above-mentioned background art. In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides an environment-friendly deinsectization device for farming, includes the base with the deinsectization device, the top of base is fixed with the support, the bottom mounting of base has the inserted bar, the bottom mounting of support has solar panel, the external fixed surface of support has the connecting plate, the one end that the support was kept away from to the connecting plate is fixed with the deinsectization case, the top of deinsectization case is fixed with the shielding plate, the inside of deinsectization case is fixed with the electric wire netting, the bottom of deinsectization case is provided with lures the worm agent, the surface of connecting plate is provided with the motor, the surface of motor is provided with the output shaft, the one end that the motor was kept away from to the output shaft is fixed with the fan, the surface transmission of output shaft is connected with the drive belt, the one end transmission that the drive belt was kept away from to the drive belt is fixed with first bevel gear, the inside sliding connection in bottom of deinsectization case has the joint piece.

Preferably, the bottom mounting of joint piece has the pull rod, just the pull rod runs through and sliding connection in the bottom of deinsectization case.

Preferably, the outer surface of the first bevel gear is engaged with a second bevel gear, and a fixing rod is fixed at the bottom end of the second bevel gear.

Preferably, a spring is fixed inside the fixing rod, and a striking rod is fixed at one end, far away from the fixing rod, of the spring.

Preferably, the material of striking pole is the rubber material that can take place deformation and insulating.

Preferably, a collecting box is arranged on the left side of the bottom end of the deinsectization box, and the insect attractant is located under the fan.

The utility model provides an environment-friendly deinsectization device for farming. The method has the following beneficial effects:

(1) A pest corpse that can attach on its surface drops through knocking the electric wire netting through continuous pivoted striking rod when the electric wire netting kills the pest through the design that is used for environment-friendly deinsectization device of farming, follows the striking rod through luring insect agent, fan, electric wire netting, drive belt, transmission shaft.

(2) A dismantle with fixed carrying out quick dismantlement to the collecting box again by the joint piece for farming's environment-friendly deinsectization device, can collect the corpse of pest in the collecting box through pull rod, joint piece with the design of collecting box.

Drawings

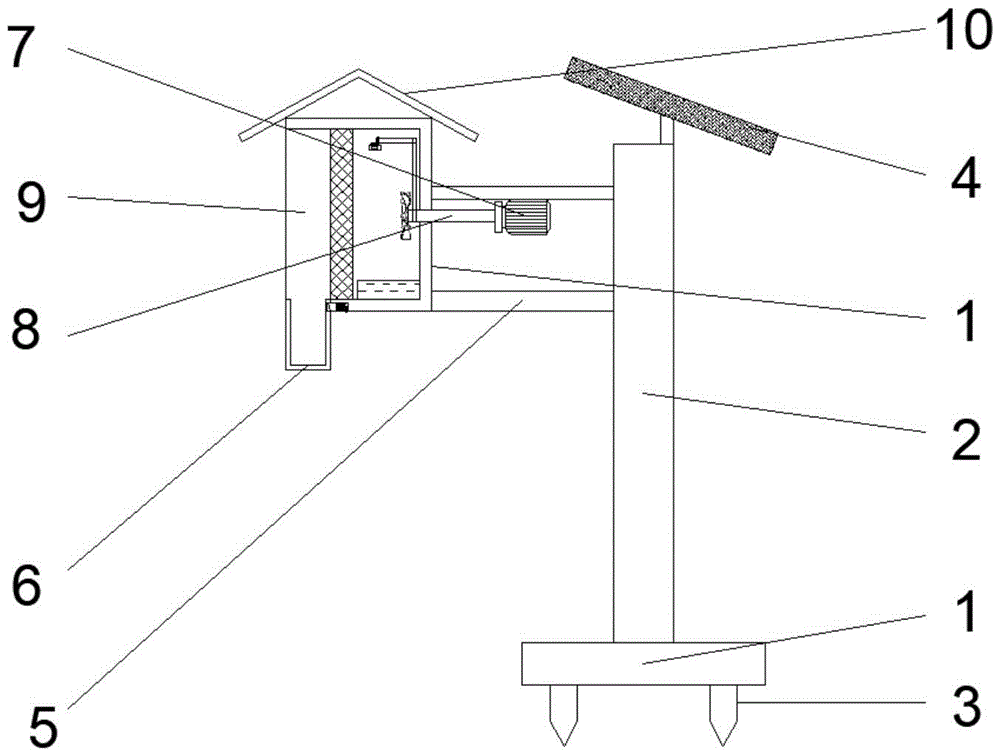

FIG. 1 is a schematic view of the structure of the environment-friendly insect-killing device for agricultural planting of the present invention;

FIG. 2 is a schematic view of the structure of the deinsectization device of the present invention;

figure 3 is the utility model discloses the impact rod structure schematic diagram.

In the figure: 1. a base; 2. a support; 3. a rod is inserted; 4. a solar panel; 5. a connecting plate; 6. a collection box; 7. a motor; 8. an output shaft; 9. a deinsectization device; 10. a shielding plate; 91. a disinsection box; 92. a power grid; 93. a pull rod; 94. a clamping block; 95. a fan; 96. a transmission belt; 97. a drive shaft; 98. a first bevel gear; 99. a second bevel gear; 910. fixing the rod; 911. a spring; 912. a striker bar; 913. an insect attractant.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-3, the present invention provides a technical solution: an environment-friendly deinsectization device for agricultural planting comprises a base 1 and a deinsectization device 9, wherein a support 2 is fixed at the top end of the base 1, an inserted link 3 is fixed at the bottom end of the base 1, a solar panel 4 is fixed at the bottom end of the support 2, the solar panel 4 can supply power to the interior of the deinsectization device 9, a connecting plate 5 is fixed on the outer surface of the support 2, a deinsectization box 91 is fixed at one end, away from the support 2, of the connecting plate 5, a baffle plate 10 is fixed at the top end of the deinsectization box 91, the baffle plate 10 can protect the deinsectization device 9 to a certain degree, a collecting box 6 is arranged on the left side of the bottom end of the deinsectization box 91, the collecting box 6 can collect electrically dead pest corpses, a power grid 92 is fixed in the deinsectization box 91, a attractant 913 is arranged at the bottom end of the deinsectization box 91, the attractant 913 is positioned under a fan 95, the fan 95 can accelerate outward conveying of the attractant 913, the outer surface of the connecting plate 5 is provided with a motor 7, the outer surface of the motor 7 is provided with an output shaft 8, one end, far away from the motor 7, of the output shaft 8 is fixed with a fan 95, the outer surface of the output shaft 8 is in transmission connection with a transmission belt 96, one end, far away from the output shaft 8, of the transmission belt 96 is in transmission connection with a transmission shaft 97, the transmission shaft 97 can drive a first bevel gear 98 to rotate, one end, far away from the transmission belt 96, of the transmission shaft 97 is fixed with a first bevel gear 98, the outer surface of the first bevel gear 98 is meshed with a second bevel gear 99, the bottom end of the second bevel gear 99 is fixed with a fixing rod 910, a spring 911 is fixed inside the fixing rod 910, one end, far away from the fixing rod 910, of the spring 911 is fixed with a striking rod 912, the striking rod 912 can continuously strike the power grid 92 to generate vibration, the striking rod 912 is made of a deformable and insulating rubber material, and the striking rod is made of an insect attractant 913, fan 95, electric wire netting 92, drive belt 96, the design of transmission shaft 97 with striking rod 912 can strike messenger's the pest corpse that can attach on its surface through lasting pivoted striking rod 912 to electric wire netting 92 when electric wire netting 92 kills the pest and drop, the inside sliding connection in bottom of deinsectization case 91 has joint piece 94, the bottom mounting of joint piece 94 has pull rod 93, and pull rod 93 runs through and sliding connection in the bottom of deinsectization case 91, through pull rod 93, joint piece 94 can be collected the corpse of pest in collecting box 6 with the design of collecting box 6, carry out quick dismantlement with fixed to collecting box 6 that again can be quick by joint piece 94.

During the use, insert ground with base 1 through inserted bar 3 and fix, it rotates to open motor 7 and drive output shaft 8, output shaft 8 drives fan 95 and rotates and lures insect 913 to volatilize with higher speed and lure the worm outwards, store the electric quantity and supply power to electric wire netting 92 by solar panel 4, the pest falls into collecting box 6 after dying by the electric wire netting electricity in getting into deinsectization case 91, output shaft 8 drives transmission shaft 97 through drive belt 96 and rotates, transmission shaft 97 drives first bevel gear 98 and rotates, first bevel gear 97 drives second bevel gear 98 and rotates, second bevel gear 98 drives striking pole 912 and strikes the electric wire netting, if need dismantle the pulling pull rod 93 to collecting box 6 and make joint piece 94 break away from the joint can.

The above, only be the embodiment of the preferred of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, which are designed to be replaced or changed equally, all should be covered within the protection scope of the present invention.

Claims

1. The utility model provides an environment-friendly deinsectization device for farming, includes that base (1) follows deinsectization device (9), its characterized in that: the top of base (1) is fixed with support (2), the bottom mounting of base (1) has inserted bar (3), the bottom mounting of support (2) has solar panel (4), the external fixed surface of support (2) has connecting plate (5), the one end that support (2) were kept away from in connecting plate (5) is fixed with deinsectization case (91), the top of deinsectization case (91) is fixed with shielding plate (10), the inside of deinsectization case (91) is fixed with electric wire netting (92), the bottom of deinsectization case (91) is provided with insect attractant (913), the surface of connecting plate (5) is provided with motor (7), the surface of motor (7) is provided with output shaft (8), the one end that motor (7) were kept away from in output shaft (8) is fixed with fan (95), the surface transmission of output shaft (8) is connected with drive belt (96), the one end transmission that output shaft (8) were kept away from in drive belt (96) is connected with transmission shaft (97), the one end that drive belt (96) was kept away from in drive shaft (97) is fixed with first bevel gear (98), the inside slip joint of deinsectization case (91) is connected with joint piece (94).

2. The environment-friendly insect killing device for agricultural planting according to claim 1, wherein: the bottom end of joint piece (94) is fixed with pull rod (93), just pull rod (93) run through and sliding connection in the bottom of deinsectization case (91).

3. The environment-friendly insect killing device for agricultural planting according to claim 1, wherein: the outer surface of the first bevel gear (98) is engaged with a second bevel gear (99), and a fixing rod (910) is fixed at the bottom end of the second bevel gear (99).

4. The environment-friendly insect killing device for agricultural planting according to claim 3, wherein: a spring (911) is fixed inside the fixing rod (910), and a striking rod (912) is fixed at one end, far away from the fixing rod (910), of the spring (911).

5. The environment-friendly insect killing device for agricultural planting according to claim 4, wherein: the striking rod (912) is made of deformable and insulating rubber.

6. The environment-friendly insect killing device for agricultural planting according to claim 1, wherein: the bottom left side of deinsectization case (91) is provided with collecting box (6), just insect attractant (913) are located fan (95) under.
