CN211091455U - A forestry insect trapping device - Google Patents

Abstract

The utility model discloses a forestry insect trapping device, which comprises an insect trapping box body, a solar cell panel is arranged at the top of the insect trapping box body, a support frame is connected between the insect trapping box body and the solar cell panel, and the solar cell A camera is arranged on the peripheral side of the battery plate, a battery is arranged on the inner side of the support frame, and a control device is arranged on one side of the battery; the insect trapping lamp and the insect trapping smell generator are provided to realize the double trapping of light and smell. , so that the effect of attracting insects is better, and the fan blades on the motor can better make the insect trapping and smelling device play a role; it is easy to centrally handle the installation of the insect collecting box through the set; The collection function of type data; the solar panel is not only used to absorb solar energy, but also plays the role of rain protection; the utility model greatly improves the applicable environment and overall performance of the insect trapping equipment, and is simple and practical, safe and reliable, with long service life and easy to popularize. .

Description

A forestry insect trapping device

technical field

The utility model relates to the technical field of forestry insect trapping, in particular to a forestry insect trapping device.

Background technique

Forestry refers to the production sector that protects the ecological environment to maintain ecological balance, cultivates and protects forests to obtain timber and other forest products, and utilizes the natural characteristics of forests to play a protective role. It is one of the important components of the national economy. Forestry, in the human and biosphere, engages in the cultivation, protection and utilization of forest resources through advanced science and technology and management methods, and fully utilizes the various benefits of forests. Development of basic industries and social welfare undertakings.

In recent years, insect pests have been quite serious, affecting forestry and people's living environment, especially the harm of American white moth. American white moth breeds very fast, and its growth and reproduction are very fast. The damage to trees is very serious, and it is difficult to eliminate. Simply using drugs to eliminate it will bring about large-scale pollution of the ecological environment and cause great harm to the human body. However, the various insect repellent lamps or insect repellents that people have used so far to catch and kill insects have no obvious effect, and pesticides are used. Spraying and killing will not only pollute the air, water and soil, but also endanger human health. The excessive use of pesticides also has a huge restriction on the growth of vegetation, and may even cause vegetation to die.

Utility model content

The purpose of the present invention is to provide a forestry insect trapping device to solve the problems raised in the above background technology.

In order to achieve the above purpose, the present invention provides the following technical solutions: a forestry insect trapping device, which includes an insect trapping box, a solar cell panel is arranged on the top of the insect trapping box, and a space between the insect trapping box and the solar cell panel is A support frame is connected, a camera is arranged on the peripheral side of the solar panel, a battery is arranged on the inner side of the support frame, a control device is arranged on one side of the battery, and the top of the insect trapping box between the support frames is provided with The motor, the output shaft of the motor is connected with a fan blade through one end of the insect trapping box, the output shaft of the motor at the lower end of the fan blade is provided with a connecting wire, and the end of the connecting wire away from the fan blade is provided with an insect trapping lamp, The outer side of the insect trapping lamp is provided with a power grid in the circumferential direction, the connecting line on the upper side of the insect trapping lamp is provided with an insect trapping odor generator, the outer side of the bottom of the insect trapping box is provided with a fixing ring, and the fixing ring is provided with a thread. And the worm collecting box is connected with the thread, and the bottom of the worm collecting box is provided with a handle.

Preferably, an electronic nose is further arranged on the peripheral side of the solar cell panel, and the solar cell panel is in the shape of a cone.

Preferably, both the insect trapping box and the grid are spherical.

Preferably, the electronic nose, the camera, the control device, the solar panel, the electric motor, the power grid, the insect trap, the insect trap, and the battery are electrically connected.

Preferably, the insect trapping box is provided with an insect inlet hole in the circumferential direction, and the insect inlet hole is designed to be large on the outside and small on the inside.

Beneficial effects: Compared with the prior art, the beneficial effects of the present utility model are: through the set insect trapping lamp and the insect trapping smell generator, the double trapping of light and smell is realized, so that the trapping effect is better, and the motor is installed on the motor. The unique fan blade can make the insect trap and smell device play a better role; it is easy to centralize processing through the installed insect collecting box; through the installed camera and electronic nose, the collection function of pest species data is realized; the solar panel not only The utility model is used for absorbing solar energy and also plays the role of blocking rain; the utility model greatly improves the applicable environment and overall performance of the insect trapping equipment, is practical, simple, safe and reliable, has a long service life, and is easy to popularize.

Description of drawings

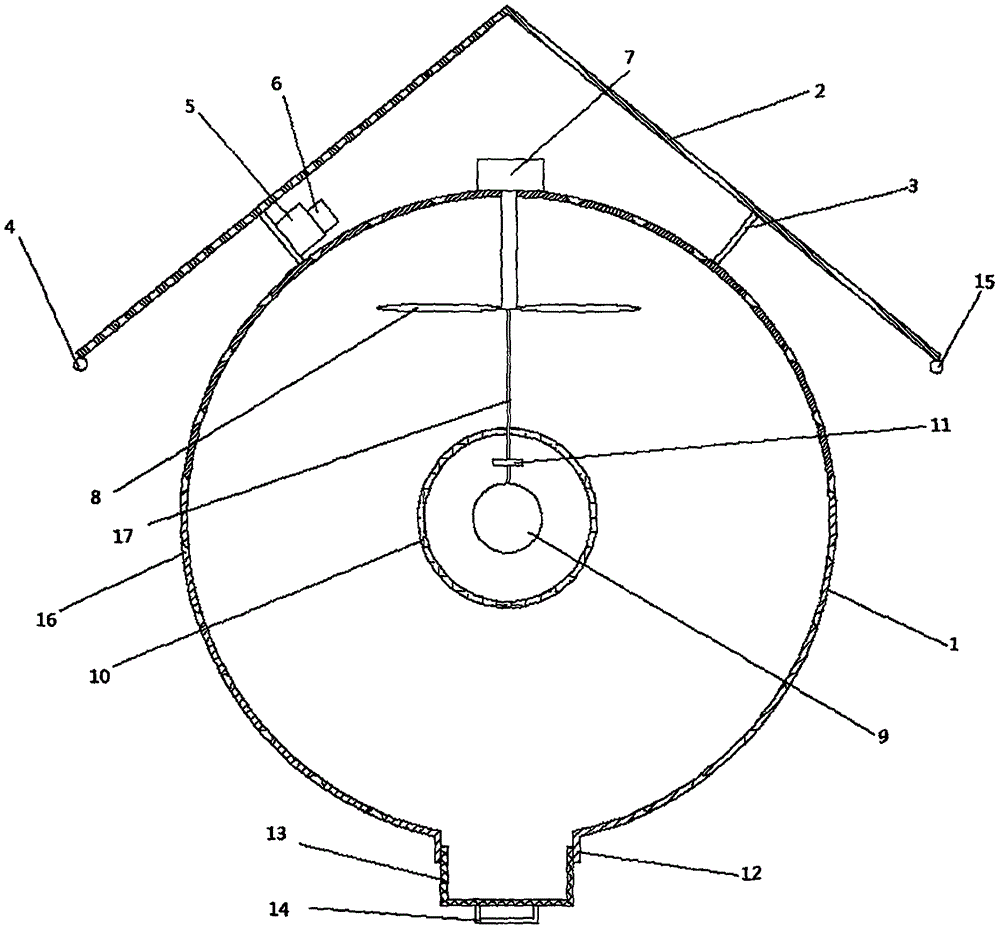

FIG. 1 is a schematic structural diagram of a forestry insect trapping device proposed by the utility model.

Detailed ways

The technical solution of the present patent will be described in further detail below in conjunction with specific embodiments.

Example

Referring to FIG. 1 , in an embodiment of the present invention, a forestry insect trapping device includes an insect trapping box 1 , a top of the insect trapping box 1 is provided with a solar panel 2 , and the insect trapping box 1 and the solar cells A support frame 3 is connected between the panels 2, a camera 4 is arranged on the peripheral side of the solar panel 2, a battery 5 is arranged on the inner side of the support frame 3, and a control device 6 is arranged on one side of the battery 5, and the support A motor 7 is provided on the top of the insect trapping box 1 between the racks 3, and the output shaft of the motor 7 is connected with a fan blade 8 through one end of the insect trapping box 1. The output shaft of the motor 7 at the lower end of the fan blade 8 is provided with There is a connecting line 17, and the end of the connecting line 17 away from the fan blade 8 is provided with an insect trapping light 9, the outer side of the insect trapping light 9 is provided with a power grid 10 in the circumferential direction, and the connecting line 17 on the upper side of the insect trapping light 9 is provided with Insect attracting smell device 11, here, the motor 7 drives the fan blade 8 to rotate, which is convenient for the insect attracting smell device 11 to volatilize, and drives the insect attracting lamp 9 to rotate, which is conducive to attracting flying insects. The speed of the motor 7 is set to be slower, So that it will not affect the normal entry of flying insects into the insect trapping box 1; the bottom outer side of the insect trapping box 1 is provided with a fixing ring 12, the fixing ring 12 is provided with a thread, and the insect collecting box 13 is connected by the thread, so The bottom of the insect collecting box 13 is provided with a handle 14 .

Further, an electronic nose 15 is also provided on the peripheral side of the solar cell panel 2, and the solar cell panel 2 is in the shape of a cone.

Further, the insect trapping box 1 and the grid 10 are both spherical.

Further, the electronic nose 15 , the camera 4 , the control device 6 , the motor 7 , the solar panel 2 , the power grid 10 , the insect trapping light 9 , the insect trapping scent device 11 and the battery 5 are electrically connected.

Furthermore, the insect trapping box 1 is provided with an insect inlet hole 16 in the circumferential direction, and the insect inlet hole 16 is designed to be large on the outside and small in the inside. This design is to prevent flying insects entering the trapping box 1 from escaping.

work process:

First, put the insect attracting agent into the insect trap smelling device 11. The insect attracting agent can be arbitrarily selected according to the season or the type of disease. The insect trapping lamp 9 and the insect trapping smelling device 11 are used to attract the pests into the housing, and the motor 7 The upper fan blade 8 can better make the insect attractor 11 play a role, and electric shocks are performed on the insects through the power grid 10, and the insects killed by the electric shock fall into the insect collecting box 13, and the insect collecting box 13 is disassembled to clean up the dead insects; The type data of the pests are collected by the camera 4 and the electronic nose 15 set on the two sides of the solar panel, and the collected data is transmitted to the network through the communication device. Disease analysis.

In the above working process, the double lure of light and smell is realized by setting the trap light and the trap smelling device, which makes the trapping effect better, and the fan blade on the motor can make the trapping smell device better. It can play a role; it is easy to centralize processing through the installation of the set insect box; through the set camera and electronic nose, the collection function of pest species data is realized; the solar panel is not only used to absorb solar energy, but also plays the role of rain protection; The utility model greatly improves the applicable environment and overall performance of the insect trapping equipment, is simple in practice, safe and reliable, has a long service life and is easy to popularize.

The above are only the preferred embodiments of the present utility model. It should be pointed out that for those skilled in the art, some modifications and improvements can be made without departing from the concept of the present utility model. These should also be regarded as the present utility model. The scope of protection of the new model will not affect the effect of the implementation of the present utility model and the practicability of the patent.

Claims (4)

1. An insect trapping device for forestry, characterized in that: it comprises an insect trapping box, the top of the insect trapping box is provided with a solar cell panel, a support frame is connected between the insect trapping box and the solar cell panel, and the solar cell A camera is arranged on the peripheral side of the plate, a battery is arranged on the inner side of the support frame, a control device is arranged on one side of the battery, and a motor is arranged on the top of the insect trapping box between the support frames, and the output shaft of the motor passes through. One end of the insect trapping box is connected with a fan blade, the output shaft of the motor at the lower end of the fan blade is provided with a connecting wire, the end of the connecting wire away from the fan blade is provided with an insect trapping lamp, and the outer side of the trapping lamp is provided with a power grid in the circumferential direction. , the connection line on the upper side of the insect trapping lamp is provided with an insect trapping and smelling device, a fixing ring is arranged on the outer side of the bottom of the insect trapping box, a thread is arranged in the fixing ring, and an insect collecting box is connected by the thread, The bottom of the insect collecting box is provided with a handle, and the peripheral side of the solar cell panel is also provided with an electronic nose, and the solar cell panel is in the shape of a cone. 2 . The forestry insect trapping device according to claim 1 , wherein the insect trapping box and the power grid are both spherical. 3 . 3. A kind of forestry insect trapping equipment according to claim 1, it is characterized in that: described electronic nose, camera, control device, solar panel, power grid, insect trapping light, electric motor, insect trapping scent device and battery electricity sexual connection. 4 . The forestry insect trapping equipment according to claim 1 , wherein the insect trapping box is provided with an insect inlet hole in the circumferential direction, and the insect inlet hole is designed to be large on the outside and small on the inside. 5 .
