CN218653117U

CN218653117U - Detachable thickener sloping plate device

Info

Publication number: CN218653117U
Application number: CN202223126637.4U
Authority: CN
Inventors: 宋小良; 张晓辉; 卢颖
Original assignee: Shuangdun Environment Technology Co ltd
Current assignee: Shuangdun Environment Technology Co ltd
Priority date: 2022-11-24
Filing date: 2022-11-24
Publication date: 2023-03-21
Anticipated expiration: 2032-11-24

Abstract

The utility model discloses a detachable concentrator swash plate device, this swash plate device includes swash plate module (1), swash plate module (1) is including swash plate (2), clamp plate (3) and support shaped steel (4), it has constant head tank (31) to open in the bottom of clamp plate (3), it has slot (41) to open on the upper portion both sides pterygoid lamina of support shaped steel (4), insert respectively in corresponding slot (41) of two support shaped steel (4) of adjacent setting and the bottom of swash plate (2) supports on the lower part pterygoid lamina of corresponding support shaped steel (4), the top of swash plate (2) inserts in constant head tank (31). The utility model discloses an swash plate device is convenient for install, is dismantled, is cleared up, has that economic nature is good, the concentration separation is effectual, characteristics such as area is little, still has advantages such as intensity height, rigidity are good, the dead weight is light, corrosion-resistant, long service life, is applicable to the solid-liquid separation and other trades of sulphuric acid waste water thickener and handles the various ore pulps that contain solid particle.

Description

Detachable thickener sloping plate device

Technical Field

The utility model belongs to the technical field of the solid-liquid separation technique and specifically relates to a detachable thickener swash plate device and specifically relates to a solid-liquid separation technique of sulphuric acid waste water thickener.

Background

In the process of producing the waste water by using the sulfuric acid, the slurry with low density and fine granularity is often required to be subjected to solid-liquid separation, and if the slurry is concentrated and clarified by adopting a traditional thickener, the concentration and clarification speed is slow, and a larger sedimentation area is required, so that the solid-liquid separation time is long, and the efficiency is low. Therefore, a thickener sloping plate device is required to be added for mechanical operation. However, the inclined plate thickener used in the domestic main smelting plant has the disadvantages of heavy weight, inconvenient disassembly and difficult installation, long service life, influence on discharging and cleaning, and unsatisfactory use effect.

SUMMERY OF THE UTILITY MODEL

The utility model aims at the problem that prior art exists, provide a detachable thickener swash plate device, this swash plate device's intensity is high, the rigidity is good, the dead weight is light, corrosion-resistant, long service life, and the jam of thick liquids can effectively be prevented in the periodic overhaul and the clearance of being convenient for.

The utility model aims at solving through the following technical scheme:

the utility model provides a detachable concentrator swash plate device which characterized in that: this swash plate device includes the swash plate module, and the swash plate module includes swash plate, clamp plate and supports shaped steel, and it has the constant head tank to open in the bottom of clamp plate, supports and to open on the upper portion both sides pterygoid lamina of shaped steel has the slot, and the both sides of swash plate insert respectively two adjacent settings support corresponding slots of shaped steel in and the bottom of swash plate support on corresponding support shaped steel's the lower part pterygoid lamina, the top of swash plate inserts in the constant head tank.

The inclined plate comprises hollow web plates, connecting bars and a glass fiber reinforced plastic lamination layer, the hollow web plates are connected in an assembling mode through the connecting bars, and the assembled hollow web plates are wrapped with the glass fiber reinforced plastic lamination layer.

The thickness of the glass fiber reinforced plastic lamination layer is 1-2mm.

The hollow web plate is made of glass fiber reinforced plastics.

The inclination angle of the inclined plate is 50-65 degrees.

The pressing plate is made of glass fiber reinforced plastics.

The supporting section steel is H-shaped steel or I-shaped steel.

The inclined plate module is placed on a supporting mechanism arranged on the upper portion of an inner cavity of the thickener, the supporting mechanism comprises a ring plate and rib plates, the rib plates are uniformly distributed on the inner wall of the thickener, and the ring plate is placed on the rib plates.

The ring plate and the rib plate are connected and fixed with the inner wall of the thickener by adopting corresponding glass fiber reinforced plastic lamination layers.

The ring plate and the rib plate are both made of Q235B.

Compared with the prior art, the utility model has the following advantages:

the utility model provides an inclined plate device's subassembly is through the settlement area based on the convenient principle of loading and unloading and can increase equipment, thereby be convenient for install, dismantle, the clearance, can effectively separate the solid particle thing among the solid-liquid mixture during the use, effective resources are saved and reduce the occupation of land size, it is good to have economic nature, the concentration separation is effectual, characteristics such as area is little, intensity is high still to have simultaneously, the rigidity is good, the dead weight is light, it is corrosion-resistant, advantages such as long service life, the solid-liquid separation that not only is applicable to sulphuric acid waste water thickener, still be applicable to other trades and handle the various ore pulps that contain solid particle, so suitable using widely.

Drawings

Fig. 1 is a schematic view of the installation state of the detachable thickener sloping plate device of the utility model;

FIG. 2 is a schematic structural diagram of a swash plate module shown in part II of FIG. 1;

FIG. 3 is a schematic structural diagram of a supporting mechanism of part I of FIG. 1;

fig. 4 is a schematic structural diagram of the swash plate of the present invention.

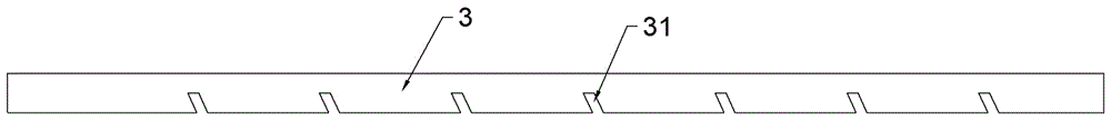

FIG. 5 is a schematic view of the slotting of the pressing plate of the present invention;

figure 6 is the fluting schematic diagram of the utility model discloses a support shaped steel.

Wherein: 1-sloping plate module; 2-a sloping plate; 21-a hollow web; 22-connecting rods; 3, pressing a plate; 31-positioning groove; 4, supporting the section steel; 41, a slot; 5, laminating glass fiber reinforced plastics; 6, a support mechanism; 61-ring plate; 62-rib plate.

Detailed Description

The present invention will be further described with reference to the accompanying drawings and examples.

As shown in fig. 1-6: the utility model provides a detachable concentrator swash plate device, this swash plate device includes swash plate module 1, swash plate module 1 includes swash plate 2, the clamp plate 3 that glass steel made and the support shaped steel 4 that H shaped steel made, it has locating slot 31 to open in the bottom of clamp plate 3, it has slot 41 to open on the pterygoid lamina of the upper portion both sides of support shaped steel 4, the both sides of swash plate 2 insert respectively two adjacent support shaped steel 4 that set up correspond in slot 41 and the bottom of swash plate 2 supports on corresponding support shaped steel 4's lower part pterygoid lamina, the top of swash plate 2 inserts in the locating slot 31 and the inclination of swash plate 2 is 50-65, the sectional area of locating slot 31 generally is greater than the sectional area of swash plate 2.

In the structure, as shown in fig. 4, the inclined plate 2 comprises hollow webs 21 made of glass fiber reinforced plastics, connecting bars 22 and glass fiber reinforced plastics laminates 5, the hollow webs 21 are connected in an assembling mode through the connecting bars 22, and the assembled hollow webs 21 are wrapped with the glass fiber reinforced plastics laminates 5 with the thickness of 1-2mm. The hollow web plate 21 is formed by a one-step die, and has smooth outer wall, good compactness, high strength, good rigidity, light dead weight, corrosion resistance and long service life. The support section steel 4 is made of Q235B.

The inclined plate module 1 is placed on a supporting mechanism 6 arranged at the upper part of an inner cavity of the thickener, the supporting mechanism 6 comprises a ring plate 61 and rib plates 62, the rib plates 62 are uniformly distributed on the inner wall of the thickener, and the ring plate 61 is placed on the rib plates 62; the ring plate 61 and the rib plate 62 are connected and fixed with the inner wall of the thickener by adopting corresponding glass fiber reinforced plastic lamination layers 5; both the ring plate 61 and the rib plate 62 are made of Q235B.

The state of the inclined plate device installed in the thickener provided by the utility model is shown in figure 1, firstly, the annular plate 61 is placed on the rib plate 62, and the annular plate 61 and the rib plate 62 are connected and fixed with the inner wall of the thickener by adopting the corresponding glass fiber reinforced plastic lamination layer 5; then, the supporting section steel 4 is placed and fixed on the ring plate 61, and the supporting section steel 4 and the inner wall of the thickener are connected and fixed by adopting a corresponding glass fiber reinforced plastic lamination layer 5; then inserting the inclined plate 2 consisting of the hollow web plate 21, the connecting bar 22 and the glass fiber reinforced plastic lamination layer 5 into the corresponding slot 41; and finally, covering the upper pressure plate 4 to ensure that the top end of the inclined plate 2 is inserted into the positioning groove 31, and connecting and fixing the pressure plate 4 and the inner wall of the thickener and the outer wall of the central cylinder of the thickener by adopting corresponding glass fiber reinforced plastic laminated layers 5 respectively to finish the assembly work of the inclined plate device.

During the use, the thick liquid gets into the thickener from the inlet, reaches through agitating unit the utility model provides an swash plate device realizes solid-liquid separation. The utility model provides an inclined plate device has accomplished increase equipment settlement area, is convenient for clear up and assembly on structural design, and the long settling efficiency who leads to of effective service time is low, also prevents the jam of thick liquids simultaneously to improve the convenience and the economic nature of use greatly, guarantee the high efficiency of equipment.

The above embodiments are only for explaining the technical idea of the present invention, and the protection scope of the present invention cannot be limited thereby, and any modification made on the basis of the technical scheme according to the technical idea provided by the present invention all fall within the protection scope of the present invention; the technology not related to the utility model can be realized by the prior art.

Claims

1. The utility model provides a detachable concentrator swash plate device which characterized in that: this swash plate device includes swash plate module (1), swash plate module (1) includes swash plate (2), clamp plate (3) and support shaped steel (4), it has constant head tank (31) to open in the bottom of clamp plate (3), it has slot (41) to open on the upper portion both sides pterygoid lamina of support shaped steel (4), the both sides of swash plate (2) insert respectively two corresponding slots (41) of support shaped steel (4) of adjacent setting and the bottom of swash plate (2) supports on the corresponding lower part pterygoid lamina that supports shaped steel (4), the top of swash plate (2) inserts in constant head tank (31).

2. The removable thickener sloping plate device of claim 1, wherein: the inclined plate (2) comprises hollow webs (21), connecting bars (22) and a glass fiber reinforced plastic lamination layer (5), the hollow webs (21) are connected in an assembling mode through the connecting bars (22), and the assembled hollow webs (21) are wrapped by the glass fiber reinforced plastic lamination layer (5).

3. The removable thickener sloping plate device of claim 2, wherein: the thickness of the glass fiber reinforced plastic lamination layer (5) is 1-2mm.

4. The detachable sloping plate device of the thickener of claim 2, which is characterized in that: the hollow web plate (21) is made of glass fiber reinforced plastics.

5. The removable thickener sloping plate device of claim 1, wherein: the inclination angle of the inclined plate (2) is 50-65 degrees.

6. The removable thickener sloping plate device of claim 1, wherein: the pressing plate (3) is made of glass fiber reinforced plastic.

7. The removable thickener sloping plate device of claim 1, wherein: the supporting section steel (4) is H-shaped steel or I-shaped steel.

8. The removable thickener sloping plate device according to any one of claims 1 to 7, wherein: the inclined plate module (1) is placed on a supporting mechanism (6) arranged on the upper portion of an inner cavity of the thickener, the supporting mechanism (6) comprises a ring plate (61) and rib plates (62), the rib plates (62) are uniformly distributed on the inner wall of the thickener, and the ring plate (61) is placed on the rib plates (62).

9. The detachable sloping plate device of the thickener according to claim 8, wherein: the ring plate (61) and the rib plate (62) are connected and fixed with the inner wall of the thickener by adopting corresponding glass fiber reinforced plastic lamination layers (5).

10. The removable thickener sloping plate device of claim 8, wherein: the ring plate (61) and the rib plate (62) are both made of Q235B.
