Abstract

The utility model belongs to the technical field of environmental monitoring, specifically a monitoring and early warning device, which includes a support rod, a camera and an adjustment device. There are two solar panels fixedly connected; the surface of the support rod and the camera is provided with an adjustment device, the adjustment device includes three support blocks, the side walls of the three support blocks are fixedly connected to the surface of the support rod, and the bottom ends of the three support blocks are fixedly connected There is a fixed ring, and the surface of the solar panel is equipped with a cleaning device. The cleaning device includes a cleaning brush, which is located on the surface of the solar panel; the motor is provided to provide power to rotate the position of the camera, the output disc and the toothed disc can rotate the drum, and the fixed rod The camera can be supported to a certain extent, and the setting of the whole device can adjust the position of the camera, and at the same time, the steps of manual operation can be saved.

Description

A monitoring and early warning device

technical field

The utility model relates to the technical field of environmental monitoring, in particular to a monitoring and early warning device.

Background technique

Environmental monitoring is for a specific purpose, according to the pre-designed time and space, using comparable environmental information and data collection methods to intermittently or continuously observe, measure, analyze and analyze the changes of one or more environmental elements or indicators. Environmental monitoring is the basis of environmental protection and the basis for environmental legislation, environmental planning and environmental decision-making.

A Chinese patent with the publication number CN216668815U discloses an environmental detection device for hydropower stations. The key points of its technical solution are: by setting solar panels and reserve power supplies, as well as the use of connecting wires and winding boxes, the device used in hydropower stations The environmental detection device can convert solar energy into electrical energy through solar panels, and the reserve power supplies power to the humidity detection device through the connection line to assist in maintaining the working power of the humidity detection device, thereby reducing the work consumption of the humidity detection device and improving the use of hydropower stations. The energy utilization efficiency of the environmental detection device.

During the daily use of the hydropower station, it is necessary to monitor the environment of the hydropower station, collect field environmental data through the data collector and camera on the monitoring equipment, and then analyze the problem through the computer, so as to achieve the monitoring effect, because the fixed position of the camera fixing frame is relatively fixed , it is necessary to observe other places and positions during actual operation, and it is likely to be inconvenient to adjust and the adjustment operation is cumbersome when using a traditional fixed frame; therefore, a monitoring and early warning device is proposed for the above problems.

Utility model content

In order to make up for the deficiencies of the existing technology, it solves the need to monitor the environment of the hydropower station during the daily use of the hydropower station, collect field environmental data through the data collector and camera on the monitoring equipment, and then analyze the problem through the computer, so as to achieve monitoring. As a result, since the fixing position of the camera fixing frame is relatively fixed, it is necessary to observe other places and positions during actual operation. When using the traditional fixing frame, it is likely to be inconvenient to adjust and the adjustment operation is cumbersome. The utility model proposes a A monitoring and early warning device.

The technical solution adopted by the utility model to solve its technical problems is: a monitoring and early warning device described in the utility model, including a support rod, a camera and an adjustment device, the surface of the support rod is fixedly installed with a power distribution box, the The camera is located on the surface of the support rod, and the surface of the support rod is fixedly connected with two solar panels; the surface of the support rod and the camera is provided with an adjustment device, and the adjustment device includes three support blocks, and the three support blocks The side wall of the side wall is fixedly connected with the surface of the support rod, the bottom ends of the three support blocks are fixedly connected with a fixed ring, the surface of the fixed ring is rotatably connected with a drum, and the surface of the drum is fixedly connected with a fixed rod, so The upper surface of the fixed rod is fixedly connected to the bottom end of the camera. After the fixed rod is rotated to a suitable angle, the fixed rod is stopped. The support block, the fixed ring, the rotating cylinder and the fixed rod can facilitate the adjustment of the camera position to a certain extent.

Preferably, the surface of the drum is rotatably connected with two rollers, and the two rollers are symmetrically distributed relative to the central axis of the drum, and when the drum rotates, the rollers will be driven to roll on the surface of the fixed ring, and the rollers can facilitate the rotation of the drum .

Preferably, a connection ring is fixedly connected to the surface of the support rod, and a motor is fixedly connected to the inner wall of the connection ring. When using the motor, the motor is fixed on the surface of the support rod through the connection ring, and the connection ring can support the motor.

Preferably, the output end of the motor is fixedly connected with an output disk, and the bottom end of the drum is fixedly connected with a toothed disk, and the toothed disk and the output disk are meshed with each other. When rotating the drum, start the motor and let the motor drive the output When the disk rotates, the output disk drives the toothed disk to rotate, and the toothed disk drives the rotating cylinder to rotate. By setting the output disk and the toothed disk, the rotating cylinder can be conveniently rotated to a certain extent.

Preferably, the surface of the solar panel is provided with a cleaning device, the cleaning device includes a cleaning brush, the cleaning brush is located on the surface of the solar panel, and the side wall of the solar panel is fixedly connected with a support frame near the cleaning brush. The surface of the cleaning brush is rotatably connected with a moving wheel. The moving wheel is located on the upper surface of the support frame and can move on the surface of the solar panel when the cleaning brush slides. The cleaning brush can clean the solar panel to a certain extent.

Preferably, the upper surface of the support frame is fixedly connected with a frame, and the frame is located on the surface of the moving wheel, and the bottom end of the cleaning brush is fixedly connected with a stay cord, which will move on the frame surface when the mover wheel moves, and the stay cord The setting can facilitate people to move the cleaning brush.

The utility model is beneficial in that:

1. When adjusting the position of the camera, the utility model starts the motor in the connecting ring, which output disk of the motor rotates, the output disk drives the toothed plate to rotate, the toothed plate drives the rotating drum, and the rotating drum drives the fixed rod to rotate. When the rotating drum rotates It will drive the rollers to rotate, and the rollers will rotate on the surface of the fixed ring at the bottom of the support block. To support the camera to a certain extent, the setting of the whole device can adjust the position of the camera, and at the same time save the steps of manual operation.

2. When the utility model needs to clean the solar panel, pull the pull rope to let the pull rope drive the cleaning brush to slide, and the cleaning brush moves on the surface of the solar panel. When the cleaning brush moves, the moving wheel will be driven to roll on the surface of the support frame, and the moving wheel It will also move on the surface of the frame, the frame limits the moving position of the moving wheel, and the solar panel can be cleaned by setting a cleaning brush to reduce the dust falling on the surface of the solar panel.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present invention or the prior art, the following will briefly introduce the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are only some embodiments of the present utility model, and those skilled in the art can also obtain other drawings according to these drawings without any creative effort.

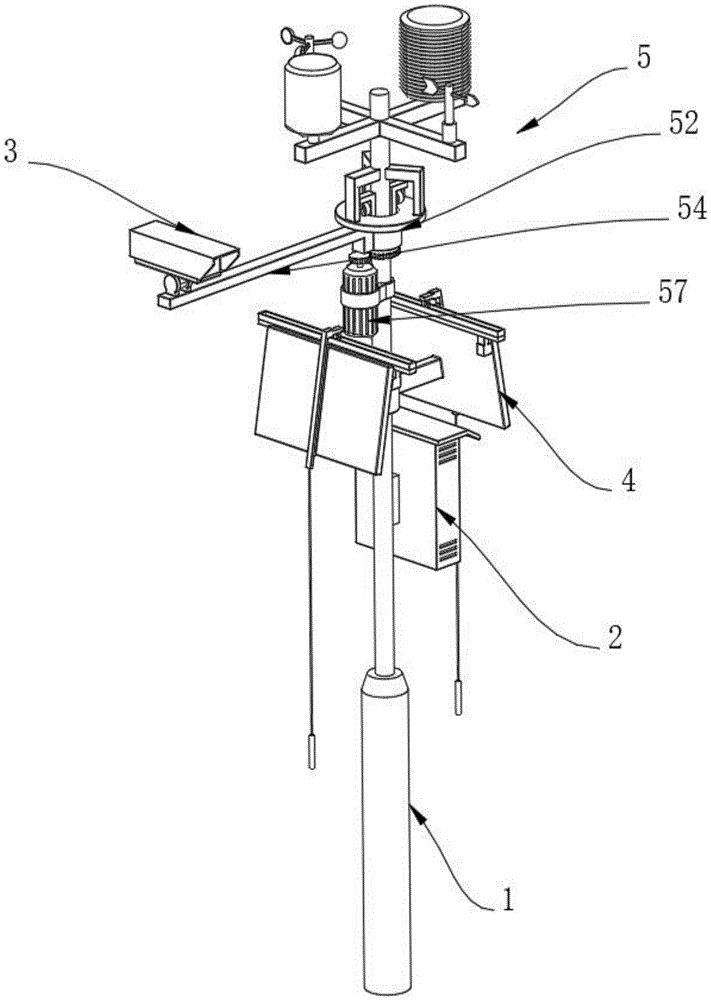

Fig. 1 is the schematic diagram of the three-dimensional structure of the supporting rod in the first embodiment;

Fig. 2 is a partial structural schematic diagram of the regulating device in Embodiment 1;

Fig. 3 is a side view structural schematic diagram of a support rod in Embodiment 1;

Fig. 4 is the schematic diagram of the structure at A of Fig. 3 in Embodiment 1;

Fig. 5 is a schematic perspective view of the three-dimensional structure of the shield in the second embodiment.

In the figure: 1. support rod; 2. distribution box; 3. camera; 4. solar panel; 5. adjustment device; 51. support block; 52. fixing ring; 53. drum; Roller; 56, connecting ring; 57, motor; 48, output disc; 49, gear plate; 6, cleaning device; 61, support frame; 62, cleaning brush; 63, moving wheel; 64, frame; 65, pull rope; 7. Shield.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Embodiment one

Please refer to Figures 1-4, a monitoring and early warning device, including a support rod 1, a camera 3 and an adjustment device 5, the surface of the support rod 1 is fixedly installed with a distribution box 2, and the camera 3 is located on the support rod 1 The surface of the support rod 1 is fixedly connected with two solar panels 4; the surface of the support rod 1 and the camera 3 is provided with an adjustment device 5, and the adjustment device 5 includes three support blocks 51, and the three The side walls of the support blocks 51 are fixedly connected to the surface of the support rod 1, the bottom ends of the three support blocks 51 are fixedly connected with a fixed ring 52, and the surface of the fixed ring 52 is rotatably connected with a rotating cylinder 53, and the rotating cylinder The surface of the 53 is fixedly connected with a fixed rod 54, and the upper surface of the fixed rod 54 is fixedly connected with the bottom end of the camera 3; during work, when it is necessary to adjust the shooting position of the camera 3, push the fixed rod 54 to allow the fixed rod 54 to drive the rotating drum 53 Rotate, rotating drum 53 rotates on the fixed ring 52 surface on the support block 51, stop rotating the fixed rod 54 after the fixed rod 54 rotates to a suitable angle, the support block 51, the fixed ring 52, the rotating drum 53 and the fixed rod 54 can be in a certain position. It is convenient to adjust the position of the camera 3 to a certain extent.

The surface of the drum 53 is rotatably connected with two rollers 55, and the two rollers 55 are symmetrically distributed with respect to the central axis of the drum 53; during operation, when the drum 53 rotates, the rollers 55 will be driven to roll on the surface of the fixed ring 52 , the roller 55 can facilitate the rotation of the drum 53 .

The surface of the support rod 1 is fixedly connected with a connecting ring 56, and the inner wall of the connecting ring 56 is fixedly connected with a motor 57; during work, when using the motor 57, the motor 57 is fixed on the surface of the supporting rod 1 through the connecting ring 56, The connecting ring 56 can support the motor 57 to a certain extent.

The output end of the motor 57 is fixedly connected with an output disk 48, and the bottom end of the rotating cylinder 53 is fixedly connected with a toothed disk 49, and the toothed disk 49 and the output disk 48 are engaged with each other; during operation, when rotating the rotating cylinder 53 , start the motor 57 to allow the motor 57 to drive the output disc 48 to rotate, the output disc 48 drives the toothed disc 49 to rotate, and the toothed disc 49 drives the rotating drum 53 to rotate. By setting the output disc 48 and the toothed disc 49, the rotating drum 53 can be conveniently rotated to a certain extent .

The surface of the solar panel 4 is provided with a cleaning device 6, the cleaning device 6 includes a cleaning brush 62, the cleaning brush 62 is located on the surface of the solar panel 4, and the side wall of the solar panel 4 is fixedly connected near the position of the cleaning brush 62 Support frame 61 is arranged, and the surface rotation of described cleaning brush 62 is connected with mobile wheel 63, and described mobile wheel 63 is positioned at the upper surface of support frame 61; Drive the moving wheel 63 to rotate, the moving wheel 63 rolls on the upper surface of the support frame 61, and can move on the surface of the solar panel 4 when the cleaning brush 62 slides, and the cleaning brush 62 can clean the solar panel 4 to a certain extent.

The upper surface of described support frame 61 is fixedly connected with frame 64, and described frame 64 is positioned at the surface of moving wheel 63, and the bottom end of described cleaning brush 62 is fixedly connected with stay cord 65; During work, when moving cleaning brush 62, Pulling the stay cord 65 allows the stay cord 65 to drive the cleaning brush 62 to move, and can move on the surface of the frame 64 when the moving wheel 63 moves, and the setting of the stay cord 65 can facilitate people to move the cleaning brush 62 .

Embodiment two

Please refer to Fig. 5, comparative example one, as another embodiment of the present utility model, the surface of the distribution box 2 is provided with a plurality of heat dissipation openings, and the side wall of the distribution box 2 is close to the heat dissipation openings. The position is fixedly connected with a baffle 7; when working, the baffle 7 is fixed on the surface of the distribution box 2, and the baffle 7 can reduce the possibility of rainwater entering the inside of the distribution box 2 to a certain extent.

Working principle, when adjusting the position of the camera 3, start the motor 57 in the connecting ring 56, which output disk 48 of the motor 57 rotates, the output disk 48 drives the toothed disk 49 to rotate, the toothed disk 49 drives the rotating drum 53 to rotate, and the rotating drum 53 drives The fixed rod 54 rotates, and when the drum 53 rotates, it will drive the roller 55 to rotate. The roller 55 rotates on the surface of the fixed ring 52 at the bottom of the support block 51. When the fixed rod 54 rotates, it will drive the camera 3 to rotate, and the motor 57 is provided to rotate the camera 3. The power of the output disk 48 and the toothed disk 49 can make the drum 53 rotate, and the fixed rod 54 can support the camera 3 to a certain extent. The setting of the whole device can adjust the position of the camera 3, and can also save manual steps. When the solar panel 4 needs to be cleaned, the pull cord 65 is pulled to allow the stay cord 65 to drive the cleaning brush 62 to slide, and the cleaning brush 62 moves on the surface of the solar panel 4. When the cleaning brush 62 moves, the moving wheel 63 is driven to roll on the surface of the support frame 61 Simultaneously, the moving wheel 63 also moves on the surface of the frame 64. The frame 64 limits the moving position of the moving wheel 63. By setting the cleaning brush 62, the solar panel 4 can be cleaned to reduce the dust on the surface of the solar panel 4.

In the description of this specification, descriptions referring to the terms "one embodiment", "example", "specific example" and the like mean that the specific features, structures, materials or characteristics described in conjunction with the embodiment or example are included in the description of the present invention. In at least one embodiment or example. In this specification, schematic representations of the above terms do not necessarily refer to the same embodiment or example. Furthermore, the specific features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The basic principles, main features and advantages of the present utility model have been shown and described above. Those skilled in the art should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the utility model. Without departing from the spirit and scope of the utility model, the utility model The new model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model.

Claims (6)

1. A monitoring and early warning device, comprising a support rod (1), a camera (3) and an adjustment device (5), the surface of the support rod (1) is fixedly equipped with a distribution box (2), and the camera (3) ) is located on the surface of the support rod (1), and the surface of the support rod (1) is fixedly connected with two solar panels (4); it is characterized in that: the surface of the support rod (1) and the camera (3) are provided with An adjustment device (5), the adjustment device (5) includes three support blocks (51), the side walls of the three support blocks (51) are fixedly connected to the surface of the support rod (1), and the three support blocks The bottom end of (51) is fixedly connected with fixed ring (52), and the surface of described fixed ring (52) is connected with rotating cylinder (53), and the surface of described rotating cylinder (53) is fixedly connected with fixed rod (54) , the upper surface of the fixed rod (54) is fixedly connected to the bottom end of the camera (3). 2. A kind of monitoring and early warning device according to claim 1, characterized in that: the surface of the rotating cylinder (53) is rotatably connected with two rollers (55), and the two rollers (55) are relatively opposite to the rotating cylinder ( 53) symmetrical distribution of the central axis. 3. A monitoring and early warning device according to claim 2, characterized in that: the surface of the support rod (1) is fixedly connected with a connecting ring (56), and the inner wall of the connecting ring (56) is fixedly connected with a motor (57). 4. A kind of monitoring and early warning device according to claim 3, characterized in that: the output end of the motor (57) is fixedly connected with an output disk (48), and the bottom end of the rotating cylinder (53) is fixedly connected with a A toothed disc (49), said toothed disc (49) and the output disc (48) mesh with each other. 5. A kind of monitoring early warning device according to claim 1, is characterized in that: the surface of described solar panel (4) is provided with cleaning device (6), and described cleaning device (6) comprises cleaning brush (62), The cleaning brush (62) is positioned on the surface of the solar panel (4), and the side wall of the solar panel (4) is fixedly connected with a support frame (61) near the position of the cleaning brush (62). The surface is rotatably connected with a moving wheel (63), and the moving wheel (63) is located on the upper surface of the supporting frame (61). 6. A kind of monitoring and early warning device according to claim 5, characterized in that: the upper surface of the support frame (61) is fixedly connected with a frame (64), and the frame (64) is positioned on the side of the moving wheel (63). On the surface, the bottom end of the cleaning brush (62) is fixedly connected with a pull cord (65).
