Abstract
The utility model provides a breed fodder machine relates to poultry breeding technical field, including protection casing and first garrulous material stick, the both ends of first garrulous material stick respectively with rotate between the inside wall of protection casing and connect, the lateral wall central point of protection casing puts the department and rotates and be connected with first conical gear, first conical gear's bottom meshing has second conical gear, second conical gear's bottom fixedly connected with connecting axle. The utility model discloses a rotate first crushed aggregates stick and drive first conical gear and rotate, first conical gear drives second conical gear and rotates on the horizontal plane, second conical gear drives first drive wheel and rotates, first drive wheel passes through the drive belt and drives the second drive wheel and rotate, the second drive wheel drives the stirring fan blade rotation of fixed plate top, when stirring fan blade rotates, carry out abundant stirring with different crushed aggregates, the mixing of different content has been realized in the fodder, the nutrient that ingests when making the young birds feed is more balanced.
Description
Technical Field
The utility model relates to a poultry breeding technology field especially relates to a breeding feed machine.
Background
In the poultry raising process, the farm needs to process raw materials such as corn kernels, soybean cakes and the like into refined particles, the breeding equipment is a feed machine, the feed machine can produce and process feeds of different grains and nutrients in a large batch, the feeding cost of the feed factory is greatly reduced, and different feeds can be prepared according to different feeding and development time.
In the prior art, as for chinese patent CN209732262U, "a fodder machine for cultivation", includes damper, bottom plate, transmission case, (mixing) shaft, fodder discharge gate and dodge gate, damper is all installed at four corners of bottom plate bottom, the shell is installed at the intermediate position department on bottom plate top, the fodder discharge gate is all installed at the intermediate position department of shell both sides, fodder outlet baffle to the inside bottom of fodder discharge gate is all vertically installed to ejection of compact electric telescopic handle's bottom, the pan feeding electric putter is all installed on the top of the shell that goes into feed bin and keeps away from bottom plate axis one side, the battery protective housing is all installed to the both sides of the inside bottom of shell, the driving motor is vertically installed at the intermediate position department of the inside bottom of shell. The utility model discloses an install (mixing) shaft and stirring leaf, can carry out abundant stirring to multiple or single fodder when using, reduced the time of manual stirring fodder for poultry can be more balanced absorb the nutrition in the fodder.
However, in the prior art, young birds need to absorb different nutrients in a development period, a breeding cage needs to be placed in a general breeding farm, the space is limited, the size of a feed machine is small, the occupied space of a stirring motor is large, the feed machine with the stirring motor cannot be placed indoors, the feed machine cannot be fully stirred, the feed machine needs to be manually mixed after different feeds are finely crushed, the feed is stirred insufficiently, the young birds are unbalanced in nutrient absorption, and the development of the young birds is affected.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the poult in the development cycle, need absorb different nutrients, breed cage need be put to indoor needs of general plant, the space is limited, the volume of feed machine is little, agitator motor's occupation space is big, the feed machine that has agitator motor can't be placed indoor, the inside unable intensive mixing that carries out of feed machine, the feed machine is with the fodder back in small, need carry out artifical mixing with the fodder in addition, it is abundant inadequately to have led to the fodder stirring, it is unbalanced to have led to the poult to absorb the nutrient, influence the problem of the development of poult, and a breed feed machine that proposes.
In order to achieve the above purpose, the utility model adopts the following technical scheme: the utility model provides a breeding feed machine, includes protection casing and first garrulous material stick, the both ends of first garrulous material stick respectively with rotate between the inside wall of protection casing and connect, the lateral wall central point department of putting of protection casing rotates and is connected with first conical gear, first conical gear's bottom meshing has second conical gear, second conical gear's bottom fixedly connected with connecting axle, the first transmission wheel of bottom fixedly connected with of connecting axle, the bottom central point department fixedly connected with fixed plate of putting of protection casing, the bottom surface of fixed plate rotates and is connected with the second drive wheel, first transmission wheel with the transmission is connected with the drive belt between the second drive wheel, the top surface of fixed plate rotates and is connected with stirring fan blade, stirring fan blade's bottom is run through the fixed plate bottom surface and with fixed connection between the second drive wheel.
Preferably, the both sides of fixed plate all activity joint have the revolving door, two the revolving door all with the activity hinge joint between the protection casing.
Preferably, one end of the first crushed material rod penetrates through the side wall of the protective cover and is fixedly connected with the first bevel gear, and the other end of the first crushed material rod penetrates through the side wall of the protective cover and is fixedly connected with the second gear.
Preferably, one side, away from the protection casing, of the second gear is fixedly connected with a third gear, a first gear is meshed with the outer side of the third gear, and a fourth gear is meshed with the outer side of the second gear.
Preferably, both sides of first shredded material stick all are provided with second shredded material stick, two the both ends of second shredded material stick all with rotate between the inner wall side of protection casing and be connected, wherein, one the one end of second shredded material stick runs through the lateral wall of protection casing and with fixed connection between the first gear, another the one end of second shredded material stick run through the lateral wall of protection casing and with fixed connection between the fourth gear.
Preferably, the bottom end of the protective cover is fixedly connected with a discharging shell, and four corner positions at the top end of the outer side wall of the discharging shell are fixedly connected with supporting legs.
Preferably, the outer side wall of the protective cover is located at the position of the first bevel gear and fixedly connected with a connecting frame, the side wall of the connecting frame is fixedly connected with a motor, the output end of the motor is fixedly connected with the side wall of the first bevel gear, the bottom surface of the second bevel gear is rotatably connected with a rotating frame, and the rotating frame is fixedly connected with the outer side wall of the protective cover.
Compared with the prior art, the utility model discloses an advantage lies in with positive effect:
1. the utility model discloses in, drive first bevel gear through first crushed aggregates stick and rotate, first bevel gear drives second bevel gear and rotates on the horizontal plane, second bevel gear drives first drive wheel and rotates, first drive wheel passes through the drive belt and drives the rotation of second drive wheel, the second drive wheel drives the stirring fan blade rotation of fixed plate top, when stirring fan blade rotates, carry out abundant stirring with different crushed aggregates, the mixing of different content in the fodder has been realized, the nutrient of ingesting when making the young birds feed is more balanced.
2. The utility model discloses in, output through the motor drives first conical gear and rotates, first crushed aggregates stick rotates and drives second gear, second gear rotates and drives third gear, meshing between first gear and the third gear, make first gear along with third gear revolve, first gear drives a second crushed aggregates stick and rotates, meshing between second gear and the fourth gear, make the fourth gear along with second gear revolve, the fourth gear drives another second crushed aggregates stick and rotates, make first crushed aggregates stick and two second crushed aggregates stick reverse rotation simultaneously, the fine crushing effect of the blade of first crushed aggregates stick and two second crushed aggregates stick to the raw materials has been realized, make the particle size of fodder be convenient for the young birds more feed, the growth and development speed of poultry fodder has been promoted.
Drawings

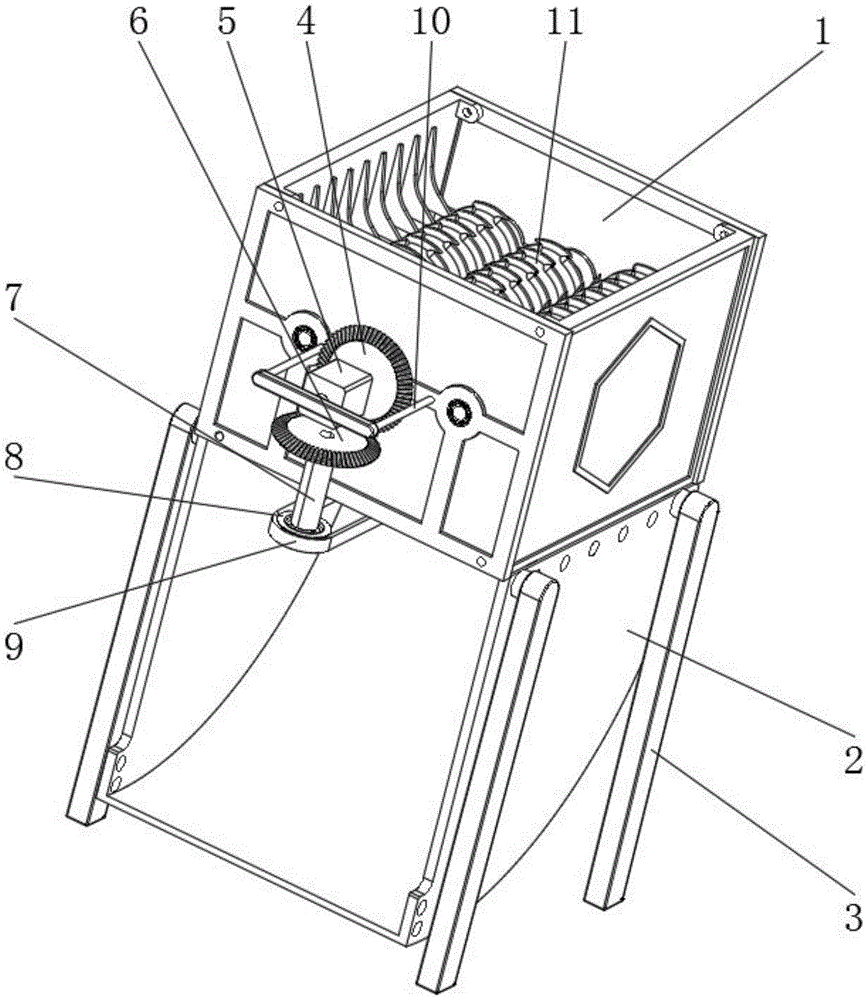

FIG. 1 is a schematic view of the overall structure of a farming feed machine according to the present invention;
FIG. 2 is a schematic view of the internal structure of a protective cover of a breeding feed machine according to the present invention;
FIG. 3 is a schematic view of the internal structure of the discharging shell of the feeding machine of the present invention;
fig. 4 is the utility model provides a first bevel gear and second bevel gear structural sketch map of breed fodder machine.
Illustration of the drawings:
1. a protective cover; 2. a discharging shell; 3. supporting legs; 4. a first bevel gear; 5. a motor; 6. a second bevel gear; 7. a connecting shaft; 8. a first drive pulley; 9. a transmission belt; 10. a connecting frame; 11. a first cullet bar; 12. a second cullet bar; 13. a first gear; 14. a second gear; 15. a third gear; 16. a fourth gear; 17. a rotating door; 18. a fixing plate; 19. a second transmission wheel; 20. a stirring fan blade; 21. and (6) a rotating frame.
Detailed Description
In order to make the above objects, features and advantages of the present invention more clearly understood, the present invention will be further described with reference to the accompanying drawings and examples. It should be noted that the embodiments and features of the embodiments of the present application may be combined with each other without conflict.
In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention, however, the present invention may be practiced in other ways than those specifically described herein, and therefore the present invention is not limited to the limitations of the specific embodiments of the present disclosure.
As shown in fig. 2 and fig. 3, both sides of the fixed plate 18 are movably clamped with the rotating doors 17, both the rotating doors 17 are movably hinged with the shield 1, one end of the first crushed material rod 11 penetrates through the side wall of the shield 1 and is fixedly connected with the first bevel gear 4, the other end of the first crushed material rod 11 penetrates through the side wall of the shield 1 and is fixedly connected with the second gear 14, one side of the second gear 14 departing from the shield 1 is fixedly connected with the third gear 15, the outer side of the third gear 15 is engaged with the first gear 13, the outer side of the second gear 14 is engaged with the fourth gear 16, both sides of the first crushed material rod 11 are provided with the second crushed material rods 12, both ends of both the second crushed material rods 12 are rotatably connected with the inner wall side of the shield 1, wherein one end of one second crushed material rod 12 penetrates through the outer side wall of the shield 1 and is fixedly connected with the first gear 13, one end of another second crushed material rod 12 penetrates through the outer side wall of the protective cover 1 and is fixedly connected with a fourth gear 16, the bottom end of the protective cover 1 is fixedly connected with a discharging shell 2, four corner positions at the top end of the outer side wall of the discharging shell 2 are fixedly connected with supporting legs 3, the outer side wall of the protective cover 1 is fixedly connected with a connecting frame 10 at the position of a first bevel gear 4, the side wall of the connecting frame 10 is fixedly connected with a motor 5, the output end of the motor 5 is fixedly connected with the side wall of the first bevel gear 4, the bottom surface of the second bevel gear 6 is rotatably connected with a rotating frame 21, the rotating frame 21 is fixedly connected with the outer side wall of the protective cover 1, when the protective cover is used, the motor 5 is started, the output end of the motor 5 drives the first bevel gear 4 to rotate to provide power for the rotation of the first crushed material rod 11, the first crushed material rod 11 rotates to drive the second gear 14 to rotate, the second gear 14 rotates to drive a third gear 15 to rotate, the first gear 13 is meshed with the third gear 15, the first gear 13 rotates along with the third gear 15, the first gear 13 drives one second crushed material rod 12 to rotate, the second gear 14 is meshed with the fourth gear 16, the fourth gear 16 rotates along with the second gear 14, the fourth gear 16 drives the other second crushed material rod 12 to rotate, the first crushed material rod 11 and the two second crushed material rods 12 rotate in the opposite direction at the same time, the crushing effect of the blades on the raw materials is achieved, the rotating doors 17 on the two sides of the fixing plate 18 provide movable clamping connection between the lock catches and the fixing plate 18, after the raw materials on the fixing plate 18 are fully stirred, the rotating doors 17 on the two sides are opened, the rotating doors 17 rotate to the vertical state, and the raw materials on the fixing plate 18 enter the discharging shell 2 to be fed to young poultry.
The use method and the working principle of the device are as follows: the motor 5 is started, the output end of the motor 5 drives the first bevel gear 4 to rotate, the first bevel gear 4 drives the first crushed material rod 11 to rotate, the first crushed material rod 11 drives the second gear 14 to rotate, the second gear 14 drives the third gear 15 to rotate, the first gear 13 is meshed with the third gear 15, the first gear 13 is made to rotate along with the third gear 15, the first gear 13 drives one second crushed material rod 12 to rotate, the second gear 14 is meshed with the fourth gear 16, the fourth gear 16 is made to rotate along with the second gear 14, the fourth gear 16 drives the other second crushed material rod 12 to rotate, the first crushed material rod 11 and the two second crushed material rods 12 simultaneously rotate in opposite directions, stirring of feed raw materials is achieved, meanwhile, the first bevel gear 4 drives the second bevel gear 6 to rotate, the second bevel gear 6 drives the first driving wheel 8 to rotate, the first driving wheel 8 drives the second driving wheel 19 to rotate through the second driving wheel 9, and the second driving wheel 19 drives the stirring fan blades 20 above the fixing plate 18 to rotate, and mixing of the feed raw materials is achieved.
The above description is only a preferred embodiment of the present invention, and is not intended to limit the present invention in other forms, and any person skilled in the art may use the above-mentioned technical contents to change or modify the equivalent embodiment into equivalent changes and apply to other fields, but any simple modification, equivalent change and modification made to the above embodiments according to the technical matters of the present invention will still fall within the protection scope of the technical solution of the present invention.
Claims (7)
1. The utility model provides a breed fodder machine, includes protection casing (1) and first shredded materials stick (11), its characterized in that: the utility model discloses a material crushing device, including protection casing (1), first garrulous material stick (11), the both ends of first garrulous material stick respectively with rotate between the inside wall of protection casing (1) and connect, the outside wall central point department of putting of protection casing (1) rotates and is connected with first conical gear (4), the bottom meshing of first conical gear (4) has second conical gear (6), the bottom fixedly connected with connecting axle (7) of second conical gear (6), the first drive wheel (8) of bottom fixedly connected with of connecting axle (7), the bottom central point department fixedly connected with fixed plate (18) of putting of protection casing (1), the bottom surface of fixed plate (18) rotates and is connected with second drive wheel (19), first drive wheel (8) with transmission is connected with drive belt (9) between second drive wheel (19), the top surface of fixed plate (18) rotates and is connected with stirring fan blade (20), the bottom of stirring fan blade (20) run through fixed plate (18) bottom surface and with fixed connection between the second drive wheel (19).
2. The aquaculture feed machine of claim 1, wherein: the both sides of fixed plate (18) are all movable joint has rotating door (17), two rotating door (17) all with the activity is articulated between protection casing (1).
3. A aquaculture feed machine as claimed in claim 1, wherein: one end of the first crushing rod (11) penetrates through the side wall of the protective cover (1) and is fixedly connected with the first bevel gear (4), and the other end of the first crushing rod (11) penetrates through the side wall of the protective cover (1) and is fixedly connected with the second gear (14).
4. A aquaculture feed machine as claimed in claim 3 wherein: the second gear (14) deviates from one side of the protective cover (1) and is fixedly connected with a third gear (15), a first gear (13) is meshed with the outer side of the third gear (15), and a fourth gear (16) is meshed with the outer side of the second gear (14).
5. A breeding feed machine according to claim 4, characterized in that: the both sides of first shredded material stick (11) all are provided with second shredded material stick (12), two the both ends of second shredded material stick (12) all with rotate between the inner wall side of protection casing (1) and be connected, wherein, one the one end of second shredded material stick (12) is run through the lateral wall of protection casing (1) and with fixed connection between first gear (13), another the one end of second shredded material stick (12) is run through the lateral wall of protection casing (1) and with fixed connection between fourth gear (16).
6. A aquaculture feed machine as claimed in claim 1, wherein: the bottom fixedly connected with ejection of compact shell (2) of protection casing (1), four turning position departments on the lateral wall top of ejection of compact shell (2) all fixedly connected with supporting legs (3).
7. The aquaculture feed machine of claim 1, wherein: the lateral wall of protection casing (1) is located fixedly connected with link (10) of first conical gear (4) position department, the lateral wall fixedly connected with motor (5) of link (10), the output of motor (5) with fixed connection between first conical gear (4) lateral wall, the bottom surface of second conical gear (6) is rotated and is connected with rotating turret (21), rotating turret (21) with fixed connection between protection casing (1) the lateral wall.
