CN218427214U

CN218427214U - Machine of attacking is bored and is removed bits mechanism

Info

Publication number: CN218427214U
Application number: CN202222746387.8U
Authority: CN
Inventors: 杜家帅; 宋美佳; 荣雨
Original assignee: Hefei Heyuxing Precision Hardware Co ltd
Current assignee: Hefei Heyuxing Precision Hardware Co ltd
Priority date: 2022-10-18
Filing date: 2022-10-18
Publication date: 2023-02-03
Anticipated expiration: 2032-10-18

Abstract

The utility model relates to a machine of attacking is bored to brill removes bits mechanism, it includes the box, the top of box is equipped with bores and attacks the machine, the box top just is located and bores the position of attacking under the machine and has seted up the through-hole, the inside of through-hole is provided with the framework, just two spouts, two have been seted up to the inside wall symmetry of framework sliding connection has a plurality of support bars between the spout, the box is internal to be provided with sweeps collection subassembly for the position of through-hole to can change the gap between each support bar in the framework, make things convenient for not equidimension iron fillings to drop through the gap and collect in the box from this.

Description

Machine of attacking is bored and is removed bits mechanism

Technical Field

The application relates to the technical field of brill machine of attacking, more specifically say, relate to a brill machine of attacking removes bits mechanism.

Background

The drilling and tapping machine is also called as a drilling and tapping machine, is a metal cutting machine tool, is numerical control machining equipment, has similar style and function as a machining center, can be used for drilling or tapping a workpiece, and is used for drilling the workpiece through a cutter on the drilling and tapping machine, so that a large amount of metal scraps are often generated in the machining process of the workpiece.

At present, to the sweeps that brill machine work produced, the absorbent mode of adoption wind-force is mostly, will process bench iron fillings and inhale and take away, through at the processing bench design fretwork panel, makes the sweeps department of falling processing platform through crossing the gap on the fretwork panel, however, in practice because the unable adjustment in gap of fretwork panel changes, and then leads to processing the great volume sweeps that produces, can't drop out the processing platform through the gap. Based on the above problem, we provide a brill attacks machine and removes bits mechanism.

SUMMERY OF THE UTILITY MODEL

In order to solve the problems proposed in the background art described above, the present application provides a chip removal mechanism for a drilling and tapping machine.

The application provides a brill attacks machine and removes bits mechanism adopts following technical scheme:

the utility model provides a machine of attacking is attacked to brill removes bits mechanism, comprises a box body, the top of box is equipped with bores and attacks the machine, the box top just is located bores and attacks the position under the machine and seted up the through-hole, the inside of through-hole is provided with the framework, just two spouts, two have been seted up to the inside wall symmetry of framework sliding connection has a plurality of support bars between the spout, the box is internal to be provided with the sweeps collection subassembly for the position of through-hole.

Through adopting above-mentioned technical scheme to can change the gap between each support bar in the frame, make things convenient for not equidimension iron fillings to drop through the gap and collect to the box from this.

Preferably, the scrap collecting assembly comprises a collecting frame assembled inside the box body, the bottom of the collecting frame is communicated with a guide pipe, and a suction fan is assembled at the side end of the guide pipe.

Through adopting above-mentioned technical scheme, drive the sweeps in the framework gap from this and drop to collect in the frame to the completion is to the collection work of sweeps.

Preferably, the filter screen plate is inserted and assembled in the collecting frame.

Through adopting above-mentioned technical scheme, reduce the sweeps promptly and drop to in the pipe.

Preferably, the conduit is U-shaped.

Through adopting above-mentioned technical scheme, guarantee to a certain extent that the impurity gathering that gets into the pipe is in the bottom of pipe, reduce the outside of discharging to the box such as impurity dust promptly.

Preferably, a plurality of limiting grooves are formed in the inner side edge of the through hole, a plurality of insertion pads are fixedly connected to the outer side surface of the frame body, and each insertion pad can be inserted into the corresponding limiting groove.

By adopting the technical scheme, a user can conveniently clean the scraps, and meanwhile, the insertion pads are in insertion fit with the corresponding limiting grooves, so that the assembly stability of the frame body can be improved.

To sum up, the application comprises the following beneficial technical effects:

the slip through the support bar, thereby change the size in gap between each support bar, then place the top at the box with the work piece, and guarantee that the trompil department of work piece arranges in the framework, then carry out the centre gripping by outside clamping structure to the work piece fixed, attack the machine by the brill and carry out drilling processing to the work piece in the framework, and open the sweeps collection subassembly, the gap between the sweeps accessible that the work piece produced in the course of working this moment in the box that drops, and collect by the sweeps collection subassembly structural design, thereby can change the gap between each support bar in the framework, make things convenient for not equidimension iron fillings to drop to collect in the box through the gap from this.

Drawings

FIG. 1 is a schematic structural diagram of a chip removing mechanism for a drilling and tapping machine in an embodiment of the present application;

FIG. 2 is a schematic structural diagram of a cross section of a chip removing mechanism for an under-drill tapping machine in an embodiment of the application;

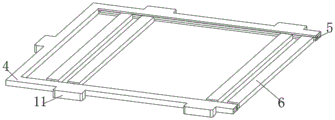

FIG. 3 is a schematic structural diagram of a frame body in an embodiment of the present application;

fig. 4 is a schematic sectional structural view of a frame body in an embodiment of the present application.

Description of reference numerals: 1. a box body; 2. drilling and tapping machine; 3. a through hole; 4. a frame body; 5. a chute; 6. a supporting strip; 7. a collection frame; 8. a conduit; 9. a filter screen plate; 10. defining a slot; 11. and inserting the pads.

Detailed Description

The present application is described in further detail below with reference to figures 1-4.

It is noted that the drawings are diagrammatic and not to scale. Relative dimensions and proportions of parts shown in the figures have been shown exaggerated or reduced in size, for the sake of clarity and convenience in the drawings, and any dimensions are exemplary only and not limiting. The same reference numerals are used for the same structures, elements, and components appearing in two or more drawings to show similar features.

The embodiment of the application discloses machine chip removing mechanism is attacked to brill. Referring to fig. 1-4, a chip removing mechanism for a drilling and tapping machine comprises a box body 1, a drilling and tapping machine 2 is assembled at the top of the box body 1, a through hole 3 is formed in the top of the box body 1 and is positioned right below the drilling and tapping machine 2, a frame body 4 is arranged inside the through hole 3, two sliding grooves 5 are symmetrically formed in the inner side wall of the frame body 4, a plurality of supporting bars 6 are connected between the two sliding grooves 5 in a sliding manner, the number of the supporting bars 6 is at least four, a chip collecting assembly is arranged in the box body 1 at a position corresponding to the through hole 3, and a box door is hinged to the front side of the box body 1 (electric components used by the device are all powered by an external power supply);

specifically, the supporting bars 6 slide according to the size of a workpiece to be punched and the hole diameter of the punched hole of the workpiece, so that the size of the gap between the supporting bars 6 is changed, then the workpiece is placed at the top of the box body 1, the hole part of the workpiece is ensured to be arranged on the frame body 4, then the workpiece is clamped and fixed by an external clamping structure, then the workpiece on the frame body 4 is drilled by the drilling and tapping machine 2, and the scrap collecting assembly is opened, and the scrap generated in the machining process of the workpiece can fall into the box body 1 through the gap between the supporting bars 6 and is collected by the scrap collecting assembly;

through this structural design to can change the gap between each support bar 6 in the framework 4, make things convenient for not equidimension iron fillings to drop through the gap and collect to box 1 from this.

Referring to fig. 1 and 2, the scrap collecting assembly comprises a collecting frame 7 assembled inside the box body 1, a guide pipe 8 is communicated with the bottom of the collecting frame 7, the guide pipe 8 is designed in a detachable manner, so that a user can conveniently clean impurities in the guide pipe 8, a suction fan is assembled at the side end of the guide pipe 8, and the suction fan can be assembled on the outer side surface of the box body 1 or inside the box body 1;

specifically, the sweeps collection subassembly is breathed in collecting frame 7 through pipe 8 by the suction fan when using for collect the inside negative pressure that forms of frame 7, drive the sweeps in the 4 gaps of framework from this and drop to in collecting frame 7, thereby accomplish the collection work to the sweeps.

Referring to fig. 2, the inside of the collecting frame 7 is inserted with a filter screen plate 9, and by arranging the filter screen plate 9, the dropped waste can fall on the filter screen plate 9 for collection, that is, the dropped waste is dropped into the conduit 8.

Referring to fig. 2, the duct 8 has a U-shape, and this design can ensure that the impurities entering the duct 8 are collected at the bottom of the duct 8 to some extent, i.e. reduce the discharge of impurities, dust, etc. to the outside of the cabinet 1.

Referring to fig. 1, 2 and 3, a plurality of limiting grooves 10 are formed in the inner side edge of the through hole 3, a plurality of inserting pads 11 are fixedly connected to the outer side surface of the frame body 4, and each inserting pad 11 can be inserted into the corresponding limiting groove 10 in an inserting mode, specifically, when a user needs to clean impurities on the filter screen plate 9, the user can pull out the frame body 4, the frame body 4 is separated from the through hole 3, the user can clean scraps conveniently, meanwhile, each inserting pad 11 is inserted into and matched with the corresponding limiting groove 10, and the assembling stability of the frame body 4 can be improved.

The utility model discloses the standard part that uses all can purchase from the market, and dysmorphism piece all can be customized according to the description with the record of drawing of description, and the concrete connection mode of each part all adopts conventional means such as ripe bolt, rivet, welding among the prior art, and machinery, part and equipment all adopt prior art, and conventional model, including circuit connection adopts conventional connection mode among the prior art, does not detailed here again.

The implementation principle of removing bits mechanism for drilling and tapping machine in the embodiment of the application is as follows: firstly, the supporting bars 6 slide according to the size of a workpiece to be perforated and the hole diameter of the perforated part of the workpiece, so that the size of gaps among the supporting bars 6 is changed, then the workpiece is placed at the top of the box body 1, the perforated part of the workpiece is ensured to be arranged on the frame body 4, then the workpiece is clamped and fixed by an external clamping structure, then the workpiece on the frame body 4 is drilled by the drilling and tapping machine 2, and the scrap collecting assembly is opened, and the scraps produced in the machining process of the workpiece can fall into the box body 1 through the gaps among the supporting bars 6 and are collected by the scrap collecting assembly;

the sweeps collection assembly is when using, is breathed in collecting frame 7 through pipe 8 by the suction fan for collect the inside negative pressure that forms of frame 7, drive the sweeps in the 4 gaps of framework from this and drop to collecting in the frame 7, thereby accomplish the collection work to the sweeps.

The points to be finally explained are: first, in the description of the present application, it should be noted that, unless otherwise specified and limited, the terms "mounted," "connected," "connecting," and "connecting" should be understood broadly, and may be a mechanical connection or an electrical connection, or a communication between two elements, and may be directly connected, and "upper," "lower," "left," and "right" are only used to indicate relative positional relationships, and when the absolute position of the object to be described is changed, the relative positional relationships may be changed;

secondly, the method comprises the following steps: in the drawings of the disclosed embodiments of the present invention, only the structures related to the disclosed embodiments are referred to, and other structures can refer to the common design, and under the condition of no conflict, the same embodiment and different embodiments of the present invention can be combined with each other;

and finally: the above description is only for the preferred embodiment of the present invention and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. The utility model provides a machine of attacking that bores removes bits mechanism, includes box (1), the top of box (1) is equipped with bores machine of attacking (2), its characterized in that: the utility model discloses a drilling machine, including box (1), through-hole (3) have been seted up to box (1) top and the position that is located under brill machine of attacking (2), the inside of through-hole (3) is provided with framework (4), just two spout (5), two have been seted up to the inside wall symmetry of framework (4) sliding connection has a plurality of support bars (6) between spout (5), box (1) inside is provided with the sweeps for the position of through-hole (3) and collects the subassembly.

2. The chip removing mechanism for the drilling and tapping machine according to claim 1, wherein: the sweeps collection assembly comprises a collection frame (7) assembled inside the box body (1), the bottom of the collection frame (7) is communicated with a guide pipe (8), and the side end of the guide pipe (8) is assembled with a suction fan.

3. The chip removing mechanism for the drilling and tapping machine according to claim 2, wherein: the interior of the collecting frame (7) is provided with a filter screen plate (9) in an inserted manner.

4. The chip removing mechanism for the drilling and tapping machine as claimed in claim 2, wherein: the conduit (8) is U-shaped.

5. The chip removing mechanism for the drilling and tapping machine according to claim 1, wherein: a plurality of limiting grooves (10) are formed in the inner side edge of the through hole (3), a plurality of insertion pads (11) are fixedly connected to the outer side surface of the frame body (4), and the insertion pads (11) can be assembled in the corresponding limiting grooves (10) in an inserted mode.
