Abstract
The utility model discloses a building rubbish rubbing crusher with screening structure, concretely relates to building rubbish handles technical field, the utility model discloses a supporting seat, the whole I shape that is of supporting seat, the upper and lower two-layer backup pad, two of supporting seat be connected with many support columns between the backup pad, install crushing case in the backup pad, the top of crushing case adopts the open design, the screen cloth is installed to the bottom of crushing case, install rubbing crusher on the crushing case and construct, rubbing crusher constructs and is used for smashing building rubbish. The utility model provides a current building rubbish rubbing crusher can not be with the thoroughly kibbling problem of building rubbish.
Description
Technical Field
The utility model belongs to the technical field of building rubbish handles, especially, relate to a building rubbish rubbing crusher with screening structure.
Background
The construction waste refers to the general name of dregs, waste concrete, waste bricks and stones and other wastes produced by people in the production activities of the construction industry such as demolition, construction, decoration and repair.
Some construction wastes generated in construction engineering are often large in size and difficult to be crushed thoroughly at one time. However, the existing garbage crusher often only crushes the construction garbage once and does not screen the crushed garbage; part of the crushed construction waste is still large in size, so that the space utilization rate during storage and transportation is low, the storage and transportation cost is increased, and the subsequent treatment cost is increased.
SUMMERY OF THE UTILITY MODEL
The utility model provides a building rubbish rubbing crusher with screening structure to solve current building rubbish rubbing crusher and can not be with the thoroughly kibbling problem of building rubbish.
The above technical purpose of the present invention can be achieved by the following technical solutions: the utility model provides a building rubbish rubbing crusher with screening structure, includes the supporting seat, the supporting seat is whole to be the I shape, two-layer backup pad, two about the supporting seat be connected with many support columns between the backup pad, install crushing case in the backup pad, the top of crushing case adopts the opening design, the screen cloth is installed to the bottom of crushing case, install rubbing crusher on the crushing case and construct, rubbing crusher constructs and is used for smashing building rubbish.
The principle and the effect of the technology are as follows: when the crushing mechanism in the crushing box crushes the construction wastes, the crushed fine wastes fall down along with the screen, and the construction wastes with larger diameters can continue to stay in the crushing box until being completely crushed by the crushing mechanism.
Further, rubbing crusher constructs including pivot, crushing sword, driving motor and driving belt, the pivot is rotated and is installed at crushing incasement and the one end of pivot passes crushing case, crushing sword is installed in the pivot, driving motor installs in the backup pad and is located outside the crushing case, driving belt overlaps and establishes between driving motor's output shaft and pivot.
By adopting the scheme, the rotating shaft is driven to rotate by the driving motor, and the rotating shaft drives the crushing knife to crush the construction waste in the crushing box when rotating.
Furthermore, fixedly connected with is located the belt pulley of smashing the case outside in the pivot, install the belt pulley on driving motor's the output shaft equally, drive belt's both ends cover is established outside two belt pulleys.
By adopting the scheme, the transmission belt can be more stable when in rotating operation.
Furthermore, be equipped with the opening in the backup pad of support column top, crushing case passes the opening, the splendid attire case is installed to the bottom of crushing case, splendid attire case and the backup pad sliding connection who is located the support column below.
By adopting the scheme, the working personnel can quickly take out the containing box to be filled quickly and then replace the containing box.
Further, the driving motor is connected to the supporting plate through bolts.
By adopting the scheme, the driving motors with different models can be conveniently detached and replaced by workers.
Compared with the prior art, the beneficial effects of the utility model are that: the construction waste with different diameters can be decomposed into the crushed particles with the same diameter, so that the space utilization rate during storage and transportation is improved, and the storage and transportation cost is saved.
Drawings

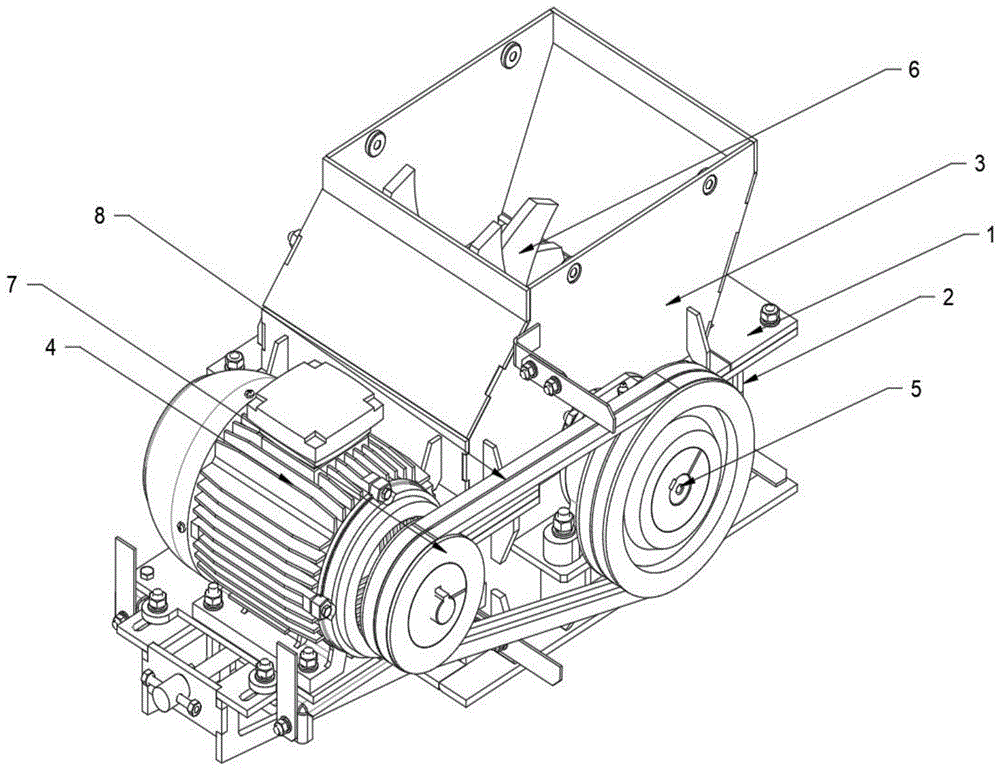

Fig. 1 is a schematic structural view of a construction waste crusher with a screening structure according to the present invention;
in the figure: 1. a support plate; 2. a support pillar; 3. a crushing box; 4. a drive motor; 5. a rotating shaft; 6. a crushing knife; 7. a belt pulley; 8. a drive belt.
Detailed Description
The following is a more detailed description of the present invention with reference to specific embodiments.
Example (b): as shown in fig. 1, the construction waste crusher with the screening structure comprises a supporting seat, wherein the supporting seat is integrally in an I shape. The upper and lower two-layer of supporting seat is rectangular backup pad 1, and the middle bolted connection of two backup pad 1 has many support columns 2 that the interval set up. Be located the backup pad 1 centre of 2 tops of support column and be equipped with the opening, peg graft on the opening and have crushing case 3, the upper and lower both ends of crushing case 3 all adopt the opening design, and the bottom of crushing case 3 can be dismantled and be connected with the screen cloth, and the screen cloth can filter the building rubbish granule that the diameter size is unanimous. The middle of the two supporting plates 1 is provided with a containing box which is positioned under the crushing box 3 and a slide rail is arranged between the containing box and the supporting plates 1. Be equipped with rubbing crusher structure on crushing case 3, rubbing crusher structure includes pivot 5, crushing sword 6, driving motor 4 and driving belt 8, and pivot 5 rotates and wears to establish in crushing 3 insides and be located the screen cloth top, and fixedly connected with belt pulley 7 above crushing case 3 is passed to the one end of pivot 5. Crushing sword 6 fixed mounting is on pivot 5, and driving motor 4 bolted connection just is relative with crushing case 3 in backup pad 1. The output shaft of the driving motor 4 is also provided with belt pulleys 7, and a transmission belt 8 is sleeved outside the two belt pulleys 7.
When the garbage crusher works, when construction garbage needs to be crushed, large construction garbage is only required to be conveyed into the crushing box 3, and then the driving motor 4 is started. When the output shaft of the driving motor 4 rotates, the rotating shaft 5 is driven to rotate together, and when the rotating shaft 5 rotates, the crushing knife 6 is driven to crush the construction waste. At this time, when the particle diameter of the crushed material meets the standard of the screen, the crushed material can fall into the containing box through the screen, and the construction waste with larger diameter is continuously left in the crushing box 3 to be cut by the crushing knife 6, so that the diameter of the construction waste meets the standard of the screen. And then the construction waste after being crushed can be stored and transported only by taking out the containing box.
The above description is only the embodiments of the present invention, and the common knowledge of the known specific structures and characteristics in the solution is not described too much, it should be pointed out that, for those skilled in the art, without departing from the structure of the present invention, a plurality of variations and improvements can be made, and these should also be regarded as the protection scope of the present invention, and these will not affect the effect of the implementation of the present invention and the practicability of the patent. The scope of the claims of the present application shall be determined by the contents of the claims, and the description of the embodiments and the like in the specification shall be used to explain the contents of the claims.
Claims (5)
1. The utility model provides a building rubbish rubbing crusher with screening structure, includes the supporting seat, its characterized in that: the supporting seat is integrally I-shaped, the upper layer and the lower layer of the supporting seat are supporting plates (1) and two supporting columns (2) are connected between the supporting plates (1), a crushing box (3) is installed on the supporting plates (1), the top end of the crushing box (3) is designed in an opening mode, a screen is installed at the bottom of the crushing box (3), a crushing mechanism is installed on the crushing box (3), and the crushing mechanism is used for crushing building garbage.
2. The construction waste crusher with a screening structure as claimed in claim 1, wherein: rubbing crusher constructs including pivot (5), crushing sword (6), driving motor (4) and driving belt (8), pivot (5) are rotated and are installed in crushing case (3) and the one end of pivot (5) is passed and are smashed case (3), smash sword (6) and install on pivot (5), driving motor (4) are installed on backup pad (1) and are located outside smashing case (3), driving belt (8) cover is established between the output shaft of driving motor (4) and pivot (5).
3. The construction waste crusher with a screening structure as claimed in claim 2, wherein: fixedly connected with is located belt pulley (7) outside smashing case (3) on pivot (5), install belt pulley (7) on the output shaft of driving motor (4) equally, the both ends cover of driving belt (8) is established outside two belt pulleys (7).
4. The construction waste crusher with a screening structure as claimed in claim 1, wherein: the utility model discloses a crushing box, including support column (2), crushing case (3), storage box, backup pad (1) and support column (2), be equipped with the opening on the backup pad (1) of support column (2) top, crushing case (3) pass the opening, the storage box is installed to the bottom of crushing case (3), storage box and backup pad (1) sliding connection who is located support column (2) below.
5. The construction waste crusher with a screening structure as claimed in claim 2, wherein: the driving motor (4) is connected to the supporting plate (1) through bolts.
